M8-M100 Metric Thread and UNC Thread Type G80 Swivel Hoist Ring

Brand:
DAWSON/OEM
Code:
DS-0831
Size:
M8-M100

Availability:

Quantity:



Inquire Add to Basket

Product Description

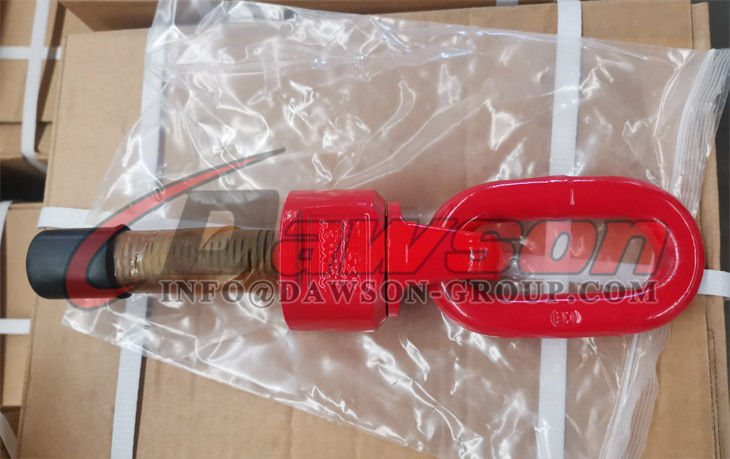

M8-M100 Metric Thread and UNC Thread Type G80 Swivel Hoist Ring

- Dawson Group Ltd. - China Manufacturer Supplier, Factory

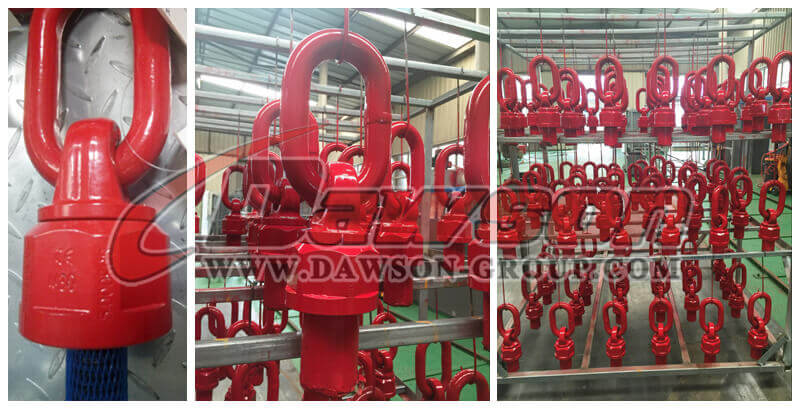

G80 Swivel Hoist Ring - Dawson Group - China Factory

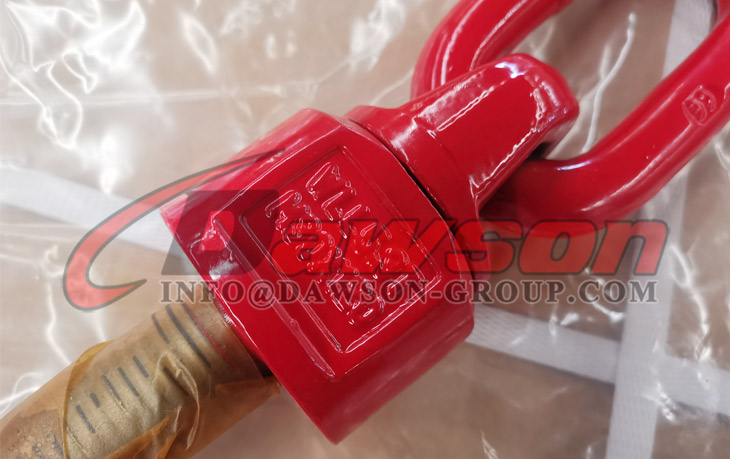

G80 Swivel Hoist Ring - China Factory - Dawson Group Ltd. - China Manufacturer, Factory, Supplier

Metric thread Lifting Points:

Item no	Size	WLL/kg	Technical parameter/mm							Weight/kg

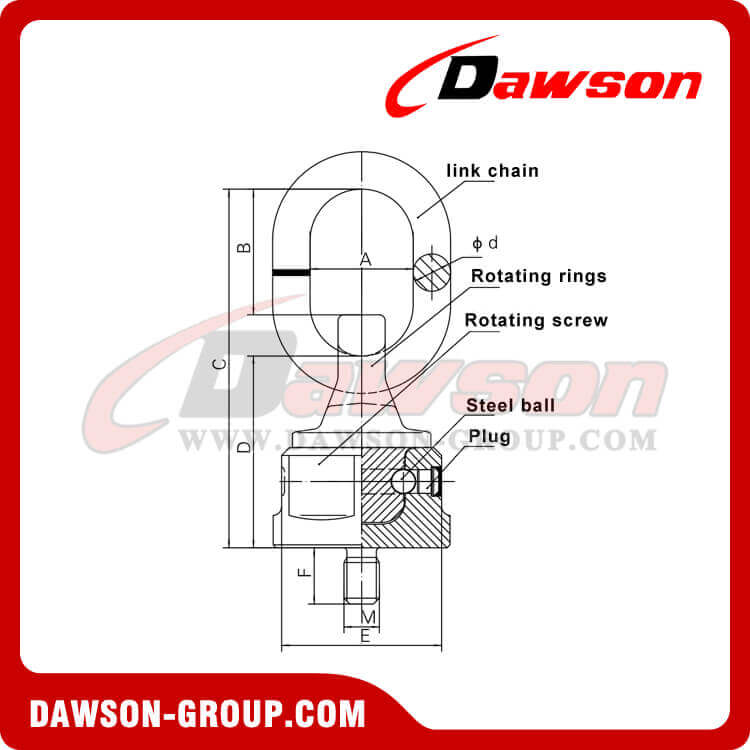

Item no	Size	WLL/kg	A	B	C	D	E	Φ d	F	Weight/kg
DS-0831-008	M8x1.25-6g	400	30	42	96	44	37	13	13	0.41
DS-0831-010	M10x1.5-6g	500	30	42	96	44	37	13	19	0.43
DS-0831-012	M12x1.75-6g	1050	30	42	96	44	37	13	19	0.70
DS-0831-014	M14x2.0-6g	1150	30	42	96	44	37	13	31.8	0.75
DS-0831-016	M16x2.0-6g	1900	30	42	96	44	37	13	31.8	1.90
DS-0831-020	M20x2.5-6g	2150	40	67	160	75.5	64.3	19.1	38.1	2.21
DS-0831-022	M22x2.5	2250	40	67	160	75.5	64.3	19.1	38.1	2.21
DS-0831-024	M24x3.0-6g	4200	40	67	160	75.5	64.3	19.1	38.1	2.21
DS-0831-030	M30x3.5-6g	5000	50.8	95	205	90	74	22.2	50	3.86
DS-0831-033	M33x3.5-6g	7000	50.8	95	205	90	74	22.2	50	3.86
DS-0831-036	M36x4.0-6g	8000	50.8	95	205	90	74	22.2	54	3.86
DS-0831-039	M39x4.0-6g	8000	50.8	95	205	90	74	22.2	58	3.86
DS-0831-042	M42x4.5-6g	10000	63	108	230	100	85	25	63	6.08
DS-0831-045	M45x4.5-6g	10000	63	108	230	100	85	25	68	6.08
DS-0831-048	M48x5.0-6g	10000	63	108	230	100	85	25	68	6.08
DS-0831-052	M52x5.0-6g	15000	70	120	278	132	95	32	84	10.80
DS-0831-056	M56x5.5-6g	15000	70	120	278	132	95	32	84	10.80
DS-0831-060	M60x5.5-6g	15000	70	120	278	132	95	32	90	10.80
DS-0831-064	M64x6.0-6g	15000	70	120	278	132	95	32	95	10.80
DS-0831-072	M72x6.0-6g	25000	80	125	331	166	130	40	108	22.80
DS-0831-080	M80x6.0-6g	30000	80	125	331	166	130	40	120	23.90
DS-0831-090	M90x6.0-6g	35000	80	125	331	166	130	40	135	25.90
DS-0831-0100	M100x6.0-6g	49000	80	125	331	166	130	40	135	25.90

UNC thread LIfting Points:

Item no	Size	WLL/kg	Technical parameter/mm							Weight/kg
Item no	Size	WLL/kg	A	B	C	D	E	Φ d	F	Weight/kg
DS-0831-5/16	5/16”-18UNC	400	30	42	96	44	37	13	13	0.41
DS-0831-3/8	3/8”-16UNC	500	30	42	96	44	37	13	19	0.43
DS-0831-7/16	7/16”-14UNC	1050	30	42	96	44	37	13	19	0.70
DS-0831-1/2	1/2”-13UNC	1150	30	42	96	44	37	13	31.8	0.75
DS-0831-5/8	5/8”-11UNC	1900	30	42	96	44	37	13	31.8	0.90
DS-0831-3/4	3/4”-10UNC	2150	40	67	160	75.5	64.3	19.1	38.1	2.21
DS-0831-1	1”-8UNC	4200	40	67	160	75.5	64.3	19.1	38.1	2.21
DS-0831-1-1/4	1-1/4”-7UNC	7000	50.8	95	205	90	74	22.2	50.8	3.83
DS-0831-1-1/2	1-1/2”-6UNC	8000	50.8	95	205	90	74	22.2	54	3.83
DS-0831-1-3/4	1-3/4”-5UNC	10000	63	108	230	100	85	25	68	6.08
DS-0831-2	2”-4 1/2UNC	15000	63	108	230	100	85	25	76.2	6.08
DS-0831-2-1/2	2-1/2”-4UNC	15000	70	120	278	132	95	32	101.6	10.80
DS-0831-3	3”-4UNC	25000	80	125	331	166	130	40	108	22.80
DS-0831-3-1/2	3-1/2”-4UNC	35000	80	125	331	166	130	40	135	25.90
DS-0831-4	4”-4UNC	49000	80	125	331	166	130	40	135	26.00

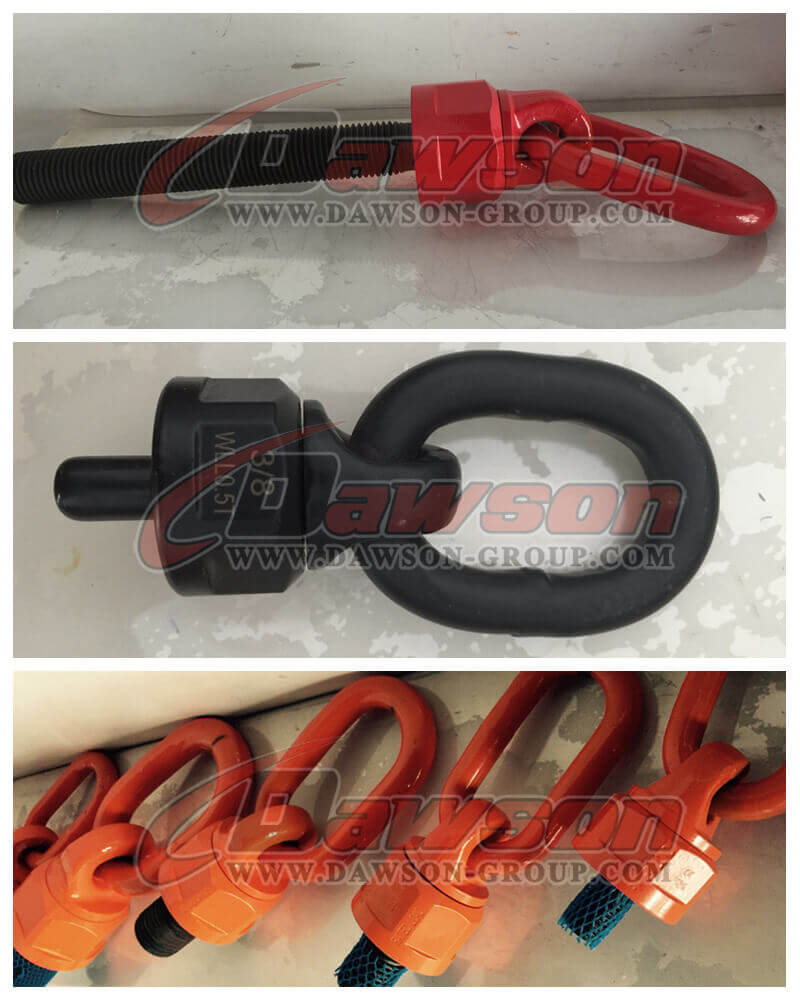

Brief Introduction:

Forged super alloy steel-Quenched Tempered.

Individually proof test at 2.5 times working load limit.

Fatigue tested at 1.5 times working load limit for 20000 cycles.

Breaking test magnaflux crack detection.

All load pins are 100% individually inspected and tested.

Grade 100 lifting point are 360°rotation with 90°pivot function.

Rated at 100% at 90°angle.

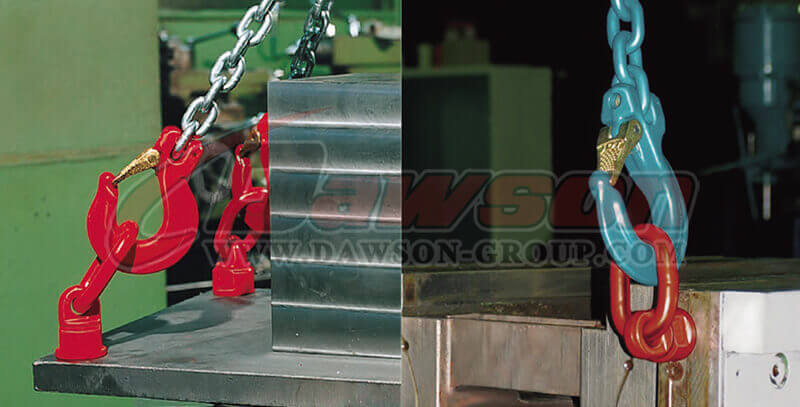

Swivel Hoist Ring Lifting Force Form:

Force form	Number of limb	Load direction	M8	M10	M12	M14	M16	M20	M24	M30	M33	M36	M39	M42	M48	M52	M56	M64	M72	M80	M90	M100
	1	0°	0.3	0.45	0.5	1.12	1.12	2.15	4.2	5	7	8	8	10	10	15	15	15	25	30	35	49
	2	0°	0.6	0.9	1	2.2	2.2	4.4	4.5	10	14	16	16	20	20	30	30	30	50	60	70	98
	1	90°	0.3	0.45	0.5	1.12	1.12	2.15	2.25	5	7	8	8	10	10	15	15	15	25	30	35	49
	2	90°	0.6	0.9	1	2.2	2.2	4.4	4.5	10	14	16	16	20	20	30	30	30	50	60	70	98
	2	0-45°	0.42	0.6	0.7	1.6	1.6	3	5.8	7	9.8	11.2	11.2	14	14	21	21	21	35	42	49	68
	2	45-60°	0.3	0.45	0.5	1.12	1.12	2.15	2.25	5	7	8	8	10	10	15	15	15	25	30	35	49
	2	asymmetric	0.3	0.45	0.5	1.12	1.12	2.15	2.25	5	7	8	8	10	10	15	15	15	25	30	35	49
	3-4	0-45°	0.63	1.9	1	2.3	2.3	4.5	8.8	10.5	14.7	16.8	16.8	21	21	31.5	31.5	31.5	52.5	63	73.5	102
	3-4	45-60°	0.45	0.67	0.75	1.68	1.68	3.22	6.3	7.5	10.5	12	12	15	15	22.5	22.5	22.5	37.5	45	52.5	73.5
	3-4	asymmetric	0.3	0.45	0.5	1.12	1.12	2.15	2.25	5	7	8	8	10	10	15	15	15	25	30	35	49
