G80 M8-M100 Lifting Screw Point Female Type

G80 M8-M100 Lifting Screw Point Female Type, G80 Alloy Steel Swivel Hoist Ring for Lifting, Grade 80 Screw Type Swivel Lifting Point

- Dawson Group Ltd. - China Manufacturer Supplier, Factory




ITEM NO.	WLL/T	Thread/M	Dimensional Parameters   mm								Weight/KG
			E	A±2	B±3	C	D	F±3	G	K
DS0832-M8	0.4	M8×1.25	15	30	43.5	82	12	125.5	40	37	0.7
DS0832-M10	0.6	M10×1.5	15	30	43.5	82	12	125.5	40	37	0.7
DS0832-M12	0.7	M12×1.75	15	30	43.5	82	12	125.5	40	37	0.7
DS0832-M14	1.25	M14×2.0	20	30	43.5	82	12	125.5	40	37	0.7
DS0832-M16	1.5	M16×2.0	20	30	43.5	82	12	125.5	40	37	0.7
DS0832-M18	2.0	M18×2.5	25	40	67	128	20	195	70	64.5	3.2
DS0832-M20	2.5	M20×2.5	25	40	67	128	20	195	70	64.5	3.2
DS0832-M22	2.5	M22×2.5	25	40	67	128	20	195	70	64.5	3.2
DS0832-M24	4	M24×3.0	30	40	67	128	20	195	70	64.5	3.2
DS0832-M30	6	M30×3.5	40	51	95	164	22	259	79	74	5.3
DS0832-M33	7.5	M33×3.5	40	51	95	164	22	259	79	74	5.3
DS0832-M36	10	M36×4.0	45	51	95	164	22	259	79	74	5.2
DS0832-M39	10	M39×4.0	45	51	95	164	22	259	79	74	5.1
DS0832-M42	13	M42×4.5	63	65	108	190.5	26	298.5	93	85	8.3
DS0832-M45	13	M45×4.5	68	65	108	190.5	26	298.5	93	85	8.1
DS0832-M48	14	M48×5.0	68	65	108	190.5	26	298.5	93	85	8
DS0832-M52	20	M52×5.0	84	70	120	254	32	374	105	95	13.8
DS0832-M56	20	M56×5.5	84	70	120	254	32	374	105	95	13.5
DS0832-M60	20	M60×5.5	90	70	120	254	32	374	105	95	13.2
DS0832-M64	20	M64×6.0	95	70	120	254	32	374	105	95	12.9
DS0832-M72	31.5	M72×6.0	108	90	138	347	48	485	169	155	48
DS0832-M80	35	M80×6.0	120	90	138	352	48	490	169	155	48
DS0832-M90	40	M90×6.0	135	90	138	388	48	526	169	155	52
DS0832-M100	40	M100×6.0	135	90	138	388	48	526	169	155	50

Safety factor 4:1; Bolt length and thread specifications can be made according to requirements

Product specifications:

M8 G80 Swivel Lifting Screw Point, M16 G80 Swivel Lifting Screw Point, M18 G80 Swivel Lifting Screw Point, M20 G80 Swivel Lifting Screw Point, M22 G80 Swivel Lifting Screw Point, M24 G80 Swivel Lifting Screw Point, M30 G80 Swivel Lifting Screw Point, M33 G80 Swivel Lifting Screw Point, M36 G80 Swivel Lifting Screw Point, M39 G80 Swivel Lifting Screw Point, M42 G80 Swivel Lifting Screw Point, M45 G80 Swivel Lifting Screw Point, M48 G80 Swivel Lifting Screw Point, M52 G80 Swivel Lifting Screw Point, M56 G80 Swivel Lifting Screw Point, M60 G80 Swivel Lifting Screw Point, M64 G80 Swivel Lifting Screw Point, M72 G80 Swivel Lifting Screw Point, M80 G80 Swivel Lifting Screw Point, M90 G80 Swivel Lifting Screw Point, M100 G80 Swivel Lifting Screw Point

M8 Grade 80 Swivel Hoist Ring Grade 80 Swivel Hoist Ring, M10 Grade 80 Swivel Hoist Ring, M12 Grade 80 Swivel Hoist Ring, M14 Grade 80 Swivel Hoist Ring, M16 Grade 80 Swivel Hoist Ring, M18 Grade 80 Swivel Hoist Ring, M20 Grade 80 Swivel Hoist Ring, M22 Grade 80 Swivel Hoist Ring, M24 Grade 80 Swivel Hoist Ring, M30 Grade 80 Swivel Hoist Ring, M33 Grade 80 Swivel Hoist Ring, M36 Grade 80 Swivel Hoist Ring, M39 Grade 80 Swivel Hoist Ring, M42 Grade 80 Swivel Hoist Ring, M45 Grade 80 Swivel Hoist Ring, M48 Grade 80 Swivel Hoist Ring, M52 Grade 80 Swivel Hoist Ring, M56 Grade 80 Swivel Hoist Ring, M60 Grade 80 Swivel Hoist Ring, M64 Grade 80 Swivel Hoist Ring, M72 Grade 80 Swivel Hoist Ring, M80 Grade 80 Swivel Hoist Ring, M90 Grade 80 Swivel Hoist Ring, M100 Grade 80 Swivel Hoist Ring

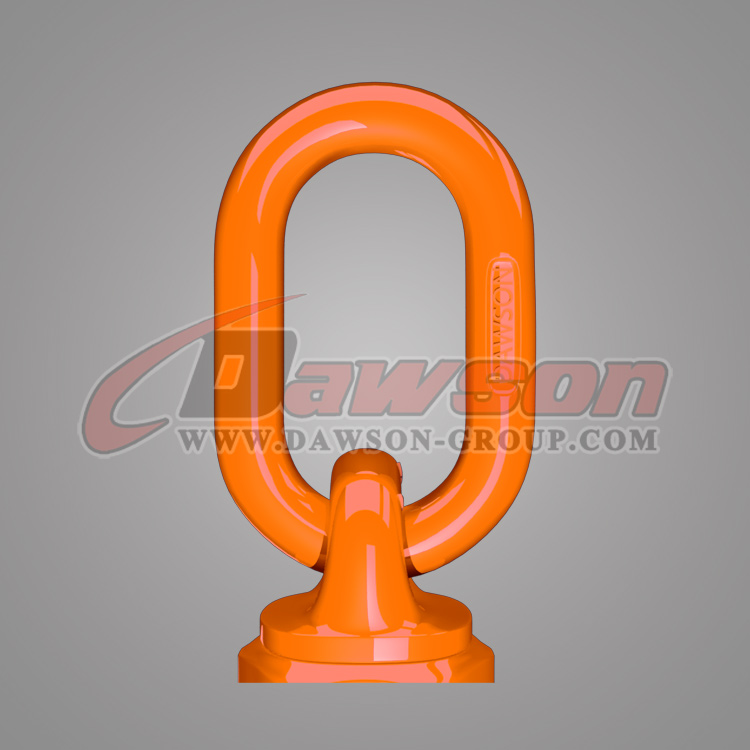

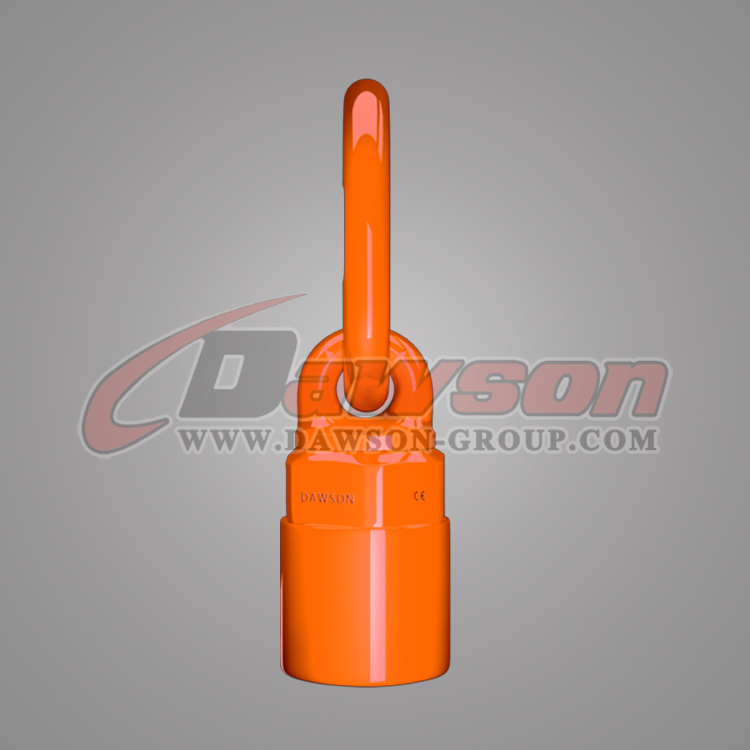

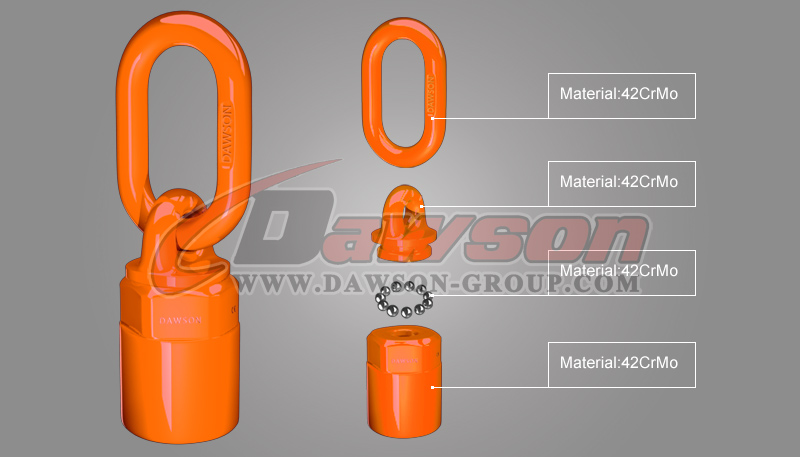

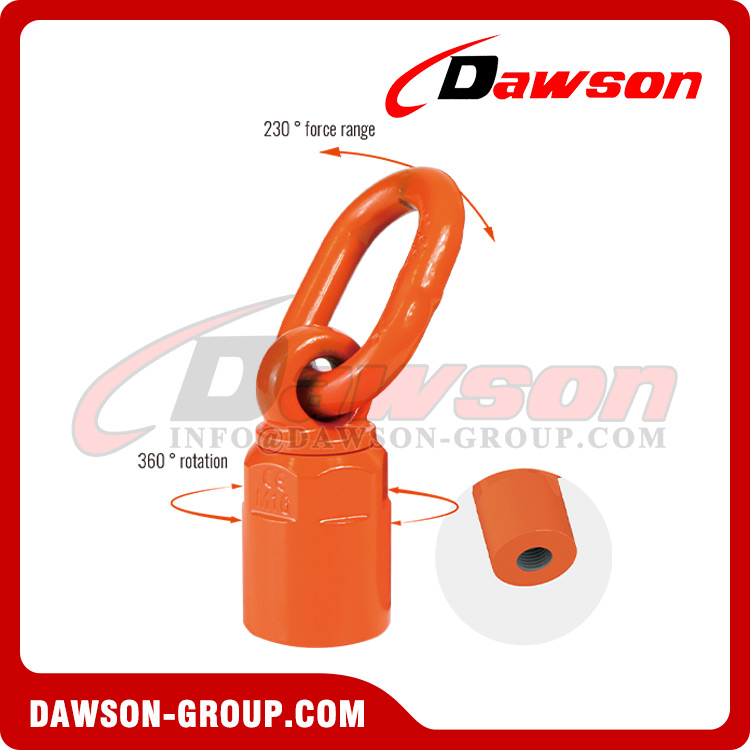

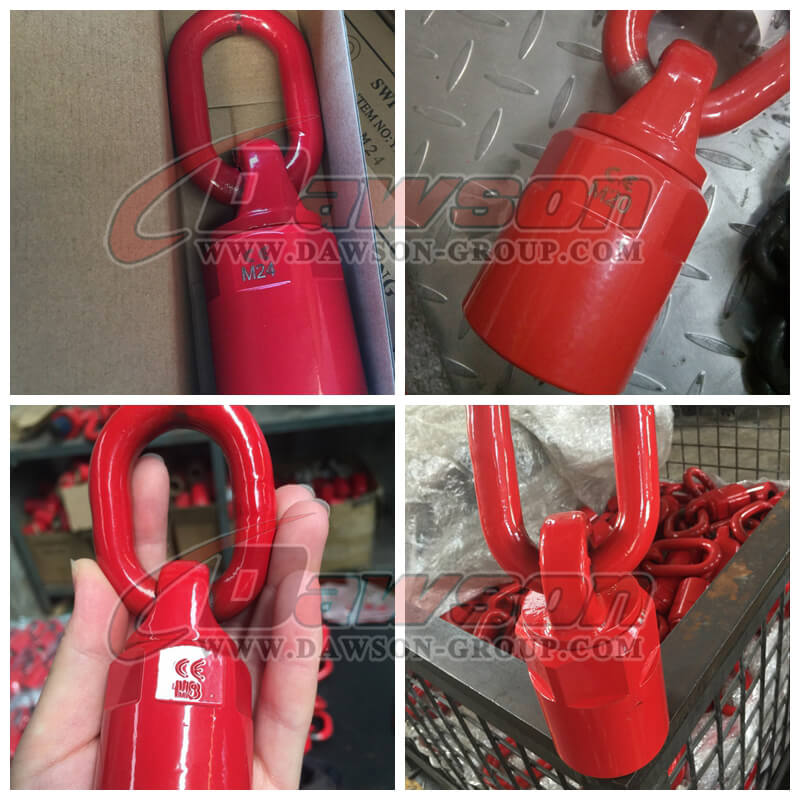

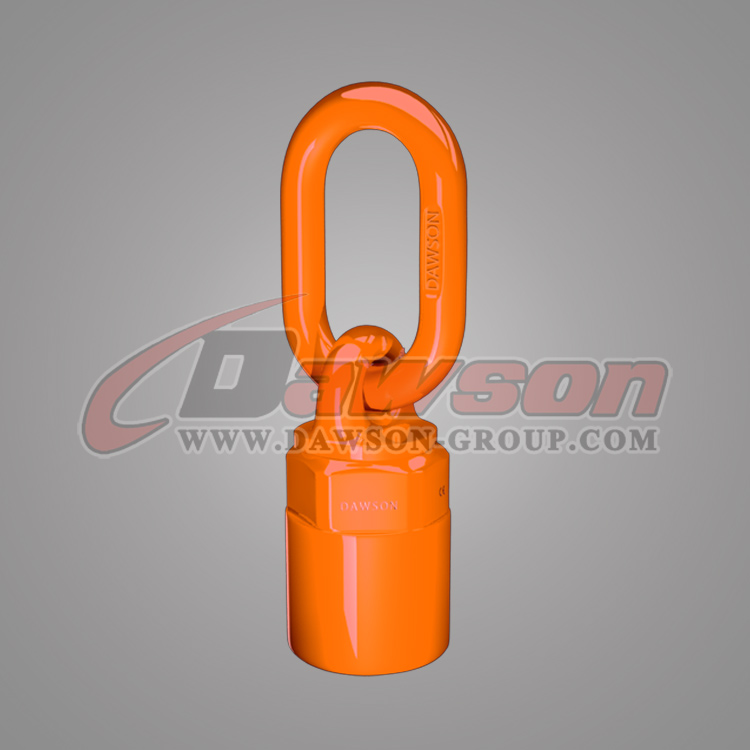

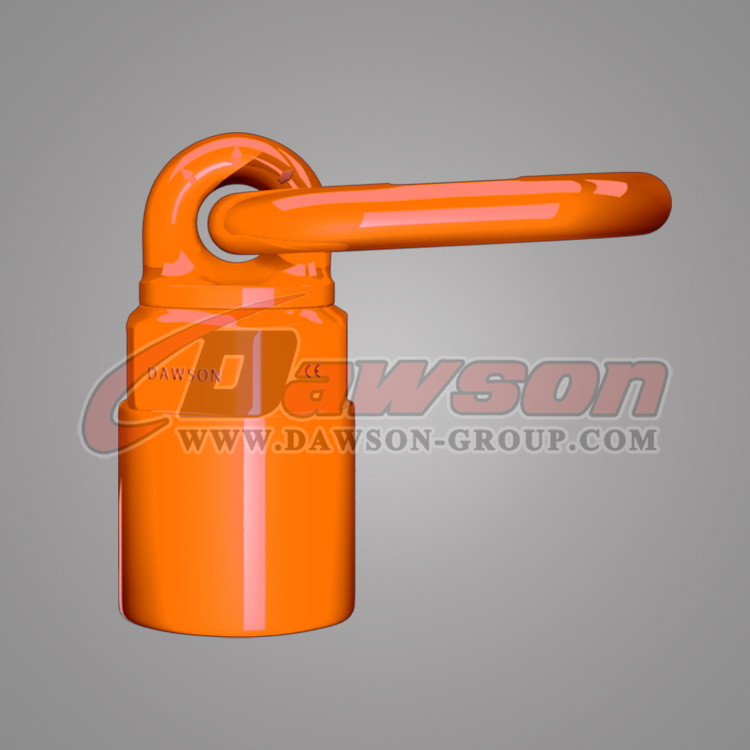

Products Show:








Other Related Products Show:

G80 Lifting Points Catalogues Download:

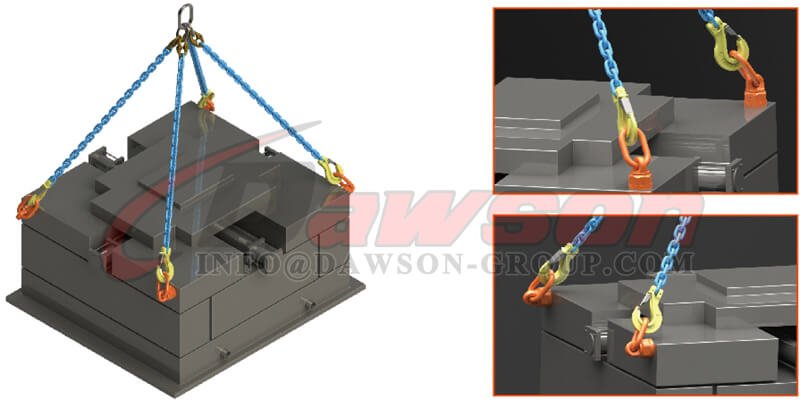

Application of G80 Lifting Points:

We have any other related products, if you have any intrest, please contact us, info@dawson-group.com!
