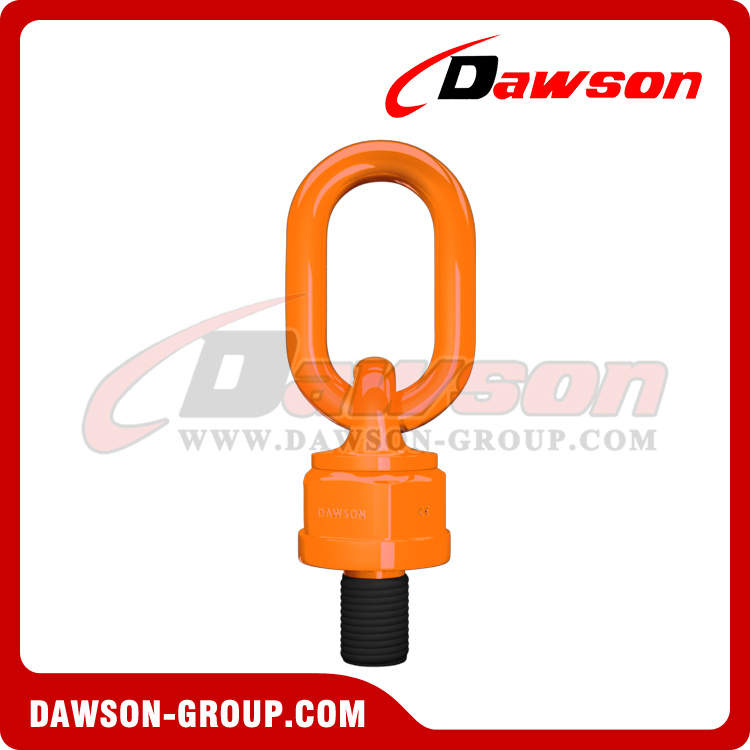

DS303 G80 Lifting Screw Point

Forged super alloy steel - Quenched and Tempered.
Individually proof test at 2.5 times Working Load Limit.
Fatiuge tested at 1.5 times Working Load Limit for 20000 cycles.
Breakage test.
100% magnaflux crack detection.
Surface finish: Powder plastified.
Colour code:Red RAL3020/Yellow RAL1003
  • DAWSON/OEM

  • DS303

  • M8 - M64

Availability:
Quantity:

DS303 G80 Lifting Screw Point, G80 Alloy Steel Swivel Hoist Ring for LiftingGrade 80 Screw Type Swivel Lifting Point

- Dawson Group Ltd. - China Manufacturer, Supplier, Factory

DS303 G80 LIFTING SCREW POINT - DAWSON GROUP LTD. - CHINA MANUFACTURER, SUPPLIER, FACTORY   DS303 G80 Lifting Screw Point - Dawson Group Ltd. - China Manufacturer Supplier, Factory

G80 Lifting Screw Point - China Supplier   G80 Lifting Screw Point, Grade 80 Swivel Lifting Point - China Factory

Forged super alloy steel - Quenched and Tempered.

Individually proof test at 2.5 times Working Load Limit.

Fatiuge tested at 1.5 times Working Load Limit for 20000 cycles.

Breakage test.

100% magnaflux crack detection.

Surface finish: Powder plastified.

Colour code:Red RAL3020/Yellow RAL1003

WLL at 0° and WLL 90°.

DS303 G80 LIFTING SCREW POINT WLL at 0° and WLL 90° - DAWSON GROUP LTD. - CHINA MANUFACTURER, SUPPLIER, FACTORY G80 LIFTING SCREW POINT WLL at 0° and WLL 90° - DAWSON GROUP LTD. - CHINA MANUFACTURER, SUPPLIER, FACTORY
Item No. Weight/kg WLL/T
90°
B.L/T
E B±0.5 C G±1.5 T±1.5 A±5 W±5 Φ±2 G±1 S±0.8
8-DS303-M8×13 0.45 0.3 0.6 M8×13 36 16.5 52 42.8 55 30 14 30 1
8-DS303-M8×18 0.45 0.3 0.6 M8×18 36 16.5 52 42.8 55 30 14 30 1
8-DS303-M8×20 0.45 0.3 0.6 M8×20 36 16.5 52 42.8 55 30 14 30 1
8-DS303-M8×23 0.45 0.3 0.6 M8×23 36 16.5 52 42.8 55 30 14 30 1
8-DS303-M8×30 0.45 0.3 0.6 M8×30 36 16.5 52 42.8 55 30 14 30 1
8-DS303-M8×32 0.45 0.3 0.6 M8×32 36 16.5 52 42.8 55 30 14 30 1
8-DS303-M8×43 0.46 0.3 0.6 M8×43 36 16.5 52 42.8 55 30 14 30 1
8-DS303-M10×10 0.45 0.5 1 M10×10 36 16.5 52 42.8 55 30 14 30 1
8-DS303-M10×15 0.45 0.5 1 M10×15 36 16.5 52 42.8 55 30 14 30 1
8-DS303-M10×18 0.45 0.5 1 M10×18 36 16.5 52 42.8 55 30 14 30 1
8-DS303-M10×20 0.45 0.5 1 M10×20 36 16.5 52 42.8 55 30 14 30 1
8-DS303-M10×25 0.45 0.5 1 M10×25 36 16.5 52 42.8 55 30 14 30 1
8-DS303-M10×27 0.46 0.5 1 M10×27 36 16.5 52 42.8 55 30 14 30 1
8-DS303-M10×30 0.46 0.5 1 M10×30 36 16.5 52 42.8 55 30 14 30 1
8-DS303-M10×40 0.46 0.5 1 M10×40 36 16.5 52 42.8 55 30 14 30 1
8-DS303-M10×50 0.47 0.5 1 M10×50 36 16.5 52 42.8 55 30 14 30 1
8-DS303-M10×90 0.5 0.5 1 M10×90 36 16.5 52 42.8 55 30 14 30 1
8-DS303-M12×18 0.46 0.5 1 M12×18 36 16.5 52 42.8 55 30 14 30 1
8-DS303-M12×20 0.46 0.5 1 M12×20 36 16.5 52 42.8 55 30 14 30 1
8-DS303-M12×27 0.46 0.5 1 M12×27 36 16.5 52 42.8 55 30 14 30 1
8-DS303-M12×30 0.47 0.5 1 M12×30 36 16.5 52 42.8 55 30 14 30 1
8-DS303-M12×31 0.47 0.5 1 M12×31 36 16.5 52 42.8 55 30 14 30 1
8-DS303-M12×35 0.47 0.5 1 M12×35 36 16.5 52 42.8 55 30 14 30 1
8-DS303-M12×40 0.47 0.5 1 M12×40 36 16.5 52 42.8 55 30 14 30 1
8-DS303-M12×45 0.48 0.5 1 M12×45 36 16.5 52 42.8 55 30 14 30 1
8-DS303-M12×48 0.48 0.5 1 M12×48 36 16.5 52 42.8 55 30 14 30 1
8-DS303-M12×110 0.54 0.5 1 M12×110 36 16.5 52 42.8 55 30 14 30 1
8-DS303-M14×20 0.49 1.12 2 M14×20 36 16.5 52 42.8 55 30 14 30 1
8-DS303-M16×20 0.47 1.12 2 M16×20 36 16.5 52 42.8 55 30 14 30 1
8-DS303-M16×24 0.48 1.12 2 M16×24 36 16.5 52 42.8 55 30 14 30 1
8-DS303-M16×27 0.49 1.12 2 M16×27 36 16.5 52 42.8 55 30 14 30 1
8-DS303-M16×30 0.49 1.12 2 M16×30 36 16.5 52 42.8 55 30 14 30 1
8-DS303-M16×35 0.49 1.12 2 M16×35 36 16.5 52 42.8 55 30 14 30 1
8-DS303-M16×40 0.50 1.12 2 M16×40 36 16.5 52 42.8 55 30 14 30 1
8-DS303-M16×46 0.51 1.12 2 M16×46 36 16.5 52 42.8 55 30 14 30 1
8-DS303-M16×50 0.52 1.12 2 M16×50 36 16.5 52 42.8 55 30 14 30 1
8-DS303-M16×64 0.54 1.12 2 M16×64 36 16.5 52 42.8 55 30 14 30 1
8-DS303-M16×80 0.57 1.12 2 M16×80 36 16.5 52 42.8 55 30 14 30 1
8-DS303-M16×100 0.60 1.12 2 M16×100 36 16.5 52 42.8 55 30 14 30 1
8-DS303-M16×120 0.63 1.12 2 M16×120 36 16.5 52 42.8 55 30 14 30 1
8-DS303-M16×300 0.91 1.12 2 M16×300 36 16.5 52 42.8 55 30 14 30 1
8-DS303-M18×30 0.95 2 4 M18×30 49.5 19 69 57 70 35 16 41 1
8-DS303-M20×20 0.97 2 4 M20×20 49.5 19 69 57 70 35 16 41 1
8-DS303-M20×30 0.99 2 4 M20×30 49.5 19 69 57 70 35 16 41 1
8-DS303-M20×35 1.01 2 4 M20×35 49.5 19 69 57 70 35 16 41 1
8-DS303-M20×40 1.02 2 4 M20×40 49.5 19 69 57 70 35 16 41 1
8-DS303-M20×43 1.02 2 4 M20×43 49.5 19 69 57 70 35 16 41 1
8-DS303-M20×50 1.04 2 4 M20×50 49.5 19 69 57 70 35 16 41 1
8-DS303-M20×55 1.05 2 4 M20×55 49.5 19 69 57 70 35 16 41 1
8-DS303-M20×75 1.10 2 4 M20×75 49.5 19 69 57 70 35 16 41 1
8-DS303-M20×80 1.12 2 4 M20×80 49.5 19 69 57 70 35 16 41 1
8-DS303-M20×120 1.21 2 4 M20×120 49.5 19 69 57 70 35 16 41 1
8-DS303-M24×30 1.33 3.15 6.3 M24×30 57 22 79.5 67 85 40 18 46 1.5
8-DS303-M24×36 1.35 3.15 6.3 M24×36 57 22 79.5 67 85 40 18 46 1.5
8-DS303-M24×38 1.36 3.15 6.3 M24×38 57 22 79.5 67 85 40 18 46 1.5
8-DS303-M24×40 1.36 3.15 6.3 M24×40 57 22 79.5 67 85 40 18 46 1.5
8-DS303-M24×45 1.38 3.15 6.3 M24×45 57 22 79.5 67 85 40 18 46 1.5
8-DS303-M24×50 1.4 3.15 6.3 M24×50 57 22 79.5 67 85 40 18 46 1.5
8-DS303-M24×73 1.48 3.15 6.3 M24×73 57 22 79.5 67 85 40 18 46 1.5
8-DS303-M24×90 1.54 3.15 6.3 M24×90 57 22 79.5 67 85 40 18 46 1.5
8-DS303-M24×96 1.56 3.15 6.3 M24×96 57 22 79.5 67 85 40 18 46 1.5
8-DS303-M24×120 1.65 3.15 6.3 M24×120 57 22 79.5 67 85 40 18 46 1.5
8-DS303-M24×300 2.29 3.15 6.3 M24×300 57 22 79.5 67 85 40 18 46 1.5
8-DS303-M27×35 1.47 3.15 6.3 M27×35 57 22 79.5 67 85 40 18 46 1.5
8-DS303-M30×35(5T) 2.3 5.3 10.6 M30×35 66 23.5 98 82 85 40 20 54 1.5
8-DS303-M30×38(5T) 2.32 5.3 10.6 M30×38 66 23.5 98 82 85 40 20 54 1.5
8-DS303-M30×45(5T) 2.36 5.3 10.6 M30×45 66 23.5 98 82 85 40 20 54 1.5
8-DS303-M30×60(5T) 2.49 5.3 10.6 M30×60 66 23.5 98 82 85 40 20 54 1.5
8-DS303-M30×75(5T) 2.53 5.3 10.6 M30×75 66 23.5 98 82 85 40 20 54 1.5
8-DS303-M30×120(5T) 2.78 5.3 10.6 M30×120 66 23.5 98 82 85 40 20 54 1.5
8-DS303-M30×160(5T) 3 5.3 10.6 M30×160 66 23.5 98 82 85 40 20 54 1.5
8-DS303-M30×35(8T) 3.73 8 11.8 M30×35 80 28 114 94 115 50 22 64 2
8-DS303-M30×38(8T) 3.75 8 11.8 M30×38 80 28 114 94 115 50 22 64 2
8-DS303-M30×45(8T) 3.79 8 11.8 M30×45 80 28 114 94 115 50 22 64 2
8-DS303-M30×50(8T) 3.82 8 11.8 M30×50 80 28 114 94 115 50 22 64 2
8-DS303-M30×55(8T) 3.84 8 11.8 M30×55 80 28 114 94 115 50 22 64 2
8-DS303-M30×98(8T) 4.08 8 11.8 M30×98 80 28 114 94 115 50 22 64 2
8-DS303-M30×120(8T) 4.21 8 11.8 M30×120 80 28 114 94 115 50 22 64 2
8-DS303-M30×140(8T) 4.32 8 11.8 M30×140 80 28 114 94 115 50 22 64 2
8-DS303-M36×50 3.88 8 11.8 M36×50 80 28 111 92 115 50 22 65 2
8-DS303-M36×53 3.9 8 11.8 M36×53 80 28 111 92 115 50 22 65 2
8-DS303-M36×60 3.96 8 11.8 M36×60 80 28 111 92 115 50 22 65 2
8-DS303-M36×90 4.2 8 11.8 M36×90 80 28 111 92 115 50 22 65 2
8-DS303-M36×128 4.5 8 11.8 M36×128 80 28 111 92 115 50 22 65 2
8-DS303-M36×140 4.6 8 11.8 M36×140 80 28 111 92 115 50 22 65 2
8-DS303-M36×160 4.76 8 11.8 M36×160 80 28 111 92 115 50 22 65 2
8-DS303-M36×220 5.24 8 11.8 M36×220 80 28 111 92 115 50 22 65 2
8-DS303-M36×300 5.88 8 11.8 M36×300 80 28 111 92 115 50 22 65 2
8-DS303-M36×330 6.12 8 11.8 M36×330 80 28 111 92 115 50 22 65 2
8-DS303-M36×400 6.67 8 11.8 M36×400 80 28 111 92 115 50 22 65 2
8-DS303-M39×50 3.95 8 11.8 M39×50 80 28 111 92 115 50 22 65 2
8-DS303-M39×60 4.04 8 11.8 M39×60 80 28 111 92 115 50 22 65 2
8-DS303-M39×90 4.32 8 11.8 M39×90 80 28 111 92 115 50 22 65 2
8-DS303-M42×50 4.46 10 15 M42×50 80 28 111 92 115 50 22 65 2.5
8-DS303-M42×60 4.57 10 15 M42×60 80 28 111 92 115 50 22 65 2.5
8-DS303-M42×63 4.6 10 15 M42×63 80 28 111 92 115 50 22 65 2.5
8-DS303-M42×130 5.33 10 15 M42×130 80 28 111 92 115 50 22 65 2.5
8-DS303-M42×160 5.66 10 15 M42×160 80 28 111 92 115 50 22 65 2.5
8-DS303-M42×180 5.87 10 15 M42×180 80 28 111 92 115 50 22 65 2.5
8-DS303-M45×60 4.7 10 15 M45×60 80 28 111 92 115 50 22 65 2.5
8-DS303-M48×50 4.63 10 15 M48×50 80 28 111 92 115 50 22 65 2.5
8-DS303-M48×60 4.77 10 15 M48×60 80 28 111 92 115 50 22 65 2.5
8-DS303-M48×70 4.91 10 15 M48×70 80 28 111 92 115 50 22 65 2.5
8-DS303-M48×72 4.94 10 15 M48×72 80 28 111 92 115 50 22 65 2.5
8-DS303-M48×110 5.48 10 15 M48×110 80 28 111 92 115 50 22 65 2.5
8-DS303-M48×160 6.19 10 15 M48×160 80 28 111 92 115 50 22 65 2.5
8-DS303-M48×245 7.39 10 15 M48×245 80 28 111 92 115 50 22 65 2.5
8-DS303-M56×84 11.8 15 25 M56×84 117 42 166 134 152 70 32 95 2.5
8-DS303-M64×95 12.5 15 25 M64×95 117 42 166 134 152 70 32 95 2.5

Ultimate load is 4 times the Working Load Limit.
