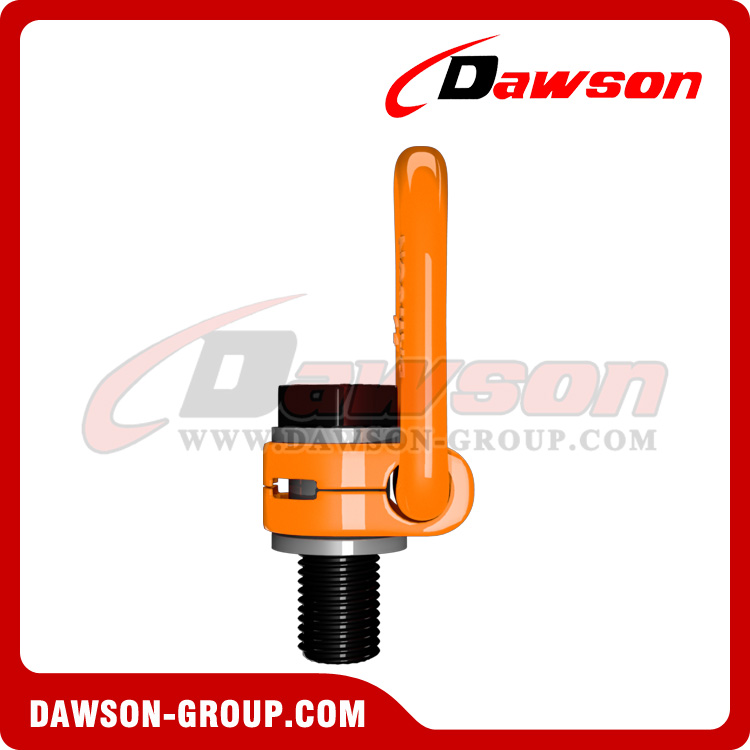

DS173 G80 Pivoting Lifting Screw

Forged super alloy steel - Quenched and Tempered.
Individually proof test at 2.5 times Working Load Limit.
Fatiuge tested at 1.5 times Working Load Limit for 20000 cycles.
Breakage test.
100% magnaflux crack detection.
Surface finish: Powder plastified.
Colour code:Red RAL3020/Yellow RAL1003

Brand: DAWSON/OEM
Code: DS173 G80 Pivoting Lifting Screw
Size: M8 - M64

Availability:

Quantity:


Inquire Add to Basket

Product Description

DS173 G80 Pivoting Lifting Screw, G80 Alloy Steel Swivel Hoist Ring for Lifting, Grade 80 Screw Type Swivel Lifting Point

- Dawson Group Ltd. - China Manufacturer, Supplier, Factory

G80 Pivoting Lifting Screw, Alloy Steel Rotation Side Pull Lifting Points - China Manufacturer Supplier DS173 G80 Pivoting Lifting Screw - Dawson Group Ltd. - China Manufacturer, Factory

G80 Pivoting Lifting Screw, Grade 80 Drop Forged Steel Rotation Side Pull Lifting Points - China Manufacturer Supplier, Factory
G80 Pivoting Lifting Screw, Alloy Steel Rotation Side Pull Lifting Points - China Supplier, Factory

DS173 G80 PIVOTING LIFTING SCREW - DAWSON GROUP LTD. - CHINA MANUFACTURER, SUPPLIER Grade 80 Alloy Steel Lifting point - Dawson Group Ltd. - China Manufacturer, Supplier, Factory

Metric Thread:

ITEM NO.	WLL/T	Thread M	Dimension(mm)											Locking Torque	Net Weight
ITEM NO.	WLL/T	Thread M	E	A	B	C	D	F	G	L	N	S	SW	Nm	Kg
8-DS173Y-M8	0.3	M8×1.25	11	34	37	42	14	98.5	57	42.5	31	6	13	10-40	0.5
8-DS173Y-M10	0.63	M10×1.5	16	34	37	44	14	98.5	57	40.5	31	6	16	10-40	0.5
8-DS173Y-M12	1	M12×1.75	18	34	37	45	14	98.5	57	39.5	31	8	18	15-40	0.5
8-DS173Y-M14	1.2	M14×2.0	21	34	37	48	14	98.5	57	36.5	31	10	24	30-100	0.5
8-DS173Y-M16	1.5	M16×2.0	24	34	37	48	14	98.5	57	36.5	31	10	24	45-130	0.5
8-DS173Y-M18	2	M18×2.5	26	50	54	58	16.5	143	82	68.5	45	12	30	100-170	1.5
8-DS173Y-M20	2.5	M20×2.5	30	50	54	58	16.5	143	82	68.5	45	12	30	100-170	1.5
8-DS173Y-M22	3	M22×2.5	30	50	54	61	16.5	143	82	65.5	45	14	36	100-170	1.5
8-DS173Y-M24	4	M24×3.0	36	50	54	61	16.5	143	82	65.5	45	14	36	190-280	1.5
8-DS173Y-M27	4	M27×3.0	38	60	65	82	22	170	99	66	59	17	46	250-500	3
8-DS173Y-M30	5	M30×3.5	48	60	65	82	22	170	99	66	59	17	46	270-600	3.5
8-DS173Y-M33	6	M33×3.5	54	60	65	85	22	170	99	63	59.5	22	55	270-600	3.5
8-DS173Y-M36S	7	M36×4.0	54	60	65	85	22	170	99	63	59.5	22	55	270-600	3.5
8-DS173Y-M36B	8	M36×4.0	62	77	85	104	27	226.5	123	95.5	69	22	55	270-600	6
8-DS173Y-M39	8	M39×4.0	62	77	85	104	27	226.5	123	95.5	69	22	55	350-800	6
8-DS173Y-M42S	10	M42×4.5	72	77	85	106	27	226.5	123	93.5	69	22	65	350-800	6.5
8-DS173Y-M42B	15	M42×4.5	63	95	104	117	36	257.5	158	104.5	98	22	65	350-800	11
8-DS173Y-M45	15	M45×4.5	63	95	104	117	36	257.5	158	104.5	98	22	65	350-800	11
8-DS173Y-M48	20	M48×5.0	72	95	104	120	36	257.5	158	101.5	98	27	75	350-800	12
8-DS173Y-M52	20	M52×5.0	72	95	104	120	36	257.5	158	101.5	98	27	75	350-900	12
8-DS173Y-M56	22	M56×5.5	84	95	104	117	36	257.5	158	104.5	98	27	85	350-900	15
8-DS173Y-M64	22.5	M64×6.0	100	114	104	148	36	266	158	82	109	32	95	500-1000	16.3

Ultimate load is 4 times the Working Load Limit.

The side pull force form rotating rings:

Lifting Method
Legs		1	2	1	2	2		2	3-4		3-4
Lifting Angle		0°	0°	90°	90°	0-45°	45-60°	Asymmetry	0-45°	45-60°	Asymmetry
Item No.	Thread M	WLL/T
8-DS173Y-M8	8	0.3	0.6	0.3	0.6	0.42	0.3	0.3	0.63	0.45	0.3
8-DS173Y-M10	10	0.63	1.26	0.63	1.26	0.88	0.63	0.63	1.32	0.95	0.63
8-DS173Y-M12	12	1	2	1	2	1.4	1	1	2.1	1.5	1
8-DS173Y-M14	14	1.2	2.4	1.2	2.4	1.7	1.2	1.2	2.5	1.8	1.2
8-DS173Y-M16	16	1.5	3	1.5	3	2.1	1.5	1.5	3.1	2.2	1.5
8-DS173Y-M18	18	2	4	2	4	2.8	2	2	4.2	3	2
8-DS173Y-M20	20	2.5	5	2.5	5	3.5	2.5	2.5	5.2	3.7	2.5
8-DS173Y-M22	22	3	6	3	6	4.2	3	3	6.3	4.5	3
8-DS173Y-M24	24	4	8	4	8	5.6	4	4	8.4	6	4
8-DS173Y-M27	27	4	8	4	8	5.6	4	4	8.4	6	4
8-DS173Y-M30	30	5	10	5	10	7	5	5	10.5	7.5	5
8-DS173Y-M33	33	6	12	6	12	8.5	6	6	12.7	9	6
8-DS173Y-M36S	36	7	14	7	14	9.8	7	7	14.7	10.5	7
8-DS173Y-M36B	36	8	16	8	16	11.2	8	8	16.8	12	8
8-DS173Y-M39	39	8	16	8	16	11.2	8	8	16.8	12	8
8-DS173Y-M42S	42	10	20	10	20	14	10	10	21	15	10
8-DS173Y-M42B	42	15	30	15	30	21	15	15	31.5	22.5	15
8-DS173Y-M45	45	15	30	15	30	21	15	15	31.5	22.5	15
8-DS173Y-M48	48	20	40	20	40	28	20	20	42	30	20
8-DS173Y-M52	52	20	40	20	40	28	20	20	42	30	20
8-DS173Y-M56	56	22	44	22	44	30.8	22	22	46.2	33	22
8-DS173Y-M64	64	22.5	45	22.5	45	31.5	22.5	22.5	47.25	33.75	22.5

UNC Thread:

ITEM NO.	WLL/T	Thread TPI	Dimension(mm)											Locking Torque	Net Weight
ITEM NO.	WLL/T	Thread TPI	E	A	B	C	D	F	G	L	N	S	SW	Nm	Kg
8-DS173Y-3/8	0.63	3/8-16	16	34	37	43	14	98.5	57	41.5	31	6	16	10-40	0.5
8-DS173Y-1/2	1	1/2-13	21	34	37	45	14	98.5	57	36.5	31	10	21	15-40	0.5
8-DS173Y-5/8	1.5	5/8-11	24	34	37	48	14	98.5	57	36.5	31	10	24	45-130	0.5
8-DS173Y-3/4	2.5	3/4-10	26	50	54	58	16.5	143	82	68.5	45	12	30	45-130	1.5
8-DS173Y-7/8	2.5	7/8-9	30	50	54	61	16.5	143	82	68.5	45	14	36	100-170	1.5
8-DS173Y-1	4	1-8	36	50	54	61	16.5	143	82	65.5	45	14	36	190-280	1.5
8-DS173Y-1-1/4	5	1-1/4-7	48	60	65	80	22	174	99	72	59.5	17	46	270-600	3.5
8-DS173Y-1-1/2	8	1-1/2-6	62	77	85	104	27	226.5	123	95.5	69	22	55	270-600	6
8-DS173Y-1-3/4	15	1-3/4-5	63	95	104	116	36	257.5	158	105.5	98	22	65	350-800	11
8-DS173Y-2	20	2-4-1/2	72	95	104	112	36	257.5	158	109.5	98	27	75	350-800	12

The side pull force form rotating rings:

Lifting Method
Legs		1	2	1	2	2		2	3-4		3-4
Lifting Angle		0°	0°	90°	90°	0-45°	45-60°	Asymmetry	0-45°	45-60°	Asymmetry
Item No.	Thread TPI	WLL/T
8-DS173Y-3/8	3/8	0.63	1.26	0.63	1.26	0.88	0.63	0.63	1.32	0.95	0.63
8-DS173Y-1/2	1/2	1	2	1	2	1.4	1	1	2.1	1.5	1
8-DS173Y-5/8	5/8	1.5	3	1.5	3	2.1	1.5	1.5	3.1	2.2	1.5
8-DS173Y-3/4	3/4	2.5	5	2.5	5	3.5	2.5	2.5	5.2	3.7	2.5
8-DS173Y-7/8	7/8	2.5	5	2.5	5	3.5	2.5	2.5	5.2	3.7	2.5
8-DS173Y-1	1	4	8	4	8	5.6	4	4	8.4	6	4
8-DS173Y-1-1/4	1-1/4	5	10	5	10	7	5	5	10.5	7.5	5
8-DS173Y-1-1/2	1-1/2	8	16	8	16	11.2	8	8	16.8	12	8
8-DS173Y-1-3/4	1-3/4	15	30	15	30	21	15	15	31.5	22.5	15
8-DS173Y-2	2	20	40	20	40	28	20	20	42	30	20
