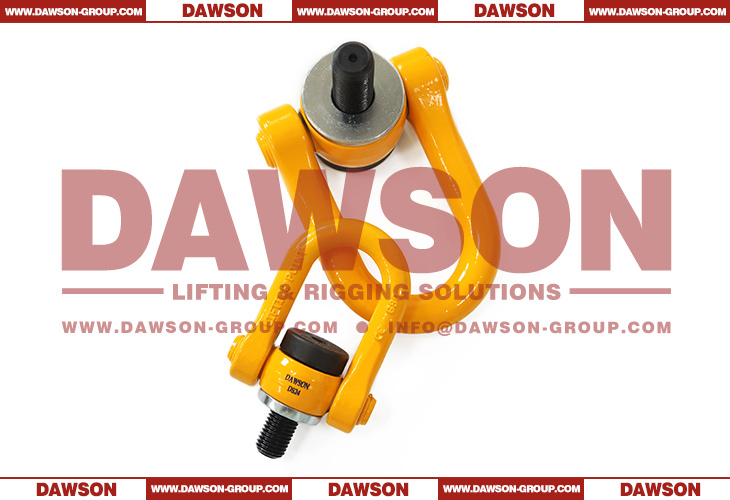

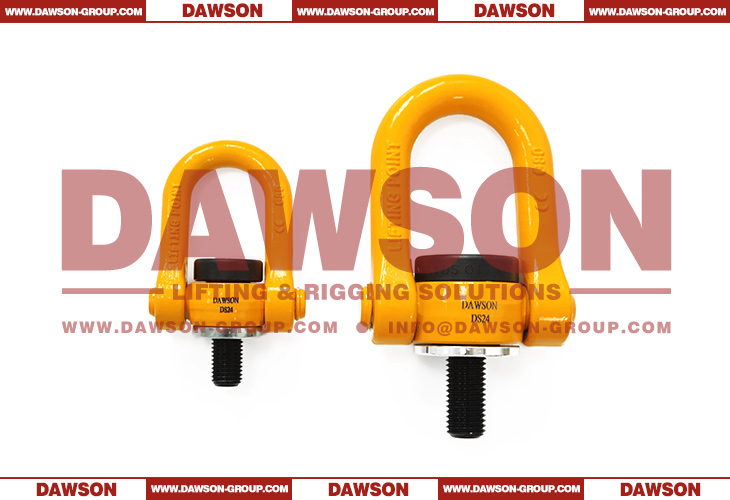

DAWSON M8-M100 Metric Thread Double Swivel Shackle G80 Swivel Hoist Ring

  • DAWSON/OEM

  • DS888YDS

  • M8-M100

Availability:
Quantity:

DAWSON M8-M100 Metric Thread Double Swivel Shackle G80 Swivel Hoist Ring, G80 Alloy Steel Swivel Hoist Ring for Lifting

- Dawson Group Ltd. - China Manufacturer Supplier, Factory

  G80 Metric Thread Swivel Hoist Ring, Grade 80 Swivel Lifting Point - China Factory     DAWSON Metric Thread Double Swivel Shackle G80 Swivel Hoist Ring - Dawson Group Ltd. - China Manufacturer, Supplier


Metric Thread:

Item No. WLL/T Thread M Technical parameter/mm Tightening Torque/Nm Weight/kg
L A±3 B±3 C D F K±3 H S
DS888YDS-M8 0.5 M8×1.25 12 50.5 37 76 14 101.5 49.5 38 8 10-40 0.8
DS888YDS-M10 0.7 M10×1.5 16 50.5 37 76 14 101.5 49.5 38 8 10-40 0.8
DS888YDS-M12 1 M12×1.75 18 50.5 37 76 14 101.5 49.5 38 8 15-40 0.8
DS888YDS-M14 1.5 M14×2.0 21 50.5 37 76 14 101.5 49.5 38 8 30-100 0.8
DS888YDS-M16 2 M16×2.0 24 50.5 37 76 14 101.5 49.5 38 8 45-130 0.8
DS888YDS-M18 2.5 M18×2.5 40 74.5 54 105 20 145 77 48 12 100-170 1.9
DS888YDS-M20 3 M20×2.5 40 74.5 54 105 20 145 77 48 12 100-170 2
DS888YDS-M22 3 M22×2.5 40 74.5 54 105 20 145 77 48 12 100-170 2.1
DS888YDS-M24 4.5 M24×3.0 40 74.5 54 105 20 145 77 48 12 190-280 2.5
DS888YDS-M27 5 M27×3.0 40 98.5 73 146 30 201.5 103.5 68 17 250-500 5.5
DS888YDS-M30 7.3 M30×3.5 45 98.5 73 146 30 201.5 103.5 68 17 270-600 5.5
DS888YDS-M33 8 M33×3.5 50 98.5 73 146 30 201.5 103.5 68 17 270-600 5.5
DS888YDS-M36 10 M36×4.0 54 98.5 73 146 30 201.5 103.5 68 17 270-600 5.5
DS888YDS-M39 10 M39×4.0 58 98.5 73 146 30 201.5 103.5 68 17 350-800 6
DS888YDS-M42 12.5 M42×4.5 63 98.5 73 146 30 201.5 103.5 68 17 350-800 6
DS888YDS-M45 15 M45×4.5 63 98.5 73 146 30 201.5 103.5 68 17 350-800 6
DS888YDS-M48S 16 M48×5.0 63 98.5 73 146 30 201.5 101.5 70 17 350-800 6.5
DS888YDS-M48B 20 M48×5.0 68 120 93 182 36 249 125 84 19 350-800 11.5
DS888YDS-M52 20 M52×5.0 68 120 93 182 36 249 125 84 19 350-900 12
DS888YDS-M56 25 M56×5.5 78 120 93 182 36 249 125 84 19 350-900 12
DS888YDS-M60 25 M60×5.5 90 120 93 182 36 253 125 88 19 350-600 13
DS888YDS-M64S 32 M64×6.0 90 120 93 182 36 253 125 88 19 500-1000 13
DS888YDS-M64B 33 M64×6.0 100 185 144 280 58 395 195 136 36 500-1000 42
DS888YDS-M72×4 35 M72×4.0 110 185 144 280 58 395 195 136 36 500-1200 43
DS888YDS-M72×6 35 M72×6.0 110 185 144 280 58 395 195 136 36 500-1200 43
DS888YDS-M80 40 M80×6.0 120 185 144 280 58 395 195 136 36 500-1200 44.5
DS888YDS-M90 45 M90×6.0 135 185 144 280 58 395 195 136 36 500-1500 46.5
DS888YDS-M100 50 M100×6.0 150 185 144 280 58 395 195 136 36 500-1700 49

Safety factor 4:1, bolt length and thread specifications can be made according to requirements;

Safety Information:

Lifting Method 1 2 3 4 5 6 7 8
Legs 1 2 1 2 2 2 3-4 3-4
Lifting Angle 90° 90° 0-45° 45-60° Asymmetry 0-45° 45-60° Asymmetry
Model No. Thread/M WLL/T
DS888YDS-M8 8 0.5 1 0.5 1 0.7 0.5 0.5 1.1 0.8 0.5
DS888YDS-M10 10 0.7 1.4 0.7 1.4 1 0.7 0.7 1.5 1.1 0.7
DS888YDS-M12 12 1 2 1 2 1.4 1 1 2.1 1.5 1
DS888YDS-M14 14 1.5 3 1.5 3 2.1 1.5 1.5 3.15 2.3 1.5
DS888YDS-M16 16 2 4 2 4 2.8 2 2 4.2 3 2
DS888YDS-M18 18 2.5 5 2.5 5 3.5 2.5 2.5 5.25 3.75 2.5
DS888YDS-M20 20 3 6 3 6 4.2 3 3 6.3 4.5 3
DS888YDS-M22 22 3 6 3 6 4.2 3 3 6.3 4.5 3
DS888YDS-M24 24 4.5 9 4.5 9 6.3 4.5 4.5 9.45 6.8 4.5
DS888YDS-M27 27 5 10 5 10 7 5 5 10.5 7.5 5
DS888YDS-M30 30 7.3 14.6 7.3 14.6 10.2 7.3 7.3 15.3 11 7.3
DS888YDS-M33 33 8 16 8 16 11.2 8 8 16.8 12 8
DS888YDS-M36 36 10 20 10 20 14 10 10 21 15 10
DS888YDS-M39 39 10 20 10 20 14 10 10 21 15 10
DS888YDS-M42 42 12.5 25 12.5 25 17.5 12.5 12.5 26.3 18.8 12.5
DS888YDS-M45 45 15 30 15 30 21 15 15 31.5 22.5 15
DS888YDS-M48S 48 16 32 16 32 22.4 16 16 33.5 24 16
DS888YDS-M48B 48 20 40 20 40 28 20 20 42 30 20
DS888YDS-M52 52 20 40 20 40 28 20 20 42 30 20
DS888YDS-M56 56 25 50 25 50 35 25 25 53 37.5 25
DS888YDS-M60 60 25 50 25 50 35 25 25 52.5 37.5 25
DS888YDS-M64S 64 32 64 32 64 45 32 32 67 48 32
DS888YDS-M64B 64 33 66 32 66 46.2 33 33 69.3 49.5 33
DS888YDS-M72×4 72 35 70 35 70 49 35 35 73.5 52.5 35
DS888YDS-M72×6 72 35 70 35 70 49 35 35 73.5 52.5 35
DS888YDS-M80 80 40 80 40 80 56 40 40 84 60 40
DS888YDS-M90 90 45 90 45 90 63 45 45 94.5 67.5 45
DS888YDS-M100 100 50 100 50 100 70 50 50 105 75 50

Product specifications:

M8 G80 Metric Thread Hoist Ring, M10 G80 Metric Thread Hoist Ring, M12 G80 Metric Thread Hoist Ring, M14 G80 Metric Thread Hoist Ring, M16 G80 Metric Thread Hoist Ring, M18 G80 Metric Thread Hoist Ring, M20 G80 Metric Thread Hoist Ring, M22 G80 Metric Thread Hoist Ring, M24 G80 Metric Thread Hoist Ring, M30 G80 Metric Thread Hoist Ring, M33 G80 Metric Thread Hoist Ring, M36 G80 Metric Thread Hoist Ring, M39 G80 Metric Thread Hoist Ring, M42 G80 Metric Thread Hoist Ring, M45 G80 Metric Thread Hoist Ring, M48 G80 Metric Thread Hoist Ring, M52 G80 Metric Thread Hoist Ring, M56 G80 Metric Thread Hoist Ring, M60 G80 Metric Thread Hoist Ring, M64 G80 Metric Thread Hoist Ring, M72 G80 Metric Thread Hoist Ring, M80 G80 Metric Thread Hoist Ring, M90 G80 Metric Thread Hoist Ring, M100 G80 Metric Thread Hoist Ring

M8 Grade 80 Swivel Hoist Ring, M10 Grade 80 Swivel Hoist Ring, M12 Grade 80 Swivel Hoist Ring, M14 Grade 80 Swivel Hoist Ring, M16 Grade 80 Swivel Hoist Ring, M18 Grade 80 Swivel Hoist Ring, M20 Grade 80 Swivel Hoist Ring, M22 Grade 80 Swivel Hoist Ring, M24 Grade 80 Swivel Hoist Ring, M30 Grade 80 Swivel Hoist Ring, M33 Grade 80 Swivel Hoist Ring, M36 Grade 80 Swivel Hoist Ring, M39 Grade 80 Swivel Hoist Ring, M42 Grade 80 Swivel Hoist Ring, M45 Grade 80 Swivel Hoist Ring, M48 Grade 80 Swivel Hoist Ring, M52 Grade 80 Swivel Hoist Ring, M56 Grade 80 Swivel Hoist Ring, M60 Grade 80 Swivel Hoist Ring, M64 Grade 80 Swivel Hoist Ring, M72 Grade 80 Swivel Hoist Ring, M80 Grade 80 Swivel Hoist Ring, M90 Grade 80 Swivel Hoist Ring, M100 Grade 80 Swivel Hoist Ring


Note: Inch or non-standard lengthened bolts can be made according to customer's requirements.

Brief Introduction:
Forged super alloy steel-Quenched Tempered.
Individually proof test at 2.5 times working load limit.
Fatigue tested at 1.5 times working load limit for 20000 cycles.
Breaking test magnaflux crack detection.
Grade 100 lifting point are 360°rotation with 90°pivot function.

Rated at 100% at 90°angle.

DAWSON Metric Thread Double Swivel Shackle G80 Swivel Hoist Ring - Dawson Group Ltd. - China Manufacturer, Supplier

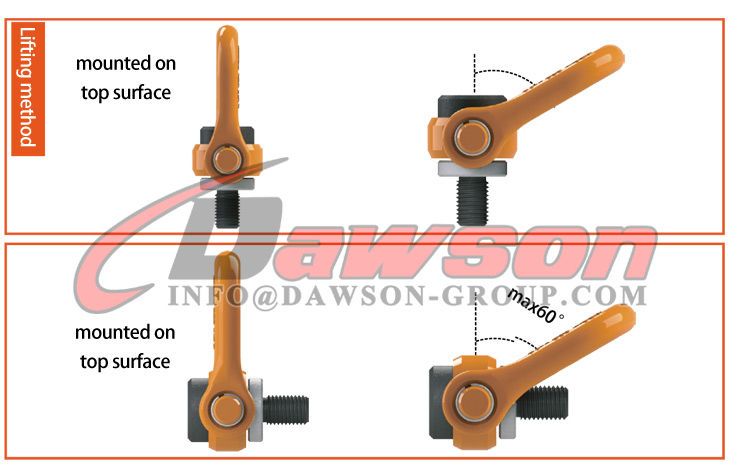

Application for DAWSON Metric Thread Double Swivel Shackle G80 Swivel Hoist Ring - Dawson Group Ltd. - China Manufacturer, Supplier

Products Show:


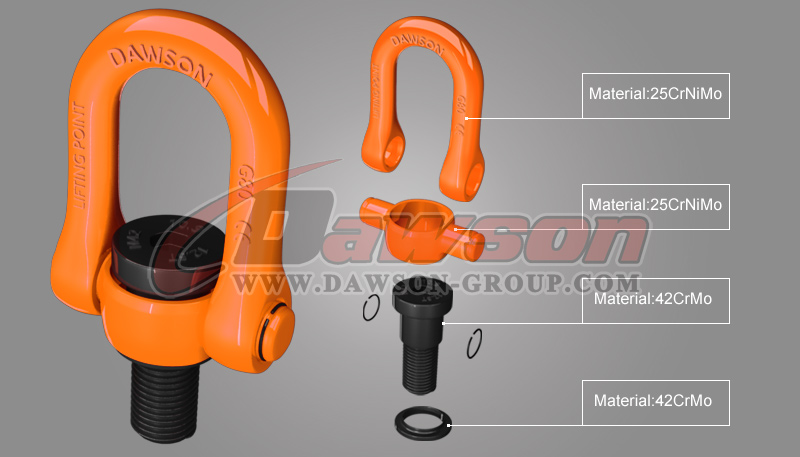

G80 Metric Thread Swivel Hoist Ring - China Supplier

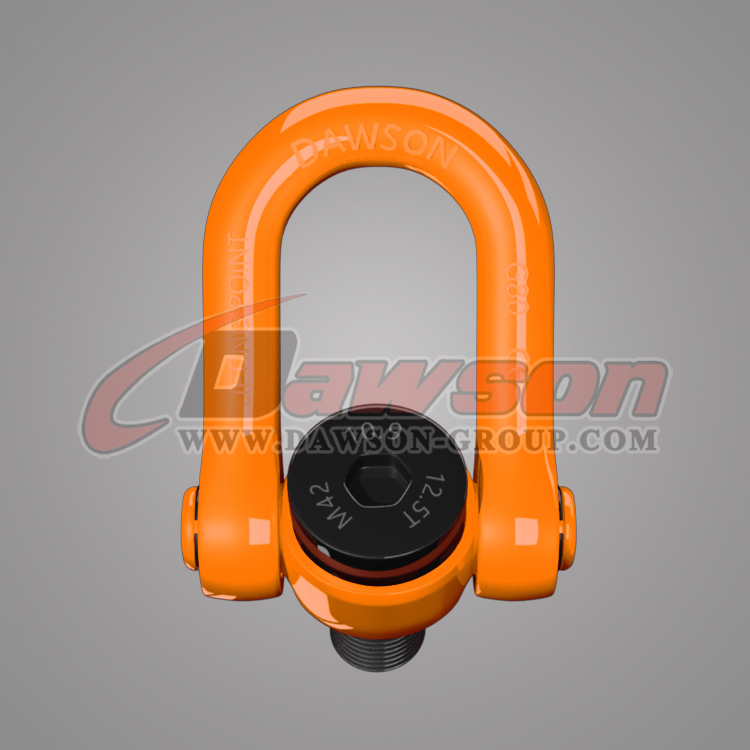

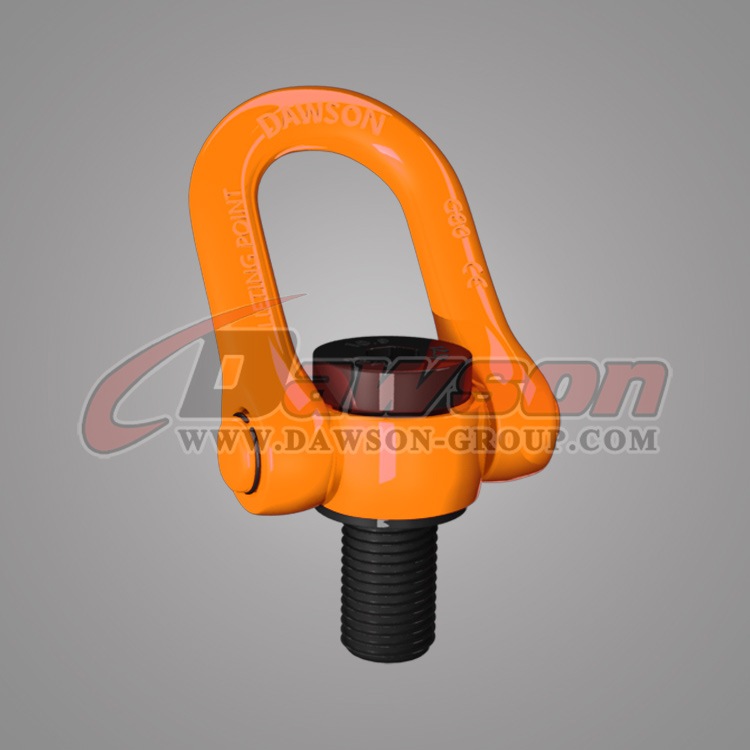

G80 Metric Thread Swivel Hoist Ring, Grade 80 Swivel Hoist Ring - China Supplier, Exporter    G80 Metric Thread Swivel Hoist Ring, Grade 80 Swivel Hoist Ring, G80 Lifting Points - China Manufacturer

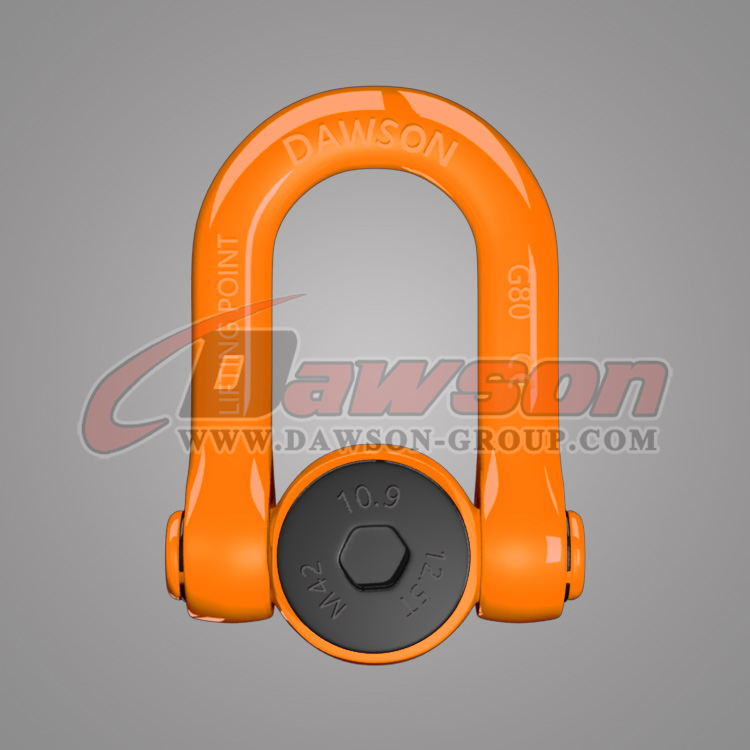

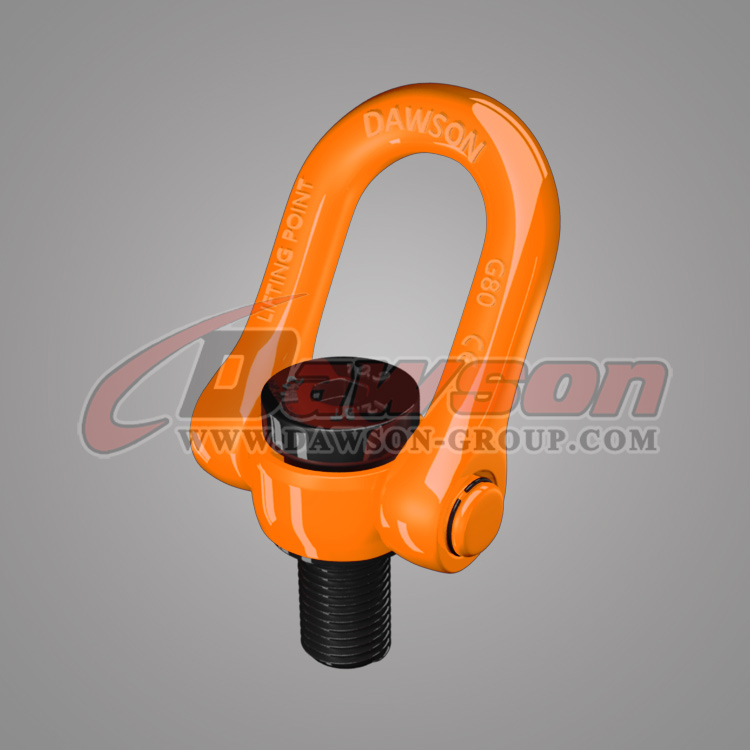

G80 Metric Thread Swivel Hoist Ring, Grade 80 Swivel Hoist Ring, Grade 80 Lifting Point - China Manufacturer, Supplier    G80 Metric Thread Swivel Hoist Ring, Grade 80 Swivel Hoist Ring, Grade 80 Lifting Points - China Supplier

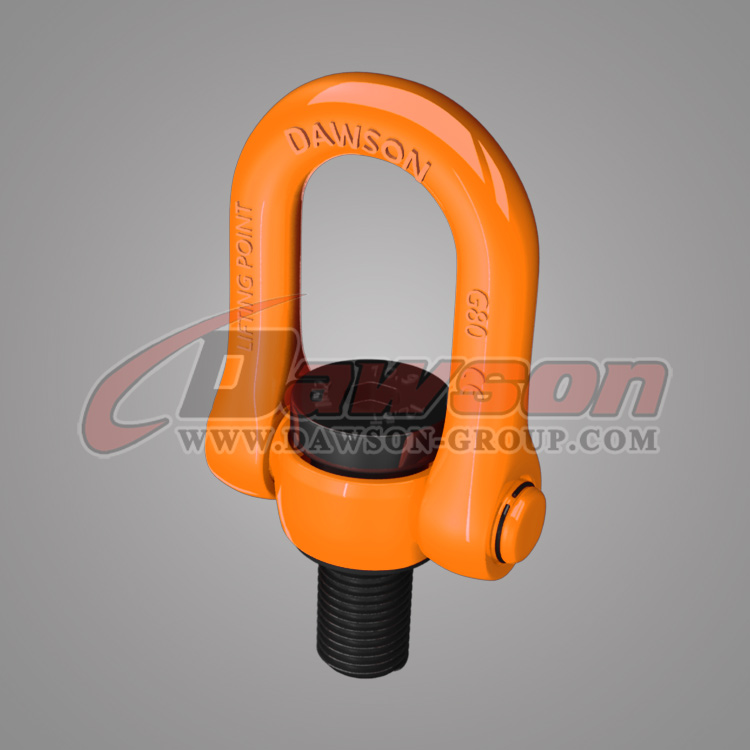

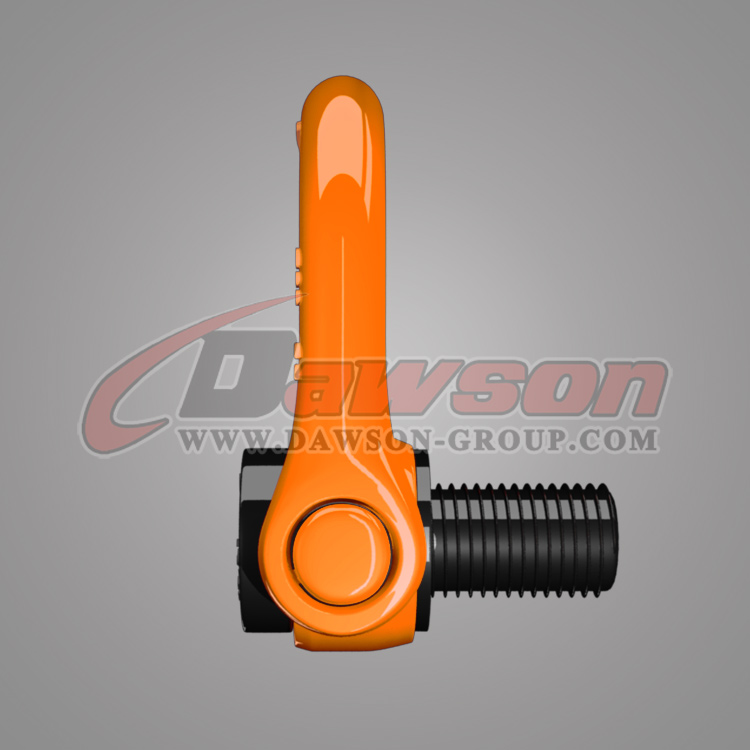

G80 Metric Thread Swivel Hoist Ring, Grade 80 Lifting Points - China Supplier    G80 Metric Thread Swivel Hoist Ring, Grade 80 Metric Thread Swivel Hoist Ring, Lifting Points - China Factory

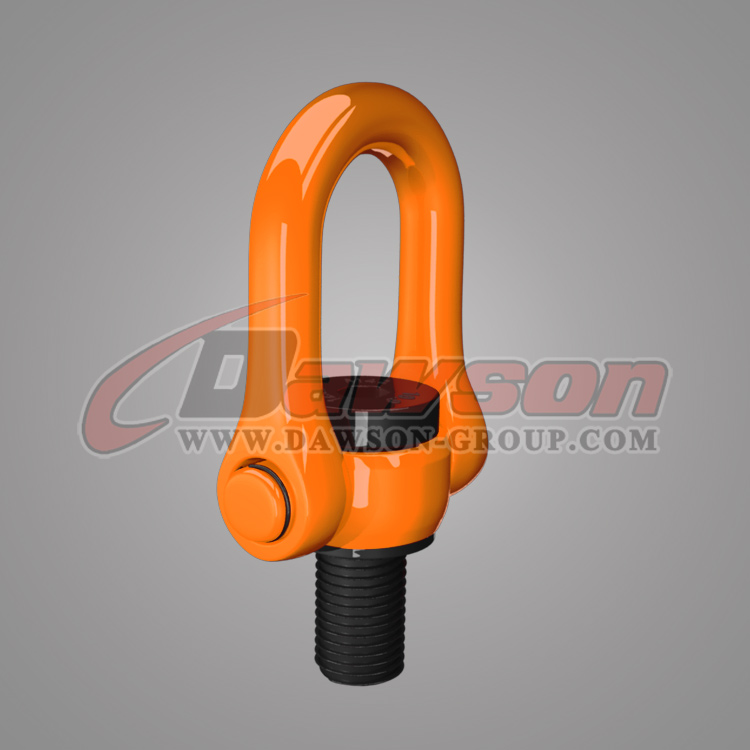

G80 Metric Thread Swivel Hoist Ring, Grade 80 Metric Thread Swivel Hoist Ring - China Factory    Grade 80 Metric Thread Swivel Hoist Ring - China Factory

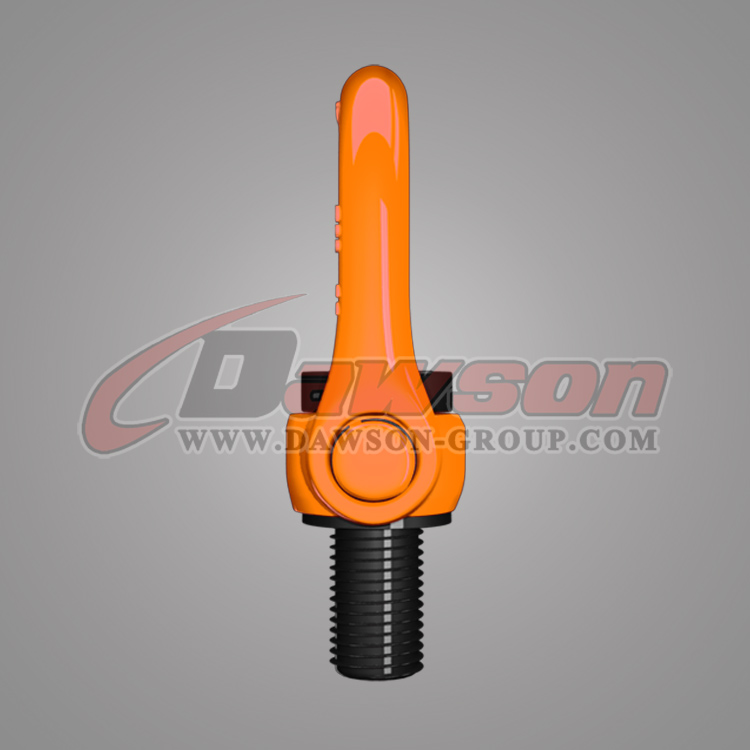

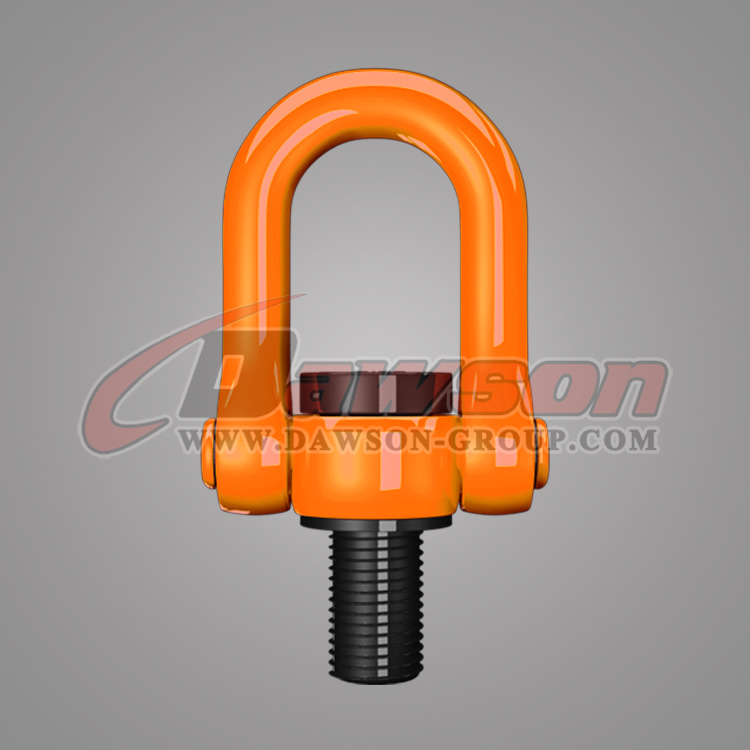

Grade 80 Metric Thread Swivel Hoist Ring, G80 Lifting Points - China Manufacturer, Factory    Grade 80 Metric Thread Swivel Hoist Ring, G80 Lifting Points, G80 Swivel Lifting Points - China Manufacturer, Factory
Grade 80 Metric Thread Swivel Hoist Ring, G80 Swivel Lifting Points, Swivel Hoist Ring - China Manufacturer, Factory    Grade 80 Metric Thread Swivel Hoist Ring, Lifting Points - China Factory
Double Swivel Shackle G80 Swivel Hoist Ring, G80 Alloy Steel Swivel Hoist Ring for Lifting - Dawson Group Ltd. - China Factory, Supplier, Manufacturer
Double Swivel Shackle G80 Swivel Hoist Ring, G80 Alloy Steel Swivel Hoist Ring for Lifting - Dawson Group Ltd. - China Factory, Manufacturer, Supplier
G80 Alloy Steel Swivel Hoist Ring for Lifting, Double Swivel Shackle G80 Swivel Hoist Ring - Dawson Group Ltd. - China Factory, Manufacturer, Supplier
G80 Alloy Steel Swivel Hoist Ring for Lifting, Double Swivel Shackle G80 Swivel Hoist Ring - Dawson Group Ltd. - China Factory, Supplier, Manufacturer
DAWSON UNC Thread Double Swivel Shackle G80 Swivel Hoist Ring, G80 Alloy Steel Swivel Hoist Ring for Lifting - Dawson Group Ltd. - China Manufacturer Supplier, Factory
DAWSON G80 Alloy Steel Swivel Hoist Ring for Lifting, G80 Swivel Hoist Ring, UNC Thread Double Swivel Shackle - Dawson Group Ltd. - China Factory, Manufacturer
DAWSON UNC Thread Double Swivel Shackle G80 Swivel Hoist Ring, G80 Alloy Steel Swivel Hoist Ring for Lifting - Dawson Group Ltd. - China Manufacturer Supplier
DAWSON UNC Thread Double Swivel Shackle G80 Swivel Hoist Ring, G80 Alloy Steel Swivel Hoist Ring for Lifting - Dawson Group Ltd. - China Supplier, Factory
DAWSON UNC Thread Double Swivel Shackle G80 Swivel Hoist Ring, G80 Alloy Steel Swivel Hoist Ring for Lifting - Dawson Group Ltd. - China Manufacturer, Supplier, Factory
DAWSON UNC Thread Double Swivel Shackle G80 Swivel Hoist Ring, G80 Alloy Steel Swivel Hoist Ring for Lifting - Dawson Group Ltd. - China Manufacturer, Supplier
DAWSON G80 Alloy Steel Swivel Hoist Ring for Lifting, G80 Swivel Hoist Ring, UNC Thread Double Swivel Shackle - Dawson Group Ltd. - China Manufacturer, Factory
DAWSON G80 Alloy Steel Swivel Hoist Ring for Lifting, G80 Swivel Hoist Ring, UNC Thread Double Swivel Shackle - Dawson Group Ltd. - China Manufacturer, Supplier, Factory
DAWSON G80 Alloy Steel Swivel Hoist Ring for Lifting, G80 Swivel Hoist Ring, UNC Thread Double Swivel Shackle - Dawson Group Ltd. - China Manufacturer, Supplier
DAWSON G80 Alloy Steel Swivel Hoist Ring for Lifting, G80 Swivel Hoist Ring, UNC Thread Double Swivel Shackle - Dawson Group Ltd. - China Supplier, Factory
DAWSON UNC Thread Double Swivel Shackle, G80 Swivel Hoist Ring, G80 Alloy Steel Swivel Hoist Ring for Lifting - Dawson Group Ltd. - China Manufacturer, Supplier, Factory
DAWSON UNC Thread Double Swivel Shackle, G80 Swivel Hoist Ring, G80 Alloy Steel Swivel Hoist Ring for Lifting - Dawson Group Ltd. - China Manufacturer, Supplier
DAWSON G80 Swivel Hoist Ring, UNC Thread Double Swivel Shackle, G80 Alloy Steel Swivel Hoist Ring for Lifting - Dawson Group Ltd. - China Manufacturer, Supplier, Factory

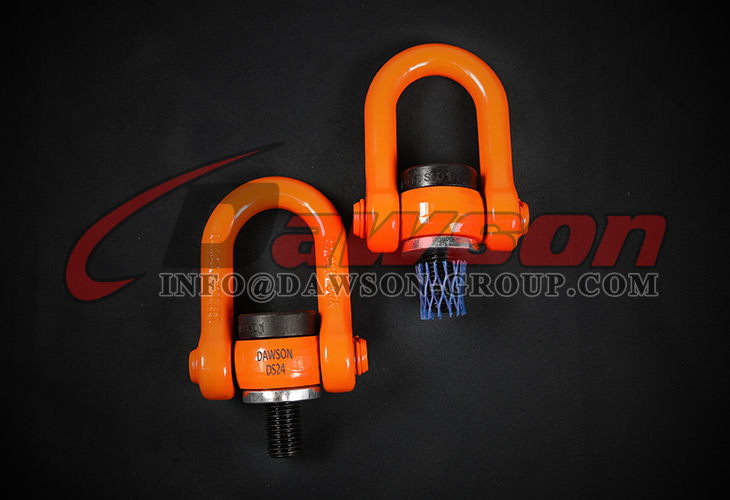

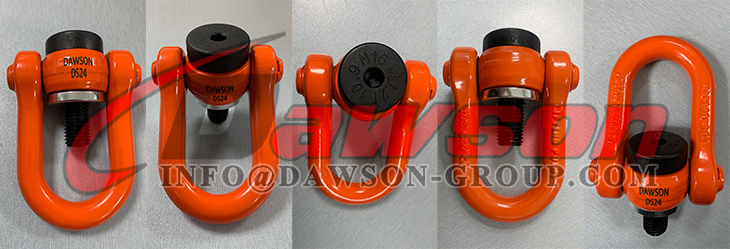

DAWSON M16 Metric Thread Double Swivel Shackle, G80 Swivel Hoist Ring, G80 Alloy Steel Swivel Hoist Ring for Lifting - Dawson Group Ltd. - China Manufacturer, Factory

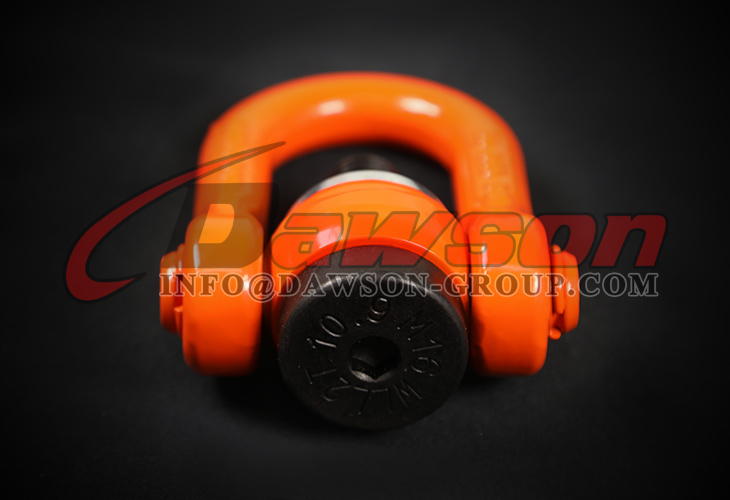

DAWSON M16 Metric Thread Double Swivel Shackle, G80 Swivel Hoist Ring, G80 Alloy Steel Swivel Hoist Ring for Lifting - Dawson Group Ltd. - China Manufacturer, Supplier, Factory

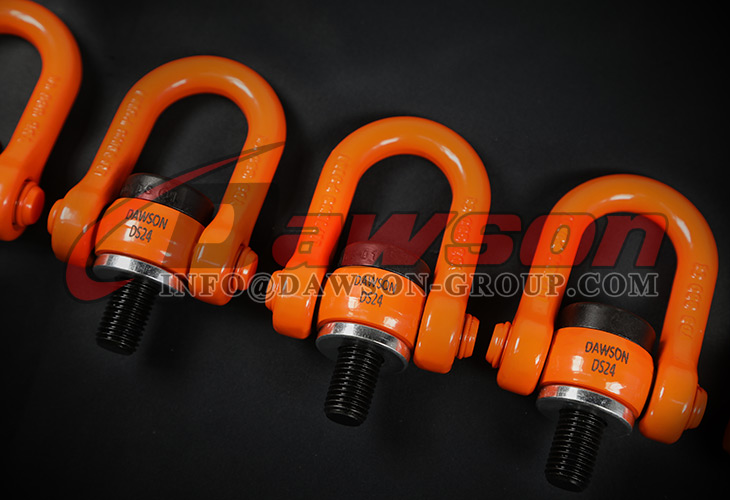

M16 Metric Thread Double Swivel Shackle, G80 Swivel Hoist Ring, Grade 80 Alloy Steel Swivel Hoist Ring for Lifting - Dawson Group Ltd. - China Manufacturer, Supplier
M16 Metric Thread Double Swivel Shackle, Grade 80 Swivel Hoist Ring, G80 Alloy Steel Swivel Hoist Ring for Lifting - Dawson Group Ltd. - China Supplier, Factory
M16 Metric Thread Double Swivel Shackle, G80 Swivel Hoist Ring, Grade 80 Alloy Steel Swivel Hoist Ring for Lifting - Dawson Group Ltd. - China Supplier, Factory
DAWSON Metric Thread G80 Swivel Hoist Ring - Dawson Group Ltd. - China Supplier, Factory, Manufacturer
DAWSON Metric Thread G80 Swivel Hoist Ring - Dawson Group Ltd. - China Supplier, Manufacturer
DAWSON Metric Thread G80 Swivel Hoist Ring - Dawson Group Ltd. - China Supplier, Factory
DAWSON Metric Thread G80 Swivel Hoist Ring - Dawson Group Ltd. - China Manufacturer, Factory, Supplier
DAWSON Metric Thread G80 Swivel Hoist Ring, Lifting Point - Dawson Group Ltd. - China Manufacturer, Supplier, Factory
DAWSON Metric Thread G80 Swivel Hoist Ring - Dawson Group Ltd. - China Manufacturer, Supplier, Factory
Double Swivel Shackle G80 Swivel Hoist Ring - Dawson Group Ltd. - China Factory, Manufacturer, Supplier
Double Swivel Shackle G80 Swivel Hoist Ring - Dawson Group Ltd. - China Factory, Manufacturer
Double Swivel Shackle G80 Swivel Hoist Ring - Dawson Group Ltd. - China Supplier, Manufacturer, Factory
Double Swivel Shackle G80 Swivel Hoist Ring - Dawson Group Ltd. - China Supplier, Manufacturer
DAWSON Metric Thread G80 Swivel Hoist Ring- Dawson Group Ltd. - China Manufacturer, Factory, Supplier
DAWSON Metric Thread G80 Swivel Hoist Ring - Dawson Group Ltd. - China Manufacturer, Supplier, Factory

DAWSON Metric Thread G80 Swivel Hoist Ring- Dawson Group Ltd. - China Manufacturer, Factory, Supplier
DAWSON Metric Thread Double Swivel Shackle G80 Swivel Hoist Ring, G80 Alloy Steel Swivel Hoist Ring for Lifting - Dawson Group Ltd. - China Manufacturer Supplier, Factory

Other Related Products Show:

DS173 G80 Pivoting Lifting screw - Dawson Group Ltd. - China Manufacturer, Factory
DS304 G80 Lifting Screw Point - Dawson Group Ltd. - Manufacturer, Factory
G80 Lifting Screw Point - Dawson Group Ltd. - Manufacturer, Factory
G80 Motor Rotating Hoist Ring - Dawson Group Ltd. - China Manufacturer, Supplier
G80 Lifting Screw Point - Dawson Group Ltd. - China Manufacturer, Supplier, Factory
G80 Lifting Screw Point - Dawson Group Ltd. - Supplier, Factory

DS303 G80 Lifting Screw Point - Dawson Group Ltd. - China Manufacturer, Supplier, Factory
DS173 G80 Pivoting Lifting screw - Dawson Group Ltd. - China Manufacturer, Factory,Supplier

DS G80 Swivel Hoist Ring - China Manufacturer

G80 Lifting Points Catalogues Download:

G80 Lifting Points - Dawson Group Ltd. - China Manufacturer, Supplier, Factory

Production Equipment:

production equipment - China Supplier
Test Equipment:
test equipment - China Supplier

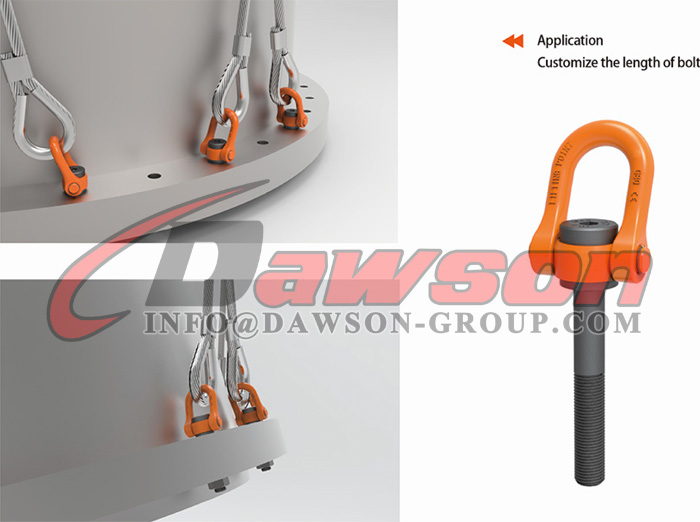

Application of DAWSON UNC Thread G80 Swivel Hoist Ring:
