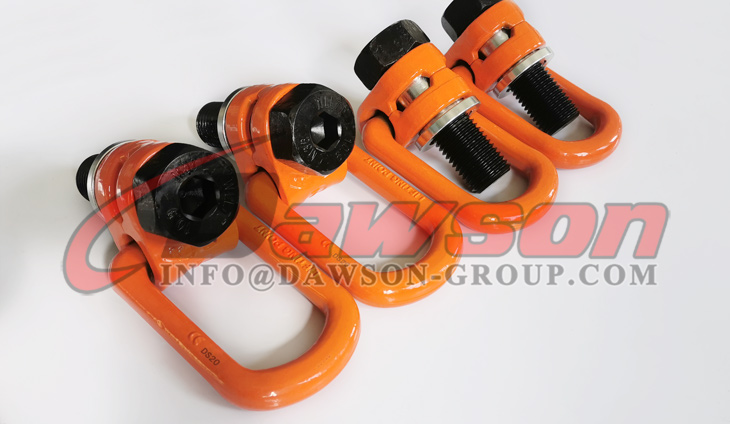

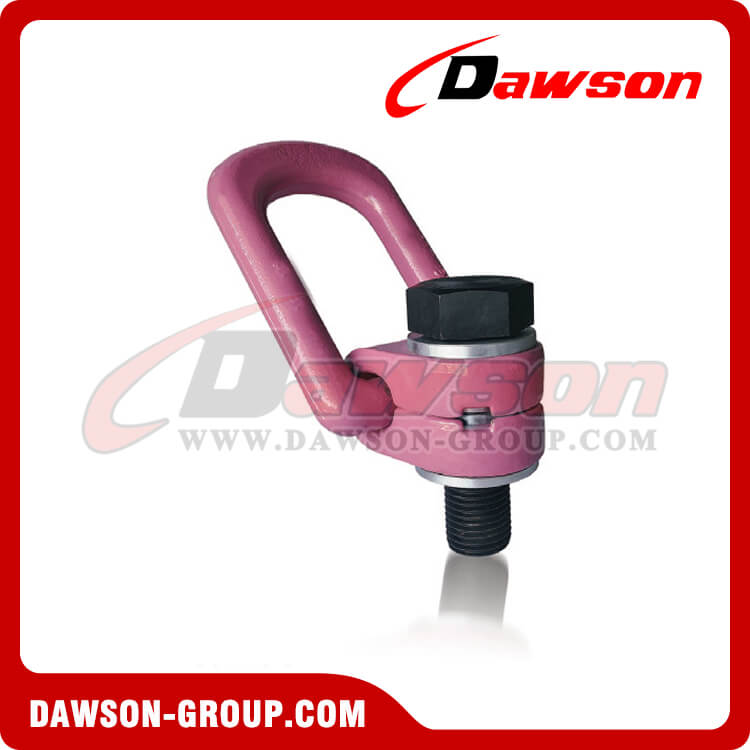

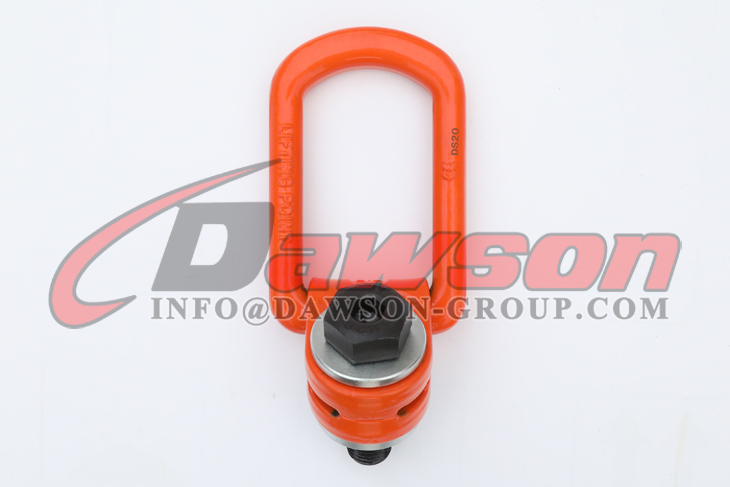

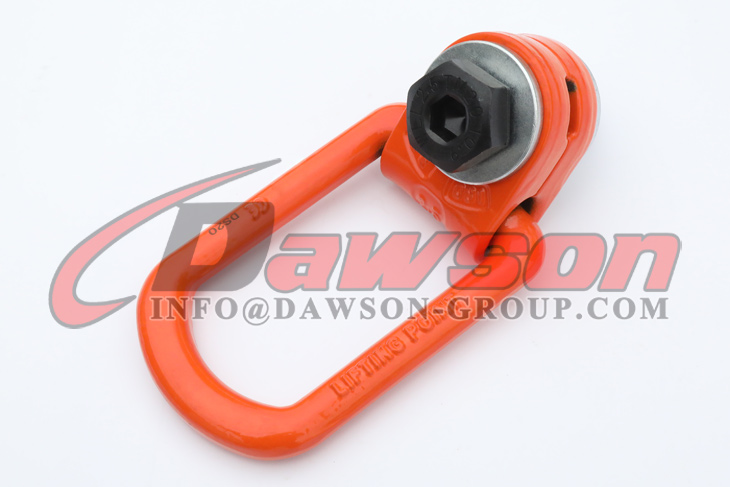

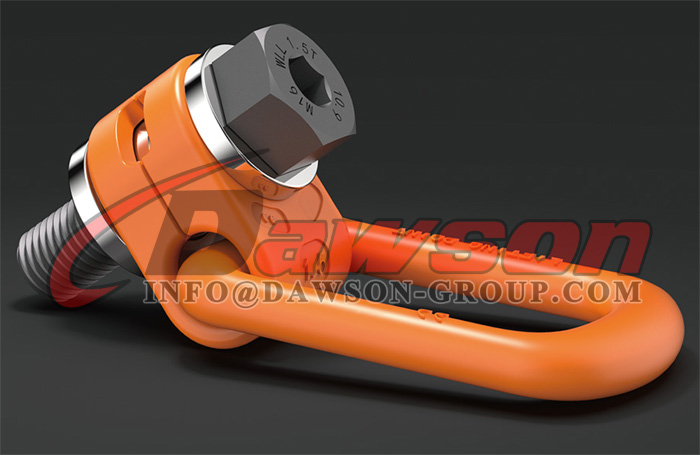

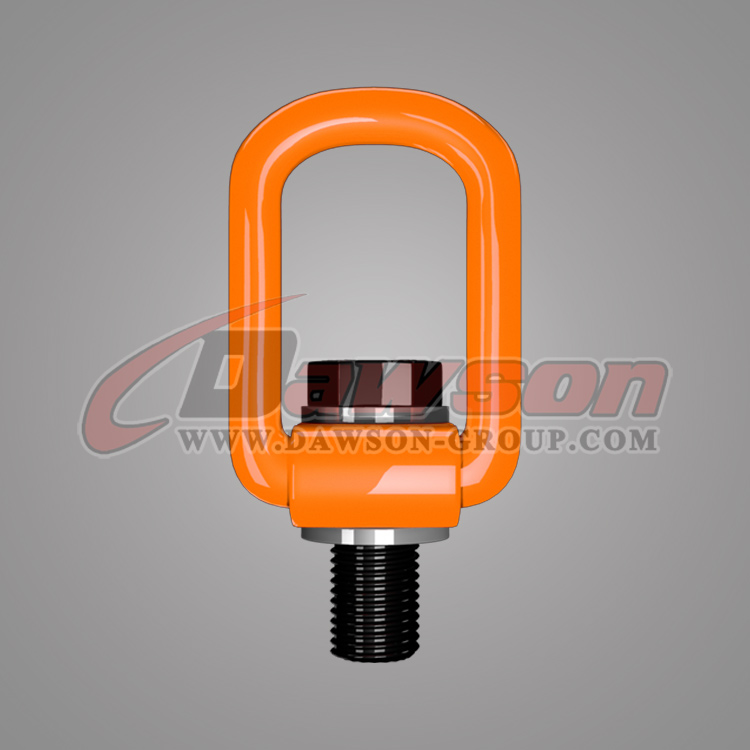

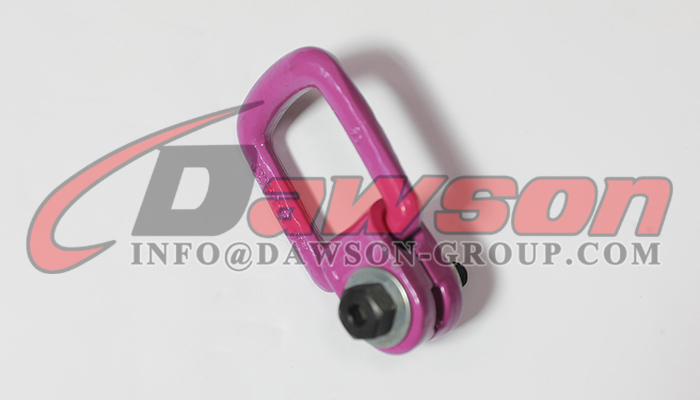

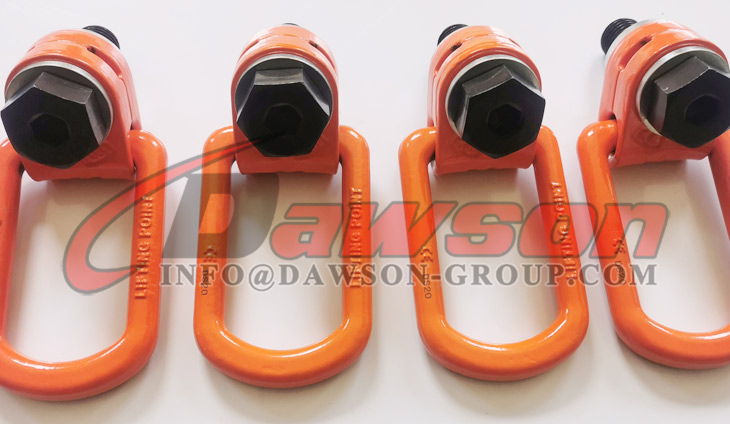

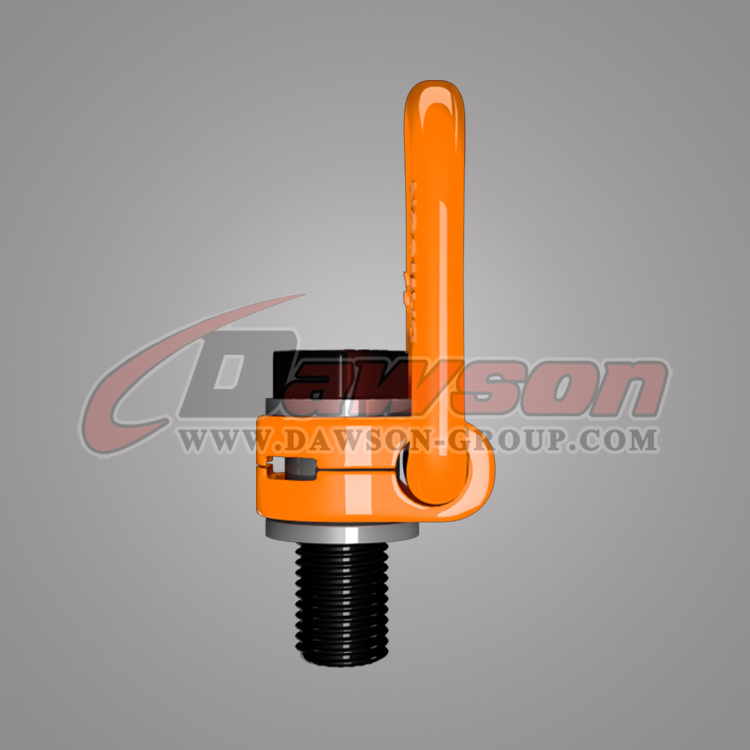

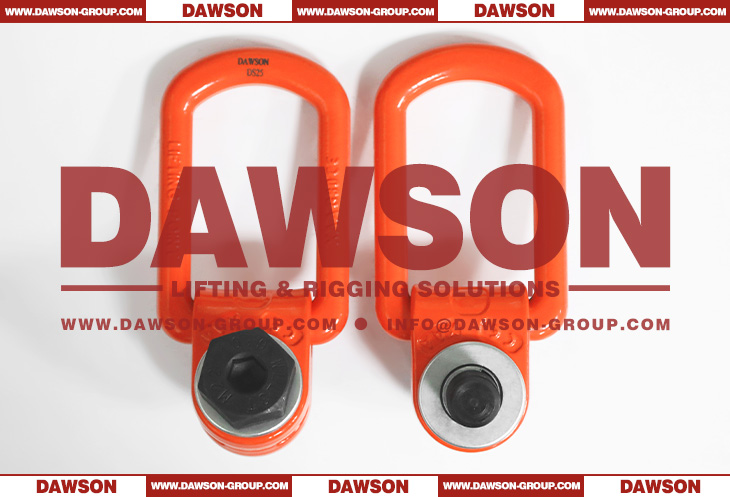

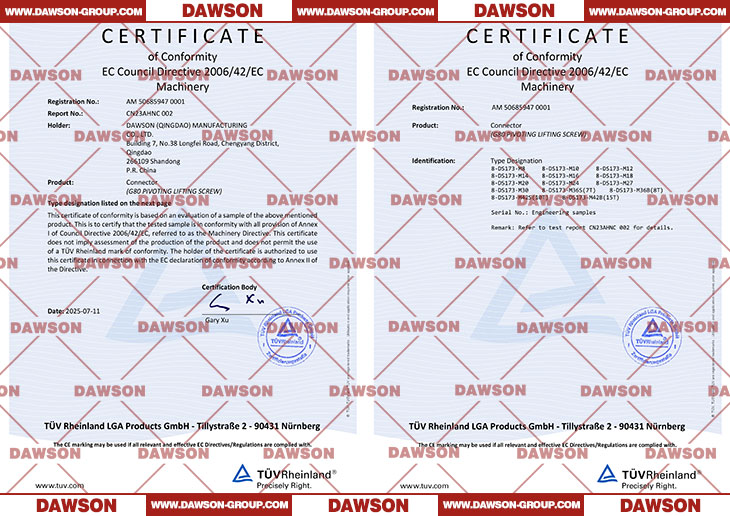

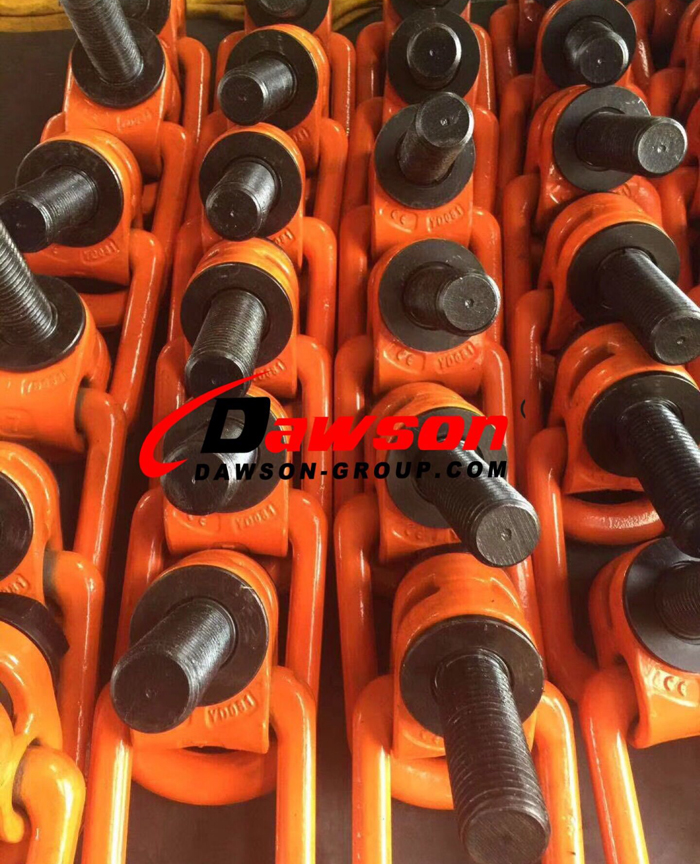

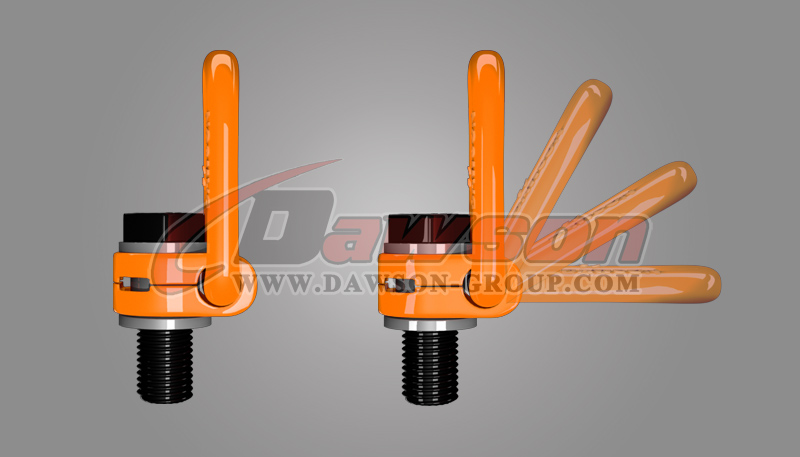

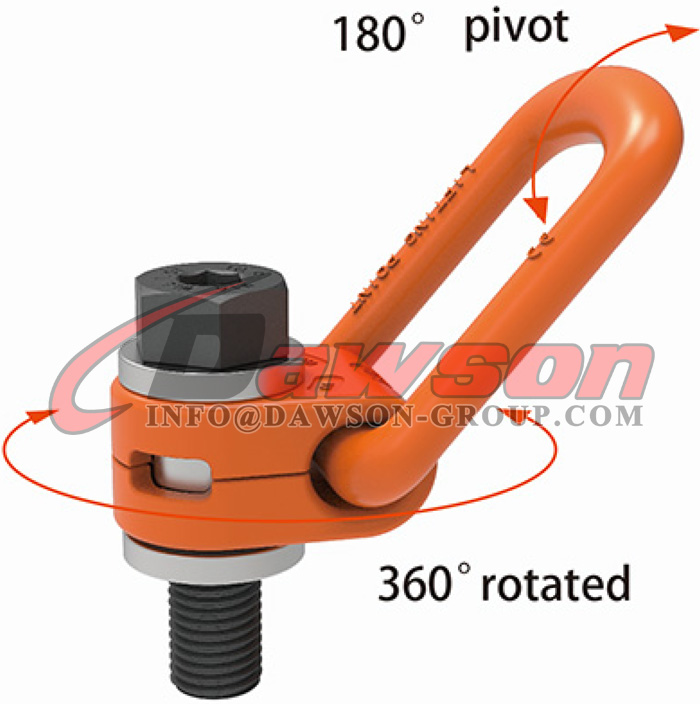

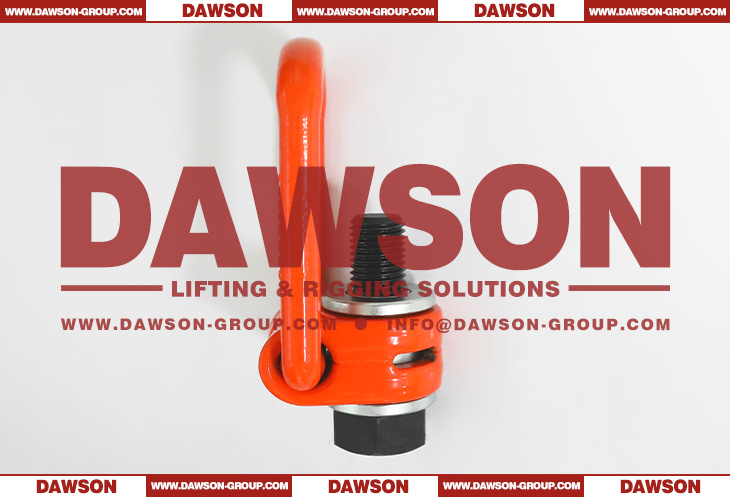

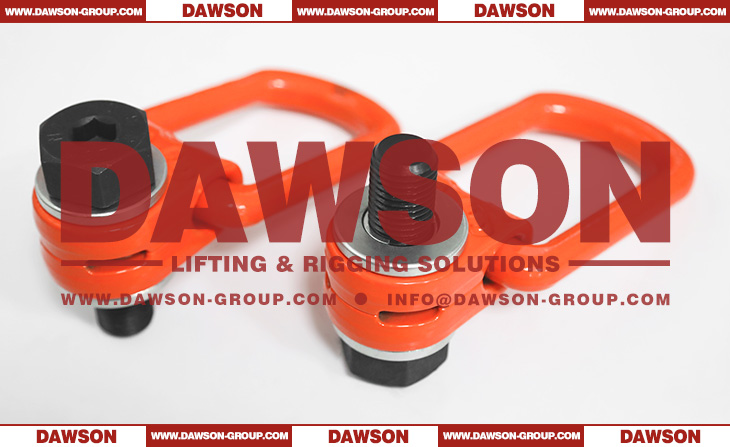

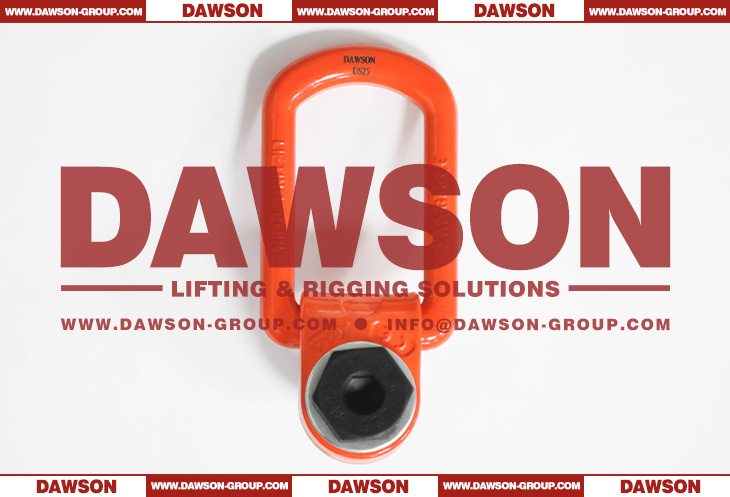

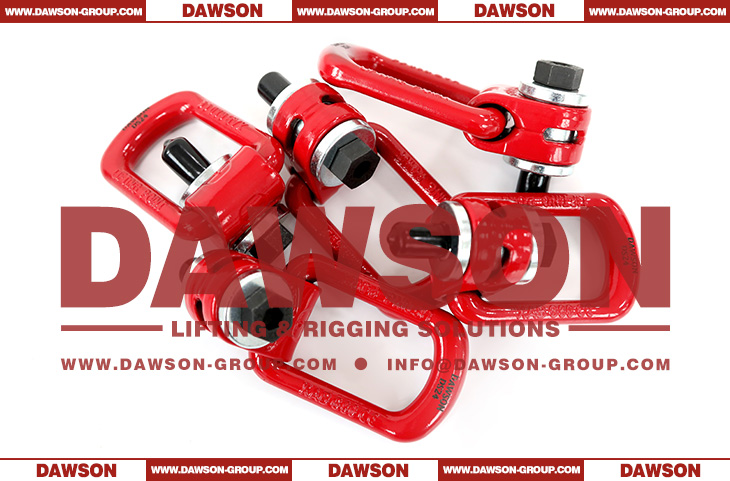

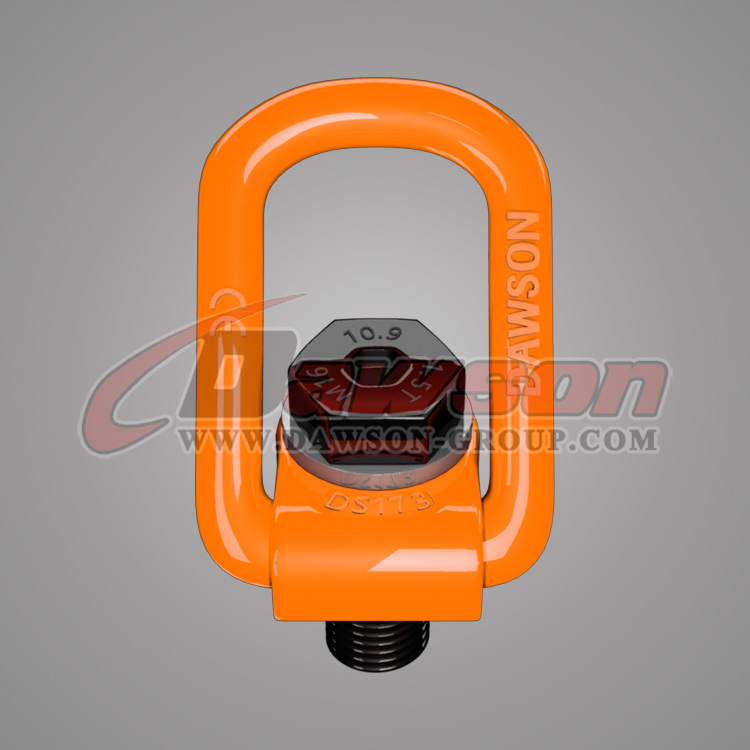

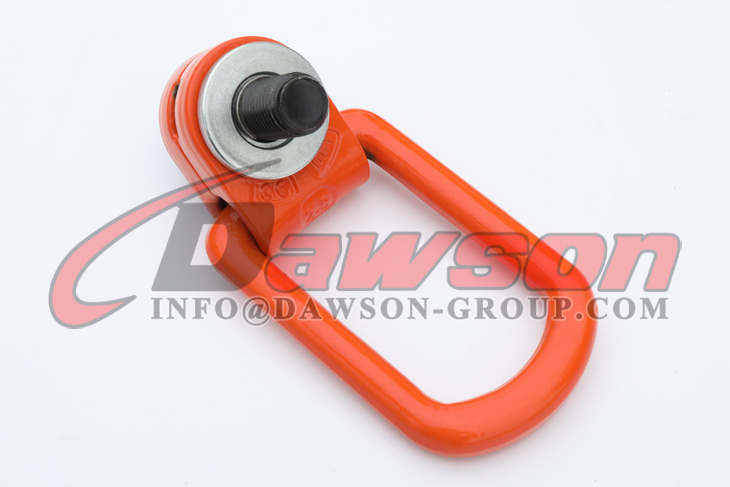

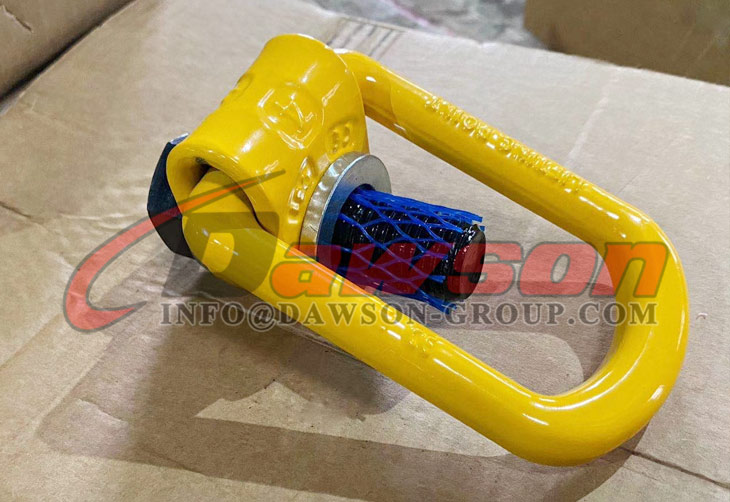

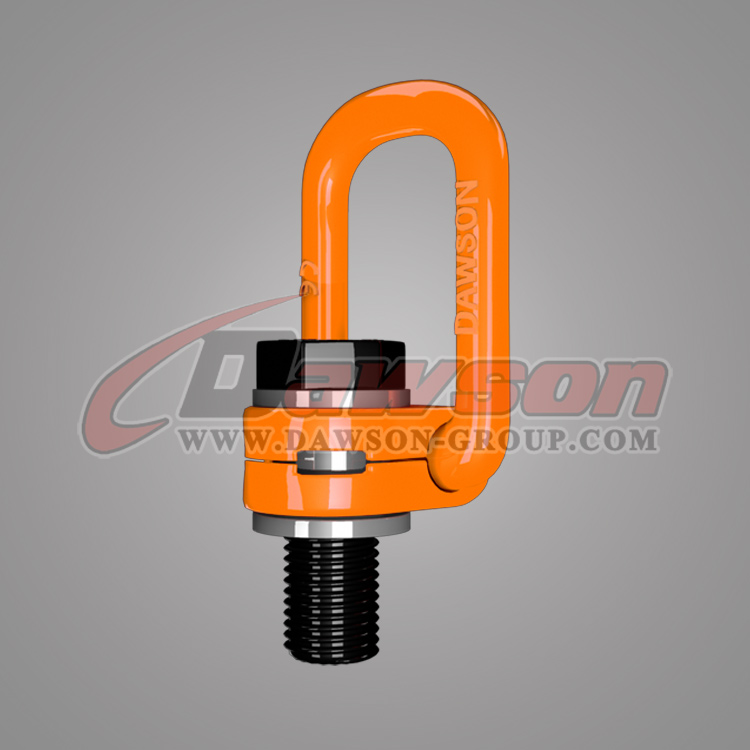

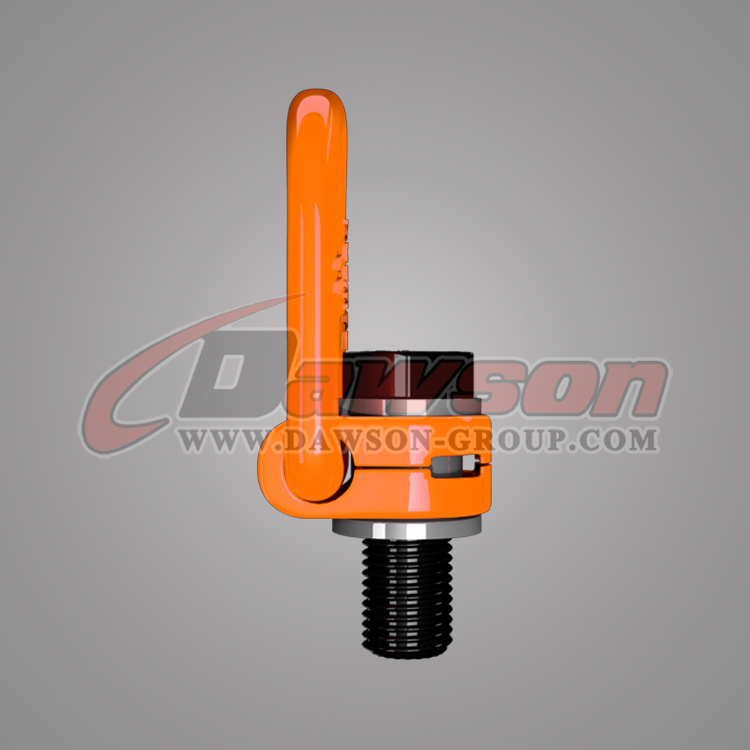

DS173 G80 M8-M64 Pivoting Lifting Screw

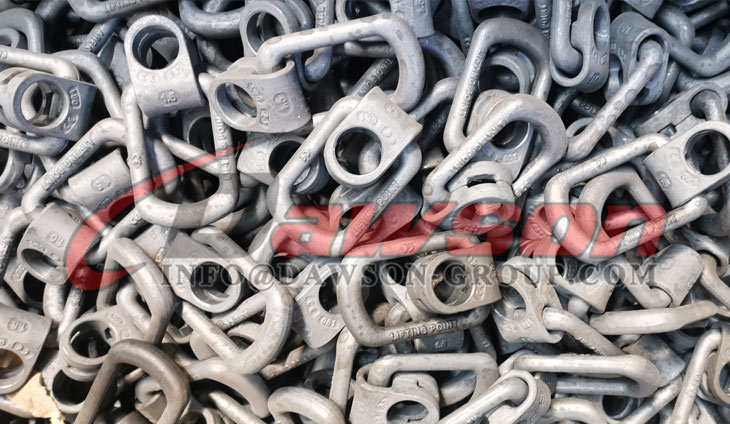

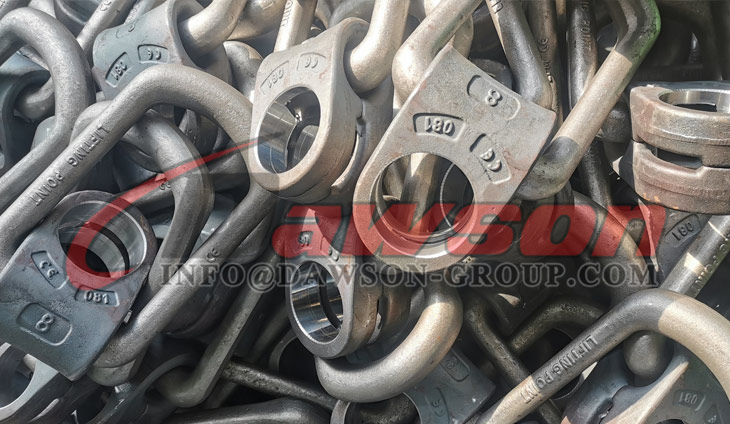

Forged super alloy steel - Quenched and Tempered.
Individually proof test at 2.5 times Working Load Limit.
Fatiuge tested at 1.5 times Working Load Limit for 20000 cycles.
Breakage test.
100% magnaflux crack detection.
Surface finish: Powder plastified.

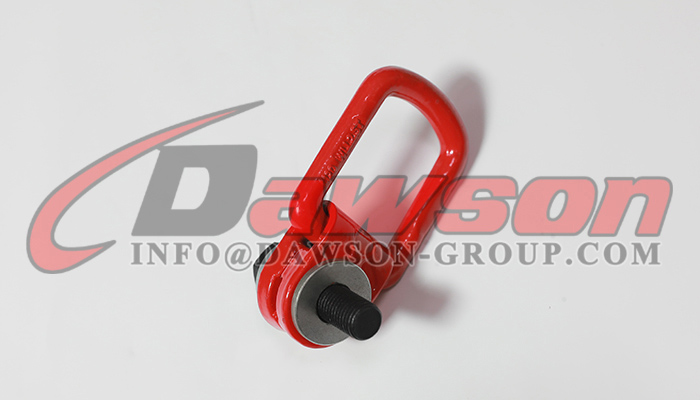

Colour code:Red RAL3020/Yellow RAL1003

Brand:
DAWSON/OEM
Code:
DS173 G80 Pivoting Lifting Screw
Size:
M8 - M64

Availability:

Quantity:



Inquire Add to Basket

Product Description

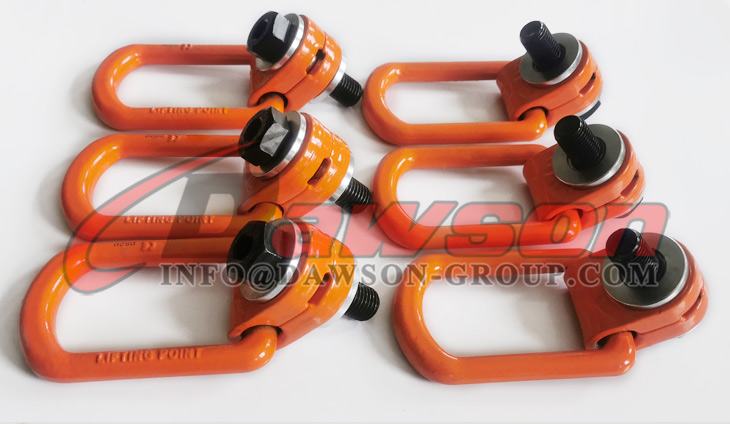

DS173 G80 M8-M64 Pivoting Lifting Screw, G80 Alloy Steel Swivel Hoist Ring for Lifting, Grade 80 Screw Type Swivel Lifting Point

- Dawson Group Ltd. - China Manufacturer, Supplier, Factory

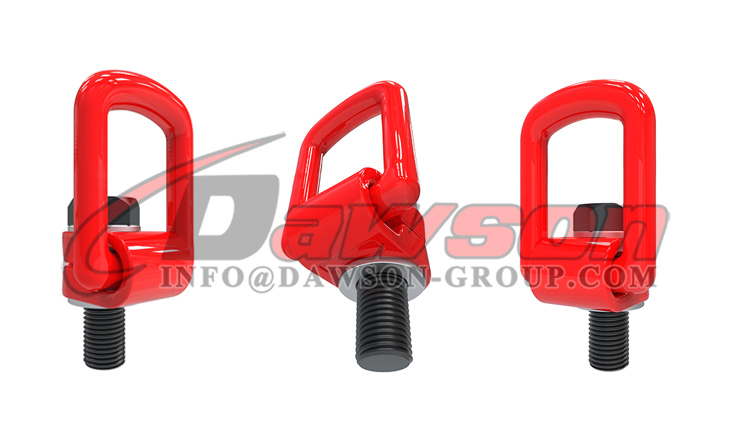

G80 Pivoting Lifting Screw, Alloy Steel Rotation Side Pull Lifting Points - China Manufacturer Supplier DS173 G80 Pivoting Lifting Screw - Dawson Group Ltd. - China Manufacturer, Factory

G80 Pivoting Lifting Screw, Grade 80 Drop Forged Steel Rotation Side Pull Lifting Points - China Manufacturer Supplier, Factory
G80 Pivoting Lifting Screw, Alloy Steel Rotation Side Pull Lifting Points - China Supplier, Factory

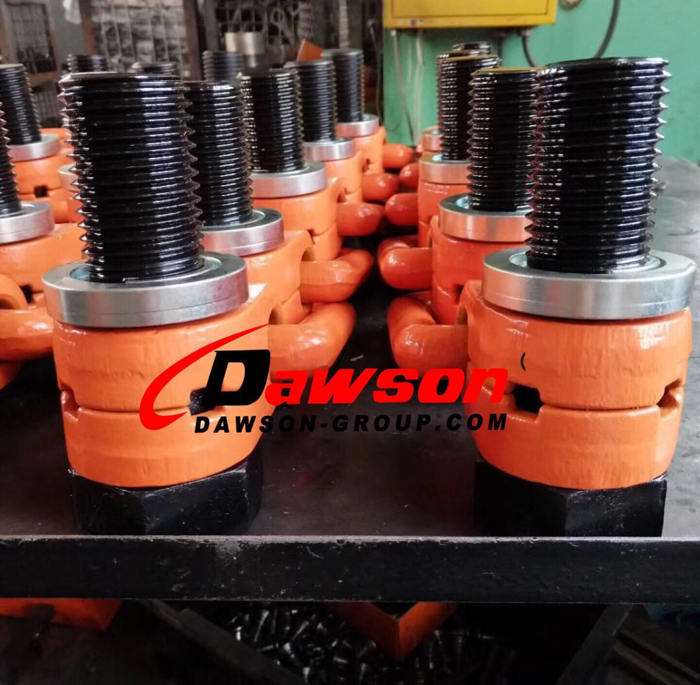

DS173 G80 PIVOTING LIFTING SCREW - DAWSON GROUP LTD. - CHINA MANUFACTURER, SUPPLIER Grade 80 Alloy Steel Lifting point - Dawson Group Ltd. - China Manufacturer, Supplier, Factory

Metric Thread:

ITEM NO.	WLL/T	Thread M	Dimension(mm)											Locking Torque	Net Weight
ITEM NO.	WLL/T	Thread M	E	A	B	C	D	F	G	L	N	S	SW	Nm	Kg
8-DS173Y-M8	0.3	M8×1.25	11	34	37	42	14	98.5	57	42.5	31	6	13	10-40	0.5
8-DS173Y-M10	0.63	M10×1.5	16	34	37	44	14	98.5	57	40.5	31	6	16	10-40	0.5
8-DS173Y-M12	1	M12×1.75	18	34	37	45	14	98.5	57	39.5	31	8	18	15-40	0.5
8-DS173Y-M14	1.2	M14×2.0	21	34	37	48	14	98.5	57	36.5	31	10	24	30-100	0.5
8-DS173Y-M16	1.5	M16×2.0	24	34	37	48	14	98.5	57	36.5	31	10	24	45-130	0.5
8-DS173Y-M18	2	M18×2.5	26	50	54	58	16.5	143	82	68.5	45	12	30	100-170	1.5
8-DS173Y-M20	2.5	M20×2.5	30	50	54	58	16.5	143	82	68.5	45	12	30	100-170	1.5
8-DS173Y-M22	3	M22×2.5	30	50	54	61	16.5	143	82	65.5	45	14	36	100-170	1.5
8-DS173Y-M24	4	M24×3.0	36	50	54	61	16.5	143	82	65.5	45	14	36	190-280	1.5
8-DS173Y-M27	4	M27×3.0	38	60	65	82	22	170	99	66	59	17	46	250-500	3
8-DS173Y-M30	5	M30×3.5	48	60	65	82	22	170	99	66	59	17	46	270-600	3.5
8-DS173Y-M33	6	M33×3.5	54	60	65	85	22	170	99	63	59.5	22	55	270-600	3.5
8-DS173Y-M36S	7	M36×4.0	54	60	65	85	22	170	99	63	59.5	22	55	270-600	3.5
8-DS173Y-M36B	8	M36×4.0	62	77	85	104	27	226.5	123	95.5	69	22	55	270-600	6
8-DS173Y-M39	8	M39×4.0	62	77	85	104	27	226.5	123	95.5	69	22	55	350-800	6
8-DS173Y-M42S	10	M42×4.5	72	77	85	106	27	226.5	123	93.5	69	22	65	350-800	6.5
8-DS173Y-M42B	15	M42×4.5	63	95	104	117	36	257.5	158	104.5	98	22	65	350-800	11
8-DS173Y-M45	15	M45×4.5	63	95	104	117	36	257.5	158	104.5	98	22	65	350-800	11
8-DS173Y-M48	20	M48×5.0	72	95	104	120	36	257.5	158	101.5	98	27	75	350-800	12
8-DS173Y-M52	20	M52×5.0	72	95	104	120	36	257.5	158	101.5	98	27	75	350-900	12
8-DS173Y-M56	22	M56×5.5	84	95	104	117	36	257.5	158	104.5	98	27	85	350-900	15
8-DS173Y-M64	22.5	M64×6.0	100	114	104	138	36	266	158	92	109	32	95	500-1000	16.3

Ultimate load is 4 times the Working Load Limit.

The side pull force form rotating rings:

Lifting Method
Legs		1	2	1	2	2		2	3-4		3-4
Lifting Angle		0°	0°	90°	90°	0-45°	45-60°	Asymmetry	0-45°	45-60°	Asymmetry
Item No.	Thread M	WLL/T
8-DS173Y-M8	8	0.3	0.6	0.3	0.6	0.42	0.3	0.3	0.63	0.45	0.3
8-DS173Y-M10	10	0.63	1.26	0.63	1.26	0.88	0.63	0.63	1.32	0.95	0.63
8-DS173Y-M12	12	1	2	1	2	1.4	1	1	2.1	1.5	1
8-DS173Y-M14	14	1.2	2.4	1.2	2.4	1.7	1.2	1.2	2.5	1.8	1.2
8-DS173Y-M16	16	1.5	3	1.5	3	2.1	1.5	1.5	3.1	2.2	1.5
8-DS173Y-M18	18	2	4	2	4	2.8	2	2	4.2	3	2
8-DS173Y-M20	20	2.5	5	2.5	5	3.5	2.5	2.5	5.2	3.7	2.5
8-DS173Y-M22	22	3	6	3	6	4.2	3	3	6.3	4.5	3
8-DS173Y-M24	24	4	8	4	8	5.6	4	4	8.4	6	4
8-DS173Y-M27	27	4	8	4	8	5.6	4	4	8.4	6	4
8-DS173Y-M30	30	5	10	5	10	7	5	5	10.5	7.5	5
8-DS173Y-M33	33	6	12	6	12	8.5	6	6	12.7	9	6
8-DS173Y-M36S	36	7	14	7	14	9.8	7	7	14.7	10.5	7
8-DS173Y-M36B	36	8	16	8	16	11.2	8	8	16.8	12	8
8-DS173Y-M39	39	8	16	8	16	11.2	8	8	16.8	12	8
8-DS173Y-M42S	42	10	20	10	20	14	10	10	21	15	10
8-DS173Y-M42B	42	15	30	15	30	21	15	15	31.5	22.5	15
8-DS173Y-M45	45	15	30	15	30	21	15	15	31.5	22.5	15
8-DS173Y-M48	48	20	40	20	40	28	20	20	42	30	20
8-DS173Y-M52	52	20	40	20	40	28	20	20	42	30	20
8-DS173Y-M56	56	22	44	22	44	30.8	22	22	46.2	33	22
8-DS173Y-M64	64	22.5	45	22.5	45	31.5	22.5	22.5	47.25	33.75	22.5

UNC Thread:

ITEM NO.	WLL/T	Thread TPI	Dimension(mm)											Locking Torque	Net Weight
ITEM NO.	WLL/T	Thread TPI	E	A	B	C	D	F	G	L	N	S	SW	Nm	Kg
8-DS173Y-3/8	0.63	3/8-16	16	34	37	43	14	98.5	57	41.5	31	6	16	10-40	0.5
8-DS173Y-1/2	1	1/2-13	21	34	37	45	14	98.5	57	36.5	31	8	18	15-40	0.5
8-DS173Y-5/8	1.5	5/8-11	24	34	37	48	14	98.5	57	36.5	31	10	24	45-130	0.5
8-DS173Y-3/4	2.5	3/4-10	26	50	54	58	16.5	143	82	68.5	45	12	30	45-130	1.5
8-DS173Y-7/8	2.5	7/8-9	30	50	54	61	16.5	143	82	68.5	45	14	36	100-170	1.5
8-DS173Y-1	4	1-8	36	50	54	61	16.5	143	82	65.5	45	14	36	190-280	1.5
8-DS173Y-1-1/4	5	1-1/4-7	48	60	65	80	22	174	99	72	59.5	17	46	270-600	3.5
8-DS173Y-1-1/2	8	1-1/2-6	62	77	85	104	27	226.5	123	95.5	69	22	55	270-600	6
8-DS173Y-1-3/4	15	1-3/4-5	63	95	104	116	36	257.5	158	105.5	98	22	65	350-800	11
8-DS173Y-2	20	2-4-1/2	72	95	104	112	36	257.5	158	109.5	98	27	75	350-800	12

The side pull force form rotating rings:

Lifting Method
Legs		1	2	1	2	2		2	3-4		3-4
Lifting Angle		0°	0°	90°	90°	0-45°	45-60°	Asymmetry	0-45°	45-60°	Asymmetry
Item No.	Thread TPI	WLL/T
8-DS173Y-3/8	3/8	0.63	1.26	0.63	1.26	0.88	0.63	0.63	1.32	0.95	0.63
8-DS173Y-1/2	1/2	1	2	1	2	1.4	1	1	2.1	1.5	1
8-DS173Y-5/8	5/8	1.5	3	1.5	3	2.1	1.5	1.5	3.1	2.2	1.5
8-DS173Y-3/4	3/4	2.5	5	2.5	5	3.5	2.5	2.5	5.2	3.7	2.5
8-DS173Y-7/8	7/8	2.5	5	2.5	5	3.5	2.5	2.5	5.2	3.7	2.5
8-DS173Y-1	1	4	8	4	8	5.6	4	4	8.4	6	4
8-DS173Y-1-1/4	1-1/4	5	10	5	10	7	5	5	10.5	7.5	5
8-DS173Y-1-1/2	1-1/2	8	16	8	16	11.2	8	8	16.8	12	8
8-DS173Y-1-3/4	1-3/4	15	30	15	30	21	15	15	31.5	22.5	15
8-DS173Y-2	2	20	40	20	40	28	20	20	42	30	20

Product specifications:

M8 G80 Swivel Hoist Ring, M10 G80 Swivel Hoist Ring, M12 G80 Swivel Hoist Ring, M14 G80 Swivel Hoist Ring, M16 G80 Swivel Hoist Ring, M18 G80 Swivel Hoist Ring, M20 G80 Swivel Hoist Ring, M22 G80 Swivel Hoist Ring, M24 G80 Swivel Hoist Ring, M27 G80 Swivel Hoist Ring, M30 G80 Swivel Hoist Ring, M33 G80 Swivel Hoist Ring, M36S G80 Swivel Hoist Ring, M36B G80 Swivel Hoist Ring, M39 G80 Swivel Hoist Ring, M42S G80 Swivel Hoist Ring, M42B G80 Swivel Hoist Ring, M45 G80 Swivel Hoist Ring, M48 G80 Swivel Hoist Ring, M52 G80 Swivel Hoist Ring, M56 G80 Swivel Hoist Ring, M64 G80 Swivel Hoist Ring

M8 Grade 80 Swivel Lifting Point, M10 Grade 80 Swivel Lifting Point, M12 Grade 80 Swivel Lifting Point, M14 Grade 80 Swivel Lifting Point, M16 Grade 80 Swivel Lifting Point, M18 Grade 80 Swivel Lifting Point, M20 Grade 80 Swivel Lifting Point, M22 Grade 80 Swivel Lifting Point, M24 Grade 80 Swivel Lifting Point, M27 Grade 80 Swivel Lifting Point, M30 Grade 80 Swivel Lifting Point, M33 Grade 80 Swivel Lifting Point, M36S Grade 80 Swivel Lifting Point, M36B Grade 80 Swivel Lifting Point, M39 Grade 80 Swivel Lifting Point, M42S Grade 80 Swivel Lifting Point, M42B Grade 80 Swivel Lifting Point, M45 Grade 80 Swivel Lifting Point, M48 Grade 80 Swivel Lifting Point, M52 Grade 80 Swivel Lifting Point, M56 Grade 80 Swivel Lifting Point, M64 Grade 80 Swivel Lifting Point

Attension:

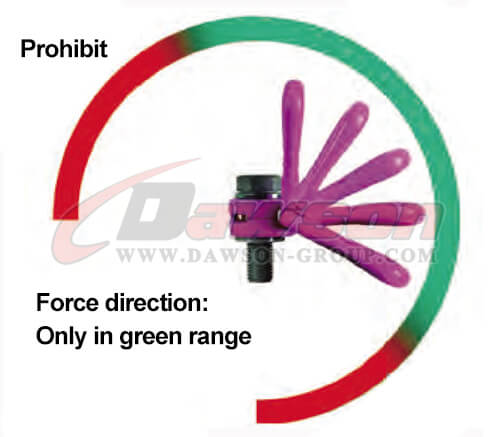

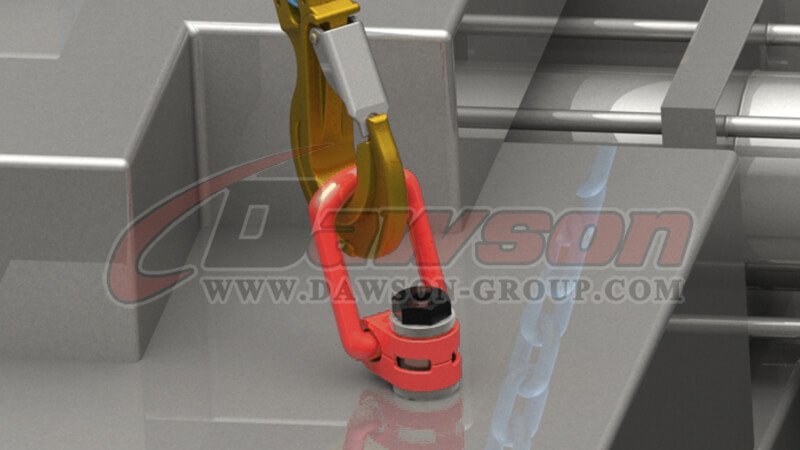

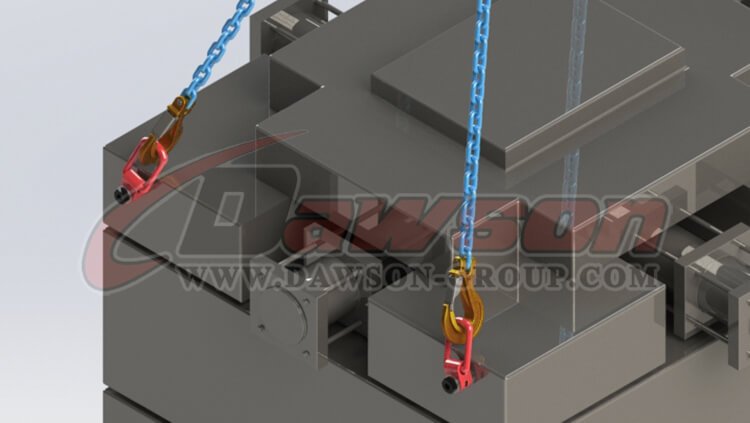

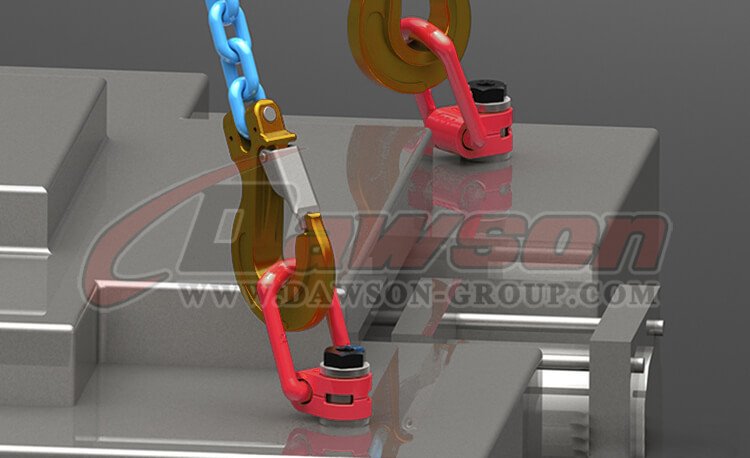

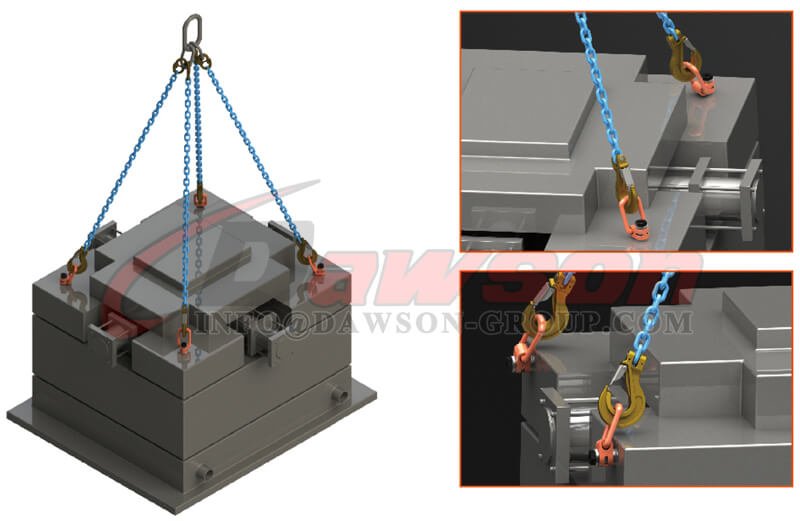

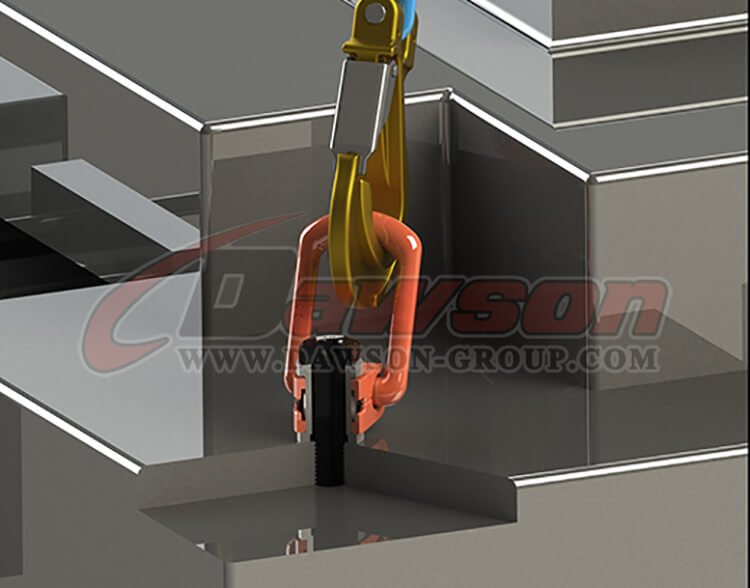

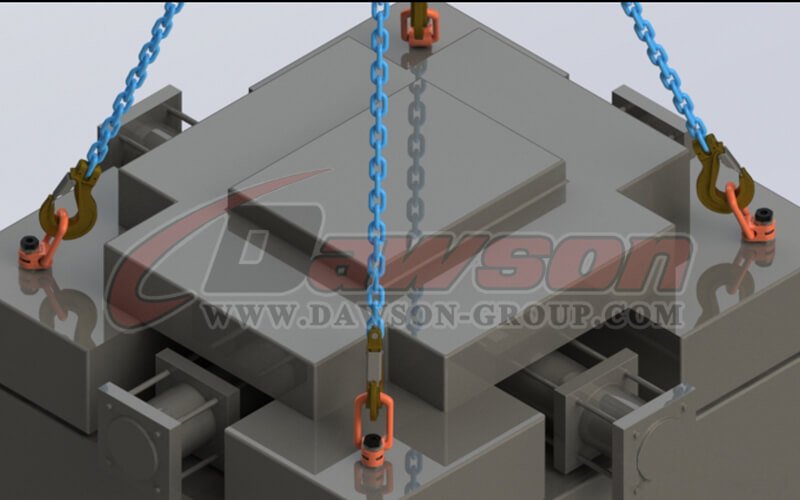

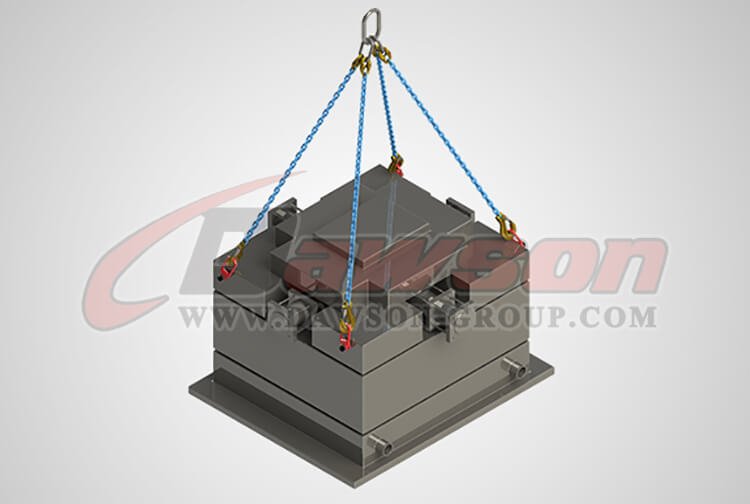

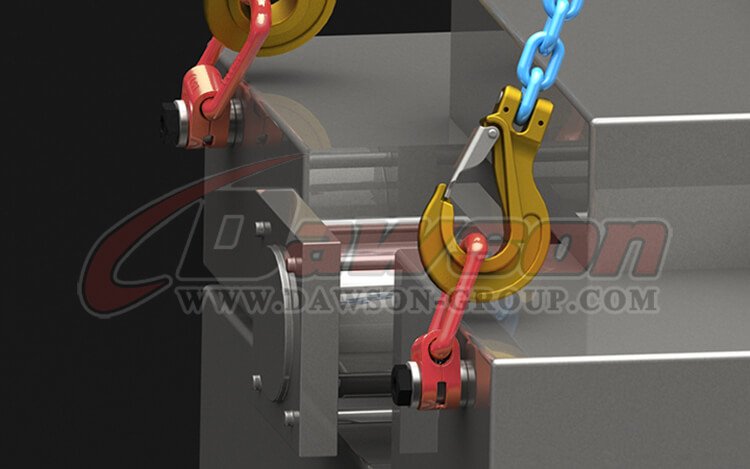

Application of G80 Lifting Point - Dawson Group Ltd. - China Manufacturer, Supplier, Factory
