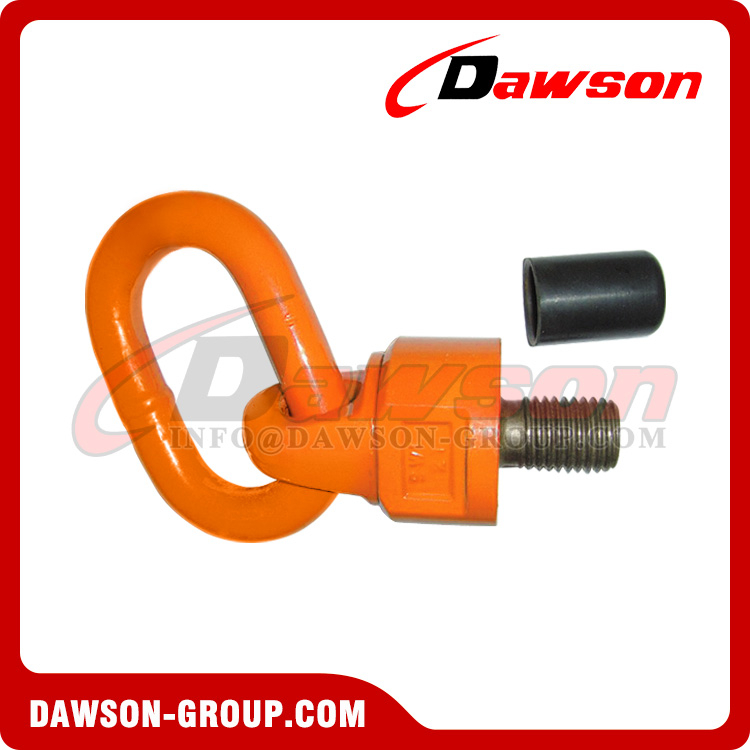

DS303 G80 M8-M64 Lifting Screw Point

Forged super alloy steel - Quenched and Tempered.
Individually proof test at 2.5 times Working Load Limit.
Fatiuge tested at 1.5 times Working Load Limit for 20000 cycles.
Breakage test.
100% magnaflux crack detection.
Surface finish: Powder plastified.
Colour code:Red RAL3020/Yellow RAL1003
  • DAWSON/OEM

  • DS303

  • M8 - M64

Availability:
Quantity:

DS303 G80 M8-M64 Lifting Screw Point, G80 Alloy Steel Swivel Hoist Ring for LiftingGrade 80 Screw Type Swivel Lifting Point

- Dawson Group Ltd. - China Manufacturer, Supplier, Factory

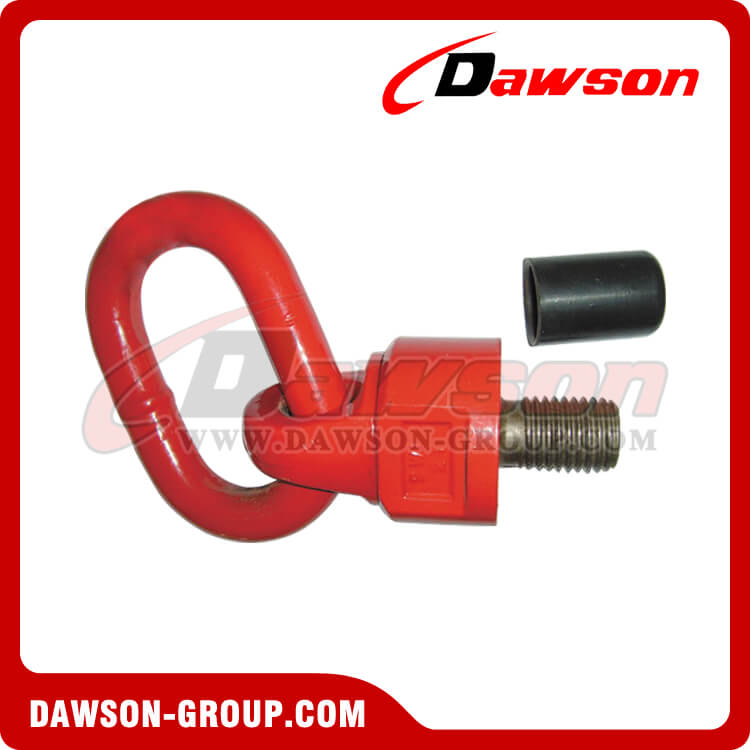

DS303 G80 LIFTING SCREW POINT - DAWSON GROUP LTD. - CHINA MANUFACTURER, SUPPLIER, FACTORY   DS303 G80 Lifting Screw Point - Dawson Group Ltd. - China Manufacturer Supplier, Factory

G80 Lifting Screw Point - China Supplier   G80 Lifting Screw Point, Grade 80 Swivel Lifting Point - China Factory

Forged super alloy steel - Quenched and Tempered.

Individually proof test at 2.5 times Working Load Limit.

Fatiuge tested at 1.5 times Working Load Limit for 20000 cycles.

Breakage test.

100% magnaflux crack detection.

Surface finish: Powder plastified.

Colour code:Red RAL3020/Yellow RAL1003

WLL at 0° and WLL 90°.

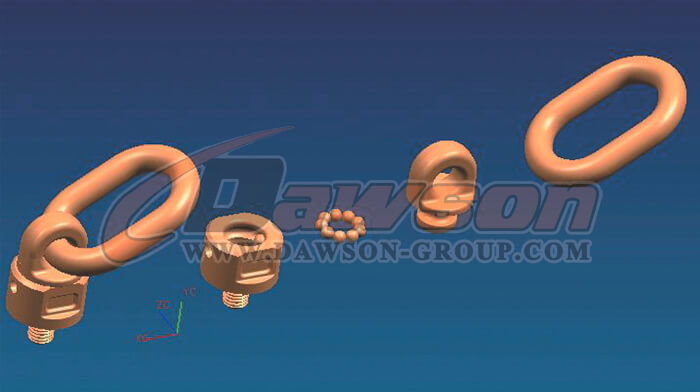

DS303 G80 LIFTING SCREW POINT WLL at 0° and WLL 90° - DAWSON GROUP LTD. - CHINA MANUFACTURER, SUPPLIER, FACTORY G80 LIFTING SCREW POINT WLL at 0° and WLL 90° - DAWSON GROUP LTD. - CHINA MANUFACTURER, SUPPLIER, FACTORY

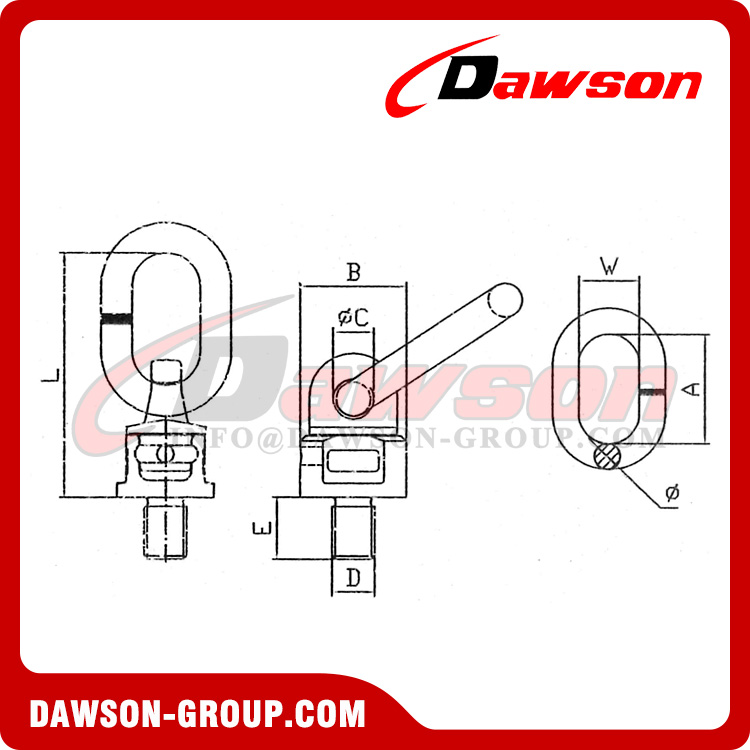

Item No. Weight/kg WLL/T
90°
B.L/T
E B±0.5 C G±1.5 T±1.5 A±5 W±5 Φ±2 G±1 S±0.8
8-DS303-M8×13 0.45 0.3 0.6 M8×13 36 16.5 52 42.8 55 30 14 30 1
8-DS303-M8×18 0.45 0.3 0.6 M8×18 36 16.5 52 42.8 55 30 14 30 1
8-DS303-M8×20 0.45 0.3 0.6 M8×20 36 16.5 52 42.8 55 30 14 30 1
8-DS303-M8×23 0.45 0.3 0.6 M8×23 36 16.5 52 42.8 55 30 14 30 1
8-DS303-M8×30 0.45 0.3 0.6 M8×30 36 16.5 52 42.8 55 30 14 30 1
8-DS303-M8×32 0.45 0.3 0.6 M8×32 36 16.5 52 42.8 55 30 14 30 1
8-DS303-M8×43 0.46 0.3 0.6 M8×43 36 16.5 52 42.8 55 30 14 30 1
8-DS303-M10×10 0.45 0.5 1 M10×10 36 16.5 52 42.8 55 30 14 30 1
8-DS303-M10×15 0.45 0.5 1 M10×15 36 16.5 52 42.8 55 30 14 30 1
8-DS303-M10×18 0.45 0.5 1 M10×18 36 16.5 52 42.8 55 30 14 30 1
8-DS303-M10×20 0.45 0.5 1 M10×20 36 16.5 52 42.8 55 30 14 30 1
8-DS303-M10×25 0.45 0.5 1 M10×25 36 16.5 52 42.8 55 30 14 30 1
8-DS303-M10×27 0.46 0.5 1 M10×27 36 16.5 52 42.8 55 30 14 30 1
8-DS303-M10×30 0.46 0.5 1 M10×30 36 16.5 52 42.8 55 30 14 30 1
8-DS303-M10×40 0.46 0.5 1 M10×40 36 16.5 52 42.8 55 30 14 30 1
8-DS303-M10×50 0.47 0.5 1 M10×50 36 16.5 52 42.8 55 30 14 30 1
8-DS303-M10×90 0.5 0.5 1 M10×90 36 16.5 52 42.8 55 30 14 30 1
8-DS303-M12×18 0.46 0.5 1 M12×18 36 16.5 52 42.8 55 30 14 30 1
8-DS303-M12×20 0.46 0.5 1 M12×20 36 16.5 52 42.8 55 30 14 30 1
8-DS303-M12×27 0.46 0.5 1 M12×27 36 16.5 52 42.8 55 30 14 30 1
8-DS303-M12×30 0.47 0.5 1 M12×30 36 16.5 52 42.8 55 30 14 30 1
8-DS303-M12×31 0.47 0.5 1 M12×31 36 16.5 52 42.8 55 30 14 30 1
8-DS303-M12×35 0.47 0.5 1 M12×35 36 16.5 52 42.8 55 30 14 30 1
8-DS303-M12×40 0.47 0.5 1 M12×40 36 16.5 52 42.8 55 30 14 30 1
8-DS303-M12×45 0.48 0.5 1 M12×45 36 16.5 52 42.8 55 30 14 30 1
8-DS303-M12×48 0.48 0.5 1 M12×48 36 16.5 52 42.8 55 30 14 30 1
8-DS303-M12×110 0.54 0.5 1 M12×110 36 16.5 52 42.8 55 30 14 30 1
8-DS303-M14×20 0.49 1.12 2 M14×20 36 16.5 52 42.8 55 30 14 30 1
8-DS303-M16×20 0.47 1.12 2 M16×20 36 16.5 52 42.8 55 30 14 30 1
8-DS303-M16×24 0.48 1.12 2 M16×24 36 16.5 52 42.8 55 30 14 30 1
8-DS303-M16×27 0.49 1.12 2 M16×27 36 16.5 52 42.8 55 30 14 30 1
8-DS303-M16×30 0.49 1.12 2 M16×30 36 16.5 52 42.8 55 30 14 30 1
8-DS303-M16×35 0.49 1.12 2 M16×35 36 16.5 52 42.8 55 30 14 30 1
8-DS303-M16×40 0.50 1.12 2 M16×40 36 16.5 52 42.8 55 30 14 30 1
8-DS303-M16×46 0.51 1.12 2 M16×46 36 16.5 52 42.8 55 30 14 30 1
8-DS303-M16×50 0.52 1.12 2 M16×50 36 16.5 52 42.8 55 30 14 30 1
8-DS303-M16×64 0.54 1.12 2 M16×64 36 16.5 52 42.8 55 30 14 30 1
8-DS303-M16×80 0.57 1.12 2 M16×80 36 16.5 52 42.8 55 30 14 30 1
8-DS303-M16×100 0.60 1.12 2 M16×100 36 16.5 52 42.8 55 30 14 30 1
8-DS303-M16×120 0.63 1.12 2 M16×120 36 16.5 52 42.8 55 30 14 30 1
8-DS303-M16×300 0.91 1.12 2 M16×300 36 16.5 52 42.8 55 30 14 30 1
8-DS303-M18×30 0.95 2 4 M18×30 49.5 19 69 57 70 35 16 41 1
8-DS303-M20×20 0.97 2 4 M20×20 49.5 19 69 57 70 35 16 41 1
8-DS303-M20×30 0.99 2 4 M20×30 49.5 19 69 57 70 35 16 41 1
8-DS303-M20×35 1.01 2 4 M20×35 49.5 19 69 57 70 35 16 41 1
8-DS303-M20×40 1.02 2 4 M20×40 49.5 19 69 57 70 35 16 41 1
8-DS303-M20×43 1.02 2 4 M20×43 49.5 19 69 57 70 35 16 41 1
8-DS303-M20×50 1.04 2 4 M20×50 49.5 19 69 57 70 35 16 41 1
8-DS303-M20×55 1.05 2 4 M20×55 49.5 19 69 57 70 35 16 41 1
8-DS303-M20×75 1.10 2 4 M20×75 49.5 19 69 57 70 35 16 41 1
8-DS303-M20×80 1.12 2 4 M20×80 49.5 19 69 57 70 35 16 41 1
8-DS303-M20×120 1.21 2 4 M20×120 49.5 19 69 57 70 35 16 41 1
8-DS303-M24×30 1.33 3.15 6.3 M24×30 57 22 79.5 67 85 40 18 46 1.5
8-DS303-M24×36 1.35 3.15 6.3 M24×36 57 22 79.5 67 85 40 18 46 1.5
8-DS303-M24×38 1.36 3.15 6.3 M24×38 57 22 79.5 67 85 40 18 46 1.5
8-DS303-M24×40 1.36 3.15 6.3 M24×40 57 22 79.5 67 85 40 18 46 1.5
8-DS303-M24×45 1.38 3.15 6.3 M24×45 57 22 79.5 67 85 40 18 46 1.5
8-DS303-M24×50 1.4 3.15 6.3 M24×50 57 22 79.5 67 85 40 18 46 1.5
8-DS303-M24×73 1.48 3.15 6.3 M24×73 57 22 79.5 67 85 40 18 46 1.5
8-DS303-M24×90 1.54 3.15 6.3 M24×90 57 22 79.5 67 85 40 18 46 1.5
8-DS303-M24×96 1.56 3.15 6.3 M24×96 57 22 79.5 67 85 40 18 46 1.5
8-DS303-M24×120 1.65 3.15 6.3 M24×120 57 22 79.5 67 85 40 18 46 1.5
8-DS303-M24×300 2.29 3.15 6.3 M24×300 57 22 79.5 67 85 40 18 46 1.5
8-DS303-M27×35 1.47 3.15 6.3 M27×35 57 22 79.5 67 85 40 18 46 1.5
8-DS303-M30×35(5T) 2.3 5.3 10.6 M30×35 66 23.5 98 82 85 40 20 54 1.5
8-DS303-M30×38(5T) 2.32 5.3 10.6 M30×38 66 23.5 98 82 85 40 20 54 1.5
8-DS303-M30×45(5T) 2.36 5.3 10.6 M30×45 66 23.5 98 82 85 40 20 54 1.5
8-DS303-M30×60(5T) 2.49 5.3 10.6 M30×60 66 23.5 98 82 85 40 20 54 1.5
8-DS303-M30×75(5T) 2.53 5.3 10.6 M30×75 66 23.5 98 82 85 40 20 54 1.5
8-DS303-M30×120(5T) 2.78 5.3 10.6 M30×120 66 23.5 98 82 85 40 20 54 1.5
8-DS303-M30×160(5T) 3 5.3 10.6 M30×160 66 23.5 98 82 85 40 20 54 1.5
8-DS303-M30×35(8T) 3.73 8 11.8 M30×35 80 28 114 94 115 50 22 64 2
8-DS303-M30×38(8T) 3.75 8 11.8 M30×38 80 28 114 94 115 50 22 64 2
8-DS303-M30×45(8T) 3.79 8 11.8 M30×45 80 28 114 94 115 50 22 64 2
8-DS303-M30×50(8T) 3.82 8 11.8 M30×50 80 28 114 94 115 50 22 64 2
8-DS303-M30×55(8T) 3.84 8 11.8 M30×55 80 28 114 94 115 50 22 64 2
8-DS303-M30×98(8T) 4.08 8 11.8 M30×98 80 28 114 94 115 50 22 64 2
8-DS303-M30×120(8T) 4.21 8 11.8 M30×120 80 28 114 94 115 50 22 64 2
8-DS303-M30×140(8T) 4.32 8 11.8 M30×140 80 28 114 94 115 50 22 64 2
8-DS303-M36×50 3.88 8 11.8 M36×50 80 28 111 92 115 50 22 65 2
8-DS303-M36×53 3.9 8 11.8 M36×53 80 28 111 92 115 50 22 65 2
8-DS303-M36×60 3.96 8 11.8 M36×60 80 28 111 92 115 50 22 65 2
8-DS303-M36×90 4.2 8 11.8 M36×90 80 28 111 92 115 50 22 65 2
8-DS303-M36×128 4.5 8 11.8 M36×128 80 28 111 92 115 50 22 65 2
8-DS303-M36×140 4.6 8 11.8 M36×140 80 28 111 92 115 50 22 65 2
8-DS303-M36×160 4.76 8 11.8 M36×160 80 28 111 92 115 50 22 65 2
8-DS303-M36×220 5.24 8 11.8 M36×220 80 28 111 92 115 50 22 65 2
8-DS303-M36×300 5.88 8 11.8 M36×300 80 28 111 92 115 50 22 65 2
8-DS303-M36×330 6.12 8 11.8 M36×330 80 28 111 92 115 50 22 65 2
8-DS303-M36×400 6.67 8 11.8 M36×400 80 28 111 92 115 50 22 65 2
8-DS303-M39×50 3.95 8 11.8 M39×50 80 28 111 92 115 50 22 65 2
8-DS303-M39×60 4.04 8 11.8 M39×60 80 28 111 92 115 50 22 65 2
8-DS303-M39×90 4.32 8 11.8 M39×90 80 28 111 92 115 50 22 65 2

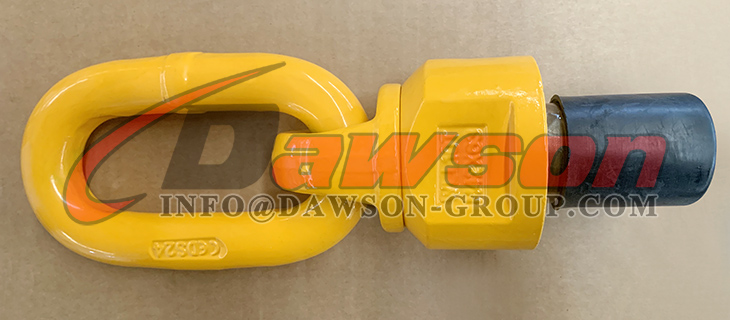

8-DS303-M42×50 4.46 10 15 M42×50 80 28 111 92 115 50 22 65 2.5
8-DS303-M42×60 4.57 10 15 M42×60 80 28 111 92 115 50 22 65 2.5
8-DS303-M42×63 4.6 10 15 M42×63 80 28 111 92 115 50 22 65 2.5
8-DS303-M42×130 5.33 10 15 M42×130 80 28 111 92 115 50 22 65 2.5
8-DS303-M42×160 5.66 10 15 M42×160 80 28 111 92 115 50 22 65 2.5
8-DS303-M42×180 5.87 10 15 M42×180 80 28 111 92 115 50 22 65 2.5
8-DS303-M45×60 4.7 10 15 M45×60 80 28 111 92 115 50 22 65 2.5
8-DS303-M48×50 4.63 10 15 M48×50 80 28 111 92 115 50 22 65 2.5
8-DS303-M48×60 4.77 10 15 M48×60 80 28 111 92 115 50 22 65 2.5
8-DS303-M48×70 4.91 10 15 M48×70 80 28 111 92 115 50 22 65 2.5
8-DS303-M48×72 4.94 10 15 M48×72 80 28 111 92 115 50 22 65 2.5
8-DS303-M48×110 5.48 10 15 M48×110 80 28 111 92 115 50 22 65 2.5
8-DS303-M48×160 6.19 10 15 M48×160 80 28 111 92 115 50 22 65 2.5
8-DS303-M48×245 7.39 10 15 M48×245 80 28 111 92 115 50 22 65 2.5
8-DS303-M56×84 11.8 15 25 M56×84 117 42 166 134 152 70 32 95 2.5
8-DS303-M64×95 12.5 15 25 M64×95 117 42 166 134 152 70 32 95 2.5

Product specifications:

M8 G80 Lifting Screw Point, M10 G80 Lifting Screw Point, M12 G80 Lifting Screw Point, M14 G80 Lifting Screw Point, M16 G80 Lifting Screw Point, M18 G80 Lifting Screw Point, M20 G80 Lifting Screw Point, M24 G80 Lifting Screw Point, M27 G80 Lifting Screw Point, M30 G80 Lifting Screw Point, M36 G80 Lifting Screw Point, M39 G80 Lifting Screw Point, M42 G80 Lifting Screw Point, M45 G80 Lifting Screw Point, M48 G80 Lifting Screw Point, M56 G80 Lifting Screw Point, M64 G80 Lifting Screw Point

M8 Grade 80 Swivel Hoist Ring, M10 Grade 80 Swivel Hoist Ring, M12 Grade 80 Swivel Hoist Ring, M14 Grade 80 Swivel Hoist Ring, M16 Grade 80 Swivel Hoist Ring, M18 Grade 80 Swivel Hoist Ring, M20 Grade 80 Swivel Hoist Ring, M24 Grade 80 Swivel Hoist Ring, M27 Grade 80 Swivel Hoist Ring, M30 Grade 80 Swivel Hoist Ring, M36 Grade 80 Swivel Hoist Ring, M39 Grade 80 Swivel Hoist Ring, M42 Grade 80 Swivel Hoist Ring, M45 Grade 80 Swivel Hoist Ring, M48 Grade 80 Swivel Hoist Ring, M56 Grade 80 Swivel Hoist Ring, M64 Grade 80 Swivel Hoist Ring

Ultimate load is 4 times the Working Load Limit.

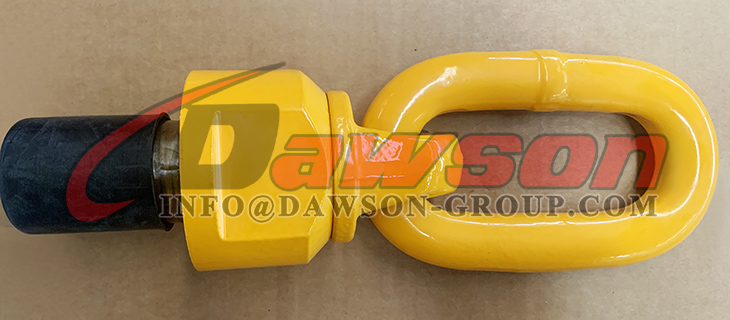

Products Show:

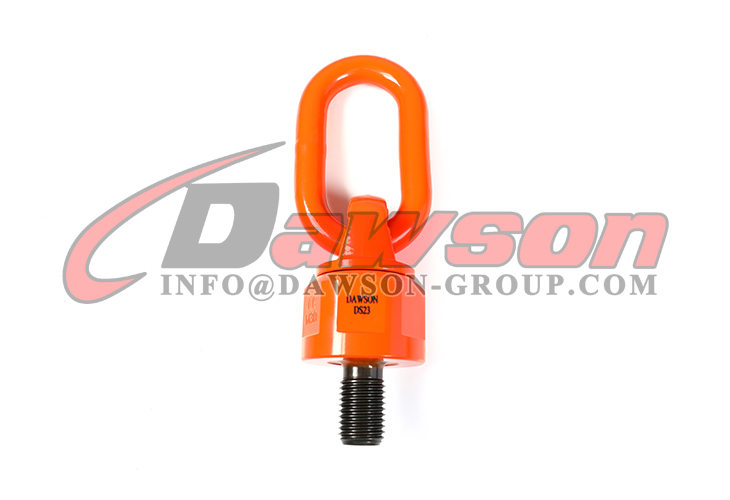

DS303 G80 M8-M64 Lifting Screw Point - Dawson Group Ltd. - China Manufacturer, Factory

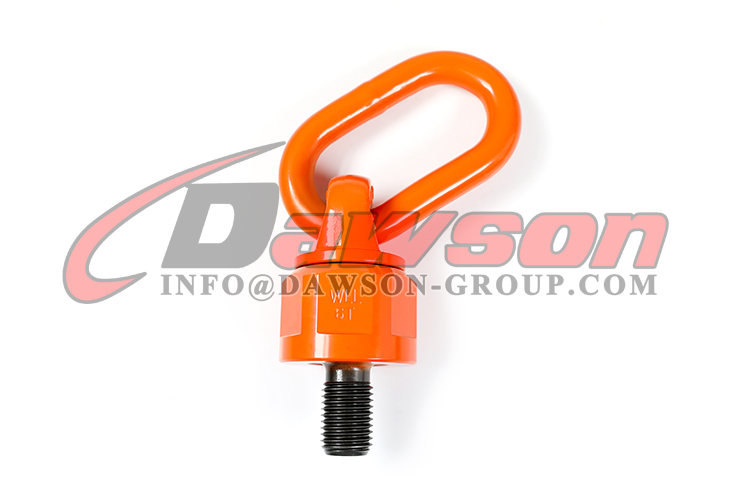

DS303 G80 M8-M64 Lifting Screw Point - Dawson Group Ltd. - China Manufacturer, Supplier, Factory
DS303 G80 M8-M64 Lifting Screw Point - Dawson Group Ltd. - China Manufacturer, Supplier

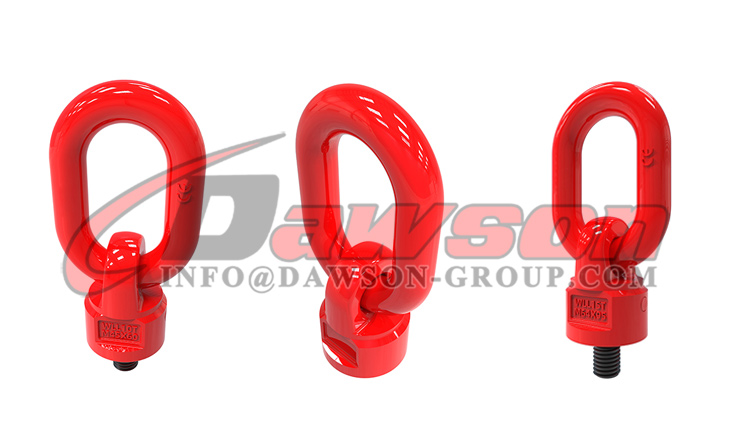

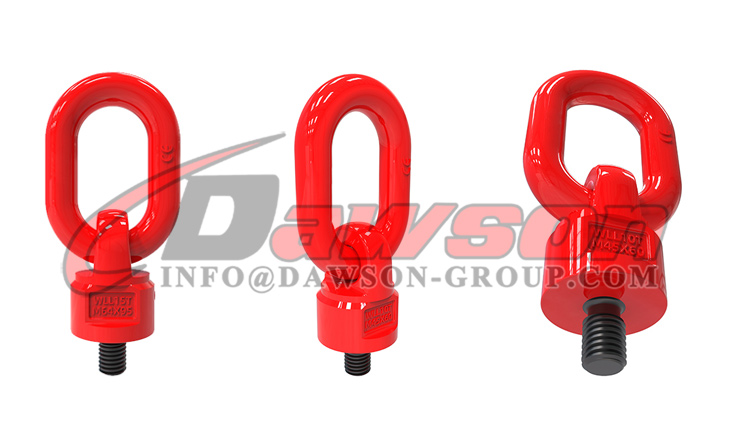

DS303 G80 Lifting Screw Point - Dawson Group Ltd. - China Manufacturer, Supplier, Factory
DS303 G80 Lifting Screw Point - Dawson Group Ltd. - China Manufacturer, Supplier

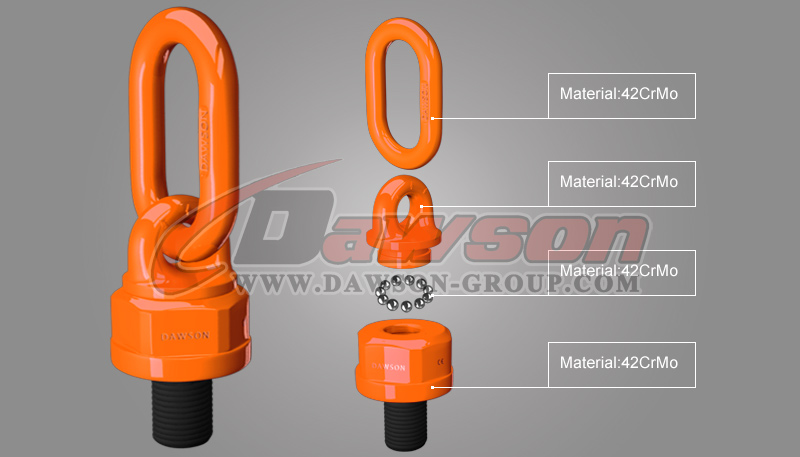

G80 Lifting Screw Point, Grade 80 Swivel Lifting Points - China Manufacturer Supplier, Factory

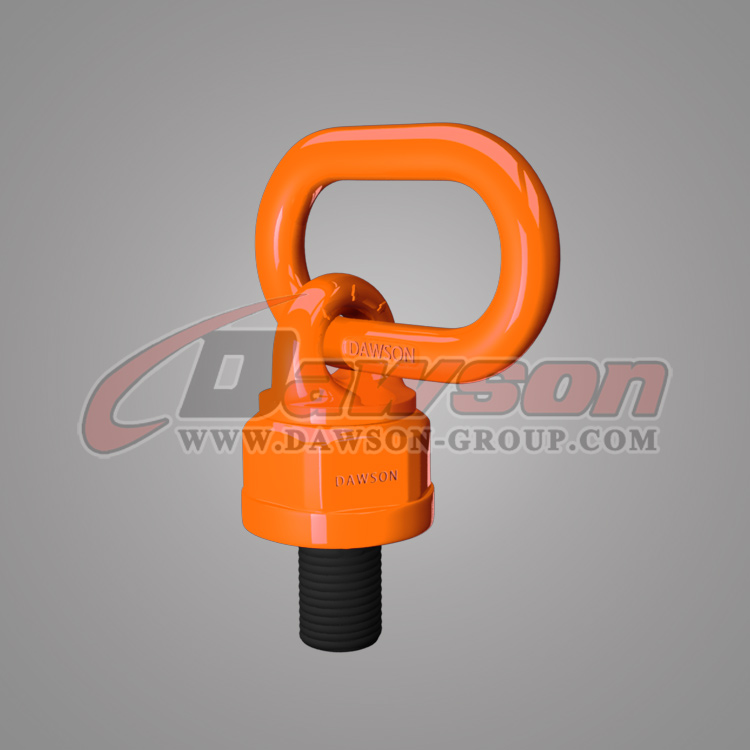

Grade 80 Lifting Point - China Supplier, Factory  Grade 80 Lifting Screw Point - China Supplier

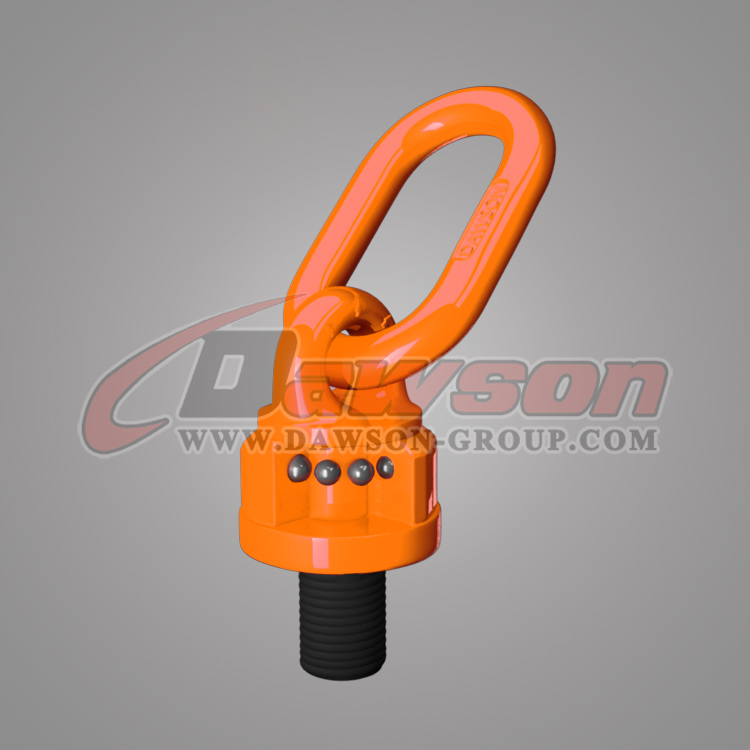

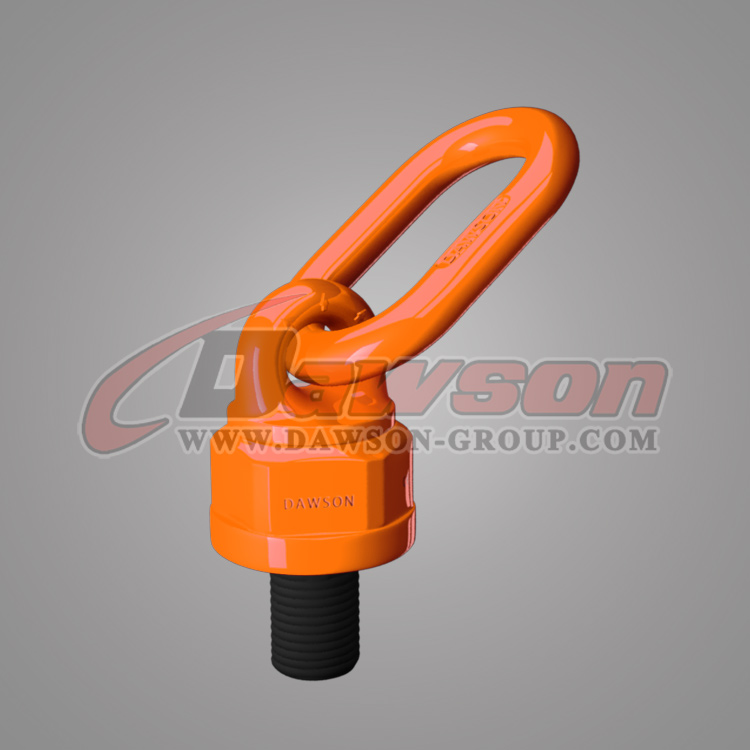

Grade 80 Lifting Screw Point , G80 Lifting Points, G80 Lifting Screw Point - China Supplier, Factory  Grade 80 Lifting Screw Point , G80 Lifting Points, G80 Lifting Screw Points - China Supplier, Exporter
Grade 80 Lifting Screw Point , G80 Lifting Points, G80 Lifting Screw Points Swivel Lifting Points - China Supplier, Exporter  Grade 80 Lifting Screw Point , G80 Lifting Points, G80 Swivel Lifting Points - China Supplier, Exporter

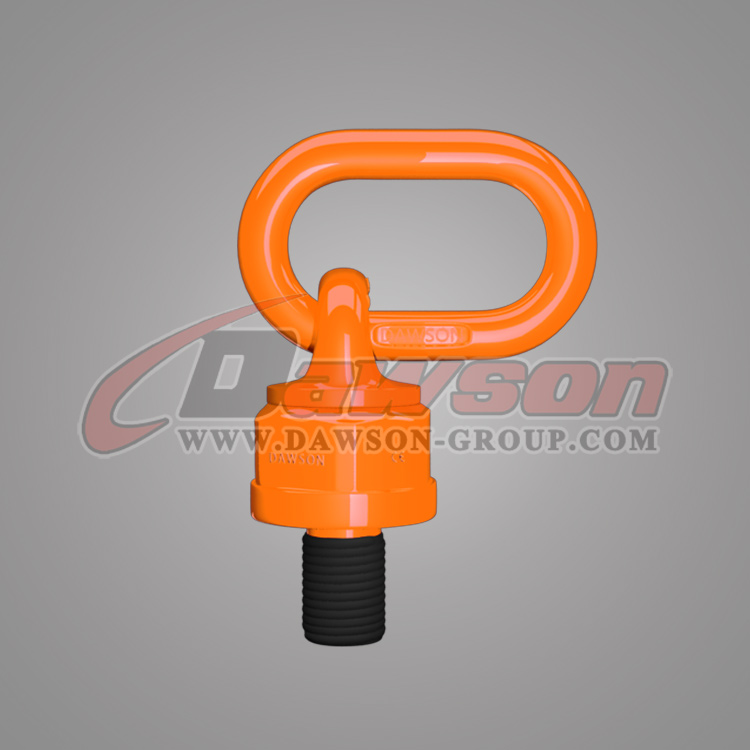

Grade 80 Lifting Screw Point, Grade 80 Swivel Hoist Ring - China Supplier  Grade 80 Lifting Screw Point , G80 Swivel Lifting Point - China Supplier, Factory

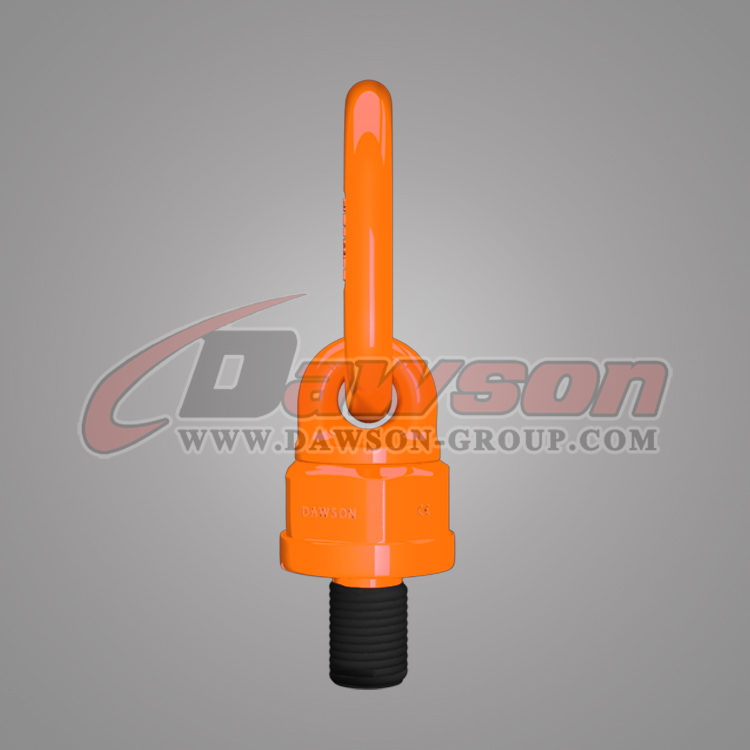

Grade 80 Lifting Screw Point, G80 Lifting Points - China Manufacturer  Grade 80 Lifting Screw Point, G80 Swivel Lifting Points, G80 Lifting Points - China Exporter

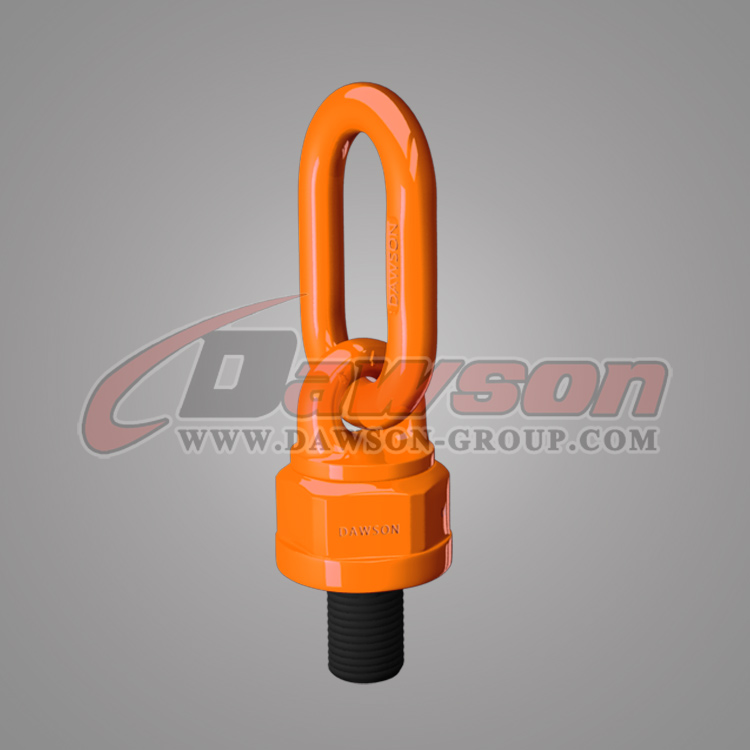

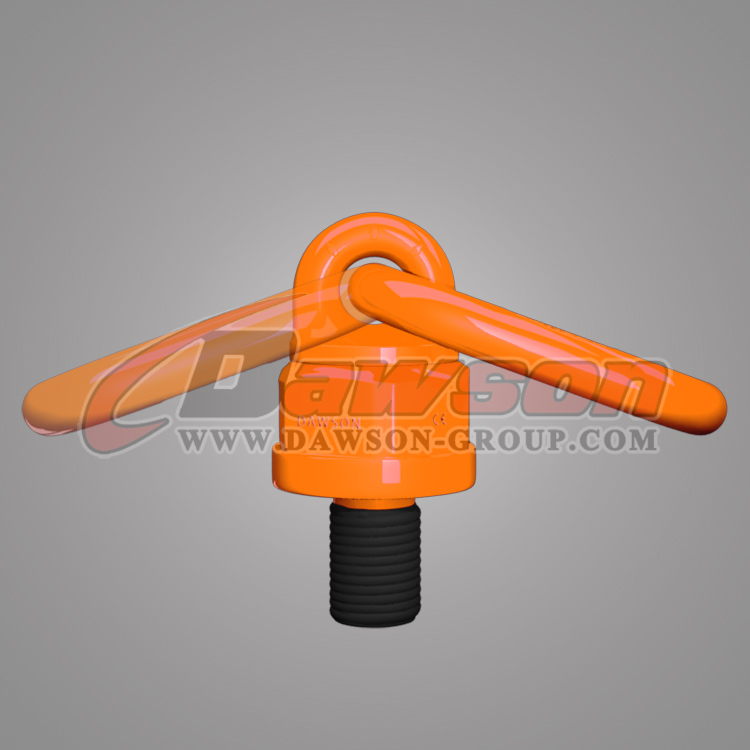

Grade 80 Lifting Screw Point, G80 Swivel Lifting Points, Lifting Equipment - China Manufacturer  Grade 80 Lifting Screw Point, G80 Swivel Lifting Screw Point, Swivel Hoist Ring - China Exporter

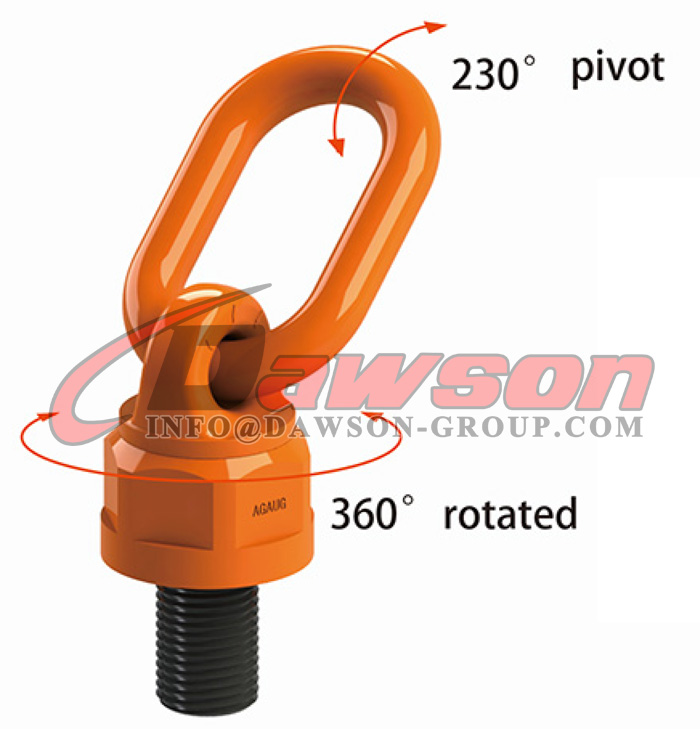

DS303 Universal Swivel Hoist Ring, Lifting Point - Dawson Group Ltd. - China Manufacturer, Supplier, Factory

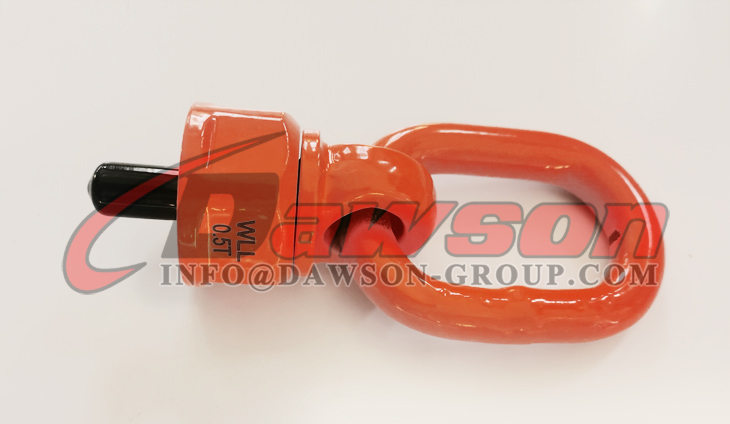

G80 Lifting Screw Point, G80 Alloy Steel Swivel Hoist Ring for Lifting, Grade 80 Screw Type Swivel Lifting Point - Dawson Group Ltd. - China Factory, Manufacturer, Supplier
G80 Lifting Screw Point, G80 Alloy Steel Swivel Hoist Ring for Lifting, Grade 80 Screw Type Swivel Lifting Point - Dawson Group Ltd. - China Manufacturer, Supplier, Factory

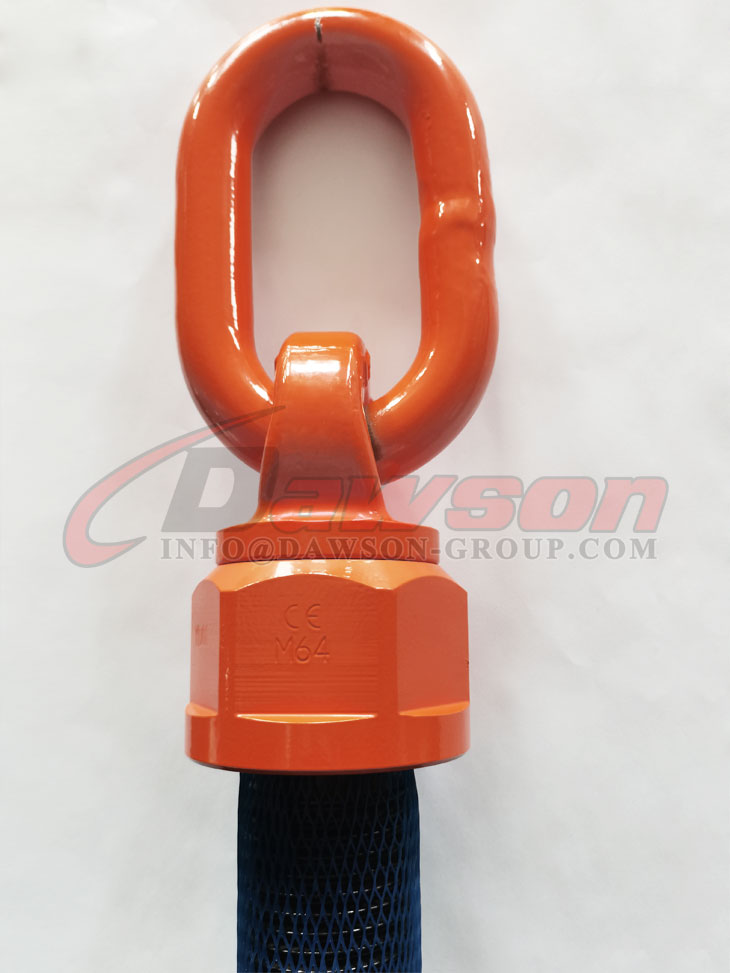

DS304 G80 Lifting Screw Point - Dawson Group Ltd. - Supplier, Factory

DS304 G80 Lifting Screw Point - Dawson Group Ltd. - China Supplier, Factory
Universal Swivel Hoist Ring - Dawson Group Ltd. - China Manufacturer, Supplier, Factory

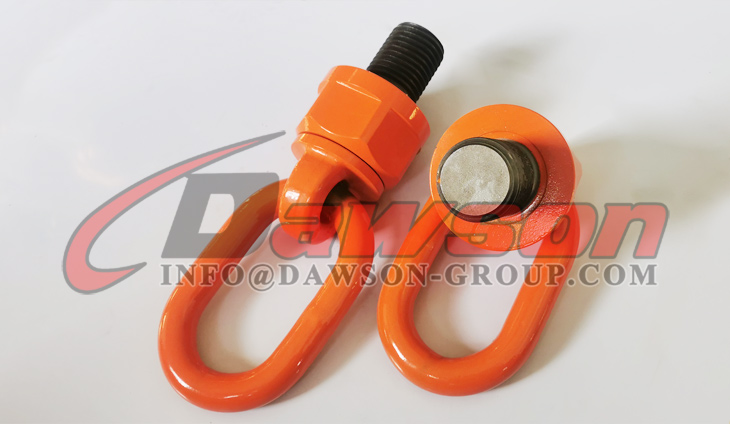

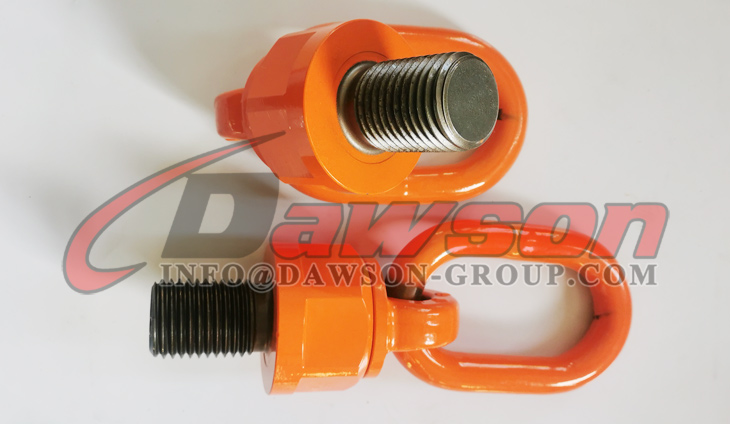

G80 Alloy Steel Swivel Hoist Ring for Lifting, Grade 80 Screw Type Swivel Lifting Point - Dawson Group Ltd. - China Factory, Manufacturer, Supplier
G80 Alloy Steel Swivel Hoist Ring for Lifting, Grade 80 Screw Type Swivel Lifting Point - Dawson Group Ltd. - China Manufacturer, Supplier, Factory

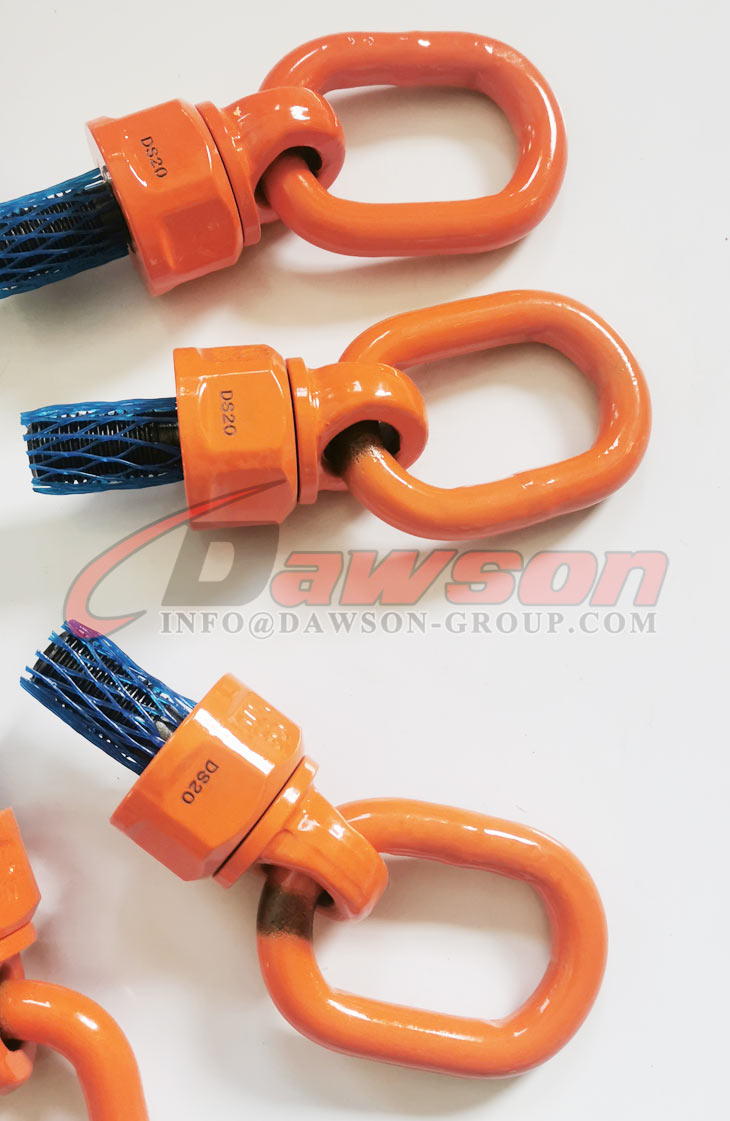

Grade 80 Screw Type Swivel Lifting Point, G80 Alloy Steel Swivel Hoist Ring for Lifting - Dawson Group Ltd. - China Manufacturer, Supplier, Factory

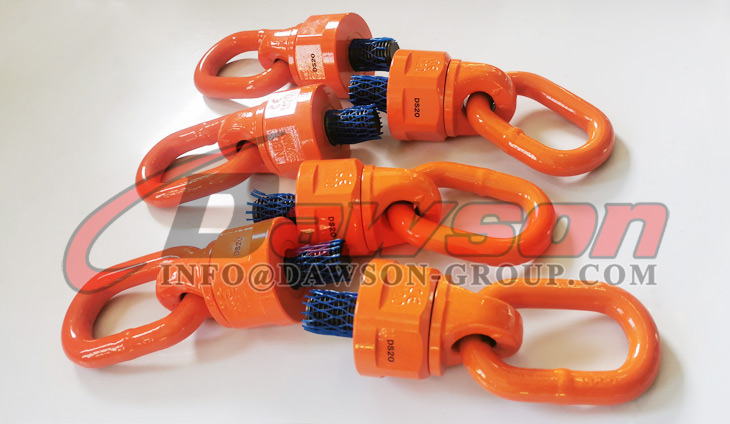

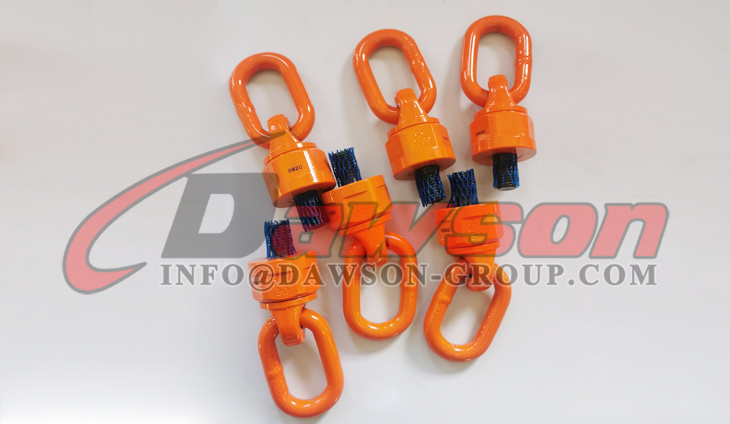

Grade 80 Screw Type Swivel Lifting Point, G80 Lifting Screw Point, G80 Alloy Steel Swivel Hoist Ring for Lifting - Dawson Group Ltd. - China Factory, Manufacturer, Supplier
Grade 80 Screw Type Swivel Lifting Point, G80 Lifting Screw Point, G80 Alloy Steel Swivel Hoist Ring for Lifting - Dawson Group Ltd. - China Manufacturer, Supplier, Factory

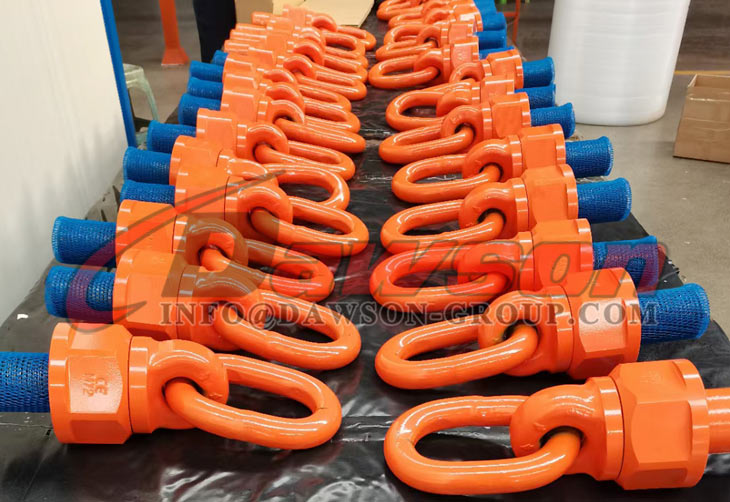

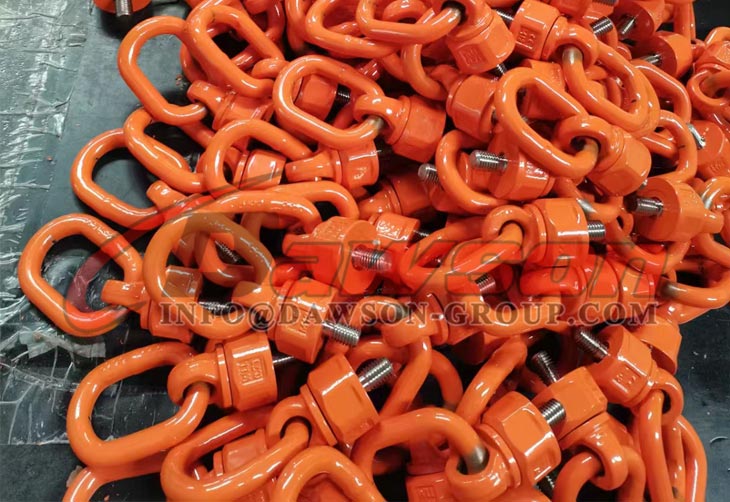

G80 Lifting Screw Point - Dawson Group Ltd. - China Supplier, Manufacturer, Factory
G80 Lifting Screw Point - Dawson Group Ltd. - China Supplier, Manufacturer

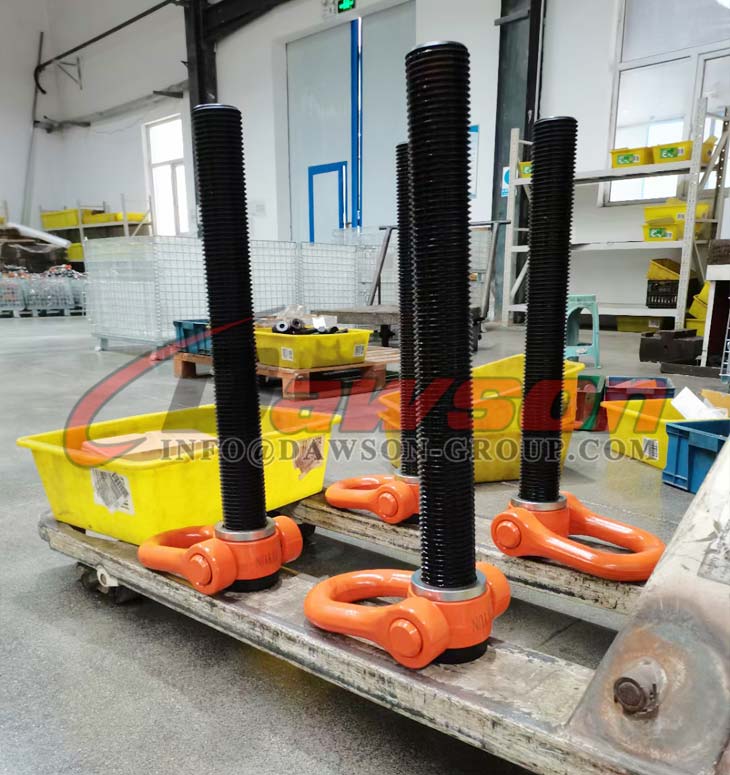

G80 Lifting Screw Point - Dawson Group Ltd. - China Manufacturer, Factory, Supplier

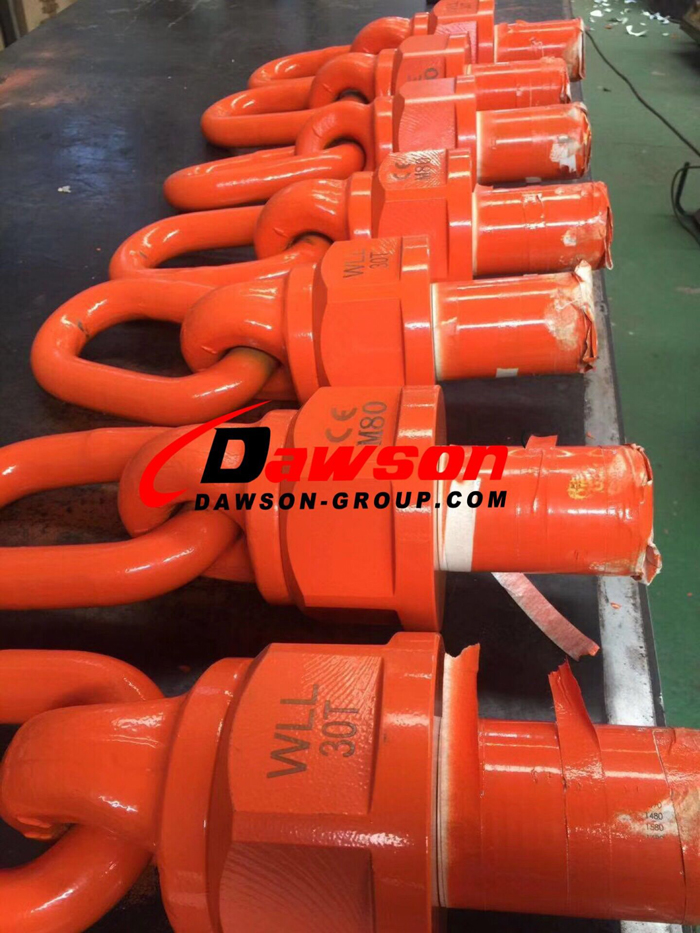

DS303 G80 Lifting Screw Point - Dawson Group Ltd. - China Supplier, Manufacturer, Factory

DS303 G80 Lifting Screw Point - Dawson Group Ltd. - China Manufacturer, Supplier, Factory

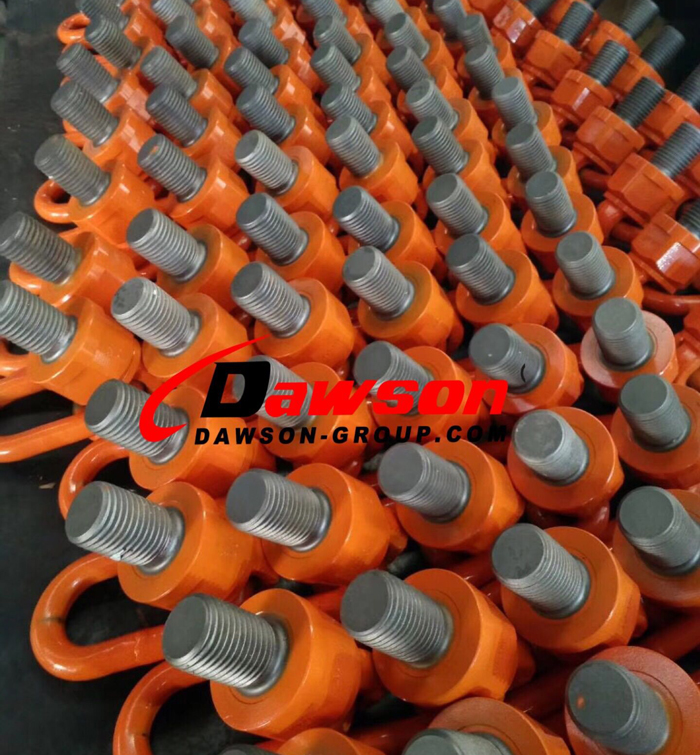

DS303 G80 Lifting Screw Point (- Dawson Group Ltd. - China Manufacturer, Supplier, Factory
G80 Lifting Screw Point, G80 Alloy Steel Swivel Hoist Ring for Lifting, Grade 80 Screw Type Swivel Lifting Point - Dawson Group Ltd. - China Factory, Manufacturer, Supplier

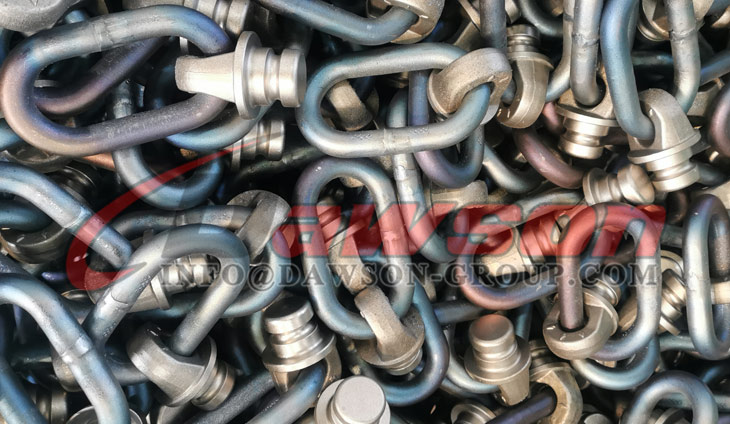

G80 Alloy Steel Swivel Hoist Ring for Lifting - Dawson Group Ltd. - China Factory, Manufacturer, Supplier
Grade 80 Screw Type Swivel Lifting Point, G80 Alloy Steel Swivel Hoist Ring for Lifting - Dawson Group Ltd. - China Factory, Manufacturer, Supplier

Other Related Products Show:

G80 Lifting Points - Dawson Group Ltd. - China Manufacturer, Supplier, Factory
G80 Lifting Points, Grade 80 Lifting Point - Dawson Group Ltd. - China Manufacturer, Supplier, Factory
DAWSON Metric Thread G80 Swivel Hoist Ring - Dawson Group Ltd. - China Manufacturer, Supplier, Factory
DS173 G80 Pivoting Lifting screw - Dawson Group Ltd. - China Manufacturer, Factory,Supplier

G80 Lifting Points Catalogues Download:

G80 Lifting Points - Dawson Group Ltd. - China Manufacturer, Supplier, Factory

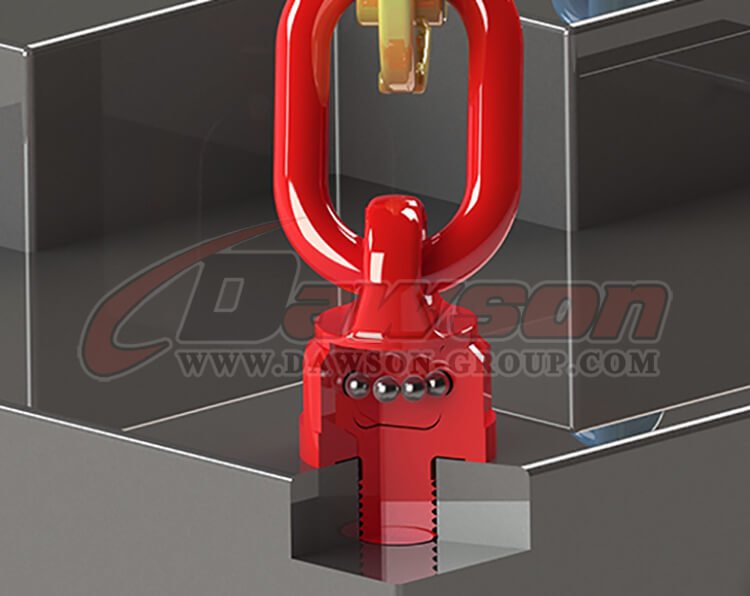

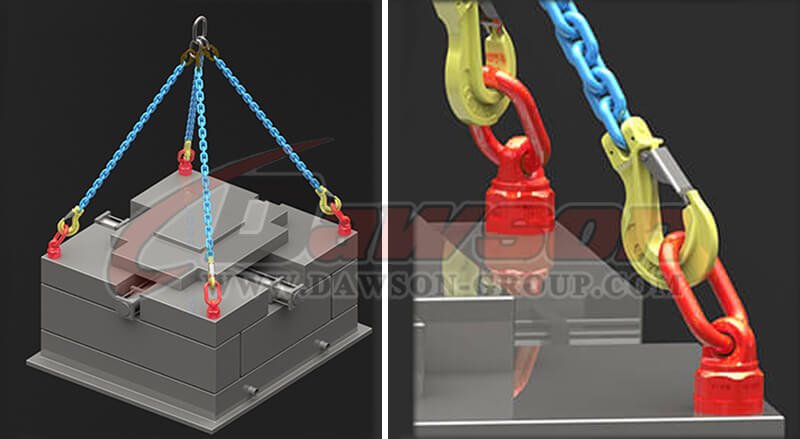

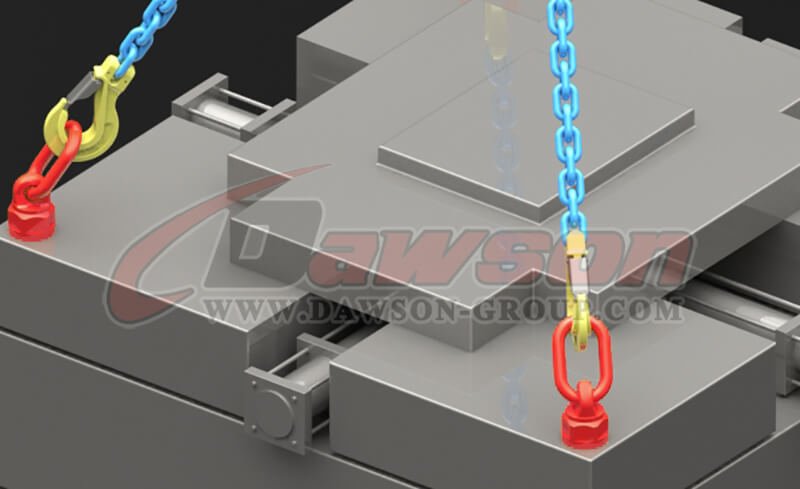

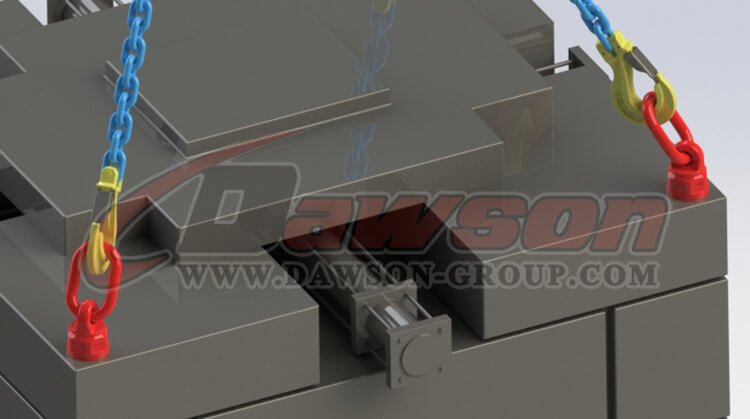

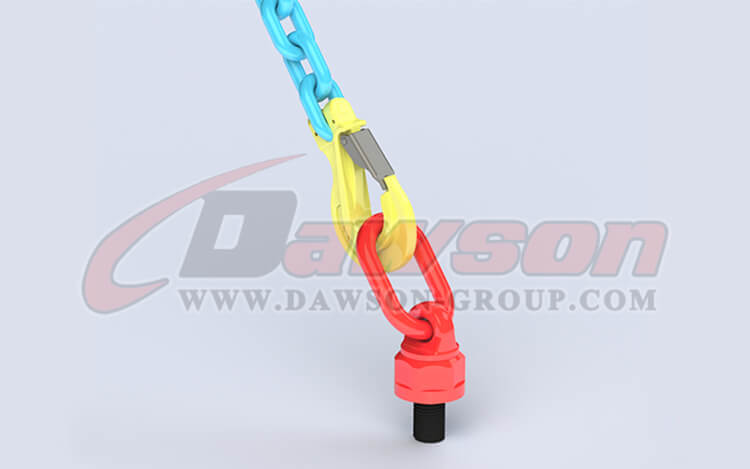

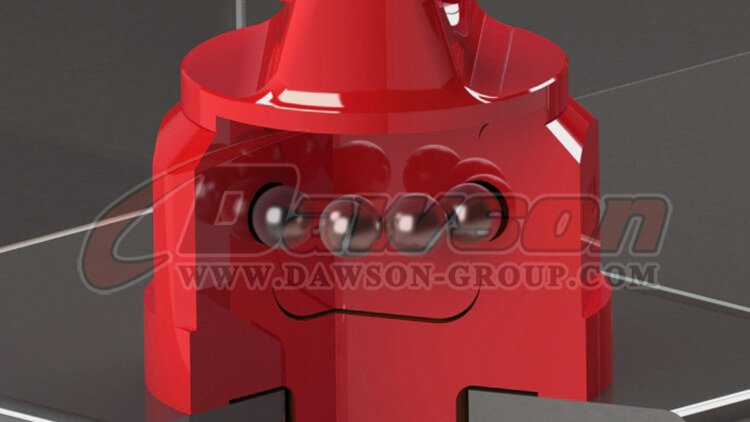

Application Of Lifting Screw Point:

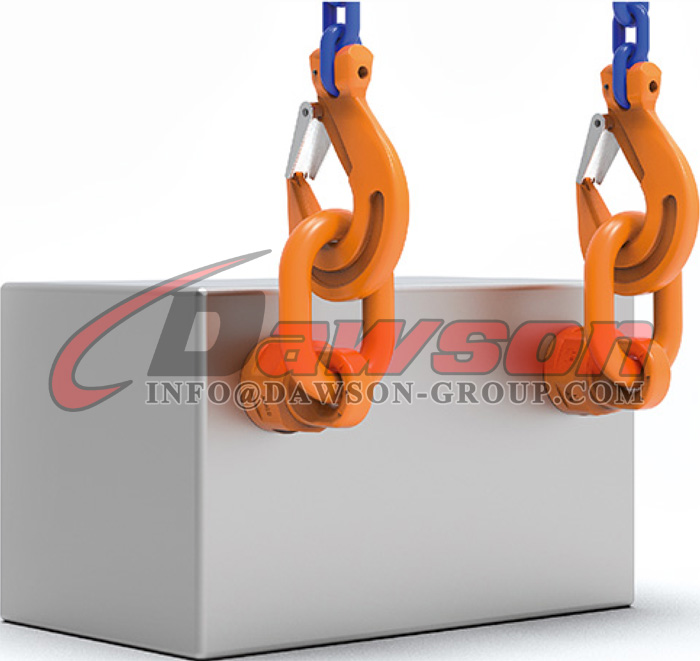

Application of DS303 Universal Swivel Hoist Ring - Dawson Group Ltd. - China Manufacturer, Supplier, Factory
Application of DS303 Universal Swivel Hoist Ring, G80 Lifting Points - Dawson Group Ltd. - China Manufacturer, Supplier, Factory

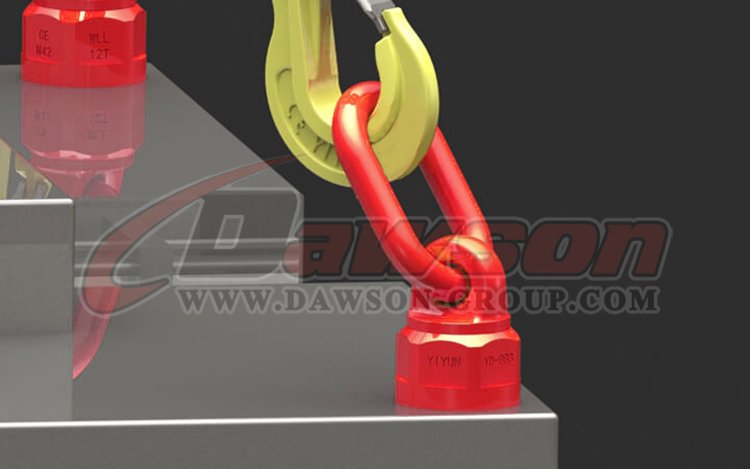

application DS303 G80 Lifting Screw Point - Dawson Group Ltd. - China Manufacturer, Supplier, Factory

application of DS303 G80 Lifting Screw Point - Dawson Group Ltd. - China Manufacturer, Supplier

application of DS303 G80 Lifting Screw Point - Dawson Group Ltd. - China Manufacturer, Supplier, Factory

application of DS303 G80 Lifting Screw Point - Dawson Group Ltd. - China exporter

application of DS303 G80 Lifting Screw Point - Dawson Group Ltd. - China factory

application of DS303 G80 Lifting Screw Point - Dawson Group Ltd. - China manufacturer

application of DS303 G80 Lifting Screw Point - Dawson Group Ltd. - China supplier

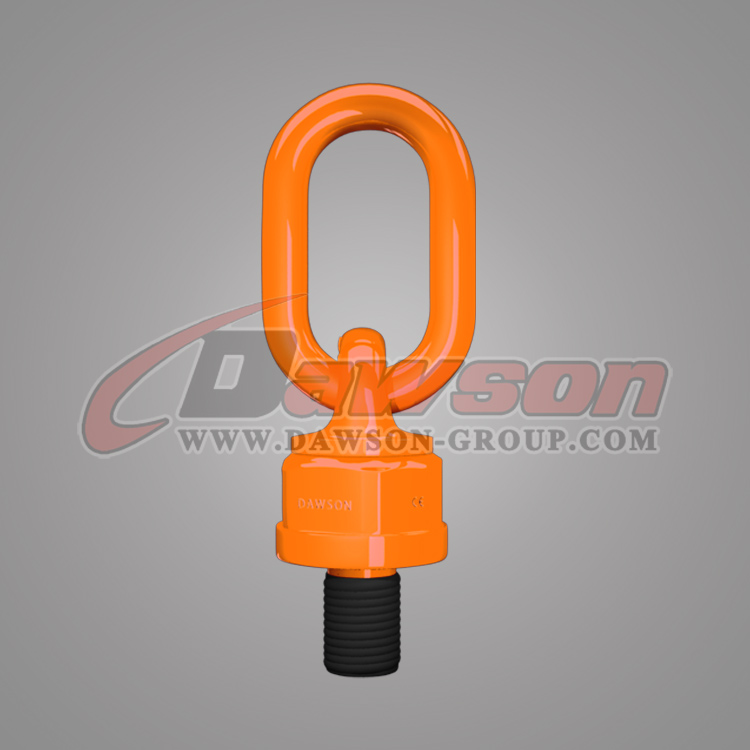

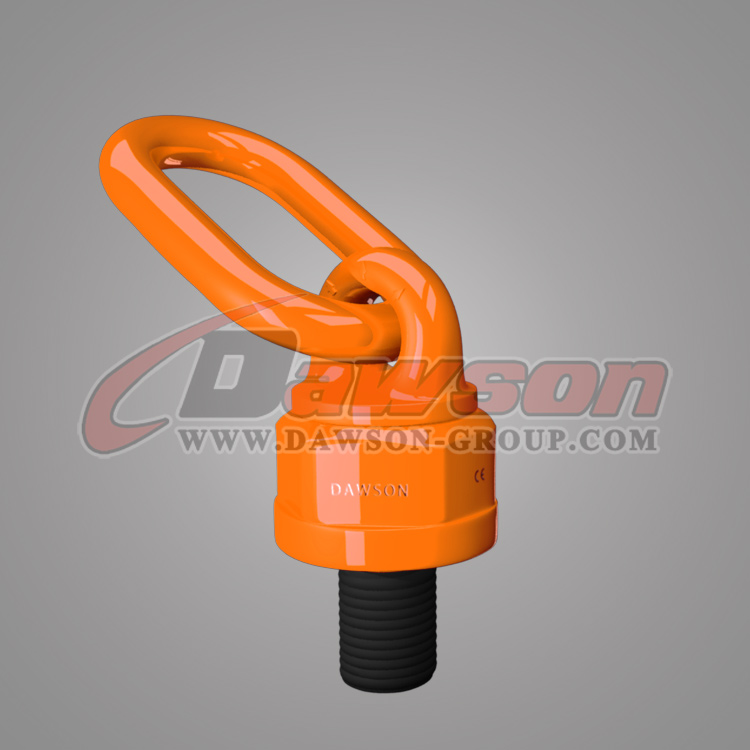

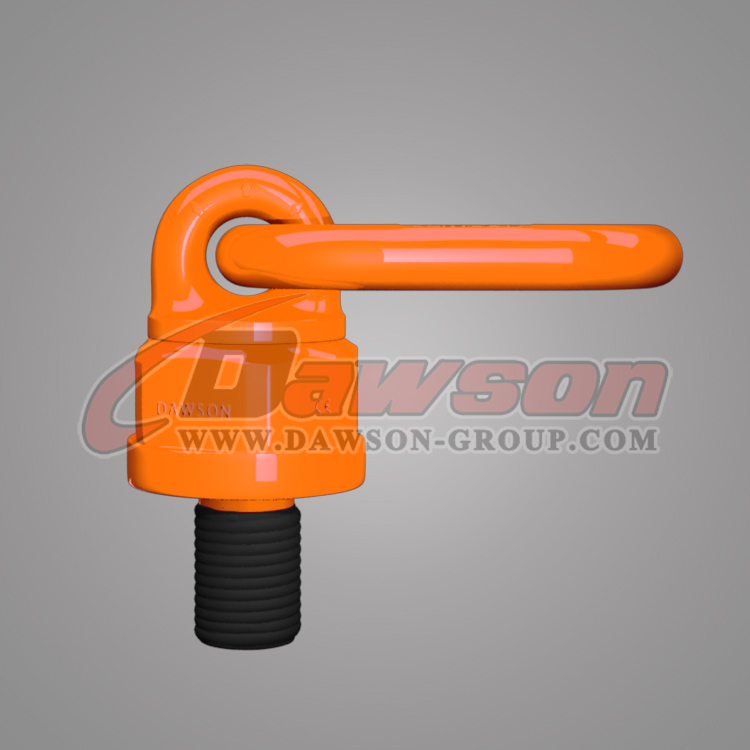

DS303 G80 Lifting Screw Point - Dawson Group Ltd. - China Manufacturer, Factory

Production Equipment:

production equipment - China Supplier

Test Equipment:

test equipment - China Supplier

Factory & Package Show:

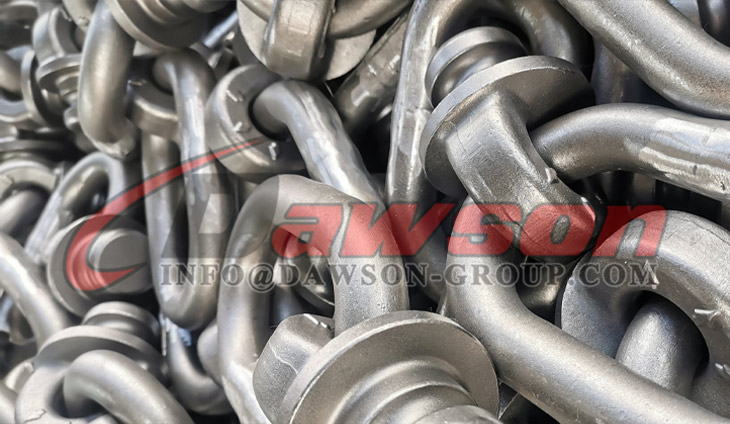

G80 Lifting Screw Point - Dawson Group Ltd. - China Manufacturer, Factory

Factory of DS303 G80 Lifting Screw Point - Dawson Group Ltd. - China Manufacturer, Supplier, Factory
Package of DS303 G80 Lifting Screw Point - Dawson Group Ltd. - China Manufacturer, Supplier, Factory

We have any other related products, if you have any intrest, please contact us, info@dawson-group.com!

G80 Swivel Hoist Ring - Dawson Group - China Factory   G80 Lifting Screw Point Female Type - Dawson Group Ltd. - China Manufacturer, Supplier, Factory   DS292 G80 LIFTING EYE SCREW WITH OMEGA LINK - DAWSON GROUP LTD. - CHINA MANUFACTURER

DS173 G80 PIVOTING LIFTING SCREW - DAWSON GROUP LTD. - CHINA MANUFACTURER, SUPPLIER   G80 Motor Rotating Hoist Ring - Dawson Group Ltd. - China Manufacturer, Supplier

G80 Eye Type Swivel Hoist Ring - Dawson Group Ltd. - China Manufacturer, Supplier   M16 G80 New Design Swivel Hoist Ring - Dawson Group Ltd. - China Manufacturer, Supplier   G80 Heavy Duty Swivel Hoist Ring - Dawson Group Ltd. - China Manufacturer, Supplier
