DSHW-A TYPE 250kg-1000kg Worm Gear Hand Lifting Winch with CE Certificate

Capacity: 150-2000kg
Sales Models: Wholesale
Min Order: 1000pcs
  • DAWSON/OEM
  • DSHW-A
  • 150-2000kg
  • 1000pcs
Availability:
Quantity:

DSHW-A TYPE 250kg-1000kg Worm Gear Hand Lifting Winch with CE Certificate

 - Dawson Group Ltd. - China manufacturer, Supplier, Factory

DSHW-A Hand Winch - Dawson Group Ltd.     DSHW-AB Hand Winch - Dawson Group Ltd.

Hand Spur gear Winch - Dawson Group Ltd. - China Manufacturer, Supplier      Hand Spur gear Winch - Dawson Group Ltd. - China M Supplier, Factory
Hand Spur Gear Winch
Featured
Position: flat or wall-mounted
Industry
Auditoriums, theatre scenery
Water treatment, water retentions
Transport: trailers, barges
Sports rooms
Hanging chandeliers….
Hand Spur gear Winch - Dawson Group Ltd. - China Supplier, Factory

Technical Properties
Encased mechanical parts
Automatic brake
Stainless steel ratchet spring
Straight-cut gears
Highly rugged design, thanks to the exceptional
rigidity of the frame
Automatic brake made of composite materials.
Ergonomic and removable crank handle with rotating grip, This crank arm can be adjusted to minimise effort according to the loads,
Captive adjusting knob.

Model Capacity Wire Rope Length No. of Layers Net Weight
kg mm mm kg
DSHWA150 150 4 22 6 8
DSHWA300 300 5 40 6 16
DSHWA500 500 6.8 25 4 17
DSHWA1000 1000 9 25 4 38
DSHWA2000 2000 13 30 3 60

Capacity A B C D E ΦX Drive Ratio
kg mm m
150 180 325 150 150 350 4*22 2.842:1
300 240 385 200 200 250 5*40 6.67:1
500 240 385 200 200 250 6.8*20 7.75:1
1000 412 485 300 300 350 9*25 23.75:1
2000 500 585 405 405 350 13*30 43.7:1
Application of Hand Spur gear Winch - Dawson Group Ltd. - China Supplier, Factory
Application of Hand Spur Gear Winch:

Application of Hand Spur gear Winch - Dawson Group Ltd. - China Supplier

Hand Worm gear Winch - Dawson Group Ltd. - China Factory, Exporter      Hand Worm gear Winch - Dawson Group Ltd. - China Manufacturer, Supplier
Hand Worm Gear Winch



Featured
Position: flat or wall-mounted
Industry
Shows, sceneries
Water treatment, water retentions
Sports rooms
Hanging chandeliers.

Technical Properties
Absolute safety by worm gear reduction +automatic brake.
Encased mechanical parts
Automatic brake
Stainless steel ratchet spring.
Straight-cut gears.
 Highly rugged design, thanks to the exceptional rigidity of the frame
Ergonomic and removable crank handle with rotating grip, This crank arm can be adjusted to minimise effort according to the loads
Captive adjusting knob.

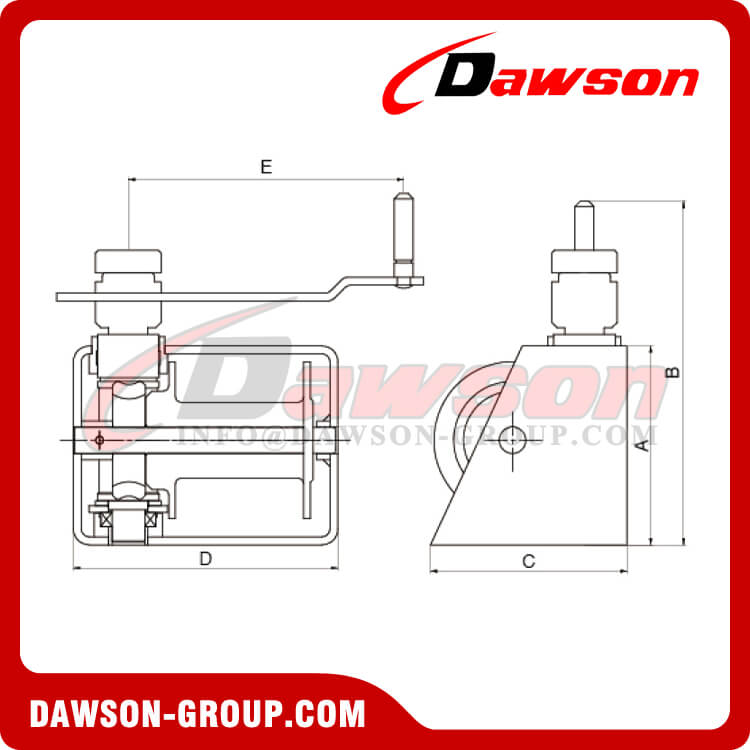

Item No S.W.L. Load Capacity For Wire Rope Length Number of Layers A(mm) B(mm) C(mm) D(mm) E(mm) ΦX(m) Drive ratio Weight(kg)
DSHWAB-250 250kg 250kg 5mm 20m 4 150 330 150 200 240 20 15:1 10
DSHWAB-500 500kg 500kg 6.8mm 25m 4 180 360 180 260 240 6.8×25 21:1 16
DSHWAB-1000 1000kg 1000kg 9mm 35m 4 300 490 300 300 370 35 26:1 40
Application of Hand Worm gear Winch - Dawson Group Ltd. - China Supplier, Exporter
Application of Hand Worm Gear Winch:
Application of Hand Worm gear Winch - Dawson Group Ltd. - China Supplier



Welcome to buy the newest and competitive price DAWSON DSHW-A TYPE 250kg-1000kg Worm Gear Hand Lifting Winch from our factory. We're one of the leading China manufacturers and suppliers, offering you the wholesale service and the OEM service at a discount. With CE certification, our products made in China in stock are high in quality and low in price. Please be free to get the free sample from us.


Certificate:

CE Certificate of Hand Winch
