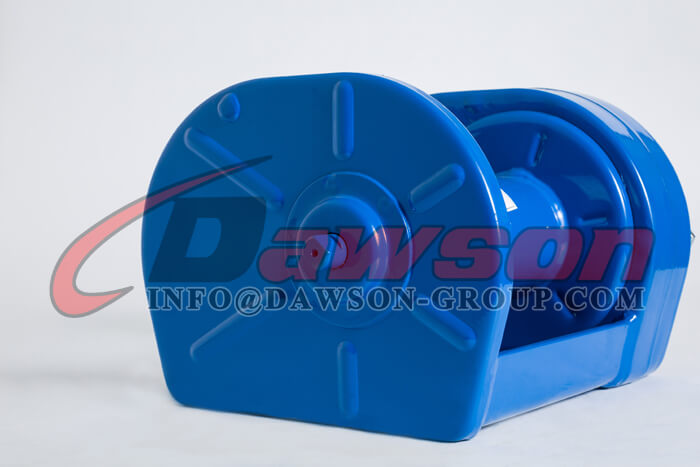

DSHW-E Type Powder Coating Portable Cable Hand Winch

1.Double-Pawl braking system ensure safety.
2.Using asbestos free friction discs.
3.Handle length is easily adjustable.
4.The drum is big enough to contain more cable, suit for long distance using.
5.Adopting lever handle, it can be used in the narrow space.
6.The winch is designed with sealed structure to avoid dust.
Min Order: 10pcs

  • DAWSON/OEM

  • DSHW-E

Availability:
Quantity:
Inquire Add to Basket

DSHW-E Type Powder Coating Portable Cable Hand Winch

- Dawson Group Ltd. - China Manufacturer, Supplier, Factory

DSHW-E Type Powder Coating Portable Cable Hand Winch - Dawson Group Ltd. - China Manufacturer, Supplier   DSHW-E Type Powder Coating Portable Cable Hand Winch - Dawson Group Ltd. - China Manufacturer, Factory

DSHW-E Type Powder Coating Portable Cable Hand Winch - Dawson Group Ltd. - China Supplier, Factory   DSHW-E Type Powder Coating Portable Cable Hand Winch - Dawson Group Ltd. - China Manufacturer, Supplier, Factory




Model DSHWE005 DSHWE010 DSHWE020 DSHWE030
Capacity                           t 0.5 1 2 3
Proof Load                         kN 6.125 12.25 24.5 36.75
Wire Rope                       mm x m 6.3 x 40 8 x 40 9 x 40 12.5 x 40
Gear Ratio 4.33:1 12.18:1 22.68:1 29.16:1
Handle Length                     mm 350 350 350 350
Min. Hand Force Required N 120 120 130 180
Dimensions(mm) A 60 76 90 100
B 140 175 190 230
C 150 154 195 205
D 100 110 155 155
E 15 18 18 18
F 403 443 490 549
H 182 214 230 296
I 130 170 170 170
J 245 266 300 365
M 178 191 302 356
N 57.5 48 44 77
P 39 38.5 43 68.5
Net Weight                         kg 14.4 19.7 25.1 44.3
Characteristics
1.Double-Pawl braking system ensure safety.
2.Using asbestos free friction discs.
3.Handle length is easily adjustable.
4.The drum is big enough to contain more cable, suit for long distance using.
5.Adopting lever handle, it can be used in the narrow space.
6.The winch is designed with sealed structure to avoid dust.

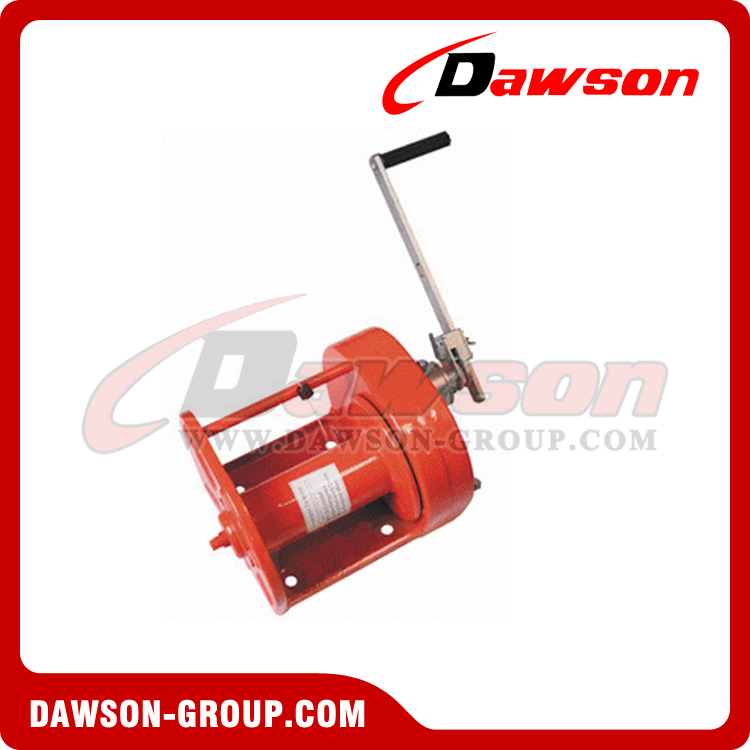

DSHW-E Hand Winch - Dawson Group Ltd.
