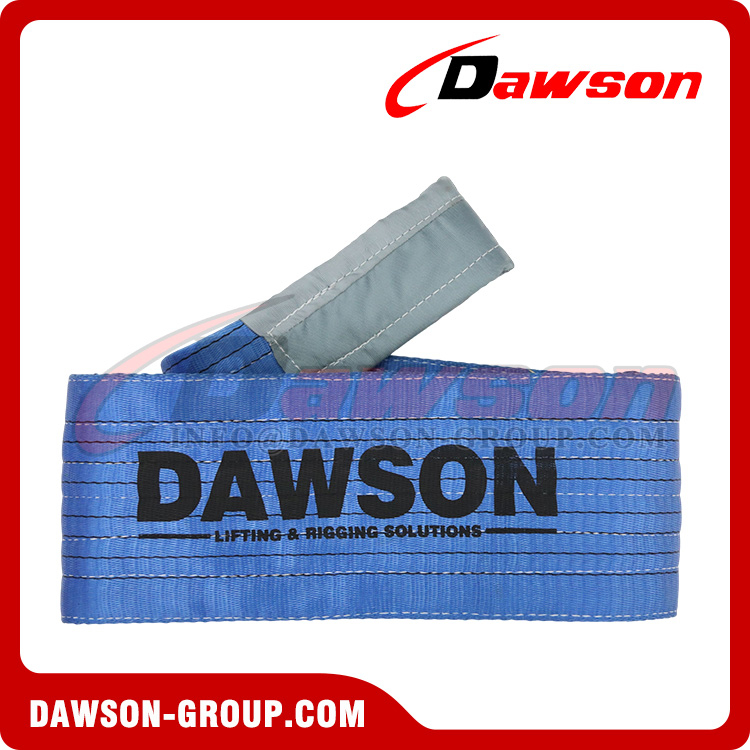

WLL 8 Ton Polyester Webbing Slings - Lifting Slings

-Color coded according to EN 1492-1.
-According to Machine Directive 98/37/EC.
-Safety Factor: 7:1
-Safety Factor of 6:1 or 5:1 is available upon request
  • DAWSON/OEM

  • DSWSDP-208

  • 8T

Availability:
Quantity:

WLL 8 Ton Polyester Webbing Slings - Lifting Slings
- Dawson Group Ltd. - China Manufacturer, Supplier, Factory

China Dawson Group 8 Ton Polyester Webbing Slings - Lifting Slings - China Manufacturers, Suppliers

1.Product Summary



Dawson Flat Webbing Sling is woven with machine for one time, and processed in the different sewing methods, it can be used the strengthened eye on its ends to improve its strength. Its standard tonnage can be distinguished through the color, and the wide and smooth loading surface especially applies to the articles with the soft surface and if necessary, the protective sleeve which is wider than sling can be used. Because of no contacting metal, it causes hardly damage to the loaded article surface processed with lacquer. Flat woven webbing sling made from polyester can not cause sparkle if it is used under the hazardous and explosive environment. In addition, its low extending property can decrease the bound of load in the courses of lifting, and avoid damage from the shocking strength. At the same time, make codes for the dyeing colors of sling and suggest the simple and correct methods for loading, which is well convenient for our lifting user.



2. Technical Data

Material: polyester polypropylene

Safe Factor: 5:1 6:1 7:1 8:1

Standard : ISO4878  EN1492-1:2000 JB/T8521-2000

Length: as required

Color: color code

Ply: single. Double. three and four-ply


3. Type

A. Eye and Eye Flat Webbing Sling

a, Single-ply Eye and Eye Flat Webbing Sling

b, Double-ply Eye and Eye Flat Webbing Sling

c, Three-ply Eye and Eye Flat Webbing Sling

d, Four-ply Eye and Eye Flat Webbing Sling

Remark: Sling eye is divided into flat eye, reverse eye, eye folded 1/2 from one side, eye folded 1/2 from two sides and eye folded 1/3.



B, Endless Flat Webbing Sling

a, Single-ply Endless Flat Webbing Sling

b, Double-ply Endless Flat Webbing Sling

c, Three-ply Endless Flat Webbing Sling

d, Four-ply Endless Flat Webbing Sling



China Dawson Group Polyester Flat Webbing Slings - Sling Manufacturer Supplier

Type

-Double ply polyester webbing sling with reinforced lifting eyes

Technical specifications

-Colour coded according to EN 1492-1.

Characteristics

-Low elongation.

Norms

-According to Machine Directive 98/37/EC.

-Safety Factor: 7:1

-Safety Factor of 6:1 or 5:1 is available upon request

China Polyester Lifting Slings Flat Webbing Sling - Dawson Group Ltd. - Slings Factory
China Dawson Polyester Web Sling - China Manufacturer, Supplier Item Color coded
according to
EN
1492-1
Working Load Limit with 1 webbing sling Working Load Limit with 2 webbing sling
Straight
lift
Choked
lift
β
Straight
lift up to
45
Choked
lift up to
45
Straight
lift
45-60
Choked
lift
45-60
0-7 7-45 45-60
straight choked 0-7 7-45 45-60 straight to 45 choked to 45 straight 45-60 choked 45-60
1.0 0.8 2.0 1.4 1.0 1.4 1.12 1.0 0.8
DSWSDP-201 WLL 1T 1.000 800 2.000 1.400 1.000 1.400 1.120 1.000 800
DSWSDP-202 WLL 2T 2.000 1.600 4.000 2.800 2.000 2.800 2.240 2.000 1.600
DSWSDP-203 WLL 3T 3.000 2.400 6.000 4.200 3.000 4.200 3.360 3.000 2.400
DSWSDP-204 WLL 4T 4.000 3.200 8.000 5.600 4.000 5.600 4.480 4.000 3.200
DSWSDP-205 WLL 5T 5.000 4.000 10.000 7.000 5.000 7.000 5.600 5.000 4.000
DSWSDP-206 WLL 6T 6,000 4,800 12,000 8,400 6,000 8,400 6,720 6,000 4,800
DSWSDP-208 WLL8T 8,000 6,400 16,000 11,200 8,000 12,000 8,960 8,000 6,400
DSWSDP-210 WLL10T 10,000 8,000 20,000 14,000 10,000 14,000 11,200 10,000 8,000
DSWSDP-212 WLL 12T 12,000 9,600 24,000 16,800 12,000 16,800 13,440 12,000 9,600

Welcome to buy the newest and competitive price DAWSON  WLL 8 Ton Polyester Webbing Slings from our factory. We're one of the leading China manufacturers and suppliers, offering you the wholesale service and the OEM service at a discount. With CE certification, our products made in China in stock are high in quality and low in price. Please be free to get the free sample from us.


Webbing Sling EN1492-1
WLL 1 Ton Polyester Webbing Sling WLL 2 TonPolyester Webbing Sling
WLL 3 Ton Polyester Webbing Sling WLL 4 Ton Polyester Webbing Sling
WLL 5 Ton Polyester Webbing Sling WLL 6 Ton Polyester Webbing Sling
WLL 8 Ton Polyester Webbing Sling WLL 10 Ton Polyester Webbing Sling
WLL 12 Ton Polyester Webbing Sling WLL 16 Ton Polyester Webbing Sling
WLL 20 Ton Polyester Webbing Sling WLL 30 Ton Polyester Webbing Sling
WLL 50 Ton Polyester Webbing Sling Eye-Eye Webbing Sling
Endless Type Polyester Webbing Sling Webbing Sling EN1492-1

Products Show:


WLL 8 Ton Polyester Webbing Slings - Lifting Slings AS 1353 - Dawson Group Ltd. - China Manufacturer, Supplier, Factory
WLL 8 Ton Polyester Webbing Slings, 8000kg Flat Web Slings - Dawson Group Ltd. - China Manufacturer, Supplier, Factory
WLL 8 Ton Polyester Webbing Slings - Lifting Slings - Dawson Group Ltd. - China Manufacturer, Supplier, Factory
WLL 8 Ton Polyester Webbing Slings, 8000kg Flat Web Slings - Dawson Group Ltd. - China Manufacturer, Factory

Other related products:

G100 Grade 100 Web Sling Hook, 2 Ton Synthetic Alloy Round Sling Hook - Dawson Group Ltd. - China Manufacturer
G100 Grade 100 Web Sling Hook, 3 Ton Synthetic Alloy Round Sling Hook - Dawson Group Ltd. - China Manufacturer, Supplier
G100 Grade 100 Web Sling Hook, 3000KG Synthetic Alloy Round Sling Hook - Dawson Group Ltd. - China Manufacturer
G100 Grade 100 3T Web Sling Hook, Synthetic Alloy Round Sling Hook - Dawson Group Ltd. - China Manufacturer, Factory
DAWSON Polyester Webbing Slings - Lifting Slings - Dawson Group Ltd. - China Manufacturer, Supplier

WLL 8 Ton Polyester Webbing Slings - Dawson Group Ltd. - China Manufacturer, Supplier, Factory
Polyester Webbing Slings, Polyester Round Slings - Dawson Group Ltd. - China Manufacturer, Supplier, Factory
Polyester Webbing Slings, Polyester Round Slings - Dawson Group Ltd. - China Manufacturer, Factory, Supplier
WLL 8 Ton Polyester Webbing Slings - Dawson Group Ltd. - China Manufacturer, Supplier, Factory
2000KG Webbing Sling, 2 Ton Polyester Lifting Sling Belt - Dawson Group Ltd. - China Manufacturer, Supplier, Factory
3T 3M Webbing Sling, Polyester Lifting Slings - Dawson Group Ltd. - China Manufacturer, Supplier, Factory
3T Lifting Slings, Flat Webbing Slings - Dawson Group Ltd. - China Manufacturer, Supplier, Factory
Polyester Webbing Slings - Dawson Group Ltd. - China Manufacturer, Supplier, Factory
WLL 10 Ton Polyester Webbing Slings - Lifting Slings - Dawson Group Ltd. - China Factory, Supplier
WLL 10000kg Flat Web Slings, 10 Ton Polyester Webbing Slings - Dawson Group Ltd. - China Manufacturer, Supplier, Factory
WLL 16 Ton Polyester Lifting Slings - Dawson Group Ltd. - China Supplier, Manufacturer, Factory
DAWSON Polyester Lifting Sling & Harness - Dawson Group Ltd. - China Manufacturer, Supplier
Factory of Polyester Webbing Slings, Lifting Slings - Dawson Group Ltd. - China Manufacturer, Supplier, Factory
DAWSON Webbing Sling - Dawson Group Ltd. - China Manufacturer, Factory
DAWSON Webbing Sling - Dawson Group Ltd. - China Manufacturer, Supplier

Synthetic Endless Type Webbing Sling (ASME ANSI B30.9) for Lifting - Dawson Group Ltd. - China Supplier, Manufacturer, Factory
Synthetic Endless Type Webbing Sling (ASME ANSI B30.9) for Lifting - Dawson Group Ltd. - China Manufacturer, Supplier, Factory
WLL 30 Ton Heavy Duty Polyester Webbing Slings - Lifting Slings Crane Slings - Dawson Group Ltd. - China Manufacturer, Factory, Supplier
WLL 30 Ton Heavy Duty Polyester Webbing Slings - Lifting Slings Crane Slings - Dawson Group Ltd. - China Manufacturer, Supplier, Factory

WLL 30 Ton Heavy Duty Polyester Webbing Slings - Lifting Slings Crane Slings - Dawson Group Ltd. - China Supplier, Manufacturer, Factory

Lifting Slings Material:

Factory of Polyester Webbing Slings, Polyester Round Slings - Dawson Group Ltd. - China Manufacturer, Factory, Supplier
Factory of Lifting Slings - Dawson Group Ltd. - China Manufacturer, Supplier, Factory
Polyester Slings for Lifting Slings Material - Dawson Group Ltd. - China Supplier, Factory, Manufacturer
Webbing Sling Materials - Dawson Group Ltd. - China Manufacturer, Factory, Supplier
Webbing Sling Materials - Dawson Group Ltd. - China Supplier, Manufacturer, Factory
Polyester Slings for Lifting Slings Material - Dawson Group Ltd. - China Manufacturer, Factory, Supplier
Factory of Polyester Slings for Lifting Slings Material - Dawson Group Ltd. - China Manufacturer, Factory, Supplier


Hot Tags: Polyester Webbing SlingFlat Webbing SlingWeb Sling, 8000kg Lifting SlingsChina Eye & Eye Webbing Sling, Eye Crane Lifting SlingsPolyester Lifting Slings China SupplierSynthetic Webbing Slings Factory ChinaLow Price 8Ton Webbing SlingBuy Discount 8T Web Sling for LiftingCheap Price Eye-Eye Flat Web SlingHot Sale Eye-Eye Lifting SlingDurable Lifting Sling In StockWholesale Webbing Sling for LiftingChina Industrial Lifting Sling ManufacturerEN1492-1 Webbing SlingWebbing Lifting SlingSafety Factor Web Sling

Other sizes can be produced upon request, more information, please contact us: info@dawson-group.com

1 TON WEBBING SLINGS, 2 TON WEBBING SLINGS, 3 TON WEBBING SLINGS, 4 TON WEBBING SLINGS, 5 TON WEBBING SLINGS, 6 TON WEBBING SLINGS, 8 TON WEBBING SLINGS, 10 TON WEBBING SLINGS, 12 TON WEBBING SLINGS, 16 TON WEBBING SLINGS, 20 TON WEBBING SLINGS, 30 TON WEBBING SLINGS, 40 TON WEBBING SLINGS, 50 TON WEBBING SLINGS, 60 TON WEBBING SLINGS, 100 TON WEBBING SLINGS


1T WEBBING SLINGS, 2T WEBBING SLINGS, 3T WEBBING SLINGS, 4T WEBBING SLINGS, 5T WEBBING SLINGS, 6T WEBBING SLINGS, 8T WEBBING SLINGS, 10T WEBBING SLINGS, 12T WEBBING SLINGS, 16T WEBBING SLINGS, 20T WEBBING SLINGS, 30T WEBBING SLINGS, 40T WEBBING SLINGS, 50T WEBBING SLINGS, 60T WEBBING SLINGS, 100T WEBBING SLINGS


1000KG WEBBING SLINGS, 2000KG WEBBING SLINGS, 3000KG WEBBING SLINGS, 4000KG WEBBING SLINGS, 5000KG WEBBING SLINGS, 6000KG WEBBING SLINGS, 8000KG WEBBING SLINGS, 10000KG WEBBING SLINGS, 12000KG WEBBING SLINGS, 16000KG WEBBING SLINGS, 20000KG WEBBING SLINGS, 30000KG WEBBING SLINGS, 40000KG WEBBING SLINGS, 50000KG WEBBING SLINGS, 60000KG WEBBING SLINGS, 100000KG WEBBING SLINGS


China Dawson Webbing Lifting Sling Eye Type - Slings Factory, Supplier



Flat Eye: lifting sling with eyes at both ends -- choice of straight or tapered eyes. Unless Twisted Eye is requested in choke hitch, Flat Eye is more popularly used in all hitches.



Twisted Eye: lifting sling similar to Flat Eye except the eyes are twisted to a 90° right angle to the sling body to form a better choke hitch.

China-Dawson-Group-Lifting-Slings-Certified-Slings-Exporter-Factory


Application of  WLL 8 Ton Polyester Webbing Slings - Lifting Slings:

Polyester-Webbing-Slings-Eye-Eye-Lifting-Slings-Dawson-Group-China-Slings-Factory

China Dawson Group High Quality Polyester Webbing Sling - Slings Factory

China Dawson Application of Polyester Webbing Slings - Supplier, Factory     Heavy-Duty-Lifting-Slings-Webbing-Slings-Lifting-Straps-China-Supplier-Factory

China-Webbing-Slings-Polyester-Lifting-Sling-Dawson-Group-China-Factory-Exporter

Factory & Package Show:

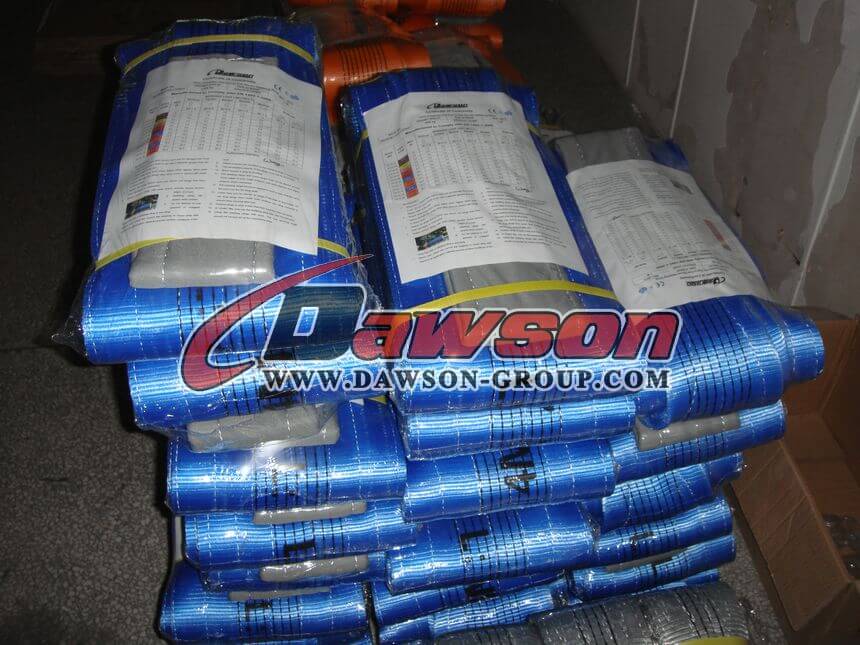

Package of Webbing Sling - Dawson Group Ltd. - China Supplier, Manufacturer, Factory

China Factory of Polyester Webbing Slings - Dawson Group Ltd. - China Manufacturer, Supplier, Factory
China Package of Polyester Webbing Slings - Dawson Group Ltd. - China Manufacturer, Supplier, Factory
