| Polyester Flat Webbing Sling |

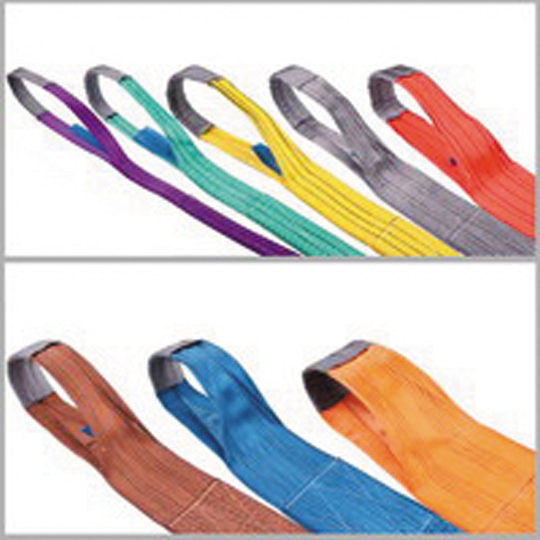

| Type -Double ply polyester webbing sling with reinforced lifting eyes
Technical specifications -Wide & flat load bearing surface -Sling has reinforced eyes at both ends _Capacity from 1t to 12t -Color coded according to EN 1492-1.
Characteristics -Low elongation.
Norms -According to Machine Directive 2006/42/EC & EN 1492-1 -Safety Factor: 7:1 to EN 1492-1 -Safety Factor of 6:1 or 5:1 is available upon request |
| Item | Color coded
according to
EN
1492-1 | Working Load Limit with 1 webbing sling | Working Load Limit with 2 webbing sling |
Straight
lift | Choked
lift | β |
Straight
lift up to
45 | Choked
lift up to
45 | Straight
lift
45-60 | Choked
lift
45-60 |
| 0-7 | 7-45 | 45-60 |
| | | | | | | | | |
| 1.0 | 0.8 | 2.0 | 1.4 | 1.0 | 1.4 | 1.12 | 1.0 | 0.8 |
| DSWSDP-201 | WLL 1T | 1,000 | 800 | 2,000 | 1,400 | 1,000 | 1,400 | 1,120 | 1,000 | 800 |
| DSWSDP-202 | WLL 2T | 2,000 | 1,600 | 4,000 | 2,800 | 2,000 | 2,800 | 2,240 | 2,000 | 1,600 |
| DSWSDP-203 | WLL 3T | 3,000 | 2,400 | 6,000 | 4,200 | 3,000 | 4,200 | 3,360 | 3,000 | 2,400 |
| DSWSDP-204 | WLL 4T | 4,000 | 3,200 | 8,000 | 5,600 | 4,000 | 5,600 | 4,480 | 4,000 | 3,200 |
| DSWSDP-205 | WLL 5T | 5,000 | 4,000 | 10,000 | 7,000 | 5,000 | 7,000 | 5,600 | 5,000 | 4,000 |
| DSWSDP-206 | WLL 6T | 6,000 | 4,800 | 12,000 | 8,400 | 6,000 | 8,400 | 6,720 | 6,000 | 4,800 |
| DSWSDP-208 | WLL8T | 8,000 | 6,400 | 16,000 | 11,200 | 8,000 | 12,000 | 8,960 | 8,000 | 6,400 |
| DSWSDP-210 | WLL10T | 10,000 | 8,000 | 20,000 | 14,000 | 10,000 | 14,000 | 11,200 | 10,000 | 8,000 |
| DSWSDP-212 | WLL 12T | 12,000 | 9,600 | 24,000 | 16,800 | 12,000 | 16,800 | 13,440 | 12,000 | 9,600 |
Dawson Webbing sling is produced from top quality synthetic fiber by advanced international level of weaving technology and equipment in various sewing methods . According to customer's requirement, the safety factor of sling has 4:1,5:1,6:1,7:1,8:1, its load range is from 0.2t to 100t ,Which is produced according to international standard, for color and load capacity
| S.F | 6:1 | 7:1 | 8:1 |
| WLL(kg) | Stock No | Width | M.B.S | Stock No | Width | M.B.S | Stock No | Width | M.B.S |
| 1000 | DSEE6010 | 25/38mm | 6t | DSEE7010 | 30/50mm | 7t | DSEE8010 | 50mm | 8t |
| 2000 | DSEE6020 | 50mm | 12t | DSEE7020 | 60mm | 14t | DSEE8020 | 65mm | 16t |
| 3000 | DSEE6030 | 75mm | 18t | DSEE7030 | 90mm | 21t | DSEE8030 | 95mm | 24t |
| 4000 | DSEE6040 | 100mm | 24t | DSEE7040 | 120mm | 28t | DSEE8040 | 120mm | 32t |
| 5000 | DSEE6050 | 125mm | 30t | DSEE7050 | 150mm | 35t | DSEE8050 | 150mm | 40t |
| 6000 | DSEE6060 | 150mm | 36t | DSEE7060 | 180mm | 42t | DSEE8060 | 180mm | 48t |
| 8000 | DSEE6080 | 200mm | 48t | DSEE7080 | 240mm | 56t | DSEE8080 | 240mm | 64t |
| 10000 | DSEE6100 | 250mm | 60t | DSEE7100 | 300mm | 70t | DSEE8100 | 300mm | 80t |
| 12000 | DSEE6120 | 300mm | 72t | DSEE7120 | 300mm | 84t | / | / | / |
| MEMO | JB/T8521.1 | EN1492.1 | AS1353 |
Other sizes can be produced upon request, more information, please contact us: info@dawson-group.com
Hot Tags: Webbing Sling, Flat Webbing Sling, Web Sling, EN1492-1 Lifting Slings, China Eye & Eye Webbing Sling, Polyester Crane Lifting Slings, Polyester Lifting Slings China Supplier, Synthetic Webbing Slings Factory China, Low Price Heavy Duty Webbing Sling, Light Duty Web Sling, Buy Discount Web Sling for Lifting, Cheap Price Eye-Eye Flat Web Sling, Hot Sale Eye-Eye Lifting Sling, Durable Lifting Sling In Stock, Wholesale Webbing Sling for Lifting, China Industrial Lifting Sling Manufacturer, EN1492-1 Webbing Sling, Webbing Lifting Sling, Safety Factor Web Sling
1 TON WEBBING SLINGS, 2 TON WEBBING SLINGS, 3 TON WEBBING SLINGS, 4 TON WEBBING SLINGS, 5 TON WEBBING SLINGS, 6 TON WEBBING SLINGS, 8 TON WEBBING SLINGS, 10 TON WEBBING SLINGS, 12 TON WEBBING SLINGS, 16 TON WEBBING SLINGS, 20 TON WEBBING SLINGS, 30 TON WEBBING SLINGS, 40 TON WEBBING SLINGS, 50 TON WEBBING SLINGS, 60 TON WEBBING SLINGS, 100 TON WEBBING SLINGS
1T WEBBING SLINGS, 2T WEBBING SLINGS, 3T WEBBING SLINGS, 4T WEBBING SLINGS, 5T WEBBING SLINGS, 6T WEBBING SLINGS, 8T WEBBING SLINGS, 10T WEBBING SLINGS, 12T WEBBING SLINGS, 16T WEBBING SLINGS, 20T WEBBING SLINGS, 30T WEBBING SLINGS, 40T WEBBING SLINGS, 50T WEBBING SLINGS, 60T WEBBING SLINGS, 100T WEBBING SLINGS
1000KG WEBBING SLINGS, 2000KG WEBBING SLINGS, 3000KG WEBBING SLINGS, 4000KG WEBBING SLINGS, 5000KG WEBBING SLINGS, 6000KG WEBBING SLINGS, 8000KG WEBBING SLINGS, 10000KG WEBBING SLINGS, 12000KG WEBBING SLINGS, 16000KG WEBBING SLINGS, 20000KG WEBBING SLINGS, 30000KG WEBBING SLINGS, 40000KG WEBBING SLINGS, 50000KG WEBBING SLINGS, 60000KG WEBBING SLINGS, 100000KG WEBBING SLINGS
Other related products:

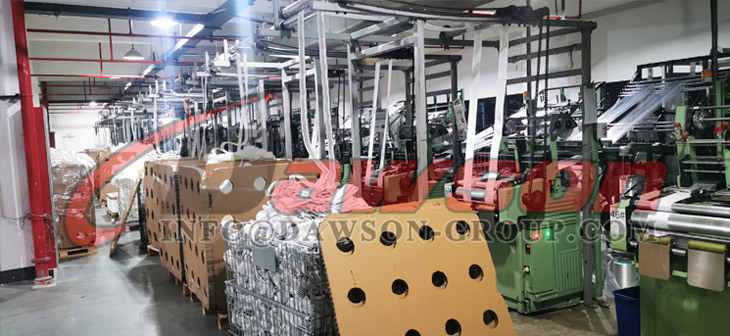

Lifting Slings Material:

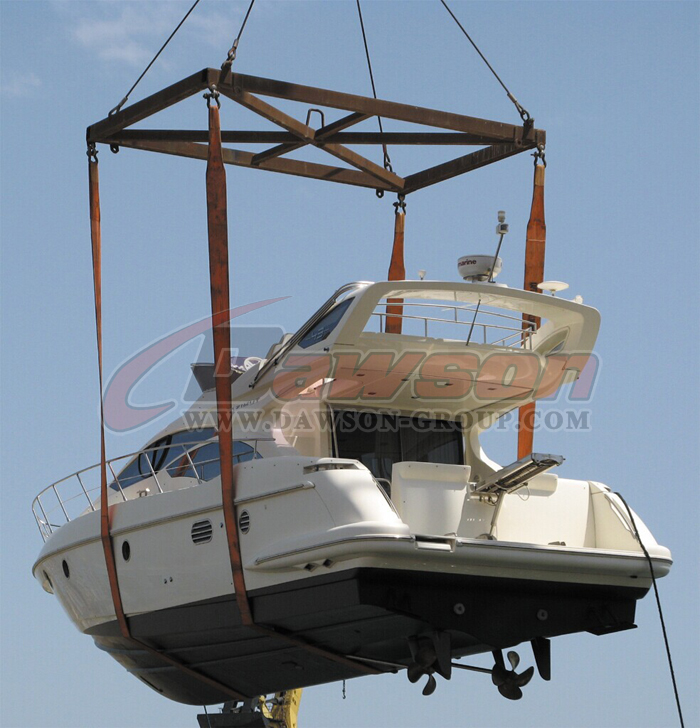

Application of webbing Slings:
