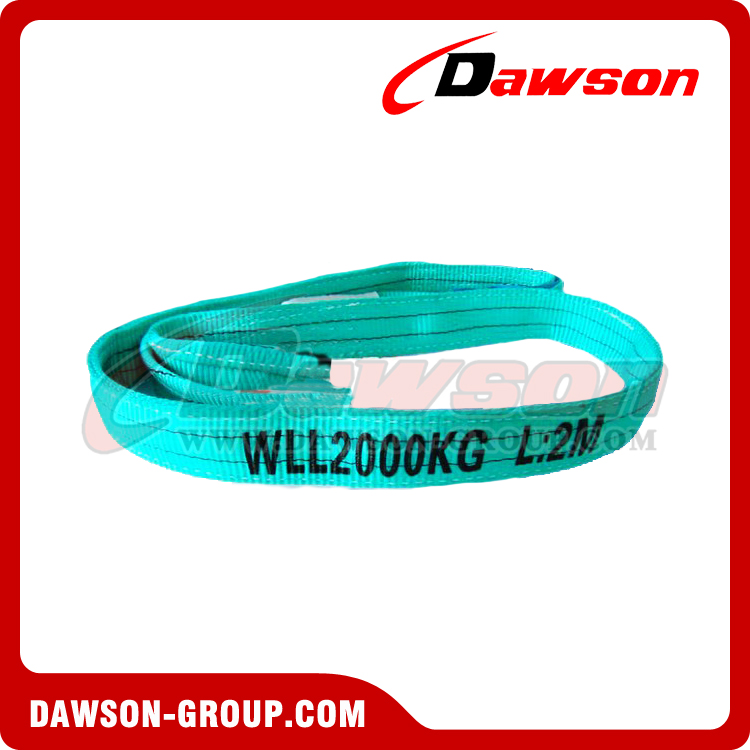

DAWSON/OEM
DSWSDP-202
2T
Availability: | |
---|---|
Quantity: | |
1.Product Summary
Dawson Flat Webbing Sling is woven with machine for one time, and processed in the different sewing methods, it can be used the strengthened eye on its ends to improve its strength. Its standard tonnage can be distinguished through the color, and the wide and smooth loading surface especially applies to the articles with the soft surface and if necessary, the protective sleeve which is wider than sling can be used. Because of no contacting metal, it causes hardly damage to the loaded article surface processed with lacquer. Flat woven webbing sling made from polyester can not cause sparkle if it is used under the hazardous and explosive environment. In addition, its low extending property can decrease the bound of load in the courses of lifting, and avoid damage from the shocking strength. At the same time, make codes for the dyeing colors of sling and suggest the simple and correct methods for loading, which is well convenient for our lifting user.
2. Technical Data
Material: polyester polypropylene
Safe Factor: 5:1 6:1 7:1 8:1
Standard : ISO4878 EN1492-1:2000 JB/T8521-2000
Length: as required
Color: color code
Ply: single. Double. three and four-ply
3. Type
A. Eye and Eye Flat Webbing Sling
a, Single-ply Eye and Eye Flat Webbing Sling
b, Double-ply Eye and Eye Flat Webbing Sling
c, Three-ply Eye and Eye Flat Webbing Sling
d, Four-ply Eye and Eye Flat Webbing Sling
Remark: Sling eye is divided into flat eye, reverse eye, eye folded 1/2 from one side, eye folded 1/2 from two sides and eye folded 1/3.
B, Endless Flat Webbing Sling
a, Single-ply Endless Flat Webbing Sling
b, Double-ply Endless Flat Webbing Sling
c, Three-ply Endless Flat Webbing Sling
d, Four-ply Endless Flat Webbing Sling
Type -Double ply polyester webbing sling with reinforced lifting eyes Technical specifications -Colour coded according to EN 1492-1. Characteristics -Low elongation. Norms -According to Machine Directive 98/37/EC. -Safety Factor: 7:1 -Safety Factor of 6:1 or 5:1 is available upon request | |
Item | Color coded according to EN 1492-1 | Working Load Limit with 1 webbing sling | Working Load Limit with 2 webbing sling | ||||||||
Straight lift | Choked lift | Straight lift up to 45 | Choked lift up to 45 | Straight lift 45-60 | Choked lift 45-60 | ||||||
0-7 | 7-45 | 45-60 | |||||||||
1.0 | 0.8 | 2.0 | 1.4 | 1.0 | 1.4 | 1.12 | 1.0 | 0.8 | |||
DSWSDP-201 | WLL 1T | 1.000 | 800 | 2.000 | 1.400 | 1.000 | 1.400 | 1.120 | 1.000 | 800 | |
DSWSDP-202 | WLL 2T | 2.000 | 1.600 | 4.000 | 2.800 | 2.000 | 2.800 | 2.240 | 2.000 | 1.600 | |
DSWSDP-203 | WLL 3T | 3.000 | 2.400 | 6.000 | 4.200 | 3.000 | 4.200 | 3.360 | 3.000 | 2.400 | |
DSWSDP-204 | WLL 4T | 4.000 | 3.200 | 8.000 | 5.600 | 4.000 | 5.600 | 4.480 | 4.000 | 3.200 | |
DSWSDP-205 | WLL 5T | 5.000 | 4.000 | 10.000 | 7.000 | 5.000 | 7.000 | 5.600 | 5.000 | 4.000 | |
DSWSDP-206 | WLL 6T | 6,000 | 4,800 | 12,000 | 8,400 | 6,000 | 8,400 | 6,720 | 6,000 | 4,800 | |
DSWSDP-208 | WLL8T | 8,000 | 6,400 | 16,000 | 11,200 | 8,000 | 12,000 | 8,960 | 8,000 | 6,400 | |
DSWSDP-210 | WLL10T | 10,000 | 8,000 | 20,000 | 14,000 | 10,000 | 14,000 | 11,200 | 10,000 | 8,000 | |
DSWSDP-212 | WLL 12T | 12,000 | 9,600 | 24,000 | 16,800 | 12,000 | 16,800 | 13,440 | 12,000 | 9,600 |
Welcome to buy the newest and competitive price DAWSON WLL 2 Ton Polyester Webbing Slings from our factory. We're one of the leading China manufacturers and suppliers, offering you the wholesale service and the OEM service at a discount. With CE certification, our products made in China in stock are high in quality and low in price. Please be free to get the free sample from us.

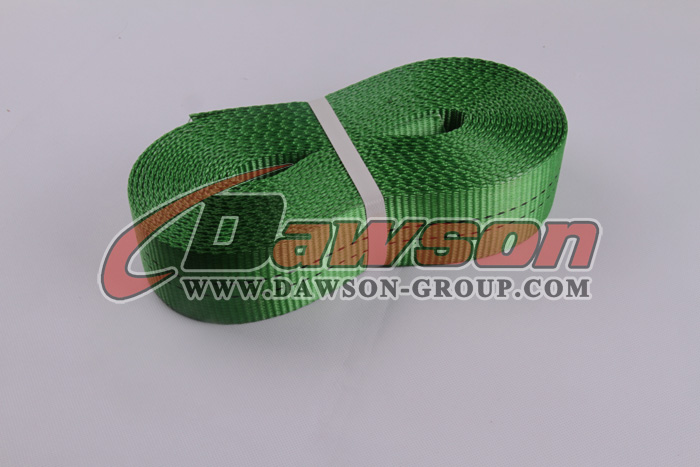

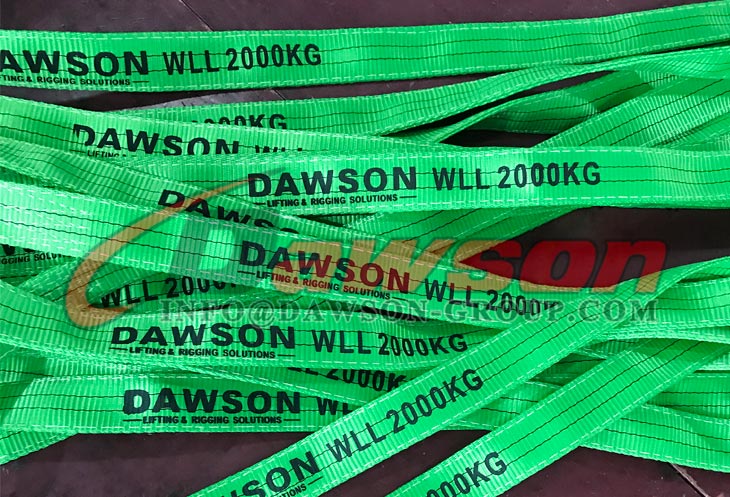

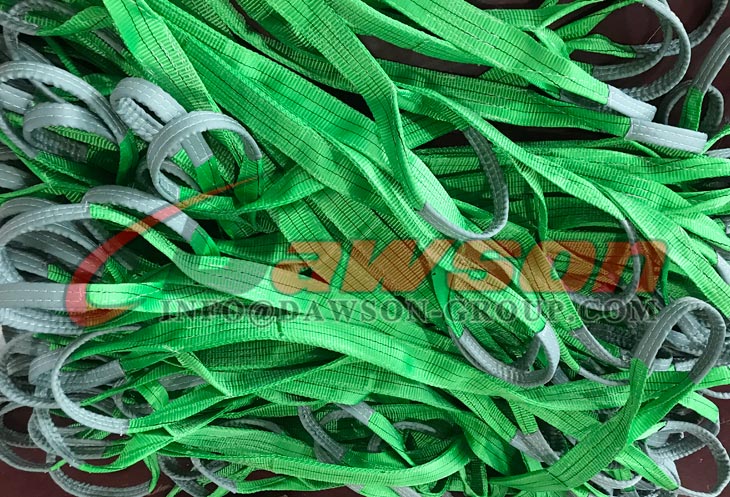

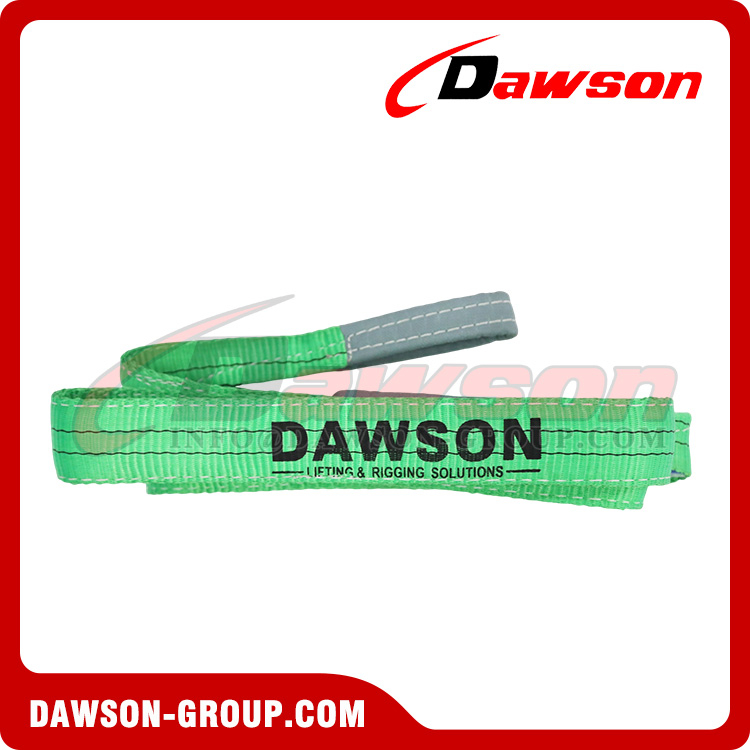

Products Show:
Hot Tags: Webbing Sling, Flat Webbing Sling, Flat Web Sling, Lifting Slings, China Eye & Eye Webbing Sling, Crane Lifting Slings, Polyester Lifting Slings China Supplier, Synthetic Webbing Slings Factory China, Low Price 2T Webbing Sling, Buy Discount 2Ton Web Sling for Lifting, 2000KG Web Sling, Cheap Price Eye-Eye Web Sling, Hot Sale Lifting Sling Belt, Durable Lifting Sling In Stock, Wholesale Web Sling for Lifting, China Industrial Flat Webbing Sling Manufacturer, EN1492-1 Webbing Lifting Sling, Safety Factor Webbing Slings
Other related products:
Lifting Slings Material:
Other sizes can be produced upon request, more information, please contact us: info@dawson-group.com
1 TON WEBBING SLINGS, 2 TON WEBBING SLINGS, 3 TON WEBBING SLINGS, 4 TON WEBBING SLINGS, 5 TON WEBBING SLINGS, 6 TON WEBBING SLINGS, 8 TON WEBBING SLINGS, 10 TON WEBBING SLINGS, 12 TON WEBBING SLINGS, 16 TON WEBBING SLINGS, 20 TON WEBBING SLINGS, 30 TON WEBBING SLINGS, 40 TON WEBBING SLINGS, 50 TON WEBBING SLINGS, 60 TON WEBBING SLINGS, 100 TON WEBBING SLINGS
1T WEBBING SLINGS, 2T WEBBING SLINGS, 3T WEBBING SLINGS, 4T WEBBING SLINGS, 5T WEBBING SLINGS, 6T WEBBING SLINGS, 8T WEBBING SLINGS, 10T WEBBING SLINGS, 12T WEBBING SLINGS, 16T WEBBING SLINGS, 20T WEBBING SLINGS, 30T WEBBING SLINGS, 40T WEBBING SLINGS, 50T WEBBING SLINGS, 60T WEBBING SLINGS, 100T WEBBING SLINGS
1000KG WEBBING SLINGS, 2000KG WEBBING SLINGS, 3000KG WEBBING SLINGS, 4000KG WEBBING SLINGS, 5000KG WEBBING SLINGS, 6000KG WEBBING SLINGS, 8000KG WEBBING SLINGS, 10000KG WEBBING SLINGS, 12000KG WEBBING SLINGS, 16000KG WEBBING SLINGS, 20000KG WEBBING SLINGS, 30000KG WEBBING SLINGS, 40000KG WEBBING SLINGS, 50000KG WEBBING SLINGS, 60000KG WEBBING SLINGS, 100000KG WEBBING SLINGS
Flat Eye: lifting sling with eyes at both ends -- choice of straight or tapered eyes. Unless Twisted Eye is requested in choke hitch, Flat Eye is more popularly used in all hitches.
Twisted Eye: lifting sling similar to Flat Eye except the eyes are twisted to a 90° right angle to the sling body to form a better choke hitch.
Application of WLL 2 Ton Polyester Webbing Slings - Lifting Slings:

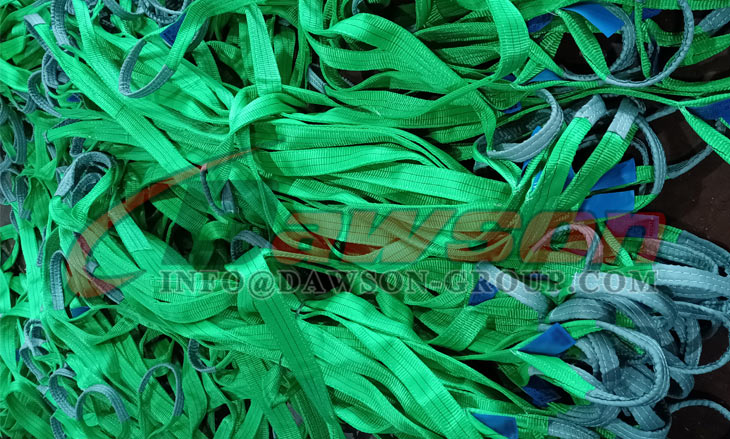

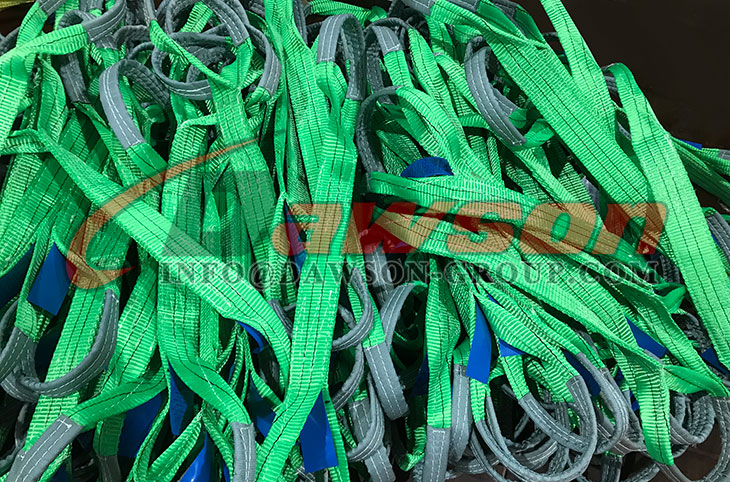

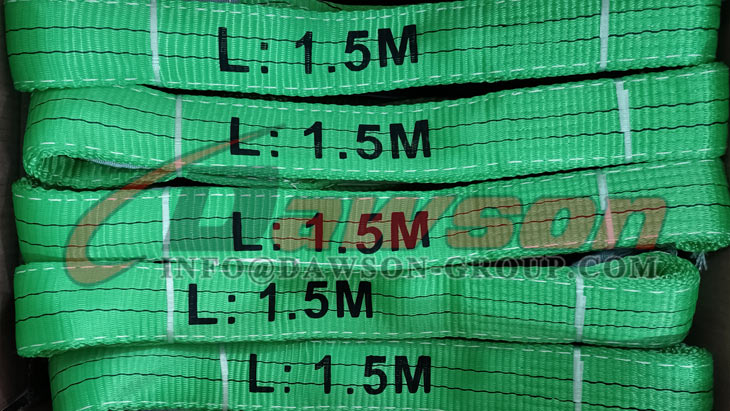

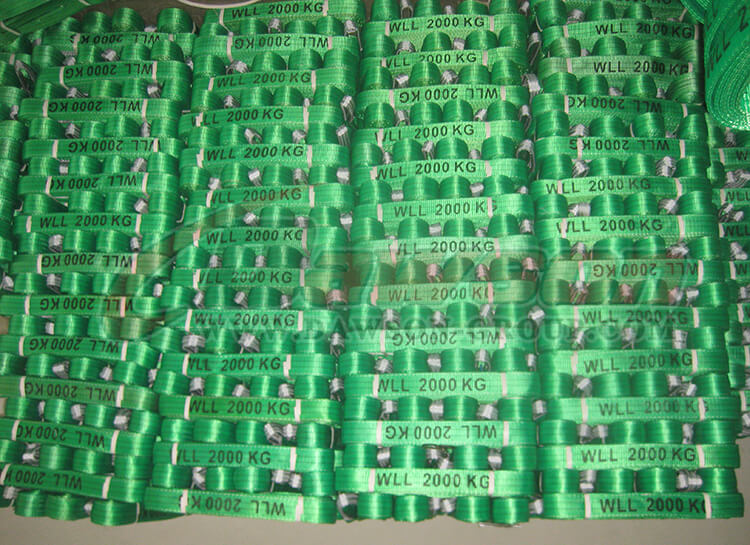

Factory & Package Show:
