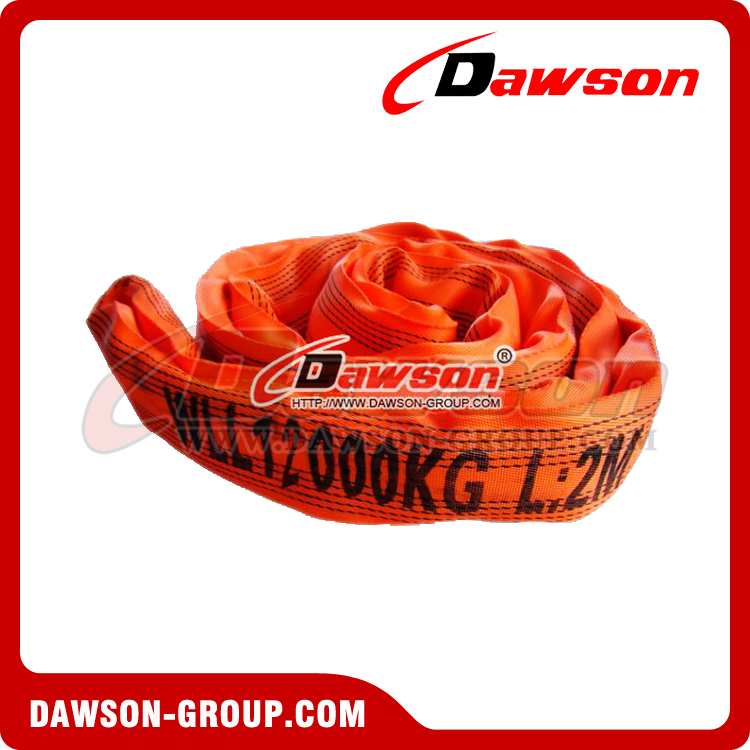

WLL 12T Polyester Round Slings

Material: 100% high-strength polyester yarn
Safety Factor:6:1 7:1 8:1
Standard: ISO: ISO4878
European: EN1492-2:2000
Australian: AS 4497
  • DAWSON/OEM

  • DSRES-12T

  • 12T

Availability:
Quantity:

WLL 12T Polyester Round Slings
- Dawson Group Ltd. - China Manufacturer, Supplier, Factory

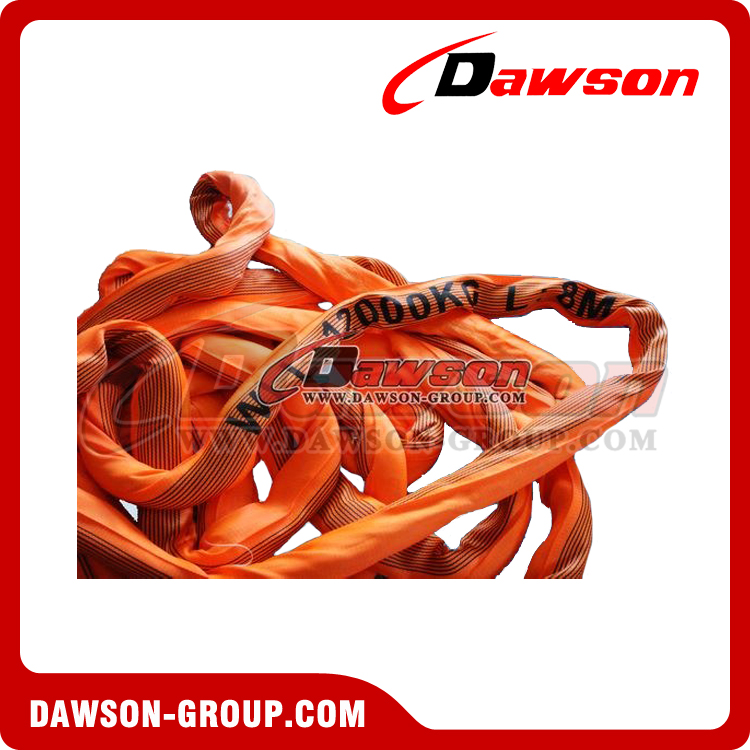

12 Ton Round Slings - Dawson Group Ltd. China Manufacturer Supplier      12 Ton Round Sling - Dawson Group Ltd. China Manufacturer Supplier
12 Ton 8M Round Slings - Dawson Group Ltd. China Manufacturer Supplier

The round slings are usually made up of  polyester The surface of round sling can prevent the object wear and tear or scratch even it can lift the object that would be damaged. The  round cover belt  isn't bearing weight , but only protecting the inside parallelly-ranged silk-bunch .The outside round round cover belt will break first or warn when overloading gravely or using for a long time, then the accident will be in case.

The safety coefficient is 7:1 ,according to your special needs, 5:1, 6:1,8:1 for your choice. The working load is diffientiated by colors according to international standard easy to identify even if the sling has been abraded.


When ordering it is important to make clear whether the length specified is circumference or effective working length.

Material: 100% high-strength polyester yarn

Safety Factor:6:1 7:1 8:1

Standard: ISO: ISO4878

           European: EN1492-2:2000

           Australian: AS 4497

Polyester-Roundslings - Dawson Group Ltd. - China Manufacturer, Supplier, Factory

Type

-Polyester round sling

Technical specifications

-Colour coded according to EN 1492-2 & AS 4497

-Capacity stripes; each stripe is equal to 1 tonne capacity.

-The safe working load is clearly and continuously printed on the sleeve.

-Extra strong PU-impregnated webbing of the sleeve, which does not allow dirt to enter.

-Each sling is packed in plastic with CE declaration of conformity or Test Certificate.

Characteristics:

-Low elongation.

-Extremely wear-resistant.

Norms

-According to Machine Directive 98/37/EC & AS 4497

-Safety Factor: 7:1

POLYESTER ROUND SLING - CHINA MANUFACTURER, SUPPLIER, FACTORY
POLYESTER ROUND SINGS - CHINA MANUFACTURER, SUPPLIER, FACTORY Item Color coded
according to
EN1492-2
Working Load Limit with 1 round sling Working Load Limit with 2
round slings
Straight
lift
Chocked
lift
0-7 β Straight
lift up to 45
Choked
lift up to 45
Straight
lift
45-60
Choked
lift
45-60
0-7 7-45 45-60 45-60
straight lift choker lift 0-7 β 0-7 β 7-45 β 45-60 β 45-60 1 straight to 45 choker to 45 straight 45-60 choker 45-60
1.0 0.8 2.0 1.4 1.0 0.7 0.5 1.4 1.12 1.0 0.8
DSRES-1T WLL1T 1.000 800 2.000 1.400 1.000 700 500 1.400 1.120 1.000 800
DSRES-2T WLL 2T 2.000 1.600 4.000 2.800 2.000 1.400 1.000 2.800 2.240 2.000 1.600
DSRES-3T WLL 3T 3.000 2.400 6.000 4.200 3.000 2.100 1.500 4.200 3.360 3.000 2.400
DSRES-4T WLL 4T 4.000 3.200 8.000 5.600 4.000 2.800 2.000 5.600 4.480 4.000 3.200
DSRES-5T WLL 5T 5.000 4.000 10.000 7.000 5.000 3.500 2.500 7.000 5.600 5.000 4.000
DSRES-6T WLL 6T 6.000 4.800 12.000 8.400 6.000 4.200 3.000 8.400 6.720 6.000 4.800
DSRES-8T WLL 8T 8.000 6.400 16.000 11.200 8.000 5.600 4.000 11.200 8.960 8.000 6.400
DSRES-10T WLL 10T 10.000 8.000 20.000 14.000 10.000 7.000 5.000 14.000 11.200 10.000 8.000
DSRES-12T WLL 12T 12.000 9.600 24.000 16.800 12.000 8.400 6.000 16.800 13.400 12.000 9.600
Code W.L.L. Color Diameter Min. length Max. length
Tons mm m m
DSRES-1T 1.0 1T 19 0.5 80
DSRES-2T 2.0 2T 25 0.5 80
DSRES-3T 3.0 3T 28 0.5 80
DSRES-4T 4.0 4T 32 0.5 80
DSRES-5T 5.0 5T 36 0.5 80
DSRES-6T 6.0 6T 38 1.0 80
DSRES-8T 8.0 8T 43 1.0 80
DSRES-10T 10.0 10T 48 2.0 80
DSRES-12T 12.0 10T 53 2.0 80
DSRES-15T 15.0 10T 60 2.0 80
DSRES-20T 20.0 10T 70 2.0 80
DSRES-30T 30.0 10T 86 2.0 80
DSRES-50T 50.0 10T 119 2.0 80
DSRES-100T 100.0 10T 140 2.0 80
DSRES-300T 300.0 10T 280 2.0 80
DSRES-500T 500.0 10T 350 2.5 80
DSRES-800T 800.0 10T 426 2.5 80
DSRES-1000T 1000.0 10T 476 3.0 80

⇒Light in Weight, But High in Strength.Dawson Endless Round Lifting Sling Features:



⇒Perfect for hugging and gripping many uneven and odd shaped loads.





⇒100% polyester construction that assures low elongation 3% at rated capacity and still returns to original length. Thus minimizes adjustments for stretch and reduces headroom problems of your lift.



⇒Polyester jacket helps protect internal load-bearing fibers from abrasion, wear, UV degradation, and harmful dirt and debris.



⇒All-polyester construction virtually eliminates moisture absorption, rot and mildew. It also offers good resistance to common industrial acids (except concentrated sulfuric acid), and alcohol, dry cleaning solvent, hydrocarbons, halogenated hydrocarbons, ketones, crude oil, lubricating oils, soaps, detergents, seawater and weak alkali. Caution: Never use at temperatures above 194°F (90°C) or below -40°F (-40°C). Do not expose to strong alkalis at elevated temperatures,



⇒Load stability and balance can be achieved by spreading sling legs.



⇒Wear points can be shifted to extend sling life.


1 TON ROUND SLINGS, 2 TON ROUND SLINGS, 3 TON ROUND SLINGS, 4 TON ROUND SLINGS, 5 TON ROUND SLINGS, 6 TON ROUND SLINGS, 8 TON ROUND SLINGS, 10 TON ROUND SLINGS, 12 TON ROUND SLINGS, 15 TON ROUND SLINGS, 20 TON ROUND SLINGS, 25 TON ROUND SLINGS, 30 TON ROUND SLINGS, 40 TON ROUND SLINGS, 50 TON ROUND SLINGS, 60 TON ROUND SLINGS, 80 TON ROUND SLINGS, 100 TON ROUND SLINGS, 120 TON ROUND SLINGS, 150 TON ROUND SLINGS, 200 TON ROUND SLINGS, 250 TON ROUND SLINGS, 300 TON ROUND SLINGS, 400 TON ROUND SLINGS, 450 TON ROUND SLINGS, 500 TON ROUND SLINGS, 600 TON ROUND SLINGS, 700 TON ROUND SLINGS, 800 TON ROUND SLINGS, 1000 TON ROUND SLINGS


1T ROUND SLINGS, 2T ROUND SLINGS, 3T ROUND SLINGS, 4T ROUND SLINGS, 5T ROUND SLINGS, 6T ROUND SLINGS, 8T ROUND SLINGS, 10T ROUND SLINGS, 12T ROUND SLINGS, 15T ROUND SLINGS, 20T ROUND SLINGS, 25T ROUND SLINGS, 30T ROUND SLINGS, 40T ROUND SLINGS, 50T ROUND SLINGS, 60T ROUND SLINGS, 80T ROUND SLINGS, 100T ROUND SLINGS, 120T ROUND SLINGS, 150T ROUND SLINGS, 200T ROUND SLING, 250T ROUND SLING, 300T ROUND SLINGS, 400T ROUND SLINGS, 450T ROUND SLINGS, 500T ROUND SLINGS, 600T ROUND SLINGS, 700T ROUND SLINGS, 800T ROUND SLINGS, 1000T ROUND SLINGS


1000KG ROUND SLINGS, 2000KG ROUND SLINGS, 3000KG ROUND SLINGS, 4000KG ROUND SLINGS, 5000KG ROUND SLINGS, 6000KG ROUND SLINGS, 8000KG ROUND SLINGS, 10000KG ROUND SLINGS, 12000KG ROUND SLINGS, 15000KG ROUND SLINGS, 20000KG ROUND SLINGS, 25000KG ROUND SLINGS, 30000KG ROUND SLINGS, 40000KG ROUND SLINGS, 50000KG ROUND SLINGS, 60000KG ROUND SLINGS, 80000KG ROUND SLINGS, 100000KG ROUND SLINGS, 120000KG ROUND SLINGS, 150000KG ROUND SLINGS, 200000KG ROUND SLING, 250000KG ROUND SLING, 300000KG ROUND SLINGS, 400000KG ROUND SLINGS, 450000KG ROUND SLINGS, 500000KG ROUND SLINGS, 600000KG ROUND SLINGS, 700000KG ROUND SLINGS, 800000KG ROUND SLINGS, 1000000KG ROUND SLINGS

Products about 12Ton Round Slings:

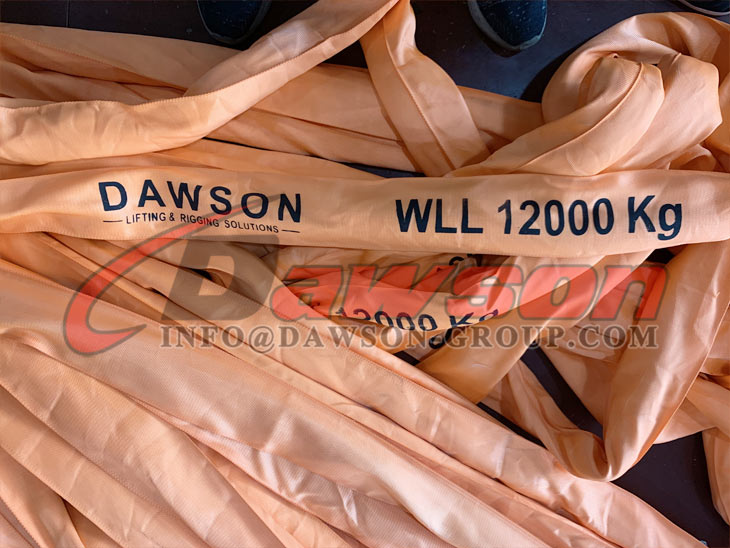

WLL 12T Polyester Round Slings - Dawson Group Ltd. - China Factory, Manufacturer, Supplier

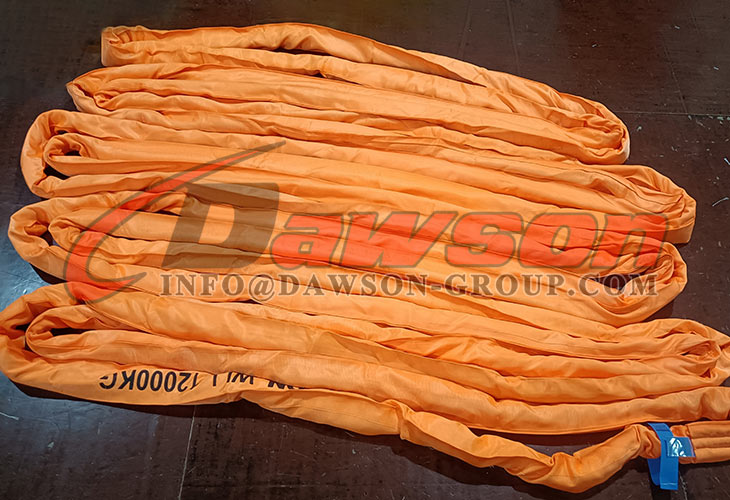

WLL 12T Polyester Round Slings, 12000kg Endless Round Lifting Slings - Dawson Group Ltd. - China Manufacturer, Supplier, Factory

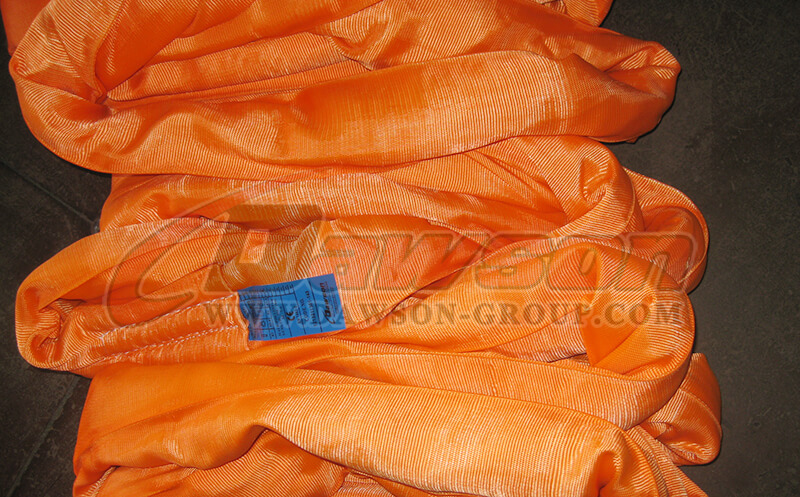

WLL 12T Polyester Round Slings - Dawson Group Ltd. - China Manufacturer, Supplier, Factory
WLL 12T Polyester Round Slings - Dawson Group Ltd. - China Manufacturer, Supplier, Factory
WLL 12T Polyester Round Slings - Dawson Group Ltd. - China Manufacturer, Supplier, Factory

Hot Tags: Round Slings, Lifting Slings, Endless Round Sling China Supplier, Crane Lifting Sling Factory China, Textile Lifting Slings China Manufacturer, Low Price 12Ton Polyester Lifting Slings, Round Sling for Lifting in Stock, Buy Discount Synthetic Lifting Slings, Dawson Brand 12000KG Round Lifting Slings, Free Sample Polyester Lifting Slings, Wholesale Crane Lifting Slings, WLL 12T Endless RoundSlings, Flexible Lifting Slings, Soft Round Slings, Crane Slings, Rigging Slings, Heavy Duty Round Slings, Heavy Lift Round Sling

Other Related Products:

Heavy Daty 40T Round Sling, Polyester Round Slings - Dawson Group Ltd. - China Manufacturer, Supplier, Factory
50T Round Slings, Polyester Round Slings - Dawson Group Ltd. - China Manufacturer, Supplier, Factory
50000KG Round Slings, Polyester Round Slings - Dawson Group Ltd. - China Manufacturer, Supplier, Factory
Heavy Duty 100T Round Sling, 100000KG Polyester Lifting Slings - Dawson Group Ltd. - China Manufacturer, Supplier, Factory
Heavy Duty 100000KG Polyester Round Sling, 100 Ton RoundSlings - Dawson Group Ltd. - China Manufacturer, Supplier, Factory
EN1492-2 Round Slings - Dawson Group Ltd. - China Manufacturer, Supplier, Factory
Polyester Webbing Slings, Polyester Round Slings - Dawson Group Ltd. - China Manufacturer, Supplier, Factory
Polyester Webbing Slings, Polyester Round Slings - Dawson Group Ltd. - China Manufacturer, Factory, Supplier
DAWSON Polyester Lifting Sling & Harness - Dawson Group Ltd. - China Manufacturer, Factory

Synthetic Endless Type Webbing Sling (ASME ANSI B30.9) for Lifting - Dawson Group Ltd. - China Manufacturer, Factory, Supplier
DAWSON Webbing Sling - Dawson Group Ltd. - China Manufacturer, Factory
DAWSON Webbing Sling - Dawson Group Ltd. - China Manufacturer, Supplier

WLL 8T Polyester Round Slings - Dawson Group Ltd. - China Manufacturer, Factory, Supplier
WLL 8T Polyester Round Slings - Dawson Group Ltd. - China Manufacturer, Supplier, Factory

WLL 20T Polyester Round Slings - Dawson Group Ltd. - China Manufacturer, Supplier

WLL 20T Polyester Round Slings - Dawson Group Ltd. - China Manufacturer, Supplier, Factory

Lifting Slings Material:

Polyester Slings for Lifting Slings Material - Dawson Group Ltd. - China Supplier, Factory, Manufacturer
Webbing Sling Materials - Dawson Group Ltd. - China Supplier, Factory, Manufacturer
Polyester Slings for Lifting Slings Material - Dawson Group Ltd. - China Manufacturer, Factory
Polyester Slings for Lifting Slings Material - Dawson Group Ltd. - China Manufacturer, Factory, Supplier
Factory of Polyester Slings for Lifting Slings Material - Dawson Group Ltd. - China Manufacturer, Factory, Supplier


Round Sling EN1492-2
WLL 1T Polyester Round Slings WLL 2T Polyester Round Slings
WLL 3T Polyester Round Slings WLL 4T Polyester Round Slings
WLL 5T Polyester Round Slings WLL 6T Polyester Round Slings
WLL 8T Polyester Round Slings WLL 10T Polyester Round Slings
WLL 12T Polyester Round Slings WLL 15T Polyester Round Slings
WLL 20T Polyester Round Slings WLL 30T Polyester Round Slings
WLL 40T Polyester Round Slings WLL 50T Polyester Round Slings
WLL 80T Polyester Round Slings WLL 100T Polyester Round Slings
WLL 120 Polyester Round Slings WLL 150 Polyester Round Slings
WLL 200 Polyester Round Slings EN1492-2 Round Slings


DAWSON HEAVY DUTY POLYESTER ROUND SLINGS TESTING:


Soft Lifting Slings, Polyester Round Slings, Heavy Duty Crane Lifting Slings - Dawson Group Ltd. - China Factory, Manufacturer, Supplier
Soft Lifting Slings, Polyester Round Slings, Heavy Duty Crane Lifting Slings - Dawson Group Ltd. - China Supplier, Manufacturer, Factory
Heavy Duty Crane Lifting Slings, Soft Lifting Slings, Polyester Round Slings - Dawson Group Ltd. - China Factory, Manufacturer, Supplier
Heavy Duty Crane Lifting Slings, Soft Lifting Slings, Polyester Round Slings - Dawson Group Ltd. - China Factory, Manufacturer
Heavy Duty Polyester Round Slings, Soft Lifting Slings - Dawson Group Ltd. - China Factory, Manufacturer

Application of  Polyester Round Slings:

Heavy Duty Crane Lifting Slings, Soft Lifting Slings, Polyester Round Slings - Dawson Group Ltd. - China Factory, Manufacturer, Supplier
Heavy Duty Crane Lifting Slings, Soft Lifting Slings, Polyester Round Slings - Dawson Group Ltd. - China Factory, Manufacturer

Application of Polyester Round Sling - China Manufacturer, Supplier, Factory

China-Round-Slings-Polyester-Round-Slings-Webbing-Slings-Dawson-Group

HEAVY DUTY ROUND SLINGS DAWSON GROUP LTD. - CHINA MANUFACTURER, SUPPLIER, FACTORY

Polyester Round Slings Application - Dawson Group Ltd. - China Manufacturer, Supplier, Factory

Polyester-Round-Slings-Lifting-Slings-Dawson-Group-China

CHINA HEAVY DUTY POLYESTER ROUND SLINGS - LIFTING SLINGS CRANE SLINGS - DAWSON GROUP LTD.
DAWSON GROUP LTD - CHINA HEAVY LIFTING CRANE LIFTING SLINGS ROUND SLINGS, WIRE ROPE SLINGS

Package & Factory Show:

Factory of Polyester Round Slings, Polyester Webbing Slings - Dawson Group Ltd. - China Manufacturer, Supplier, Factory
Factory of Lifting Slings - Dawson Group Ltd. - China Manufacturer, Supplier, Factory
Factory of Polyester Webbing Slings, Polyester Round Slings - Dawson Group Ltd. - China Manufacturer, Supplier, Factory

China Factory of Polyester Round Slings - Dawson Group Ltd. - China Manufacturer, Supplier, Factory

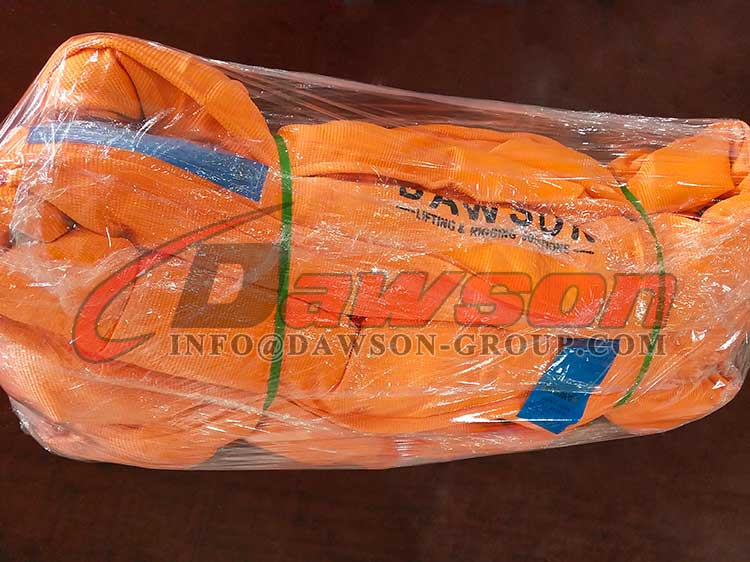

China Packing of Polyester Round Slings - Dawson Group Ltd. - China Manufacturer, Supplier, Factory
