The round slings are usually made up of polyester The surface of round sling can prevent the object wear and tear or scratch even it can lift the object that would be damaged. The round cover belt isn't bearing weight , but only protecting the inside parallelly-ranged silk-bunch .The outside round round cover belt will break first or warn when overloading gravely or using for a long time, then the accident will be in case.
The safety coefficient is 7:1 ,according to your special needs, 5:1, 6:1,8:1 for your choice. The working load is diffientiated by colors according to international standard easy to identify even if the sling has been abraded.
When ordering it is important to make clear whether the length specified is circumference or effective working length.
Material： 100% high-strength polyester yarn
Safety Factor：6:1 7:1 8:1
Standard： ISO: ISO4878
European: EN1492-2:2000
Australian: AS 4497
| Type -Polyester round sling Technical specifications -Colour coded according to EN 1492-2 & AS 4497 -Capacity stripes; each stripe is equal to 1 tonne capacity. -The safe working load is clearly and continuously printed on the sleeve. -Extra strong PU-impregnated webbing of the sleeve, which does not allow dirt to enter. -Each sling is packed in plastic with CE declaration of conformity or Test Certificate. Characteristics: -Low elongation. -Extremely wear-resistant. Norms -According to Machine Directive 98/37/EC & AS 4497 -Safety Factor: 7:1 |
|
| Item | Color coded
according to
EN1492-2 | Working Load Limit with 1 round sling | Working Load Limit with 2
round slings |
Straight
lift | Chocked
lift | 0-7 | | Straight
lift up to 45 | Choked
lift up to 45 | Straight
lift
45-60 | Choked
lift
45-60 |
| 0-7 | 7-45 | 45-60 | 45-60 |
| | | | | | | | | | |
| 1.0 | 0.8 | 2.0 | 1.4 | 1.0 | 0.7 | 0.5 | 1.4 | 1.12 | 1.0 | 0.8 |
| DSRES-1T | WLL1T | 1.000 | 800 | 2.000 | 1.400 | 1.000 | 700 | 500 | 1.400 | 1.120 | 1.000 | 800 |
| DSRES-2T | WLL 2T | 2.000 | 1.600 | 4.000 | 2.800 | 2.000 | 1.400 | 1.000 | 2.800 | 2.240 | 2.000 | 1.600 |
| DSRES-3T | WLL 3T | 3.000 | 2.400 | 6.000 | 4.200 | 3.000 | 2.100 | 1.500 | 4.200 | 3.360 | 3.000 | 2.400 |
| DSRES-4T | WLL 4T | 4.000 | 3.200 | 8.000 | 5.600 | 4.000 | 2.800 | 2.000 | 5.600 | 4.480 | 4.000 | 3.200 |
| DSRES-5T | WLL 5T | 5.000 | 4.000 | 10.000 | 7.000 | 5.000 | 3.500 | 2.500 | 7.000 | 5.600 | 5.000 | 4.000 |
| DSRES-6T | WLL 6T | 6.000 | 4.800 | 12.000 | 8.400 | 6.000 | 4.200 | 3.000 | 8.400 | 6.720 | 6.000 | 4.800 |
| DSRES-8T | WLL 8T | 8.000 | 6.400 | 16.000 | 11.200 | 8.000 | 5.600 | 4.000 | 11.200 | 8.960 | 8.000 | 6.400 |
| DSRES-10T | WLL 10T | 10.000 | 8.000 | 20.000 | 14.000 | 10.000 | 7.000 | 5.000 | 14.000 | 11.200 | 10.000 | 8.000 |
| DSRES-12T | WLL 12T | 12.000 | 9.600 | 24.000 | 16.800 | 12.000 | 8.400 | 6.000 | 16.800 | 13.400 | 12.000 | 9.600 |
| Code | W.L.L. | Color | Diameter | Min. length | Max. length |
| Tons | mm | m | m |
| DSRES-1T | 1.0 | | 19 | 0.5 | 80 |
| DSRES-2T | 2.0 | | 25 | 0.5 | 80 |
| DSRES-3T | 3.0 | | 28 | 0.5 | 80 |
| DSRES-4T | 4.0 | | 32 | 0.5 | 80 |
| DSRES-5T | 5.0 | | 36 | 0.5 | 80 |
| DSRES-6T | 6.0 | | 38 | 1.0 | 80 |
| DSRES-8T | 8.0 | | 43 | 1.0 | 80 |
| DSRES-10T | 10.0 | | 48 | 2.0 | 80 |
| DSRES-12T | 12.0 | | 53 | 2.0 | 80 |
| DSRES-15T | 15.0 | | 60 | 2.0 | 80 |
| DSRES-20T | 20.0 | | 70 | 2.0 | 80 |
| DSRES-30T | 30.0 | | 86 | 2.0 | 80 |
| DSRES-50T | 50.0 | | 119 | 2.0 | 80 |
| DSRES-100T | 100.0 | | 140 | 2.0 | 80 |
| DSRES-300T | 300.0 | | 280 | 2.0 | 80 |
| DSRES-500T | 500.0 | | 350 | 2.5 | 80 |
| DSRES-800T | 800.0 | | 426 | 2.5 | 80 |
| DSRES-1000T | 1000.0 | | 476 | 3.0 | 80
|

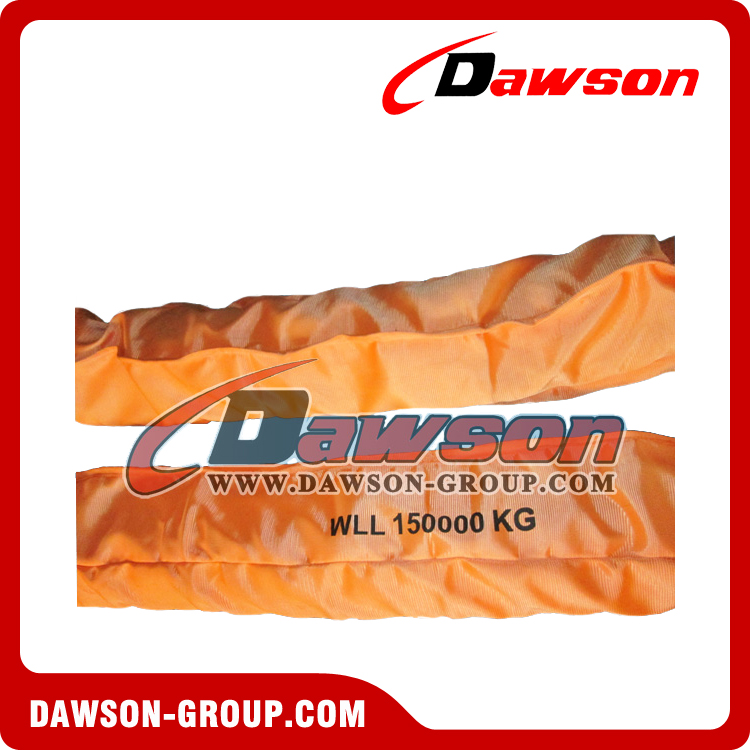

Welcome to buy the newest and competitive price DAWSON WLL 150T Polyester Round Slings from our factory. We're one of the leading China manufacturers and suppliers, offering you the wholesale service and the OEM service at a discount. With CE certification, our products made in China in stock are high in quality and low in price. Please be free to get the free sample from us.
Dawson Endless Round Lifting Sling Features:
⇒Perfect for hugging and gripping many uneven and odd shaped loads.
⇒Light in Weight, But High in Strength.
⇒100% polyester construction that assures low elongation 3% at rated capacity and still returns to original length. Thus minimizes adjustments for stretch and reduces headroom problems of your lift.
⇒Polyester jacket helps protect internal load-bearing fibers from abrasion, wear, UV degradation, and harmful dirt and debris.
⇒All-polyester construction virtually eliminates moisture absorption, rot and mildew. It also offers good resistance to common industrial acids (except concentrated sulfuric acid), and alcohol, dry cleaning solvent, hydrocarbons, halogenated hydrocarbons, ketones, crude oil, lubricating oils, soaps, detergents, seawater and weak alkali. Caution: Never use at temperatures above 194°F (90°C) or below -40°F (-40°C). Do not expose to strong alkalis at elevated temperatures,
⇒Load stability and balance can be achieved by spreading sling legs.
⇒Wear points can be shifted to extend sling life.
