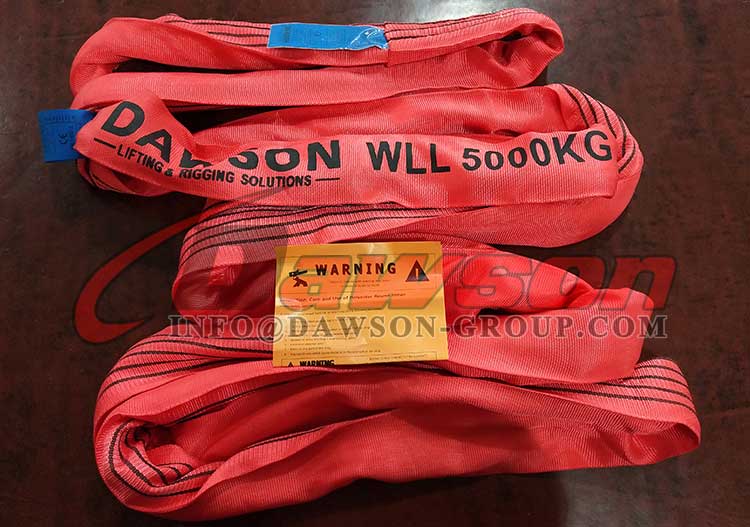

WLL 5T Polyester Round Slings
- Dawson Group Ltd. - China Manufacturer, Supplier, Factory
The round slings are usually made up of polyester The surface of round sling can prevent the object wear and tear or scratch even it can lift the object that would be damaged. The round cover belt isn't bearing weight , but only protecting the inside parallelly-ranged silk-bunch .The outside round round cover belt will break first or warn when overloading gravely or using for a long time, then the accident will be in case.
The safety coefficient is 7:1 ,according to your special needs, 5:1, 6:1,8:1 for your choice. The working load is diffientiated by colors according to international standard easy to identify even if the sling has been abraded.
When ordering it is important to make clear whether the length specified is circumference or effective working length.
Material： 100% high-strength polyester yarn
Safety Factor：6:1 7:1 8:1
Standard： ISO: ISO4878
European: EN1492-2:2000
Australian: AS 4497

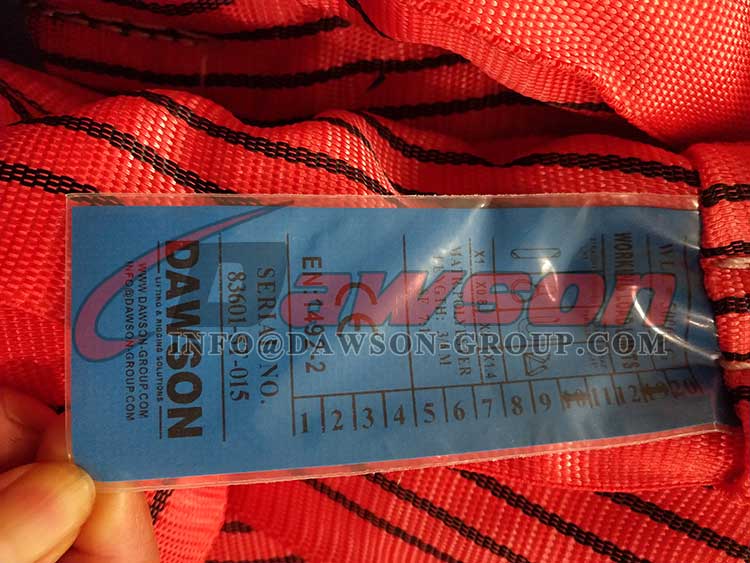

| Type -Polyester round sling Technical specifications -Colour coded according to EN 1492-2 & AS 4497 -Capacity stripes; each stripe is equal to 1 tonne capacity. -The safe working load is clearly and continuously printed on the sleeve. -Extra strong PU-impregnated webbing of the sleeve, which does not allow dirt to enter. -Each sling is packed in plastic with CE declaration of conformity or Test Certificate. Characteristics: -Low elongation. -Extremely wear-resistant. Norms -According to Machine Directive 98/37/EC & AS 4497 -Safety Factor: 7:1 |
|
| Item | Color coded
according to
EN1492-2 | Working Load Limit with 1 round sling | Working Load Limit with 2
round slings |
Straight
lift | Chocked
lift | 0-7 | | Straight
lift up to 45 | Choked
lift up to 45 | Straight
lift
45-60 | Choked
lift
45-60 |
| 0-7 | 7-45 | 45-60 | 45-60 |
| | | | | | | | | | |
| 1.0 | 0.8 | 2.0 | 1.4 | 1.0 | 0.7 | 0.5 | 1.4 | 1.12 | 1.0 | 0.8 |
| DSRES-1T | WLL1T | 1.000 | 800 | 2.000 | 1.400 | 1.000 | 700 | 500 | 1.400 | 1.120 | 1.000 | 800 |
| DSRES-2T | WLL 2T | 2.000 | 1.600 | 4.000 | 2.800 | 2.000 | 1.400 | 1.000 | 2.800 | 2.240 | 2.000 | 1.600 |
| DSRES-3T | WLL 3T | 3.000 | 2.400 | 6.000 | 4.200 | 3.000 | 2.100 | 1.500 | 4.200 | 3.360 | 3.000 | 2.400 |
| DSRES-4T | WLL 4T | 4.000 | 3.200 | 8.000 | 5.600 | 4.000 | 2.800 | 2.000 | 5.600 | 4.480 | 4.000 | 3.200 |
| DSRES-5T | WLL 5T | 5.000 | 4.000 | 10.000 | 7.000 | 5.000 | 3.500 | 2.500 | 7.000 | 5.600 | 5.000 | 4.000 |
| DSRES-6T | WLL 6T | 6.000 | 4.800 | 12.000 | 8.400 | 6.000 | 4.200 | 3.000 | 8.400 | 6.720 | 6.000 | 4.800 |
| DSRES-8T | WLL 8T | 8.000 | 6.400 | 16.000 | 11.200 | 8.000 | 5.600 | 4.000 | 11.200 | 8.960 | 8.000 | 6.400 |
| DSRES-10T | WLL 10T | 10.000 | 8.000 | 20.000 | 14.000 | 10.000 | 7.000 | 5.000 | 14.000 | 11.200 | 10.000 | 8.000 |
| DSRES-12T | WLL 12T | 12.000 | 9.600 | 24.000 | 16.800 | 12.000 | 8.400 | 6.000 | 16.800 | 13.400 | 12.000 | 9.600 |
| Code | W.L.L. | Color | Diameter | Min. length | Max. length |
| Tons | mm | m | m |
| DSRES-1T | 1.0 | | 19 | 0.5 | 80 |
| DSRES-2T | 2.0 | | 25 | 0.5 | 80 |
| DSRES-3T | 3.0 | | 28 | 0.5 | 80 |
| DSRES-4T | 4.0 | | 32 | 0.5 | 80 |
| DSRES-5T | 5.0 | | 36 | 0.5 | 80 |
| DSRES-6T | 6.0 | | 38 | 1.0 | 80 |
| DSRES-8T | 8.0 | | 43 | 1.0 | 80 |
| DSRES-10T | 10.0 | | 48 | 2.0 | 80 |
| DSRES-12T | 12.0 | | 53 | 2.0 | 80 |
| DSRES-15T | 15.0 | | 60 | 2.0 | 80 |
| DSRES-20T | 20.0 | | 70 | 2.0 | 80 |
| DSRES-30T | 30.0 | | 86 | 2.0 | 80 |
| DSRES-50T | 50.0 | | 119 | 2.0 | 80 |
| DSRES-100T | 100.0 | | 140 | 2.0 | 80 |
| DSRES-300T | 300.0 | | 280 | 2.0 | 80 |
| DSRES-500T | 500.0 | | 350 | 2.5 | 80 |
| DSRES-800T | 800.0 | | 426 | 2.5 | 80 |
| DSRES-1000T | 1000.0 | | 476 | 3.0 | 80
|
Dawson Endless Round Lifting Sling Features:
⇒Perfect for hugging and gripping many uneven and odd shaped loads.
⇒Light in Weight, But High in Strength.
⇒100% polyester construction that assures low elongation 3% at rated capacity and still returns to original length. Thus minimizes adjustments for stretch and reduces headroom problems of your lift.
⇒Polyester jacket helps protect internal load-bearing fibers from abrasion, wear, UV degradation, and harmful dirt and debris.
⇒All-polyester construction virtually eliminates moisture absorption, rot and mildew. It also offers good resistance to common industrial acids (except concentrated sulfuric acid), and alcohol, dry cleaning solvent, hydrocarbons, halogenated hydrocarbons, ketones, crude oil, lubricating oils, soaps, detergents, seawater and weak alkali. Caution: Never use at temperatures above 194°F (90°C) or below -40°F (-40°C). Do not expose to strong alkalis at elevated temperatures,
⇒Load stability and balance can be achieved by spreading sling legs.
⇒Wear points can be shifted to extend sling life.
1 TON ROUND SLINGS, 2 TON ROUND SLINGS, 3 TON ROUND SLINGS, 4 TON ROUND SLINGS, 5 TON ROUND SLINGS, 6 TON ROUND SLINGS, 8 TON ROUND SLINGS, 10 TON ROUND SLINGS, 12 TON ROUND SLINGS, 15 TON ROUND SLINGS, 20 TON ROUND SLINGS, 25 TON ROUND SLINGS, 30 TON ROUND SLINGS, 40 TON ROUND SLINGS, 50 TON ROUND SLINGS, 80 TON ROUND SLINGS, 100 TON ROUND SLINGS, 120 TON ROUND SLINGS, 150 TON ROUND SLINGS, 200 TON ROUND SLINGS, 300 TON ROUND SLINGS, 500 TON ROUND SLINGS, 800 TON ROUND SLINGS, 1000 TON ROUND SLINGS
1T ROUND SLINGS, 2T ROUND SLINGS, 3T ROUND SLINGS, 4T ROUND SLINGS, 5T ROUND SLINGS, 6T ROUND SLINGS, 8T ROUND SLINGS, 10T ROUND SLINGS, 12T ROUND SLINGS, 15T ROUND SLINGS, 20T ROUND SLINGS, 25T ROUND SLINGS, 30T ROUND SLINGS, 40T ROUND SLINGS, 50T ROUND SLINGS, 80T ROUND SLINGS, 100T ROUND SLINGS, 120T ROUND SLINGS, 150T ROUND SLINGS, 200T ROUND SLING, 300T ROUND SLINGS, 500T ROUND SLINGS, 800T ROUND SLINGS, 1000T ROUND SLINGS
1000KG ROUND SLINGS, 2000KG ROUND SLINGS, 3000KG ROUND SLINGS, 4000KG ROUND SLINGS, 5000KG ROUND SLINGS, 6000KG ROUND SLINGS, 8000KG ROUND SLINGS, 10000KG ROUND SLINGS, 12000KG ROUND SLINGS, 15000KG ROUND SLINGS, 20000KG ROUND SLINGS, 25000KG ROUND SLINGS, 30000KG ROUND SLINGS, 40000KG ROUND SLINGS, 50000KG ROUND SLINGS, 80000KG ROUND SLINGS, 100000KG ROUND SLINGS, 120000KG ROUND SLINGS, 150000KG ROUND SLINGS, 200000KG ROUND SLING, 300000KG ROUND SLINGS, 500000KG ROUND SLINGS, 800000KG ROUND SLINGS, 1000000KG ROUND SLINGS
Products Show:
Other related products:
Lifting Slings Material:
Hot Tags: 5000KG Round Slings, Lifting Slings, Endless Round Sling China Supplier, 5T Crane Lifting Sling Factory China, Textile Lifting Slings China Manufacturer, Low Price Polyester Lifting Slings, Round Sling for Lifting in Stock, Buy Discount Synthetic Lifting Slings, Dawson Brand 5000KG Lifting Slings, Free Sample Polyester Lifting Slings, Wholesale Crane Lifting Slings, WLL 5000KG RoundSling, Flexible Lifting Slings, Soft Round Slings, Endless RoundSlings, Crane Slings, Rigging Slings, Cargo Lift Sling
DAWSON HEAVY DUTY POLYESTER ROUND SLINGS TESTING:
Application of Polyester Round Slings:

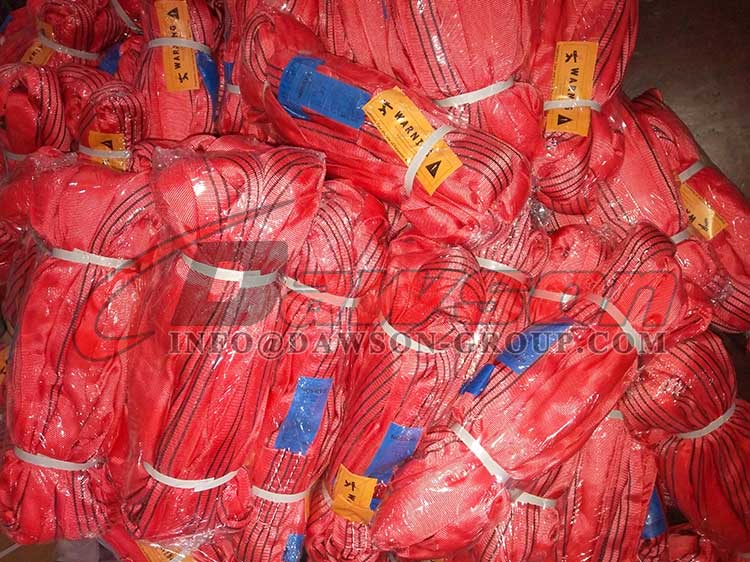

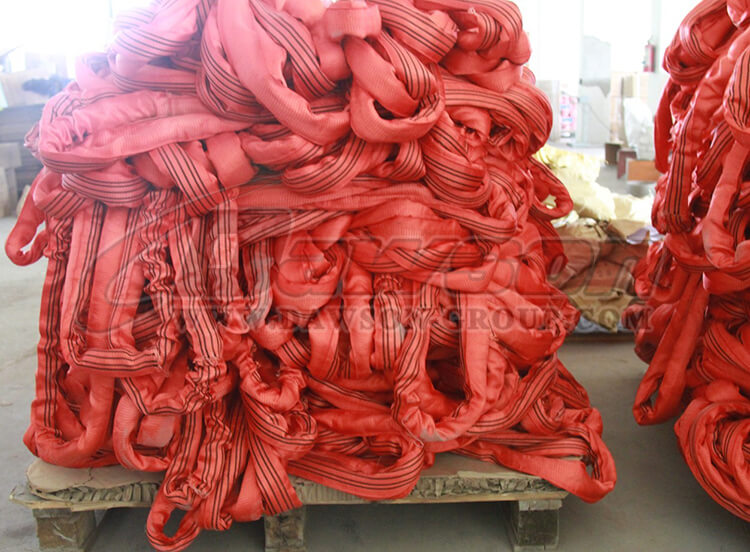

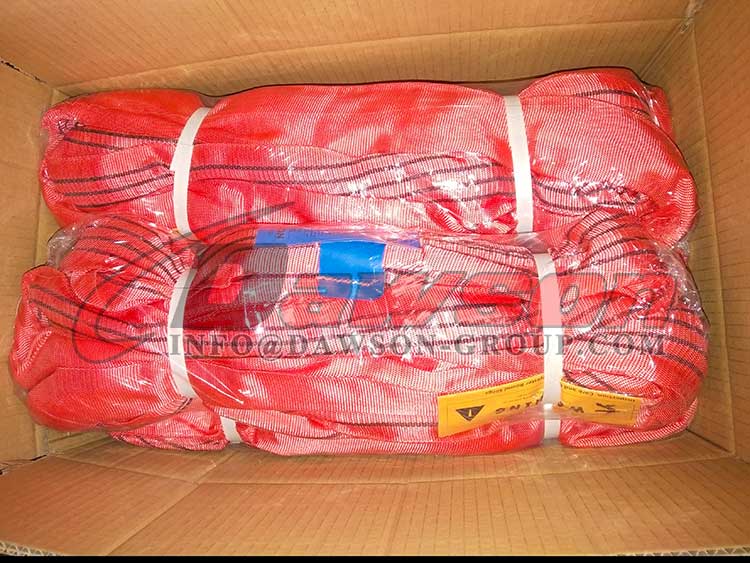

Package & Factory Show:
