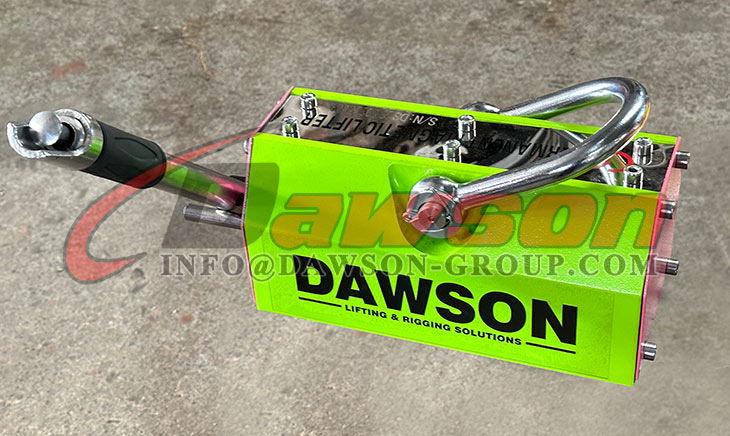

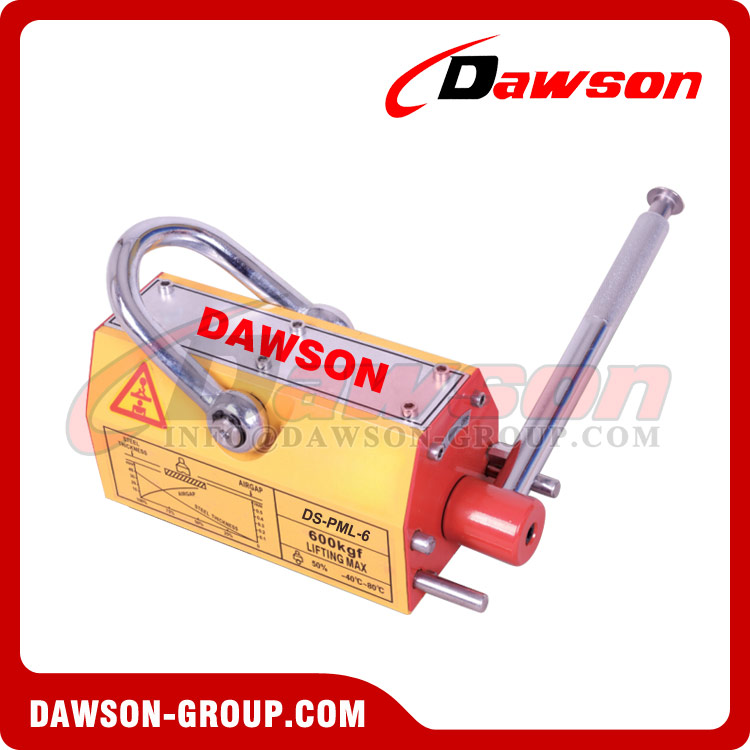

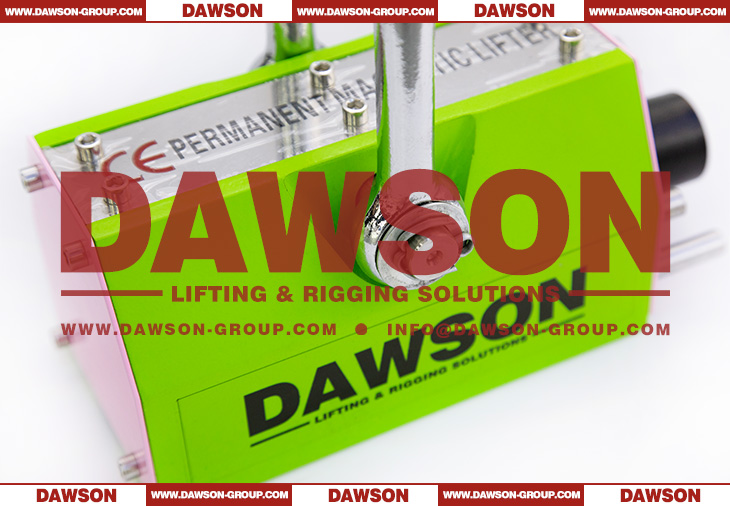

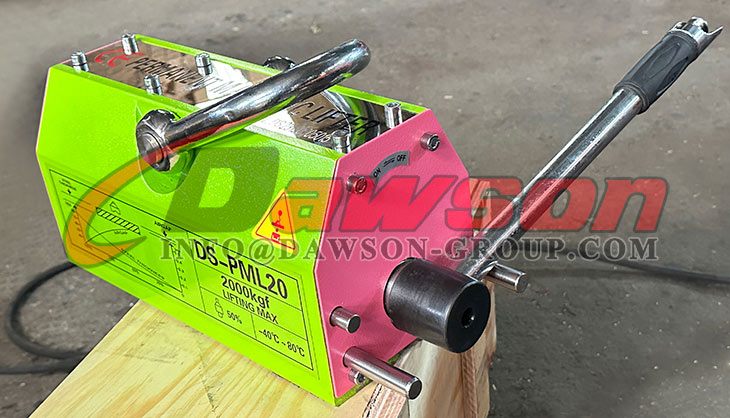

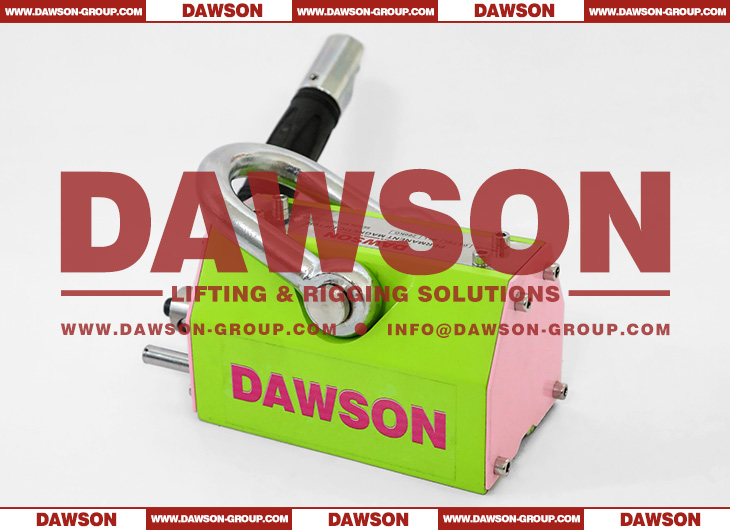

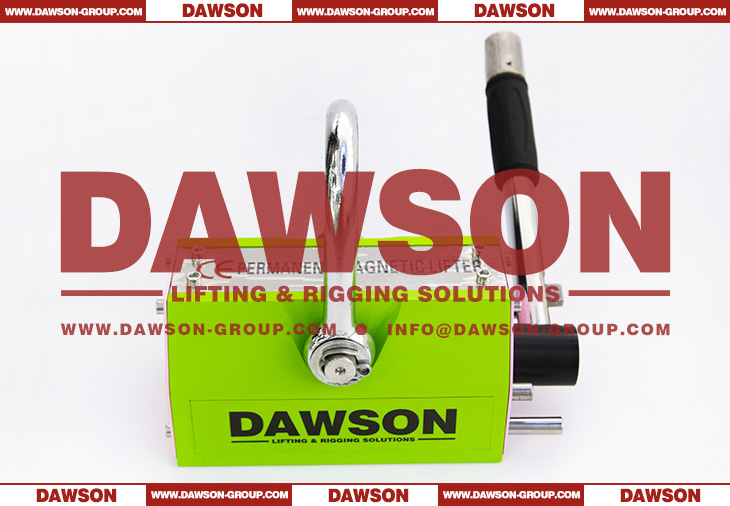

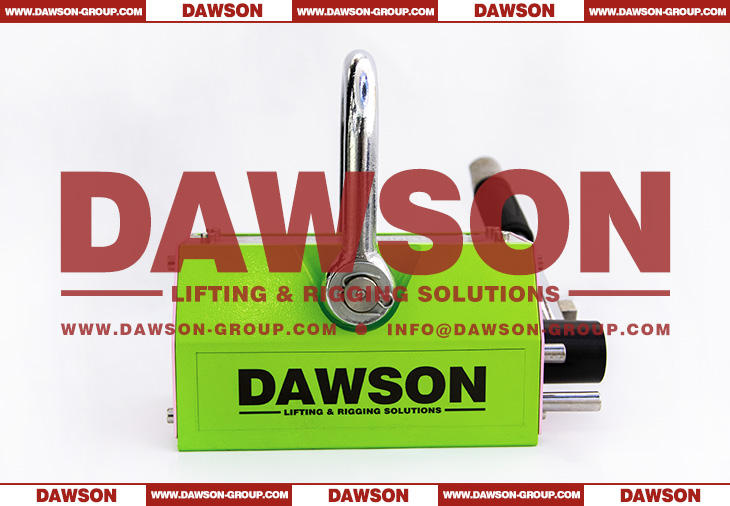

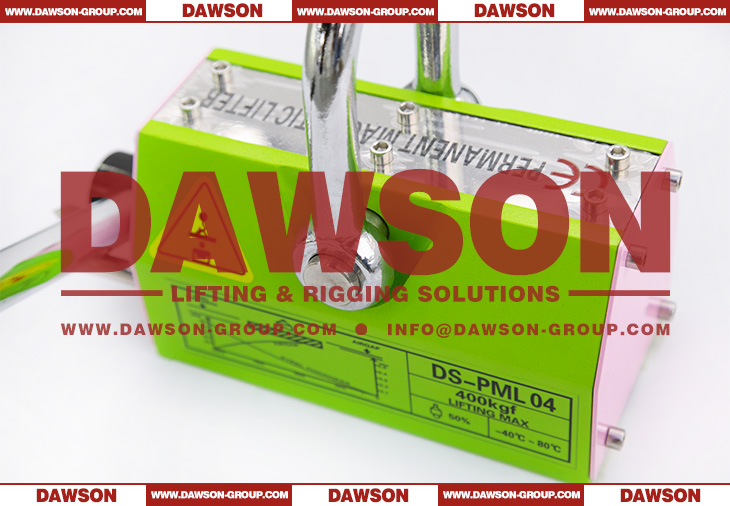

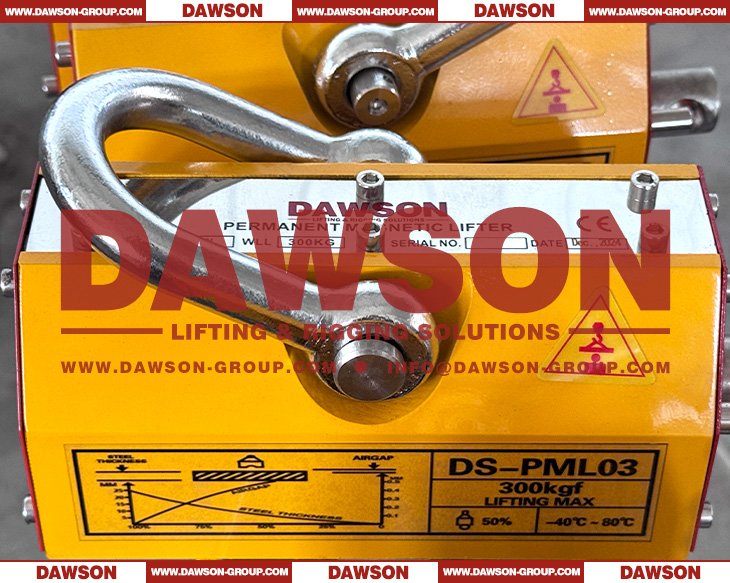

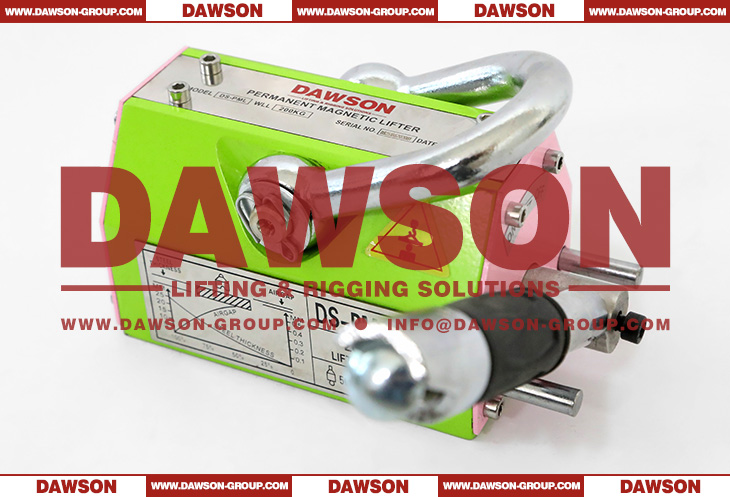

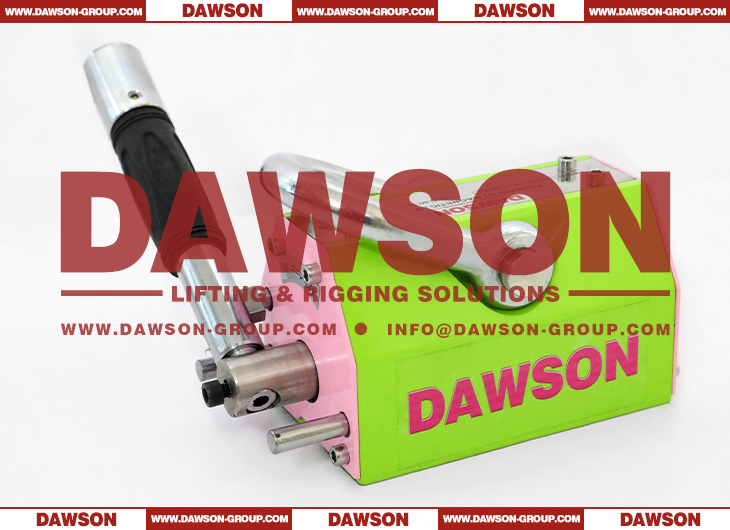

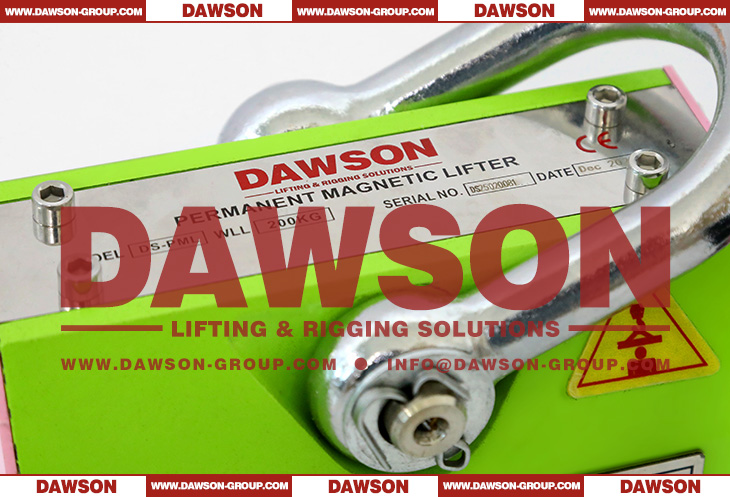

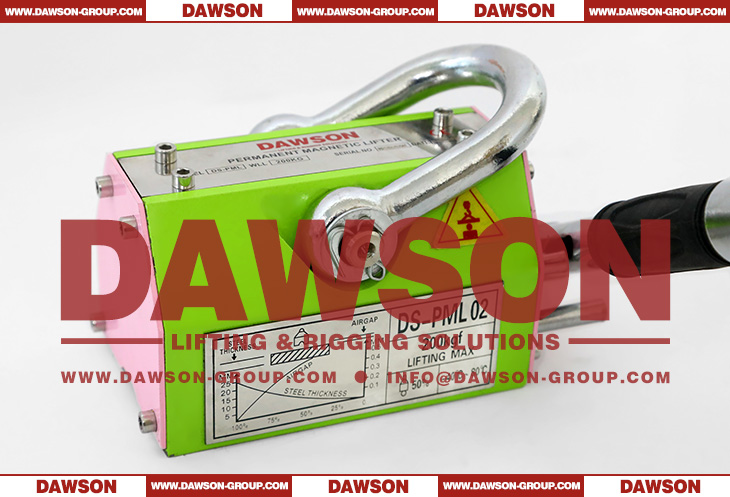

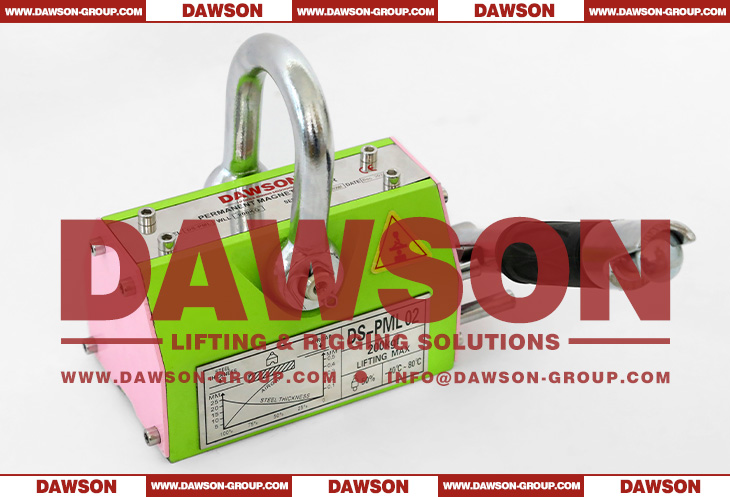

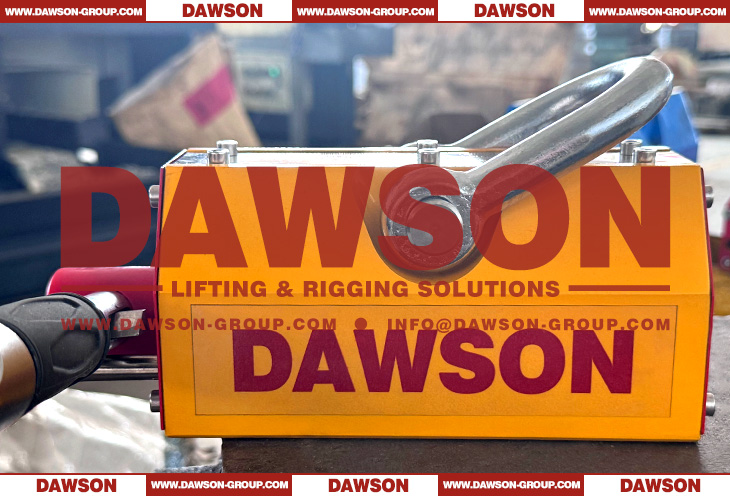

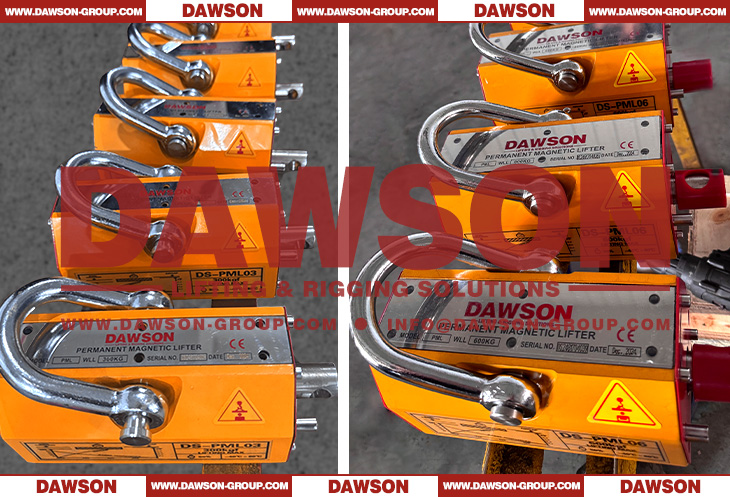

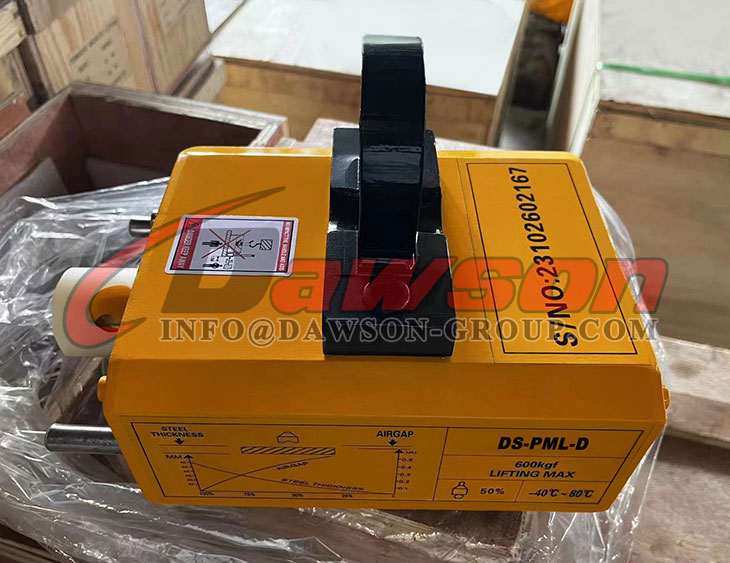

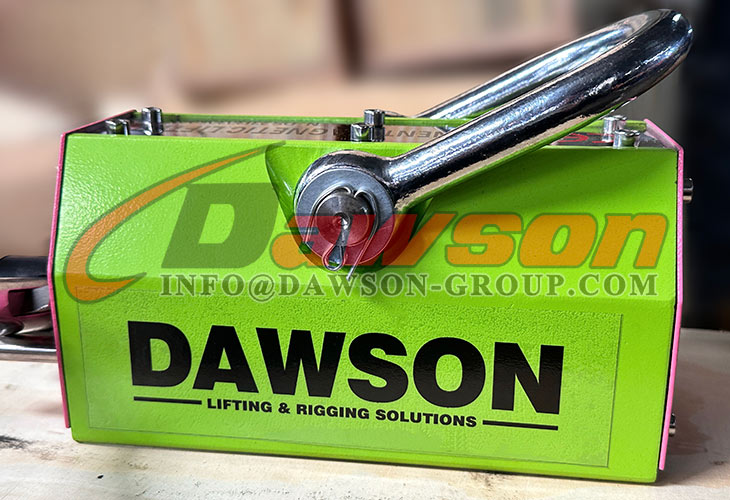

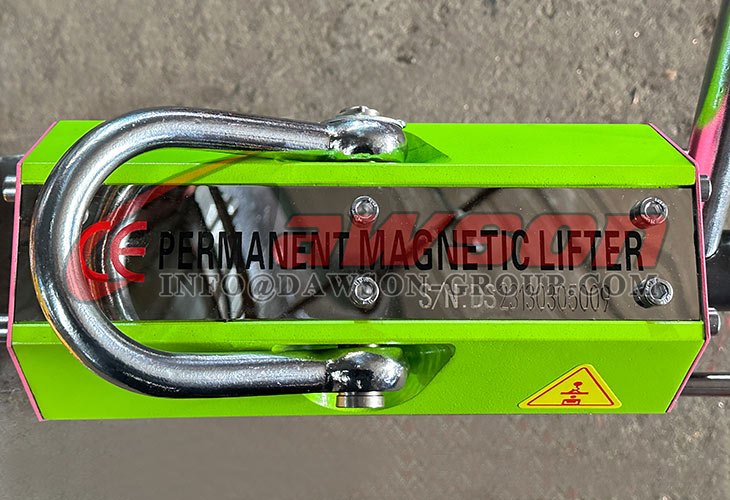

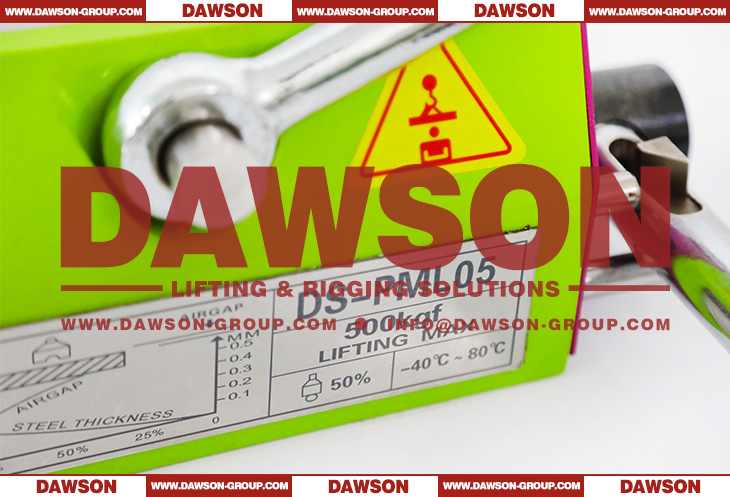

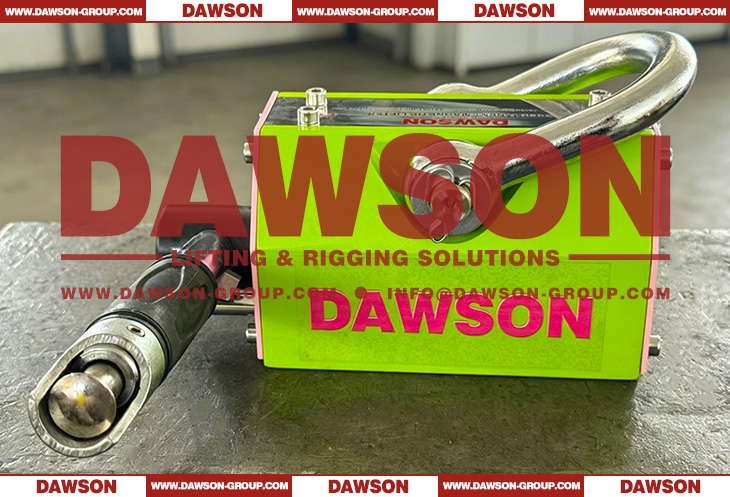

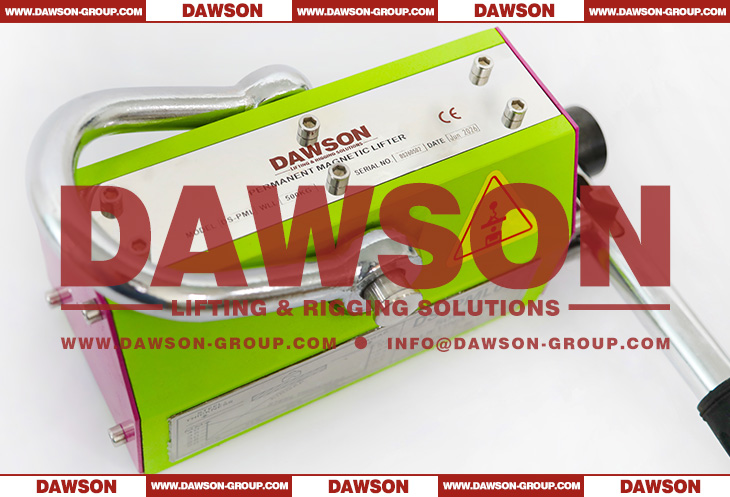

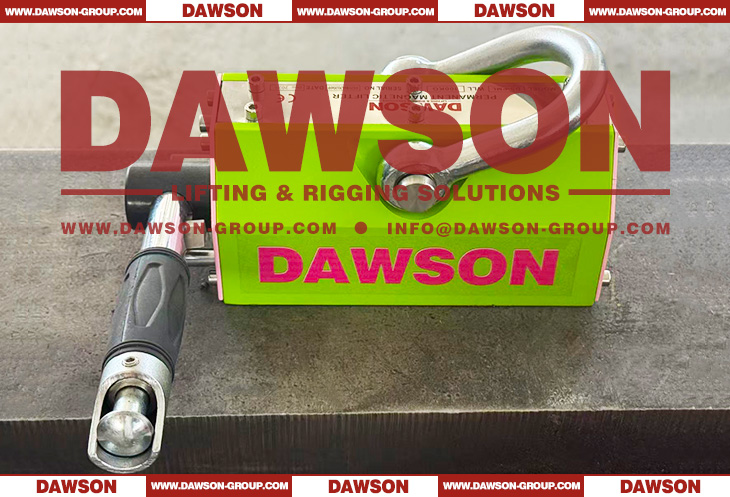

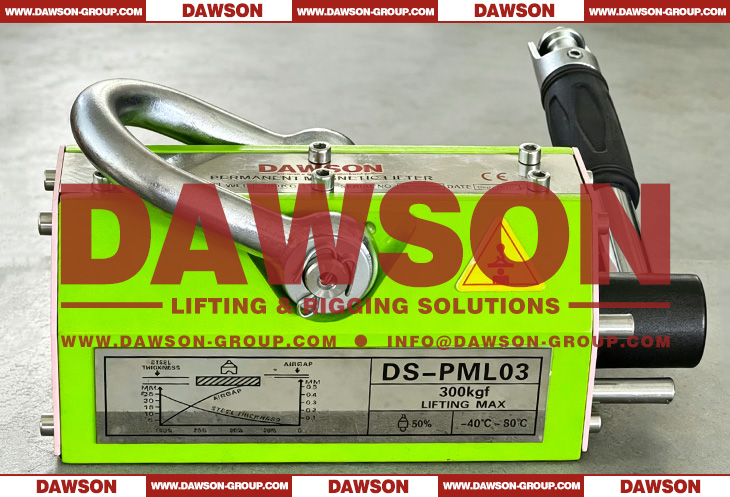

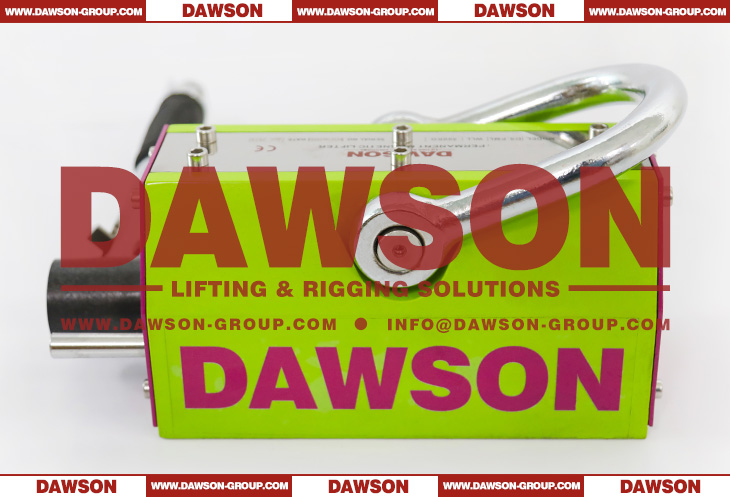

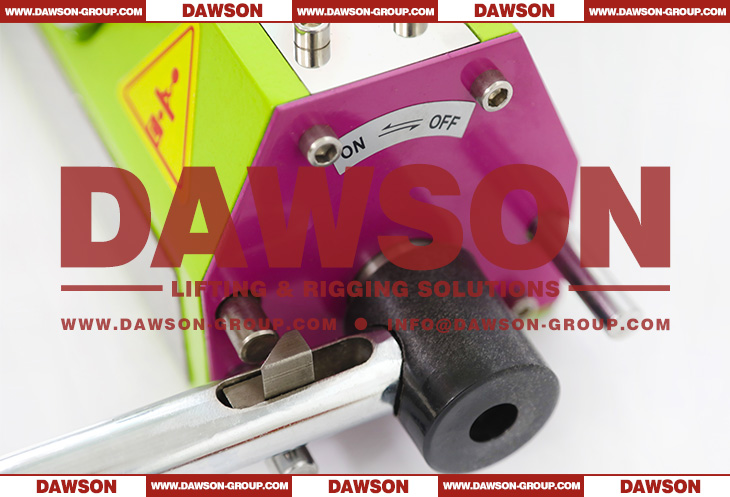

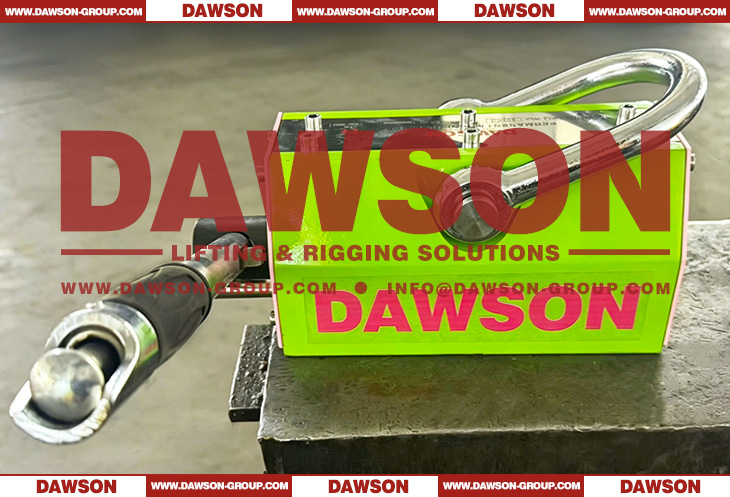

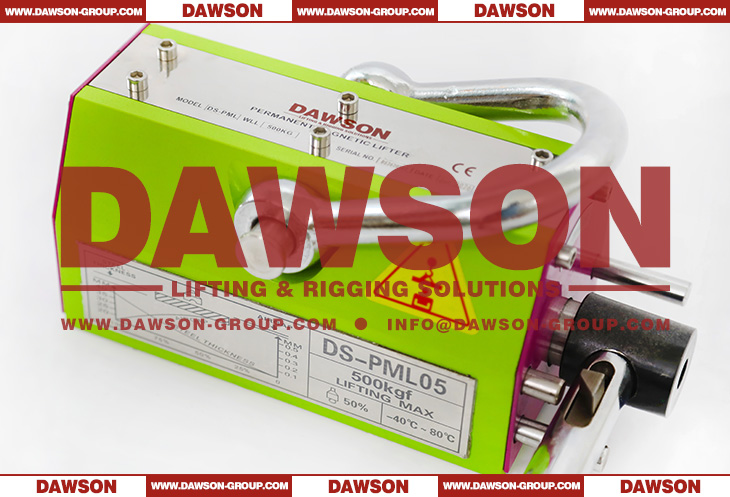

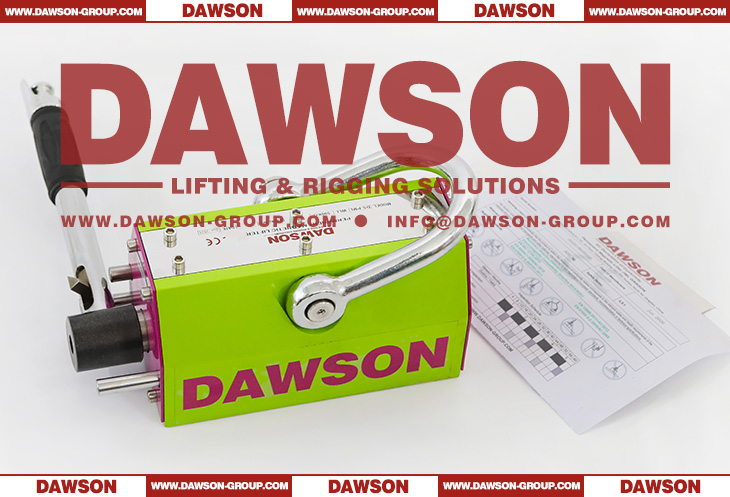

DS-PML Type Manual Permanent Magnetic Lifter
- Dawson Group Ltd. - China Manufacturer, Supplier, Factory
Use high-performance permanent-magnet materials Nd-Fe-B as the core, which makes it be smaller and stronger magnetism, magnetic power is stable forever. Remanence is almost zero with optimize-designed magnetism distribution. High safe coefficient, the biggest lifting capability is 3.5 times of rated.Handle switch with safety button, can operation by one hand, safe and convenient. The “V” design on subface makes it easier to lift up round and falt steel.

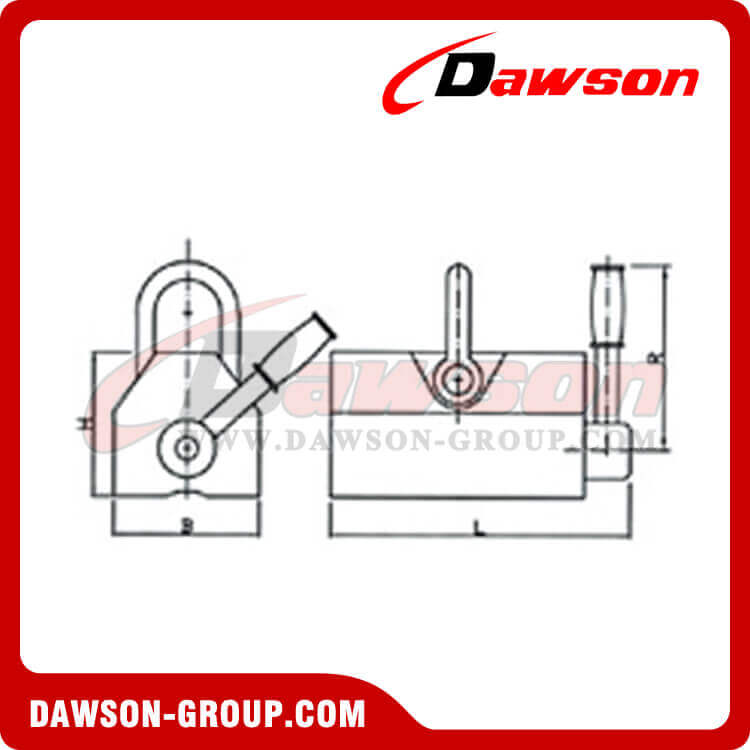

DS-PML Manual Permanent Magnetic Lifter × Dimension
Model | Fixed power | Size | Pull off force | Weight | ||||||||
Steel plate | Round steel | A | B | C | D | E | F | G | H | |||
kg | kg | mm | mm | mm | mm | mm | mm | mm | mm | kg | kg | |
DS-PML-1 | 100 | 50 | 95 | 85 | 77 | 80 | 140 | 155 | 30 | 68 | 350 | 3.5 |
DS-PML-3 | 300 | 150 | 180 | 175 | 86 | 85 | 130 | 185 | 53 | 52 | 1050 | 11.5 |
DS-PML-4 | 400 | 200 | 201 | 196 | 110 | 110 | 200 | 210 | 69 | 102 | 1400 | 18.2 |
DS-PML-6 | 600 | 300 | 221 | 217 | 115 | 125 | 217 | 235 | 69 | 102 | 2100 | 25 |
DS-PML-10 | 1000 | 500 | 295 | 291 | 142 | 140 | 270 | 265 | 82 | 140 | 3500 | 45 |
DS-PML-15 | 1500 | 750 | 313 | 352 | 145 | 152 | 280 | 350 | 100 | 134 | 5000 | 55 |
DS-PML-20 | 2000 | 1000 | 360 | 350 | 165 | 175 | 290 | 426 | 100 | 134 | 6000 | 80 |
DS-PML-30 | 3000 | 1500 | 460 | 450 | 180 | 186 | 300 | 520 | 100 | 134 | 9000 | 100 |
DS-PML-50 | 5000 | 2500 | 550 | 590 | 235 | 235 | 340 | 650 | 105 | 230 | 15000 | 240 |
DS-PML Manual Permanent Magnetic Lifter × Lifting Steel Plate Condition Chart
/ | Steel Plate Thickness | Rate of Hoising Capacity | ||||||
mm | inch | DS-HD-30 | DS-PML-20 | DS-PML-10 | DS-PML-6 | DS-PML-4 | DS-PML-1 | |
T1 | Up60 | Up2.36 | 100% | 100% | 100% | 100% | 100% | 100% |
T2 | 55 | 2.16” | 95% | |||||
T3 | 50 | 1.97” | 90% | 95% | ||||
T4 | 45 | 1.77” | 85% | 90% | ||||
T5 | 40 | 1.57” | 80% | 85% | ||||
T6 | 35 | 1.38” | 70% | 75% | 90% | |||
T7 | 30 | 1.18” | 60% | 66% | 80% | |||
T8 | 25 | 0.98” | 50% | 55% | 70% | 90% | ||
T9 | 20 | 0.79” | 40% | 45% | 60% | 75% | 90% | |
T10 | 15 | 0.59” | 30% | 35% | 50% | 60% | 70% | |
T11 | 10 | 0.39” | 20% | 25% | 35% | 45% | 50% | 70% |
T12 | 5 | 0.20” | 10% | 15% | 20% | 25% | 30% | 40% |

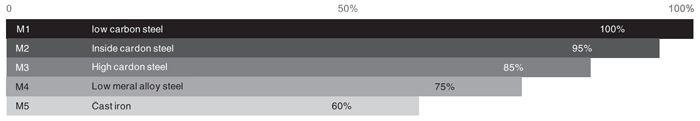

DS-PML Manual Permanent Magnetic Lifter × Lifting Material Condition Chart

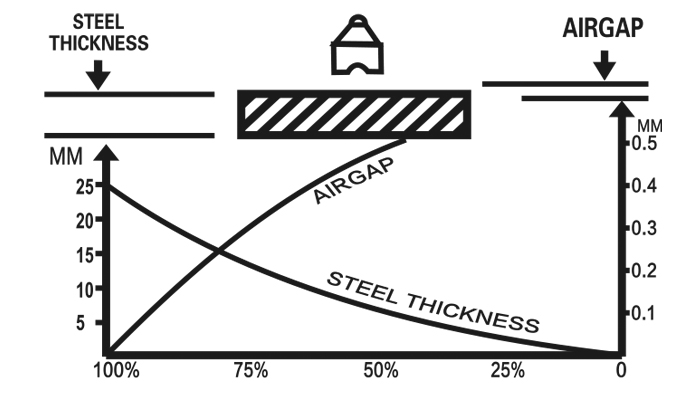

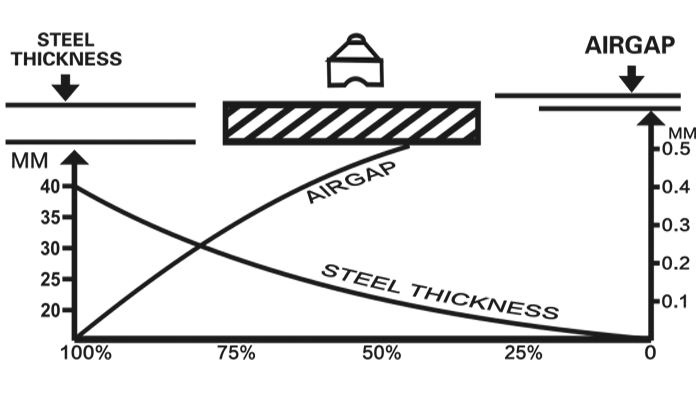

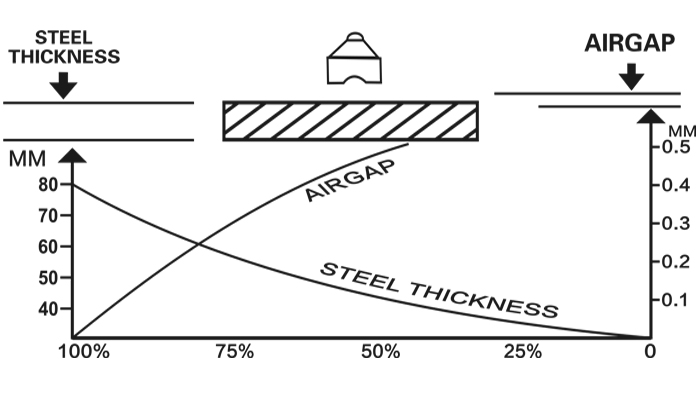

DS-PML-1 to DS-PML-2 Lifting Curve | DS-PML-3 to DS-PML-8 Lifting Curve |

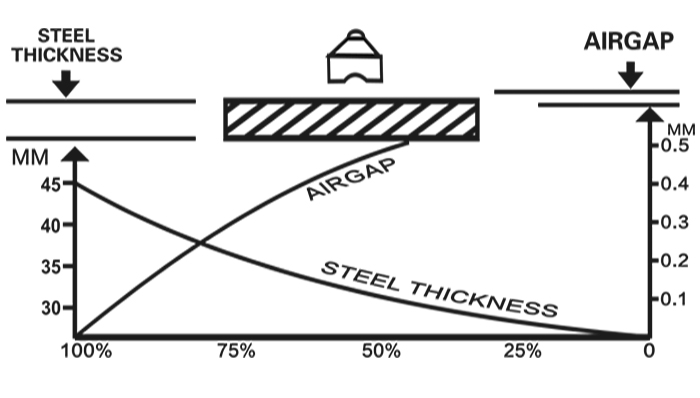

DS-PML-10 to DS-PML-20 Lifting Curve | DS-PML-30 to DS-PML-50 Lifting Curve |

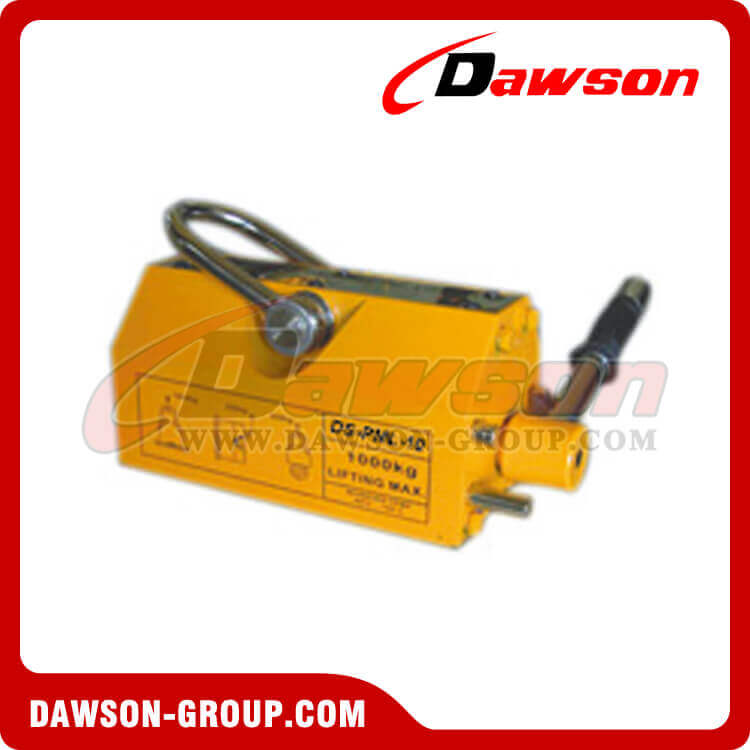

--High safety factor.
--Good air gap feature, the rated plain load could still be attracted up even if the gap is smaller than 0.5mm.
--Easy operating long term attractive force stability.

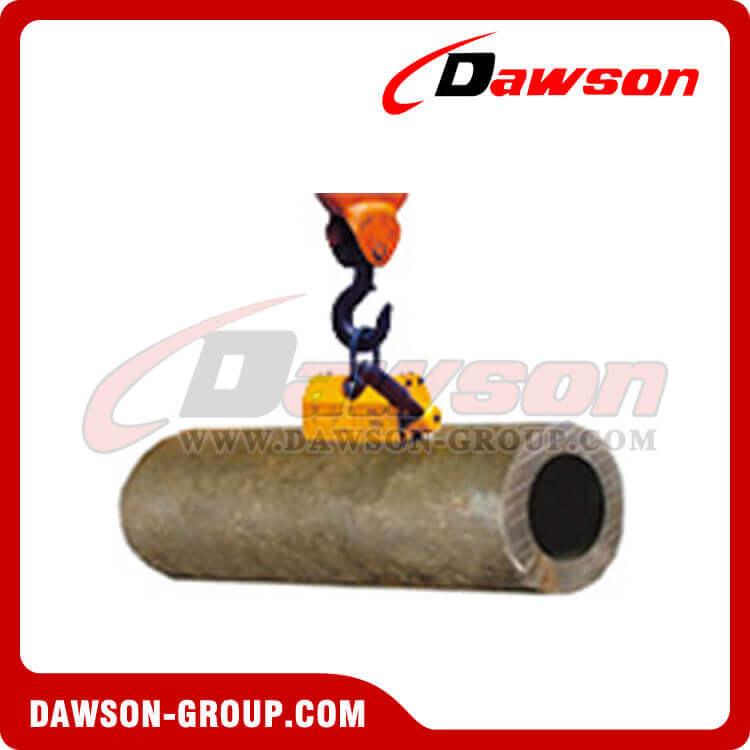

--It is suitable for transporting the roll steel, pipe materials or the work pieces in round shape.

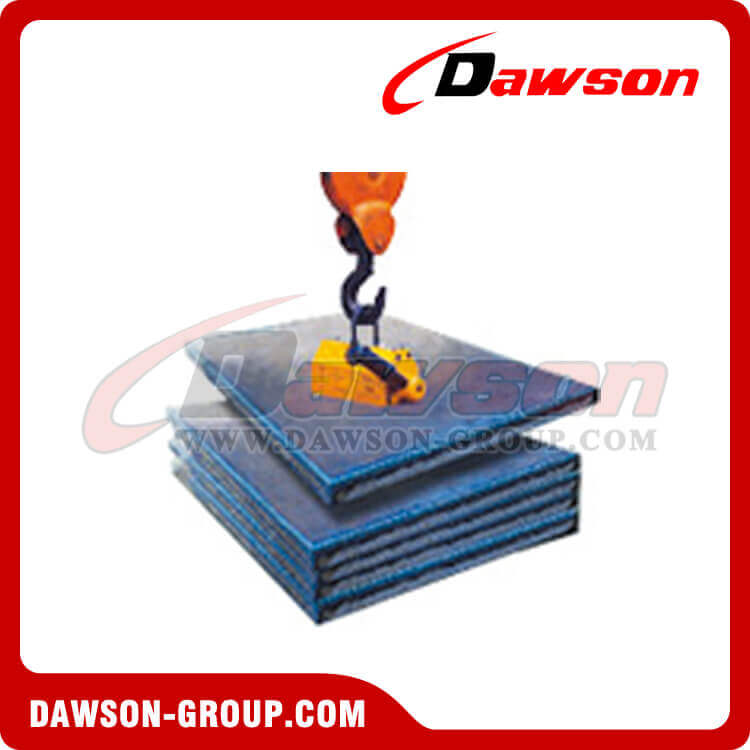

Dawson DSPML series, permanent magnetic lifters are used for lifting and handling plate or cylinder-form work pieces of ferromagnetic materials. DSPML series magnets have a compact and durable design.

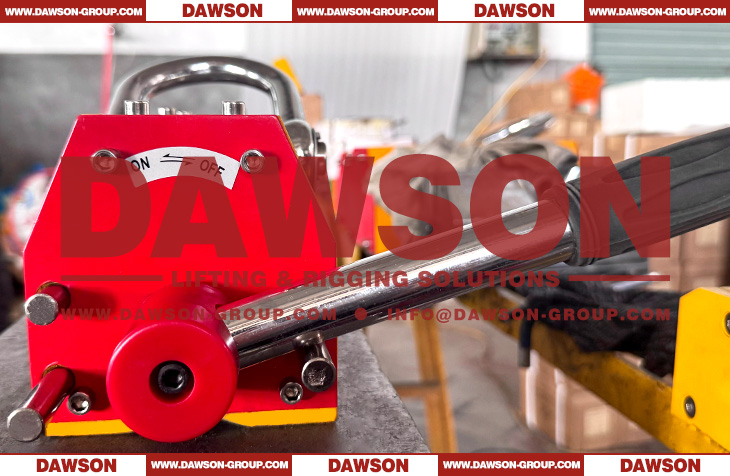

DSPML series magnets are made from NdFeB permanent magnet, which generates very high holding power in the magnetic circuit. The turning of the control handle changes the orientation of the pole-core engaging and disengaging the magnet in the ON or OFF positions. When in the ON position the holding face forms a pair of longitudinal magnetic poles along the bottom lifting face.
The safe, reliable and efficient DSPML series magnets are suitable for a wide range of applications across industry.
Benefits
Low operating costs
High level of safety and reliability
No residual magnetism
Independent of the mains supply for use anywhere
Lever control with integrated safety feature to prevent accidental switch-off
Require little maintenance
For further information, please contact us. Email:info@dawson-group.com
Operating principle / Technical details:
Dawson permanent magnets operate independently of a power supply. Due to the specific arrangement of a group of permanent magnets, the magnet field lines act on the magnet pole and the load, or are deflected in the magnet housing so that the poles are not magnetized. In position "ON", the magnetic field lines are guided via the poles through the load. The magnet is active. In position "OFF", the magnet pole surfaces are neutral and the magnet is therefore switched off. The load lifting magnet consists of individual standardized components. The inside of the magnet comprises the actual magnet system consisting of a reversing magnet system, the magnet assembly and the magnet poles.
Hot Tags: Permanent Magnetic Lifter, Magnet Lifter, Magnetic Plate Lifter, Manual Permanent Magnetic Lifter, China Permanent Magnetic Lifter Supplier, Permanent Magnetic Plate Lifter China Exporter, NdFeB Magnet Lifter Factory China, Low Price Magnet Lifter, Buy Discount Magnetic Plate Lifter, Cheap Price Manual Permanent Magnetic Lifter, Hot Sale Automatic Permanent Magnetic Lifter, Steel Scrap Lift Magnet In Stock, Wholesale Permanent Magnetic Lifter, China Manufacturer Permanent Lifting Magnet, Dawson Brands Steel Plate Lifter, Magnetic Lifter Free Sample, Manual Permanent Magnetic Lifter OEM
Other related products:

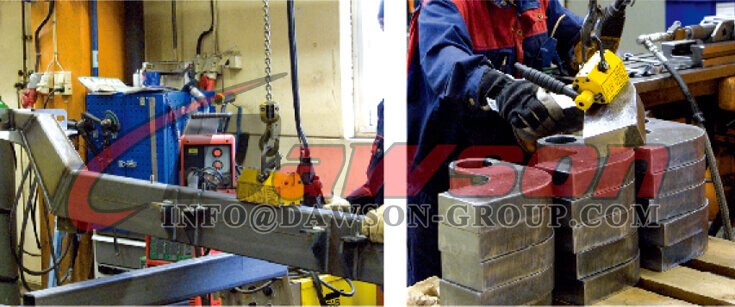

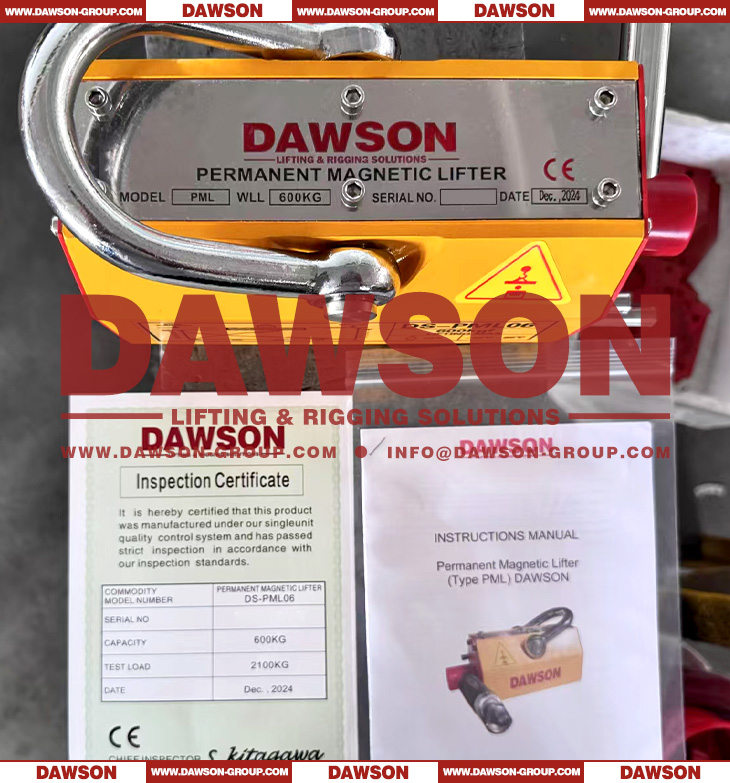

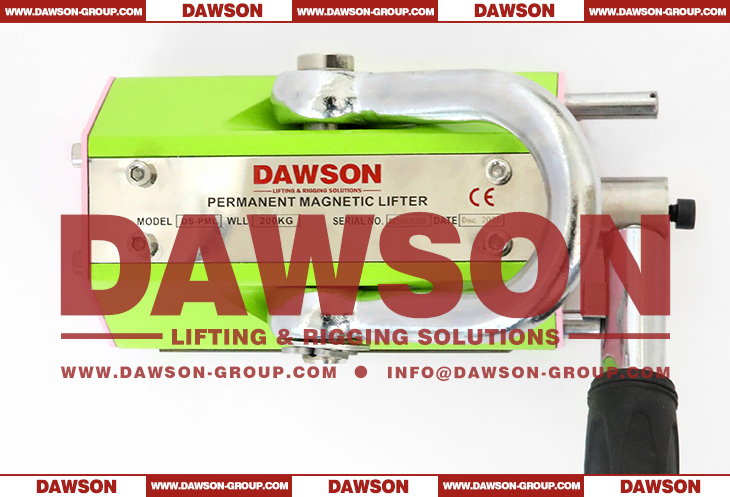

Test of Permanent Magnetic Lifter:
