Wire Rope Electric Winch

  • DAWSON/OEM
  • DS-EWA
  • 59mm
  • 500pcs
Rope(mm):
5 6 9
Lifting Speed (m/min):
15 30 10
Quantity:
Electric Wire Rope Winch, Small Electric Winch
- Dawson Group Ltd. - China Manufacturer, Supplier, Factory
ELECTRIC WINCH - DAWSON GROUP LTD. - CHINA SUPPLIER      ELECTRIC WINCH Dawson Group Ltd. - China Manufacturer, Supplier, Factory, Exporter
Wire rope winches series DS-EWA are designed explicitly for performance, efficiency and safety and offer many advantages and options. Their extremely compact,
practical cube design and universal rope lead-offs allow individual applications in almost any position and make them powerful aids of lifting and pulling loads.
Every winch is factory tested with overload.
In accordance with DIN 15020, safety regulation VBGB(winch life and pull equipment) and the EC Machinery Directives.
Compact dimensions due to internal brake motor, standard: Euro voltage 230/400V. 50Hz.3-phase, protected to IP 54, insulation class F.
Spur gear transmission with helical first gear ensures smooth motion. Lubricated by grease and can, therefore, be used in any position.
Spring pressure disc brake incorporated in the motor holds the load secure even in the event of a power failure.
Plain rope drum standard.
The rope is secured to drum in a recess, so that the rope can be round onto the drum in several layers without damage.
Direct control as standard.

Model Pulling Force
daN
Lifting Speed
m/min
Rope
mm
Motor
Performance
KW
Useable rope length Weight without Rope
kg
1Layer
m
2Layer
m
3Layer
m
4Layer
m
DSEWA250-15 250 15 5 0.55 13.7 28.5 45 62.5 55
DSEWA250-30 250 30 5 1.1 13.7 28.5 45 62.5 59
DSEWA500-15 500 15 6 1.1 16.4 34 53 73.4 90
DSEWA500-30 500 30 6 2.2 16.4 34 53 73.4 96
DSEWA1100-10 1100 10 9 2.2 11 23.3 36.9 52 98

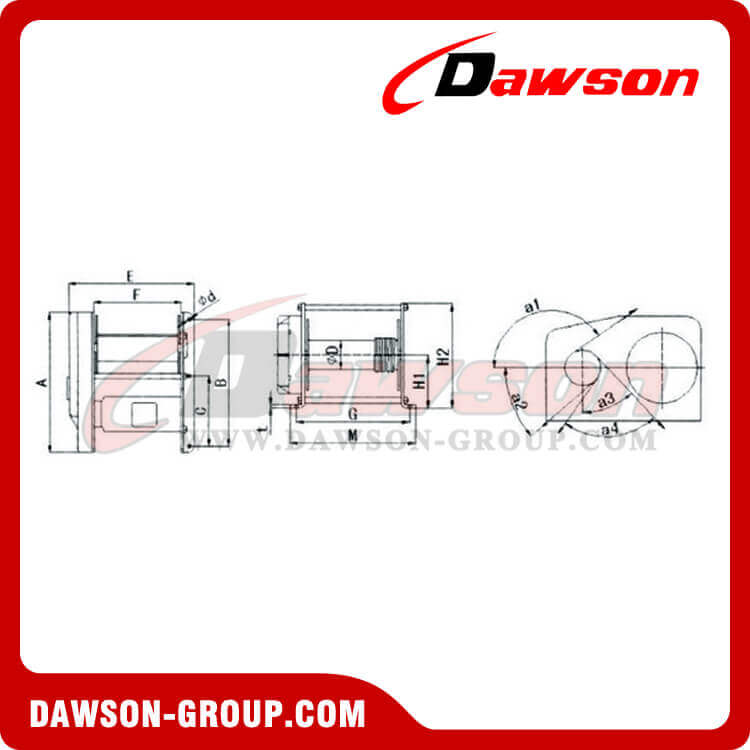

Dimension DSEWA250-15 DSEWA250-30 DSEWA500-15 DSEWA500-30 DSEWA1100-10
A 430 430 515 515 515
B 292 292 480 480 480
C --- --- 240 240 240
D 80 80 120 120 120
d 13 13 15 15 15
E 380 380 415 415 415
F 265 265 270 270 270
G 322 322 336 336 336
H1 145 145 176 176 176
H2 300 300 365 365 365
M 345 345 370 370 370
t 8 8 10 10 10
a1 149 149 150 150 150
a2 36 36 33 33 33
a3 42 42 39 39 39
a4 86 86 89 89 89

Welcome to buy the newest and competitive price DAWSON Wire Rope Electric Winch chain from our factory. We're one of the leading China manufacturers and suppliers, offering you the wholesale service and the OEM service at a discount. With CE certification, our products made in China in stock are high in quality and low in price. Please be free to get the free sample from us.
