| ITEM NO | Nominal Size | Working Load Limit | Dimensions(mm) | Weight Each |
| (in.) | (tons) | A | B | C | D | E | F | G | H | I | (kg) |
| DG-BAS0632 | 3/16 | 1/3 | 9.65 | 6.35 | 22.4 | 4.85 | 15.2 | 14.2 | 37.2 | 24.9 | 4.85 | 0.03 |
| DG-BAS0832 | 1/4 | 1/2 | 11.9 | 7.85 | 28.7 | 6.35 | 19.8 | 15.5 | 46.7 | 32.5 | 6.35 | 0.05 |
| DG-BAS1032 | 5/16 | 3/4 | 13.5 | 9.65 | 31.0 | 7.85 | 21.3 | 19.1 | 53.0 | 37.3 | 7.85 | 0.10 |
| DG-BAS1232 | 3/8 | 1 | 16.8 | 11.2 | 36.6 | 9.65 | 26.2 | 23.1 | 63.0 | 45.2 | 9.65 | 0.15 |
| DG-BAS1432 | 7/16 | 1-1/2 | 19.1 | 12.7 | 42.9 | 11.2 | 29.5 | 26.9 | 74.0 | 51.5 | 11.2 | 0.22 |
| DG-BAS1632 | 1/2 | 2 | 20.6 | 16.0 | 47.8 | 12.7 | 33.3 | 30.2 | 83.5 | 58.5 | 12.7 | 0.36 |
| DG-BAS2032 | 5/8 | 3-1/4 | 26.9 | 19.1 | 60.5 | 16.0 | 42.9 | 38.1 | 106 | 74.5 | 17.5 | 0.76 |
| DG-BAS2432 | 3/4 | 4-3/4 | 31.8 | 22.4 | 71.5 | 19.1 | 51.0 | 46.0 | 126 | 89.0 | 20.6 | 1.23 |
| DG-BAS2832 | 7/8 | 6-1/2 | 36.6 | 25.4 | 84.0 | 22.4 | 58.0 | 53.0 | 148 | 102 | 24.6 | 1.79 |
| DG-BAS3232 | 1 | 8-1/2 | 42.9 | 28.7 | 95.5 | 25.4 | 68.5 | 60.5 | 167 | 119 | 26.9 | 2.57 |
| DG-BAS3632 | 1-1/8 | 9-1/2 | 46.0 | 31.8 | 108 | 28.7 | 74.0 | 68.5 | 190 | 131 | 31.8 | 3.75 |
| DG-BAS4032 | 1-1/4 | 12 | 51.5 | 35.1 | 119 | 31.8 | 82.5 | 76.0 | 210 | 146 | 35.1 | 5.31 |
| DG-BAS4432 | 1-3/8 | 13-1/2 | 57.0 | 38.1 | 133 | 35.1 | 92.0 | 84.0 | 233 | 162 | 38.1 | 7.18 |
| DG-BAS4832 | 1-1/2 | 17 | 60.5 | 41.4 | 146 | 38.1 | 98.5 | 92.0 | 254 | 175 | 41.1 | 9.43 |
| DG-BAS5632 | 1-3/4 | 25 | 73.0 | 51.0 | 178 | 44.5 | 127 | 106 | 313 | 225 | 57.0 | 15.4 |
| DG-BAS6432 | 2 | 35 | 82.5 | 57.0 | 197 | 51.0 | 146 | 122 | 348 | 253 | 61.0 | 23.7 |
| DG-BAS8032 | 2-1/2 | 55 | 105 | 70.0 | 267 | 66.5 | 184 | 145 | 453 | 327 | 79.5 | 44.6 |
| DG-BAS9632 | 3 | 85 | 127 | 82.5 | 330 | 76.0 | 200 | 165 | 546 | 365 | 92.0 | 70 |
| DG-BAS11232 | 3-1/2 | 120 | 133 | 95.5 | 372 | 92.0 | 229 | 203 | 626 | 419 | 105 | 120 |
| DG-BAS12832 | 4 | 150 | 140 | 108 | 368 | 104 | 254 | 229 | 653 | 468 | 116 | 153 |

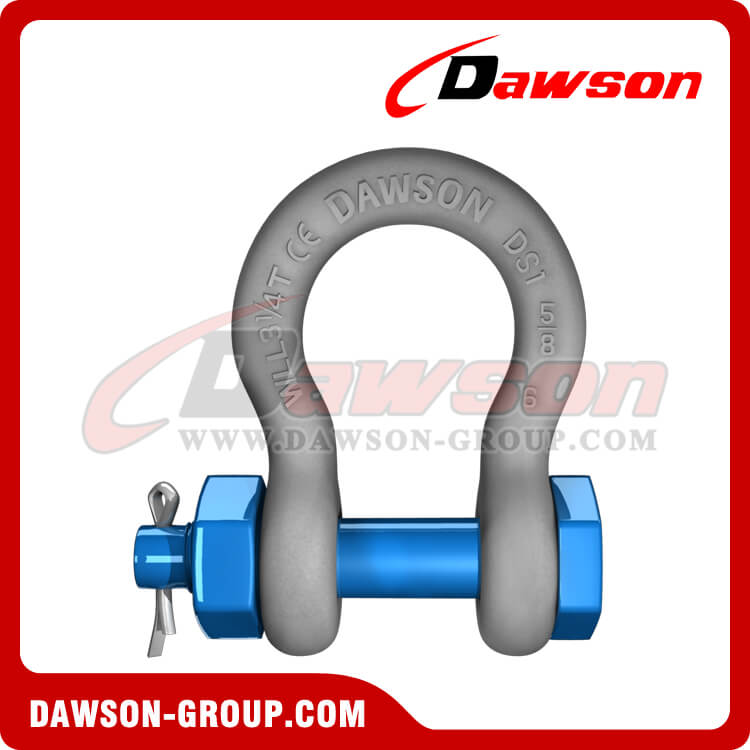

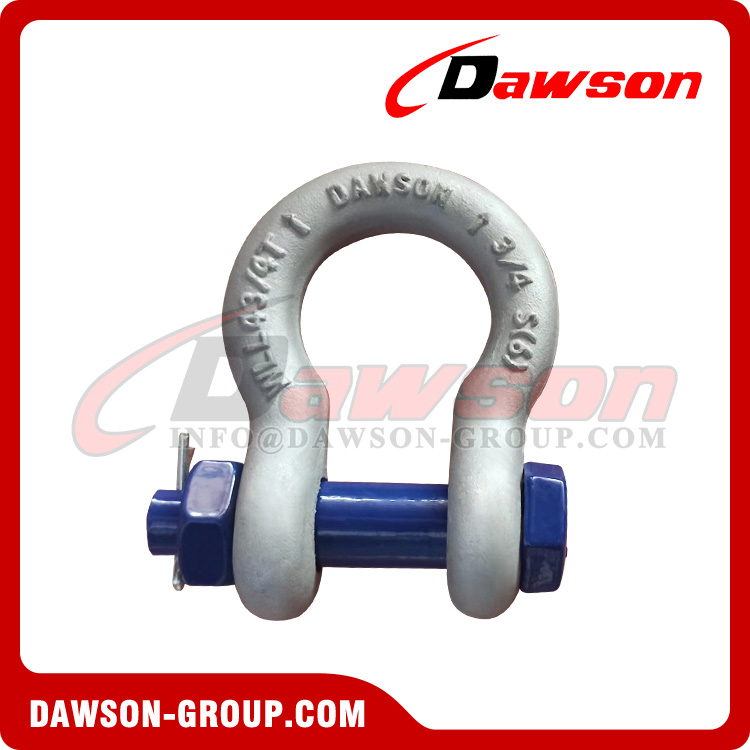

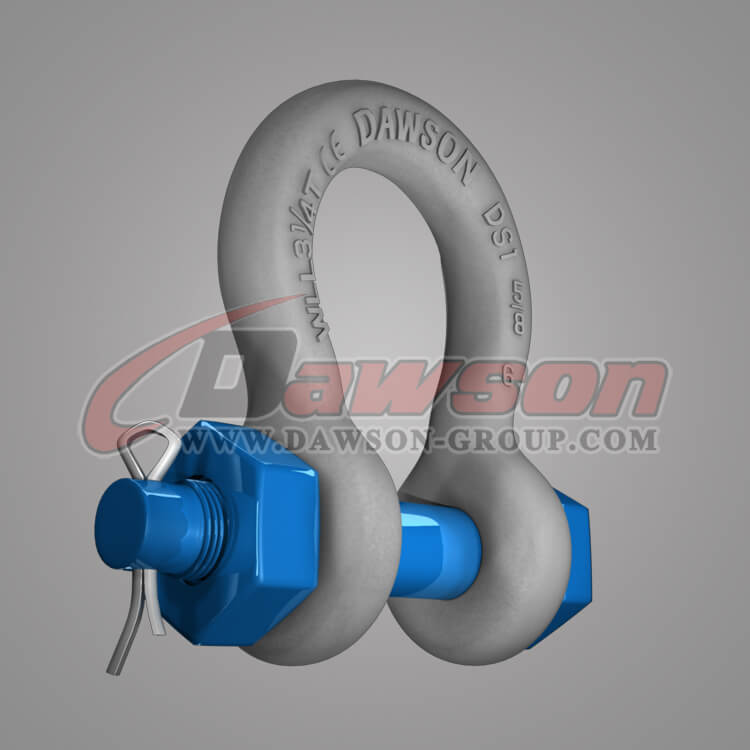

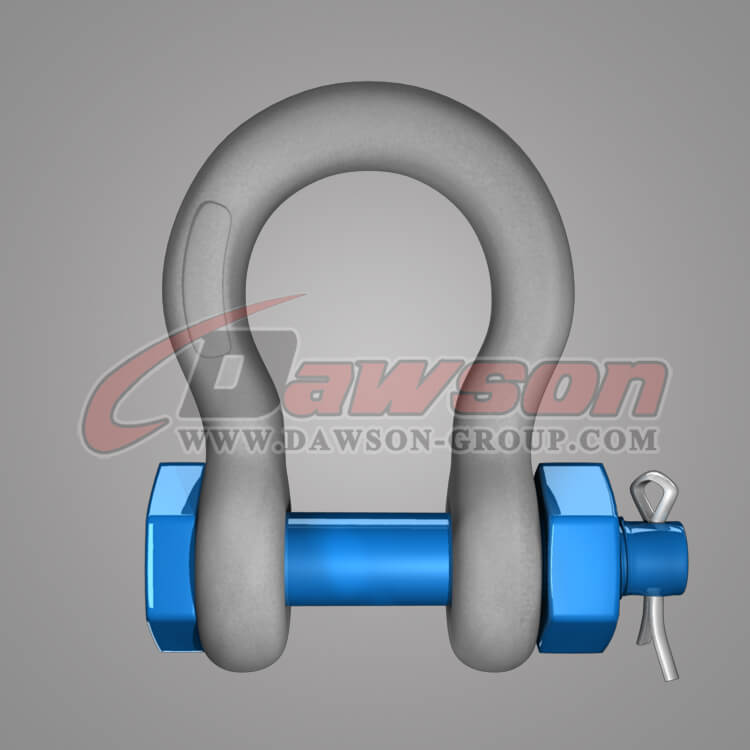

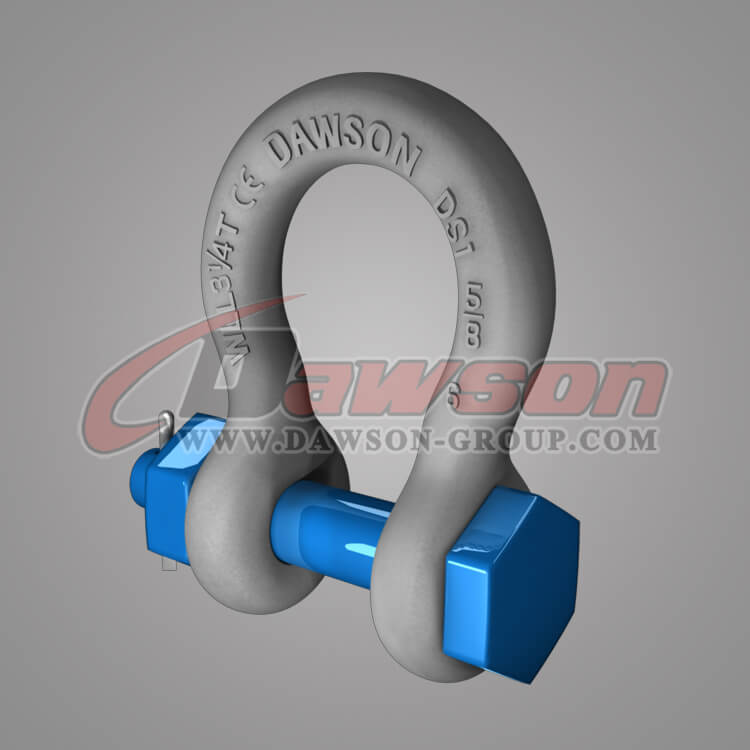

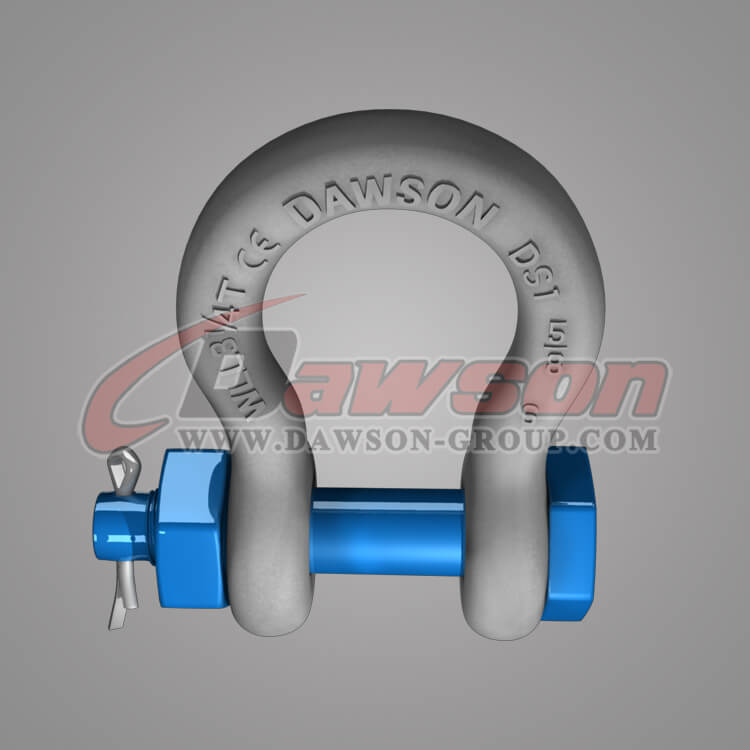

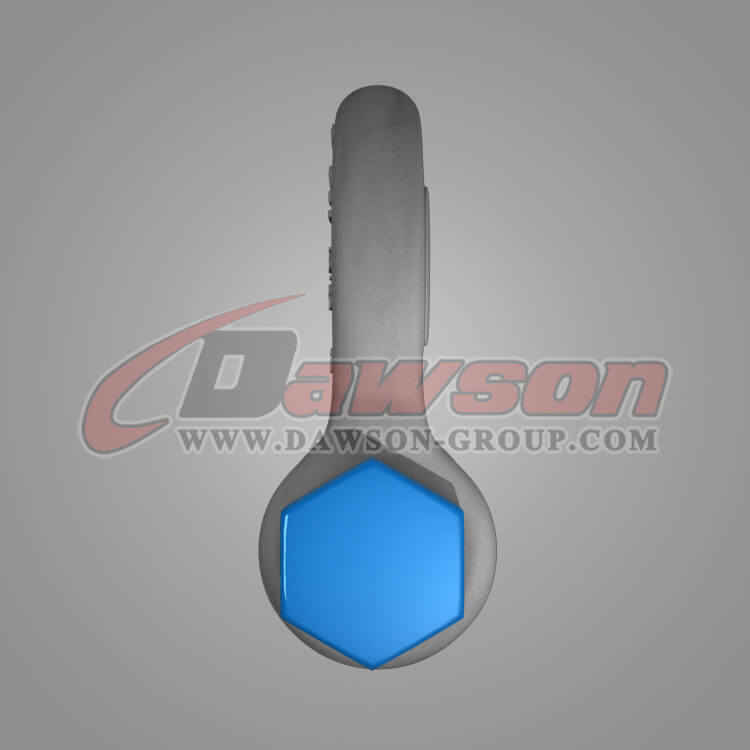

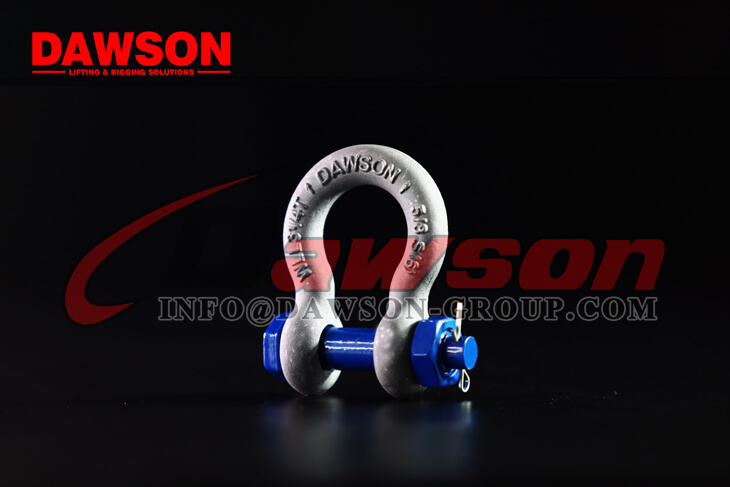

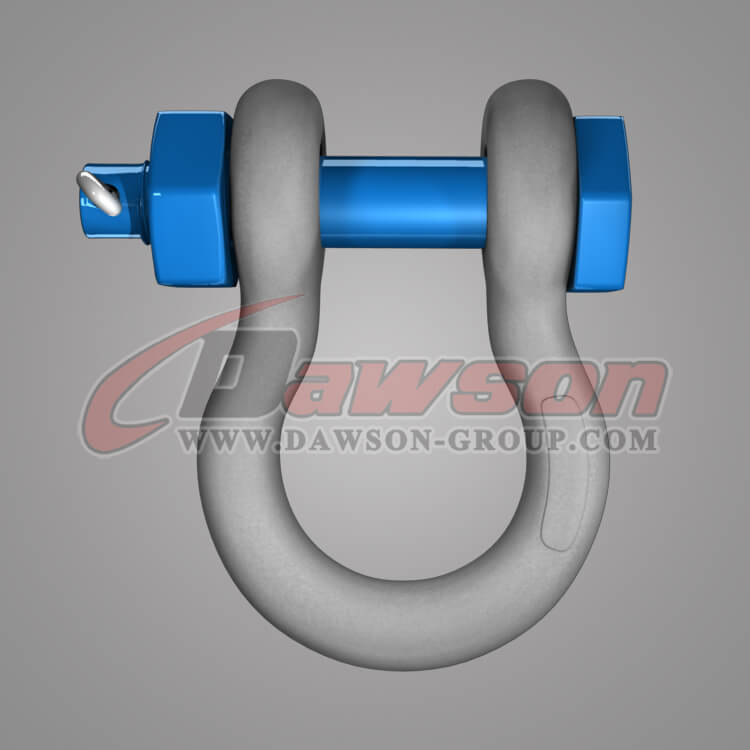

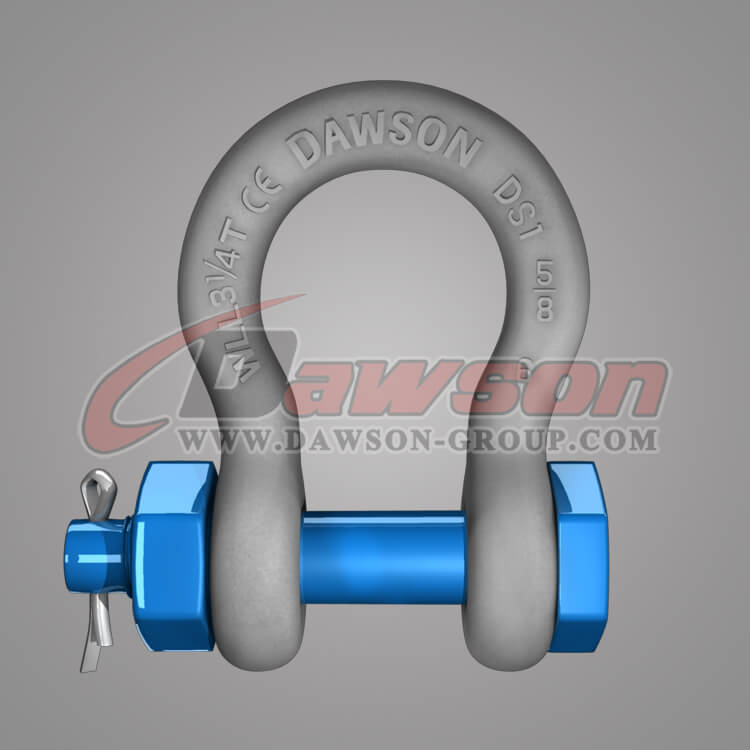

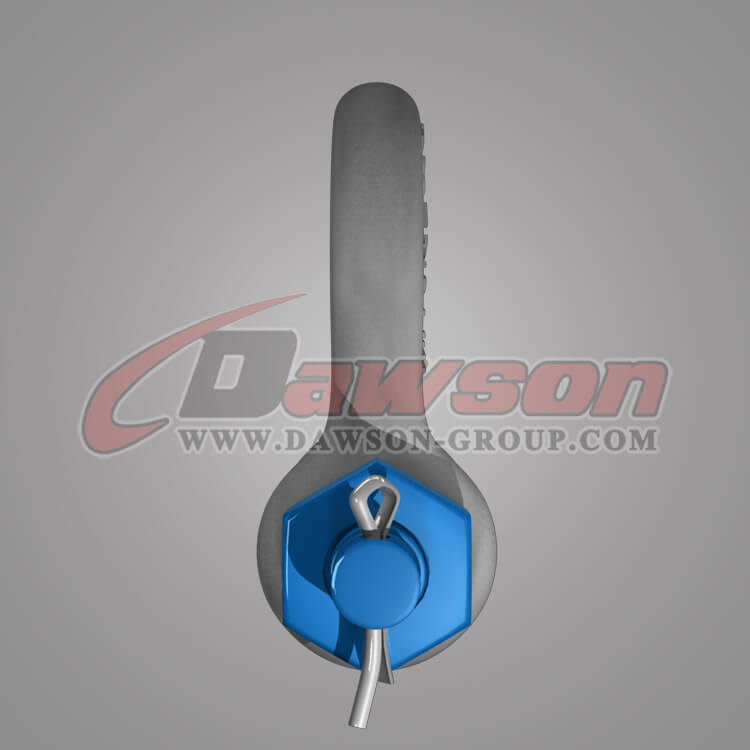

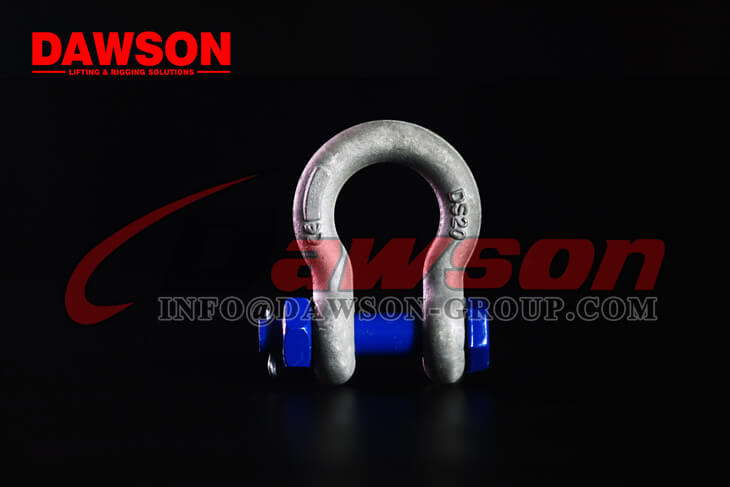

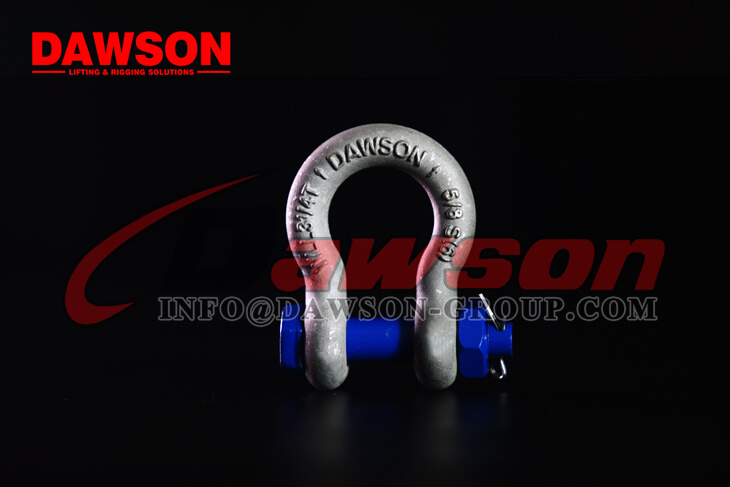

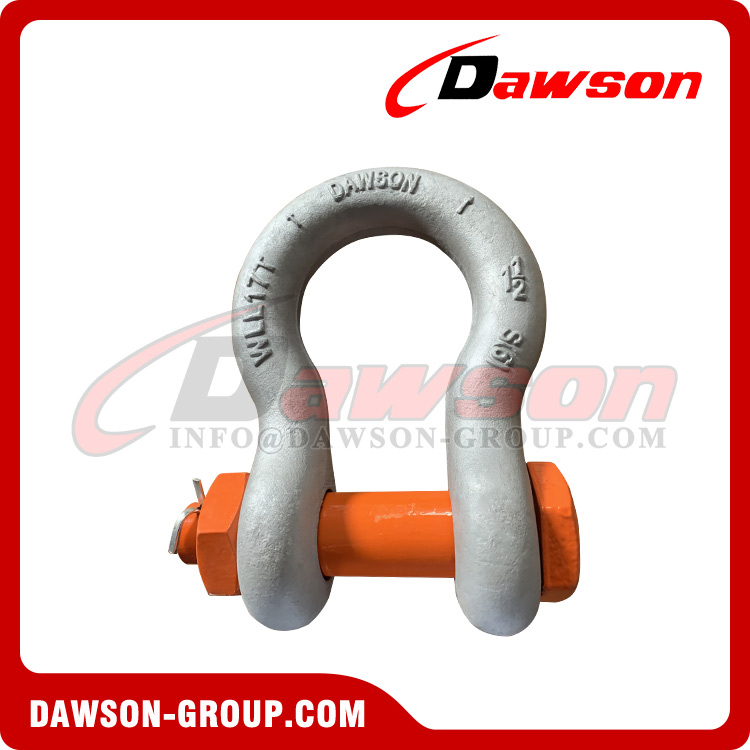

Bolt Type Anchor Shackle with thin head bolt - nut with cotter pin. Meets the performance requirements of Federal Specification RR-C-271G Type IVA, EN 13889:2003+A1:2008, Grade A, Class 3, except for those provisions required of the contractor.
*Maximum Proof Load is 2.0 times the Working Load Limit.
*Minimum Ultimate Strength is 6 times the Working Load Limit.
*Individually Proof Tested with certification.
*Furnished in Anchor Style only. Furnished with Round Head Bolts with welded handles
Application: High tensile forged shackle mainly using for lifting purpose or connecting parts being the lifting point and other lifting equipment.
The bow shackle is common produce used in the offshore industry,this shackle can be used in temporary and permanent in the mooring system, finish is hot dip galvanized.

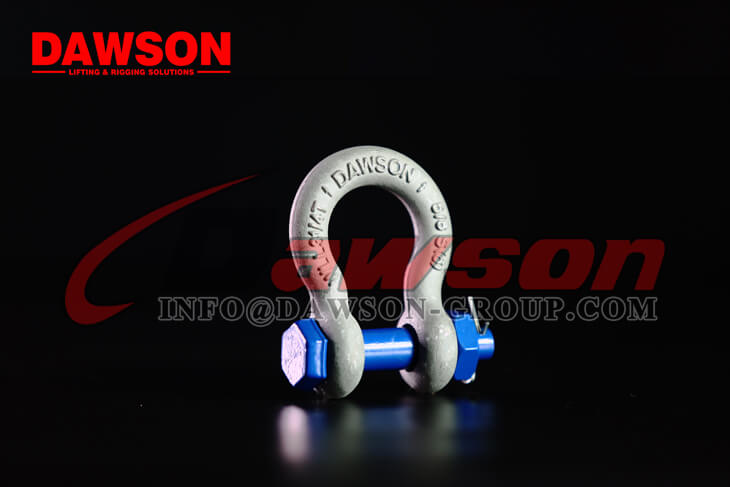

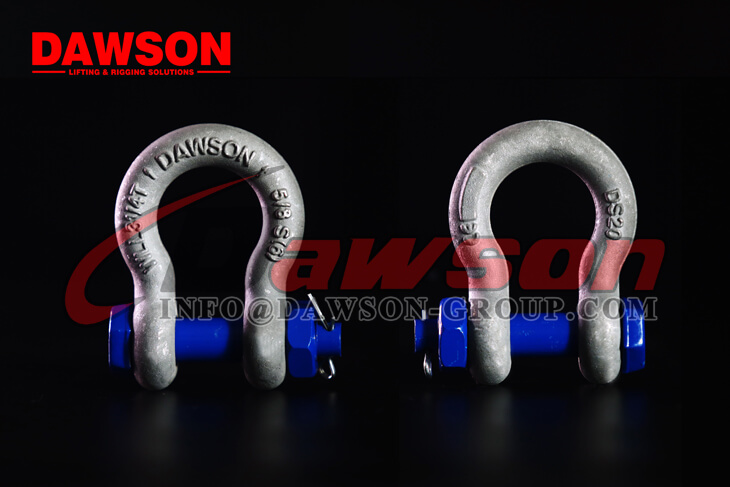

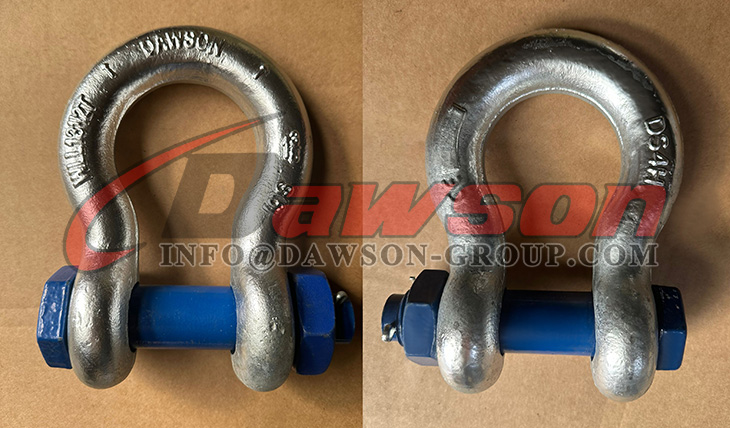

Products Show:
