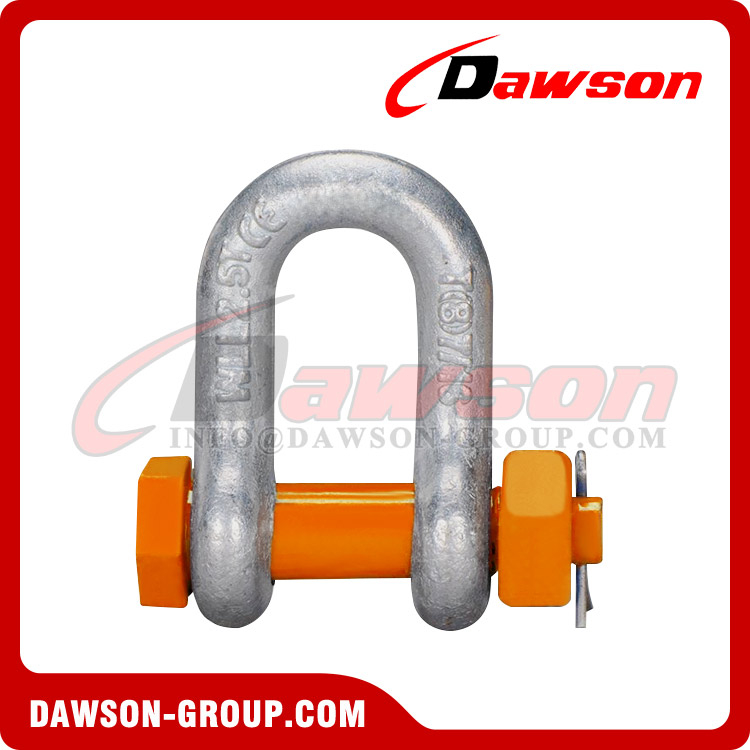

DAWSON BRAND Grade T8 DG2150A Forged Alloy Steel Dee Shackle with Safety Pin, G8 Class Bolt Type Chain Shackle
- Dawson Group Ltd. - China Manufacturer, Supplier, Factory
It is made of high quality alloy steel by die forging.
Each shackle will be marked with WLL permanently, WLL from 2t~110t.
The maximum testing load is twice of the working load, the minimum breaking load is 5 times of the WLL.
About the bearing capacity of 2t~80t, T8 grade is 40%~100% up higher than the S6 grade in the same dimension. About the bearing of 110t, T8 grade is 29% up higher than the S6 grade in the same dimension.
Our products all correspond with stipulated technical requirement and rest approach in standard ISO2415-2004.
With the same working load capacity, T8 products are smaller than S6, which enables T8 to be mainly employed in limited space.
| Product model | Rated load
(t) | W
(mm) | D
(mm) | d
(mm) | E
(mm) | P
(mm) | S
(mm) | L(DX Type)
(mm) | Weight(DX Type)
(kg) |
| DG-T8DX2-3/8 | 2 | 17 | 12 | 9.5 | 23 | 9.5 | 32 | 54 | 0.13 |
| DG-T8DX2.5-7/16 | 2.5 | 19 | 14 | 11 | 27 | 11 | 36.5 | 62 | 0.21 |
| DG-T8DX3.25-1/2 | 3.25 | 20.5 | 16 | 13 | 30 | 13 | 41.5 | 71.5 | 0.28 |
| DG-T8DX5-5/8 | 5 | 27 | 20 | 16 | 38 | 16 | 51 | 89 | 0.6 |
| DG-T8DX7-3/4 | 7 | 32 | 22 | 19 | 46 | 20.5 | 60.5 | 105 | 1.04 |
| DG-T8DX9.5-7/8 | 9.5 | 36.5 | 27 | 22.5 | 53 | 24.5 | 71.5 | 121 | 1.63 |
| DG-T8DX12.5-1 | 12.5 | 43 | 30 | 25.5 | 60.5 | 25.5 | 81 | 136.5 | 2.38 |
| DG-T8DX15-1 1/8 | 15 | 46 | 33 | 29 | 68.5 | 32 | 91 | 149.5 | 3.59 |
| DG-T8DX18-1 1/4 | 18 | 51.5 | 36 | 32 | 76 | 35 | 100 | 164.5 | 4.65 |
| DG-T8DX21-1 3/8 | 21 | 57 | 39 | 35 | 84 | 38 | 111 | 179 | 6.71 |
| DG-T8DX30-1 1/2 | 30 | 60.5 | 42 | 38 | 92 | 41 | 122 | 194.5 | 8.05 |
| DG-T8DX40-1 3/4 | 40 | 73 | 52 | 44.5 | 106.5 | 54 | 146 | 239 | 13.18 |
| DG-T8DX50-2 | 50 | 82.5 | 60 | 51 | 122 | 51 | 171.5 | 269 | 19.3 |
| DG-T8DX80-2 1/2 | 80 | 105 | 72 | 66.5 | 144.5 | 66.5 | 203 | 344 | 37.22 |
| DG-T8DX110-3 | 110 | 127 | 85 | 76 | 165 | 89 | 216 | 401 | 65.3
|
Welcome to buy the newest and competitive price DAWSON DAWSON BRAND Grade T8 DG2150A Forged Alloy Steel Dee Shackle with Safety Pin, G8 Class Bolt Type Chain Shackle from our factory. We're one of the leading China manufacturers and suppliers, offering you the wholesale service and the OEM service at a discount. With CE certification, our products made in China in stock are high in quality and low in price. Please be free to get the free sample from us.
For further information, please contact us. Email:info@dawson-group.com
Products Show:

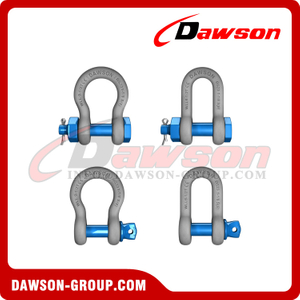

Other Related Products:
