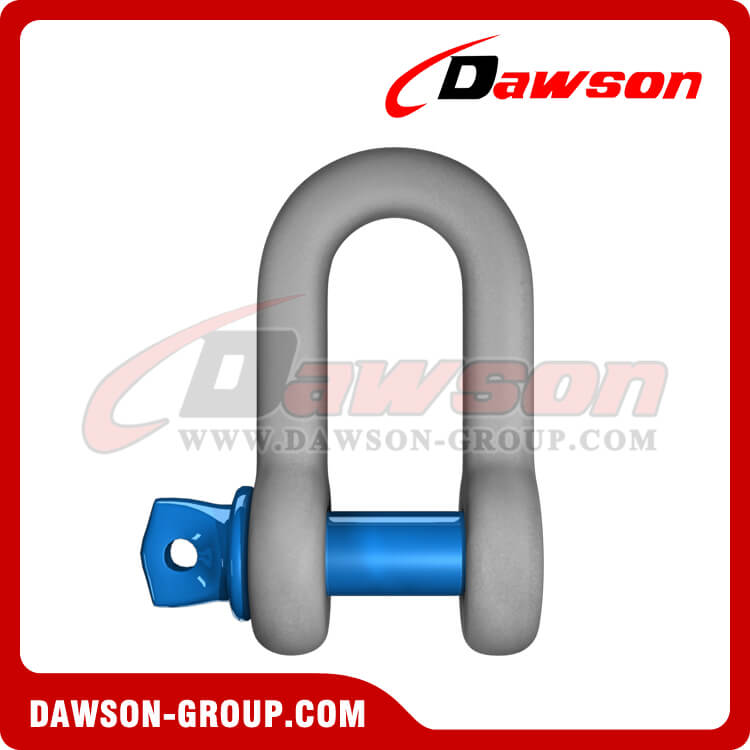

Dawson Brand Hot Dip Galvanized US Type DG210 Chain Shackle with Screw Pin, High Strength S6 Screw Pin Dee Shackle

Chain Shackles Screw Pin Forged Alloy High Tensile Strength to US Federal Specification, EN 13889:2003+A1:2008 D210
Shackles are supplied in hot dip galvanized finish or self colored.
Working Load Limit permanently shown on every shackle.

Brand:
DAWSON/OEM
Code:
DG-CS0832
Size:
1/2-55ton

Availability:

Quantity:



Inquire Add to Basket

Product Description

Dawson Brand Hot Dip Galvanized US Type DG210 Chain Shackle with Screw Pin, EN 13889:2003+A1:2008 Dee Shackle, High Strength S6 Screw Pin Dee Shackle

- Dawson Group Ltd. - China Manufacturer, Supplier, Factory

DAWSON Hot Dip Galvanized US Type DG210 Chain Shackle with Screw Pin, High Strength S6 Screw Pin Dee Shackle - Dawson Group Ltd. - China Manufacturer, Supplier, Factory US TYPE FORGED STEEL SCREW PIN CHAIN SHACKLE - DAWSON GROUP LTD. - CHINA FACTORY

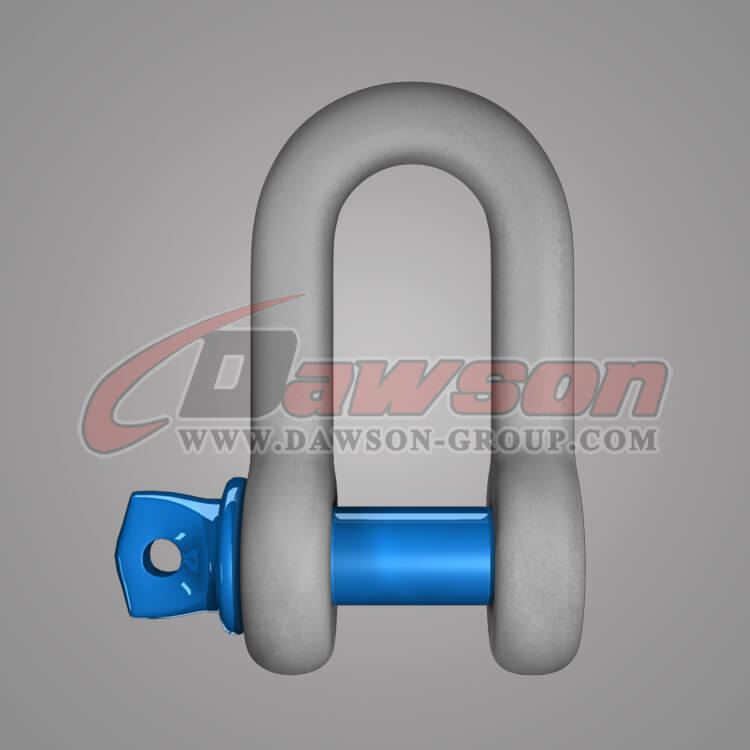

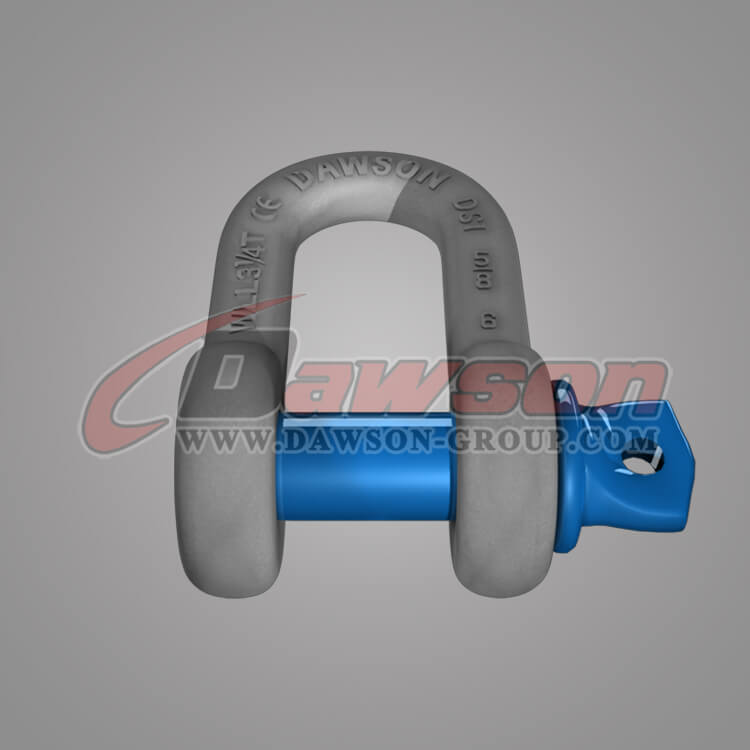

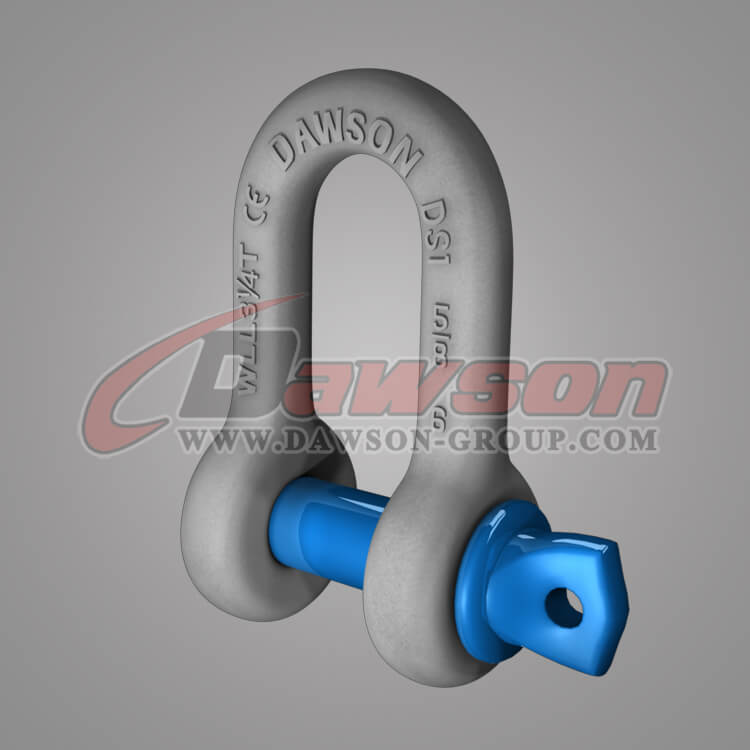

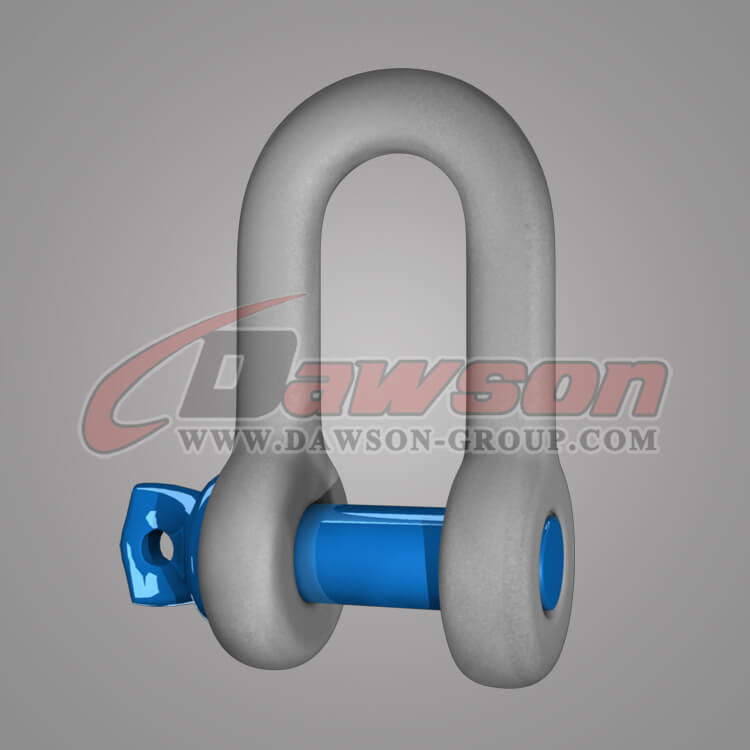

Hot Dip Galvanized US Type Chain Shackle with Screw Pin - Dawson Group LTD. - China Manufacturer, Supplier, Factory

Chain Shackles Screw Pin Forged Alloy High Tensile Strength to US Federal Specification, EN 13889:2003+A1:2008 DG210

Shackles are supplied in hot dip galvanized finish or self colored.

Working Load Limit permanently shown on every shackle.

ITEM NO	Nominal Size	Working Load Limit	Dimensions (mm)										Weight each
ITEM NO	(in.)	(tons)	A	B	C	D	E	F	G	H	I	M	(kg)
DG-CS0832	1/4	1/2	11.9	7.85	6.35	6.35	24.6	15.5	22.4	40.4	4.85	35.1	0.05
DG-CS1032	5/16	3/4	13.5	9.65	7.85	7.85	29.5	19.1	26.2	48.5	5.60	42.2	0.08
DG-CS1232	3/8	1	16.8	11.2	9.65	9.65	35.8	23.1	31.8	58.5	6.35	51.5	0.13
DG-CS1432	7/16	1-1/2	19.1	12.7	11.2	11.2	41.4	26.9	36.6	67.5	7.85	60.5	0.20
DG-CS1632	1/2	2	20.6	16.0	12.7	12.7	46.0	30.2	41.4	77.0	9.65	68.5	0.27
DG-CS2032	5/8	3-1/4	26.9	19.1	15.7	16.0	58.5	38.1	51.0	95.5	11.2	85.0	0.57
DG-CS2432	3/4	4-3/4	31.8	22.4	20.6	19.1	70.0	46.0	60.5	115	12.7	101	1.20
DG-CS2832	7/8	6-1/2	36.6	25.4	24.6	22.4	81.0	53.0	71.5	135	12.7	114	1.43
DG-CS3232	1	8-1/2	42.9	28.7	25.4	25.4	93.5	60.5	81.0	151	14.2	129	2.15
DG-CS3632	1-1/8	9-1/2	46.0	31.8	31.8	28.7	103	68.5	91.0	172	16.0	142	3.06
DG-CS4032	1-1/4	12	51.5	35.1	35.1	31.8	115	76.0	100	191	17.5	156	4.11
DG-CS4432	1-3/8	13-1/2	57.0	38.1	38.1	35.1	127	84.0	111	210	19.1	174	5.28
DG-CS4832	1-1/2	17	60.5	41.4	41.1	38.1	137	92.0	122	230	20.6	187	7.23
DG-CS5632	1-3/4	25	73.0	51.0	54.0	44.5	162	106	146	279	25.4	231	12.1
DG-CS6432	2	35	82.5	57.0	51.0	51.0	184	122	172	312	31.0	263	19.2
DG-CS8032	2-1/2	55	105	70.0	66.5	66.5	238	145	203	377	35.1	330	32.5

Screw Pin Chain Shackles meet the performance requirements of Federal Specification RR-C-271G Type IVB, EN 13889:2003+A1:2008, Grade A, Class 2, except for those provisions required of the contractor.

* Maximum Proof Load is 2.0 times the Working Load Limit.

* Minimum Ultimate Strength is 6 times the Working Load Limit.

Chain Shackles Screw Pin Forged Alloy High Tensile Strength to US Federal Specification

Forged - Quenched and Tempered.

Capacities 1/3 thru 55 metric tons.

Forged high tensile mainly using for lifting point connecting or fishing connecting or lashing points as the shackle with hot dipped galv. others application is ok when commercial shackle using for light industry.
