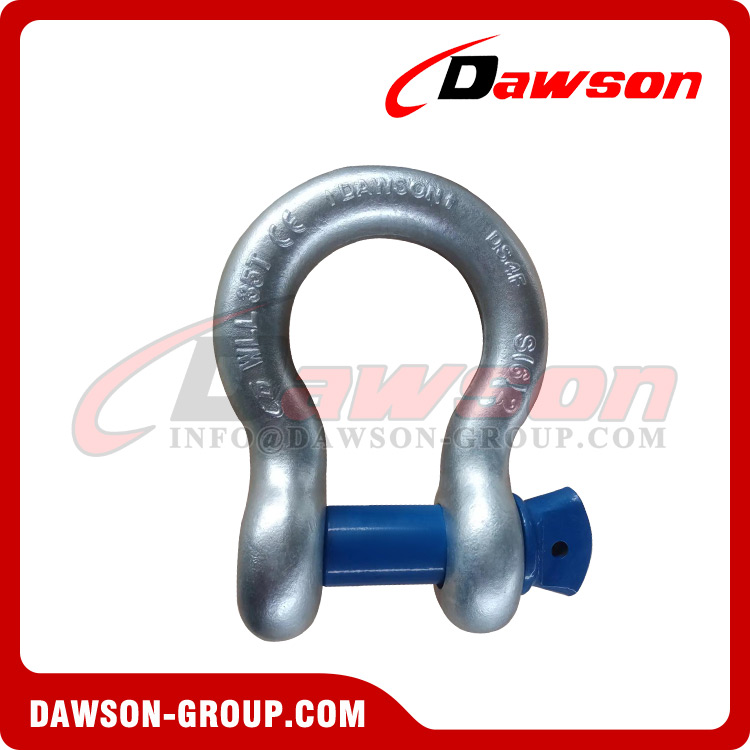

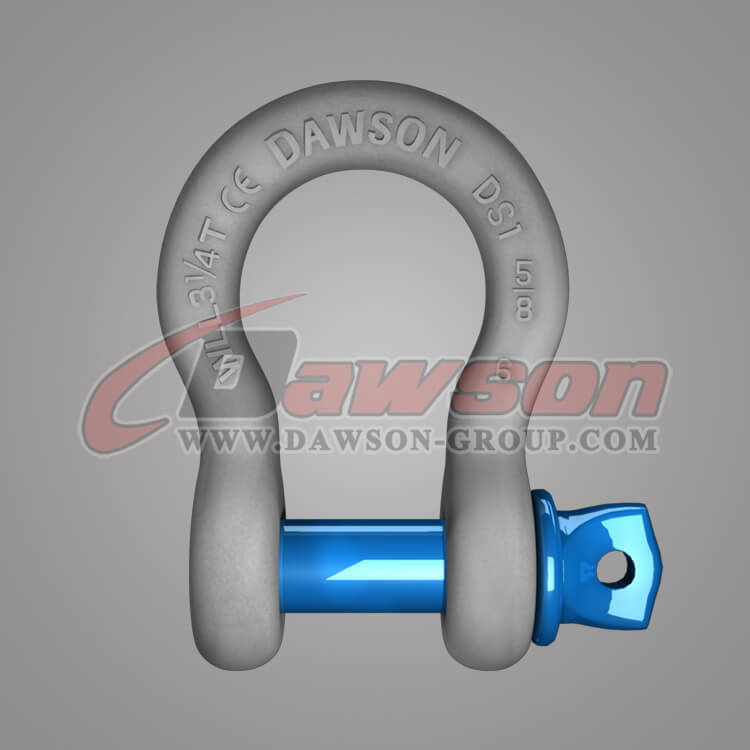

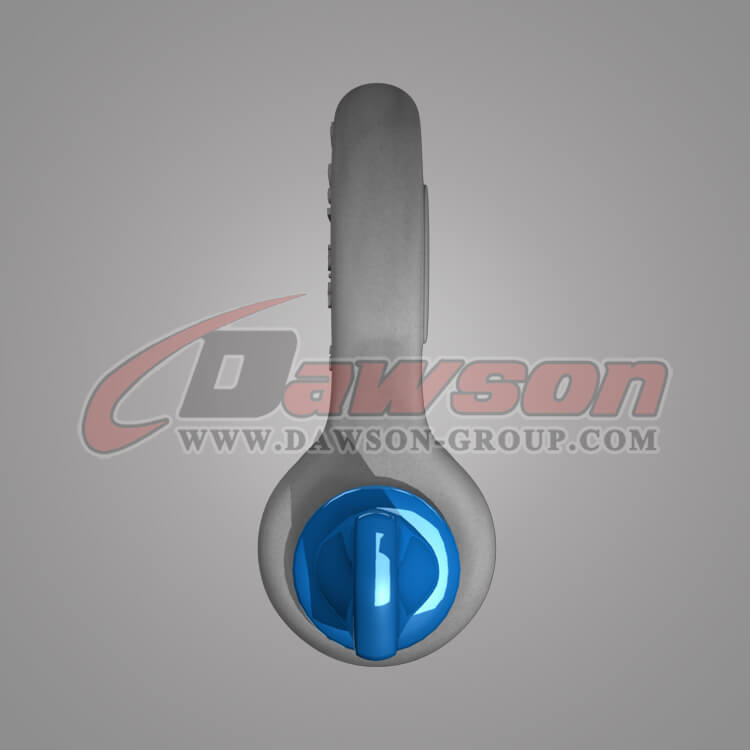

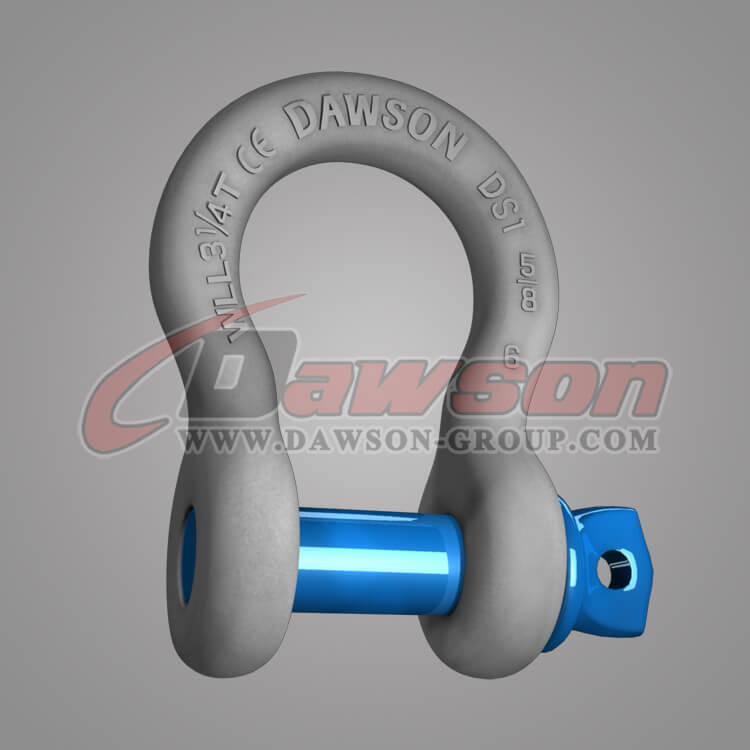

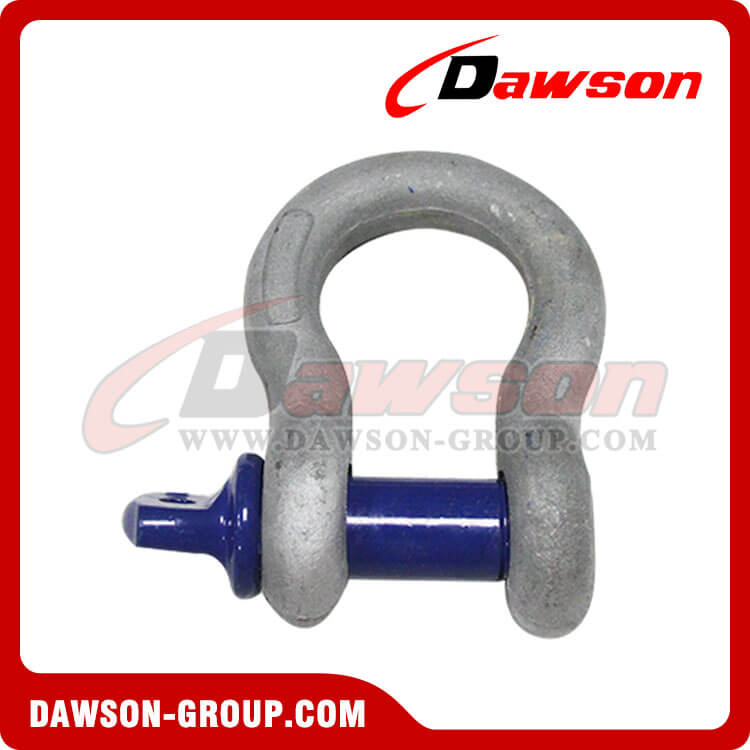

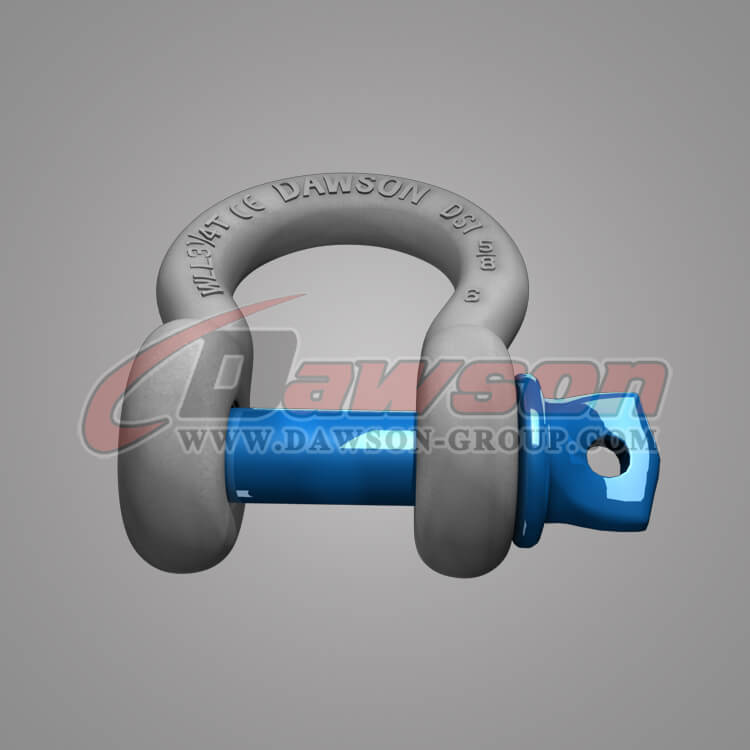

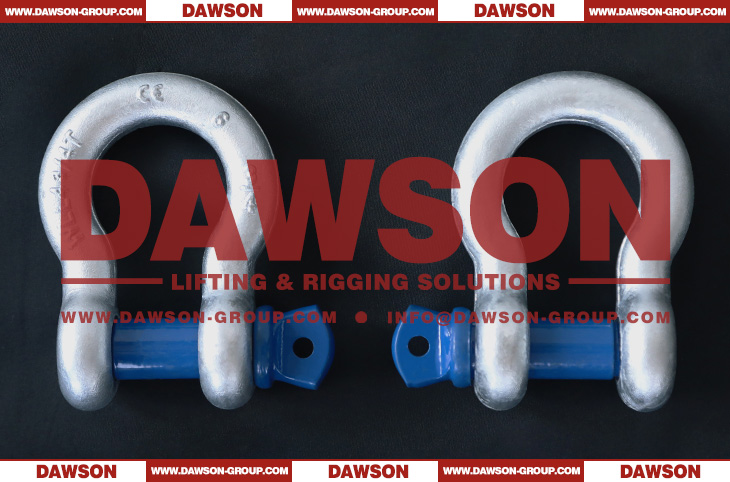

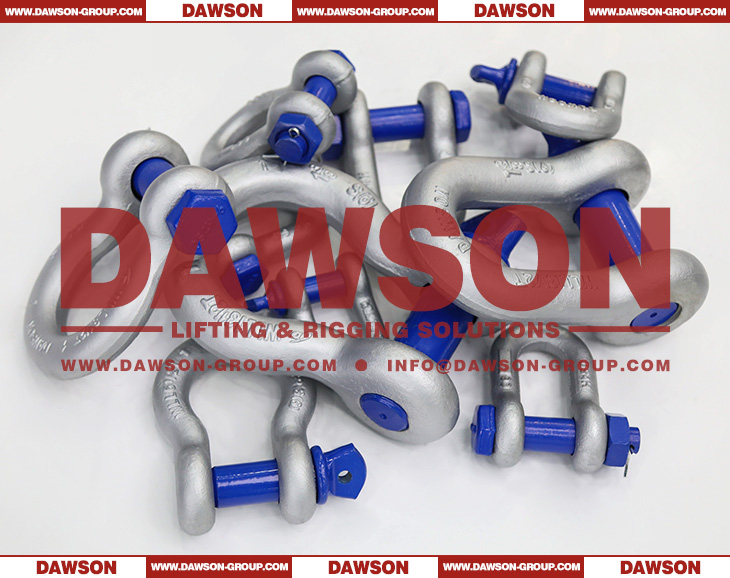

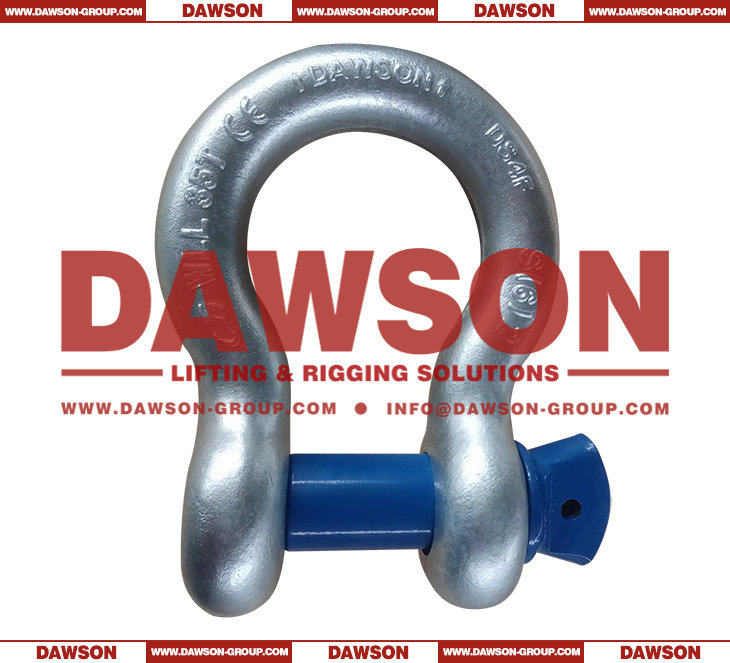

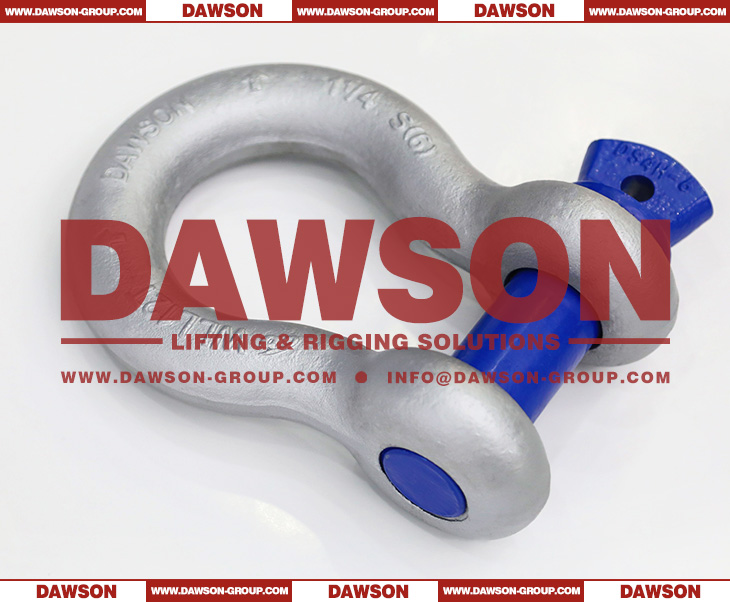

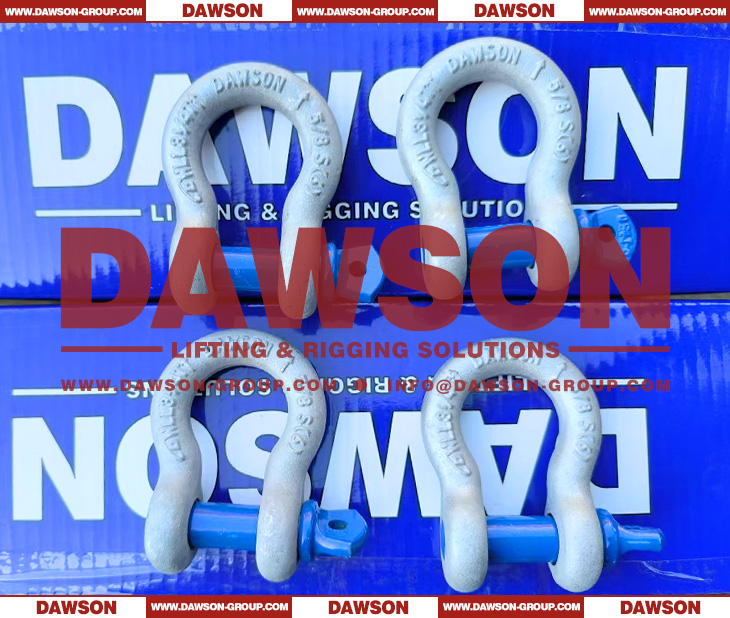

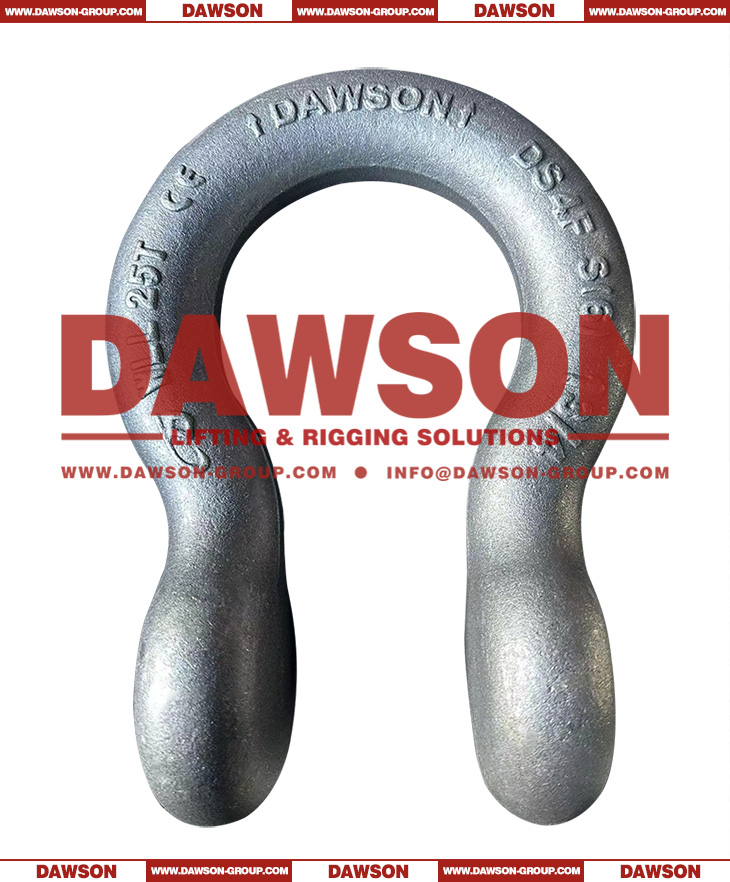

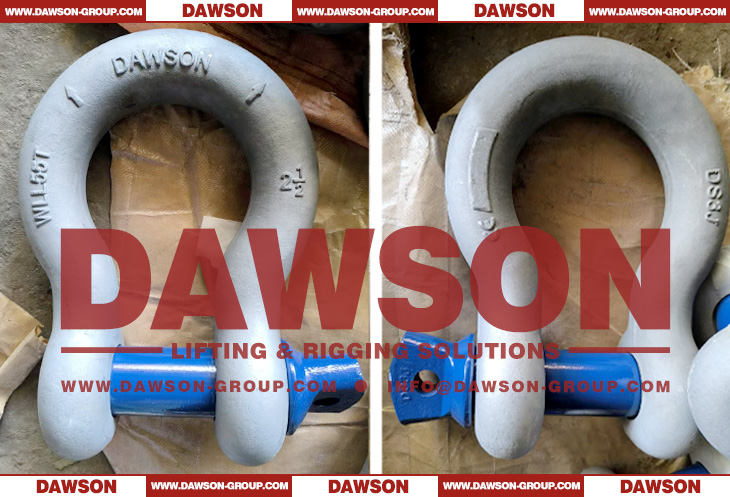

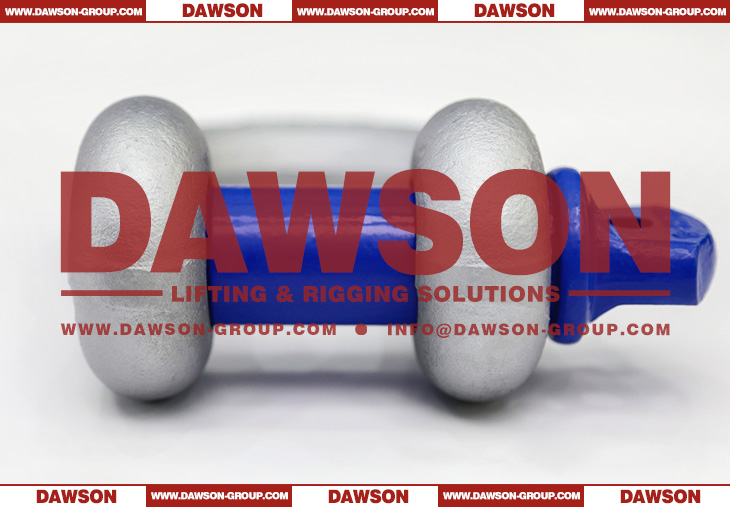

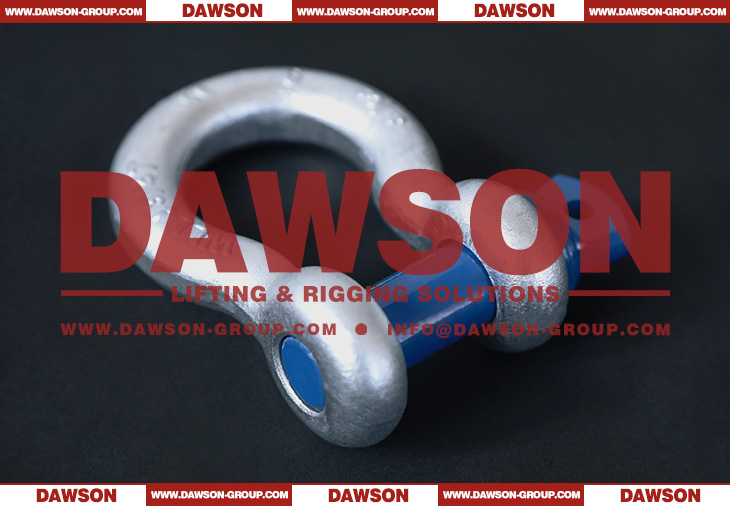

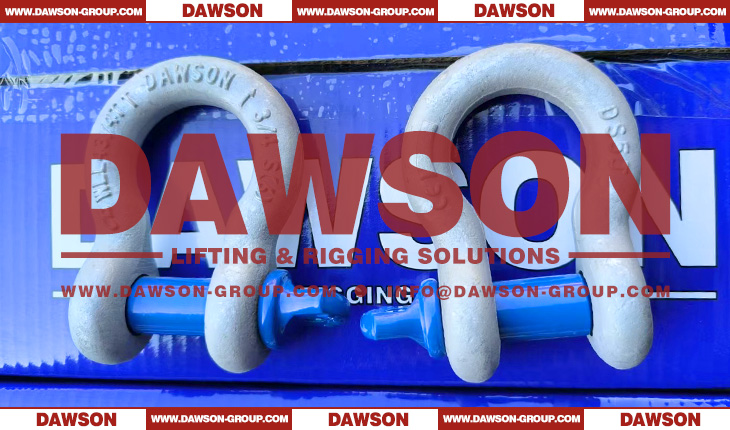

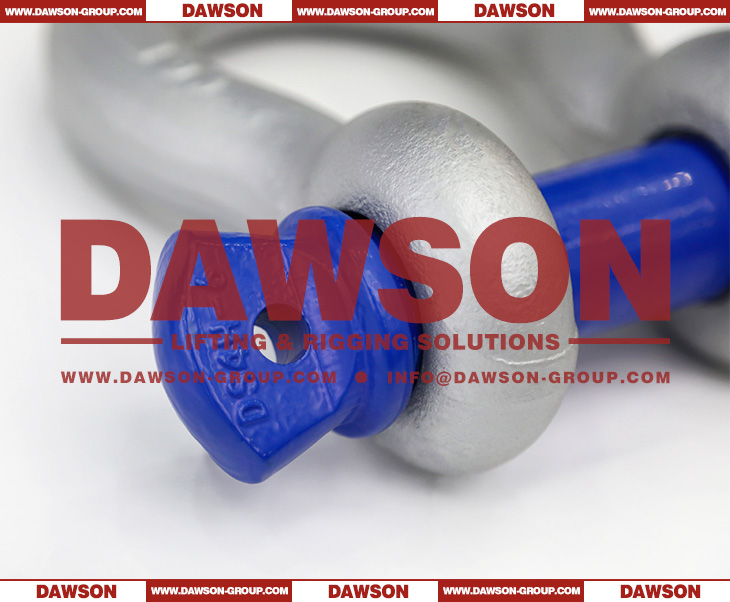

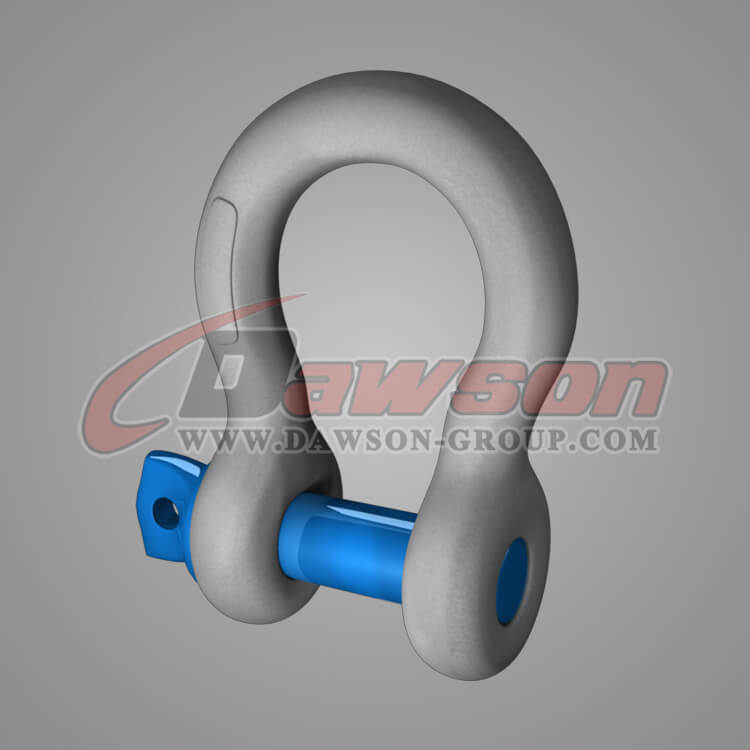

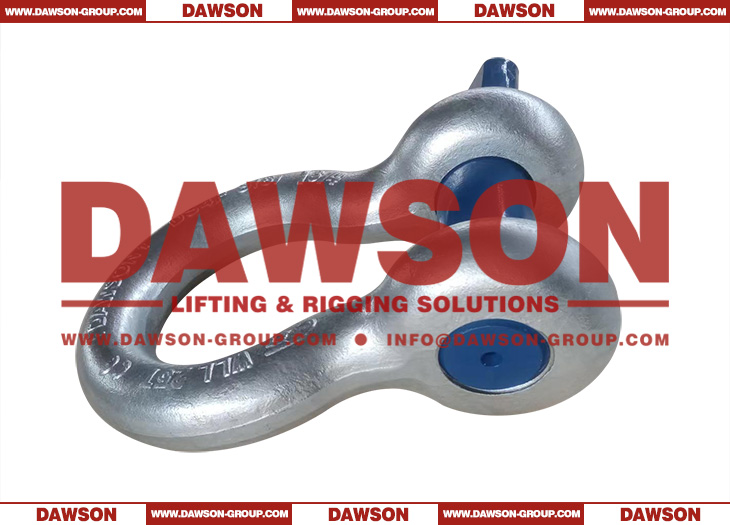

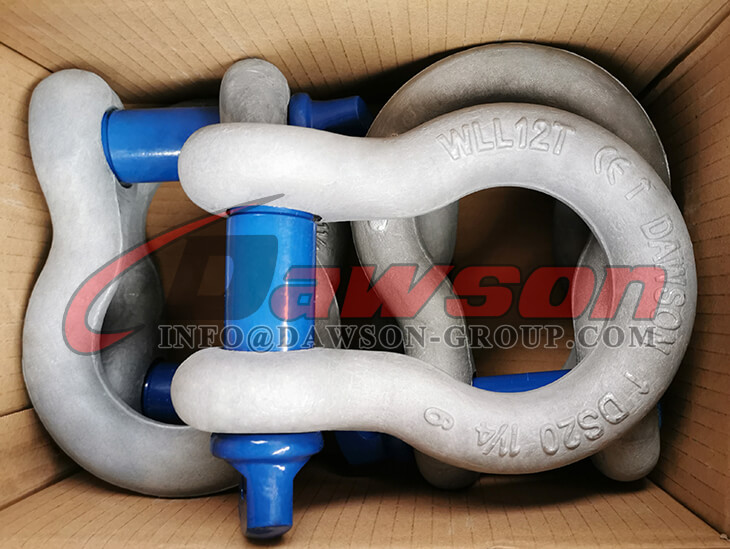

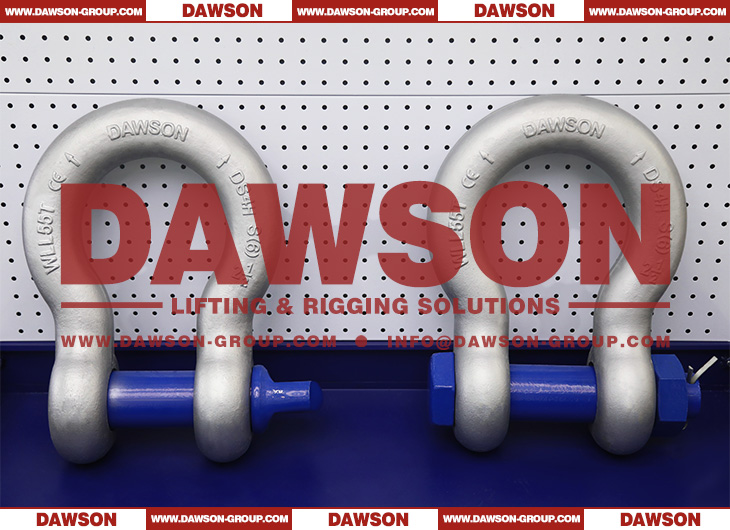

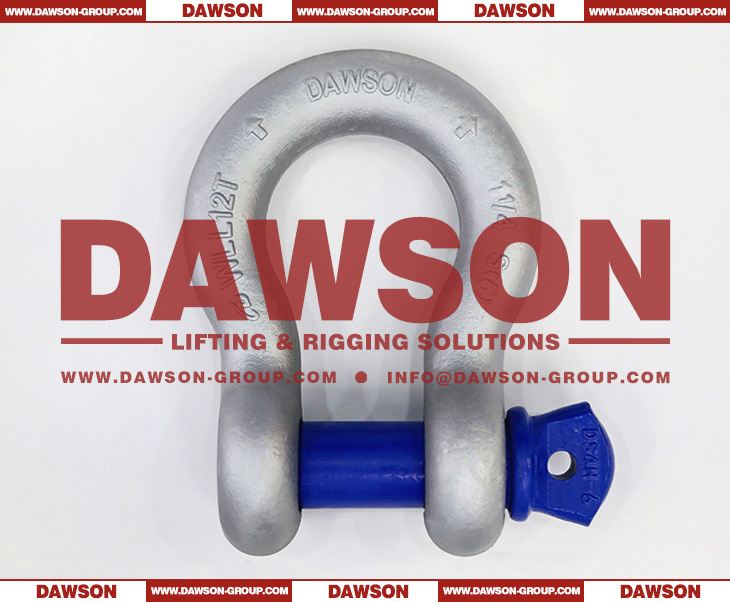

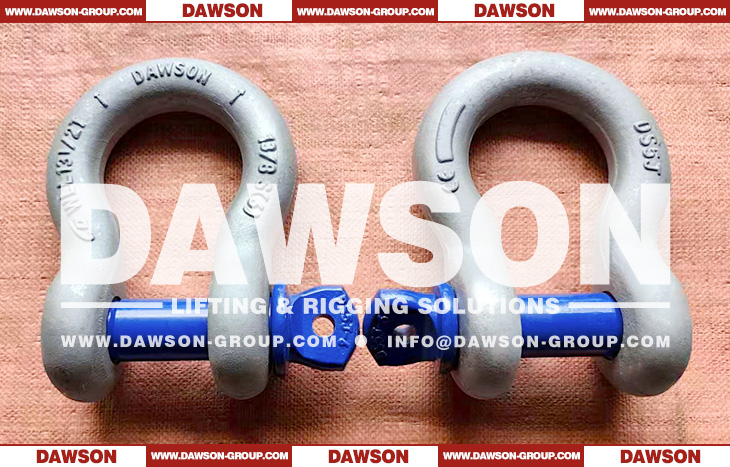

Anchor Shackles, Screw Collar Pin, Forged Alloy Steel, High Tensile Strength, Meet to US Federal Specification, EN 13889:2003+A1:2008. DG209
Finish: Anchor Shackles are supplied in hot dip galvanized finish or self colored.
Working Load Limit: permanently shown on every Anchor shackle.

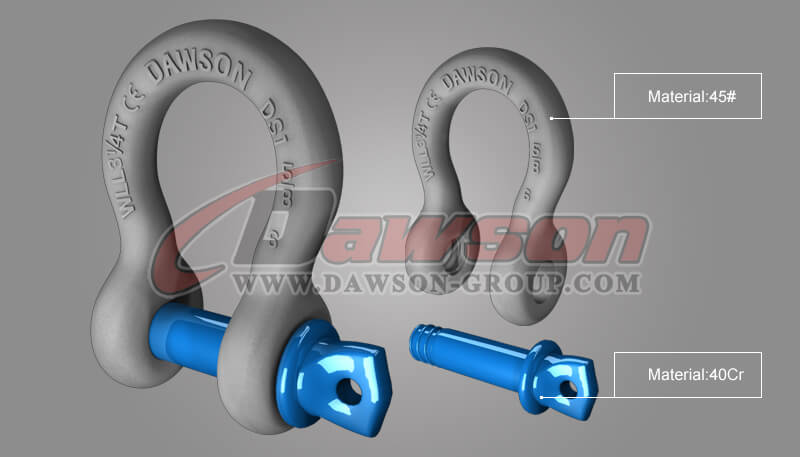

Shackle Material: High tensile steel Forged - Quenched and Tempered.
Shackle Size: Capacities 1/3 thru 120 metric tons. 85ton and 120ton shackle are available.
Fatigue rated

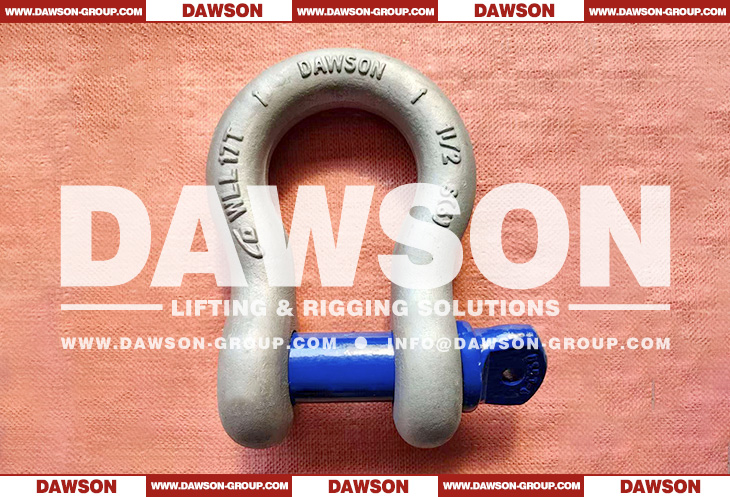

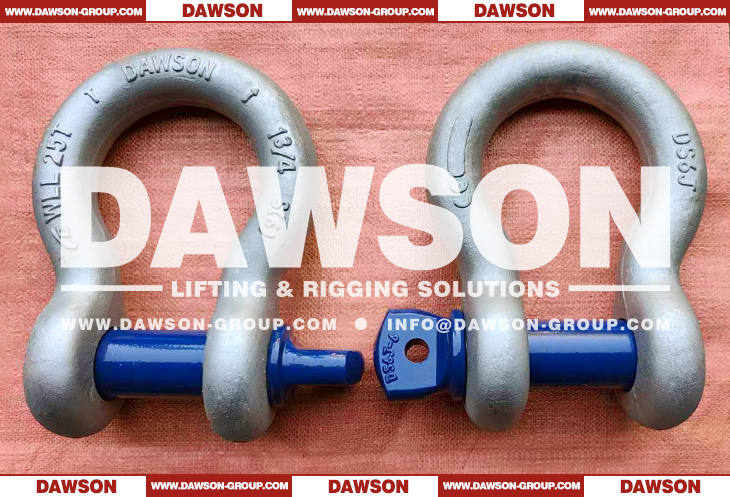

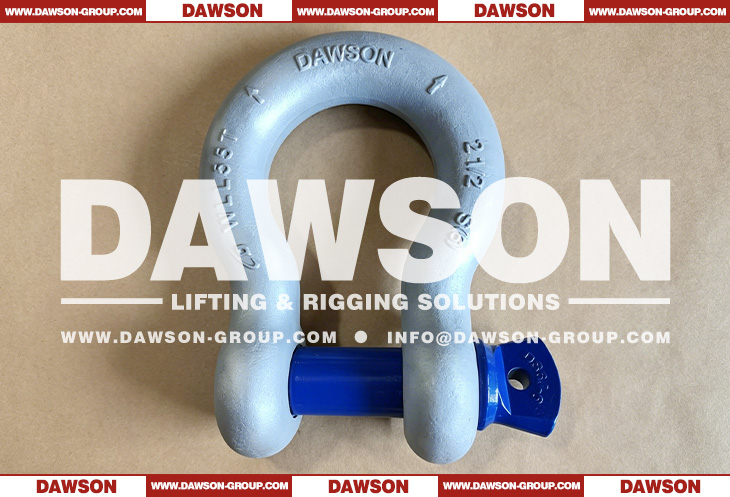

| ITEM NO | Nominal Size | Working Load Limit | Dimensions (mm) | Weight each |
| (in.) | (tons) | A | B | C | D | E | F | G | H | I | M | N | (kg) |
| DG-AS0632 | 3/16 | 1/3 | 9.65 | 6.35 | 22.4 | 4.85 | 15.2 | 14.2 | 24.9 | 37.3 | 4.06 | 28.4 | 4.85 | 0.03 |
| DG-AS0832 | 1/4 | 1/2 | 11.9 | 7.85 | 28.7 | 6.35 | 19.8 | 15.5 | 32.5 | 46.7 | 4.85 | 35.1 | 6.35 | 0.05 |
| DG-AS1032 | 5/16 | 3/4 | 13.5 | 9.65 | 31.0 | 7.85 | 21.3 | 19.1 | 37.3 | 53.0 | 5.60 | 42.2 | 7.85 | 0.09 |
| DG-AS1232 | 3/8 | 1 | 16.8 | 11.2 | 36.6 | 9.65 | 26.2 | 23.1 | 45.2 | 63.0 | 6.35 | 51.5 | 9.65 | 0.14 |
| DG-AS1432 | 7/16 | 1-1/2 | 19.1 | 12.7 | 42.9 | 11.2 | 29.5 | 26.9 | 51.5 | 74.0 | 7.85 | 60.5 | 11.2 | 0.17 |
| DG-AS1632 | 1/2 | 2 | 20.6 | 16.0 | 47.8 | 12.7 | 33.3 | 30.2 | 58.5 | 83.5 | 9.65 | 68.5 | 12.7 | 0.33 |
| DG-AS2032 | 5/8 | 3-1/4 | 26.9 | 19.1 | 60.5 | 16.0 | 42.9 | 38.1 | 74.5 | 106 | 11.2 | 85.0 | 17.5 | 0.62 |
| DG-AS2432 | 3/4 | 4-3/4 | 31.8 | 22.4 | 71.5 | 19.1 | 51.0 | 46.0 | 89.0 | 126 | 12.7 | 101 | 20.6 | 1.07 |
| DG-AS2832 | 7/8 | 6-1/2 | 36.6 | 25.4 | 84.0 | 22.4 | 58.0 | 53.0 | 102 | 148 | 12.7 | 114 | 24.6 | 1.64 |
| DG-AS3232 | 1 | 8-1/2 | 42.9 | 28.7 | 95.5 | 25.4 | 68.5 | 60.5 | 119 | 167 | 14.2 | 129 | 26.9 | 2.28 |
| DG-AS3632 | 1-1/8 | 9-1/2 | 46.0 | 31.8 | 108 | 29.5 | 74.0 | 68.5 | 131 | 190 | 16.0 | 142 | 31.8 | 3.36 |
| DG-AS4032 | 1-1/4 | 12 | 51.5 | 35.1 | 119 | 32.8 | 92.5 | 76.0 | 146 | 210 | 17.5 | 156 | 35.1 | 4.31 |
| DG-AS4432 | 1-3/8 | 13-1/2 | 57.0 | 38.1 | 133 | 36.1 | 92.0 | 84.0 | 162 | 233 | 19.1 | 174 | 38.1 | 6.14 |
| DG-AS4832 | 1-1/2 | 17 | 60.5 | 41.4 | 146 | 39.1 | 98.5 | 92.0 | 175 | 254 | 20.6 | 187 | 41.1 | 7.80 |
| DG-AS5632 | 1-3/4 | 25 | 73.0 | 51.0 | 178 | 46.7 | 127 | 106 | 225 | 313 | 25.4 | 231 | 57.0 | 12.6 |
| DG-AS6432 | 2 | 35 | 82.5 | 57.0 | 197 | 53.0 | 146 | 122 | 253 | 348 | 31.0 | 263 | 61.0 | 20.4 |
| DG-AS8032 | 2-1/2 | 55 | 105 | 70.0 | 267 | 69.0 | 184 | 145 | 327 | 453 | 35.1 | 330 | 79.5 | 38.9 |
Screw pin anchor shackles meet the performance requirements of Federal Specification RR-C-271G Type IVA, Grade A, Class 2, except for those provisions required of the contractor.
* Maximum Proof Load is 2.2 times the Working Load Limit.
* Minimum Ultimate Strength is 6 times the Working Load Limit.
Forged high tensile mainly using for lifting point connecting or fishing connecting or as the main recovery shackle for off-road. Others application is ok when commercial shackle using for light industry.

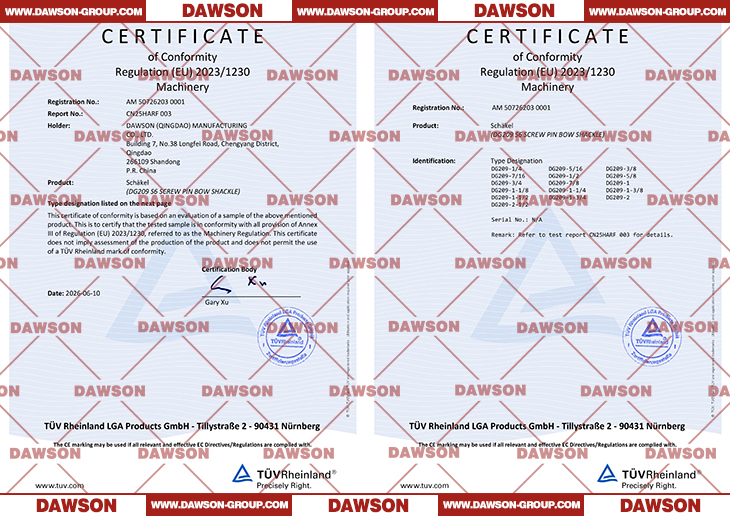

Welcome to buy the newest and competitive price DAWSON Dawson Brand Hot Dip Galvanized US Type DG209 Bow Shackle with Screw Pin from our factory. We're one of the leading China manufacturers and suppliers, offering you the wholesale service and the OEM service at a discount. With CE certification, our products made in China in stock are high in quality and low in price. Please be free to get the free sample from us.
For further information, please contact us. Email:info@dawson-group.com
Hot Tags: bulk anchor shackle, low price bow shackle, high quality US type bow shackle, wholesale forged steel bow shackle, buy discount self colored bow shackle, hot sale alloy steel bow shackle, customized forged alloy anchor shackle, cheap price hot dipped galvanized anchor shackle, s6 anchor shackle China supplier, S6 bow shackle China manufacturer, drop forged anchor shackle China factory, drop forged bow anchor China exporter, H.D.G. shackle in stock, high tensile shackle free sample, hot galvanizing shackle dawson brands, bow shackle OEM

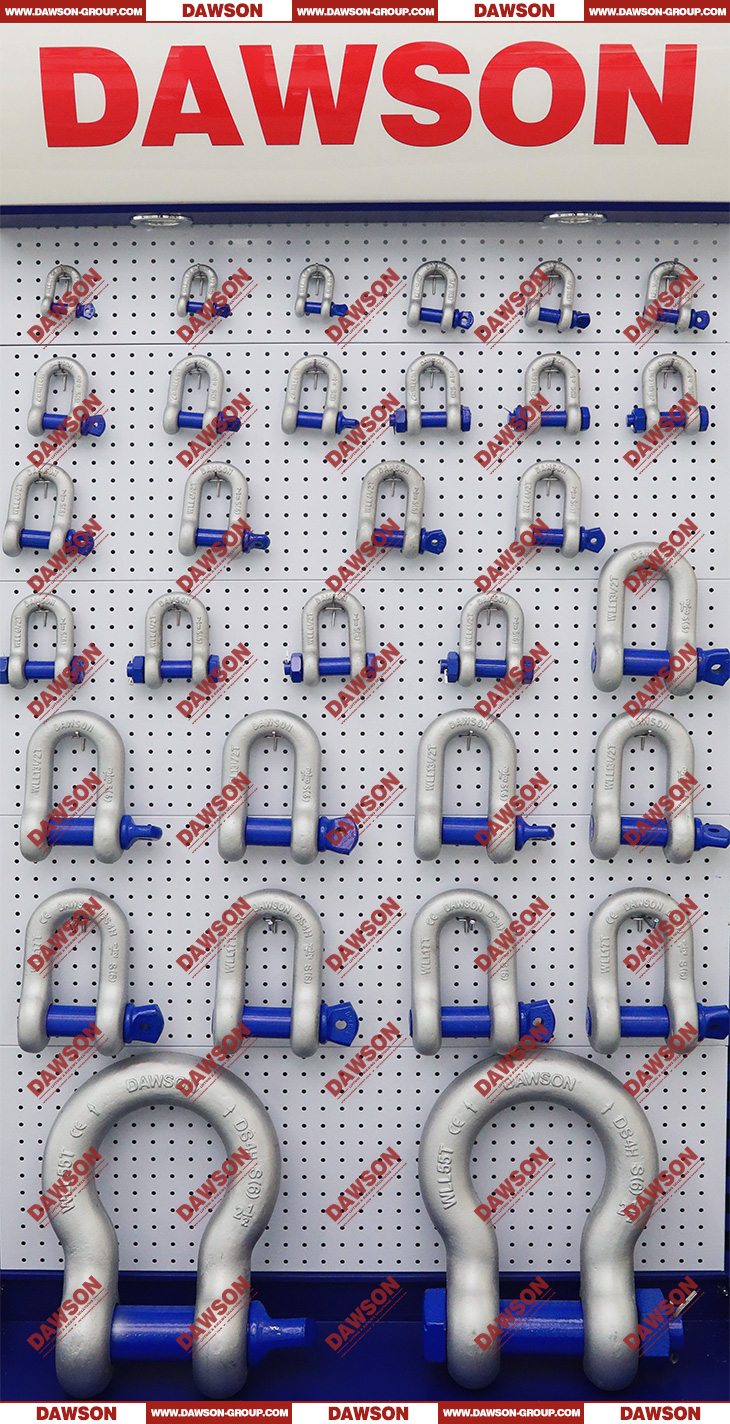

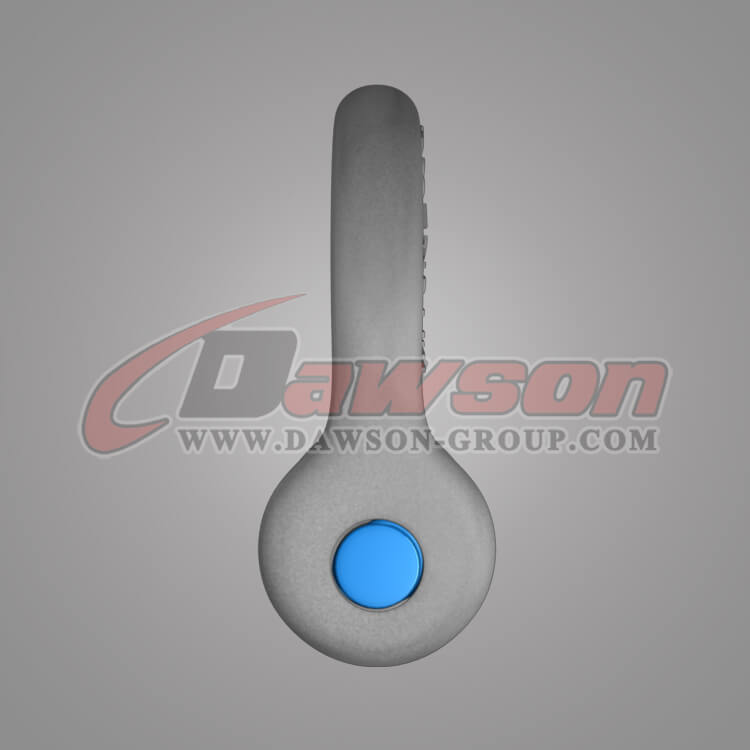

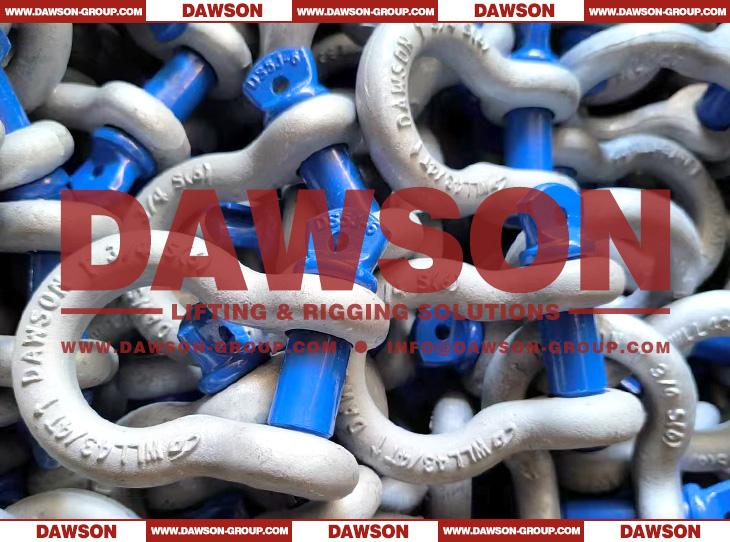

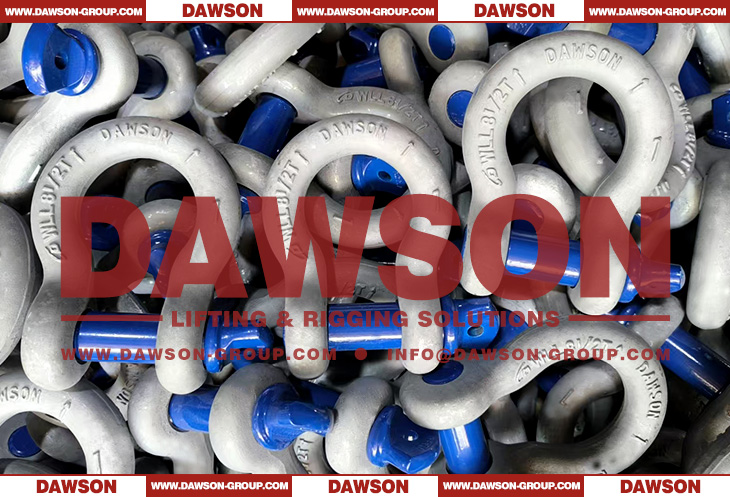

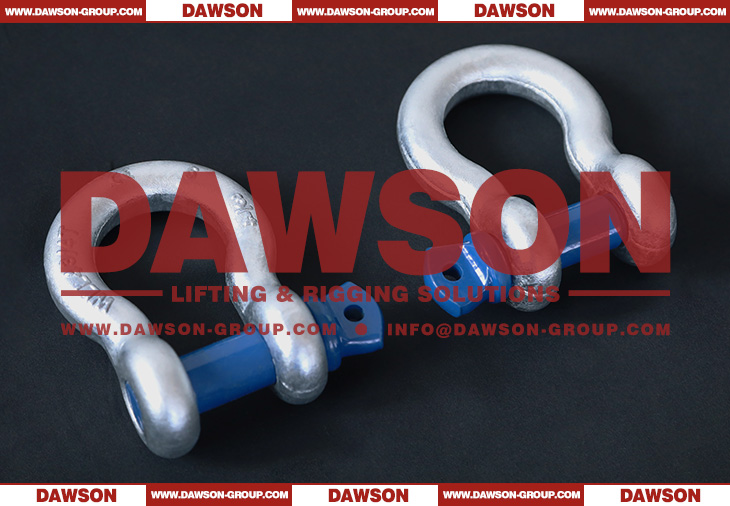

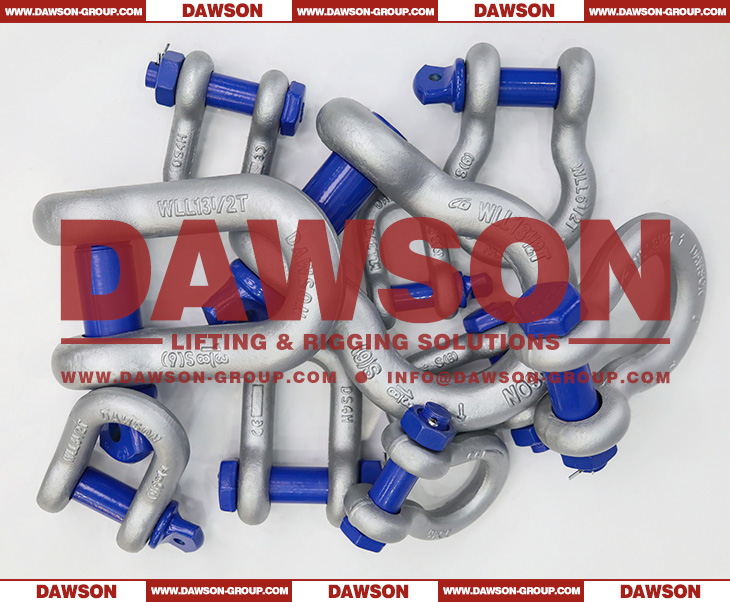

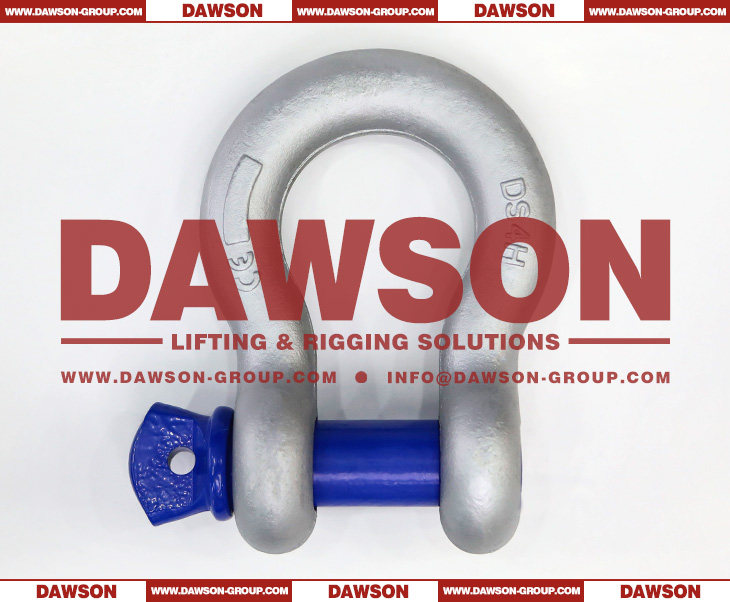

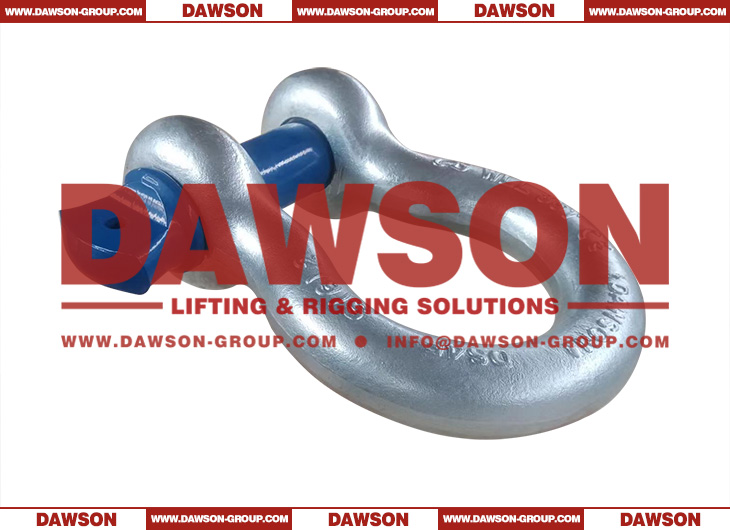

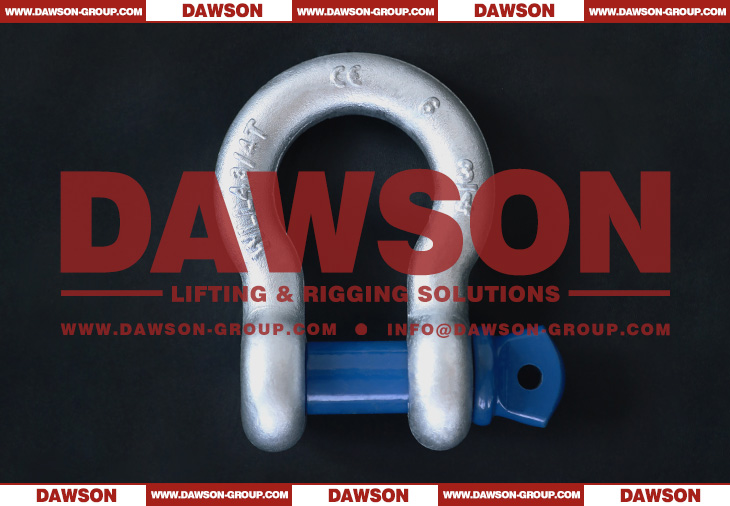

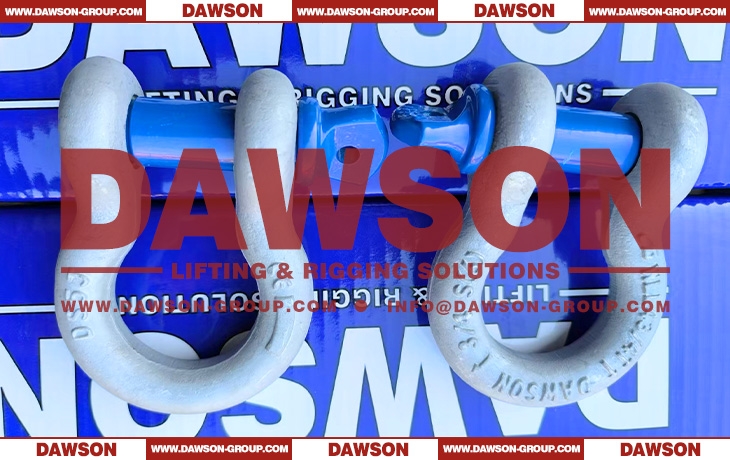

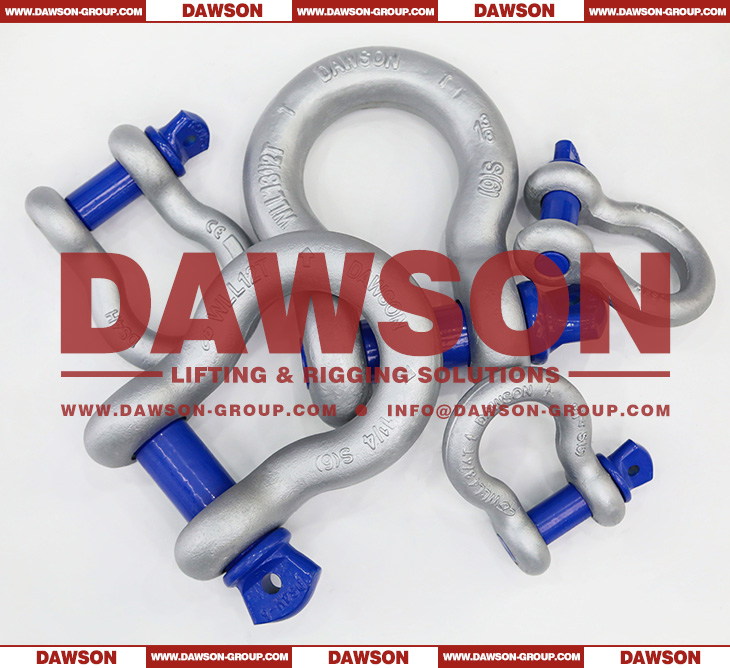

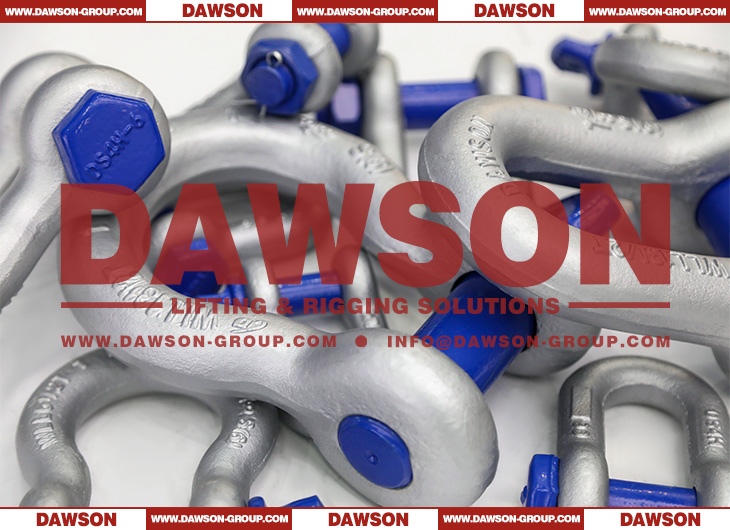

Products Show:
Other Related Products:
Production Equipment:
Dawson Quality Management System:
Dawson Forging:
Application of Shackles:

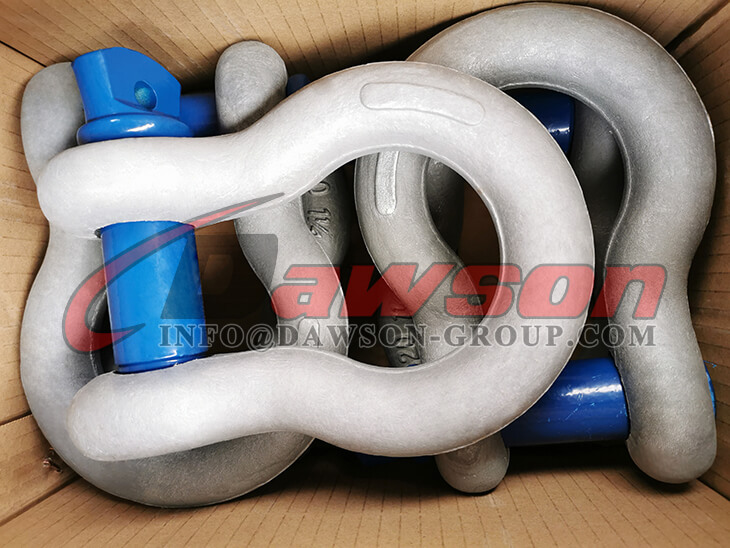

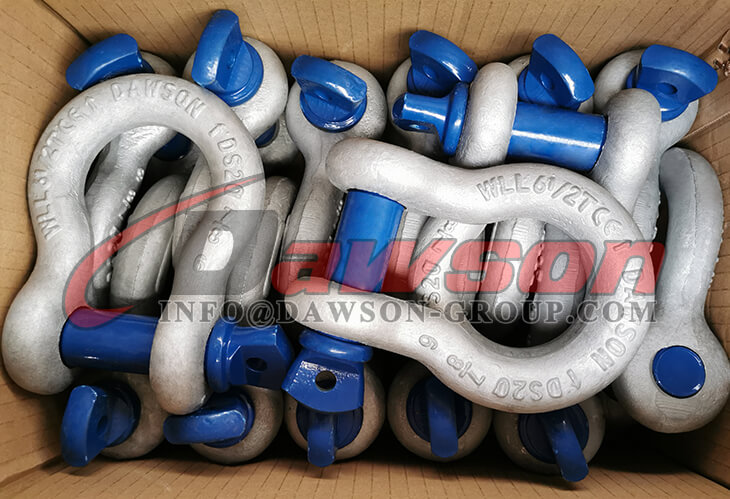

Factory & Package Show:
