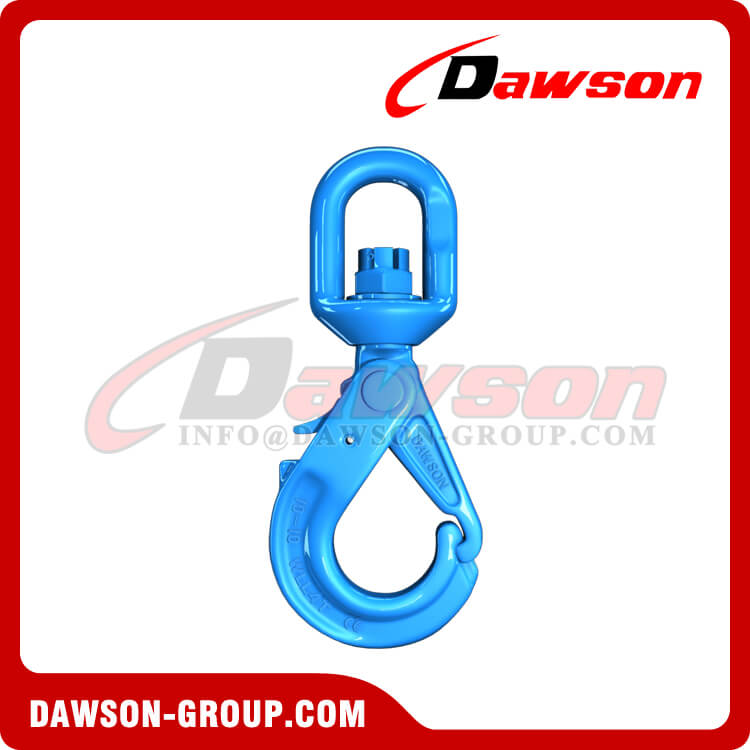

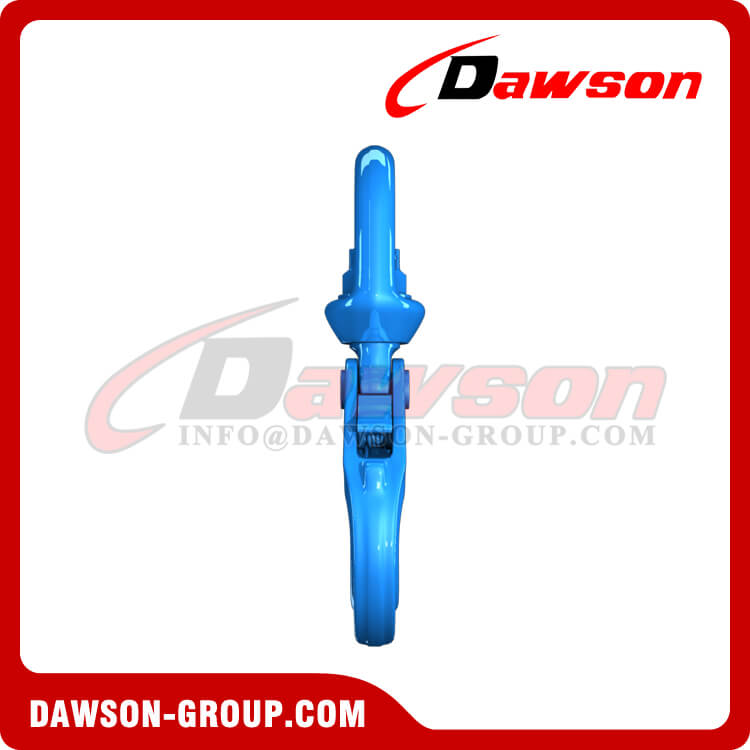

DS1018 G100 Special Swivel Selflock Hook
- Dawson Group Ltd. - China Manufacturer, Supplier, Factory
Forged or welded super alloy steel.
The self locking structure of the hook will be automatically closed under the situation of load lifting, so that the lifting is much safer.
It is forged by special alloy steel with high intensity and high toughness, and then it is heat treated
Suitable for use with G100 chain.
25% stronger than G80.
Individually proof tested at 2.5 times Working Load Limit.
100% Magnaflux Crack Detection.
Fatigue tested at 1.5 times Working Load Limit for 20000 cycles.
Meet standard EN1677.
Strict break load test.
Surface finish: Powder plastified
Colour: blue RALcode: RAL5015, other colour is available as per request.
All load pin are 100% individually inspected and tested.
| ITEM NO. | WEIGHT/KG | WLL/T | B.T/T | A±2 | B±2 | C±1 | D±0.5 | E±2 | H±1 | K±3 | L±3 | Φ±2 |
| 10-DS1018-08 | 1.03 | 2.5 | 10 | 28.5 | 37.5 | 36 | 13 | 32 | 21 | 185 | 220 | 45 |
| 10-DS1018-10 | 1.86 | 4 | 16 | 39 | 48 | 42 | 15.5 | 46 | 30 | 219 | 264 | 56 |
| 10-DS1018-13 | 3.34 | 6.7 | 26.8 | 46 | 52 | 49 | 19 | 56 | 39 | 275.5 | 334 | 64 |
| 10-DS1018-16 | 5.9 | 10 | 40 | 66 | 70 | 62 | 23 | 91 | 46.3 | 329 | 400 | 80
|
G100 Rigging Hardware
All the Grade 100 rigging hardware is forged or welded by special alloy steel. It can be matched with G100 chains. It can be used in situations such as oil field hoisting, mine hoisting, port hoisting, forest logging hoisting etc.
Welcome to buy the newest and competitive price DAWSON G100 / Grade 100 Special Swivel Self-locking Hook with Grip Latch for Chain Slings forged super alloy steel from our factory. We're one of the leading China manufacturers and suppliers, offering you the wholesale service and the OEM service at a discount. With CE certification, our products made in China in stock are high in quality and low in price. Please be free to get the free sample from us.
Other Related G100 COMPONENTS
Supply only on special request. Not for recommendation.
For further information, please contact us. Email:info@dawson-group.com
