Forged or welded super alloy steel.
The self locking structure of the hook will be automatically closed under the situation of load lifting, so that the lifting is much safer.
It is forged by special alloy steel with high intensity and high toughness, and then it is heat treated
Suitable for use with G100 chain.
25% stronger than G80.
Individually proof tested at 2.5 times Working Load Limit.
100% Magnaflux Crack Detection.
Fatigue tested at 1.5 times Working Load Limit for 20000 cycles.
Meet standard EN1677.
Strict break load test.
Surface finish: Powder plastified
Colour: blue RALcode: RAL5015, other colour is available as per request.
All load pin are 100% individually inspected and tested.
| Item No. | Weight/kg | WLL/T | B.L/T | B | C | Φ | E | F | M | N | K | L |
| 10-DS1007-06 | 0.6 | 1.4 | 5.6 | 32.5±2 | 25.5±2 | 11.5±1 | 28±2 | 31.5±2 | 73±2 | 15±1 | 152.5±4 | 184±5 |
| 10-DS1007-08 | 1.1 | 2.5 | 10 | 36±2 | 28.5±2 | 13±1 | 36±3 | 40±3 | 90±3 | 20±1 | 188±4 | 226±6 |
| 10-DS1007-10 | 2 | 4 | 16 | 42±3 | 35±3 | 15.5±1 | 45±3 | 46±3 | 108±3 | 26±2 | 225.5±5 | 269±6 |
| 10-DS1007-13 | 4 | 6.7 | 26.8 | 50±3 | 41±3 | 17±2 | 53.6±3 | 66±4 | 137.5±4 | 32.5±2 | 270±5 | 327±7 |
| 10-DS1007-16 | 6.8 | 10 | 40 | 70±4 | 58±4 | 21.5±2 | 61±4 | 75±4 | 170.5±4 | 38±3 | 342±6 | 413±7 |
| 10-DS1007-20 | 12.5 | 16 | 64 | 72±4 | 63±4 | 26±2 | 76.5±4 | 80±5 | 191.5±5 | 50±3 | 373±6 | 460±8 |
| 10-DS1007-22 | 17.1 | 19 | 76 | 97±5 | 96±5 | 33±2 | 76±4 | 104±5 | 205±5 | 52±3 | 468±7 | 566±8 |
| 10-DS1007-26 | 31.2 | 26.5 | 106 | 123±5 | 119±5 | 42±2 | 99±4 | 107±5 | 251±5 | 60±3 | 565±7 | 687±8 |
| 10-DS1007-32 | 59.9 | 40 | 160 | 140±5 | 144±5 | 52±2 | 135±4 | 142±5 | 329±5 | 75±3 | 680±7 | 834±8
|
SP-DS1005, DS1006, DS1007-SPARE PART FOR DS1005/1006/1007(LOAD PIN)
| Item No. | Size | Item No. | Size |
| SP-DS1005/6/7-6 | 6-10 | SP- DS1005/6/7-20 | 20-10 |
| SP- DS1005/6/7-8 | 8-10 | SP- DS1005/6/7-22 | 22-10 |
| SP- DS1005/6/7-10 | 10-10 | | |
| SP- DS1005/6/7-13 | 13-10 | | |
| SP- DS1005/6/7-16 | 16-10 | |
|
Product specifications:
6MM G100 Swivel Self-Locking Hook, 8MM G100 Swivel Self-Locking Hook, 10MM G100 Swivel Self-Locking Hook, 13MM G100 Swivel Self-Locking Hook, 16MM G100 Swivel Self-Locking Hook, 20MM G100 Swivel Self-Locking Hook, 22MM G100 Swivel Self-Locking Hook, 26MM G100 Swivel Self-Locking Hook, 32MM G100 Swivel Self-Locking Hook
6MM Grade 100 Swivel Hook, 8MM Grade 100 Swivel Hook, 10MM Grade 100 Swivel Hook, 13MM Grade 100 Swivel Hook, 16MM Grade 100 Swivel Hook, 20MM Grade 100 Swivel Hook, 22MM Grade 100 Swivel Hook, 26MM Grade 100 Swivel Hook, 32MM Grade 100 Swivel Hook
1 SET = SELF COLOUR TRIGGER + BLACK SPRING + BLACK SPRING TYPE STRAIGHT PIN
G100 Rigging Hardware
All the Grade 100 rigging hardware is forged or welded by special alloy steel. It can be matched with G100 chains. It can be used in situations such as oil field hoisting, mine hoisting, port hoisting, forest logging hoisting etc.
Welcome to buy the newest and competitive price DAWSON G100 EUROPEAN TYPE SWIVEL SELF-LOCKING SAFETY HOOK forged super alloy steel from our factory. We're one of the leading China manufacturers and suppliers, offering you the wholesale service and the OEM service at a discount. With CE certification, our products made in China in stock are high in quality and low in price. Please be free to get the free sample from us.

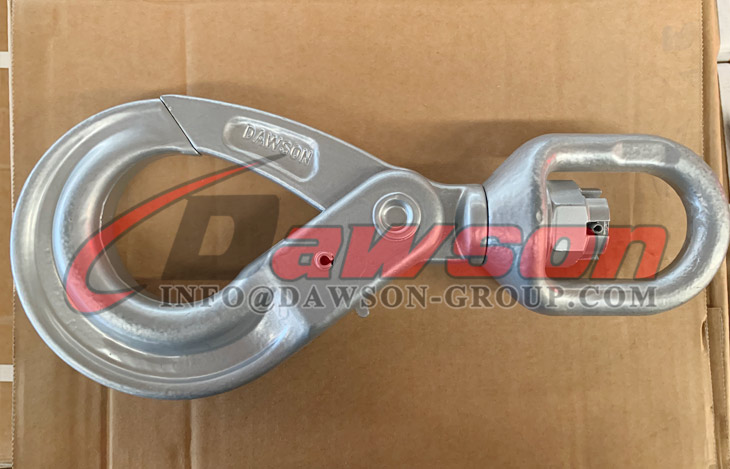

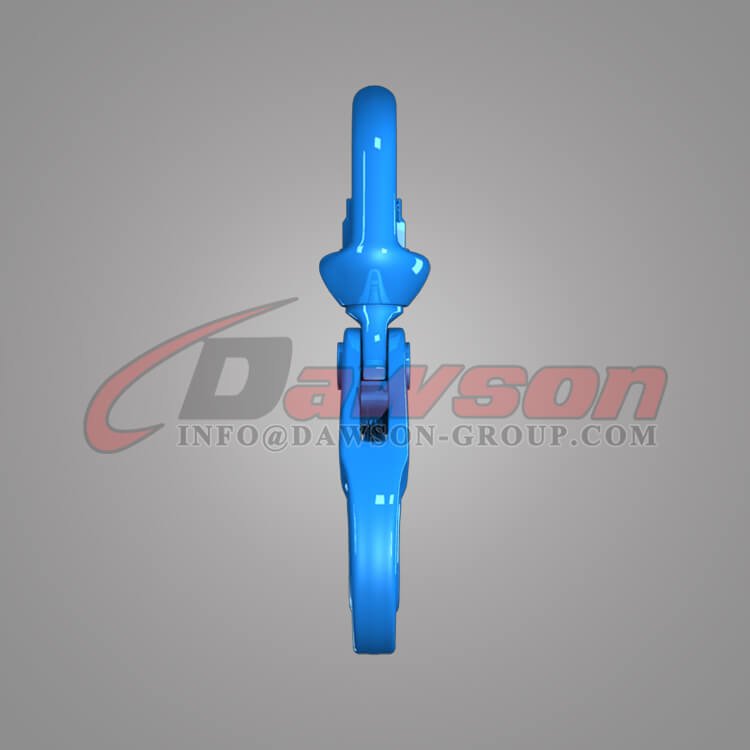

Products Show:
Other related products:
Hot Tags: Swivel Self-Locking Hook, European Type Swivel Self-Locking Hook, G100 Swivel Self-Locking Hook, Grade 100 Swivel Self-Locking Hook China, Swivel Self-Locking Hook Supplier China, Swivel Self-Locking Hook Factory China, Swivel Self-Locking Hook Manufacturer China, Hot Sale Alloy Steel Swivel Self-Locking Hook, Wholesale Grad 100 Swivel Self-Locking Hook, Buy Discount Swivel Self-Locking Hook, Low Price Swivel Self-Locking Hook, Swivel Self-Locking Hook Exporter China, Swivel Self-Locking Safety Hook In Stock, Cheap Price Swivel Self-Locking Safety Hook, Swivel Self-Locking Hook Free Sample
Other Related G100 COMPONENTS
Supply only on special request. Not for recommendation.
For further information, please contact us. Email:info@dawson-group.com
DS1016 |
DS1017 |
DS1018 |
DS1025 |
DS1026 |
DS1019 |
DS1028 |
|

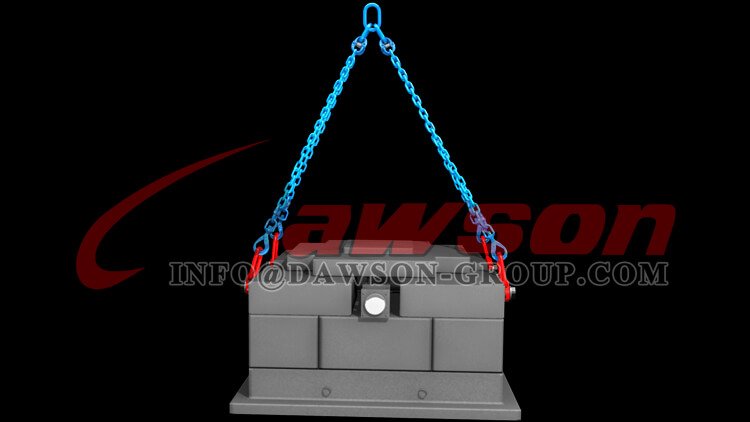

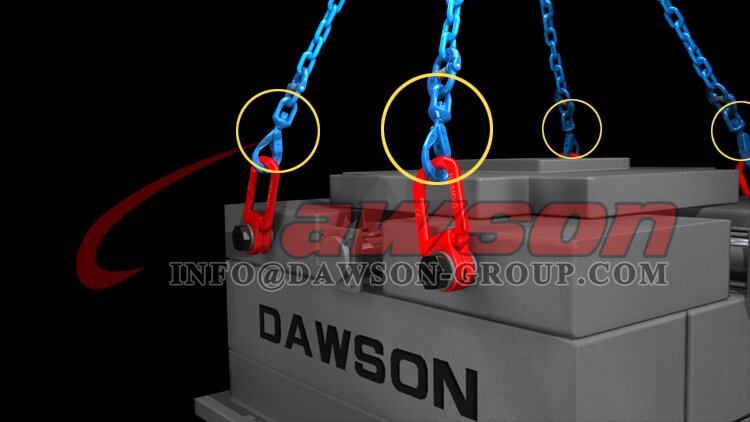

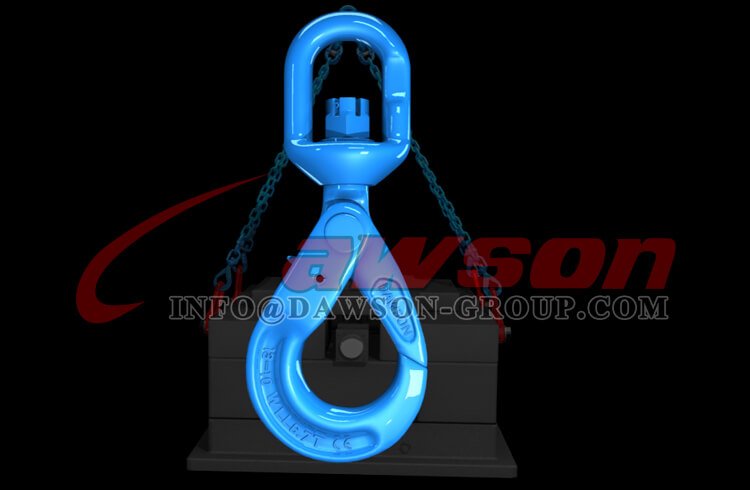

Application of G100 European Type Swivel Self-Locking Hook:
G100 Products Catalogues Download:
Factory & Package Show:
