Forged or welded super alloy steel.
Suitable for use with G100 chain.
25% stronger than G80.
Individually proof tested at 2.5 times Working Load Limit.
100% Magnaflux Crack Detection.
Fatigue tested at 1.5 times Working Load Limit for 20000 cycles.
Meet standard EN1677.
Strict break load test.
Surface finish: Power plastified Colour: blue RALcode: RAL5015, other colour is available as per request.
All load pin are 100% individually inspected and tested.
| Item No. | Weight/kg | WLL/T | B.L/T | A±0.5 | B±1 | E±1 | F±1 | R±2 | M±2 | N±1 | L±3 |
| 10-DS1006-06 | 0.5 | 1.4 | 5.6 | 8 | 32 | 28 | 31 | 96 | 70 | 15 | 131 |
| 10-DS1006-08 | 0.9 | 2.5 | 10 | 9.5 | 36 | 36 | 40 | 121 | 90 | 20 | 166 |
| 10-DS1006-10 | 1.6 | 4 | 16 | 12 | 46 | 45 | 50 | 144 | 109 | 26 | 196.5 |
| 10-DS1006-13 | 2.9 | 6.7 | 26.8 | 15 | 59 | 53.5 | 66 | 182 | 138.5 | 32.5 | 251 |
| 10-DS1006-16 | 5.8 | 10 | 40 | 18.5 | 70 | 62 | 75 | 220 | 170.5 | 39 | 303 |
| 10-DS1006-20 | 8.6 | 16 | 64 | 25 | 85 | 76.5 | 80 | 235 | 192.5 | 50 | 337 |
| 10-DS1006-22 | 12.1 | 19 | 76 | 25.5 | 98 | 80 | 104.6 | 271 | 205 | 52 | 386
|
SP-DS1006-SPARE PART FOR DS1006(LOAD PIN)
| Item No. | Size | Item No. | Size |
| SP-DS1006-6 | 6-10 | SP-DS1006-20 | 20-10 |
| SP-DS1006-8 | 8-10 | SP-DS1006-22 | 22-10 |
| SP-DS1006-10 | 10-10 | | |
| SP-DS1006-13 | 13-10 | | |
| SP-DS1006-16 | 16-10 | |
|
Product specifications:
6MM G100 Clevis Self-Locking Hook, 8MM G100 Clevis Self-Locking Hook, 10MM G100 Clevis Self-Locking Hook, 13MM G100 Clevis Self-Locking Hook, 16MM G100 Clevis Self-Locking Hook, 20MM G100 Clevis Self-Locking Hook, 22MM G100 Clevis Self-Locking Hook
6MM Grade 100 Clevis Hook, 8MM Grade 100 Clevis Hook, 10MM Grade 100 Clevis Hook, 13MM Grade 100 Clevis Hook, 16MM Grade 100 Clevis Hook, 20MM Grade 100 Clevis Hook, 22MM Grade 100 Clevis Hook

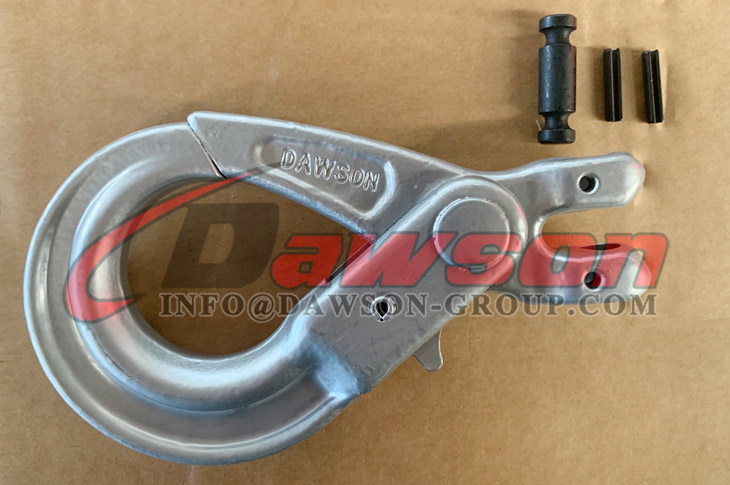

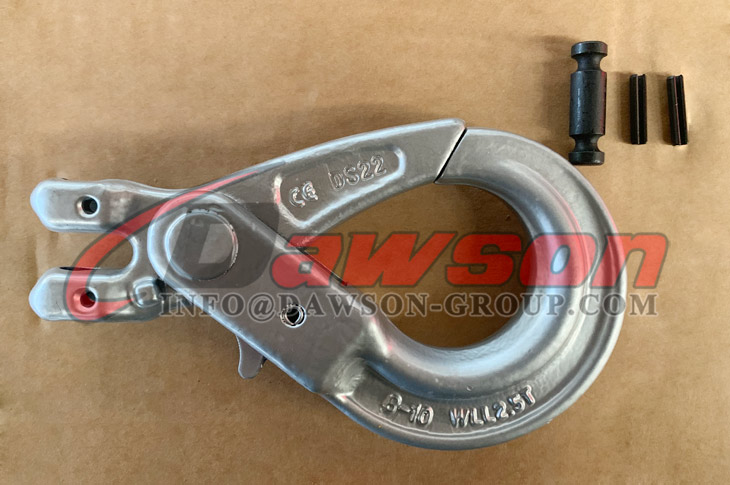

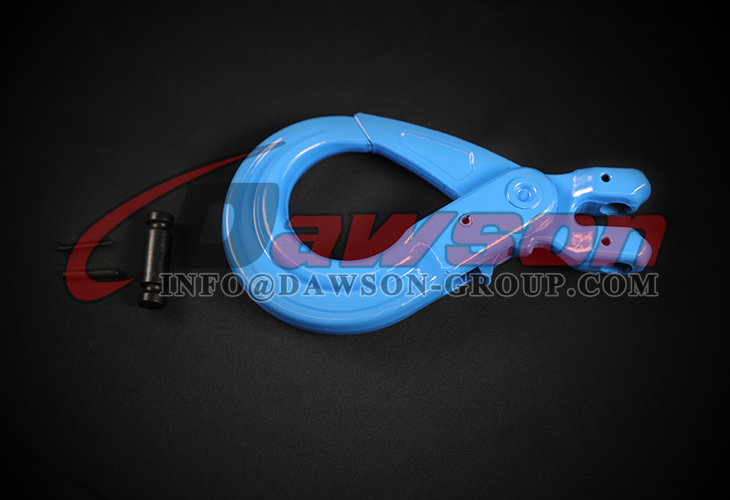

1 SET = BLACK PIN + 2 BLACK SPRING TYPE STRAIGHT PINS
Grade 100 Rigging Hardware
All the G100 rigging hardware is forged or welded by special alloy steel. It can be matched with G100 chains. It can be used in situations such as oil field hoisting, mine hoisting, port hoisting, forest logging hoisting etc.
Welcome to buy the newest and competitive price DAWSON G100 European Type Clevis Self-Locking Hook forged super alloy steel from our factory. We're one of the leading China manufacturers and suppliers, offering you the wholesale service and the OEM service at a discount. With CE certification, our products made in China in stock are high in quality and low in price. Please be free to get the free sample from us.
Other Related G100 COMPONENTS
Supply only on special request. Not for recommendation.
For further information, please contact us. Email:info@dawson-group.com
DS1016 |
DS1017 |
DS1018 |
DS1025 |
DS1026 |
DS1019 |
DS1028 |
|
Products Show:
Hot Tags: Clevis Self-locking Hook, Clevis Self-locking Safety Hook China, Clevis Self-locking Hook for Chain Slings Supplier, Clevis Self-locking Safety Hook Manufacturer China, China Clevis Self-locking Hook Exporter, Hot Sale Clevis Self-locking Hook, Buy Discount Clevis Self-locking Hook, Cheap Price Clevis Self-locking Hook for Chain Slings, Low Price Clevis Self-locking Hook, Clevis Self-locking Hook In Stock, Clevis Self-locking Hook Free Sample
Other Related Products:

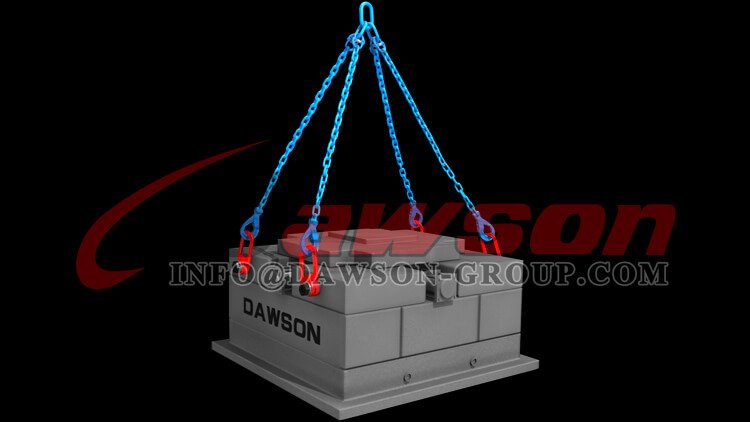

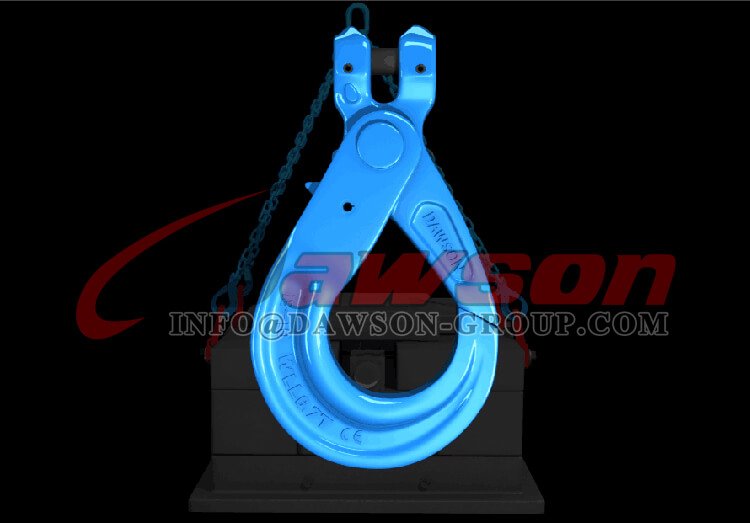

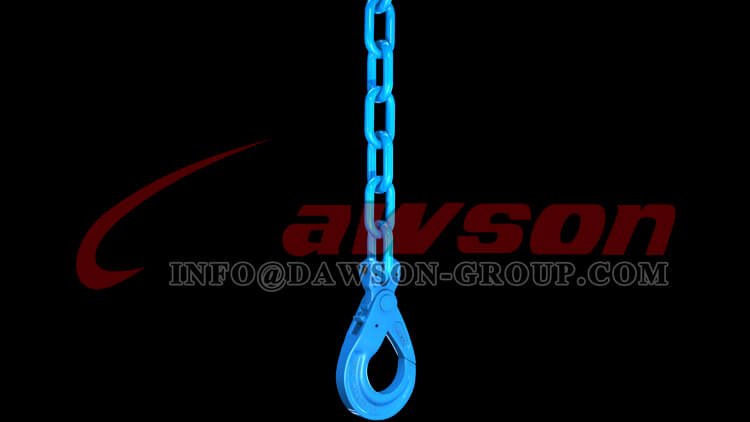

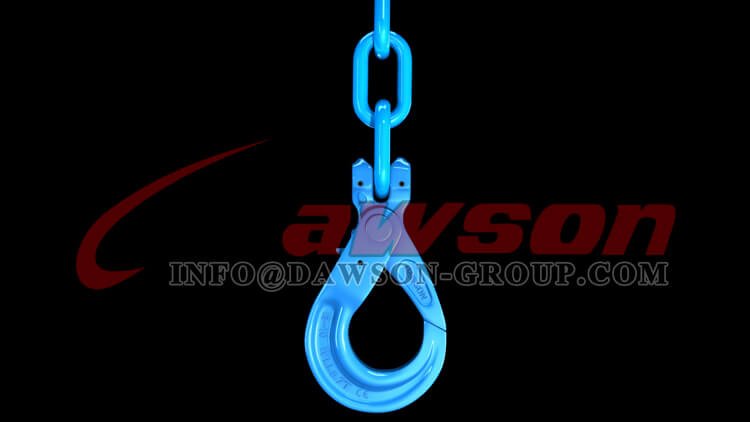

Application of G100 European Type Clevis Self-locking Hook:
G100 Products Catalogues Download:

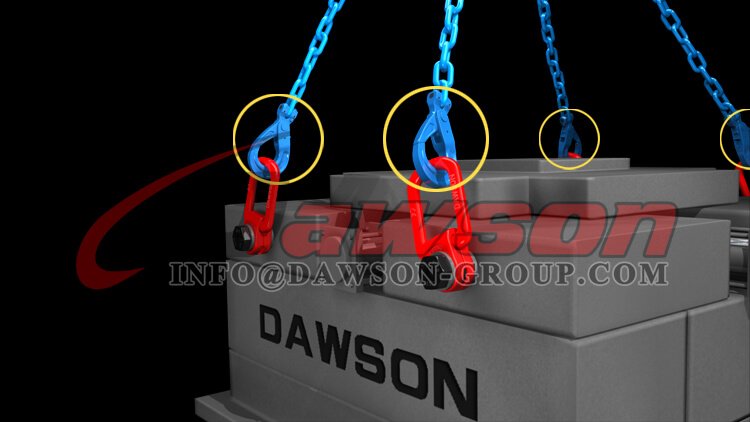

Application of Clevis Self-Locking Hook:

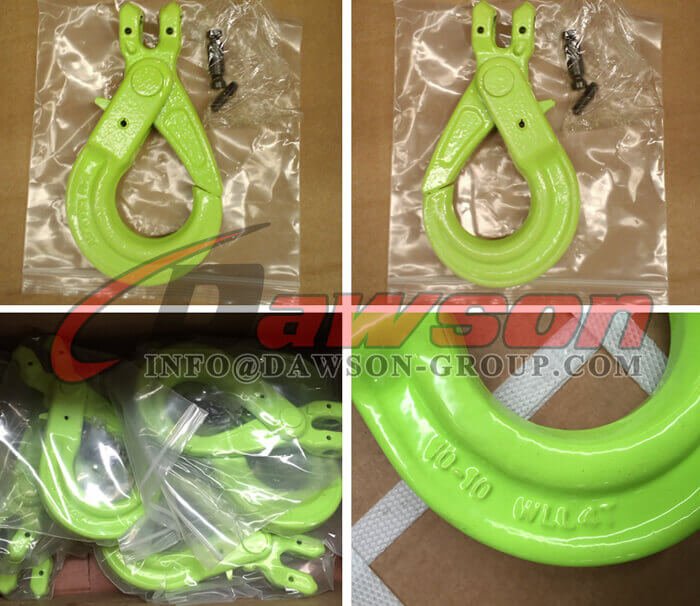

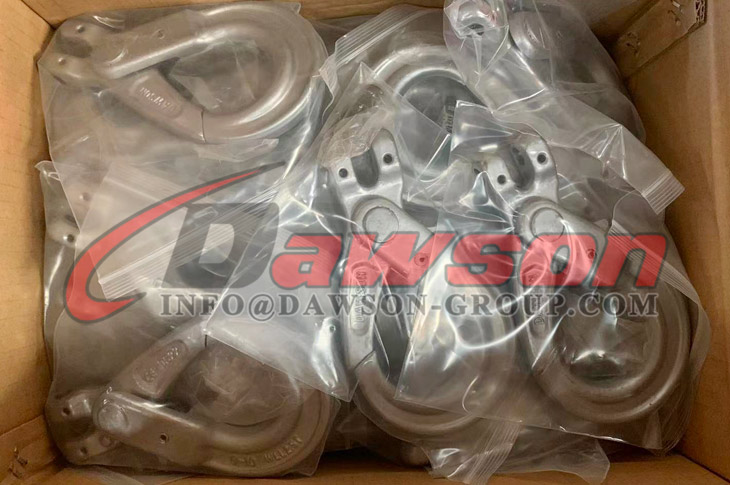

Factory & Package Show:
