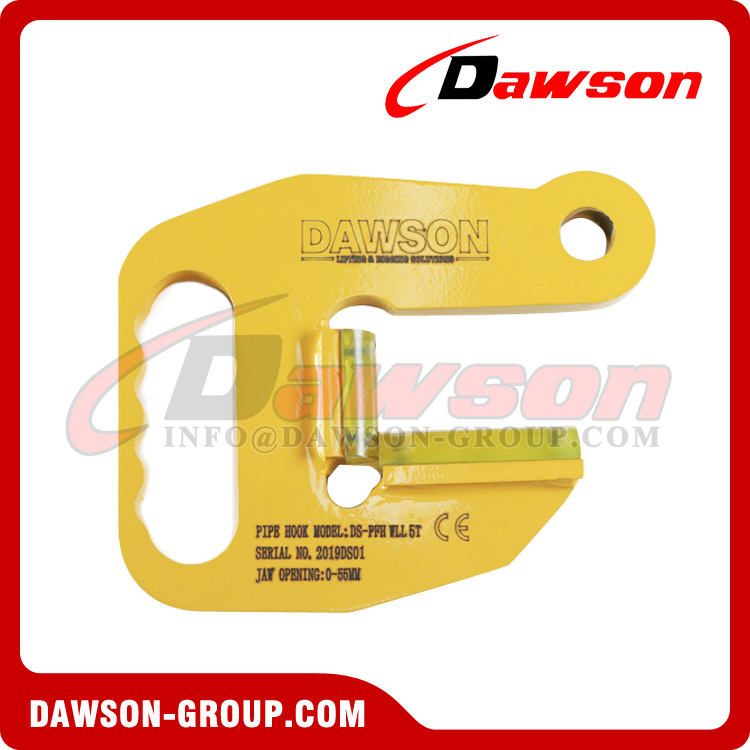

DS-PFH DS-PFH-PU Steel F Type Pipe Hook with PU Protection, Pipe Lifting Plate Clamp F Model for Horizontal Lifting and Transporting

Use:
● For horizontal lifting and transporting of steel and concrete pipes.
● Compact shapes and relatively low own weight with a high lifting capacity.
● The surface is equipped with “special” plastic.
●The DS-TPH will be delivered per pair.
● Plastic cover is easy to change.
  • DAWSON/OEM

  • DS-PFH DS-PFH-PU

  • 0-90mm

Availability:
Quantity:

DS-PFH DS-PFH-PU Steel F Type Pipe Hook with PU Protection, Pipe Lifting Plate Clamp F Model for Horizontal Lifting and Transporting
- Dawson Group Ltd. - China Manufacturer, Supplier, Factory


DS-PFH Steel F Type Pipe Hook with PU Protection - Dawson Group Ltd. - China Manufacturer, Supplier
DS-PFH Steel F Type Pipe Hook with PU Protection - Dawson Group Ltd. - China Manufacturer, Factory, Supplier   DS-PFH Steel F Type Pipe Hook with PU Protection - Dawson Group Ltd. - China Manufacturer, Factory
DS-PFH Steel F Type Pipe Hook with PU Protection - Dawson Group Ltd. - China Manufacturer, Factory, Supplier

STEEL F TYPE PIPE HOOK WITH PU PROTECTION - DAWSON GROUP LTD. - CHINA MANUFACTURER, SUPPLIER, FACTORY   STEEL PIPE HOOK PIPE LIFTING CLAMPS F MODEL - DAWSON GROUP LTD. - CHINA MANUFACTURER, SUPPLIER

STEEL F TYPE PIPE HOOK WITH PU PROTECTION - DAWSON GROUP LTD. - CHINA MANUFACTURER, SUPPLIER   DS-PFH DS-PFH-PU Steel F Type Pipe Hook with PU Protection, Pipe Lifting Plate Clamp F Model for Horizontal Lifting and Transporting - Dawson Group Ltd. - China Supplier


Working load limit(WLL):2-15T.
Use:
● For horizontal lifting and transporting of steel and concrete pipes.
● Compact shapes and relatively low own weight with a high lifting capacity.
● The surface is equipped with “special” plastic.
●The DS-TPH will be delivered per pair.
● Plastic cover is easy to change.
Part No. Model WLL (tonnes)/Pair Jaw Opening(mm) Sling Angle Φ chain mini(mm) Mini WLL Shackle⊃2;(t) Weight(kg)/Pair
DS-0320 DS-PFH2 2 0-60 90° 8 1.5 4
DS-0321 DS-PFH5 5 0-75 13 4.75 10
DS-0322 DS-PFH7.5 7.5 0-100 16 6.5 15
DS-0323 DS-PFH10 10 0-100 16 8.5 30
DS-0324 DS-PFH15 15 0-100 20 12 40
DS-0325 DS-PFH-PU2 2 0-45 8 1.5 4
DS-0326 DS-PFH-PU5 5 0-55 13 4.75 10
DS-0327 DS-PFH-PU7.5 7.5 0-90 16 6.5 15
DS-0328 DS-PFH-PU10 10 0-90 16 8.5 30
DS-0329 DS-PFH-PU15 15 0-90 20 12 40

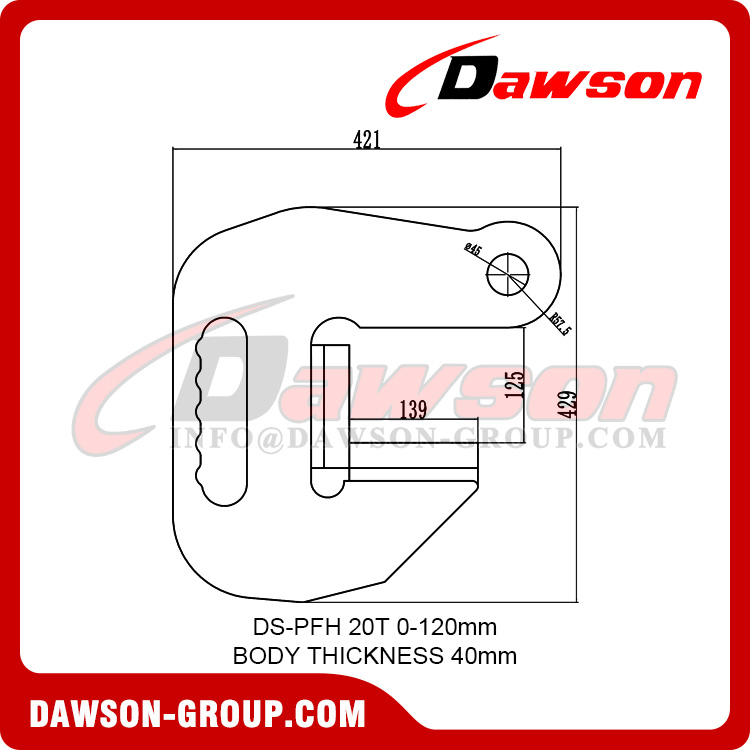

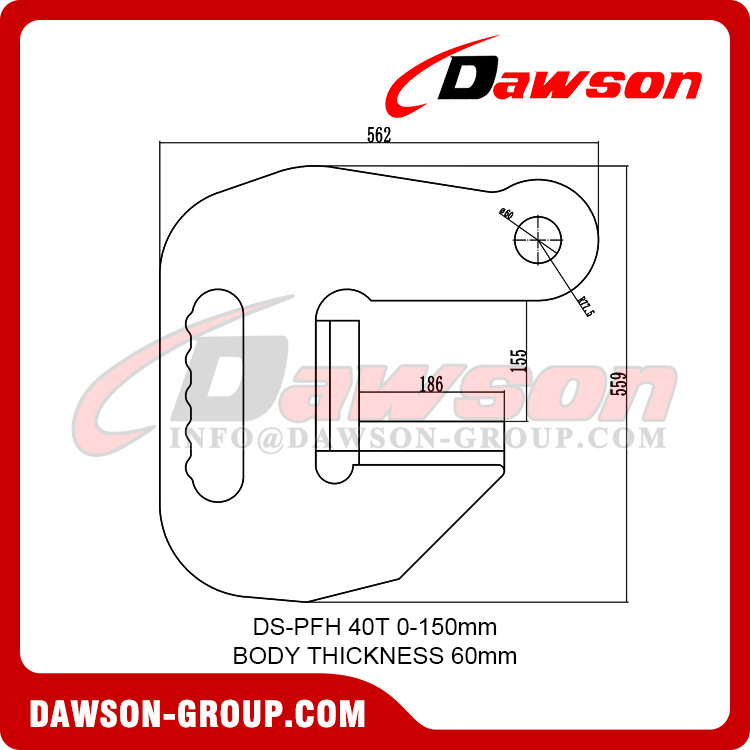

1、Dimension on metal sheet, without PU for F Hooks + PU protection

2、Be careful, the inner width of the shackle must also be able to fit the thickness D of the hook.

Application

Lifting of horizontal pipes or tubes made of various materials.

High capacity hooks with a round support for a better contact with the load.

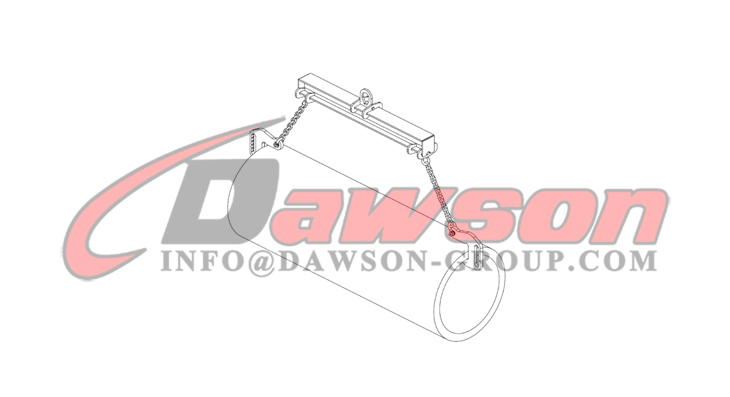

Steel Pipe Hook F hooks with lifting beam - Dawson Group Ltd. - China Manufacturer, Supplier, Factory

F hooks with lifting beam: permits reduction of global height when lifting

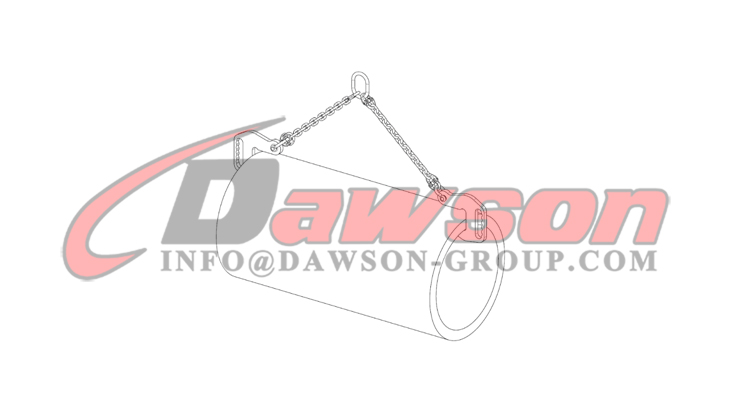

Steel Pipe Hook F hooks with 2 Legged Chain Slings - Dawson Group Ltd. - China Manufacturer, Supplier, Factory

F hooks with 2-legged sling


The hooks have an ergonomical handle and the weight and mechanical resistance are optimized.

STEEL PIPE HOOK PIPE LIFTING CLAMPS F MODEL - DAWSON GROUP LTD. - CHINA MANUFACTURER, SUPPLIER  STEEL F TYPE PIPE HOOK WITH PU PROTECTION - DAWSON GROUP LTD. - CHINA MANUFACTURER, SUPPLIER, FACTORY

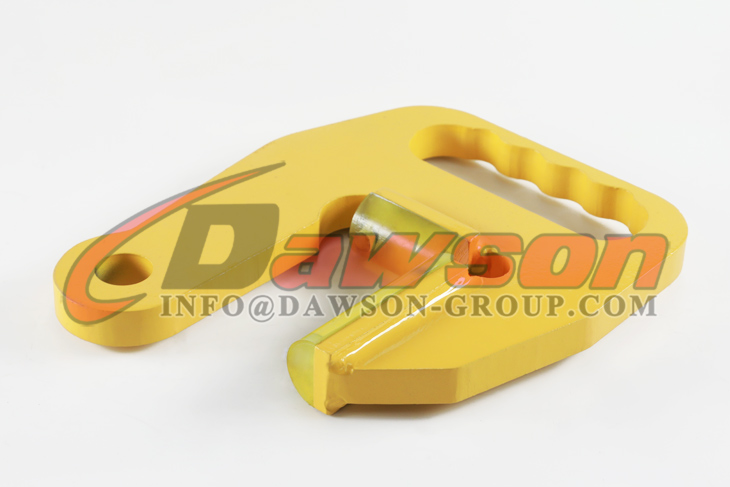

F hook                                                                         F hook with PU protection

Welcome to buy the newest and cheap DAWSON DS-PFH DS-PFH-PU Steel F Type Pipe Hook with PU Protection, Pipe Lifting Plate Clamp F Model for Horizontal Lifting and Transporting from our factory. We're one of the leading China manufacturers and suppliers, offering you the wholesale service and the OEM service at a discount. With CE certification, our products made in China in stock are high in quality and low in price. Please be free to get the free sample from us.



Description

These hooks have a heavy capacity and round bearing surface for a better contact with the load.

The F hooks need to be used with slings. DAWSON propose from now on a range of slings, specially adapted to the F hooks.

These slings are designed with a special link in order to use the hooks in optimal conditions(sling hook 90°), for different pipe lengths.


Functioning

Use in pairs with a 2-legged sling. Position a hook at both ends and perform lifting.


Important instructions

Recommended sling angle:90°

Working temperature:-20℃to+100℃


General characteristics

Manufactured without load bearing welds.

Hot epoxy protection.

Safety factor:3 in accordance with the EN 13155.2003 standard.

Conformity to the French regulation, in particular the decree of 01/03/2004 relating to the check on lifting accessories and the European Directive n°2006/42/CE.

Product with EC marking and delivered with a declaration of conformity and instructions for use.

Products Show:

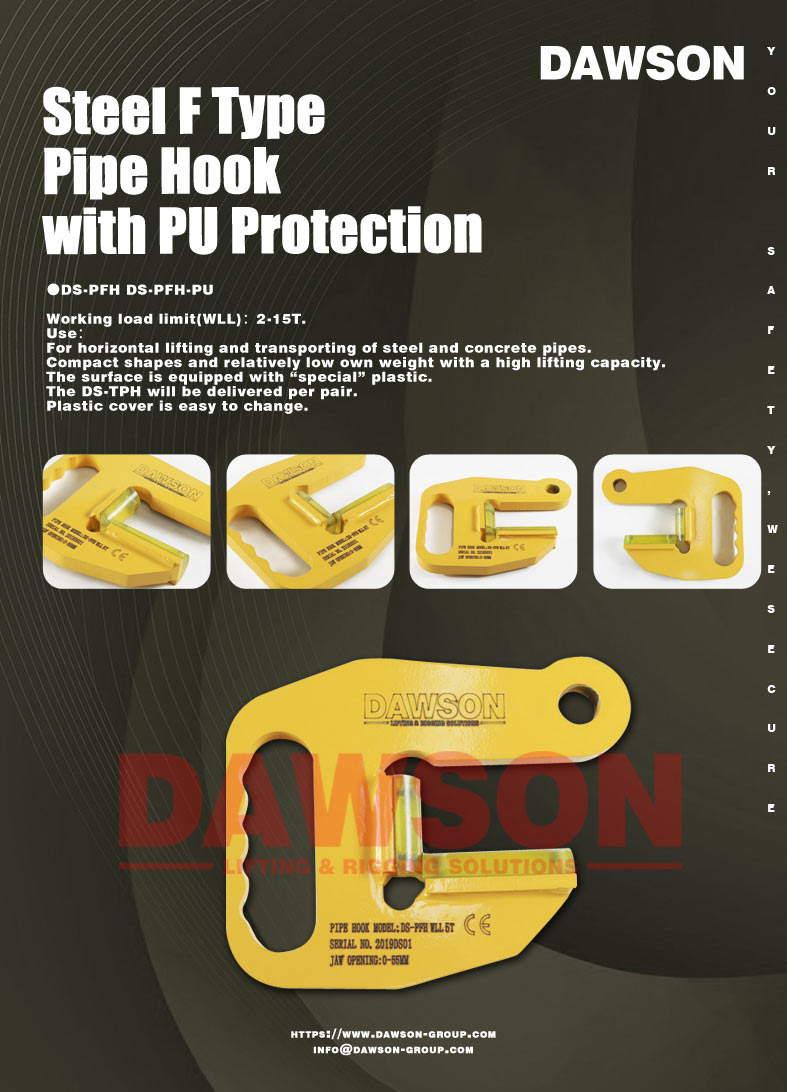

DS-PFH Steel F Type Pipe Hook with PU Protection - Dawson Group Ltd. - China Manufacturer, Supplier, Factory
DS-PFH Pipe Lifting Plate Clamp F Model for Horizontal Lifting and Transporting, Steel F Type Pipe Hook with PU Protection - Dawson Group Ltd. - China Manufacturer, Factory, Supplier

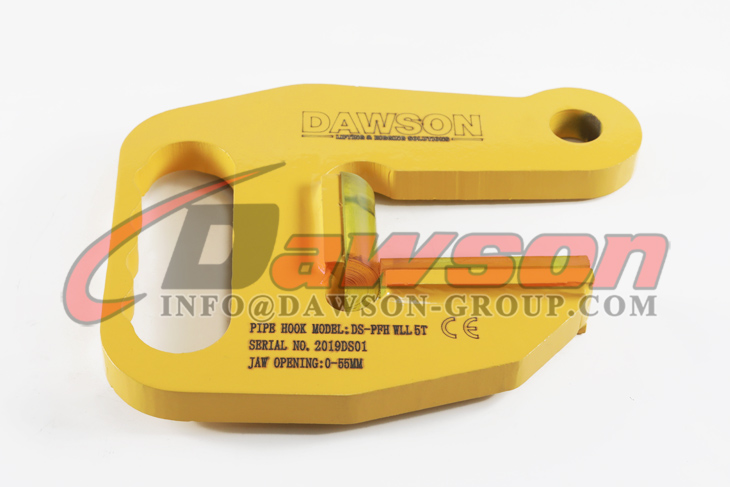

DS-PFH Steel F Type Pipe Hook with PU Protection, Pipe Lifting Plate Clamp F Model for Horizontal Lifting and Transporting - Dawson Group Ltd. - China Manufacturer, Factory, Supplier

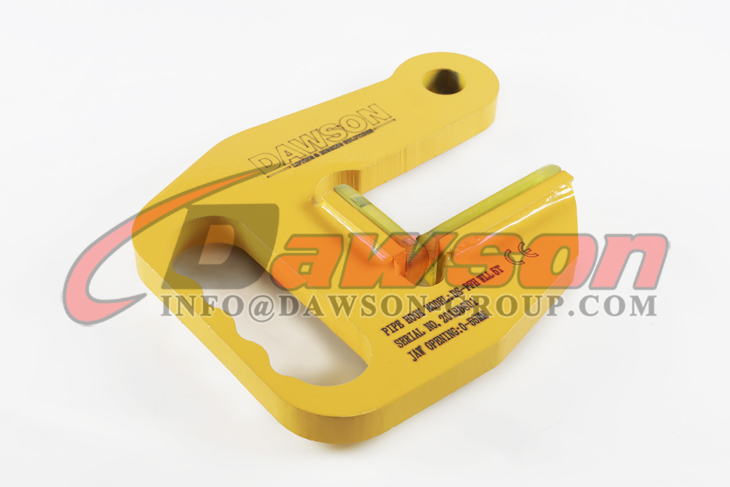

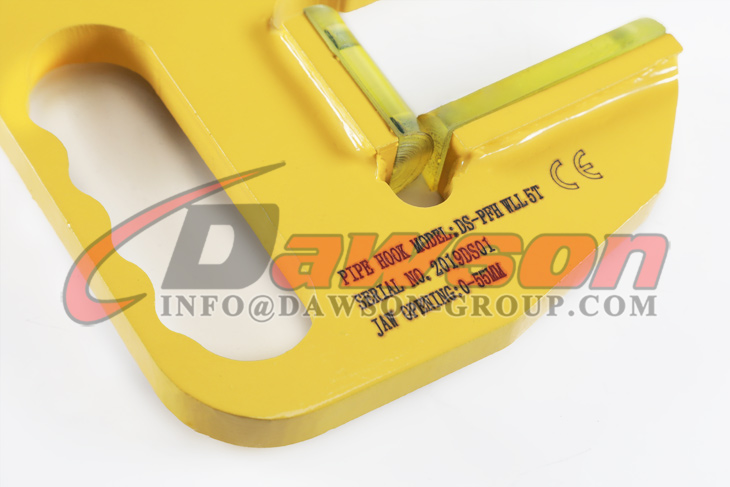

DS-PFH Pipe Lifting Plate Clamp F Model for Horizontal Lifting and Transporting - Dawson Group Ltd. - China Manufacturer, Supplier, Factory
DS-PFH Pipe Lifting Plate Clamp F Model for Horizontal Lifting and Transporting - Dawson Group Ltd. - China Manufacturer, Factory, Supplier

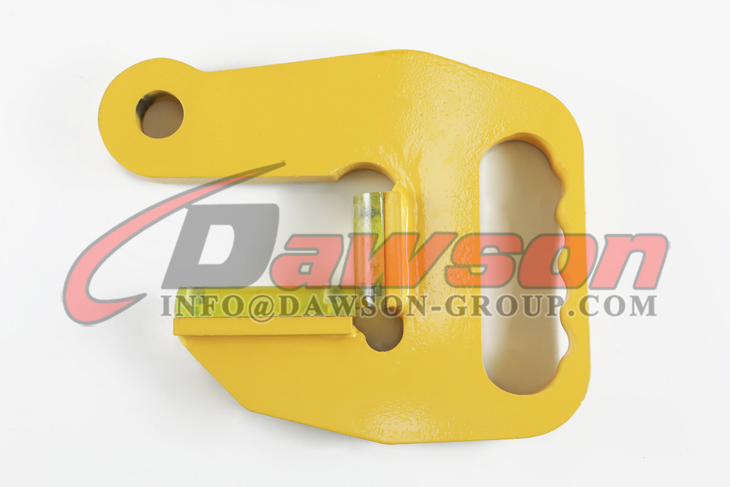

DS-PFH Pipe Lifting Plate Clamp F Model for Horizontal Lifting and Transporting, Steel F Type Pipe Hook with PU Protection - Dawson Group Ltd. - China Manufacturer, Supplier, Factory

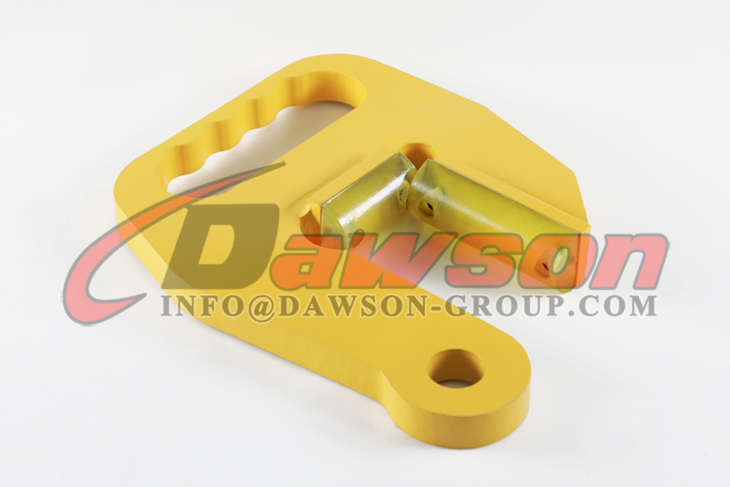

DS-PFH DS-PFH-PU Steel F Type Pipe Hook with PU Protection - Dawson Group Ltd. - China Manufacturer, Factory, Supplier

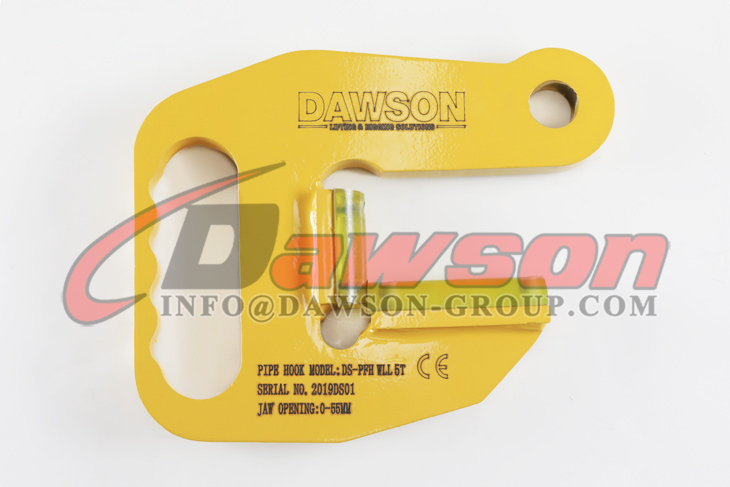

DS-PFH Steel F Type Pipe Hook with PU Protection - Dawson Group Ltd. - China Manufacturer, Supplier, Factory

Other Related Products Show:

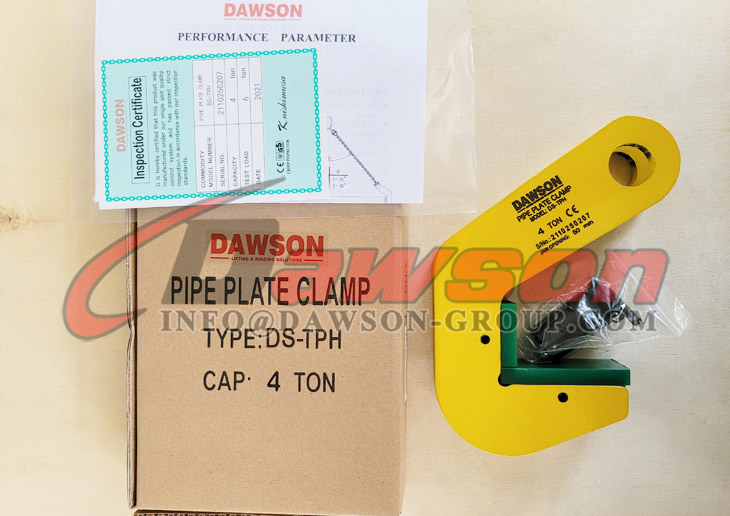

DS-TPH Type Pipe Plate Clamp for Horizontal Lifting and Transporting - Dawson Group Ltd. - China Manufacturer, Factory, Supplier

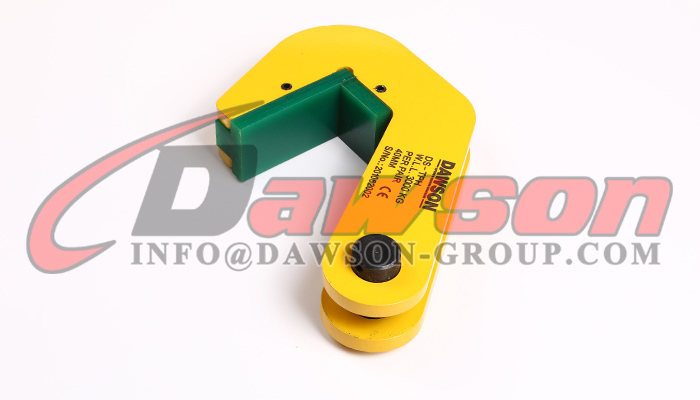

DS-TPH Type Pipe Plate Clamp for Horizontal Lifting and Transporting - Dawson Group Ltd. - China Supplier, Factory, Manufacturer

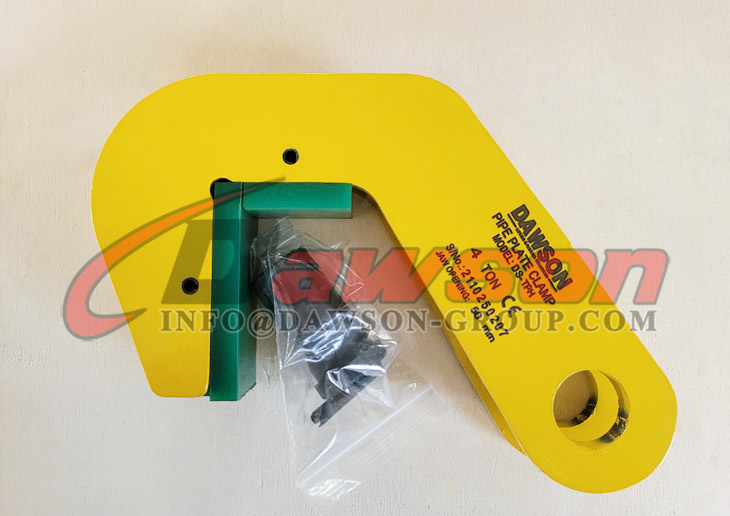

DS-TPH Type 4T Pipe Plate Clamp for Horizontal Lifting and Transporting - Dawson Group Ltd. - China Manufacturer, Supplier, Factory
DS-TPH Type Pipe Plate Clamp for Horizontal Lifting and Transporting - Dawson Group Ltd. - China Manufacturer, Supplier
DS-TPH Type Pipe 6T Plate Clamp for Horizontal Lifting and Transporting - Dawson Group Ltd. - China Manufacturer, Supplier, Factory

DS-CDD Type Vertical Plate Clamp with Safety Lock - Dawson Group Ltd. - China Manufacturer, Supplier, Factory
DS-L Type Horizontal Plate Clamp - Dawson Group Ltd. - China Manufacturer, Supplier, Factory
DS-PDB Type Industry Standard Horizontal Plate Clamp for Lifting and Transport - Dawson Group Ltd. - China Manufacturer, Supplier, Factory
DAWSON Plate Clamp for Lifting - Dawson Group Ltd. - China Manufacturer, Supplier
DAWSON Plate Clamp for Lifting and Transport - Dawson Group Ltd. - China Manufacturer, Supplier
DAWSON Plate Clamp for Lifting - Dawson Group Ltd. - China Factory, Manufacturer, Supplier

other related products
DS-CD Type Universal Plate Clamp for Lifting and Transporting Steel Plates - Dawson Group Ltd. - China Manufacturer, Supplier, Factory
DS-YG Type Round Stock Grabs Lifting Clamp for Horizontal Transport - Dawson Group Ltd. - China Manufacturer, Factory, Supplier
DS-PDK Type Adjustable Horizontal Multi Plate Clamp - Dawson Group Ltd. - China Manufacturer, Supplier, Factory
DS-PDL Type Horizontal Plate Clamp - Dawson Group Ltd. - China Manufacturer, Supplier, Factory
DS-NHK Non-marking Horizontal Lifting Clamp Plate Clamps - Dawson Group Ltd. - China Manufacturer, Factory, Supplier


Application of Pipe Plate Lifting Clamps:

Application of Pipe Plate Clamp for Horizontal Lifting and Transporting - Dawson Group Ltd.- China Supplier

Application of Lifting Clamps - Dawson Group Ltd. - China Manufacturer, Supplier, Factory

Safety lifting
● The lifting clamps are suitable for lifting and transporting of steel plates with a maximum hardness of 37  HrC (345HB,1166 N/mm⊃2;).
● The lifting clamps are suitable for usage in normal atmospheric conditions, between -20℃ and +100℃
● Never overload a clamp and prevent the jerking of loads.
● When loading always use the whole jaw depth.
● Never lift more than one plate at the same time.
● Always keep your distance during lifting and descending of a load.
● Prevent situations that anybody is under the load.

● Any welding to the clamp is forbidden, this can influence the hardness and toughness of the clamp.


Application of Safety Lifting
