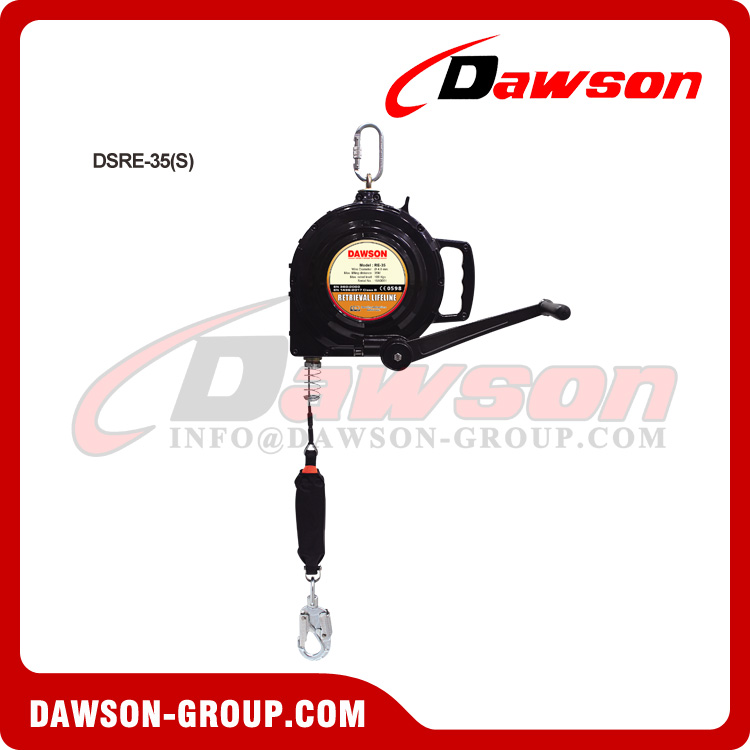

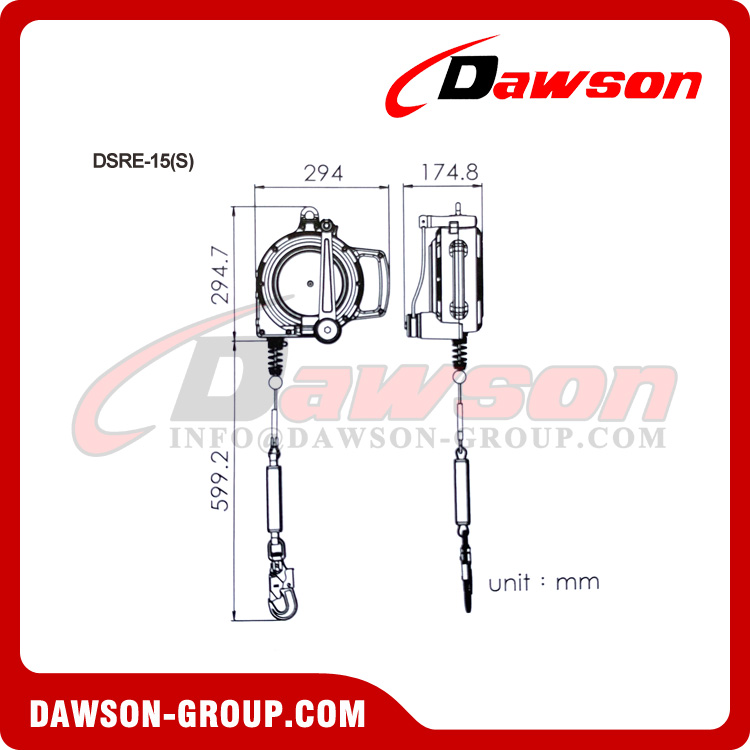

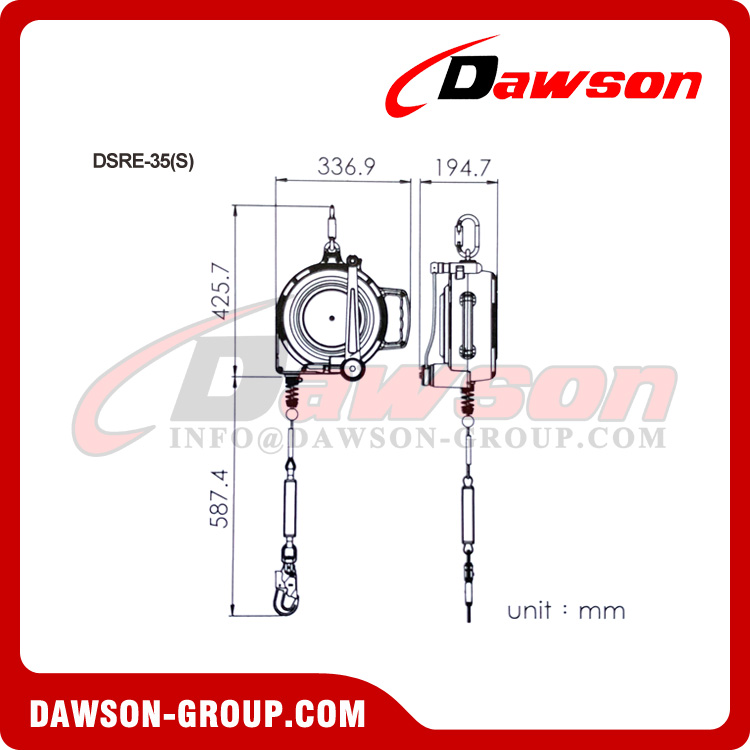

DSRE-10(S) Retractable Lifeline, Recovery Self-Retracting Lifeline for Rescue Tripod





Model	DSRE-10(S)	DSRE-15(S)	DSRE-20(S)	DSRE-25(S)		DSRE-30(S)	DSRE-35(S)	DSRE-15-K	DSRE-35-K
	EN360 150KG 12KN							---
	NO		NO					---
	EN 362		EN 362					---
	10M	15M	20M	25M		30M	35M	---
	Z359.14 128KG 13.3KN CLASS B							---
	NO		NO					---
	ANSI Z359.12 CSA Z259.12		ANSI Z359.12 CSA Z259.12					---
	30’	50’	65’		85’	100’	115’	---
	Aluminum / Galvanize / Stainless(S)/φ4.8mm							---
	2		2					---
	11.6kg	12.1kg	18kg	18.5kg		18.9kg	19.4kg	2.2kg	2.2kg

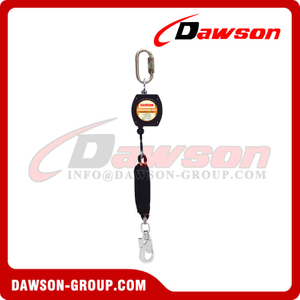

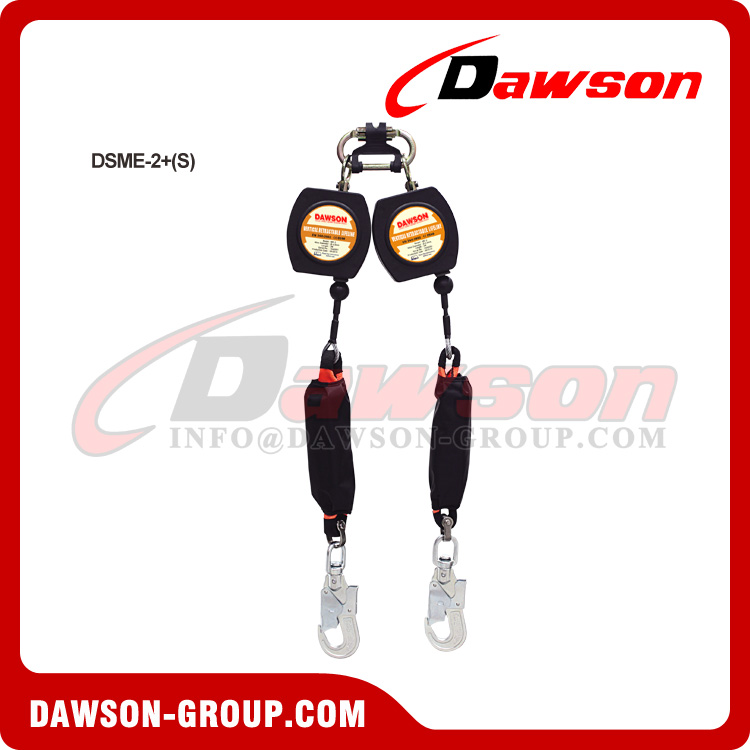

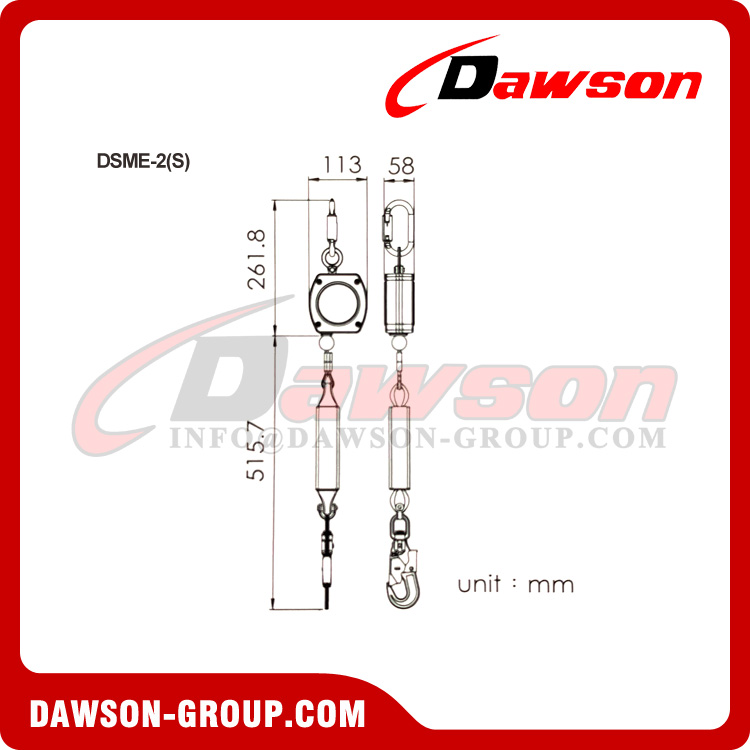

DSME-1.5(S) Retractable Lifeline, Self Retracting Lifeline





Model	DSME-1.5(S)	DSME-1.8(S)	DSME-2(S)	DSME-2.4(S)	DSME-1.5(S)+		DSME-1.8(S)+	DSME-2(S)+	DSME-2.4(S)+
	EN360 140KG 12KN
	NO					NO
	EN 362					EN 362
	1.5M	1.8M	2M	2.4M	1.5M		1.8M	2M	2.4M
	Z359.14 128KG 13.3KN CLASS A
	NO					NO
	ANSI Z359.12 CSA Z259.12					ANSI Z359.12 CSA Z259.12
	5’	6’	7’	8’	5’		6’	7’	8’
	Nylon / Galvanize / Stainless(S)/φ4.8mm
	2					2
	1.6kg	1.7kg	1.9kg	1.9kg	3.5kg		3.5kg	3.6kg	3.6kg

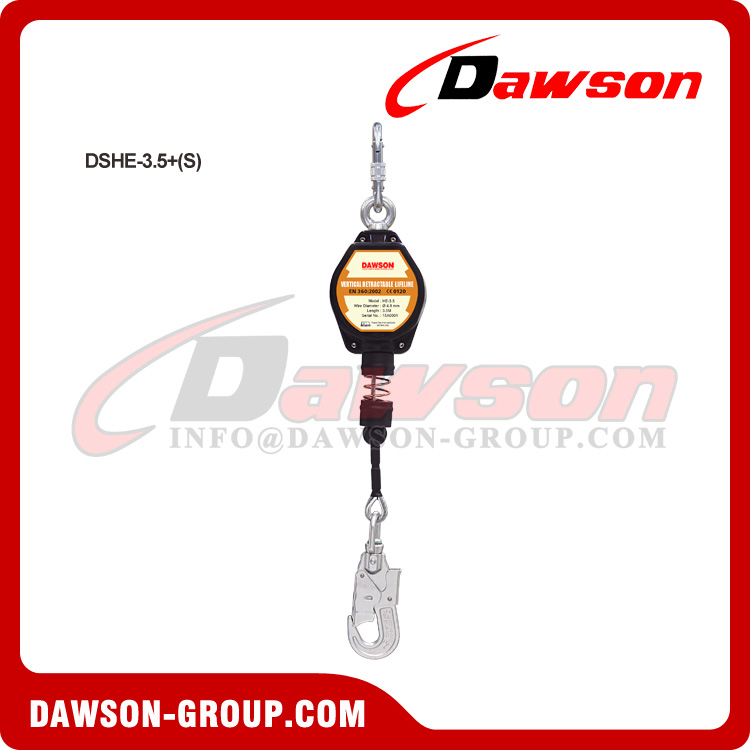

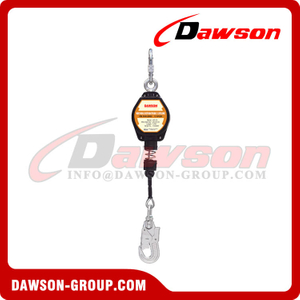

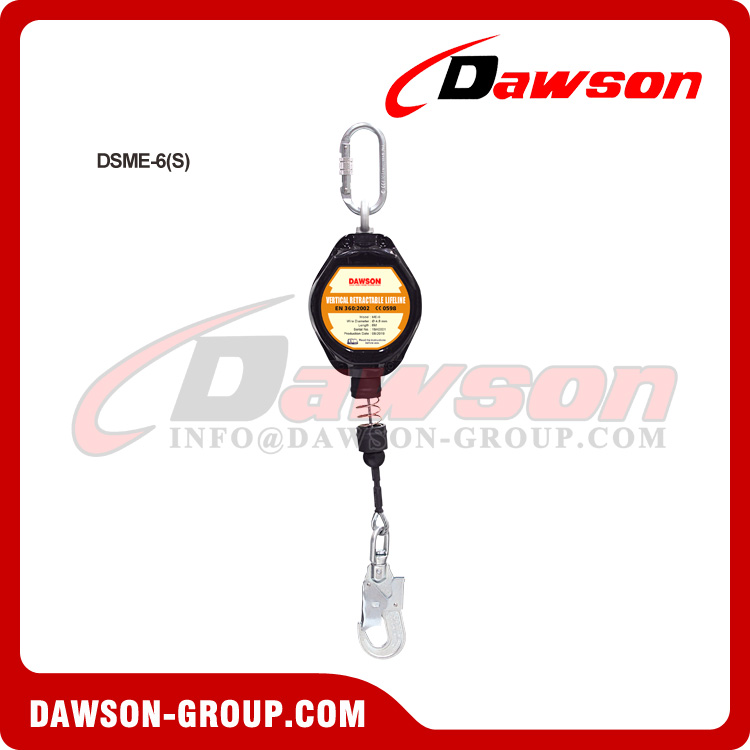

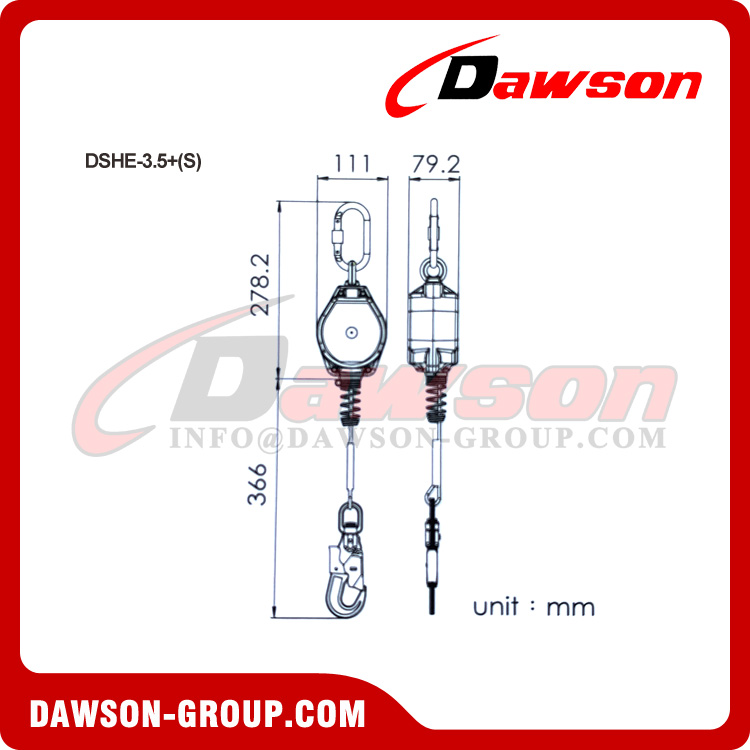

DSHE-2.5(S) Retractable Lifeline, Self Retracting Lifeline





Feature Model	DSHE-2.5(S)	DSHE-3(S)	DSHE-3.5(S)	DSME-4(S)	DSME-4.5(S)	DSME-5(S)	DSME-6(S)
	EN360 140KG 12KN
	EN362			EN362
	2.5M	3M	3.5M	4M	4.5M	5M	6M
	NO			NO
	ANSI Z359.12 CSA Z259.12			ANSI Z359.12 CSA Z259.12
	8’	10’	N/A	13’	15’	17’	20’
	Nylon / Galvanize /φ4.8mm			Aluminum / Galvanize / Stainless(S)/φ4.8mm
	2			2
	2kg	2kg	2.1kg	2.8kg	2.8kg	2.8kg	2.9kg

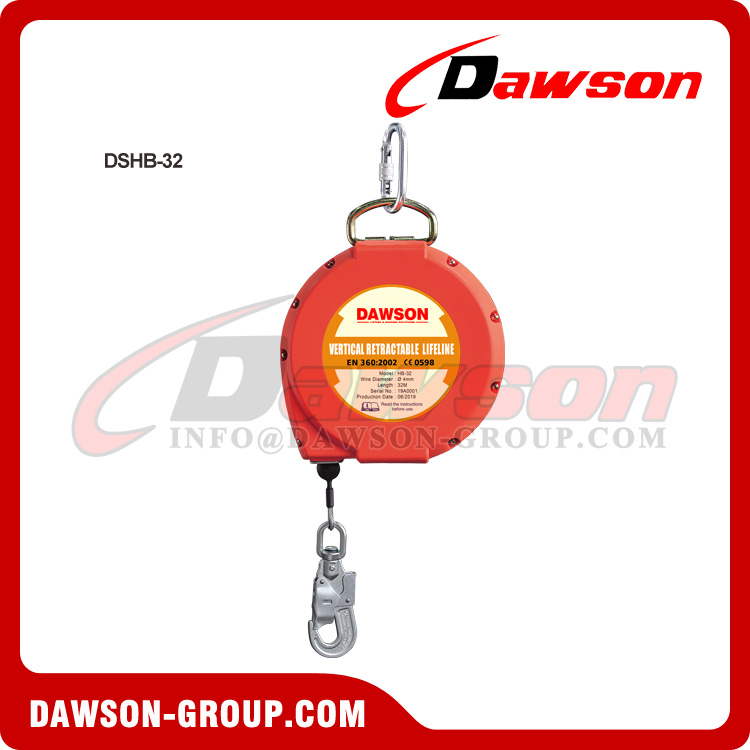

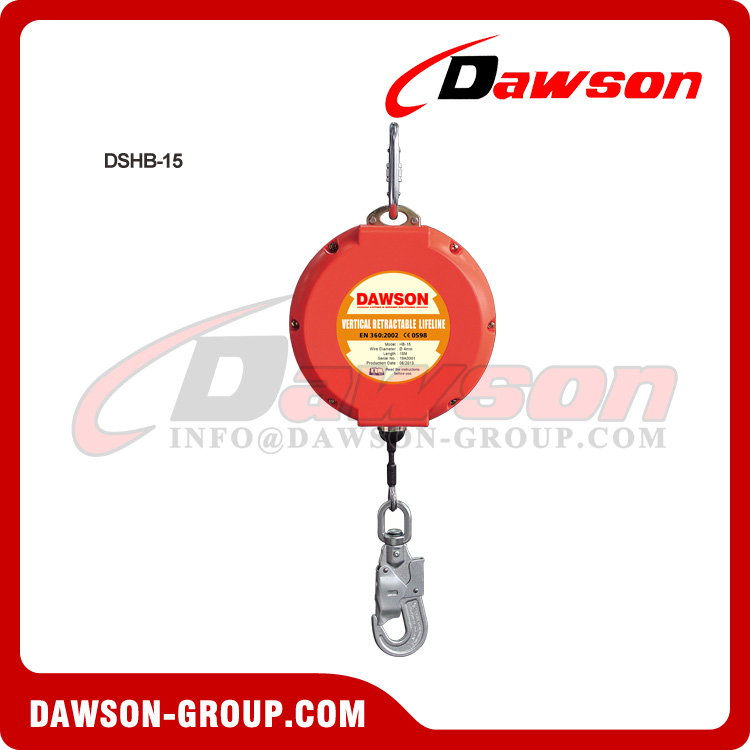

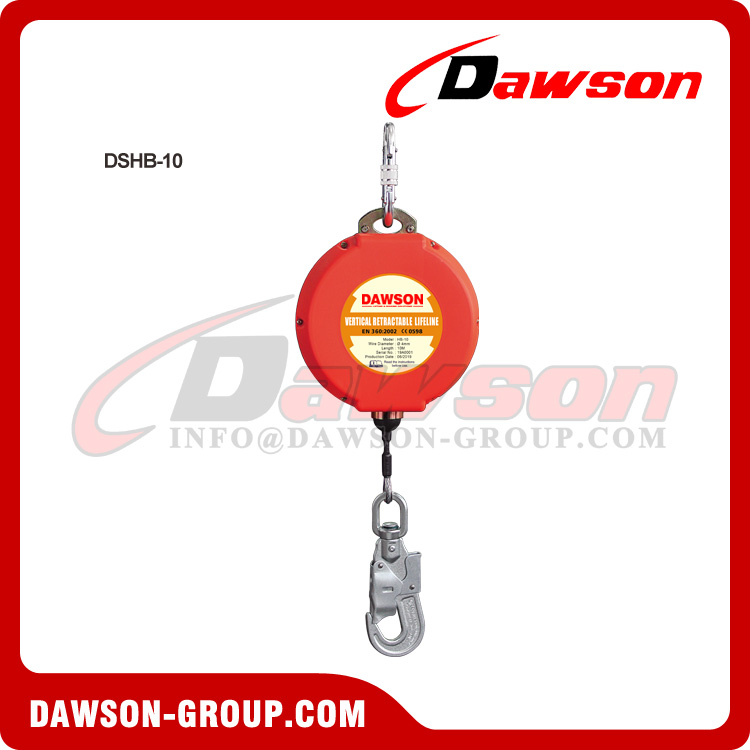

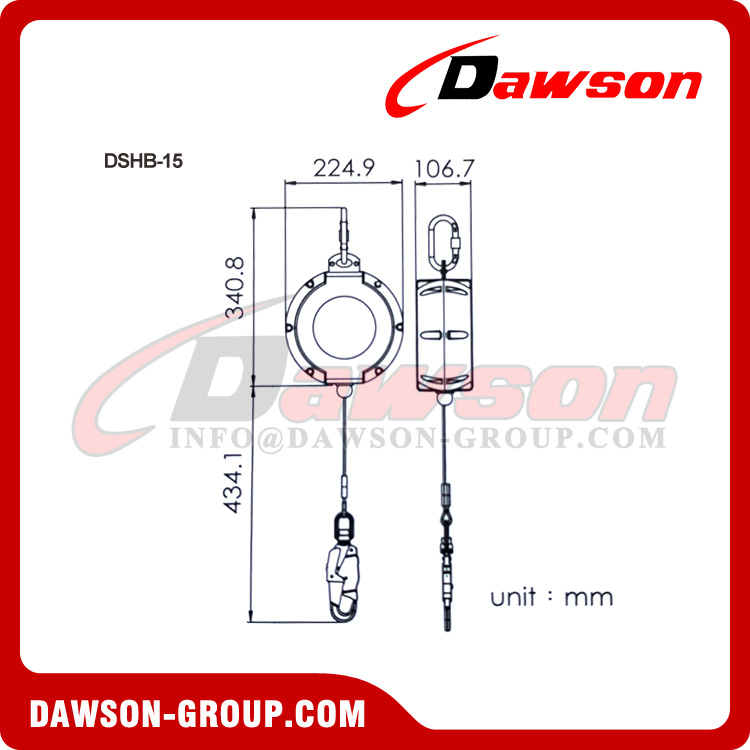

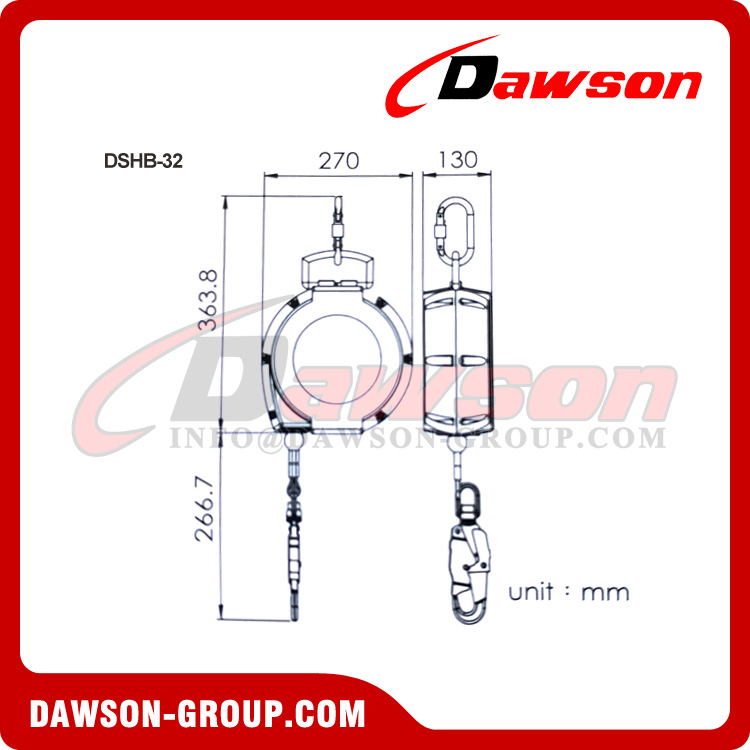

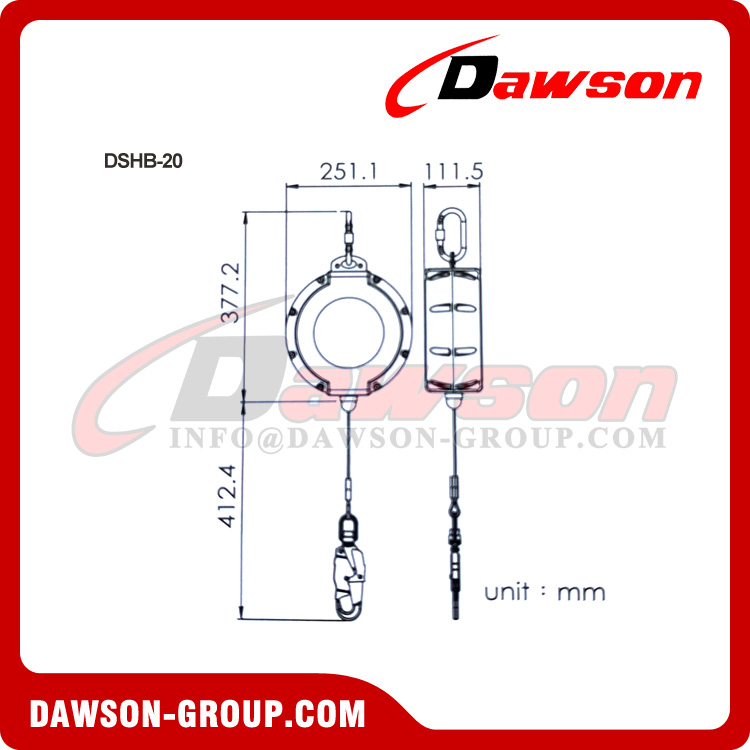

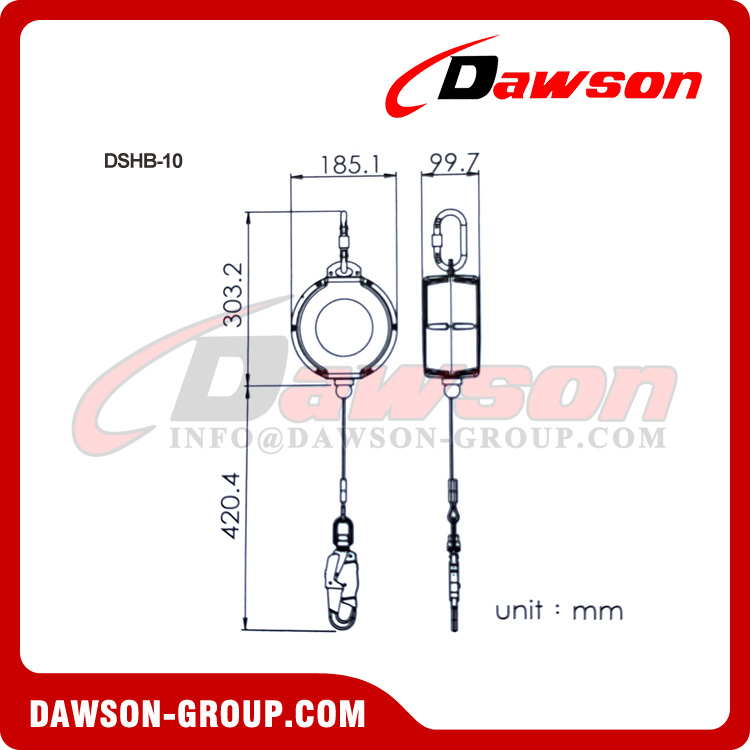

DSHB-6 Safety Lifeline, Wire Rope Retractable lifeline









The retractable system helps individual to protect against falls work

Retractable Lifeline
Model:DSHB-6DSHB-10DSHB-12DSHB-15DSHB-20DSHB-25DSHB-30DSHB-32

Model Feature	DSHB-6	DSHB-10	DSHB-12	DSHB-15	DSHB-20	DSHB-25	DSHB-30	DSHB-32
	EN360 100KG 12KN
	EN362		EN362		EN362	EN362
	6M	10M	12M	15M	20M	25M	30M	32M
	Nylon / Galvanize /φ4.0mm
	1		1		1	1
	4.8kg	5.3kg	7kg	7.3kg	9.2kg	11.6kg	12kg	13.1kg

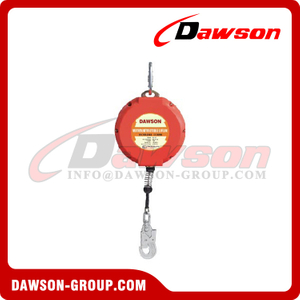

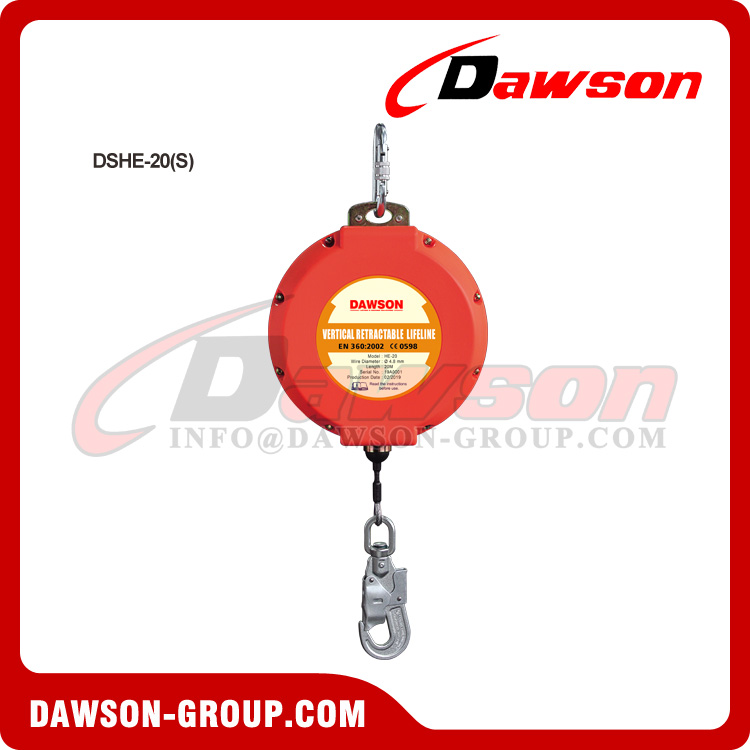

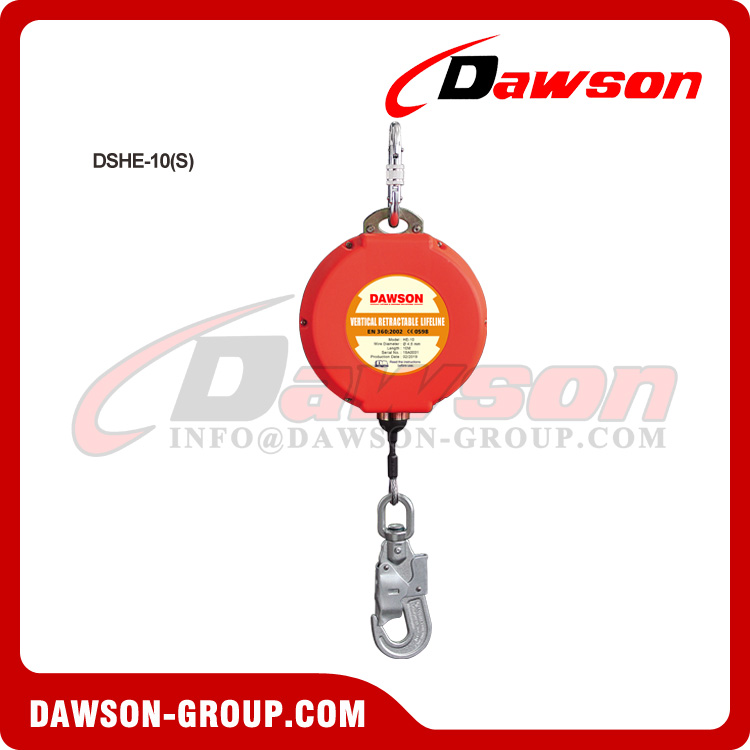

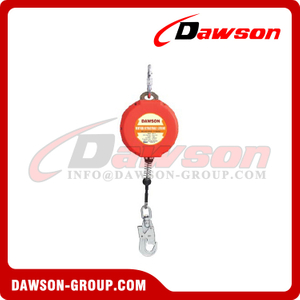

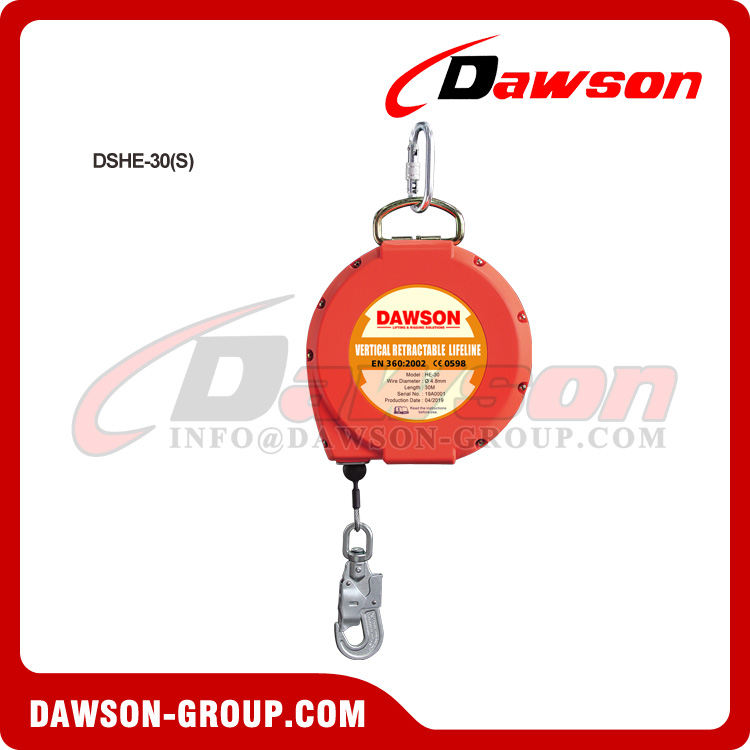

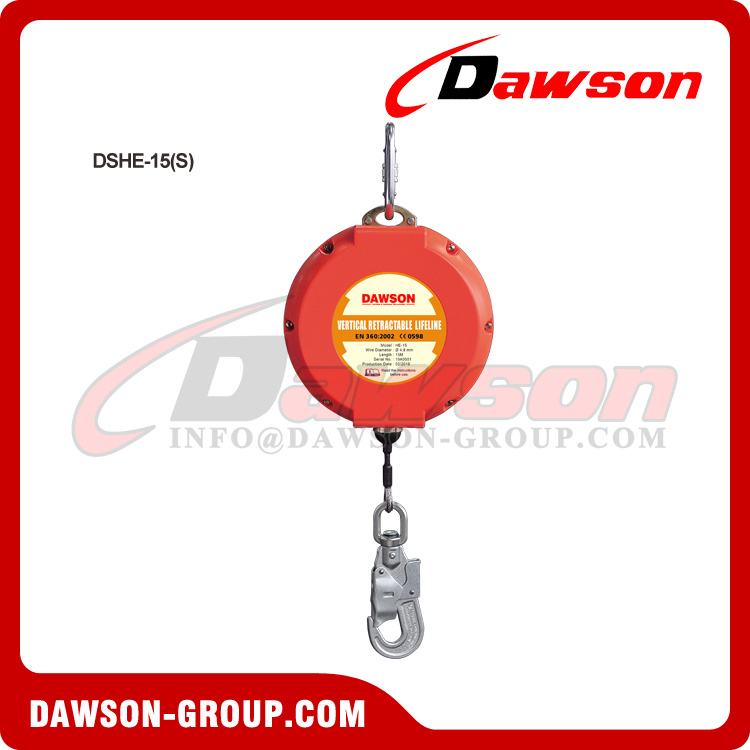

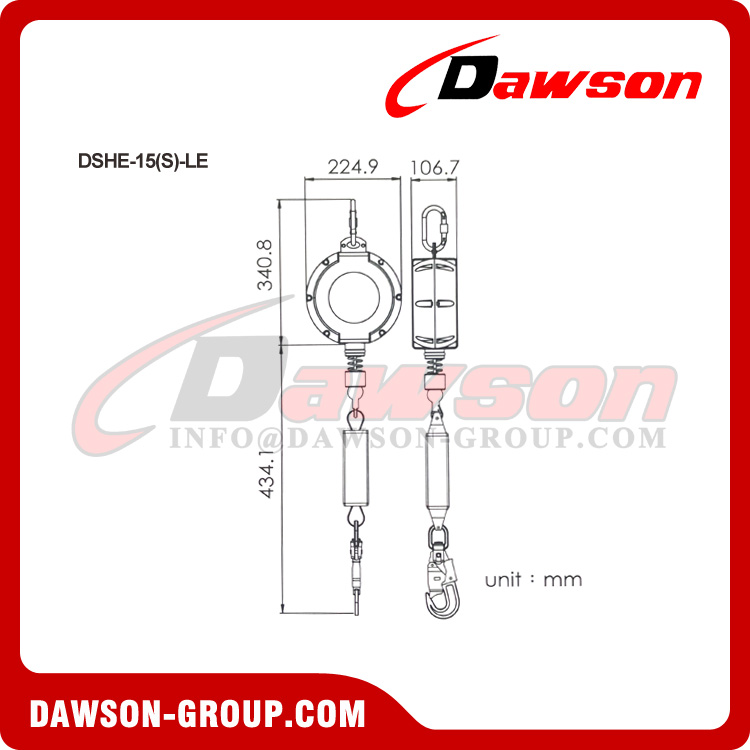

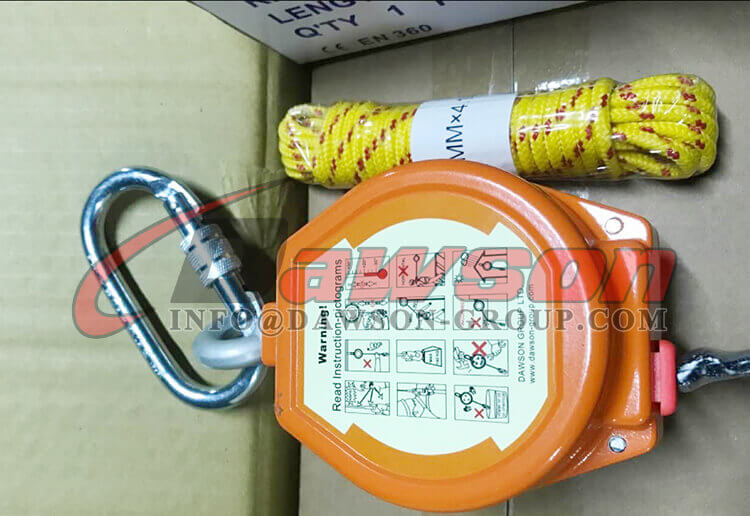

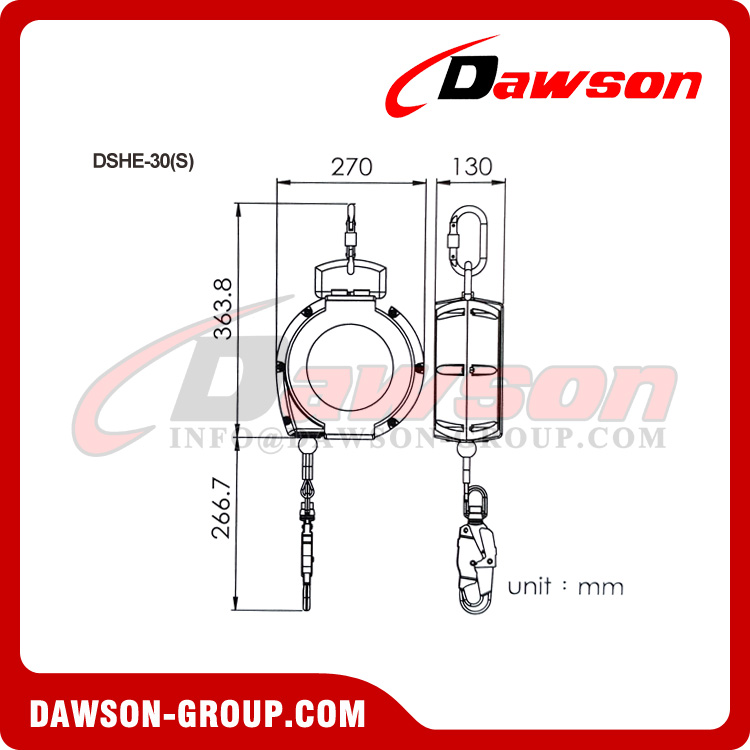

DSHE-6(S) Galvanized Wire Retractable Lifeline, Stainless Steel Self-Retracting Lifeline









Model Feature	DSHE-6(S)	DSHE-10(S)	DSHE-12(S)	DSHE-15(S)	DSHE-20(S)	DSHE-25(S)	DSHE-30(S)
	EN360 140KG 12KN
	EN362		EN362		EN362	EN362
	6M	10M	12M	15M	20M	25M	30M
	Nylon / Galvanize /Stainless /φ4.8mm
	1		1		1	1
	4.8kg	5.3kg	7kg	7.2kg	9.2kg	11.6kg	12kg

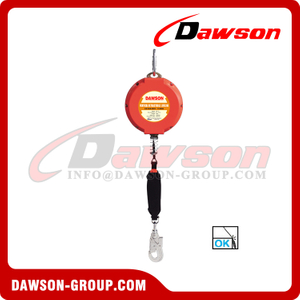

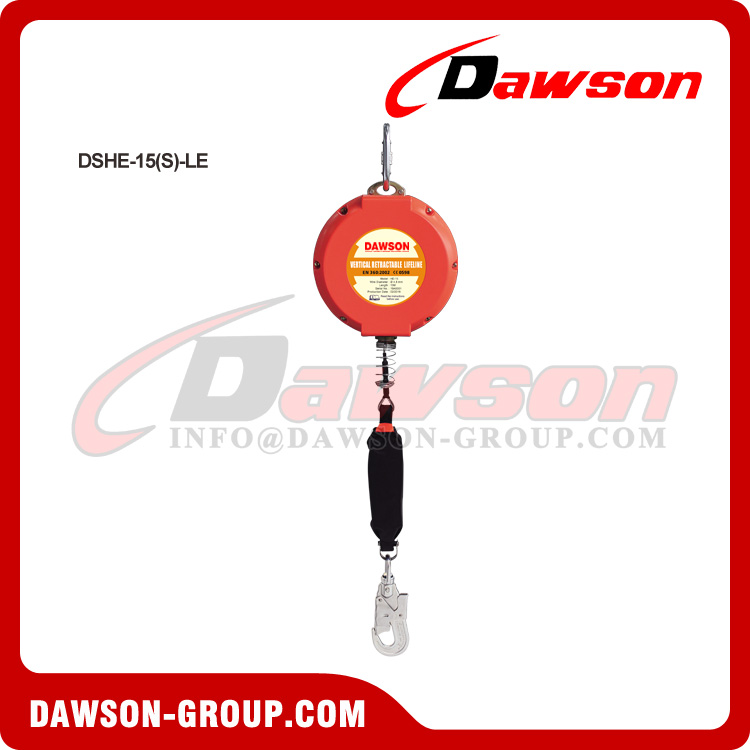

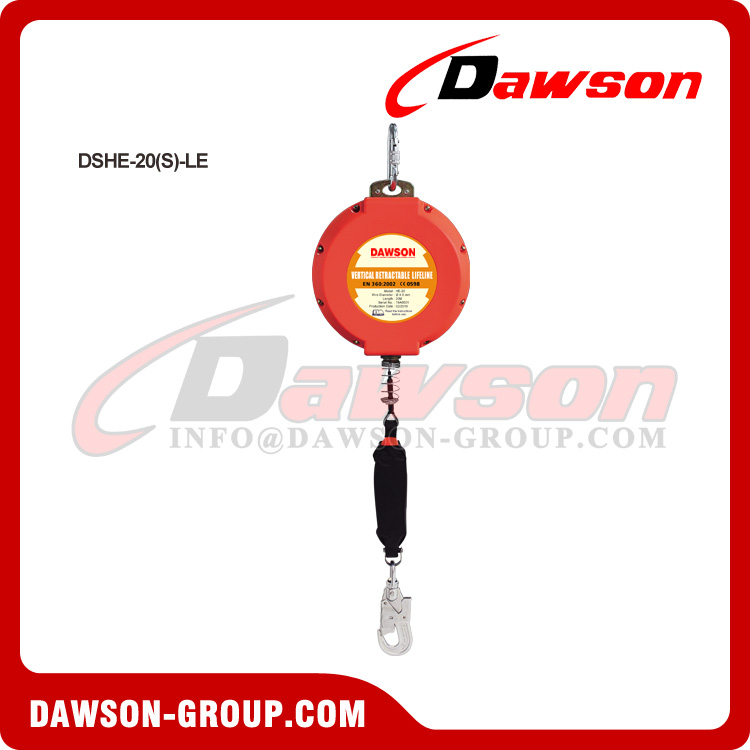

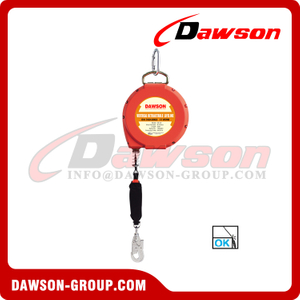

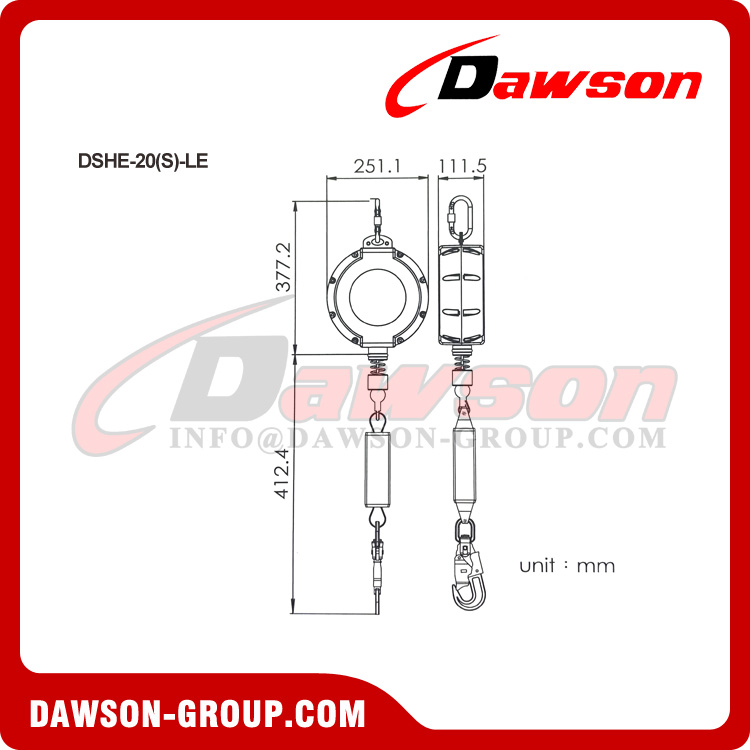

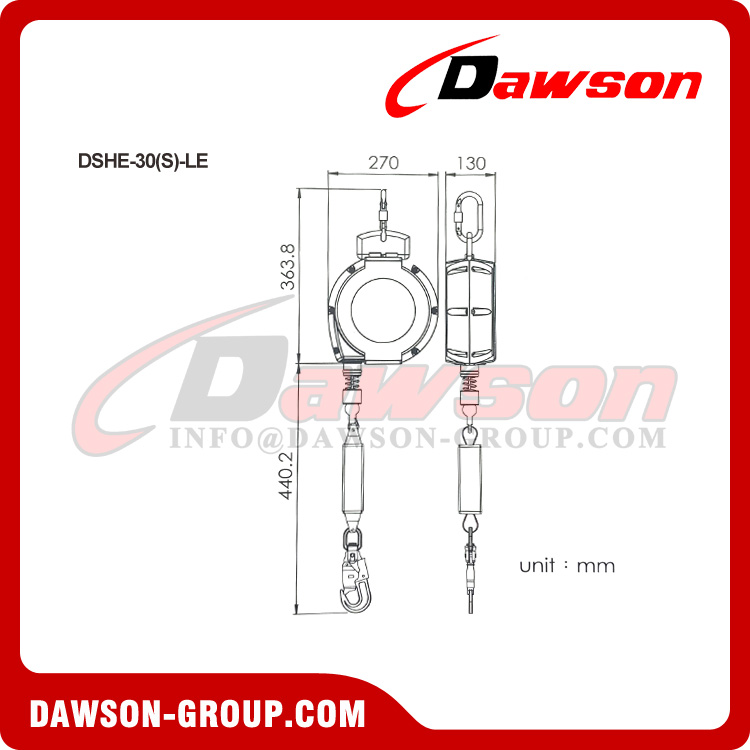

DSHE-6(S)-LE Galvanized Wire Safety Self-Retracting Lifeline, Cable Retractable Lifeline









Standard: EN360

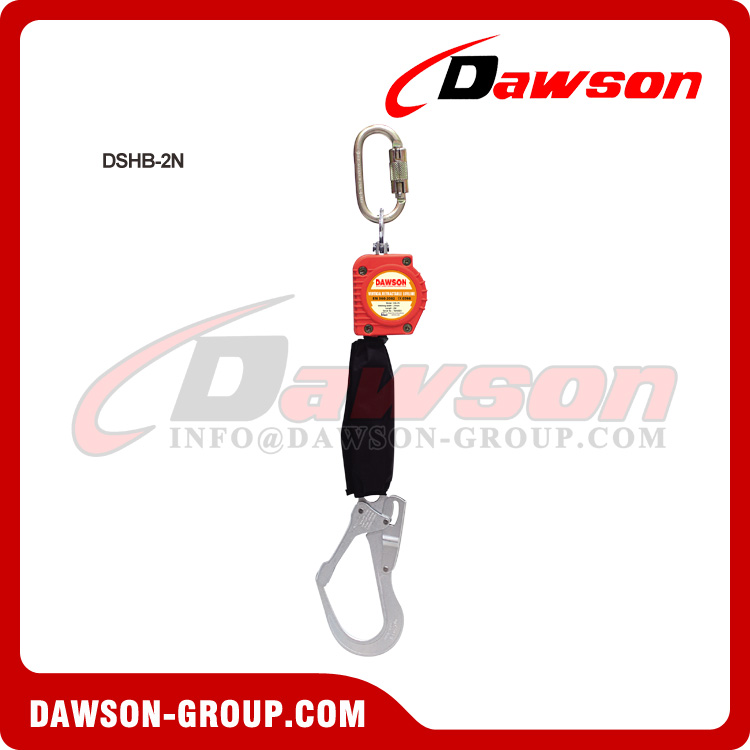

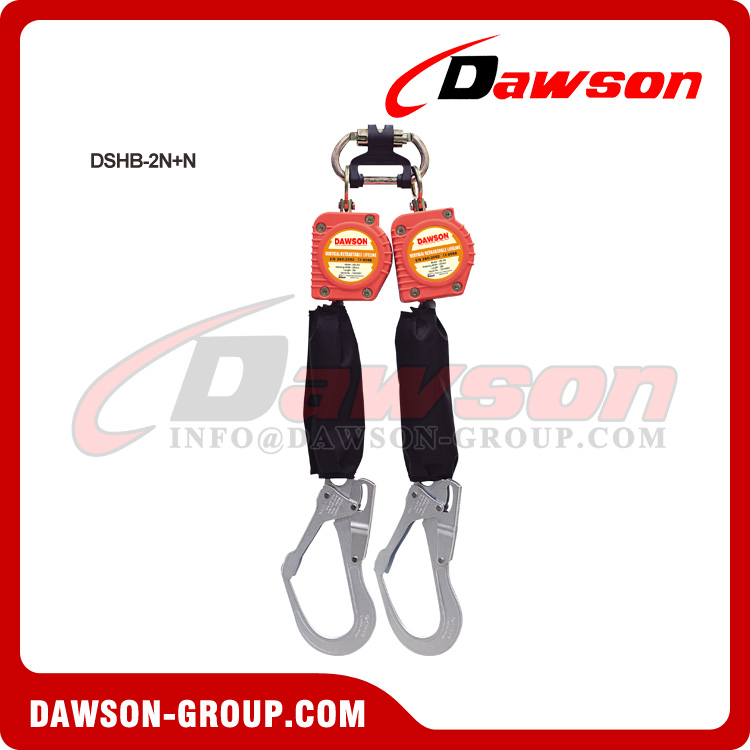

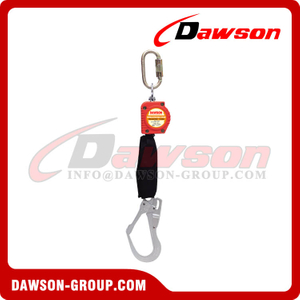

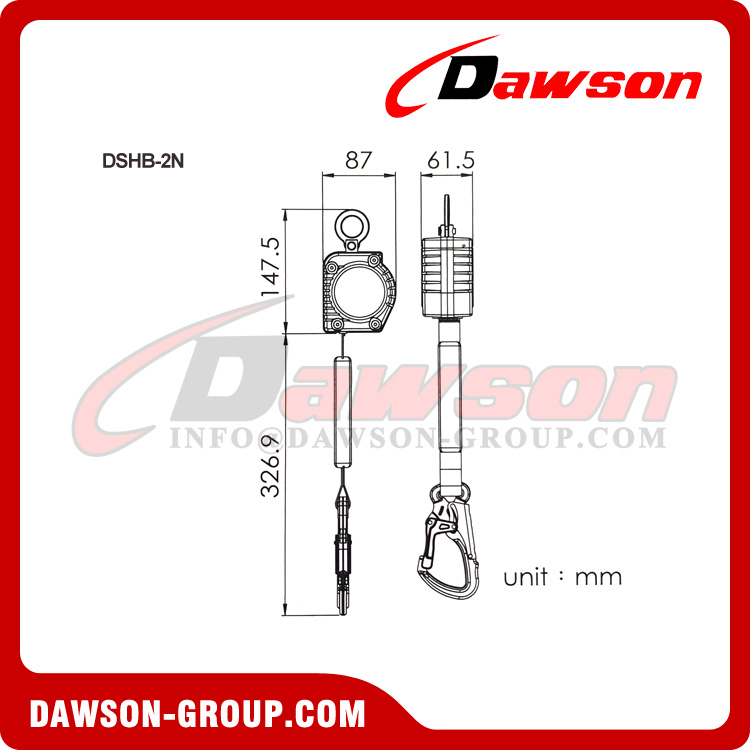

DSHB-1.5N Webbing Retractable Lifeline, Web Self Retracting Lifeline







Model Feature	DSHB-1.5N	DSHB-1.8N	DSHB-2N	DSHB-1.5N+N	DSHB-1.8N+N	DSHB-2N+N
	EN360  100KG 15KN
	YES			YES
	NO			NO
	EN362			EN362
	1.5M	1.8M	2M	1.5M	1.8M	2M
	Z359.14 128KG 13.3kN Class A
	ANSI Z359.12 CSA Z259.12			ANSI Z359.12 CSA Z259.12
	5’	6’	N/A	5’	6’	N/A
	Nylon /Webbing / 25mm			Nylon /Webbing / 25mm
	1			1
	1.3kg	1.3kg	1.3kg	2.4kg	2.4kg	2.4kg

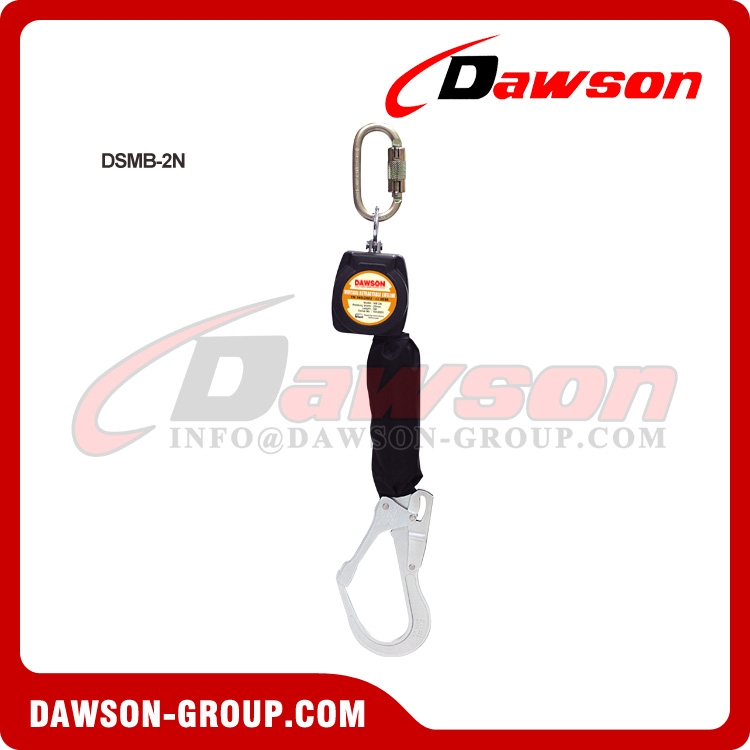

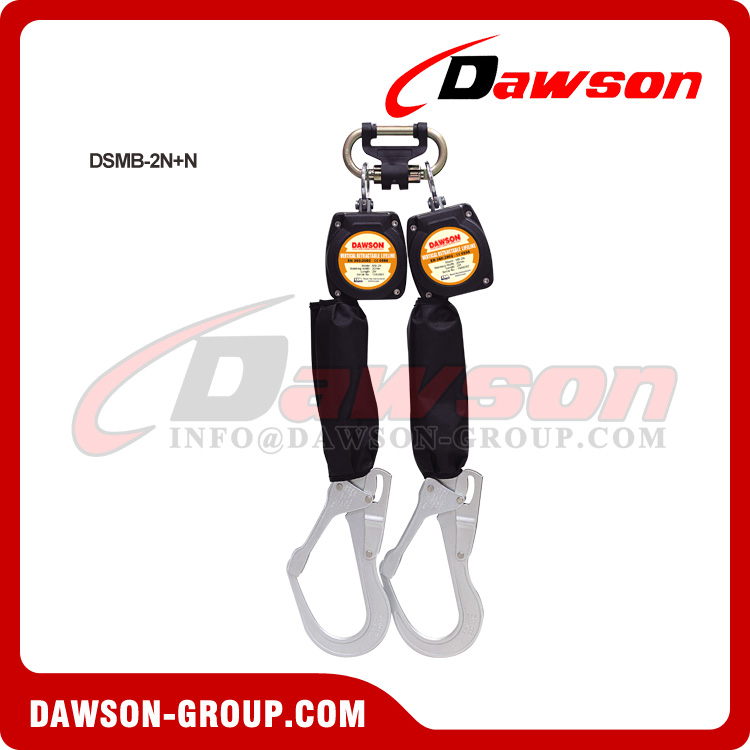

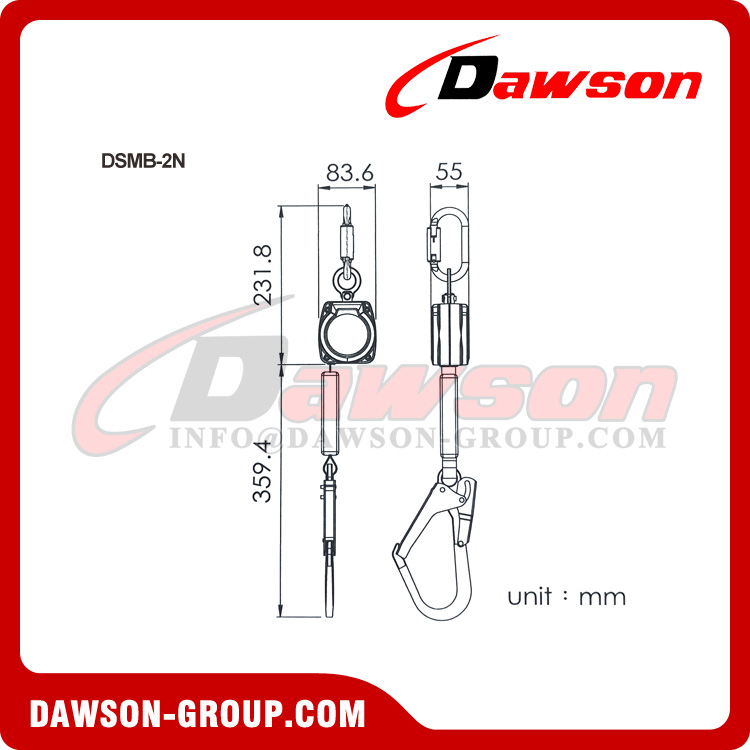

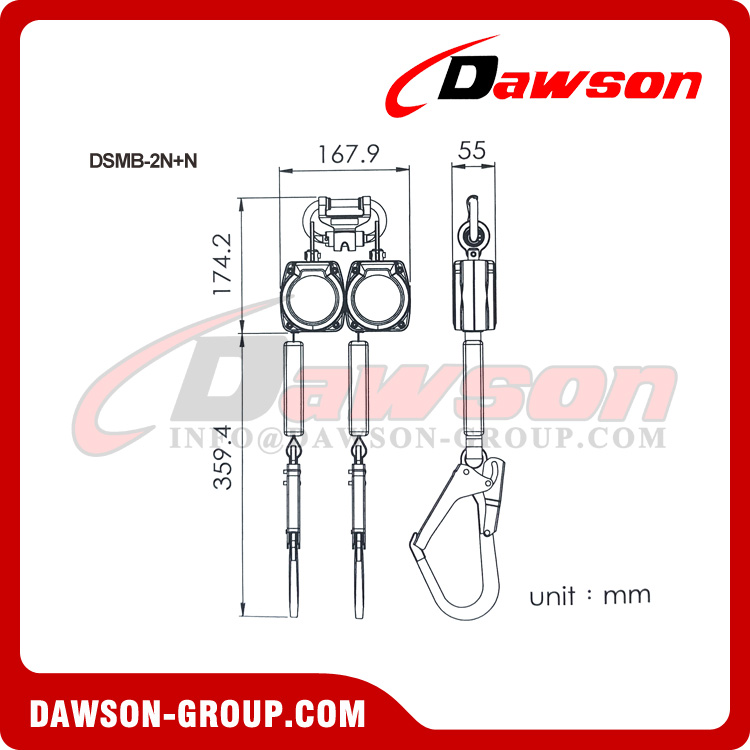

DSMB-1.5N Fall Protection Retractable Lifeline, Safety System.





Model Feature	DSMB-1.5N	DSMB-1.8N	DSMB-2N	DSMB-1.5N+N	DSMB-1.8N+N	DSMB-2N+N
	EN360 100KG 15KN
	YES			YES
	NO			NO
	EN 362			EN 362
	1.5M	1.8M	2M	1.5M	1.8M	2M
	Z359.14 128KG 13.3kN Class A
	3’ Below D-ring
	ANSI Z359.12 CSA Z259.12			ANSI Z359.12 CSA Z259.12
	5’	6’	N/A	5’	6’	N/A
	Nylon /Webbing / 20mm			Nylon /Webbing / 20mm
	1			1
	1.2kg	1.2kg	1.2kg	2.3kg	2.3kg	2.3kg

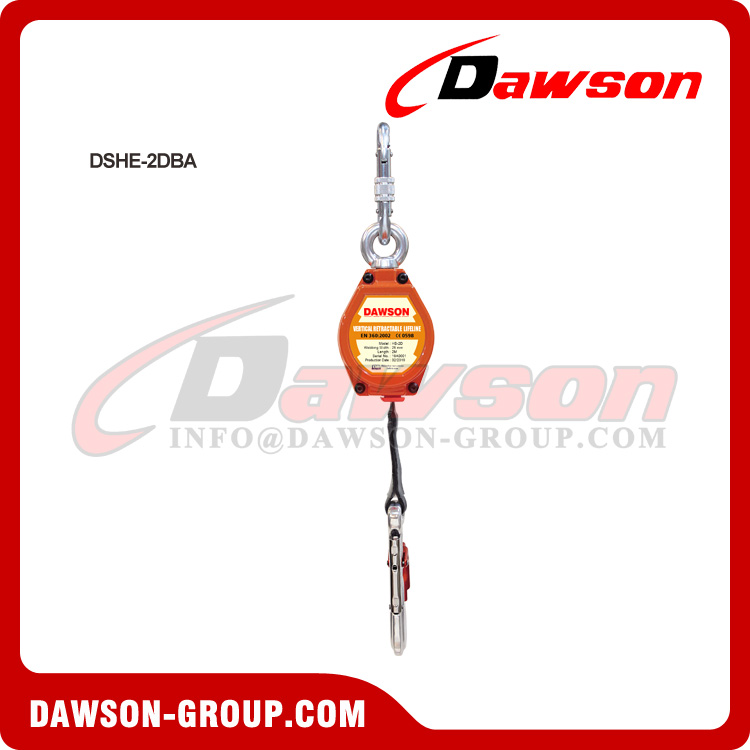

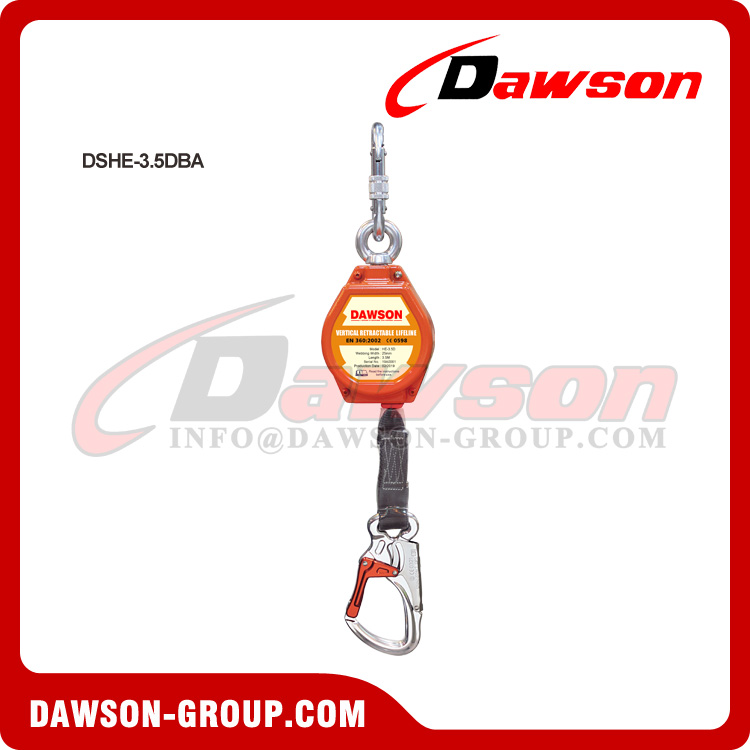

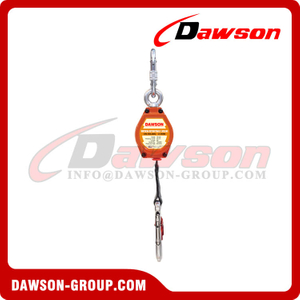

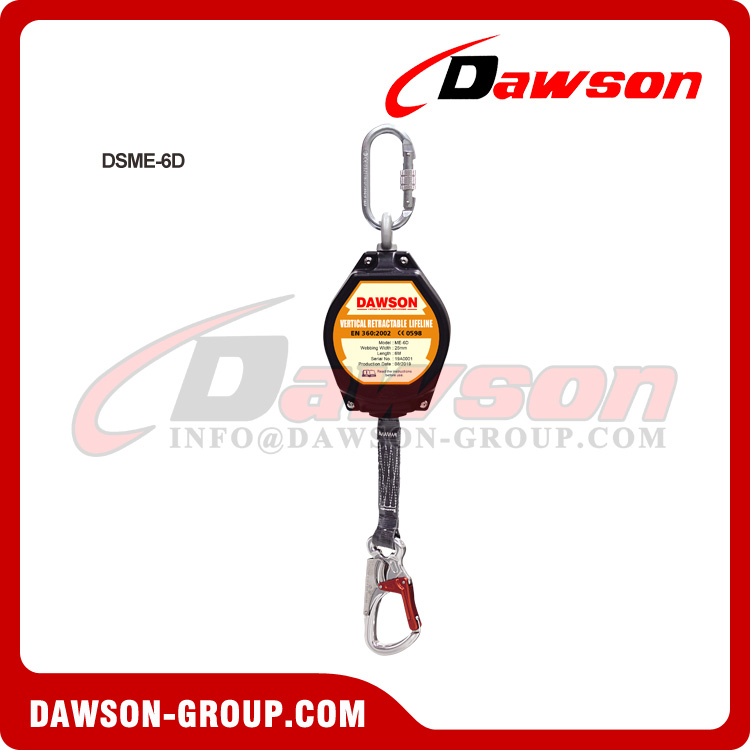

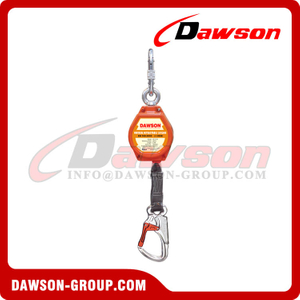

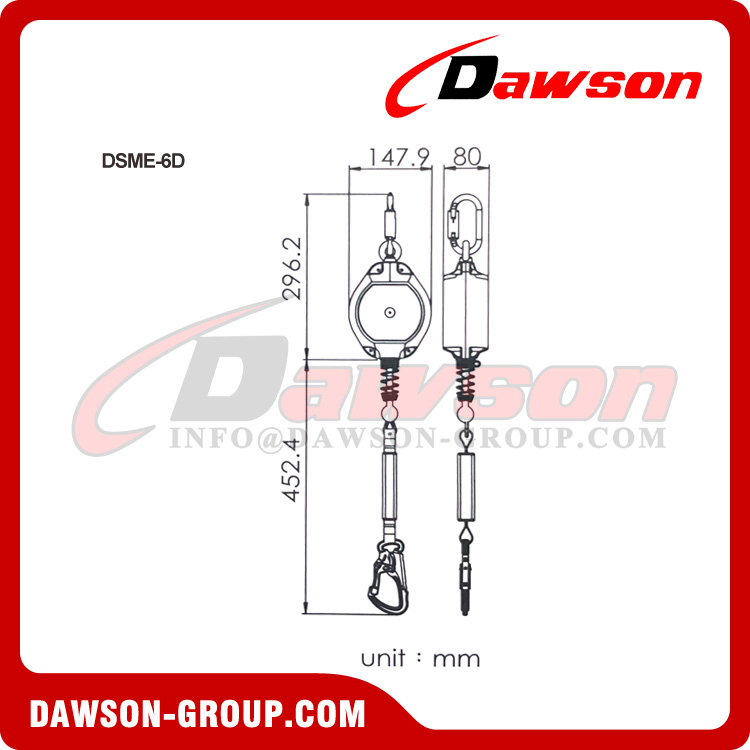

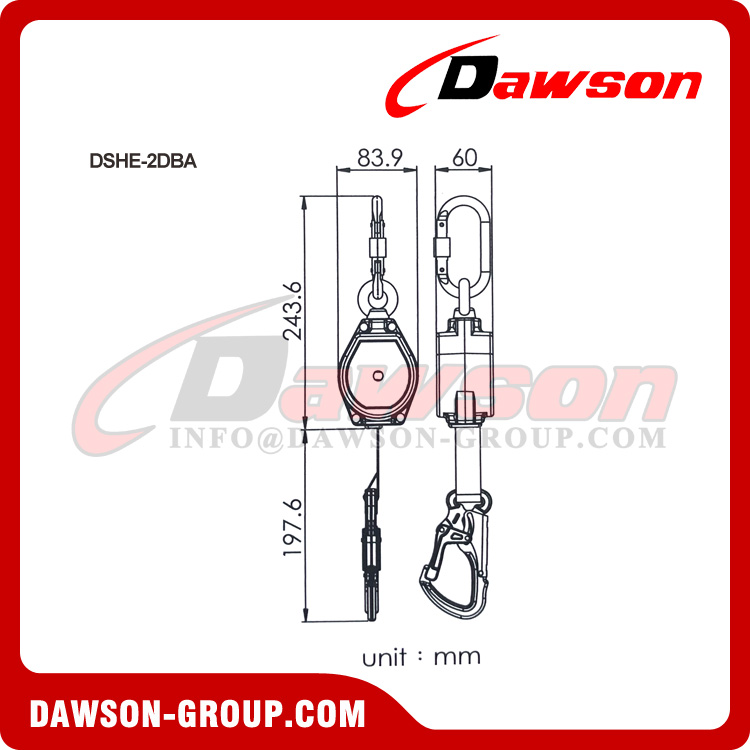

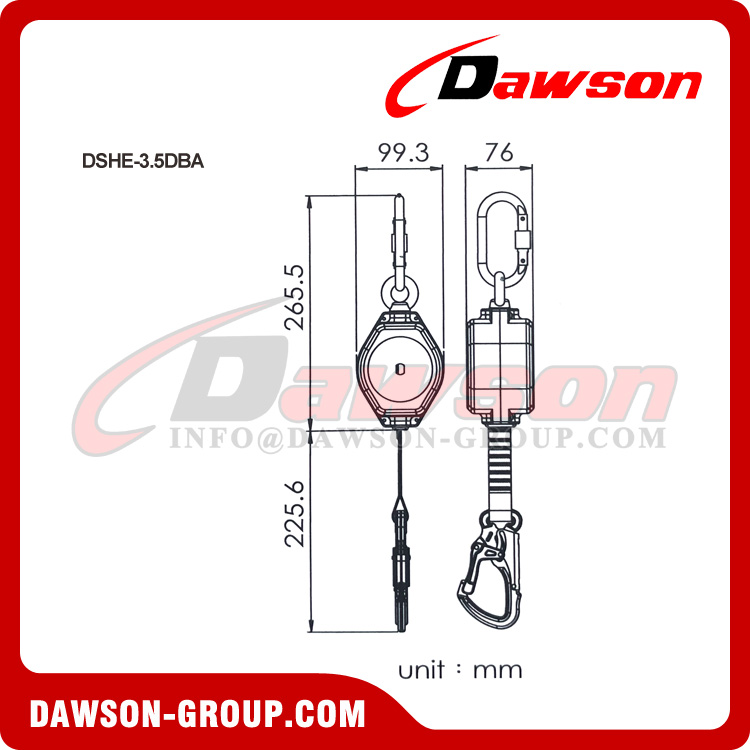

DSHE-1.5 Vertical Retractable Lifeline with Steel Large Snap Hook







Model Feature	D/B/A		D/B/A			DSME-4D	DSME-4.5D	DSME-5D	DSME-5.5D	DSME-6D
	DSHE-1.5	DSHE-2	DSHE-2.5	DSHE-3	DSHE-3.5
	EN360 140KG 15KN
	NO		NO			NO
	EN362		EN362			EN362
	1.5M	2M	2.5M	3M	3.5M	4M	4.5M	5M	5.5M	6M
	NO		Z359.14 128KG 13.3kN Class B			NO
	ANSI Z359.12 CSA Z259.12		ANSI Z359.12 CSA Z259.12			ANSI Z359.12 CSA Z259.12
	5’	6’	8’	10’	11’	13’	15’	17’	18’	20’
	Aluminum /Webbing / 25mm
	1		1			1
	D/B/A		D/B/A			2.1kg	2.1kg	2.1kg	2.1kg	2.1kg
	1.2kg/1.5kg/1.4kg		1.5kg/2kg/1.9kg

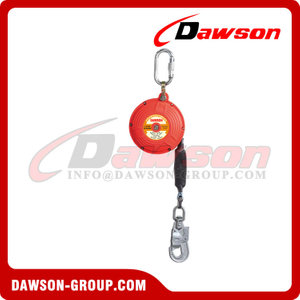

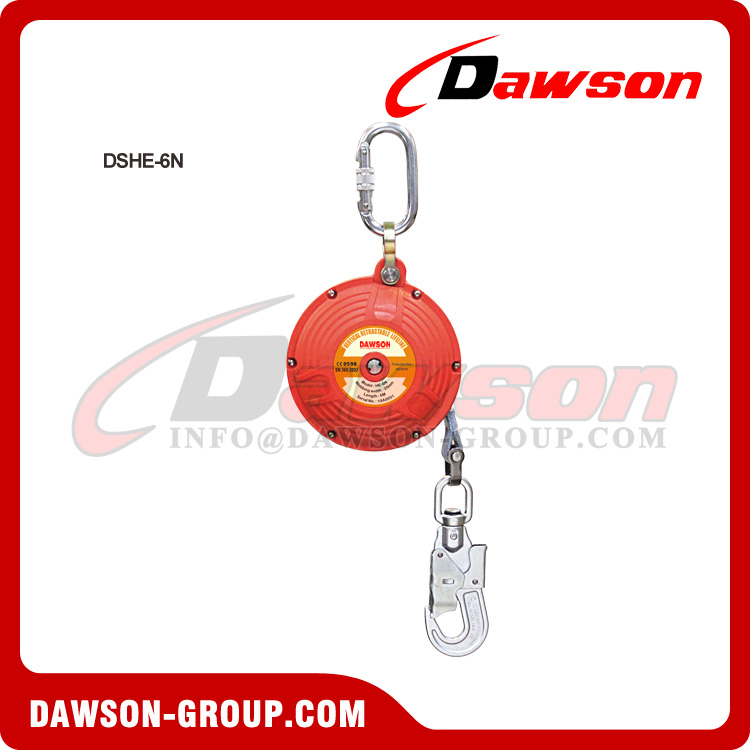

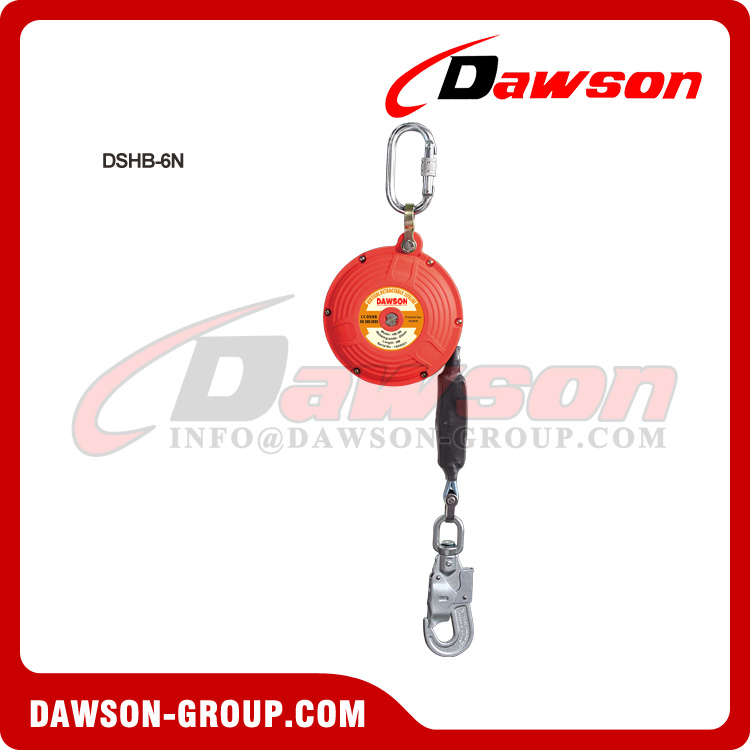

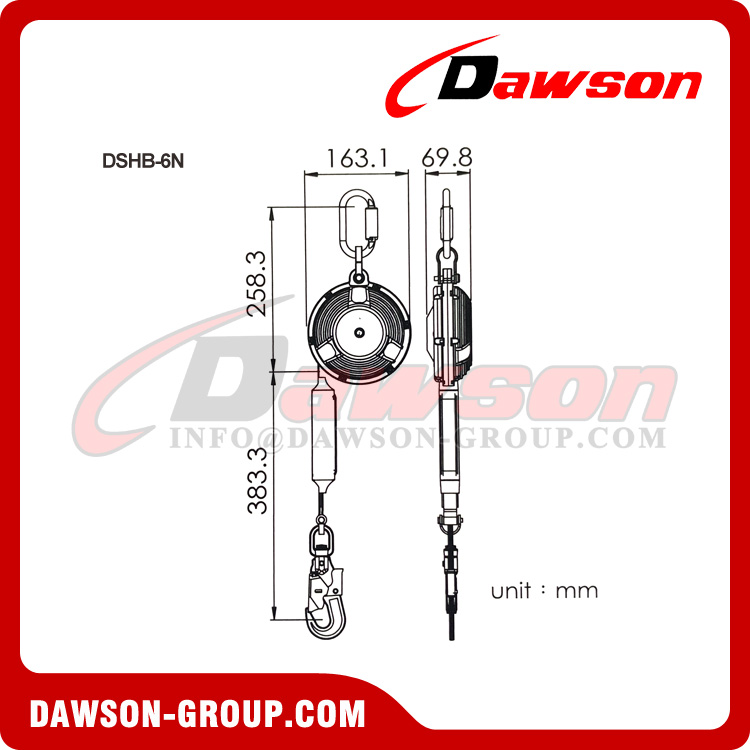

DSHB-5N Nylon Self Retractable Lifeline, Webbing Retracting Lifeline




The retractable system helps individual to protect against falls work

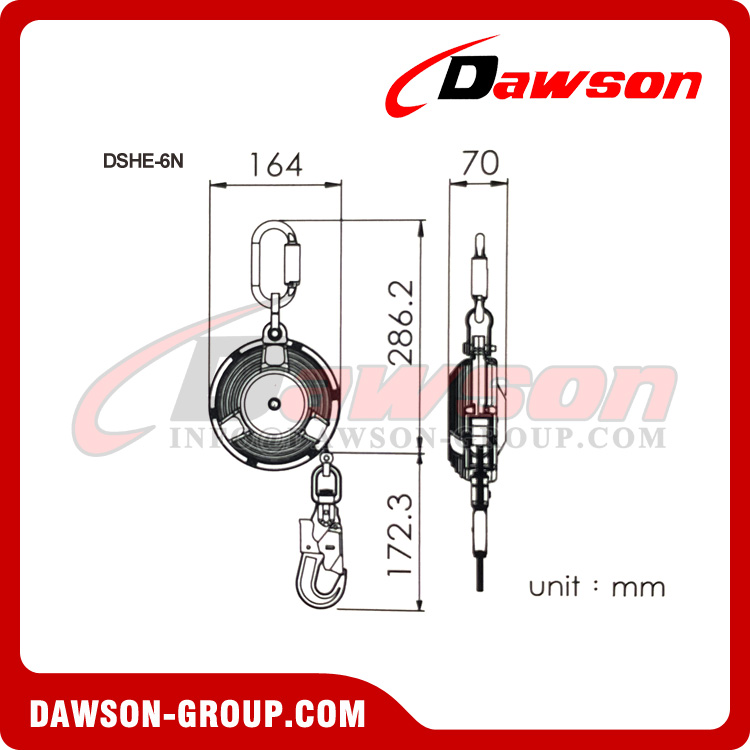

Model Feature	DSHB-5N	DSHB-6N	DSHE-5N	DSHE-6N
	EN360 100KG 15KN		EN360 140KG 15KN
	NO		NO
	EN362		EN362
	5M	6M	5M	6M
	Nylon /Webbing / 20mm		Nylon /Webbing / 20mm
	1		1
	2kg	2kg	2kg	2kg

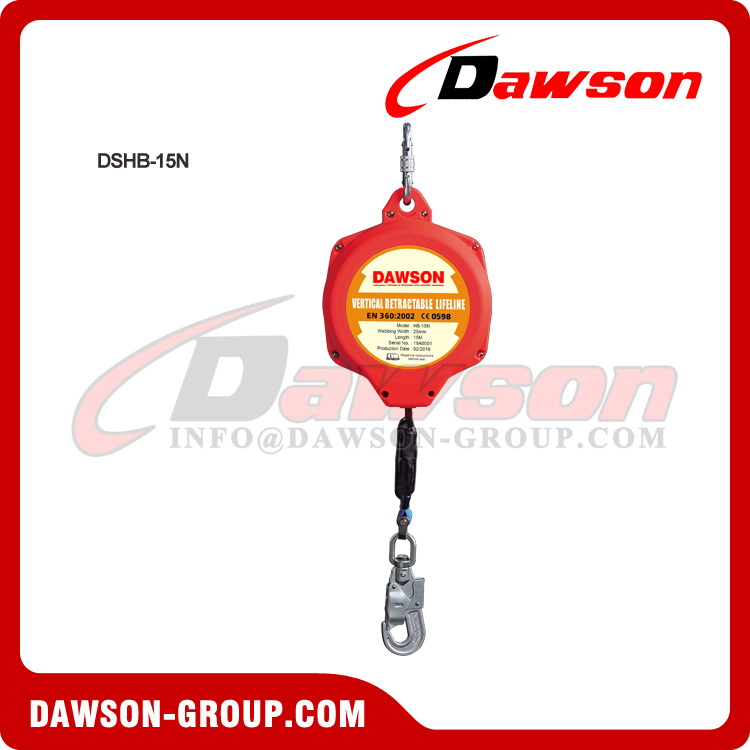

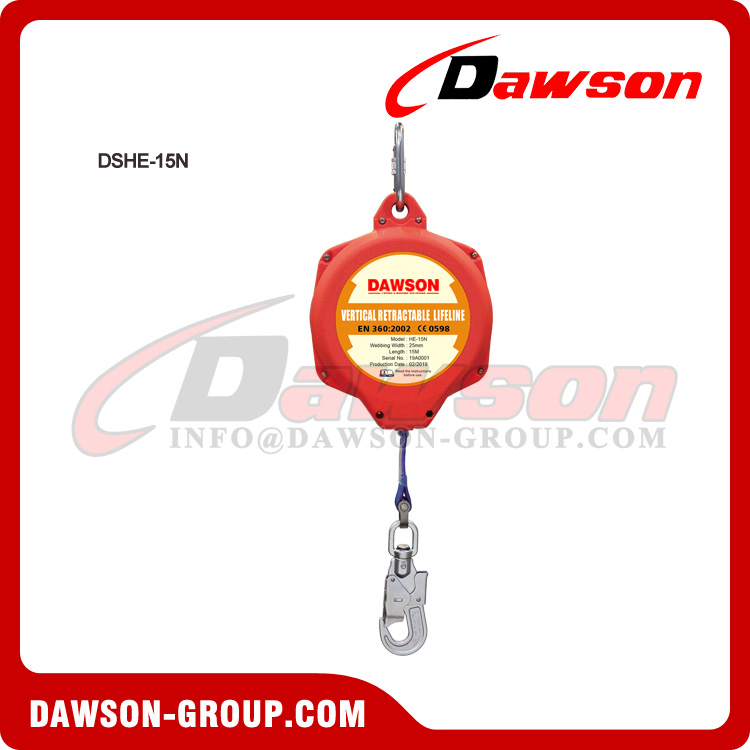

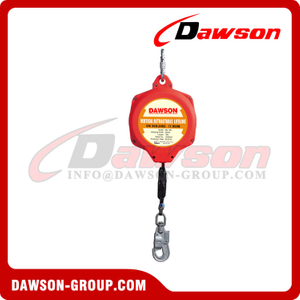

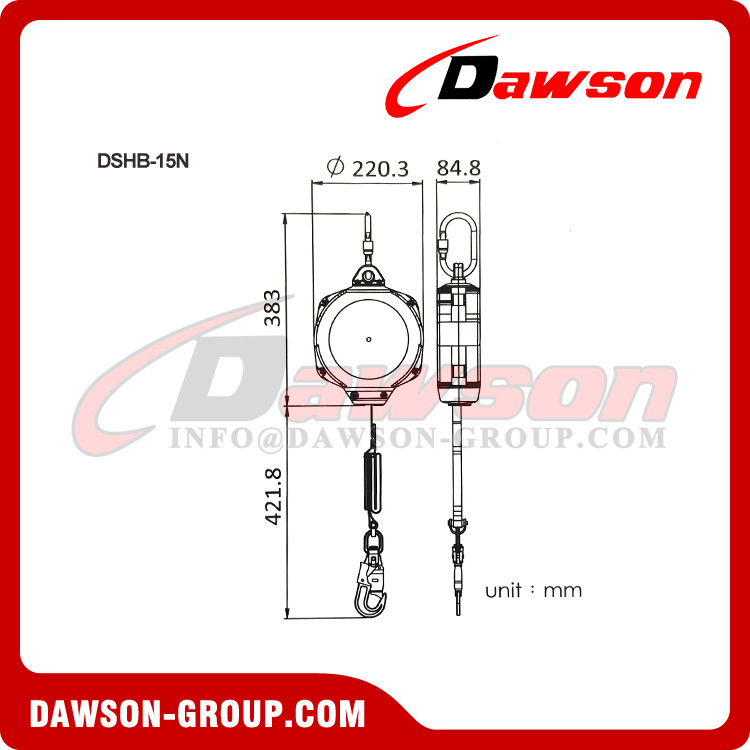

DSHB-10N Nylon Vertical Retractable Lifeline, Webbing Self-Retracting Lifeline





Model Feature	DSHB-10N	DSHB-12N	DSHB-15N	DSHE-10N	DSHE-12N	DSHE-15N
	EN360 100KG 15KN			EN360 140KG15KN
	NO			NO
	EN362			EN362
	10M	12M	15M	10M	12M	15M
	Nylon /Webbing / 25mm
	1			1
	4.9kg	4.95kg	5kg	4.85kg	4.9kg	4.95kg

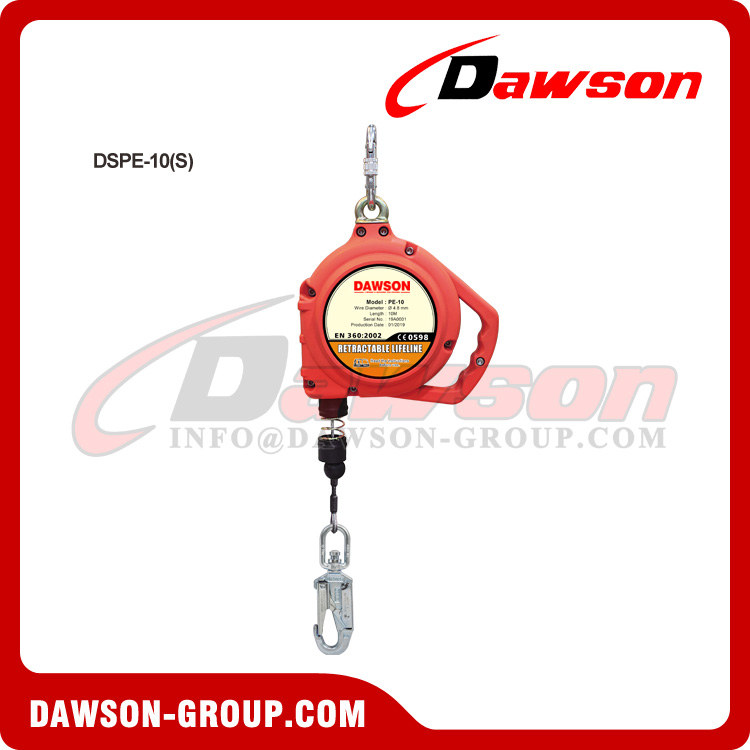

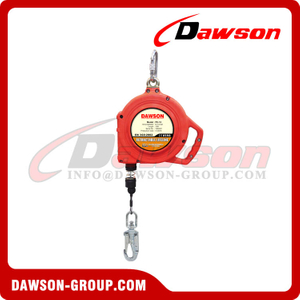

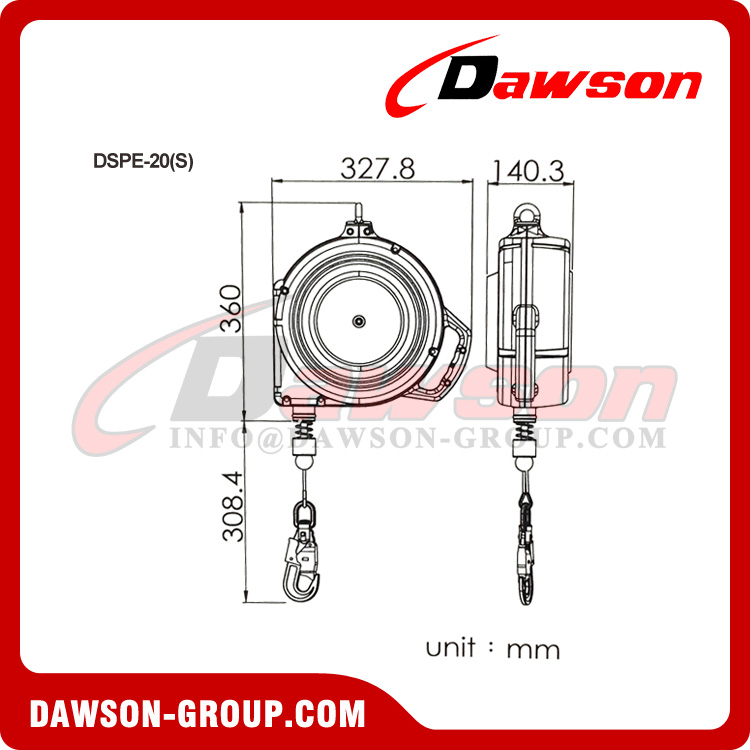

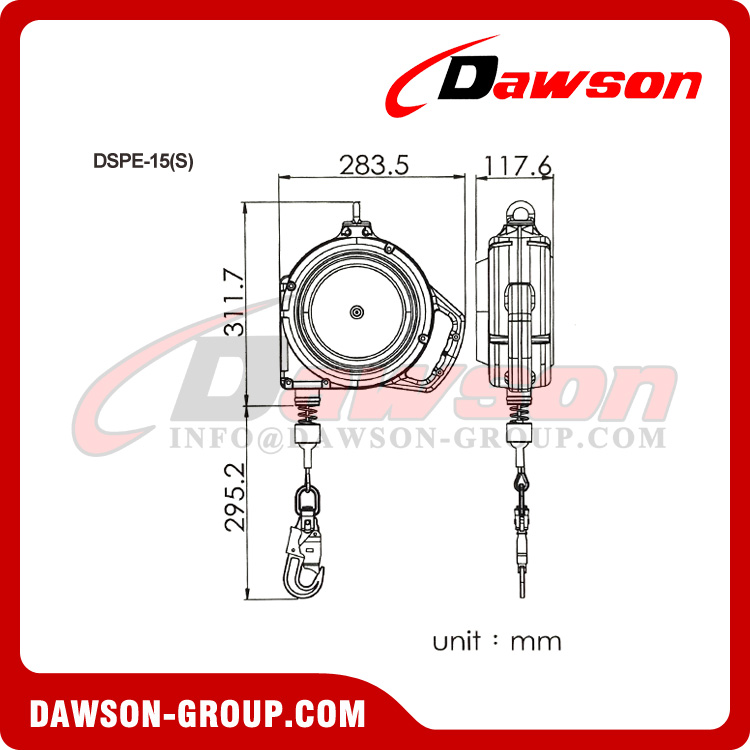

DSPE-06(S) Self-Retracting Lifeline, Safety Lifeline

Model Feature	DSPE-06(S)	DSPE-10(S)	DSPE-15(S)	DSPE-20(S)	DSPE-25(S)	DSPE-30(S)	DSPE-35(S)
	EN360 150KG 12KN
	EN362		EN362	EN362
	6M	10M	15M	20M	25M	30M	35M
	Z359.14 128KG 13.3kN Class B
	ANSI Z359.12 CSA Z259.12		ANSI Z359.12 CSA Z259.12	ANSI Z359.12 CSA Z259.12
	6M(20’)	9M(30’)	15M(50’)	21M(70’)	24M(80’)	30M(100’)	34.5M(115’)
	Nylon / Galvanize /Stainless(S) /φ4.8mm
	2		2	2
	6.3kg	6.6kg	7.8kg	10.6kg	11.3kg	12kg	13.4kg

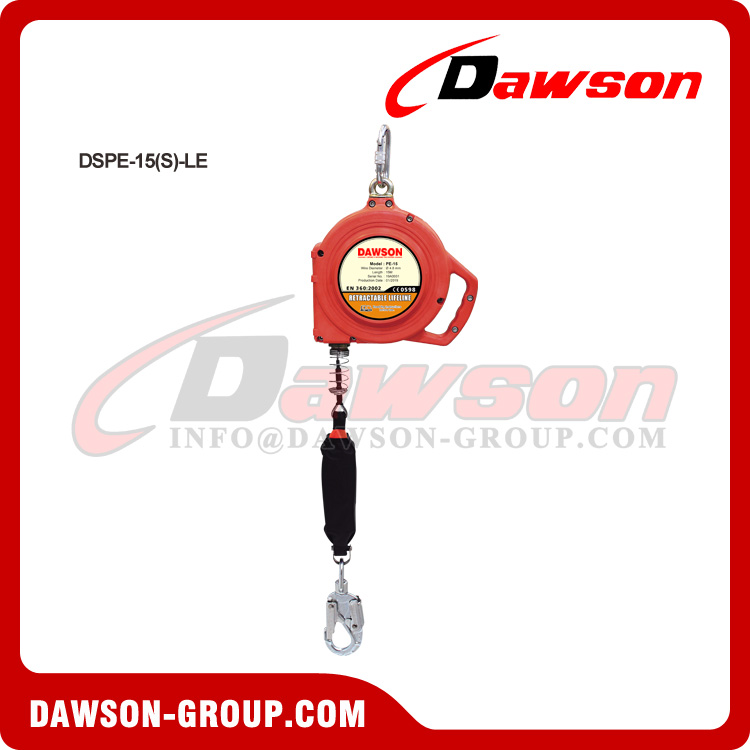

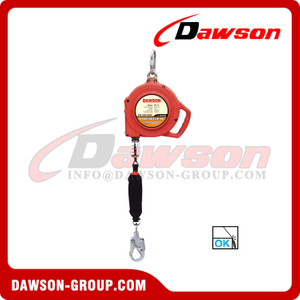

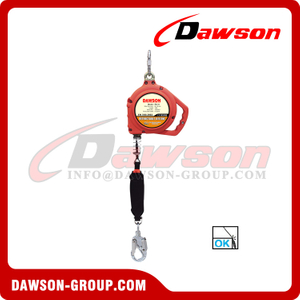

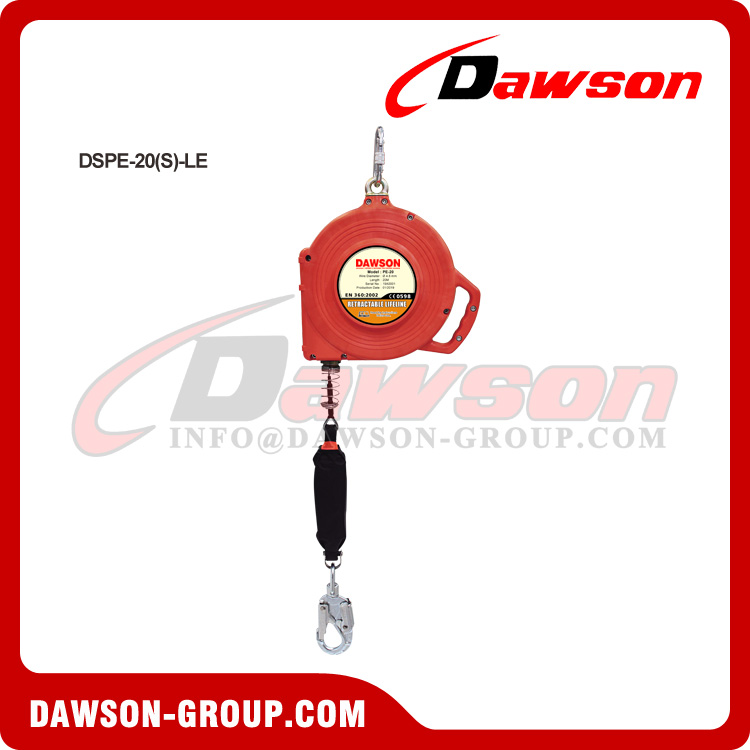

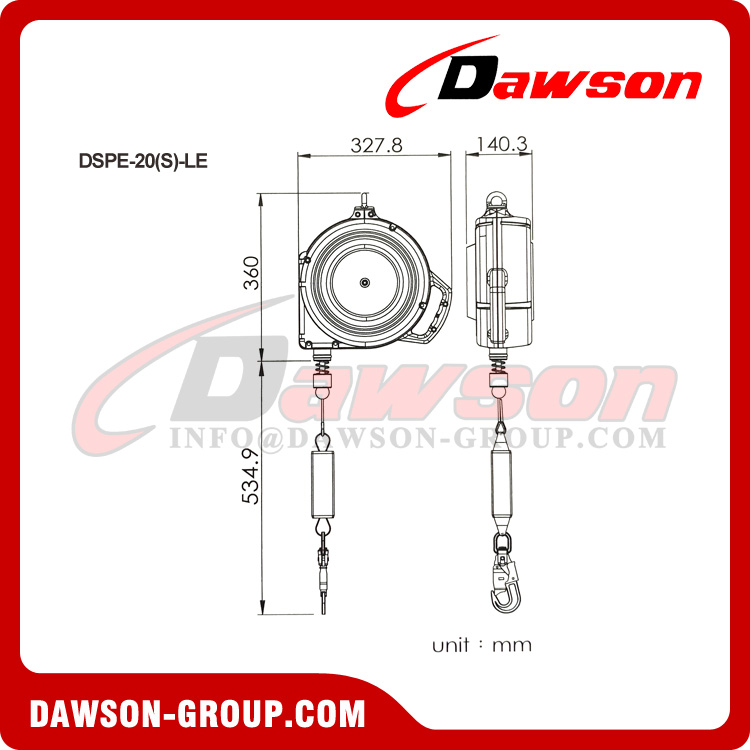

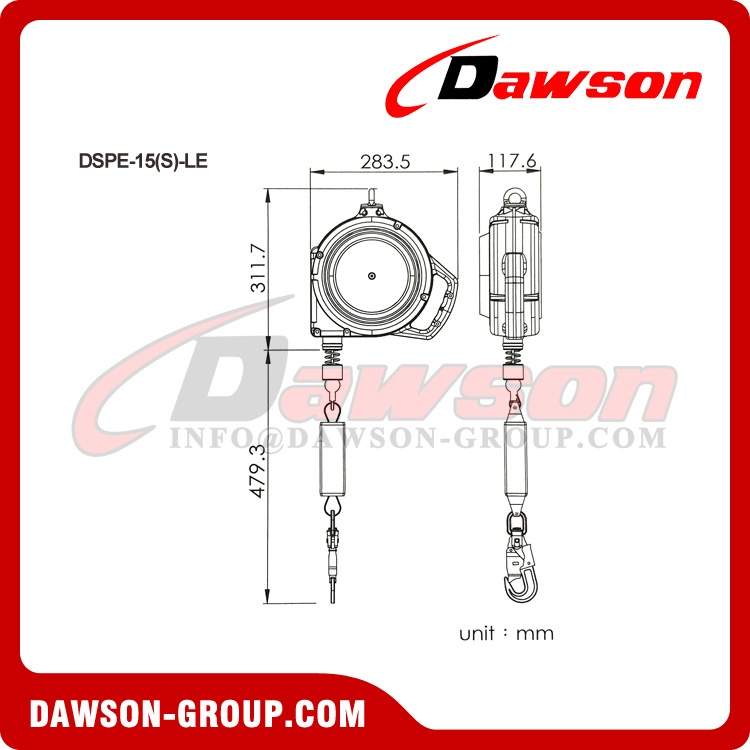

DSPE-06(S)-LE Stainless Steel Safety Self-Retracting Lifeline with Steel Snap Hook

Galvanized wire Retractable Lifeline, Stainless steel Retractable Lifeline









For further information, please contact us. Email:info@dawson-group.com

Hot Tags: bulk self retractable lifeline, low price safety self-retractable lifeline, high quality galvanized wire retractable lifeline, wholesale self retracting lifeline, buy discount safety retractable lifeline, hot sale galvanized retractable lifeline, customized self retractable lifeline, cheap price self retractable lifeline, self retractable lifeline China supplier, safety lifeline China manufacturer, self retractable lifeline China factory, self retractable lifeline China exporter, self retractable lifeline in stock, self retractable lifeline free sample, self retractable lifeline dawson brands, self retractable lifeline OEM

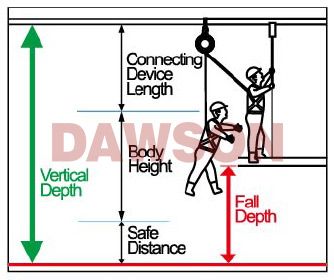

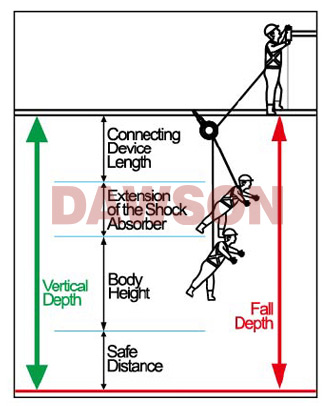

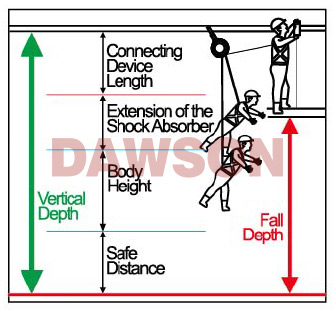

CALCULATION OF THE FALL DEPTH

The total fall distance is determined by adding the worker's height, the length of the lanyard or connecting device and the amount of elongation or stretch in the system. Required fall clearance distance= length of the lanyard + deceleration distance + height of the suspended worker+ safety factor.

FALL FACTOR:

There are three fall factors related to the position of the anchor point. The ideal case during work is to have the anchor point at shoulder level or above the worker's head (factor 1.0).Is this case, the risk of injury due to a fall by impact forces is reduced. This condition cannot always be met. There are work situation where the anchor point is at the feet level (factor 2).An anchor point under the level of the worker's feet significantly increases the possibility of fatal consequences of a fall injury without the use of a shock absorber.

FALL FACTOR 0

FALL FACTOR 1

FALL FACTOR 2

FALL FACTOR 0:

The anchor point is above the worker's head and the connecting device is tensioned.

FALL FACTOR 1:

The anchor point is at chest level, the connecting device is not tensioned. In the event of a fall,the connecting device is tensioned and the shock absorber extends to mitigate the fall shock.

FALL FACTOR 2:

The anchor point is at feet level, which in the case of fall length is equal to twice the length of the connecting device (rope) before the shock absorber extends and mitigates the fall shock.

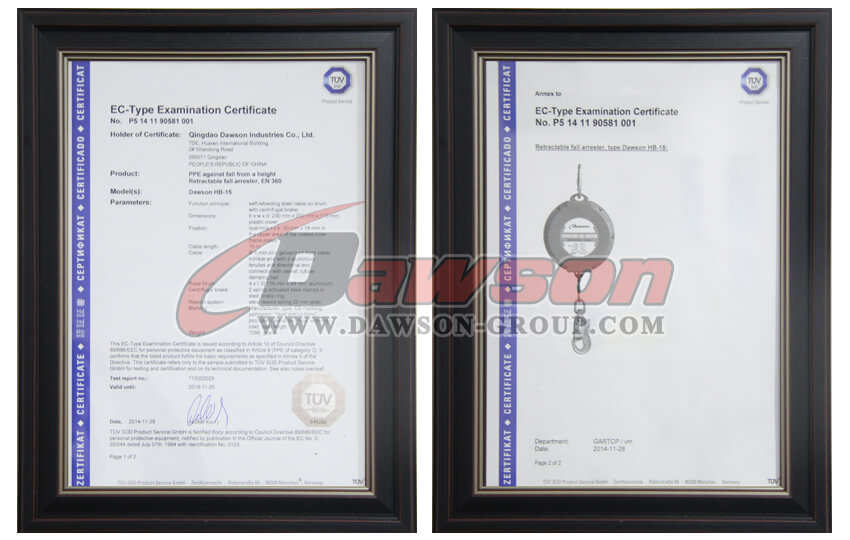

EC-Type Examimation Certificate of Galvanized Wire Safety Self Retractable Lifeline:
