R3 Grade Stud / Studless Offshore Mooring Chain for Offshore Oil Platform, Hot Dip Galvanized or Painted Black, 34mm to 152mm 1-3/8 to 6 inch

1. Type: Mooring Chain
2. Diameter:34mm to 152mm, 1-3/8 - 6 inch
3. Grade: R3,R3S, R4, R4S, R5
4. ABS, LR, BV, NK, GL, DNV, KR, IRS, RS,CCS Certificate
5. Application: offshore oil platform, offshore oil storage ship, offshore buoys and other other ocean development facilities

  • DAWSON/OEM

  • 34mm-152mm

Availability:
Quantity:
Inquire Add to Basket

R3 Grade Stud / Studless Offshore Mooring Chain for Offshore Oil Platform, Hot Dip Galvanized or Painted Black, 34mm to 152mm 1-3/8 to 6 inch

 - Dawson Group Ltd. - China Manufacturer Supplier, Factory

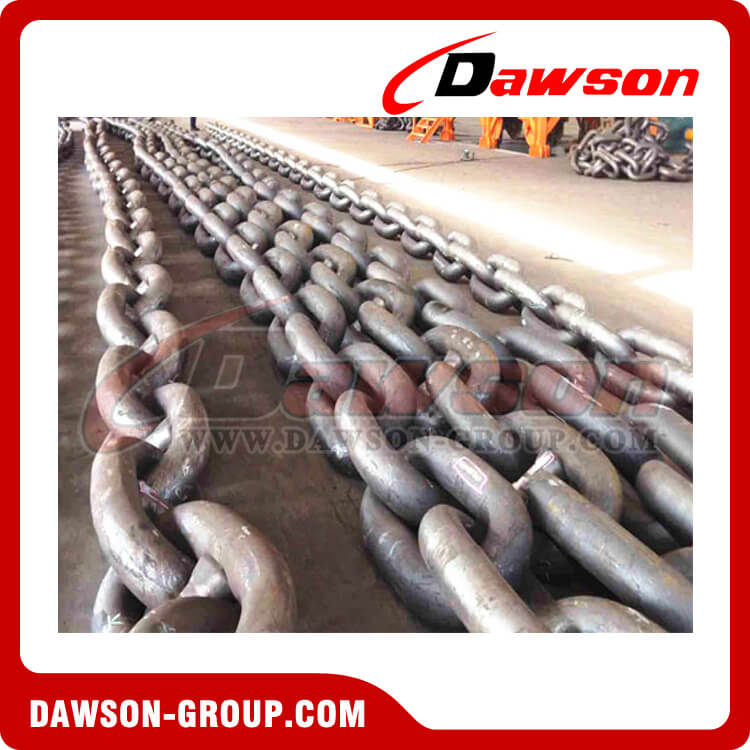

R3 Grade Offshore Mooring Chain for Offshore Oil Platform - Dawson Group Ltd. - China Manufacturer Supplier, Factory    R3 Grade Offshore Mooring Chain for Offshore Oil Platform - Dawson Group Ltd. - China Manufacturer Supplier, Factory



Offshore Mooring Chain

Offshore mooring chains are mainly used for offshore oil floating production system, semi-submersible drilling platform, single point mooring structure, FPSO mooring facilities structure and so on. Due to the mooring chains have to be long-term immersed in the seawater, the mooring chains have the features of high strength, good toughness, seawater corrosion resistance, fatigue resistance, wear resistance and other properties.

Product Detail

1. Type: Mooring Chain

2. Diameter:34mm to 152mm, 1-3/8 - 6 inch

3. Grade: R3,R3S, R4, R4S, R5

4. ABS, LR, BV, NK, GL, DNV, KR, IRS, RS,CCS Certificate

5. Application: offshore oil platform, offshore oil storage ship, offshore buoys and other other ocean development facilities

Mooring Chain Common Ring - Dawson Group Ltd. - China Manufacturer, Supplier, Factory


Data Sheets (diameter mm)

Grade 2, 3 Anchor Chains and Accessories, ø16mm - ø152mm (5/8 - 6 inch)

R3, R3S, R4 Grade Offshore Mooring Chains and Accessories, up to ø152mm (6 inch)

Testing load of anchor chain and accessories & Mooring chain
Diameter
of chain		 Anchor chain Offshore mooring chain
ABS,BV,CCS,CR,DNV,GL,KR,LR,NK,
RINA,RMRS		 API ABS DNV ABS ABS/DNV ABS/DNV ABS/DNV
C/EL/E C/EL/E/SL SL C/EL/E/SL C/EL/E SL C/EL/E/SL C/EL/E SL C/EL/E/SL
Grade2 Grade3 ORQ RQ3 NVR3/RQ3 NVR3/RQ3 RQ3S/NVR3S RQ4/NVR4
PL
C=0.098		 BL
C=0.0137		 PL
C=0.0137		 BL
C=0.0196		 PL
C=0.014		 BL
C=0.0211		 PL
C=0.0148		 PL
C=0.0156		 BL
C=0.0223		 PL
C=0.0180		 PL
C=0.0174		 BL
C=0.0249		 PL
C=0.0216		 PL
C=0.0192		 BL
C=0.0274
mm KN KN KN KN KN KN KN KN KN KN KN KN KN KN KN
16 107 150 150 216 - - - - - - - - - - -
17.5 127 179 179 256 - - - - - - - - - - -
19 150 211 211 301 - - - - - - - - - - -
20.5 175 244 244 349 - - - - - - - - - - -
22 200 280 280 401 - - - - - - - - - - -
24 237 332 332 476 - - - - - - - - - - -
26 278 389 389 556 - - - - - - - - - - -
28 321 449 449 642 - - - - - - - - - - -
30 368 514 514 735 - - - - - - - - - - -
32 417 583 583 833 - - - - - - - - - - -
34 468 655 655 937 668 1007 706 745 1064 859 831 1188 1031 916 1308
36 523 732 732 1050 746 1124 789 832 1189 960 928 1327 1151 1022 1460
38 581 812 812 1160 828 1248 876 923 1319 1065 1029 1473 1278 1135 1621
40 640 896 896 1280 914 1376 967 1019 1456 1176 1136 1626 1411 1253 1789
42 703 987 987 1400 999 1513 1056 1114 1592 1285 1242 1777 1542 1370 1956
44 769 1080 1080 1540 1097 1654 1160 1223 1748 1411 1364 1951 1693 1503 2147
46 837 1170 1170 1680 1194 1800 1263 1331 1902 1535 1484 2124 1843 1636 2337
48 908 1270 1270 1810 1295 1952 1369 1443 2063 1665 1610 2304 2037 1775 2535
50 981 1370 1370 1960 1400 2110 1480 1561 2230 1800 1743 2490 2160 1918 2740
52 1060 1480 1480 2110 1508 2273 1594 1682 2402 1939 1877 2682 2327 2066 2952
54 1140 1590 1590 2270 1620 2441 1712 1806 2580 2083 2017 2881 2499 2219 3170
56 1220 1710 1710 2430 1735 2615 1834 1935 2764 2231 2160 3086 2677 2378 3396
58 1290 1810 1810 2600 1851 2794 1960 2068 2953 2383 2308 3297 2860 2540 3628
60 1380 1940 1940 2770 1976 2978 2089 2203 3147 2540 2460 3514 3048 2708 3867
62 1470 2060 2060 2940 2101 3166 2221 2343 3347 2701 2616 3737 3242 2879 4112
64 1560 2190 2190 3130 2230 3360 2357 2486 3551 2867 2776 3965 3440 3055 4364
66 1660 2310 2310 3300 2361 3559 2496 2633 3761 3036 2940 4200 3643 3235 4621
68 1750 2450 2450 3500 2496 3762 2639 2784 3976 3209 3108 4440 3851 3420 4885
70 1840 2580 2580 3690 2631 3970 2785 2938 4196 3387 3289 4685 4064 3610 5156
73 1990 2790 2790 3990 2847 4291 3010 3175 4535 3660 3545 5064 4392 3900 5572
76 2150 3010 3010 4300 3066 4621 3242 3419 4884 3942 3818 5454 4731 4206 6001
78 2260 3160 3160 4500 3216 4847 3400 3587 5123 4135 4004 5720 4962 4411 6295
81 2410 3380 3380 4820 3446 5194 3643 3843 5490 4431 4291 6130 5317 4727 6745
84 2580 3610 3610 5160 3683 5550 3893 4107 5866 4735 4585 6550 5682 5051 7208
87 2750 3850 3850 5500 3925 5916 4149 4377 6252 5046 4887 6981 6056 5383 7682
90 2920 4090 4090 5840 4173 6289 4412 4653 6647 5365 5196 7422 6439 5724 8167
92 3040 4260 4260 6080 4242 6544 4590 4842 6916 5582 5405 7722 6699 5955 8497
95 3230 4510 4510 6440 4599 6932 4862 5128 7326 5913 5726 8180 7096 6308 9001
97 3340 4680 4680 6690 4774 7195 5047 5323 7604 6138 5943 8490 7365 6547 9343
100 3530 4940 4940 7060 5040 7596 5328 5620 8028 6480 6275 8964 7776 6912 9864
102 3660 5120 5120 7320 5220 7868 5519 5821 8315 6712 6500 9285 8054 7160 10217
105 3850 5390 5390 7700 5495 8282 5809 6128 8753 7065 6842 9773 8478 7536 10754
107 3980 5570 5570 7960 5681 8561 6005 6334 9048 7304 7072 10103 8764 7791 11118
111 4250 5940 5940 8480 6058 9130 6401 6755 9650 7789 7543 10775 9347 8309 11856
114 4440 6230 6230 8890 6346 9565 6709 7077 10109 8159 7901 11287 9791 8704 12420
117 4650 6510 6510 9300 6639 10005 7018 7402 10574 8535 8265 11807 10242 9105 12993
120 4850 6810 6810 9720 6953 10452 7331 7733 11047 8916 8634 12334 10700 9511 13573
122 5000 7000 7000 9990 7135 10753 7542 7956 11365 9173 8883 12690 11008 9785 13964
124 5140 7200 7200 10280 7336 11057 7755 8175 11688 9433 9134 13048 11319 10062 14358
127 5350 7490 7490 10710 7641 11516 8078 8515 12172 9825 9514 13951 11790 10480 14955
130 5570 7800 7800 11140 7950 11981 8404 8858 12663 10222 9898 14140 12266 10903 15559
132 5720 8000 8000 11420 8157 12294 8623 9090 12994 10488 10157 14509 12586 11187 15965
137 6080 8510 8510 12160 8682 13085 9178 9674 13829 11163 10809 15442 13395 11907 16992
142 6450 9030 9030 12910 9214 13887 9740 10268 14677 11847 11472 16389 14217 12637 18034
147 6840 9560 9560 13660 9753 14670 10310 10869 15536 12540 12144 17348 15049 13377 19089
152 7220 10100 10100 14430 10299 15522 10887 11477 16405 13242 12823 18318 15890 14125 20157
157 7600 10640 10640 15200 11126 16768 11762 12090 17282 13950 13508 19297 16740 14880 21234
162 7990 11180 11180 15980 11405 17189 12057 12708 18166 14663 14199 20284 17596 15641 22320
Note:Test Load=cXd2(44-0.08Xd)



Data Sheets (diameter inch)

Grade 2, 3 Anchor Chains and Accessories, ø16mm - ø152mm (5/8 - 6 inch)

R3, R3S, R4 Grade Offshore Mooring Chains and Accessories, up to ø152mm (6 inch)

Testing load of anchor chain and accessories & Mooring chain
Diameter
of chain		 Anchor chain Offshore mooring chain
ABS,BV,CCS,CR,DNV,GL,KR,LR,NK,RINA,RMRS API ABS DNV ABS ABS/DNV ABS/DNV ABS/DNV
C/EL/E C/EL/E/SL SL C/EL/E/SL C/EL/E SL C/EL/E/SL C/EL/E SL C/EL/E/SL
Grade2 Grade3 ORQ RQ3 NVR3/RQ3 NVR3/RQ3 RQ3S/NVR3S RQ4/NVR4
PL
C=1422		 BL
C=1991		 PL
C=1991		 BL
C=2844		 PL
C=2030.5		 BL
C=3060.3		 PL
C=2147		 PL
C=2265.2		 BL
C=3236		 PL
C=2610		 PL
C=2527		 BL
C=3610		 PL
C=3125		 PL
C=2783.9		 BL
C=3977
in lbf lbf lbf lbf lbf lbf lbf lbf lbf lbf lbf lbf lbf lbf lbf
5/8 23700 33200 33200 47500 - - - - - - - - - - -
11/16 28600 40100 40100 57300 - - - - - - - - - - -
3/4 34000 47600 47600 68000 - - - - - - - - - - -
13/16 39800 55700 55700 79500 - - - - - - - - - - -
7/8 46000 64400 64400 91800 - - - - - - - - - - -
15/16 52600 73700 73700 105000 - - - - - - - - - - -
1 59700 83600 83600 119500 - - - - - - - - - - -
1 1/16 67200 94100 94100 135000 - - - - - - - - - - -
1 1/8 75000 105000 105000 150000 - - - - - - - - - - -
1 3/16 83400 116500 116500 167000 - - - - - - - - - - -
1 1/4 92200 129000 129000 184000 - - - - - - - - - - -
1 5/16 101500 142000 142000 203000 - - - - - - - - - - -
1 3/8 111000 155000 155000 222000 158187 238413 167263 176471 252101 203333 196867 281238 243454 216880 309829
1 7/16 120500 169000 169000 241000 172361 259777 182251 192284 274691 221553 214507 306439 265269 236314 337592
1 1/2 131000 183500 183500 262000 187095 281983 197829 208721 298172 240491 232843 332633 287944 256515 366449
1 9/16 142000 198500 198500 284000 202381 305022 213993 225774 322534 260140 251868 359811 311471 277473 396390
1 5/8 153000 214000 214000 306000 218215 328885 230735 243437 347767 280492 271573 387961 335838 299181 427401
1 11/16 166500 229000 229000 327000 234589 353564 248048 261704 373863 301540 291951 417072 361039 321631 459472
1 3/4 176000 247000 247000 352000 251498 379048 265927 280568 400811 323274 312994 447134 387062 344814 492591
1 13/16 188500 264000 264000 377000 268935 405330 284366 300021 428601 345689 334696 478136 413899 368721 526745
1 7/8 201000 281000 281000 402000 286896 432399 303357 320057 457225 368775 357048 510068 441541 393346 561923
1 15/16 214000 299000 299000 427000 305373 460247 322894 340670 486671 392526 380043 542918 469978 418679 598112
2 227000 318000 318000 454000 324361 488865 342971 361853 516932 416932 403674 576676 499201 444712 635302
2 1/16 241000 337000 337000 482000 343853 518243 363582 383598 547997 441988 427932 611331 529200 471437 673481
2 1/8 255000 357000 357000 510000 363844 548373 384719 405899 579856 467684 452811 646873 559966 498845 712635
2 3/16 269000 377000 377000 598000 384327 579244 406378 428750 612500 494013 478303 683290 591491 526928 752755
2 1/4 284000 396000 396000 570000 405297 610849 428551 452144 645920 520968 504400 720572 623764 555679 793827
2 5/16 299000 418000 418000 538000 426747 643178 451232 476074 680105 548540 531096 758708 656776 585088 835840
2 3/8 314000 44000 44000 628000 448672 676222 474414 500532 715046 576721 558381 797687 690519 615147 878782
2 7/16 330000 462000 462000 660000 471064 709972 498092 525514 750733 605505 586250 837499 724982 645849 922641
2 1/2 346000 484000 484000 692000 493920 744418 522258 551010 787158 634883 614693 878133 760157 677184 967406
2 9/16 363000 507000 507000 726000 517231 779553 546907 577016 824309 664847 643705 919578 796034 709145 1013064
2 5/8 379000 530000 530000 758000 540993 815365 572032 603524 862177 695390 673276 961823 832603 741723 1059604
2 11/16 396000 554000 554000 792000 565198 851847 597626 630528 900574 726504 703401 1004858 869857 774910 1107014
2 3/4 413000 578000 578000 826000 589842 888989 623684 658020 940029 758181 734071 1048672 907784 808698 1155282
2 13/16 431000 603000 603000 861000 614918 926783 650199 685994 979992 790414 765278 1093254 946377 843078 1204397
2 7/8 449000 628000 628000 897000 640420 965218 677164 714444 1020634 823194 797016 1138593 985625 878042 1254345
2 15/16 467000 654000 654000 934000 666341 1004287 704573 743362 1061945 856514 829276 1184680 1025519 913582 1305116
3 485000 679000 679000 970000 692677 1043979 732419 772742 1103917 890365 862051 1231501 1066051 949689 1356698
3 1/16 504000 705000 705000 1008000 719421 1084286 760698 802577 1146538 924742 895334 1279049 1107210 986356 1409079
3 1/8 523000 732000 732000 1046000 746566 1125199 789400 832860 1189799 959634 929117 1327310 1148987 1023573 1462247
3 3/16 542000 759000 759000 1084000 774107 1166708 818522 863584 1233692 995036 963393 1376275 1191374 1061333 1516190
3 1/4 562000 787000 787000 1124000 802038 1208804 848055 894744 1278205 1030938 998153 1425933 1234361 1099628 1570897
3 5/16 582000 814000 814000 1163000 830353 1251479 877995 926331 1323330 1067334 1033392 1476274 1277938 1138448 1626355
3 3/8 602000 843000 843000 1204000 859045 1294723 908333 958340 1369057 1104215 1069100 1527285 1322096 1177787 1682552
3 7/16 622000 871000 871000 1244000 888109 1338528 939065 990763 1415376 1141573 1105271 1578958 1366826 1217635 1739478
3 1/2 643000 900000 900000 1285000 917539 1382883 970183 1023595 1462278 1179402 1141896 1631280 1412119 1257984 1797119
3 9/16 664000 929000 929000 1327000 947328 1427780 1001681 1056827 1509752 1217693 1178969 1684242 1457965 1298826 1855465
3 5/8 685000 958000 958000 1369000 977470 1473210 1033553 1090453 1557790 1256438 1216482 1737832 1504356 1340152 1914503
3 3/4 728000 1019000 1019000 1455000 1038792 1565631 1098392 1158863 1655518 1335260 1292798 1846854 1598731 1424226 2034609
3 7/8 772000 1080000 1080000 1543000 1101454 1660074 1164650 1228768 1755383 1415807 1370783 1958261 1695171 1510139 2157342
3 15/16 794000 1111000 1111000 1587000 1133274 1708031 1198295 1264266 1806093 1456707 1410383 2014832 1744142 1553765 2219664
4 816000 1143000 1143000 1632000 1165410 1756466 1232275 1300117 1857309 1498015 1450377 2071967 1793601 1597825 2282608
4 1/8 862000 1207000 1207000 1724000 1230610 1854734 1301217 1372853 1961219 1581824 1531521 2187886 1893946 1687218 2410311
4 1/4 908000 1272000 1272000 1817000 1297007 1954805 1371423 1446925 2067035 1667170 1614153 2305932 1996133 1778251 2540358
4 3/8 956000 1338000 1338000 1911000 1364552 2056606 1442843 1522277 2174681 1753992 1698214 2426019 2100086 1870857 2672653
4 1/2 1004000 1405000 1405000 2008000 1433196 2160004 1515426 1598856 2284079 1842227 1783643 2548061 2205732 1964972 2807102
4 5/8 1053000 1474000 1474000 2105000 1502892 2265107 1589121 1676607 2395153 1931814 1870381 2671972 2312996 2060527 2943610
4 3/4 1102000 1543000 1543000 2204000 1573591 2371662 1663876 1755478 2507825 2022690 1958367 2797667 2421803 2157458 3082083
4 7/8 1153000 1613000 1613000 2305000 1645244 2479655 1739640 1835413 2622019 2114793 2047541 2925058 2532079 2255698 3222425
5 1203000 1685000 1685000 2407000 1717804 2589014 1816363 1916360 2737657 2208061 2137843 3054061 2643751 2355180 3364543
5 1/8 1255000 1757000 1757000 2509000 1791221 2699666 1893992 1998263 2854661 2302431 2229212 3184588 2756742 2455838 3508340
5 1/4 - - - - 1865448 2811539 1972478 2081070 2972957 2397842 2321589 3316555 2870979 2557606 3653723
5 3/8 1359000 1903000 1903000 2718000 1940436 2924558 2051768 2164726 3092465 2494232 2414913 3449876 2986388 2660418 3800597
5 1/2 - - - - 2016137 3038652 2131813 2249176 3213109 2591537 2509125 3584463 3102894 2764207 3948867
5 5/8 1466000 2052000 2052000 2935000 2092502 3153747 2212559 2334369 3334812 2689697 2604163 3720232 3220423 2868907 4098439
5 3/4 1520000 2128000 2128000 3039000 2169484 3269771 2293958 2420248 3457497 2788649 2699968 3857097 3338900 2974452 4249217
5 7/8 - - - - 2247033 3386651 2375957 2506761 3581087 2888331 2796480 3994971 3458250 3080776 4401108
6 1629000 2280000 2280000 3257000 2325102 3504313 2458504 2593854 3705505 2988680 2893638 4133768 3578401 3187811 4554015
6 1/8 - - - - 2403641 3622686 2541550 2681472 3830674 3089635 2991382 4273403 3699276 3295492 4707846
6 1/4 1684000 2357000 2357000 3367000 2482604 3741695 2625043 2769561 3956516 3191133 3089653 4413790 3820801 3403753 4862504
6 3/8 1795000 2512000 2512000 3589000 2651941 3861269 2708932 2858069 4082955 3293113 3188389 4554842 3942903 3512527 5017896
Note:Test  Load= cXd2（44-2.032Xd）


Studless Link Chain

Open Link Anchor Chain/Studless Anchor Chain, Link Size (6*3.6D), Test Load and Weight
Diameter D(Φ) Chain Link Size BM1/U1 Open Link Chain BM2/U2 Open Link Chain BM3/U3 Open Link Chain Approx Weight
Outside Length(L) Outside Width(B) Proof Load Breaking Load Proof Load Breaking Load Proof Load Breaking Load 27.5m
MM MM MM KN KN KN KN KN KN KG
16 96 57.6 47.10 94.72 66.20 132.30 92.42 184.83 139.43
17.5 105 63 56.35 113.31 78.89 157.78 110.55 221.10 178.35
19 114 68.4 66.42 133.57 93.60 187.20 130.32 260.64 217.68
20.5 123 73.8 77.33 155.49 108.64 217.27 151.70 303.42 229.14
22 132 79.2 89.06 179.08 125.40 250.90 174.40 349.40 264.49
24 144 86.4 105.98 213.25 149.90 298.90 207.90 415.80 341.82
26 156 93.6 124.38 250.12 175.40 350.80 244.00 488.00 369.94
28 168 100.8 144.26 290.08 203.80 406.70 283.00 566.00 427.98
30 180 108 165.60 333.00 234.20 467.50 324.00 649.80 490.98
32 192 115.2 188.42 378.88 265.60 531.20 369.60 739.30 559.65
34 204 122.4 212.70 427.72 299.90 599.80 417.30 834.60 671.52
36 216 129.6 238.46 479.52 336.10 672.30 467.80 935.70 707.85
38 228 136.8 265.70 534.28 374.40 748.70 521.30 1042.50 788.98
40 240 144 294.40 592.00 414.50 829.10 577.60 1155.20 869.36
42 252 151.2 324.58 652.68 457.70 915.30 636.80 1273.60 959.30
44 264 158.4 356.22 716.32 502.70 999.60 698.90 1398.00 1111.25
46 276 165.6 389.34 782.92 548.80 1097.60 763.90 1527.80 1152.07
48 288 172.8 423.94 852.48 597.80 1195.60 831.70 1663.50 1256.26
50 300 180 460.00 926.09 648.80 1293.60 902.50 1805.00 1360.41
52 312 187.2 497.54 1000.48 697.63 1395.26 976.14 1952.28 1485.61
54 324 194.4 536.54 1078.92 752.33 1504.66 1052.68 2105.36 1648.08
56 336 201.6 577.02 1160.32 809.09 1618.18 1132.10 2264.20 1715.97
58 348 208.8 618.98 1244.68 867.91 1735.82 1214.40 2428.80 1844.50
60 360 216 662.40 1332.00 928.80 1857.60 1299.60 2599.20 1973.29
62 372 223.2 707.30 1422.28 991.75 1983.50 1387.68 2775.36 2101.56
64 384 230.4 753.66 1515.52 1056.77 2113.54 1478.66 2957.32 2298.10
66 396 237.6 801.50 1611.72 1123.85 2247.70 1572.52 3145.04 2398.10
68 408 244.8 850.82 1710.88 1192.99 2385.98 1669.26 3338.52 2522.88
70 420 252 901.60 1813.00 1264.20 2528.40 1768.90 3537.80 2697.65

R3 34MM Stud / Studless Offshore Mooring Chain Hot Dip Galvanized or Black Painted

R3 36MM Stud / Studless Offshore Mooring Chain Hot Dip Galvanized or Black Painted

R3 38MM Stud / Studless Offshore Mooring Chain Hot Dip Galvanized or Black Painted

R3 40MM Stud / Studless Offshore Mooring Chain Hot Dip Galvanized or Black Painted

R3 42MM Stud / Studless Offshore Mooring Chain Hot Dip Galvanized or Black Painted

R3 44MM Stud / Studless Offshore Mooring Chain Hot Dip Galvanized or Black Painted

R3 46MM Stud / Studless Offshore Mooring Chain Hot Dip Galvanized or Black Painted

R3 48MM Stud / Studless Offshore Mooring Chain Hot Dip Galvanized or Black Painted

R3 50MM Stud / Studless Offshore Mooring Chain Hot Dip Galvanized or Black Painted

R3 52MM Stud / Studless Offshore Mooring Chain Hot Dip Galvanized or Black Painted

R3 54MM Stud / Studless Offshore Mooring Chain Hot Dip Galvanized or Black Painted

R3 56MM Stud / Studless Offshore Mooring Chain Hot Dip Galvanized or Black Painted

R3 58MM Stud / Studless Offshore Mooring Chain Hot Dip Galvanized or Black Painted

R3 60MM Stud / Studless Offshore Mooring Chain Hot Dip Galvanized or Black Painted

R3 62MM Stud / Studless Offshore Mooring Chain Hot Dip Galvanized or Black Painted

R3 64MM Stud / Studless Offshore Mooring Chain Hot Dip Galvanized or Black Painted

R3 66MM Stud / Studless Offshore Mooring Chain Hot Dip Galvanized or Black Painted

R3 68MM Stud / Studless Offshore Mooring Chain Hot Dip Galvanized or Black Painted

R3 70MM Stud / Studless Offshore Mooring Chain Hot Dip Galvanized or Black Painted

R3 73MM Stud / Studless Offshore Mooring Chain Hot Dip Galvanized or Black Painted

R3 76MM Stud / Studless Offshore Mooring Chain Hot Dip Galvanized or Black Painted

R3 78MM Stud / Studless Offshore Mooring Chain Hot Dip Galvanized or Black Painted

R3 81MM Stud / Studless Offshore Mooring Chain Hot Dip Galvanized or Black Painted

R3 84MM Stud / Studless Offshore Mooring Chain Hot Dip Galvanized or Black Painted

R3 87MM Stud / Studless Offshore Mooring Chain Hot Dip Galvanized or Black Painted

R3 90MM Stud / Studless Offshore Mooring Chain Hot Dip Galvanized or Black Painted

R3 92MM Stud / Studless Offshore Mooring Chain Hot Dip Galvanized or Black Painted

R3 95MM Stud / Studless Offshore Mooring Chain Hot Dip Galvanized or Black Painted

R3 97MM Stud / Studless Offshore Mooring Chain Hot Dip Galvanized or Black Painted

R3 100MM Stud / Studless Offshore Mooring Chain Hot Dip Galvanized or Black Painted

R3 102MM Stud / Studless Offshore Mooring Chain Hot Dip Galvanized or Black Painted

R3 105MM Stud / Studless Offshore Mooring Chain Hot Dip Galvanized or Black Painted

R3 107MM Stud / Studless Offshore Mooring Chain Hot Dip Galvanized or Black Painted

R3 111MM Stud / Studless Offshore Mooring Chain Hot Dip Galvanized or Black Painted

R3 114MM Stud / Studless Offshore Mooring Chain Hot Dip Galvanized or Black Painted

R3 117MM Stud / Studless Offshore Mooring Chain Hot Dip Galvanized or Black Painted

R3 120MM Stud / Studless Offshore Mooring Chain Hot Dip Galvanized or Black Painted

R3 122MM Stud / Studless Offshore Mooring Chain Hot Dip Galvanized or Black Painted

R3 124MM Stud / Studless Offshore Mooring Chain Hot Dip Galvanized or Black Painted

R3 127MM Stud / Studless Offshore Mooring Chain Hot Dip Galvanized or Black Painted

R3 130MM Stud / Studless Offshore Mooring Chain Hot Dip Galvanized or Black Painted

R3 132MM Stud / Studless Offshore Mooring Chain Hot Dip Galvanized or Black Painted

R3 137MM Stud / Studless Offshore Mooring Chain Hot Dip Galvanized or Black Painted

R3 142MM Stud / Studless Offshore Mooring Chain Hot Dip Galvanized or Black Painted

R3 152MM Stud / Studless Offshore Mooring Chain Hot Dip Galvanized or Black Painted

Anchor Chain & Fittings:

Anchor Chian & Fittings - Dawson Group Ltd. - China Manufacturer, Supplier
Anchor Chian & Fittings - Dawson Group Ltd. - China Manufacturer, Supplier, Factory
Anchor Chian & Fittings - Dawson Group Ltd. - China Manufacturer, Factory
Anchor Chian & Fittings - Dawson Group Ltd. - China Supplier, Factory

Joining Forms (K.S) to Anchor and Locker Ends, Anchor Chain:

Joining Forms (K.S) to Anchor and Locker Ends, Anchor Chain - Dawson Group Ltd. - China Manufacturer, Supplier, Factory

How to order anchor chain ?

● Chain Diameter & Grade

●Length: 27.5m or 25m

● Quantity of Lengths

● Quantity of Fittings

● Class Certifications: ABS(USA), BV(France), CCS(China), DNV(Norway), GL(Germany), KR(Korea), LR(U. K. ), NK(Japan), RINA(Italy), RS(Russia) & Mill Certificate

If you need other anchor chains or mooring chains, please contact us!!!


Products Show:

Studless Mooring Chain, R3 Grade Offshore Mooring Chain for Offshore Oil Platform - Dawson Group Ltd. - China Factory
Studless Mooring Chain, R3 Grade Offshore Mooring Chain for Offshore Oil Platform - Dawson Group Ltd. - China Manufacturer, Factory
Studless Mooring Chain, R3 Grade Offshore Mooring Chain for Offshore Oil Platform - Dawson Group Ltd. - China Manufacturer
Studless Mooring Chain, R3 Grade Offshore Mooring Chain for Offshore Oil Platform - Dawson Group Ltd. - China Supplier, Factory
Studless Mooring Chain, R3 Grade Offshore Mooring Chain for Offshore Oil Platform - Dawson Group Ltd. - China Manufacturer, Supplier, Factory
Studless Mooring Chain, R3 Grade Offshore Mooring Chain for Offshore Oil Platform - Dawson Group Ltd. - China Manufacturer, Supplier

Other related products:

Mooring Chain for Deep-sea Development Facilities - Dawson Group Ltd. - China Manufacturer, Supplier, Factory
Mooring Chain for Deep-sea Development Facilities - Dawson Group Ltd. - China Manufacturer, Factory, Supplier
Offshore Mooring Chain for Offshore Platform - Dawson Group Ltd. - China Manufacturer, Supplier, Factory
Offshore Mooring Chain for Offshore Oil Platform - Dawson Group Ltd. - China Manufacturer, Factory, Supplier
Offshore Mooring Chain for Offshore Oil Platform - Dawson Group Ltd. - China Manufacturer, Supplier, Factory

Anchor Chain Dispatching - Dawson Group Ltd. - China Supplier, Manufacturer, Factory
Anchor Chain Dispatching - Dawson Group Ltd. - China Manufacturer, Supplier, Factory
Link Anchor Chain - Dawson Group Ltd. - China Supplier, Manufacturer, Factory
Link Anchor Chain Dispatching - Dawson Group Ltd. - China Manufacturer, Factory, Supplier

Anchor Chain - Dawson Group Ltd. - China Manufacturer, Supplier, Factory

Offshore Mooring Chain - Dawson Group Ltd. - China Manufacturer, Supplier, Factory
Mooring Chain for Offshore - Dawson Group Ltd. - China Manufacturer, Supplier, Factory
Stud Link Anchor Chain - Dawson Group Ltd. - China Manufacturer, Supplier, Factory

DAWSON Chain - Dawson Group Ltd. - China Manufacturer, Supplier, Factory

Application for Offshore Mooring Chain:

Offshore Wind Power, Offshore Mooring Chain - Dawson Group Ltd. - China Supplier, Factory
Offshore Wind Power, Offshore Mooring Chain - Dawson Group Ltd. - China Manufacturer, Supplier, Factory
Offshore Wind Power, Offshore Mooring Chain - Dawson Group Ltd. - China Manufacturer, Supplier

Application for DAWSON Mooring Chain - Dawson Group Ltd. - China Supplier, Factory
Application for DAWSON Mooring Chain - Dawson Group Ltd. - China Manufacturer, Supplier

Factory & Test Show:

Anchor Chain Dispatching - Dawson Group Ltd. - China Manufacturer, Supplier, Factory
Anchor Chain Heat Treatment - Dawson Group Ltd. - China Manufacturer, Supplier, Factory

Factory of Mooring Chain for Oil Platform - Dawson Group Ltd. - China Manufacturer, Supplier, Factory
Factory of Offshore Stud Mooring Chain - Dawson Group Ltd. - China Manufacturer, Supplier, Factory
Factory Offshore Stud Mooring Chain - Dawson Group Ltd. - China Manufacturer, Factory, Supplier
Mooring Chain for Marine Structure - Dawson Group Ltd. - China Manufacturer, Supplier, Factory


Load Test Machine:

Load Test Machine 600T - Dawson Group Ltd. - China Manufacturer, Supplier, Factory

Transport：

MARINE ANCHOR CHAIN OFFSHORE MOORING CHAIN - DAWSON GROUP LTD. - CHINA MANUFACTURER, SUPPLIER, FACTORY
