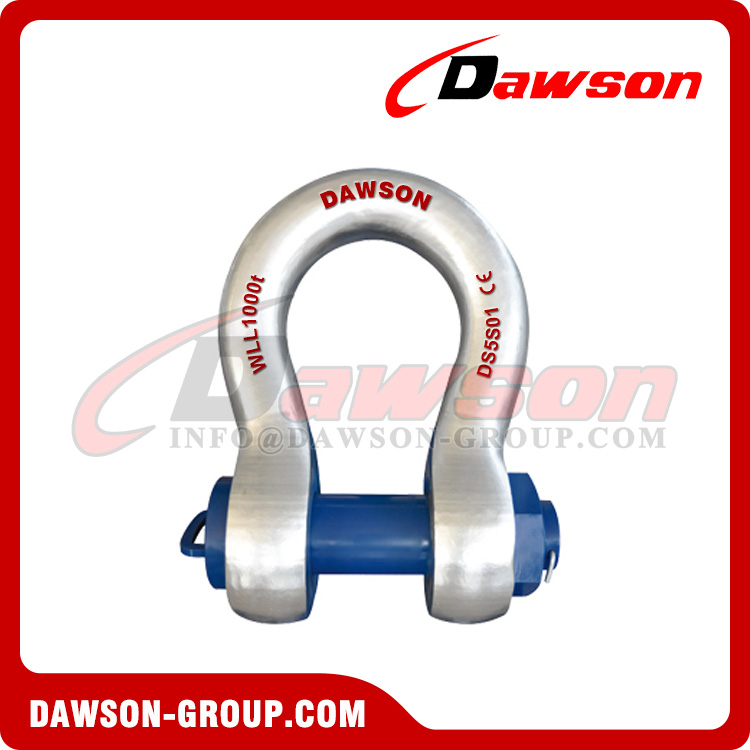

Large WLL Shackle with Circular Cross-Section, Alloy Steel Heavy Duty Bolt Type Round Body Shackle

  • DAWSON/OEM
  • DS-BX
  • 200-1250t
Availability:
Quantity:

Large WLL Shackle with Circular Cross-Section, Alloy Steel Heavy Duty Bolt Type Round Body Shackle

- Dawson Group Ltd. - China Manufacturer, Supplier, Factory



Large WLL Shackle with Circular Cross-section, Heavy Duty Bolt Type Round Body Shackle - Dawson Group Ltd. - China Manufacturer, Supplier, Factory   Large WLL Shackle with Circular Cross-section, Heavy Duty Bolt Type Round Body Shackle - Dawson Group Ltd. - China Manufacturer, Supplier, Factory

Model WLL(t) W(mm) D(mm) d(mm) E(mm) S(mm) O(mm) Weight(kg)
DS-BX200-4 1/2 200 184 130 115 270 396 280 237
DS-BX300-5 1/8 300 200 150 130 320 450 300 363
DS-BX500-6 1/2 500 240 185 165 390 557.5 360 684
DS-BX800-8 800 300 240 207 493 660 440 1313
DS-BX1000-9 1/2 1000 390 270 240 556 783 560 2072
DS-BX1250-10 1/5 1250 400 300 260 620 850 560 2511


Welcome to buy the newest and competitive price DAWSON Large WLL Shackle with Circular Cross-Section, Alloy Steel Heavy Duty Bolt Type Round Body Shackle from our factory. We're one of the leading China manufacturers and suppliers, offering you the wholesale service and the OEM service at a discount. With CE certification, our products made in China in stock are high in quality and low in price. Please be free to get the free sample from us.


WLL: 200T-1250T

The large WLL round section shackle is made of high-quality alloy structural steel.

The maximum test load of the 200t-500t shackle is 1.5 times the rated working load, the maximum test load of the 800t-1250t shackle is 1.33 times the rated working load, and the minimum breaking load is 4 times the rated working load.

The large tonnage round section shackle is designed according to the regulations of JB8112-1999, and its performance meets or exceeds the requirements of ASME.B.30.26.

100% of the products are tested by non-destructive flaw detection to ensure that the products do not have any defects that affect the strength.


For further information, please contact us. Email:info@dawson-group.com

Products Show:

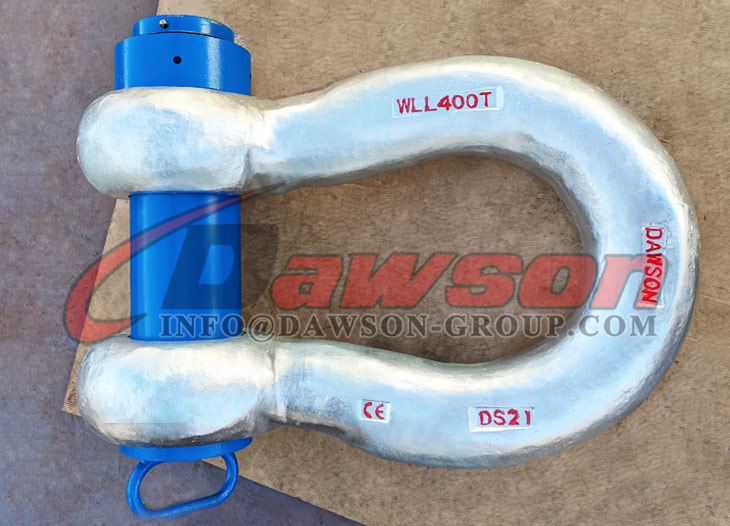

Large WLL 400T Shackle with Circular Cross-Section, Alloy Steel Heavy Duty Bolt Type Round Body Shackle - Dawson Group Ltd. - China Manufacturer, Factory

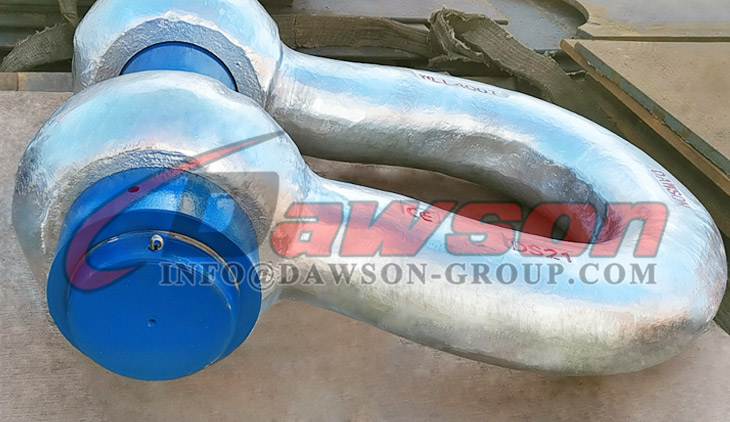

Large WLL 400T Shackle with Circular Cross-Section, Alloy Steel Heavy Duty Bolt Type Round Body Shackle - Dawson Group Ltd. - China Manufacturer, Supplier, Factory
Large WLL 400T Shackle with Circular Cross-Section, Alloy Steel Heavy Duty Bolt Type Round Body Shackle - Dawson Group Ltd. - China Manufacturer, Supplier

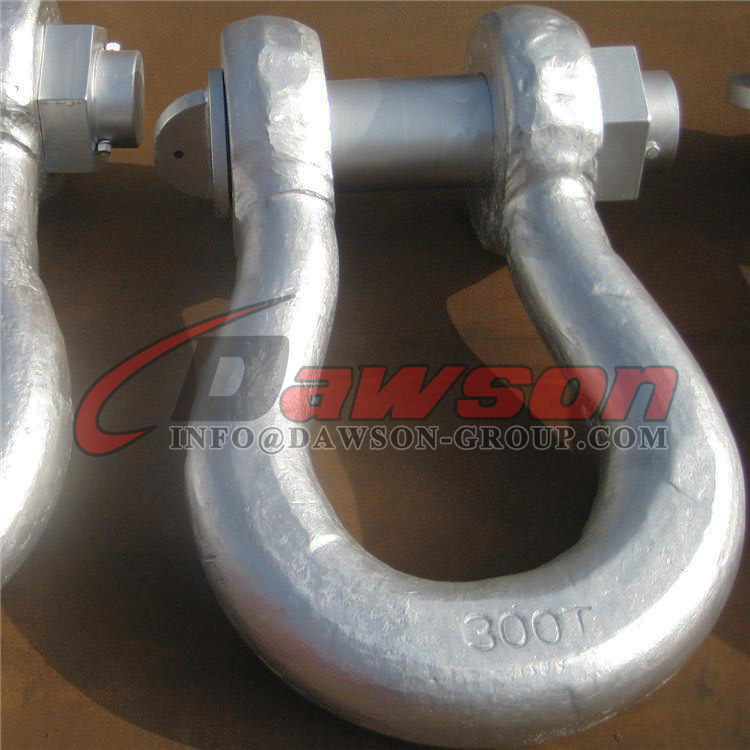

Large WLL Shackle with Circular Cross-Section, Alloy Steel Heavy Duty Bolt Type Round Body Shackle - Dawson Group Ltd. - China Manufacturer

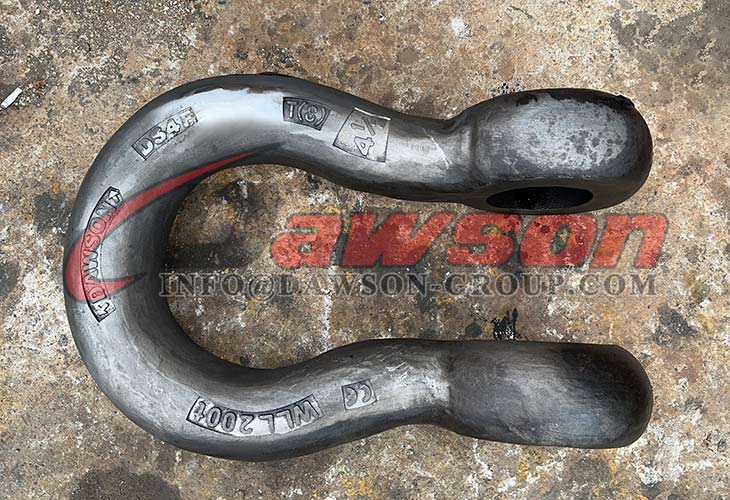

Large WLL Shackle with Circular Cross-Section, Alloy Steel Heavy Duty Bolt Type Round Body Shackle - Dawson Group Ltd. - China Factory
Large WLL Shackle with Circular Cross-Section, Alloy Steel Heavy Duty Bolt Type Round Body Shackle - Dawson Group Ltd. - China Supplier
Large WLL Shackle with Circular Cross-Section, Alloy Steel Heavy Duty Bolt Type Round Body Shackle - Dawson Group Ltd. - China Supplier, Factory

Hot Tags: heavy duty shackle,round body shackle,bolt type bow shackle,alloy steel bolt type shackles,forged alloy steel shackles,large wll shackle,large wll shackle with circular cross-section,round body shackle for slings,heavy duty lifting shackles,alloy steel shackles

Other related products:

Large WLL Shackle with Circular Cross-section, Heavy Duty Bolt Type Round Body Shackle - Dawson Group Ltd. - China Manufacturer, Supplier
Forged Alloy Steel Wide Shackle for Lifting Slings - Dawson Group Ltd. - China Supplier, Factory

Forged Alloy Steel Wide Shackle for Lifting Slings - Dawson Group Ltd. - China Manufacturer, Factory
Forged Alloy Steel Wide Shackle for Lifting Slings - Dawson Group Ltd. - China Manufacturer, Supplier, Factory

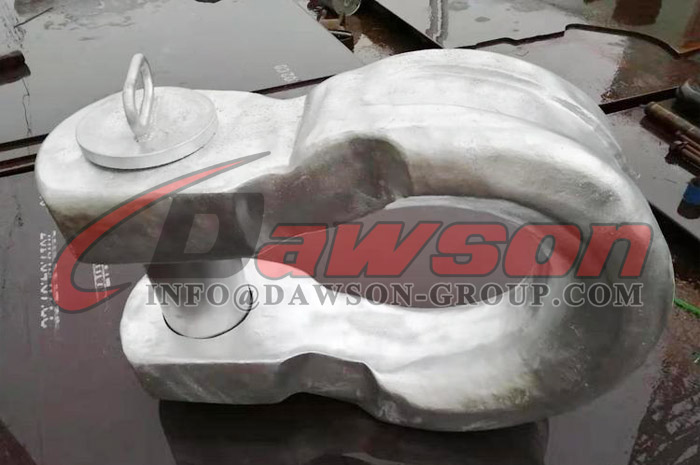

Alloy Steel Bolt Type Wide Body Shackle for Synthetic Web Slings, Synthetic Round Slings or Wire Rope Slings - Dawson Group Ltd. - China Factory, Supplier
