H-type Wire Rope Hydraulic Swaging Machine, Hydraulic Wire Rope Terminal Swaging Machine
- Dawson Group Ltd. - China Manufacturer, Supplier, Factory
| Model | DS-YT600H | DS-YT800H | DS-YT1500 | DS-YT2000 | DS-YT3000 | DS-YT5000 |
| Capacity | 6000kN | 8000kN | 15000kN | 20000kN | 30000kN | 50000kN |
| Press Range | 6-34mm | 16-40mm | 16-56mm | 32-65mm | 32-86mm | Up to 110mm |
| Max. Diameter (Multi-pressing) | 40mm | 44mm | 60mm | 70mm | 96mm | 120mm |
| Voltage & Frequency | 380V 50Hz Or As request |
| Power | 7.5kW | 7.5kW * 2 | 7.5kW * 2 | 7.5kW * 2 | 7.5kW * 2 | 7.5kW * 4 |
| Max. Pressure | 63Mpa |
| Control Pressure | 12Mpa |
| Working Stroke | 120mm | 120mm | 140mm | 240mm | 240mm | 370mm |
| Piston Working Speed | 9mm/s | 9mm/s | 8mm/s | 9mm/s | 9mm/s | 9mm/s |
| Dimension (L*W*H) | 900 * 530 * 1400 | 1400 * 950 * 2350 | 1690 * 1050 * 2650 | 2000 * 1300 *3100 | 2000 * 990 *3400 | 2440 * 1270 * 4300 |
| Weight (Approx.) | 2500kg | 5200kg | 6800kg | 11000kg | 18000kg | 36000kg |
| Noise Level | ≤70dB |
| Color | Blue or as request
|
The Prestress Wire-winded Technology
The prestress wire-winded technology has emerged for a long time, and is widely used in many fields abroad due to its advantages as high plaiting strength, high fatigue strength, light weight, etc. endowed to the machines adopting the technology. Since 1970s, China began the development and application of the prestress steel wire-winded technology, for example: the 36,000 tons of seamless steel pipe extruder and the 40,000 tons of corrugated sheet metal forming hydraulic machine designed and manufactured by Northern Heavy Industries. The hydraulic machine body adopted the technology can bear more than 10 million times of work cycle life.
These pictures are giant press machine adopts the prestress wire-winded technology
Strength Testing about H-type Swaging Machine:
Strength testing via Test software:
The red area in the picture is the most dangerous area
Broken Columns type press body:
Products Show:

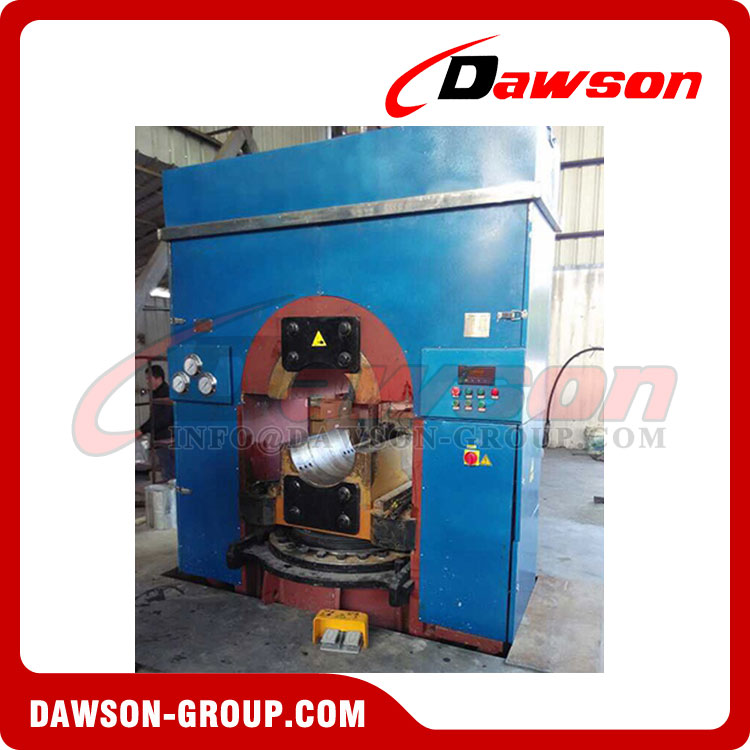

350 Ton / 600Ton H-type Wire Rope Swaging Machine
1500 Ton / 2000Ton H-type Wire Rope Swaging Machine
3000 Ton H-type Wire Rope Swaging Machine
5000 Ton H-type Wire Rope Swaging Machine
DS-505 Wire Rope Ferrules Press Dies:
Aluminum Wire Rope Ferrules Press Dies:
Factory & Package Show:
