Forged super alloy steel - Quenched and Tempered.
Breakage test.
100% Magnaflux Crack Detection.
Surface finish: Power plastified
Colour: Yellow or Red RALcode: RAL1003 or RAL3020.
With spring inside for better pivoting control.
Welding is to be performed by a qualified welder.
| Item No. | Weight/kg | WLL/T | B.L/T | A | B | C | D | E | F | G |
| 8-DS344-1T | 0.47 | 1.12 | 4.48 | 41±1 | 80±2 | 35±2 | 13±1 | 38±2 | 33.5±1 | 37±1 |
| 8-DS344-2T | 0.51 | 2 | 8 | 42±1 | 90±2 | 41±2 | 14±1 | 40±2 | 36±1 | 38±1 |
| 8-DS344-3T | 0.69 | 3.15 | 12.6 | 46±1 | 96±2 | 42±2 | 17±1 | 43±2 | 37±1 | 44±1 |
| 8-DS344-5T | 1.46 | 5.3 | 21.2 | 55±1.5 | 121±3 | 48±2 | 22±2 | 61±3 | 50±2 | 50±2 |
| 8-DS344-8T | 2.52 | 8 | 32 | 70±1.5 | 144±3 | 62±3 | 26.5±2 | 70.5±3 | 54±2 | 66±2 |
| 8-DS344-10T | 3.59 | 10 | 40 | 85±2 | 168±4 | 78±3 | 28±3 | 76±3 | 62.5±2.5 | 78±3 |
| 8-DS344-15T | 5.79 | 15 | 60 | 97±2 | 187±4 | 86±3 | 34±3 | 90±3 | 72±3 | 90±3
|
Product specifications:

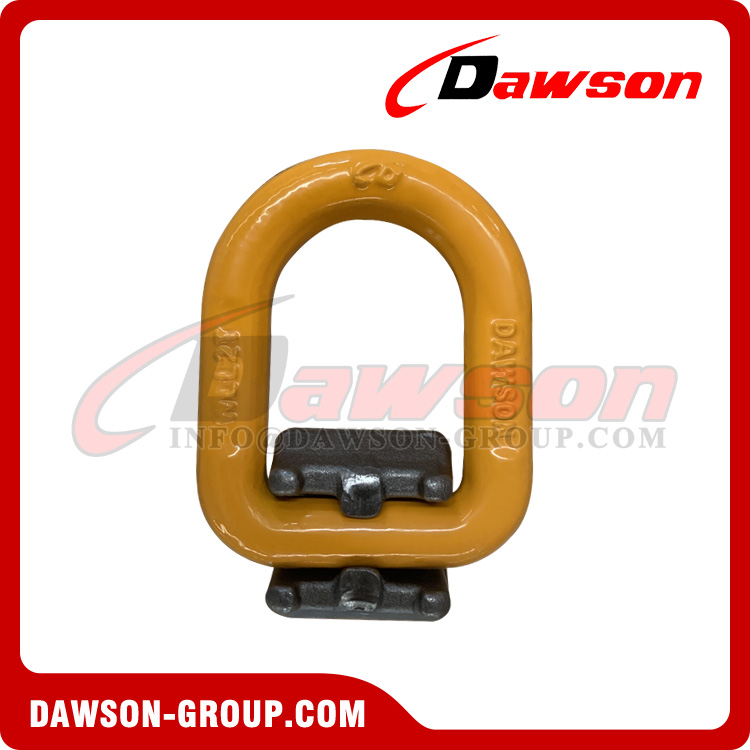

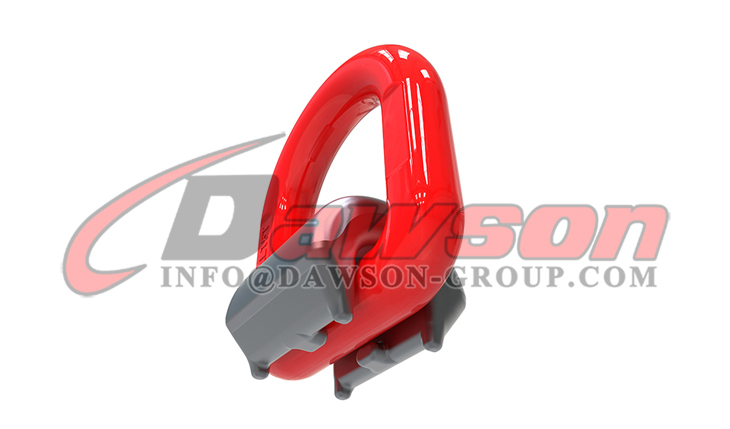

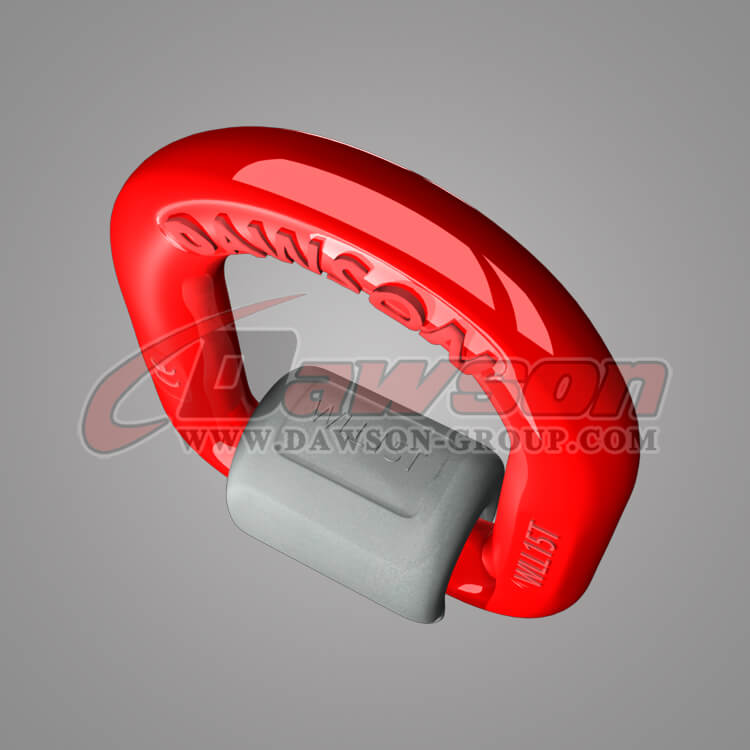

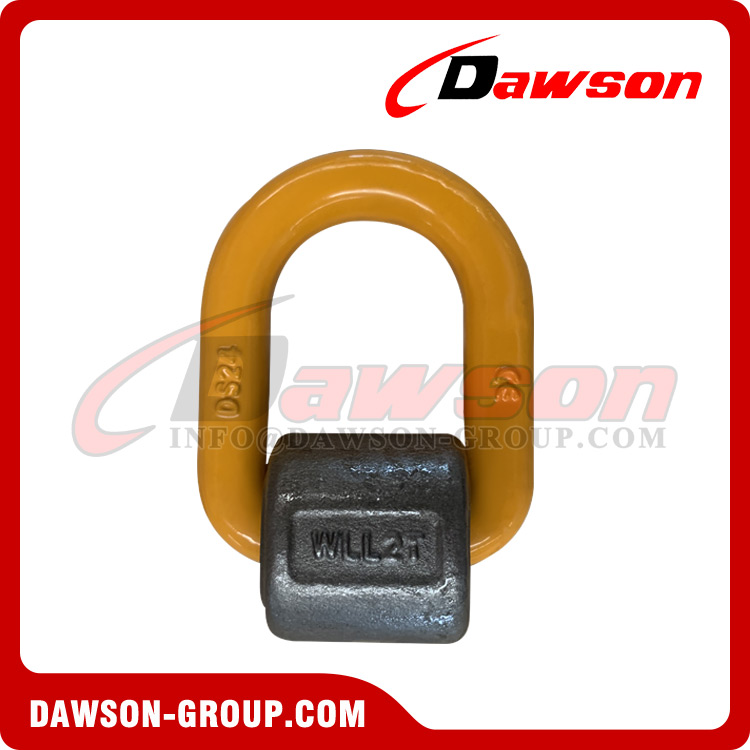

G80 WLL 1.12-15T Weld on Lifting D Rings, Grade 80 Weld-on Pivoting D Link, G80 Weld D Ring for Lifting
WLL 1.12T G80 D Ring, WLL 2T G80 D Ring, WLL 3.15T G80 D Ring, WLL 5.3T G80 D Ring, WLL 8T G80 D Ring, WLL 10T G80 D Ring, WLL 15T G80 D Ring
WLL 1.12T Grade 80 D Ring, WLL 2T Grade 80 D Ring, WLL 3.15T Grade 80 D Ring, WLL 5.3T Grade 80 D Ring, WLL 8T Grade 80 D Ring, WLL 10T Grade 80 D Ring, WLL 15T Grade 80 D Ring
WLL 1120kg G80 Welded D Ring, WLL 2000kg G80 Welded D Ring, WLL 31500kg G80 Welded D Ring, WLL 5300kg G80 Welded D Ring, WLL 8000kg G80 Welded D Ring, WLL 1000kg G80 Welded D Ring, WLL 1500kg G80 Welded D Ring
Ultimate load is 4 times the Working Load Limit.
Welcome to buy the newest and cheap DAWSON G80 Weld-on Pivoting D Ring from our factory. We're one of the leading China manufacturers and suppliers, offering you the wholesale service and the OEM service at a discount. With CE certification, our products made in China in stock are high in quality and low in price. Please be free to get the free sample from us.
WARNING!!!

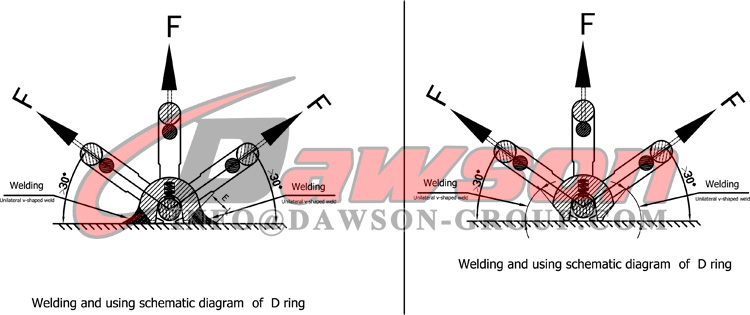

For welding
Pay attention to the following points during welding:
_ The welding should be carried out by a qualified welder acc. To DIN EN 287-1.

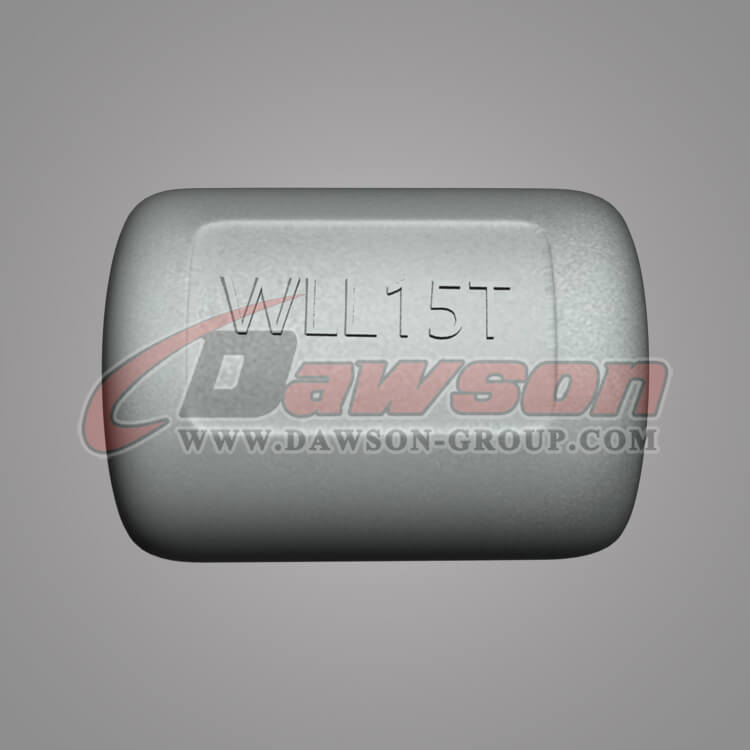

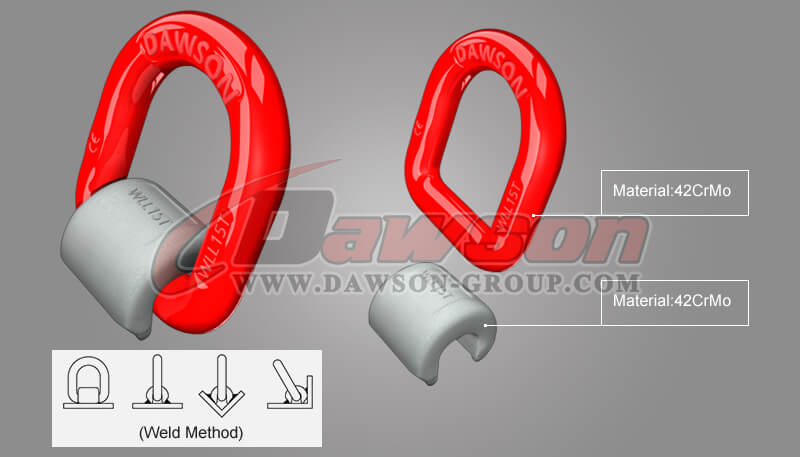

_ Material of welding block is St 52-3 (1.0570).
_ The connecting surfaces must be free from dirt, oil, colour, etc.
_ Do not weld at the red, powder coated tempered load ring.
_ The complete construction can be annealed stress-free for several times at 600°C without reduction of WLL.
_ The welding spot has to be suitable for the corresponding force introduction.
_ The distance lugs assist in achieving the required root weld (approx. 3 mm).
Important
By the arrangement of weld (continuous HV), the following requirements are fulfilled:
DIN 18800 for steel building prescribes
At outdoor sites or in case of special danger of corrosion, the welds should only be designed as continuous, fillet welds. The HV weld at the LBS assures a connection via the whole cross section of the material. This corresponds to the closed weld showing no signs of corrosion.

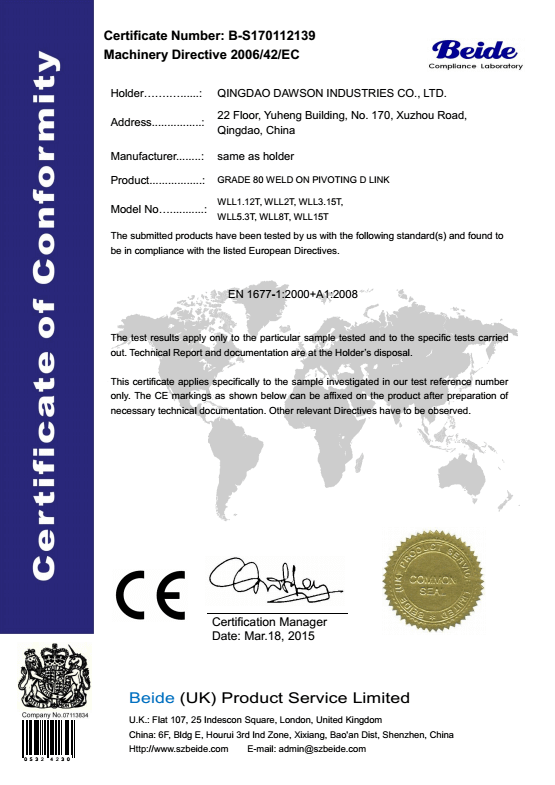

CE Certificate Grade 80 Weld On Pivoting D Link:
Hot Tags: Welded D Ring, Alloy Steel Welded D Ring, Welded D Ring Manufacturers, Welded D Ring Suppliers, Wholesale Welded D Ring, Buy Welded-on D Ring, Welded D Ring Factory, Welded D Ring Exporter, Welded D Ring Free Sample, Customized Welded D Ring, Welded D Ring In Stock, Bulk Welded D Ring, Alloy Steel Welded D Ring, Hot Sale Welded D Ring, Cheap Price Welded D Ring, Low Price Welded On D Ring, Welded D Ring OEM, Welded D Ring for Lifting Chain Slings, G80 Weld-on D Ring, Grade 80 Weld-on D Ring China, Weld-on Pivoting D Link, G80 Weld-on Pivoting D Link, WLL 1.12T G80 D-Ring, WLL 2T G80 D-Ring, WLL 3.15T G80 D-Ring, WLL 5.3T G80 D-Ring, WLL 8T G80 D-Ring, WLL 10T G80 D-Ring, WLL 15T G80 D-Ring, MBL 4.48T G80 D-Ring, MBL 8T G80 D-Ring, MBL 12.6T G80 D-Ring, MBL 21.2T G80 D-Ring, MBL 32T G80 D-Ring, MBL 40T G80 D-Ring, MBL 60T G80 D-Ring, Grade 80 Weld-on Pivoting D Link
Other Related Products Show:
G80 Lifting Points Catalogues Download:
Other Related G80 Lifting Points:
Supply only on special request. Not for recommendation.
For further information,please contact us. Email:info@dawson-group.com

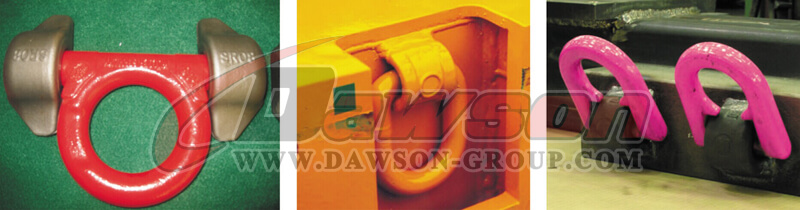

Application of G80 Weld on Lifting D Rings, Grade 80 Weld-on Pivoting D Link:
