G100 Rigging Hardware
All the Grade 100 rigging hardware is forged or welded by special alloy steel. It can be matched with G100 chains. It can be used in situations such as oil field hoisting, mine hoisting, port hoisting, forest logging hoisting etc.
● It is forged by special alloy steel with high intensity and high toughness, and then it is heat treated;
● It can be matched with G100 chain;
● The performance is increased by 25% compared with G80 products;
● Each workpiece should pass testing at 2.5 times of working load limit;
● We should carry out sampling and 20000 times of fatigue testing;
● We should carry out strict sampling and breakage testing for each batch of products;
● We should carry out 100% magnetic powder flaw detection;
● 100% of the pin should be tested to ensure that they have the same hardness;
● Surface treatment: plastics spraying;
● Color code: Blue RAL5015.
| Item No. | Weight/kg | WLL/T | BF/T | A | B | C | E | M | N | H | L |
| 10-DS1082-6 | 0.42 | 1.4 | 5.6 | 8±0.5 | 32±1 | 18±1 | 49±2 | 100±2 | 17±1 | 19.3±1 | 126±3 |
| 10-DS1082-8 | 0.8 | 2.5 | 10 | 9.5±0.5 | 36±1 | 23±1 | 62±3 | 128±3 | 20±1 | 27±1 | 160±3 |
| 10-DS1082-10 | 1.42 | 4 | 16 | 12.5±1 | 48±1 | 29.5±1.5 | 72±3 | 153±3 | 25±1.5 | 31±1.5 | 192±4 |
| 10-DS1082-13 | 2.88 | 6.7 | 26.8 | 15±1 | 59±0.5 | 35±2 | 88±4 | 186±4 | 33±2 | 39±1.5 | 232±5 |
| 10-DS1082-16 | 5.1 | 10 | 40 | 18.5±1.5 | 70±1.5 | 46±2 | 103±4 | 218±5 | 40±2 | 50±2 | 284±5
|
SP-DS1082-SPARE PART FOR DS1082(LOAD PIN)
| Item No. | Size | Item No. | Size |
| SP-DS1082-6 | 6-10 | SP-DS1082-13 | 13-10 |
| SP-DS1082-8 | 8-10 | SP-DS1082-16 | 16-10 |
| SP-DS1082-10 | 10-10 |
|
|
1 SET = BLACK PIN + 2 BLACK SPRING TYPE STRAIGHT PINS
Product specifications:

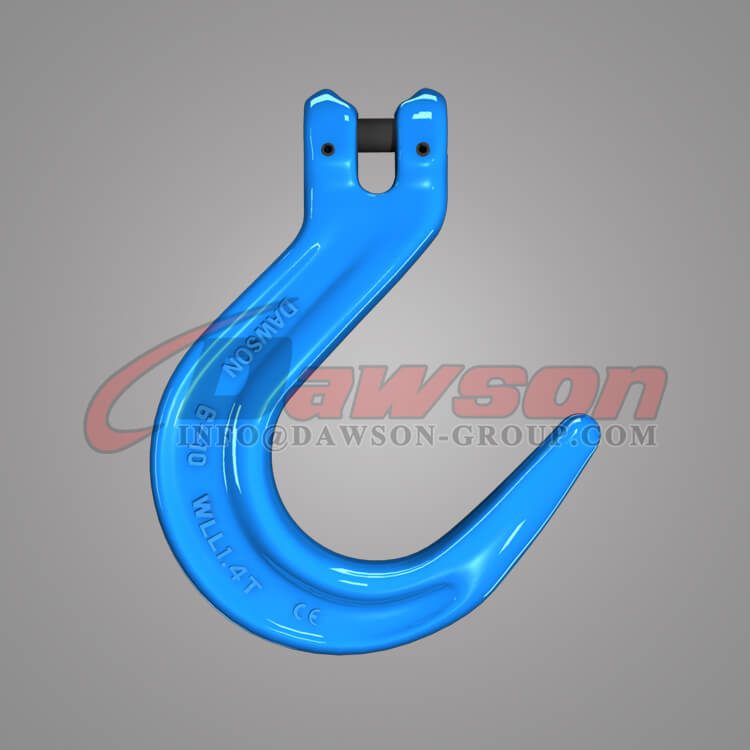

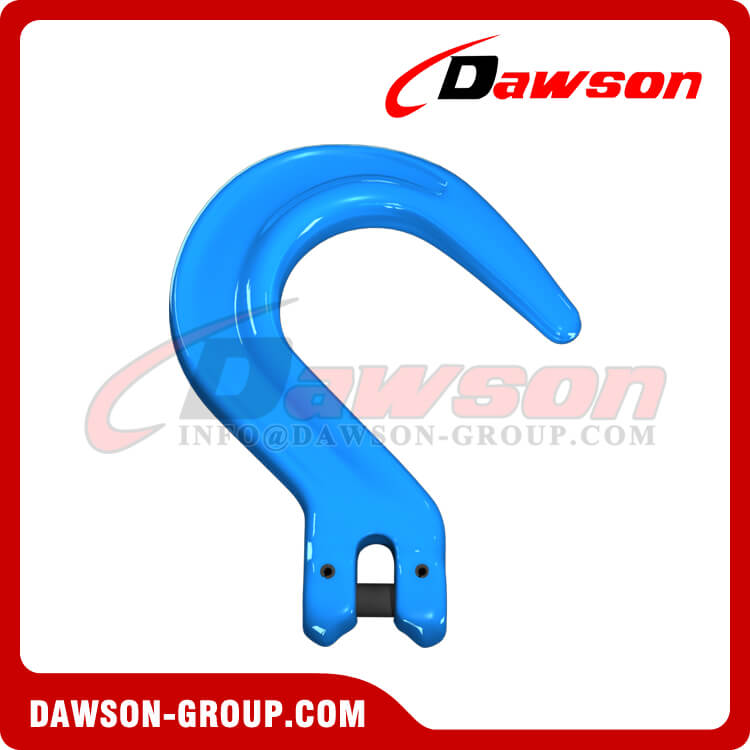

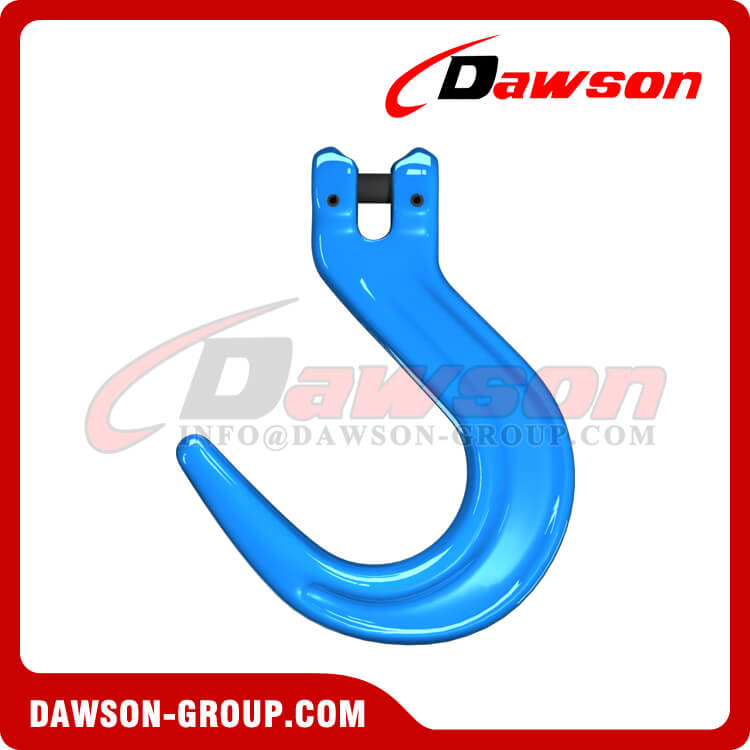

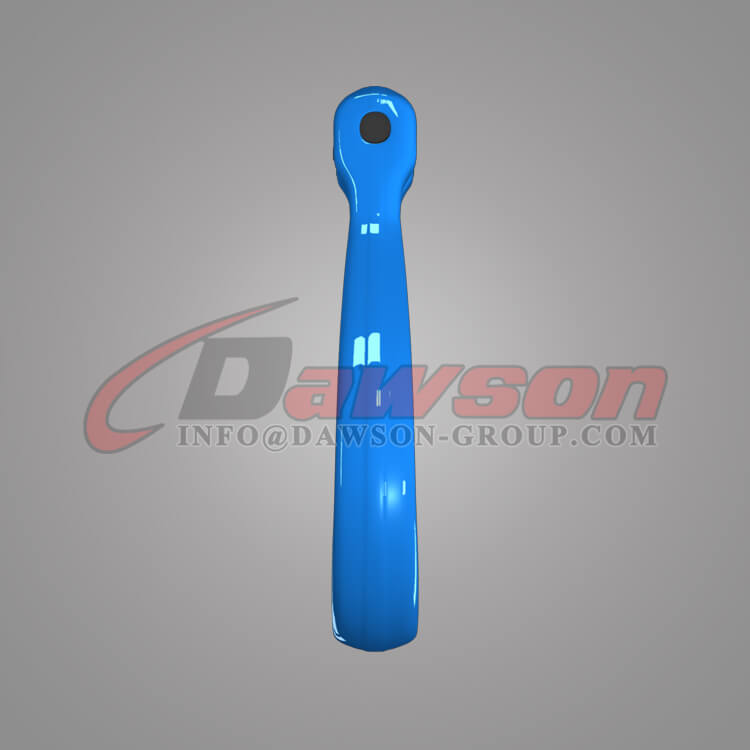

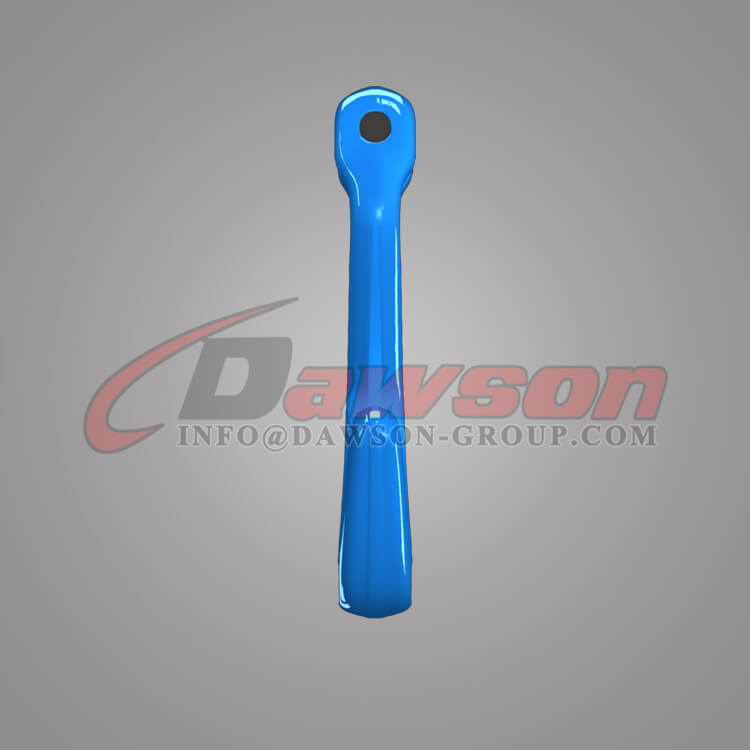

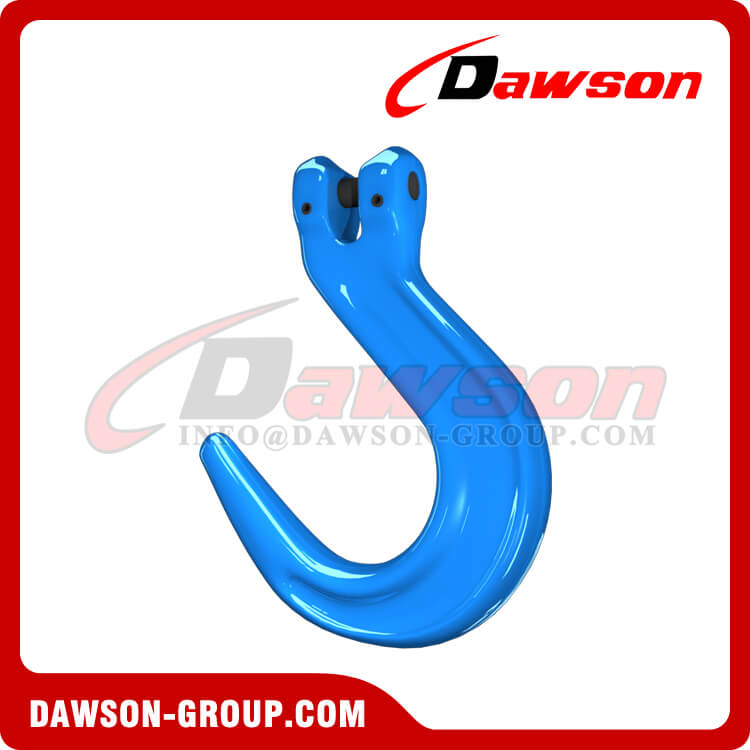

6MM G100 Clevis Foundry Hook, 8MM G100 Clevis Foundry Hook, 10MM G100 Clevis Foundry Hook, 13MM G100 Clevis Foundry Hook, 16MM G100 Clevis Foundry Hook
6MM Grade 100 Clevis Hook, 8MM Grade 100 Clevis Hook, 10MM Grade 100 Clevis Hook, 13MM Grade 100 Clevis Hook, 16MM Grade 100 Clevis Hook
Welcome to buy the newest and competitive price DAWSON G100 / Grade 100 Forged Alloy Steel Clevis Foundry Hook, Large Opening Hook from our factory. We're one of the leading China manufacturers and suppliers, offering you the wholesale service and the OEM service at a discount. With CE certification, our products made in China in stock are high in quality and low in price. Please be free to get the free sample from us.
Products Show:
Other related products:
Hot Tags: Clevis Hook, Clevis Foundry Hook, G100 Clevis Foundry Hook, Grade 100 Clevis Foundry Hook, Forged Clevis Foundry Hook, Alloy Steel Clevis Foundry Hook, Grade 100 Clevis Foundry Hook China, Hot Sale Clevis Foundry Hook, Large Opening Hook In Stock, China Clevis Foundry Hook Supplier, Large Opening Hook China Manufacturer, Large Opening Hook Factory China, Low Price G100 Clevis Hook, Large Opening Hook Exporter China, Buy Discount Forged Clevis Hook, G100 Chain Hardware, Grade 100 Rigging Hardware, Forged Steel Large Opening Hook
Other Related G100 COMPONENTS
Supply only on special request. Not for recommendation.
For further information, please contact us. Email:info@dawson-group.com
DS1016 |
DS1017 |
DS1018 |
DS1025 |
DS1026 |
DS1019 |
DS1028 |
|
Package of G100 Products:

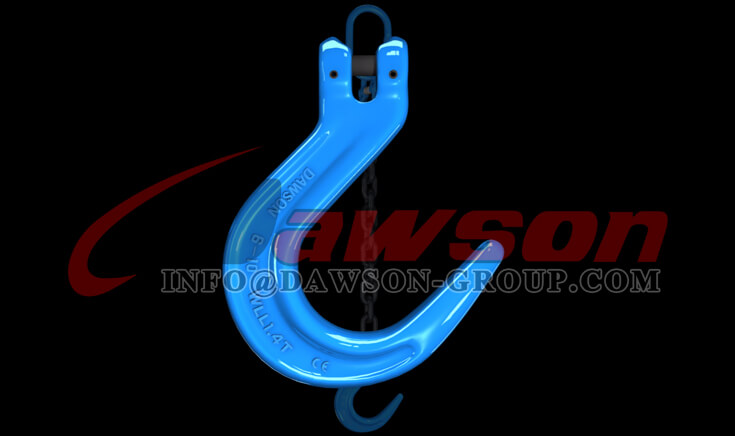

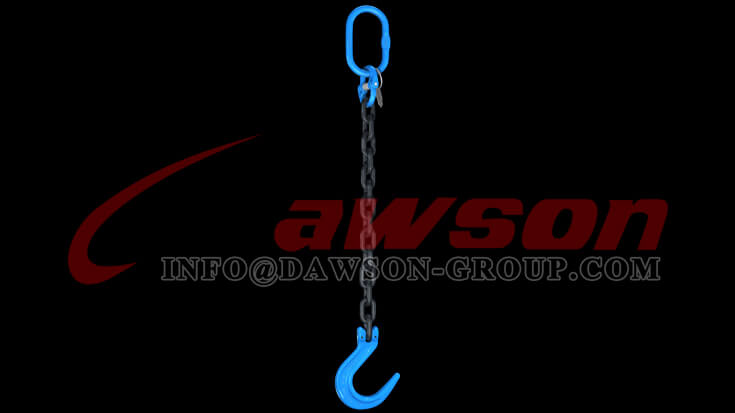

Application of G100 / Grade 100 Forged Alloy Steel Clevis Foundry Hook, Large Opening Hook:
