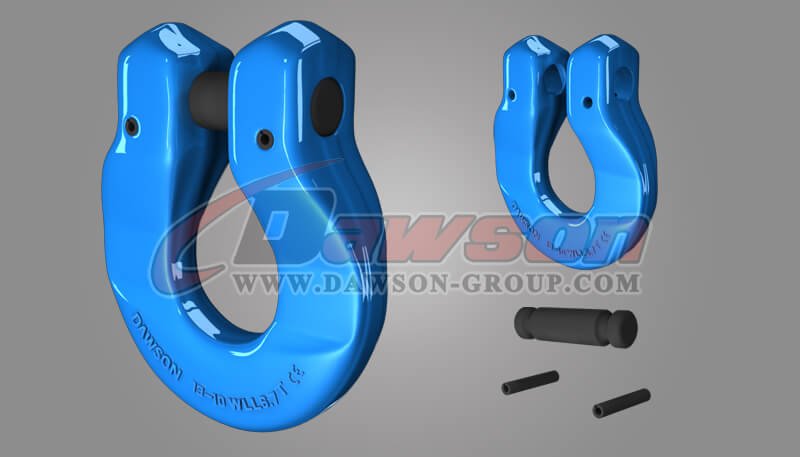

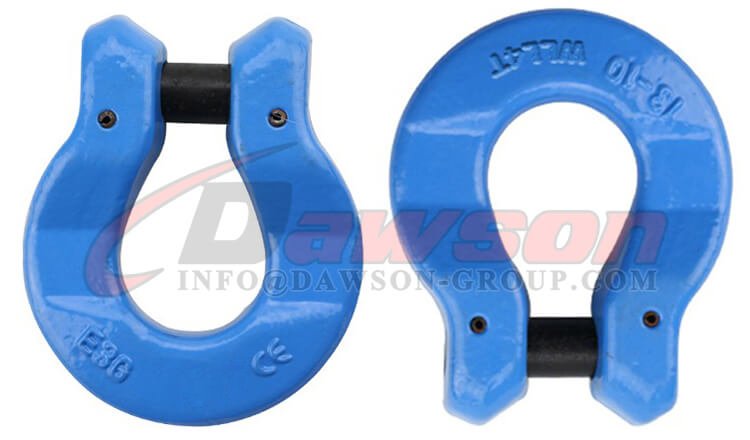

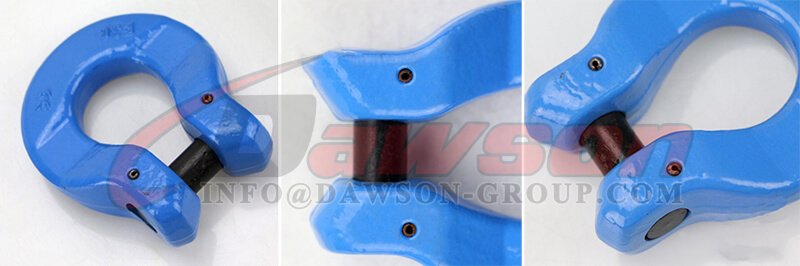

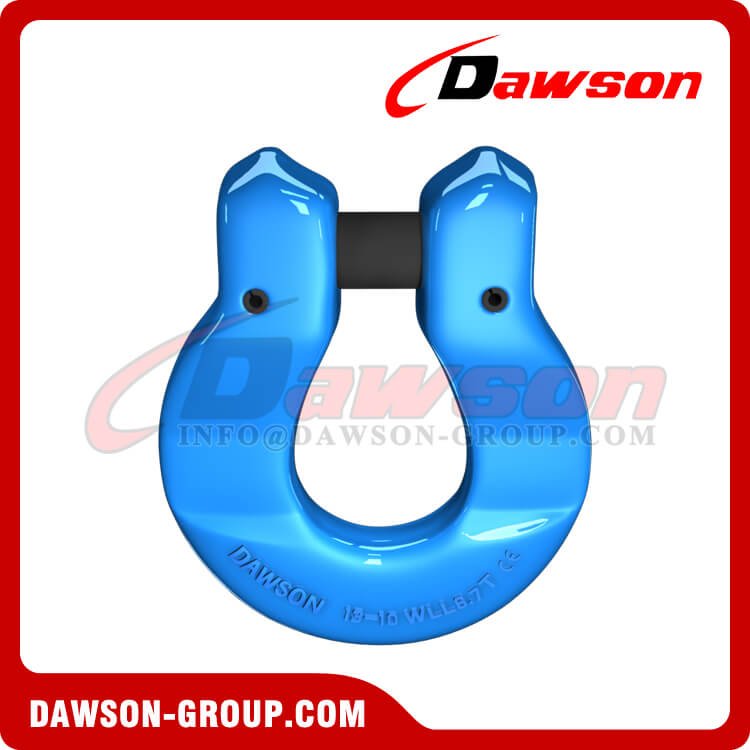

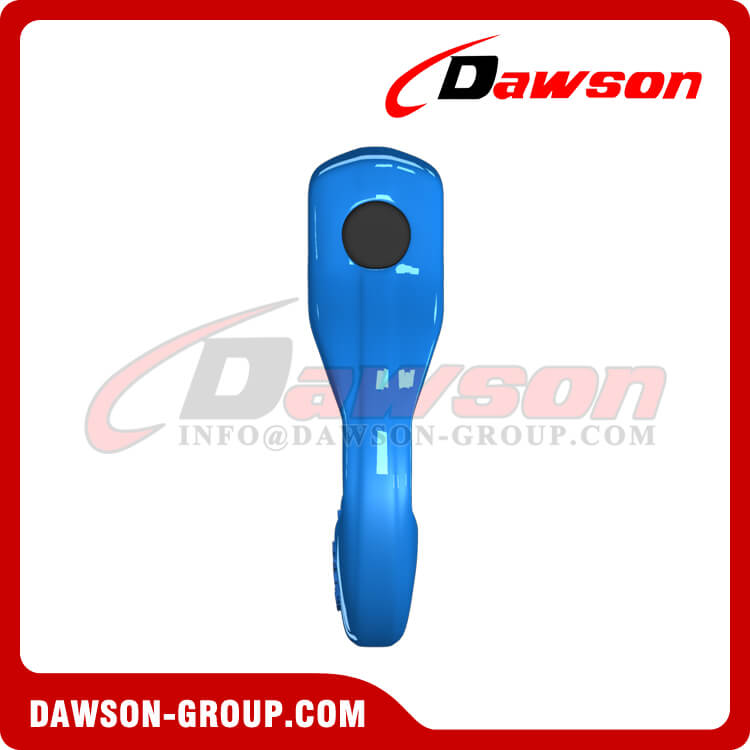

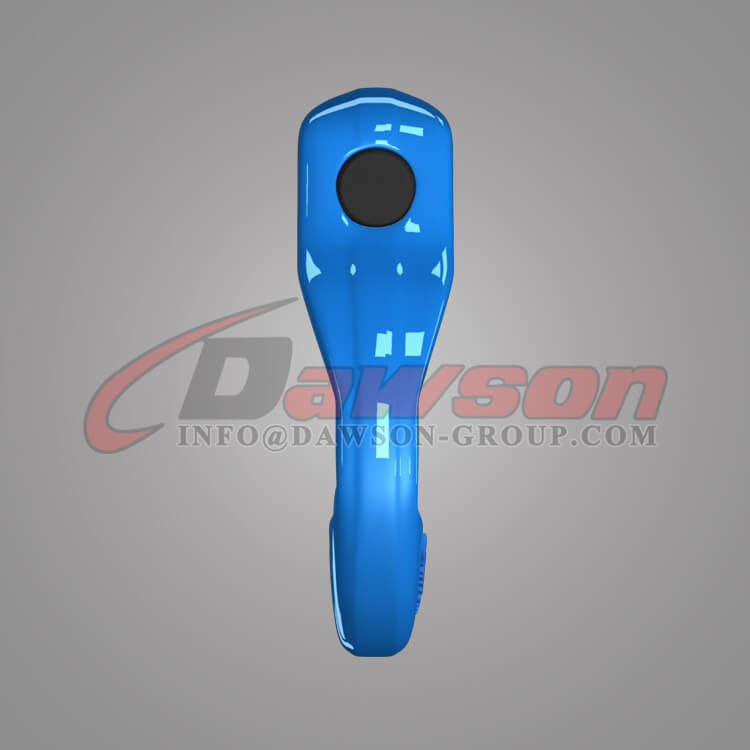

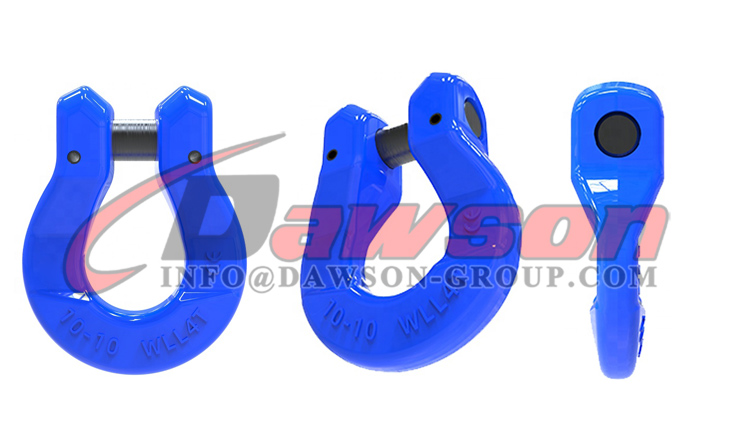

DS1027 G100 / Grade 100 Omega Link for Chain Sling Assembly
6-16MM
Availability: | |
---|---|
Quantity: | |
G100 Rigging Hardware
All the Grade 100 rigging hardware is forged or welded by special alloy steel. It can be matched with G100 chains. It can be used in situations such as oil field hoisting, mine hoisting, port hoisting, forest logging hoisting etc.
Item No. | Weight/kg | WLL/T | B.L/T | A±0.5 | B±2 | E±1.5 | M±2 | L±2 |
10-DS1027-06 | 0.12 | 1.4 | 5.6 | 8.5 | 32.5 | 20 | 44 | 55 |
10-DS1027-08 | 0.27 | 2.5 | 10 | 10.5 | 42 | 24 | 60 | 73.5 |
10-DS1027-10 | 0.44 | 4 | 16 | 12.5 | 48.5 | 31 | 70 | 90 |
10-DS1027-13 | 0.89 | 6.7 | 26.8 | 16 | 60 | 38.5 | 90 | 109 |
10-DS1027-16 | 1.77 | 10 | 40 | 19 | 75.5 | 51 | 112 | 141.5 |

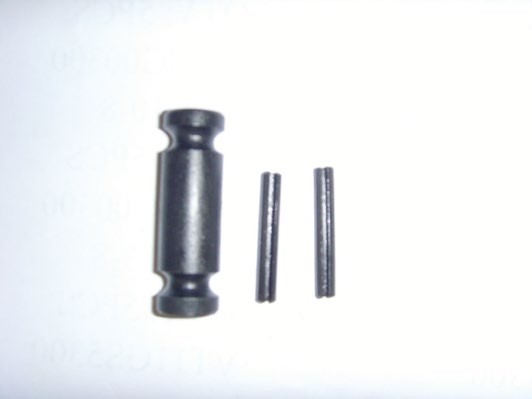

SP-DS1027 SPARE PART FOR DS1027
Item No. | Size | |
SP-DS1027-6 | 6-10 | |
SP-DS1027-8 | 8-10 | |
SP-DS1027-10 | 1010 | |
SP-DS1027-13 | 13-10 | |
SP-DS1027-16 | 16-10 |
Product specifications:
6MM G100 Omega Link, 8MM G100 Omega Link, 10MM G100 Omega Link, 13MM G100 Omega Link, 16MM G100 Omega Link
6MM Grade 100 Omega Link, 8MM Grade 100 Omega Link, 10MM Grade 100 Omega Link, 13MM Grade 100 Omega Link, 16MM Grade 100 Omega Link
Forged or welded super alloy steel.
Suitable for use with G100 chain.
25% stronger than G80.
Individually proof tested at 2.5 times Working Load Limit.
100% Magnaflux Crack Detection.
Fatigue tested at 1.5 times Working Load Limit for 20000 cycles.
Meet standard EN1677.
Strict break load test.
Surface finish: Powder plastified
Colour: blue RALcode: RAL5015, other colour is available as per request.
All load pin are 100% individually inspected and tested.
Welcome to buy the newest and competitive price DAWSON g100 omega link forged super alloy steel from our factory. We're one of the leading China manufacturers and suppliers, offering you the wholesale service and the OEM service at a discount. With CE certification, our products made in China in stock are high in quality and low in price. Please be free to get the free sample from us.
Other Related G100 COMPONENTS
Supply only on special request. Not for recommendation.
For further information, please contact us. Email:info@dawson-group.com
DS1016 | DS1017 | DS1018 | DS1025 |
DS1026 | DS1019 | DS1028 |
Products Show:
Other related products:
Hot Tags: Omega Link, G100 Omega Link, Grade 100 Omega Link, Forged Alloy Steel Omega Link, Alloy Steel Omega Link, China Supplier Omega Link, China Factory Omega Link, China Manufacturer Omega Link, China Exporter Omega Link, Low Price Omega Link, Hot Sale Omega Link, Cheap Price Omega Link, Wholesale Omega Link, In Stock Omega Link, Buy Discount Omega Link, G100 Rigging Hardware, Omega Link for Chain Slings Assembly
Package of G100 Products:

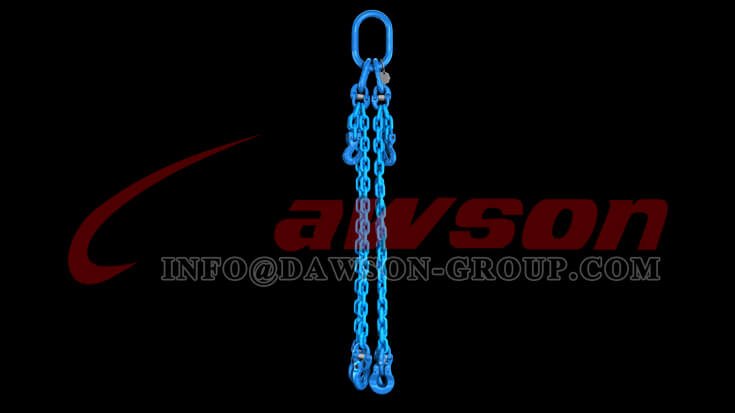

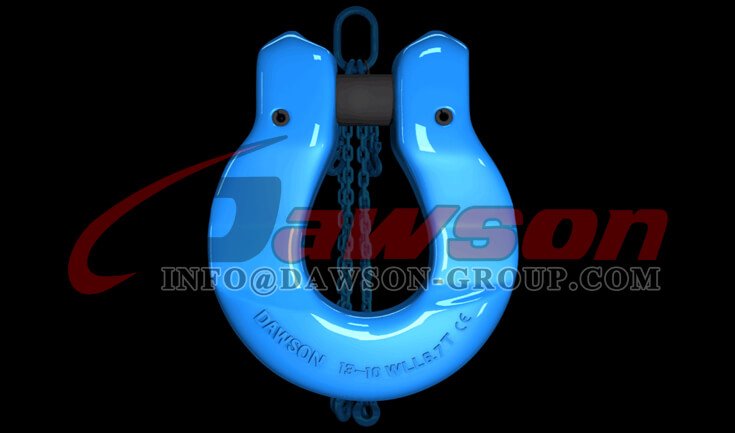

Application of G100 Omega Link:
