Forged super alloy steel-Quenched and Tempered.
Individually proof tested at 2.5 times Working Load Limit.
Breaking Test.
100% Magnaflux Crack Detection.
Surface finish: Power plastified Colour: Yellow or Red RALcode: RAL1003 or RAL3020.
All load pin are 100% individually inspected and tested.
| Item No. | Weight(kg) | G80 Chain | WLL
3 or 4 Leg
0-45°(T) | WLL Rope(T) | A | B | D | a | b | d |
| 8-DS092-3/4 | 1.55 | 1/4 | 3.15 | 5.6 | 140±5 | 70±4 | 20±1 | 85±4 | 40±3 | 14±0.5 |
| 5/16 | 4.25 |
| 8-DS092-7/8 | 2.18 | 5/16 | 4.25 | 6.9 | 160±5 | 95±4 | 22±1 | 85±4 | 40±3 | 14±0.5 |
| 3/8 | 6.7 |
| 8-DS092-1 | 3.29 | 3/8 | 6.7 | 11.8 | 178±5 | 89±4 | 25±1 | 100±4 | 60±4 | 18±0.5 |
| 8-DS092-1-1/4 | 7.18 | 1/2 | 11.2 | 17.7 | 220±6 | 110±5 | 32±1 | 100±4 | 60±4 | 22±1 |
| 5/8 | 17 |
| 8-DS092-1-1/2 | 12.91 | 5/8 | 17 | 27.7 | 267±6 | 135±5 | 38 | 180±5 | 100±4 | 30±1 |
| 3/4 | 23.6 |
| 8-DS092-1-3/4 | 21.25 | 3/4 | 23.6 | 38.5 | 305±7 | 152±5 | 45 | 180±5 | 100±4 | 32±1 |
| 7/8 | 31.5 |
| 8-DS092-2 | 30.34 | 7/8 | 31.5 | 46.5 | 356±7 | 178±5 | 50±2 | 180±5 | 100±4 | 38±1 |
| 8-DS092-2-1/2 | 64.4 | 1 | 45 | 72.6 | 406±10 | 203±6 | 64±2 | 355±7 | 178±5 | 50±1 |
| 8-DS092-2-3/4 | 94.1 | 1-1/4 | 67 | 98.4 | 406±10 | 241±6 | 70±2 | 406±10 | 203±6 | 60±1
|
Product specifications:
3/4'' G80 Master Link, 7/8'' G80 Master Link, 1'' G80 Master Link, 1-1/4'' G80 Master Link, 1-1/2'' G80 Master Link, 1-3/4'' G80 Master Link, 2'' G80 Master Link, 2-1/2'' G80 Master Link, 2-3/4'' G80 Master Link
3/4'' Grade 80 Master Link Assembly, 7/8'' Grade 80 Master Link Assembly, 1'' Grade 80 Master Link Assembly, 1-1/4'' Grade 80 Master Link Assembly, 1-1/2'' Grade 80 Master Link Assembly, 1-3/4'' Grade 80 Master Link Assembly, 2'' Grade 80 Master Link Assembly, 2-1/2'' Grade 80 Master Link Assembly, 2-3/4'' Grade 80 Master Link Assembly
Main Link: FORGED Sub Link: WELDED
The pressing flat for use with DS002 G80 OMEGA LINK.
There will be pressing flat only on request.
For chain slings: Minimum Ultimate load is 4 times the Working Load Limit.
For steel rope sling: Minimum Ultimate load is 5 times the Working Load Limit.
Welcome to buy the newest and cheap DAWSON g80 U.S. Type Master Link Assembly from our factory. We're one of the leading China manufacturers and suppliers, offering you the wholesale service and the OEM service at a discount. With CE certification, our products made in China in stock are high in quality and low in price. Please be free to get the free sample from us.

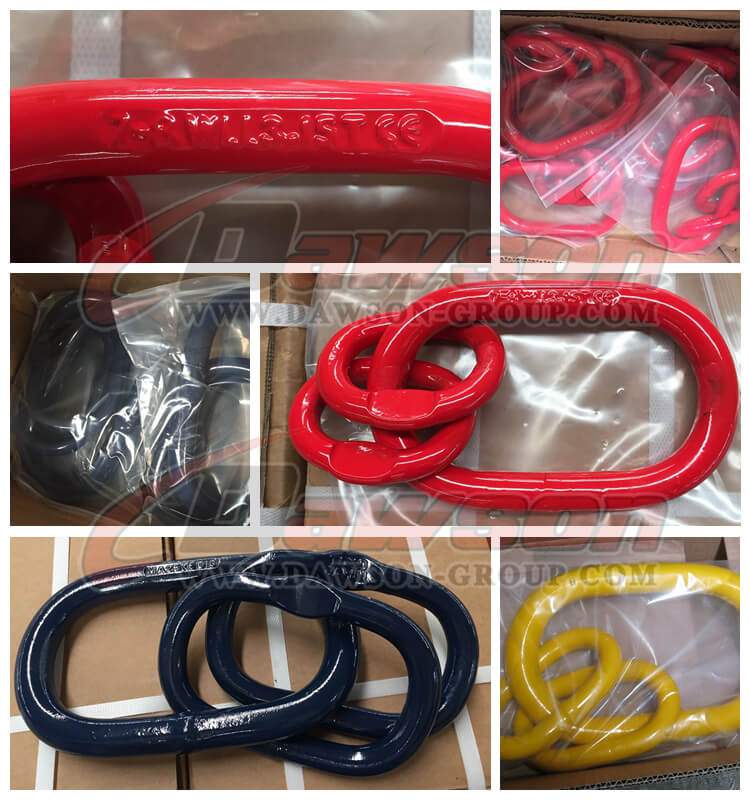

Products Show:
Hot Tags: Master Link Assembly, G80 Master Link Assembly, Grade 80 Master Link Assembly, U.S. Type Master Link Assembly, China Master Link for Wire Rope Slings, Grade 80 Forged Master Link Assembly, Welded Master Link Assembly China Supplier, Forged Master Link Assembly Factory China, Low Price Master Link, Buy Discount Welded Master Link, Cheap Price Forged Master Link Assembly, Hot Sale Welded Master Link, Welded Master Link In Stock, Wholesale Forged Master Link Assembly, China Welded Master Link Assembly Manufacturer, Welded Master Link for Wire Rope Lifting Slings, Forged Alloy Steel Master Link Assembly
Other related products:
Application of Master Link:

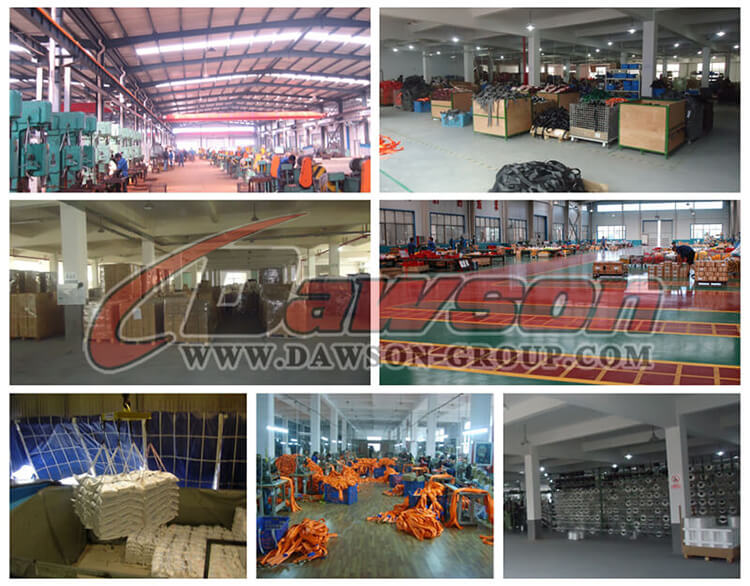

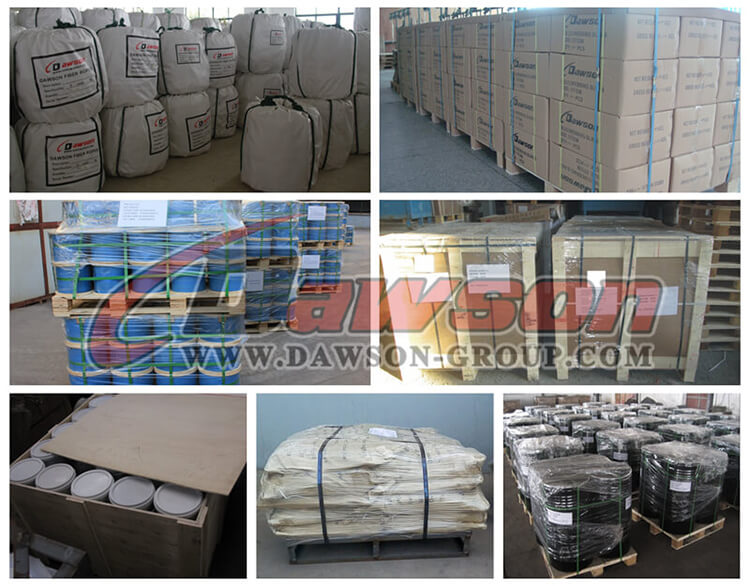

Factory & Package Show:
