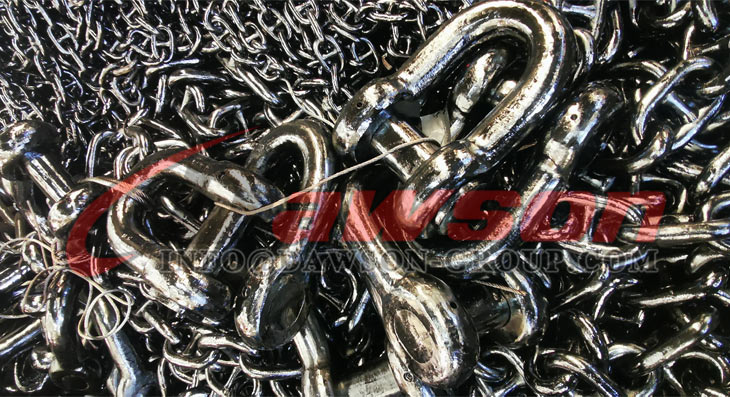

Marine Chain:
We have been the marine chain supplier since many years, supplying stud link anchor chain, studless link anchor chain and mooring chain. ABS, LR, DNV, GL, BV, NK, IRS, CCS Certificate are available for our chains. With the advantage of wide source, good quality products and superior after-sale service, we would be your reliable partner in China.
Product Detail

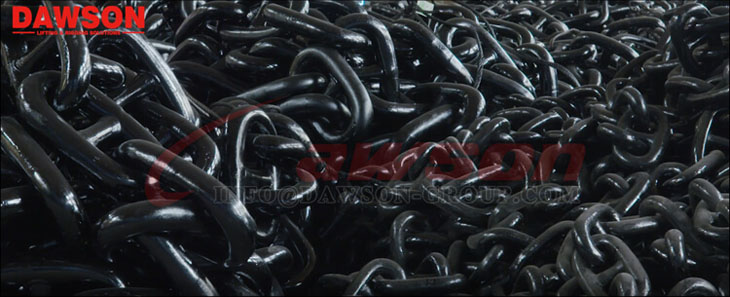

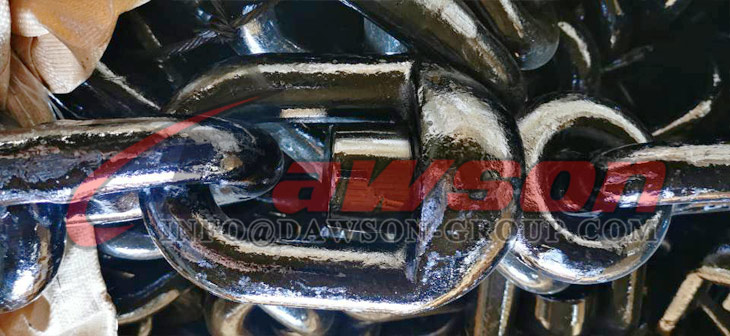

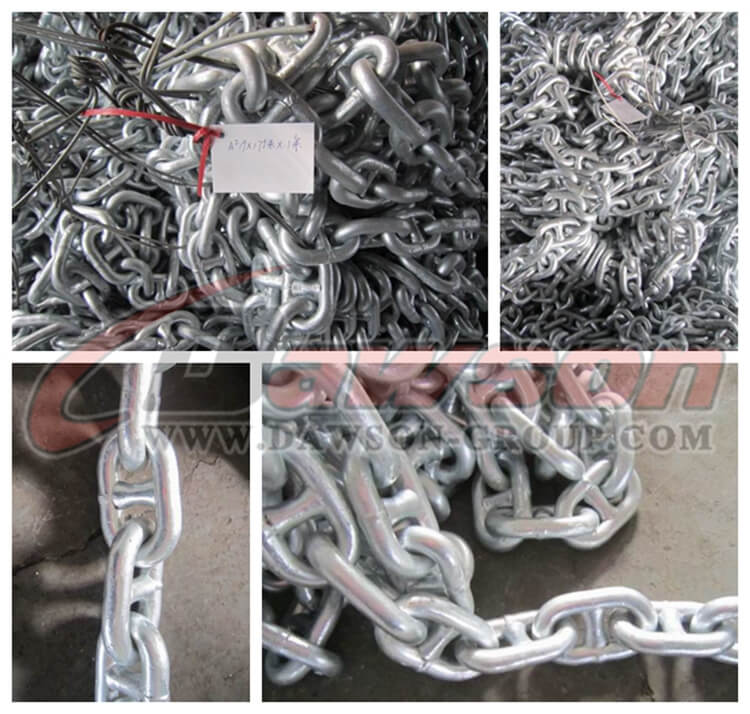

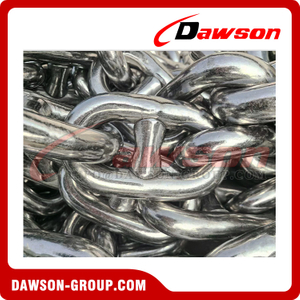

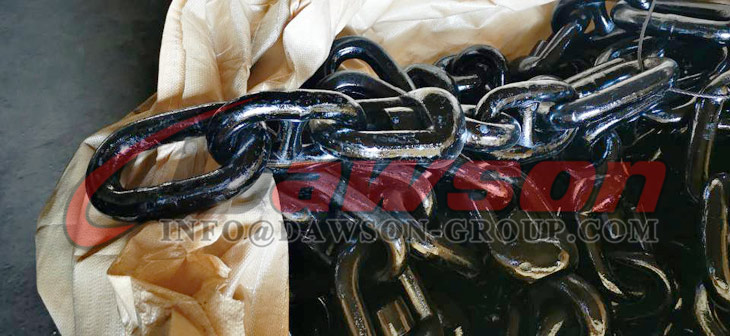

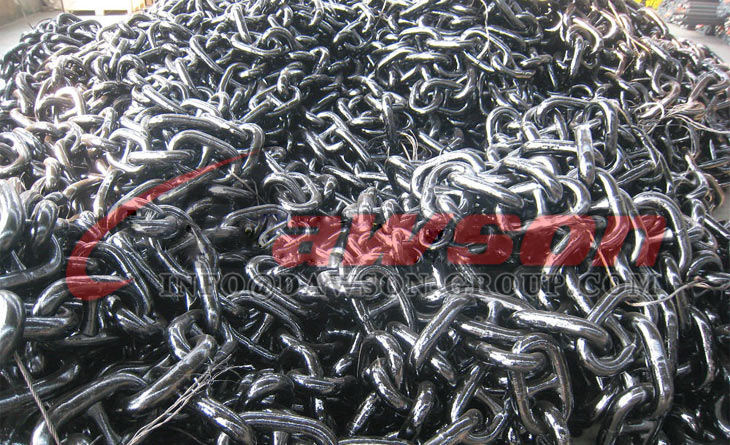

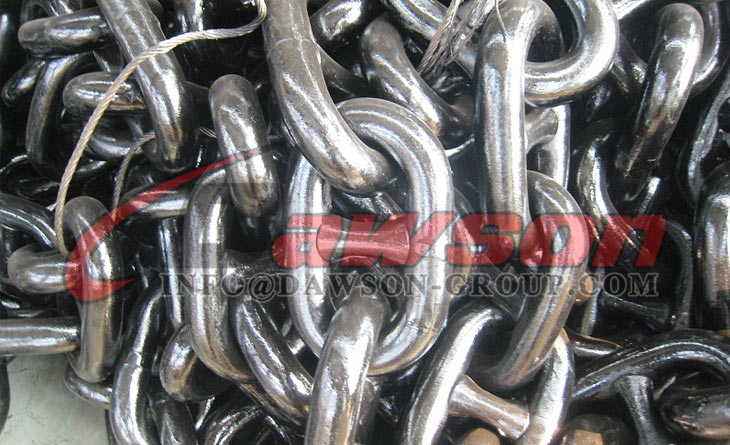

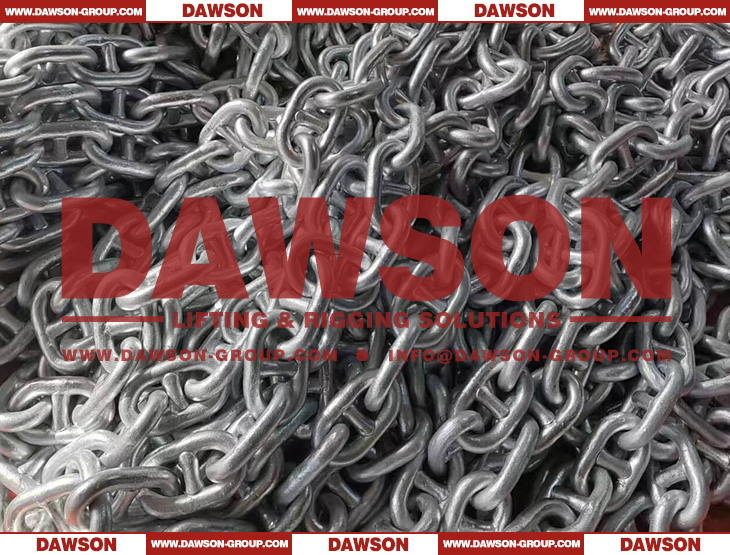

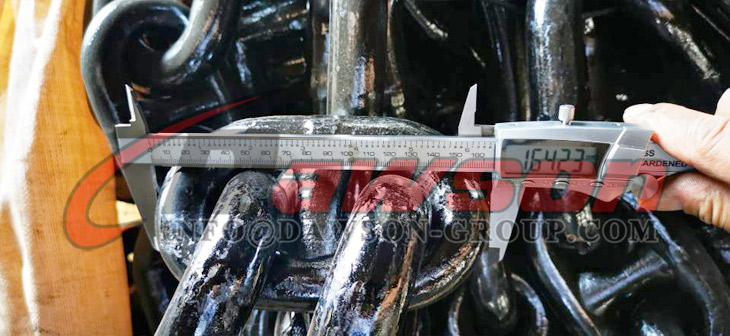

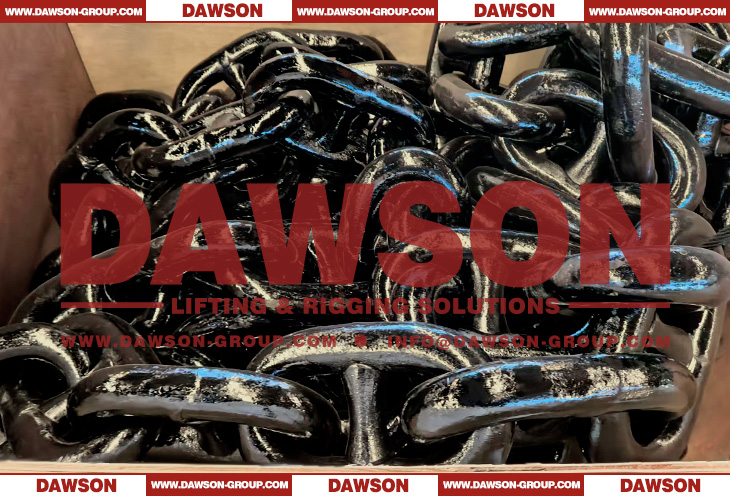

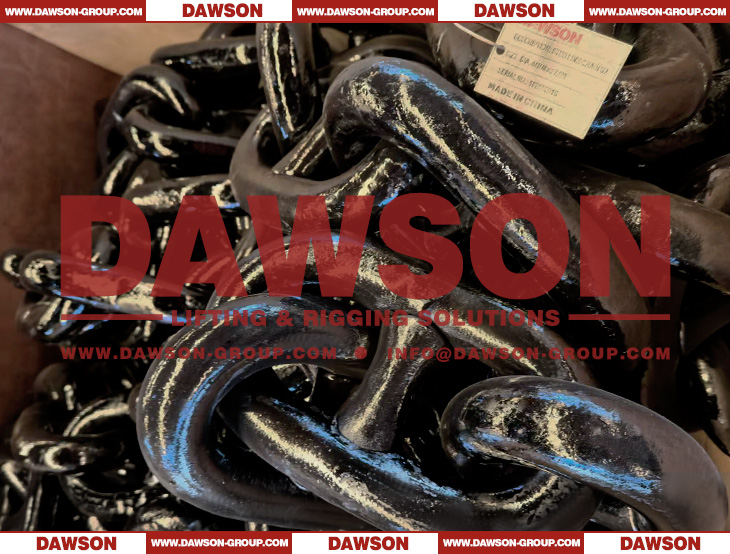

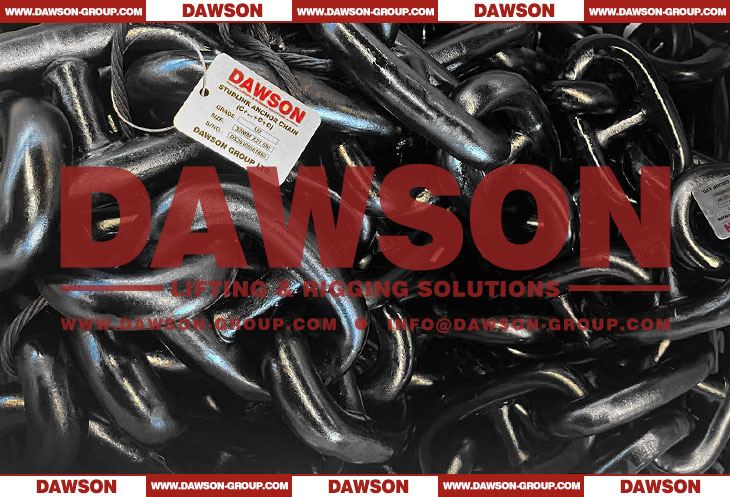

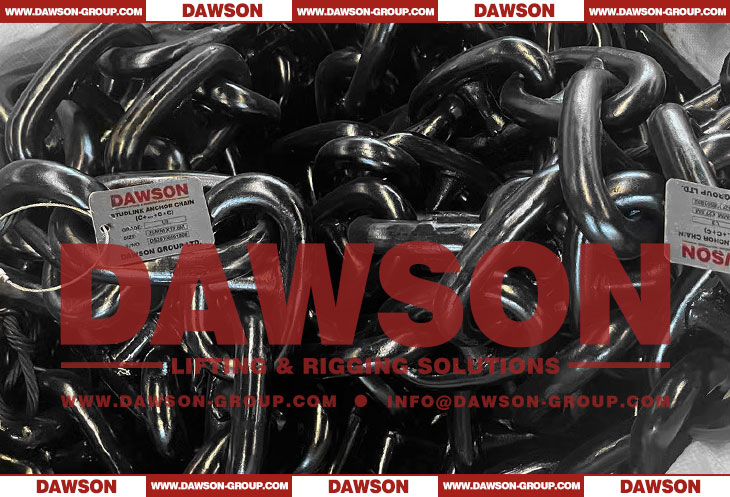

1. Stud / Studless Link Anchor Chain
Grade: U2/U3
Diameter: 16mm to 152mm, 5/8 - 6 inch
ABS, LR, BV, NK, GL, DNV, RS,CCS Certificate

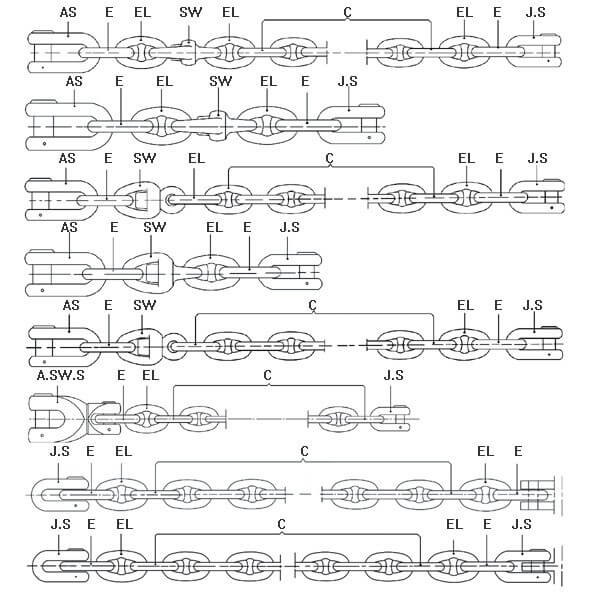

2. Joining Form of Anchor Chain

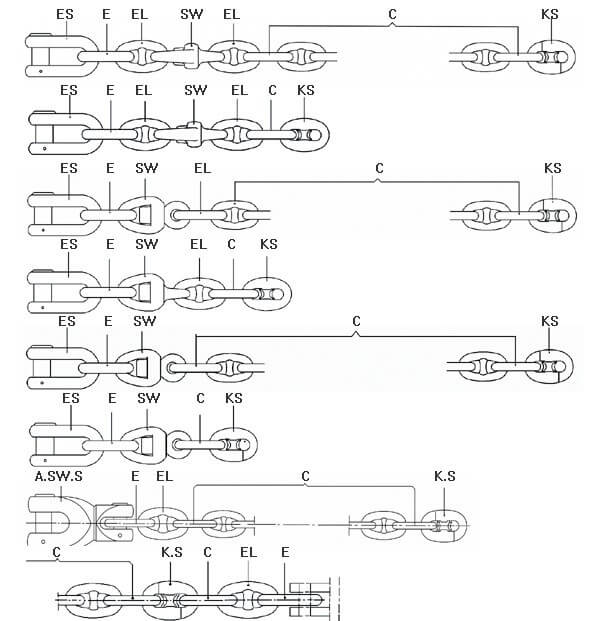

A: Kenter shackle-Chain connection
B: D Shackle Connection
Anchor Chain Joining Forms
A. Joining Forms for Kenter Shackle
B. Joining Forms for ‘D’ Joining Shackle
Data Sheets (diameter mm)
Grade 2, 3 Anchor Chains and Accessories, ø16mm - ø152mm (5/8 - 6 inch)
R3, R3S, R4 Grade Offshore Mooring Chains and Accessories, up to ø152mm (6 inch)

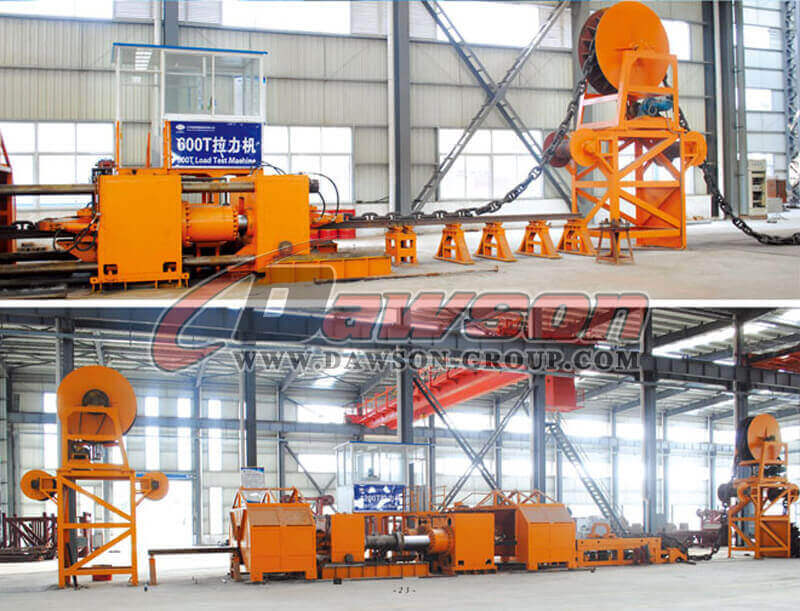

Testing load of anchor chain and accessories & Mooring chain | ||||||||||||||||
Diameter of chain | Anchor chain | Offshore mooring chain | ||||||||||||||
ABS,BV,CCS,CR,DNV,GL,KR,LR,NK, RINA,RMRS | API | ABS | DNV | ABS | ABS/DNV | ABS/DNV | ABS/DNV | |||||||||
C/EL/E | C/EL/E/SL | SL | C/EL/E/SL | C/EL/E | SL | C/EL/E/SL | C/EL/E | SL | C/EL/E/SL | |||||||
Grade2 | Grade3 | ORQ | RQ3 | NVR3/RQ3 | NVR3/RQ3 | RQ3S/NVR3S | RQ4/NVR4 | |||||||||
PL C=0.098 | BL C=0.0137 | PL C=0.0137 | BL C=0.0196 | PL C=0.014 | BL C=0.0211 | PL C=0.0148 | PL C=0.0156 | BL C=0.0223 | PL C=0.0180 | PL C=0.0174 | BL C=0.0249 | PL C=0.0216 | PL C=0.0192 | BL C=0.0274 | ||
mm | KN | KN | KN | KN | KN | KN | KN | KN | KN | KN | KN | KN | KN | KN | KN | |
16 | 107 | 150 | 150 | 216 | - | - | - | - | - | - | - | - | - | - | - | |
17.5 | 127 | 179 | 179 | 256 | - | - | - | - | - | - | - | - | - | - | - | |
19 | 150 | 211 | 211 | 301 | - | - | - | - | - | - | - | - | - | - | - | |
20.5 | 175 | 244 | 244 | 349 | - | - | - | - | - | - | - | - | - | - | - | |
22 | 200 | 280 | 280 | 401 | - | - | - | - | - | - | - | - | - | - | - | |
24 | 237 | 332 | 332 | 476 | - | - | - | - | - | - | - | - | - | - | - | |
26 | 278 | 389 | 389 | 556 | - | - | - | - | - | - | - | - | - | - | - | |
28 | 321 | 449 | 449 | 642 | - | - | - | - | - | - | - | - | - | - | - | |
30 | 368 | 514 | 514 | 735 | - | - | - | - | - | - | - | - | - | - | - | |
32 | 417 | 583 | 583 | 833 | - | - | - | - | - | - | - | - | - | - | - | |
34 | 468 | 655 | 655 | 937 | 668 | 1007 | 706 | 745 | 1064 | 859 | 831 | 1188 | 1031 | 916 | 1308 | |
36 | 523 | 732 | 732 | 1050 | 746 | 1124 | 789 | 832 | 1189 | 960 | 928 | 1327 | 1151 | 1022 | 1460 | |
38 | 581 | 812 | 812 | 1160 | 828 | 1248 | 876 | 923 | 1319 | 1065 | 1029 | 1473 | 1278 | 1135 | 1621 | |
40 | 640 | 896 | 896 | 1280 | 914 | 1376 | 967 | 1019 | 1456 | 1176 | 1136 | 1626 | 1411 | 1253 | 1789 | |
42 | 703 | 987 | 987 | 1400 | 999 | 1513 | 1056 | 1114 | 1592 | 1285 | 1242 | 1777 | 1542 | 1370 | 1956 | |
44 | 769 | 1080 | 1080 | 1540 | 1097 | 1654 | 1160 | 1223 | 1748 | 1411 | 1364 | 1951 | 1693 | 1503 | 2147 | |
46 | 837 | 1170 | 1170 | 1680 | 1194 | 1800 | 1263 | 1331 | 1902 | 1535 | 1484 | 2124 | 1843 | 1636 | 2337 | |
48 | 908 | 1270 | 1270 | 1810 | 1295 | 1952 | 1369 | 1443 | 2063 | 1665 | 1610 | 2304 | 2037 | 1775 | 2535 | |
50 | 981 | 1370 | 1370 | 1960 | 1400 | 2110 | 1480 | 1561 | 2230 | 1800 | 1743 | 2490 | 2160 | 1918 | 2740 | |
52 | 1060 | 1480 | 1480 | 2110 | 1508 | 2273 | 1594 | 1682 | 2402 | 1939 | 1877 | 2682 | 2327 | 2066 | 2952 | |
54 | 1140 | 1590 | 1590 | 2270 | 1620 | 2441 | 1712 | 1806 | 2580 | 2083 | 2017 | 2881 | 2499 | 2219 | 3170 | |
56 | 1220 | 1710 | 1710 | 2430 | 1735 | 2615 | 1834 | 1935 | 2764 | 2231 | 2160 | 3086 | 2677 | 2378 | 3396 | |
58 | 1290 | 1810 | 1810 | 2600 | 1851 | 2794 | 1960 | 2068 | 2953 | 2383 | 2308 | 3297 | 2860 | 2540 | 3628 | |
60 | 1380 | 1940 | 1940 | 2770 | 1976 | 2978 | 2089 | 2203 | 3147 | 2540 | 2460 | 3514 | 3048 | 2708 | 3867 | |
62 | 1470 | 2060 | 2060 | 2940 | 2101 | 3166 | 2221 | 2343 | 3347 | 2701 | 2616 | 3737 | 3242 | 2879 | 4112 | |
64 | 1560 | 2190 | 2190 | 3130 | 2230 | 3360 | 2357 | 2486 | 3551 | 2867 | 2776 | 3965 | 3440 | 3055 | 4364 | |
66 | 1660 | 2310 | 2310 | 3300 | 2361 | 3559 | 2496 | 2633 | 3761 | 3036 | 2940 | 4200 | 3643 | 3235 | 4621 | |
68 | 1750 | 2450 | 2450 | 3500 | 2496 | 3762 | 2639 | 2784 | 3976 | 3209 | 3108 | 4440 | 3851 | 3420 | 4885 | |
70 | 1840 | 2580 | 2580 | 3690 | 2631 | 3970 | 2785 | 2938 | 4196 | 3387 | 3289 | 4685 | 4064 | 3610 | 5156 | |
73 | 1990 | 2790 | 2790 | 3990 | 2847 | 4291 | 3010 | 3175 | 4535 | 3660 | 3545 | 5064 | 4392 | 3900 | 5572 | |
76 | 2150 | 3010 | 3010 | 4300 | 3066 | 4621 | 3242 | 3419 | 4884 | 3942 | 3818 | 5454 | 4731 | 4206 | 6001 | |
78 | 2260 | 3160 | 3160 | 4500 | 3216 | 4847 | 3400 | 3587 | 5123 | 4135 | 4004 | 5720 | 4962 | 4411 | 6295 | |
81 | 2410 | 3380 | 3380 | 4820 | 3446 | 5194 | 3643 | 3843 | 5490 | 4431 | 4291 | 6130 | 5317 | 4727 | 6745 | |
84 | 2580 | 3610 | 3610 | 5160 | 3683 | 5550 | 3893 | 4107 | 5866 | 4735 | 4585 | 6550 | 5682 | 5051 | 7208 | |
87 | 2750 | 3850 | 3850 | 5500 | 3925 | 5916 | 4149 | 4377 | 6252 | 5046 | 4887 | 6981 | 6056 | 5383 | 7682 | |
90 | 2920 | 4090 | 4090 | 5840 | 4173 | 6289 | 4412 | 4653 | 6647 | 5365 | 5196 | 7422 | 6439 | 5724 | 8167 | |
92 | 3040 | 4260 | 4260 | 6080 | 4242 | 6544 | 4590 | 4842 | 6916 | 5582 | 5405 | 7722 | 6699 | 5955 | 8497 | |
95 | 3230 | 4510 | 4510 | 6440 | 4599 | 6932 | 4862 | 5128 | 7326 | 5913 | 5726 | 8180 | 7096 | 6308 | 9001 | |
97 | 3340 | 4680 | 4680 | 6690 | 4774 | 7195 | 5047 | 5323 | 7604 | 6138 | 5943 | 8490 | 7365 | 6547 | 9343 | |
100 | 3530 | 4940 | 4940 | 7060 | 5040 | 7596 | 5328 | 5620 | 8028 | 6480 | 6275 | 8964 | 7776 | 6912 | 9864 | |
102 | 3660 | 5120 | 5120 | 7320 | 5220 | 7868 | 5519 | 5821 | 8315 | 6712 | 6500 | 9285 | 8054 | 7160 | 10217 | |
105 | 3850 | 5390 | 5390 | 7700 | 5495 | 8282 | 5809 | 6128 | 8753 | 7065 | 6842 | 9773 | 8478 | 7536 | 10754 | |
107 | 3980 | 5570 | 5570 | 7960 | 5681 | 8561 | 6005 | 6334 | 9048 | 7304 | 7072 | 10103 | 8764 | 7791 | 11118 | |
111 | 4250 | 5940 | 5940 | 8480 | 6058 | 9130 | 6401 | 6755 | 9650 | 7789 | 7543 | 10775 | 9347 | 8309 | 11856 | |
114 | 4440 | 6230 | 6230 | 8890 | 6346 | 9565 | 6709 | 7077 | 10109 | 8159 | 7901 | 11287 | 9791 | 8704 | 12420 | |
117 | 4650 | 6510 | 6510 | 9300 | 6639 | 10005 | 7018 | 7402 | 10574 | 8535 | 8265 | 11807 | 10242 | 9105 | 12993 | |
120 | 4850 | 6810 | 6810 | 9720 | 6953 | 10452 | 7331 | 7733 | 11047 | 8916 | 8634 | 12334 | 10700 | 9511 | 13573 | |
122 | 5000 | 7000 | 7000 | 9990 | 7135 | 10753 | 7542 | 7956 | 11365 | 9173 | 8883 | 12690 | 11008 | 9785 | 13964 | |
124 | 5140 | 7200 | 7200 | 10280 | 7336 | 11057 | 7755 | 8175 | 11688 | 9433 | 9134 | 13048 | 11319 | 10062 | 14358 | |
127 | 5350 | 7490 | 7490 | 10710 | 7641 | 11516 | 8078 | 8515 | 12172 | 9825 | 9514 | 13951 | 11790 | 10480 | 14955 | |
130 | 5570 | 7800 | 7800 | 11140 | 7950 | 11981 | 8404 | 8858 | 12663 | 10222 | 9898 | 14140 | 12266 | 10903 | 15559 | |
132 | 5720 | 8000 | 8000 | 11420 | 8157 | 12294 | 8623 | 9090 | 12994 | 10488 | 10157 | 14509 | 12586 | 11187 | 15965 | |
137 | 6080 | 8510 | 8510 | 12160 | 8682 | 13085 | 9178 | 9674 | 13829 | 11163 | 10809 | 15442 | 13395 | 11907 | 16992 | |
142 | 6450 | 9030 | 9030 | 12910 | 9214 | 13887 | 9740 | 10268 | 14677 | 11847 | 11472 | 16389 | 14217 | 12637 | 18034 | |
147 | 6840 | 9560 | 9560 | 13660 | 9753 | 14670 | 10310 | 10869 | 15536 | 12540 | 12144 | 17348 | 15049 | 13377 | 19089 | |
152 | 7220 | 10100 | 10100 | 14430 | 10299 | 15522 | 10887 | 11477 | 16405 | 13242 | 12823 | 18318 | 15890 | 14125 | 20157 | |
157 | 7600 | 10640 | 10640 | 15200 | 11126 | 16768 | 11762 | 12090 | 17282 | 13950 | 13508 | 19297 | 16740 | 14880 | 21234 | |
162 | 7990 | 11180 | 11180 | 15980 | 11405 | 17189 | 12057 | 12708 | 18166 | 14663 | 14199 | 20284 | 17596 | 15641 | 22320 | |
Note:Test Load=cXd2(44-0.08Xd) |
Data Sheets (diameter inch)
Grade 2, 3 Anchor Chains and Accessories, ø16mm - ø152mm (5/8 - 6 inch)
R3, R3S, R4 Grade Offshore Mooring Chains and Accessories, up to ø152mm (6 inch)
Testing load of anchor chain and accessories & Mooring chain | ||||||||||||||||
Diameter of chain | Anchor chain | Offshore mooring chain | ||||||||||||||
ABS,BV,CCS,CR,DNV,GL,KR,LR,NK,RINA,RMRS | API | ABS | DNV | ABS | ABS/DNV | ABS/DNV | ABS/DNV | |||||||||
C/EL/E | C/EL/E/SL | SL | C/EL/E/SL | C/EL/E | SL | C/EL/E/SL | C/EL/E | SL | C/EL/E/SL | |||||||
Grade2 | Grade3 | ORQ | RQ3 | NVR3/RQ3 | NVR3/RQ3 | RQ3S/NVR3S | RQ4/NVR4 | |||||||||
PL C=1422 | BL C=1991 | PL C=1991 | BL C=2844 | PL C=2030.5 | BL C=3060.3 | PL C=2147 | PL C=2265.2 | BL C=3236 | PL C=2610 | PL C=2527 | BL C=3610 | PL C=3125 | PL C=2783.9 | BL C=3977 | ||
in | lbf | lbf | lbf | lbf | lbf | lbf | lbf | lbf | lbf | lbf | lbf | lbf | lbf | lbf | lbf | |
5/8 | 23700 | 33200 | 33200 | 47500 | - | - | - | - | - | - | - | - | - | - | - | |
11/16 | 28600 | 40100 | 40100 | 57300 | - | - | - | - | - | - | - | - | - | - | - | |
3/4 | 34000 | 47600 | 47600 | 68000 | - | - | - | - | - | - | - | - | - | - | - | |
13/16 | 39800 | 55700 | 55700 | 79500 | - | - | - | - | - | - | - | - | - | - | - | |
7/8 | 46000 | 64400 | 64400 | 91800 | - | - | - | - | - | - | - | - | - | - | - | |
15/16 | 52600 | 73700 | 73700 | 105000 | - | - | - | - | - | - | - | - | - | - | - | |
1 | 59700 | 83600 | 83600 | 119500 | - | - | - | - | - | - | - | - | - | - | - | |
1 1/16 | 67200 | 94100 | 94100 | 135000 | - | - | - | - | - | - | - | - | - | - | - | |
1 1/8 | 75000 | 105000 | 105000 | 150000 | - | - | - | - | - | - | - | - | - | - | - | |
1 3/16 | 83400 | 116500 | 116500 | 167000 | - | - | - | - | - | - | - | - | - | - | - | |
1 1/4 | 92200 | 129000 | 129000 | 184000 | - | - | - | - | - | - | - | - | - | - | - | |
1 5/16 | 101500 | 142000 | 142000 | 203000 | - | - | - | - | - | - | - | - | - | - | - | |
1 3/8 | 111000 | 155000 | 155000 | 222000 | 158187 | 238413 | 167263 | 176471 | 252101 | 203333 | 196867 | 281238 | 243454 | 216880 | 309829 | |
1 7/16 | 120500 | 169000 | 169000 | 241000 | 172361 | 259777 | 182251 | 192284 | 274691 | 221553 | 214507 | 306439 | 265269 | 236314 | 337592 | |
1 1/2 | 131000 | 183500 | 183500 | 262000 | 187095 | 281983 | 197829 | 208721 | 298172 | 240491 | 232843 | 332633 | 287944 | 256515 | 366449 | |
1 9/16 | 142000 | 198500 | 198500 | 284000 | 202381 | 305022 | 213993 | 225774 | 322534 | 260140 | 251868 | 359811 | 311471 | 277473 | 396390 | |
1 5/8 | 153000 | 214000 | 214000 | 306000 | 218215 | 328885 | 230735 | 243437 | 347767 | 280492 | 271573 | 387961 | 335838 | 299181 | 427401 | |
1 11/16 | 166500 | 229000 | 229000 | 327000 | 234589 | 353564 | 248048 | 261704 | 373863 | 301540 | 291951 | 417072 | 361039 | 321631 | 459472 | |
1 3/4 | 176000 | 247000 | 247000 | 352000 | 251498 | 379048 | 265927 | 280568 | 400811 | 323274 | 312994 | 447134 | 387062 | 344814 | 492591 | |
1 13/16 | 188500 | 264000 | 264000 | 377000 | 268935 | 405330 | 284366 | 300021 | 428601 | 345689 | 334696 | 478136 | 413899 | 368721 | 526745 | |
1 7/8 | 201000 | 281000 | 281000 | 402000 | 286896 | 432399 | 303357 | 320057 | 457225 | 368775 | 357048 | 510068 | 441541 | 393346 | 561923 | |
1 15/16 | 214000 | 299000 | 299000 | 427000 | 305373 | 460247 | 322894 | 340670 | 486671 | 392526 | 380043 | 542918 | 469978 | 418679 | 598112 | |
2 | 227000 | 318000 | 318000 | 454000 | 324361 | 488865 | 342971 | 361853 | 516932 | 416932 | 403674 | 576676 | 499201 | 444712 | 635302 | |
2 1/16 | 241000 | 337000 | 337000 | 482000 | 343853 | 518243 | 363582 | 383598 | 547997 | 441988 | 427932 | 611331 | 529200 | 471437 | 673481 | |
2 1/8 | 255000 | 357000 | 357000 | 510000 | 363844 | 548373 | 384719 | 405899 | 579856 | 467684 | 452811 | 646873 | 559966 | 498845 | 712635 | |
2 3/16 | 269000 | 377000 | 377000 | 598000 | 384327 | 579244 | 406378 | 428750 | 612500 | 494013 | 478303 | 683290 | 591491 | 526928 | 752755 | |
2 1/4 | 284000 | 396000 | 396000 | 570000 | 405297 | 610849 | 428551 | 452144 | 645920 | 520968 | 504400 | 720572 | 623764 | 555679 | 793827 | |
2 5/16 | 299000 | 418000 | 418000 | 538000 | 426747 | 643178 | 451232 | 476074 | 680105 | 548540 | 531096 | 758708 | 656776 | 585088 | 835840 | |
2 3/8 | 314000 | 44000 | 44000 | 628000 | 448672 | 676222 | 474414 | 500532 | 715046 | 576721 | 558381 | 797687 | 690519 | 615147 | 878782 | |
2 7/16 | 330000 | 462000 | 462000 | 660000 | 471064 | 709972 | 498092 | 525514 | 750733 | 605505 | 586250 | 837499 | 724982 | 645849 | 922641 | |
2 1/2 | 346000 | 484000 | 484000 | 692000 | 493920 | 744418 | 522258 | 551010 | 787158 | 634883 | 614693 | 878133 | 760157 | 677184 | 967406 | |
2 9/16 | 363000 | 507000 | 507000 | 726000 | 517231 | 779553 | 546907 | 577016 | 824309 | 664847 | 643705 | 919578 | 796034 | 709145 | 1013064 | |
2 5/8 | 379000 | 530000 | 530000 | 758000 | 540993 | 815365 | 572032 | 603524 | 862177 | 695390 | 673276 | 961823 | 832603 | 741723 | 1059604 | |
2 11/16 | 396000 | 554000 | 554000 | 792000 | 565198 | 851847 | 597626 | 630528 | 900574 | 726504 | 703401 | 1004858 | 869857 | 774910 | 1107014 | |
2 3/4 | 413000 | 578000 | 578000 | 826000 | 589842 | 888989 | 623684 | 658020 | 940029 | 758181 | 734071 | 1048672 | 907784 | 808698 | 1155282 | |
2 13/16 | 431000 | 603000 | 603000 | 861000 | 614918 | 926783 | 650199 | 685994 | 979992 | 790414 | 765278 | 1093254 | 946377 | 843078 | 1204397 | |
2 7/8 | 449000 | 628000 | 628000 | 897000 | 640420 | 965218 | 677164 | 714444 | 1020634 | 823194 | 797016 | 1138593 | 985625 | 878042 | 1254345 | |
2 15/16 | 467000 | 654000 | 654000 | 934000 | 666341 | 1004287 | 704573 | 743362 | 1061945 | 856514 | 829276 | 1184680 | 1025519 | 913582 | 1305116 | |
3 | 485000 | 679000 | 679000 | 970000 | 692677 | 1043979 | 732419 | 772742 | 1103917 | 890365 | 862051 | 1231501 | 1066051 | 949689 | 1356698 | |
3 1/16 | 504000 | 705000 | 705000 | 1008000 | 719421 | 1084286 | 760698 | 802577 | 1146538 | 924742 | 895334 | 1279049 | 1107210 | 986356 | 1409079 | |
3 1/8 | 523000 | 732000 | 732000 | 1046000 | 746566 | 1125199 | 789400 | 832860 | 1189799 | 959634 | 929117 | 1327310 | 1148987 | 1023573 | 1462247 | |
3 3/16 | 542000 | 759000 | 759000 | 1084000 | 774107 | 1166708 | 818522 | 863584 | 1233692 | 995036 | 963393 | 1376275 | 1191374 | 1061333 | 1516190 | |
3 1/4 | 562000 | 787000 | 787000 | 1124000 | 802038 | 1208804 | 848055 | 894744 | 1278205 | 1030938 | 998153 | 1425933 | 1234361 | 1099628 | 1570897 | |
3 5/16 | 582000 | 814000 | 814000 | 1163000 | 830353 | 1251479 | 877995 | 926331 | 1323330 | 1067334 | 1033392 | 1476274 | 1277938 | 1138448 | 1626355 | |
3 3/8 | 602000 | 843000 | 843000 | 1204000 | 859045 | 1294723 | 908333 | 958340 | 1369057 | 1104215 | 1069100 | 1527285 | 1322096 | 1177787 | 1682552 | |
3 7/16 | 622000 | 871000 | 871000 | 1244000 | 888109 | 1338528 | 939065 | 990763 | 1415376 | 1141573 | 1105271 | 1578958 | 1366826 | 1217635 | 1739478 | |
3 1/2 | 643000 | 900000 | 900000 | 1285000 | 917539 | 1382883 | 970183 | 1023595 | 1462278 | 1179402 | 1141896 | 1631280 | 1412119 | 1257984 | 1797119 | |
3 9/16 | 664000 | 929000 | 929000 | 1327000 | 947328 | 1427780 | 1001681 | 1056827 | 1509752 | 1217693 | 1178969 | 1684242 | 1457965 | 1298826 | 1855465 | |
3 5/8 | 685000 | 958000 | 958000 | 1369000 | 977470 | 1473210 | 1033553 | 1090453 | 1557790 | 1256438 | 1216482 | 1737832 | 1504356 | 1340152 | 1914503 | |
3 3/4 | 728000 | 1019000 | 1019000 | 1455000 | 1038792 | 1565631 | 1098392 | 1158863 | 1655518 | 1335260 | 1292798 | 1846854 | 1598731 | 1424226 | 2034609 | |
3 7/8 | 772000 | 1080000 | 1080000 | 1543000 | 1101454 | 1660074 | 1164650 | 1228768 | 1755383 | 1415807 | 1370783 | 1958261 | 1695171 | 1510139 | 2157342 | |
3 15/16 | 794000 | 1111000 | 1111000 | 1587000 | 1133274 | 1708031 | 1198295 | 1264266 | 1806093 | 1456707 | 1410383 | 2014832 | 1744142 | 1553765 | 2219664 | |
4 | 816000 | 1143000 | 1143000 | 1632000 | 1165410 | 1756466 | 1232275 | 1300117 | 1857309 | 1498015 | 1450377 | 2071967 | 1793601 | 1597825 | 2282608 | |
4 1/8 | 862000 | 1207000 | 1207000 | 1724000 | 1230610 | 1854734 | 1301217 | 1372853 | 1961219 | 1581824 | 1531521 | 2187886 | 1893946 | 1687218 | 2410311 | |
4 1/4 | 908000 | 1272000 | 1272000 | 1817000 | 1297007 | 1954805 | 1371423 | 1446925 | 2067035 | 1667170 | 1614153 | 2305932 | 1996133 | 1778251 | 2540358 | |
4 3/8 | 956000 | 1338000 | 1338000 | 1911000 | 1364552 | 2056606 | 1442843 | 1522277 | 2174681 | 1753992 | 1698214 | 2426019 | 2100086 | 1870857 | 2672653 | |
4 1/2 | 1004000 | 1405000 | 1405000 | 2008000 | 1433196 | 2160004 | 1515426 | 1598856 | 2284079 | 1842227 | 1783643 | 2548061 | 2205732 | 1964972 | 2807102 | |
4 5/8 | 1053000 | 1474000 | 1474000 | 2105000 | 1502892 | 2265107 | 1589121 | 1676607 | 2395153 | 1931814 | 1870381 | 2671972 | 2312996 | 2060527 | 2943610 | |
4 3/4 | 1102000 | 1543000 | 1543000 | 2204000 | 1573591 | 2371662 | 1663876 | 1755478 | 2507825 | 2022690 | 1958367 | 2797667 | 2421803 | 2157458 | 3082083 | |
4 7/8 | 1153000 | 1613000 | 1613000 | 2305000 | 1645244 | 2479655 | 1739640 | 1835413 | 2622019 | 2114793 | 2047541 | 2925058 | 2532079 | 2255698 | 3222425 | |
5 | 1203000 | 1685000 | 1685000 | 2407000 | 1717804 | 2589014 | 1816363 | 1916360 | 2737657 | 2208061 | 2137843 | 3054061 | 2643751 | 2355180 | 3364543 | |
5 1/8 | 1255000 | 1757000 | 1757000 | 2509000 | 1791221 | 2699666 | 1893992 | 1998263 | 2854661 | 2302431 | 2229212 | 3184588 | 2756742 | 2455838 | 3508340 | |
5 1/4 | - | - | - | - | 1865448 | 2811539 | 1972478 | 2081070 | 2972957 | 2397842 | 2321589 | 3316555 | 2870979 | 2557606 | 3653723 | |
5 3/8 | 1359000 | 1903000 | 1903000 | 2718000 | 1940436 | 2924558 | 2051768 | 2164726 | 3092465 | 2494232 | 2414913 | 3449876 | 2986388 | 2660418 | 3800597 | |
5 1/2 | - | - | - | - | 2016137 | 3038652 | 2131813 | 2249176 | 3213109 | 2591537 | 2509125 | 3584463 | 3102894 | 2764207 | 3948867 | |
5 5/8 | 1466000 | 2052000 | 2052000 | 2935000 | 2092502 | 3153747 | 2212559 | 2334369 | 3334812 | 2689697 | 2604163 | 3720232 | 3220423 | 2868907 | 4098439 | |
5 3/4 | 1520000 | 2128000 | 2128000 | 3039000 | 2169484 | 3269771 | 2293958 | 2420248 | 3457497 | 2788649 | 2699968 | 3857097 | 3338900 | 2974452 | 4249217 | |
5 7/8 | - | - | - | - | 2247033 | 3386651 | 2375957 | 2506761 | 3581087 | 2888331 | 2796480 | 3994971 | 3458250 | 3080776 | 4401108 | |
6 | 1629000 | 2280000 | 2280000 | 3257000 | 2325102 | 3504313 | 2458504 | 2593854 | 3705505 | 2988680 | 2893638 | 4133768 | 3578401 | 3187811 | 4554015 | |
6 1/8 | - | - | - | - | 2403641 | 3622686 | 2541550 | 2681472 | 3830674 | 3089635 | 2991382 | 4273403 | 3699276 | 3295492 | 4707846 | |
6 1/4 | 1684000 | 2357000 | 2357000 | 3367000 | 2482604 | 3741695 | 2625043 | 2769561 | 3956516 | 3191133 | 3089653 | 4413790 | 3820801 | 3403753 | 4862504 | |
6 3/8 | 1795000 | 2512000 | 2512000 | 3589000 | 2651941 | 3861269 | 2708932 | 2858069 | 4082955 | 3293113 | 3188389 | 4554842 | 3942903 | 3512527 | 5017896 | |
Note:Test Load= cXd2(44-2.032Xd) |

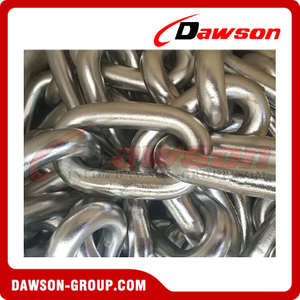

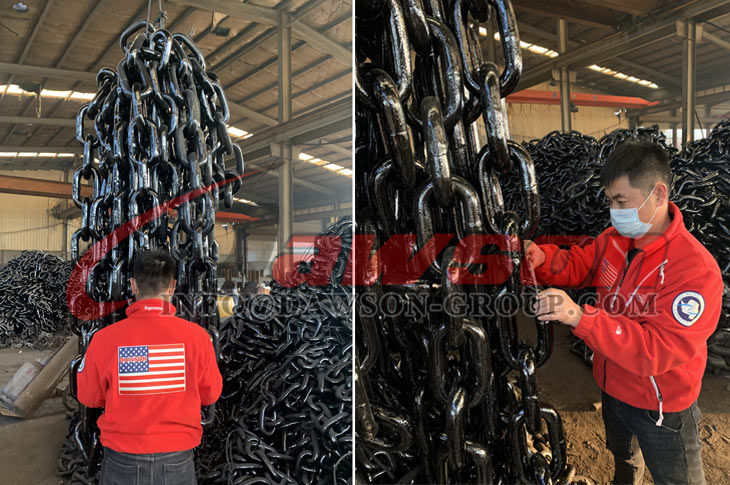

Studless Link Chain
Open Link Anchor Chain/Studless Anchor Chain, Link Size (6*3.6D), Test Load and Weight | |||||||||
Diameter D(Φ) | Chain Link Size | BM1/U1 Open Link Chain | BM2/U2 Open Link Chain | BM3/U3 Open Link Chain | Approx Weight | ||||
Outside Length(L) | Outside Width(B) | Proof Load | Breaking Load | Proof Load | Breaking Load | Proof Load | Breaking Load | 27.5m | |
MM | MM | MM | KN | KN | KN | KN | KN | KN | KG |
16 | 96 | 57.6 | 47.10 | 94.72 | 66.20 | 132.30 | 92.42 | 184.83 | 139.43 |
17.5 | 105 | 63 | 56.35 | 113.31 | 78.89 | 157.78 | 110.55 | 221.10 | 178.35 |
19 | 114 | 68.4 | 66.42 | 133.57 | 93.60 | 187.20 | 130.32 | 260.64 | 217.68 |
20.5 | 123 | 73.8 | 77.33 | 155.49 | 108.64 | 217.27 | 151.70 | 303.42 | 229.14 |
22 | 132 | 79.2 | 89.06 | 179.08 | 125.40 | 250.90 | 174.40 | 349.40 | 264.49 |
24 | 144 | 86.4 | 105.98 | 213.25 | 149.90 | 298.90 | 207.90 | 415.80 | 341.82 |
26 | 156 | 93.6 | 124.38 | 250.12 | 175.40 | 350.80 | 244.00 | 488.00 | 369.94 |
28 | 168 | 100.8 | 144.26 | 290.08 | 203.80 | 406.70 | 283.00 | 566.00 | 427.98 |
30 | 180 | 108 | 165.60 | 333.00 | 234.20 | 467.50 | 324.00 | 649.80 | 490.98 |
32 | 192 | 115.2 | 188.42 | 378.88 | 265.60 | 531.20 | 369.60 | 739.30 | 559.65 |
34 | 204 | 122.4 | 212.70 | 427.72 | 299.90 | 599.80 | 417.30 | 834.60 | 671.52 |
36 | 216 | 129.6 | 238.46 | 479.52 | 336.10 | 672.30 | 467.80 | 935.70 | 707.85 |
38 | 228 | 136.8 | 265.70 | 534.28 | 374.40 | 748.70 | 521.30 | 1042.50 | 788.98 |
40 | 240 | 144 | 294.40 | 592.00 | 414.50 | 829.10 | 577.60 | 1155.20 | 869.36 |
42 | 252 | 151.2 | 324.58 | 652.68 | 457.70 | 915.30 | 636.80 | 1273.60 | 959.30 |
44 | 264 | 158.4 | 356.22 | 716.32 | 502.70 | 999.60 | 698.90 | 1398.00 | 1111.25 |
46 | 276 | 165.6 | 389.34 | 782.92 | 548.80 | 1097.60 | 763.90 | 1527.80 | 1152.07 |
48 | 288 | 172.8 | 423.94 | 852.48 | 597.80 | 1195.60 | 831.70 | 1663.50 | 1256.26 |
50 | 300 | 180 | 460.00 | 926.09 | 648.80 | 1293.60 | 902.50 | 1805.00 | 1360.41 |
52 | 312 | 187.2 | 497.54 | 1000.48 | 697.63 | 1395.26 | 976.14 | 1952.28 | 1485.61 |
54 | 324 | 194.4 | 536.54 | 1078.92 | 752.33 | 1504.66 | 1052.68 | 2105.36 | 1648.08 |
56 | 336 | 201.6 | 577.02 | 1160.32 | 809.09 | 1618.18 | 1132.10 | 2264.20 | 1715.97 |
58 | 348 | 208.8 | 618.98 | 1244.68 | 867.91 | 1735.82 | 1214.40 | 2428.80 | 1844.50 |
60 | 360 | 216 | 662.40 | 1332.00 | 928.80 | 1857.60 | 1299.60 | 2599.20 | 1973.29 |
62 | 372 | 223.2 | 707.30 | 1422.28 | 991.75 | 1983.50 | 1387.68 | 2775.36 | 2101.56 |
64 | 384 | 230.4 | 753.66 | 1515.52 | 1056.77 | 2113.54 | 1478.66 | 2957.32 | 2298.10 |
66 | 396 | 237.6 | 801.50 | 1611.72 | 1123.85 | 2247.70 | 1572.52 | 3145.04 | 2398.10 |
68 | 408 | 244.8 | 850.82 | 1710.88 | 1192.99 | 2385.98 | 1669.26 | 3338.52 | 2522.88 |
70 | 420 | 252 | 901.60 | 1813.00 | 1264.20 | 2528.40 | 1768.90 | 3537.80 | 2697.65 |
U2 / U3 16MM Stud / Studless Link Anchor Chain Hot Dip Galvanized or Black Painted
U2 / U3 17.5MM Stud / Studless Link Anchor Chain Hot Dip Galvanized or Black Painted
U2 / U3 19MM Stud / Studless Link Anchor Chain Hot Dip Galvanized or Black Painted
U2 / U3 20.5MM Stud / Studless Link Anchor Chain Hot Dip Galvanized or Black Painted
U2 / U3 22MM Stud / Studless Link Anchor Chain Hot Dip Galvanized or Black Painted
U2 / U3 24MM Stud / Studless Link Anchor Chain Hot Dip Galvanized or Black Painted
U2 / U3 26MM Stud / Studless Link Anchor Chain Hot Dip Galvanized or Black Painted
U2 / U3 28MM Stud / Studless Link Anchor Chain Hot Dip Galvanized or Black Painted
U2 / U3 30MM Stud / Studless Link Anchor Chain Hot Dip Galvanized or Black Painted
U2 / U3 32MM Stud / Studless Link Anchor Chain Hot Dip Galvanized or Black Painted
U2 / U3 34MM Stud / Studless Link Anchor Chain Hot Dip Galvanized or Black Painted
U2 / U3 36MM Stud / Studless Link Anchor Chain Hot Dip Galvanized or Black Painted
U2 / U3 38MM Stud / Studless Link Anchor Chain Hot Dip Galvanized or Black Painted
U2 / U3 40MM Stud / Studless Link Anchor Chain Hot Dip Galvanized or Black Painted
U2 / U3 42MM Stud / Studless Link Anchor Chain Hot Dip Galvanized or Black Painted
U2 / U3 44MM Stud / Studless Link Anchor Chain Hot Dip Galvanized or Black Painted
U2 / U3 46MM Stud / Studless Link Anchor Chain Hot Dip Galvanized or Black Painted
U2 / U3 48MM Stud / Studless Link Anchor Chain Hot Dip Galvanized or Black Painted
U2 / U3 50MM Stud / Studless Link Anchor Chain Hot Dip Galvanized or Black Painted
U2 / U3 52MM Stud / Studless Link Anchor Chain Hot Dip Galvanized or Black Painted
U2 / U3 54MM Stud / Studless Link Anchor Chain Hot Dip Galvanized or Black Painted
U2 / U3 56MM Stud / Studless Link Anchor Chain Hot Dip Galvanized or Black Painted
U2 / U3 58MM Stud / Studless Link Anchor Chain Hot Dip Galvanized or Black Painted
U2 / U3 60MM Stud / Studless Link Anchor Chain Hot Dip Galvanized or Black Painted
U2 / U3 62MM Stud / Studless Link Anchor Chain Hot Dip Galvanized or Black Painted
U2 / U3 64MM Stud / Studless Link Anchor Chain Hot Dip Galvanized or Black Painted
U2 / U3 66MM Stud / Studless Link Anchor Chain Hot Dip Galvanized or Black Painted
U2 / U3 68MM Stud / Studless Link Anchor Chain Hot Dip Galvanized or Black Painted
U2 / U3 70MM Stud / Studless Link Anchor Chain Hot Dip Galvanized or Black Painted
U2 / U3 73MM Stud / Studless Link Anchor Chain Hot Dip Galvanized or Black Painted
U2 / U3 76MM Stud / Studless Link Anchor Chain Hot Dip Galvanized or Black Painted
U2 / U3 78MM Stud / Studless Link Anchor Chain Hot Dip Galvanized or Black Painted
U2 / U3 81MM Stud / Studless Link Anchor Chain Hot Dip Galvanized or Black Painted
U2 / U3 84MM Stud / Studless Link Anchor Chain Hot Dip Galvanized or Black Painted
U2 / U3 87MM Stud / Studless Link Anchor Chain Hot Dip Galvanized or Black Painted
U2 / U3 90MM Stud / Studless Link Anchor Chain Hot Dip Galvanized or Black Painted
U2 / U3 92MM Stud / Studless Link Anchor Chain Hot Dip Galvanized or Black Painted
U2 / U3 95MM Stud / Studless Link Anchor Chain Hot Dip Galvanized or Black Painted
U2 / U3 97MM Stud / Studless Link Anchor Chain Hot Dip Galvanized or Black Painted
U2 / U3 100MM Stud / Studless Link Anchor Chain Hot Dip Galvanized or Black Painted
U2 / U3 102MM Stud / Studless Link Anchor Chain Hot Dip Galvanized or Black Painted
U2 / U3 105MM Stud / Studless Link Anchor Chain Hot Dip Galvanized or Black Painted
U2 / U3 107MM Stud / Studless Link Anchor Chain Hot Dip Galvanized or Black Painted
U2 / U3 111MM Stud / Studless Link Anchor Chain Hot Dip Galvanized or Black Painted
U2 / U3 114MM Stud / Studless Link Anchor Chain Hot Dip Galvanized or Black Painted
U2 / U3 117MM Stud / Studless Link Anchor Chain Hot Dip Galvanized or Black Painted
U2 / U3 120MM Stud / Studless Link Anchor Chain Hot Dip Galvanized or Black Painted
U2 / U3 122MM Stud / Studless Link Anchor Chain Hot Dip Galvanized or Black Painted
U2 / U3 124MM Stud / Studless Link Anchor Chain Hot Dip Galvanized or Black Painted
U2 / U3 127MM Stud / Studless Link Anchor Chain Hot Dip Galvanized or Black Painted
U2 / U3 130MM Stud / Studless Link Anchor Chain Hot Dip Galvanized or Black Painted
U2 / U3 132MM Stud / Studless Link Anchor Chain Hot Dip Galvanized or Black Painted
U2 / U3 137MM Stud / Studless Link Anchor Chain Hot Dip Galvanized or Black Painted
U2 / U3 142MM Stud / Studless Link Anchor Chain Hot Dip Galvanized or Black Painted
U2 / U3 152MM Stud / Studless Link Anchor Chain Hot Dip Galvanized or Black Painted
Anchor Chain & Fittings:
Joining Forms (K.S) to Anchor and Locker Ends, Anchor Chain:

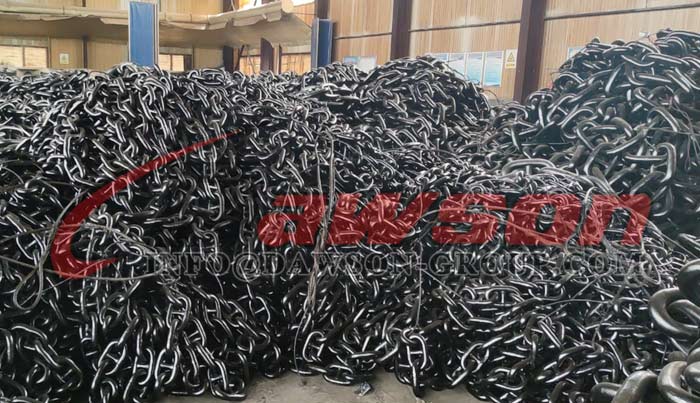

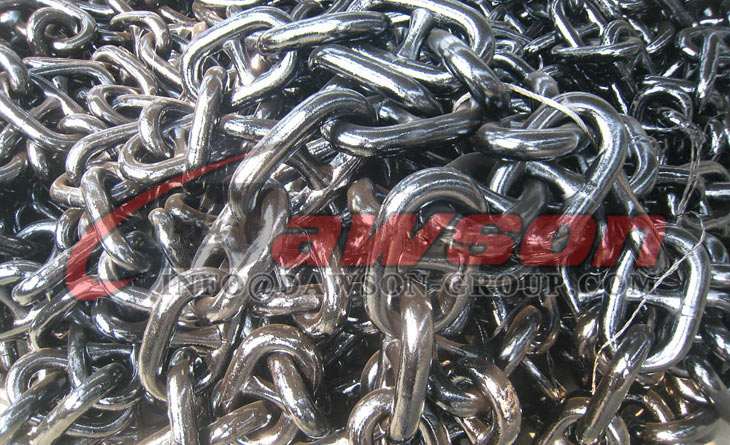

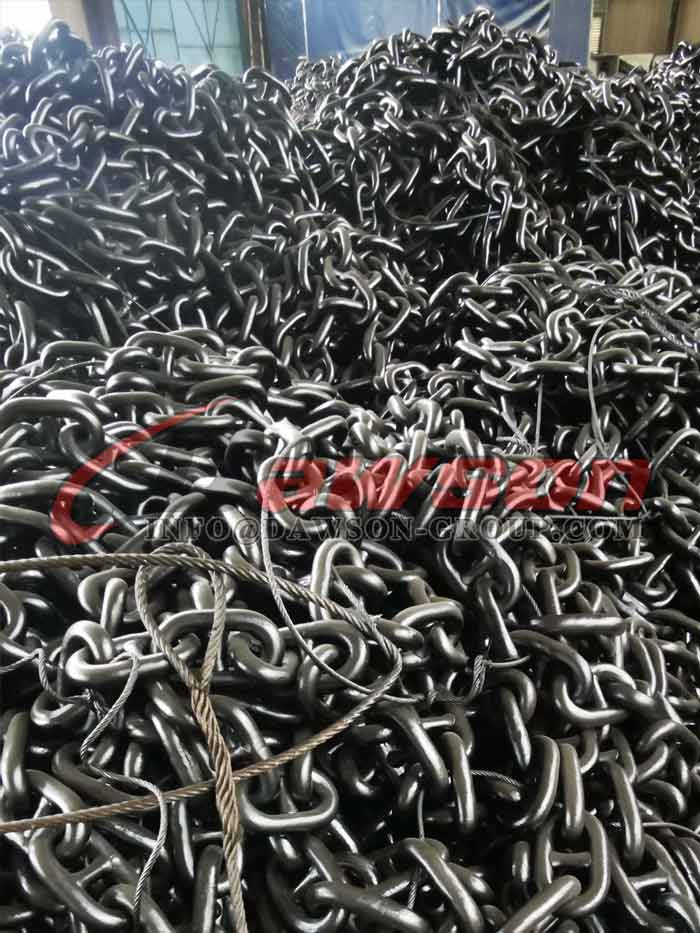

Products Show:
Other related products:

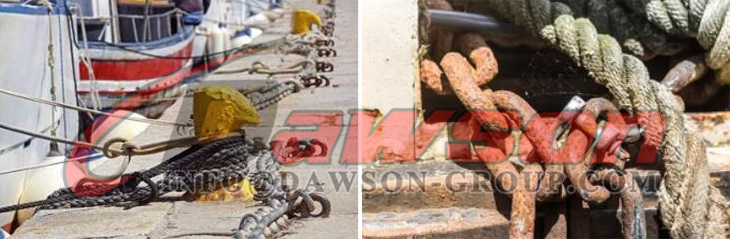

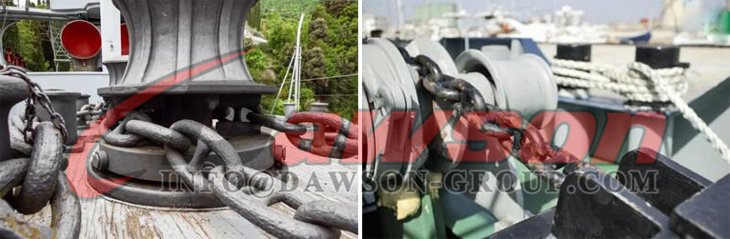

Application for Marine Anchor Chain:

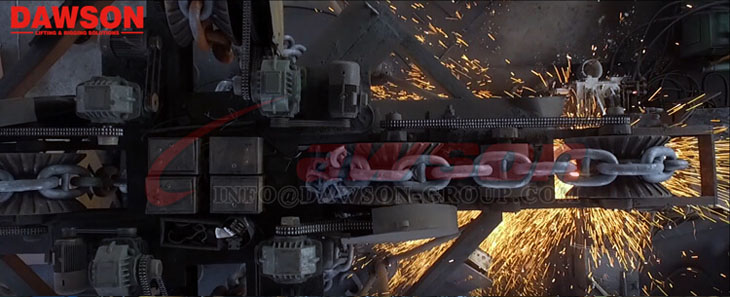

Factory & Test Show:

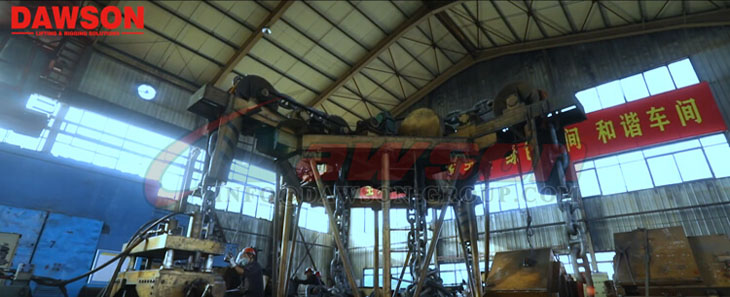

Load Test Machine:
Transport:
About DAWSON:
- Dawson Group Ltd. - China Manufacturer Supplier, Factory
Marine Chain:
We have been the marine chain supplier since many years, supplying stud link anchor chain, studless link anchor chain and mooring chain. ABS, LR, DNV, GL, BV, NK, IRS, CCS Certificate are available for our chains. With the advantage of wide source, good quality products and superior after-sale service, we would be your reliable partner in China.
Product Detail
1. Stud / Studless Link Anchor Chain
Grade: U2/U3
Diameter: 16mm to 152mm, 5/8 - 6 inch
ABS, LR, BV, NK, GL, DNV, RS,CCS Certificate
2. Joining Form of Anchor Chain
A: Kenter shackle-Chain connection
B: D Shackle Connection
Anchor Chain Joining Forms
A. Joining Forms for Kenter Shackle
B. Joining Forms for ‘D’ Joining Shackle
Data Sheets (diameter mm)
Grade 2, 3 Anchor Chains and Accessories, ø16mm - ø152mm (5/8 - 6 inch)
R3, R3S, R4 Grade Offshore Mooring Chains and Accessories, up to ø152mm (6 inch)
Testing load of anchor chain and accessories & Mooring chain | ||||||||||||||||
Diameter of chain | Anchor chain | Offshore mooring chain | ||||||||||||||
ABS,BV,CCS,CR,DNV,GL,KR,LR,NK, RINA,RMRS | API | ABS | DNV | ABS | ABS/DNV | ABS/DNV | ABS/DNV | |||||||||
C/EL/E | C/EL/E/SL | SL | C/EL/E/SL | C/EL/E | SL | C/EL/E/SL | C/EL/E | SL | C/EL/E/SL | |||||||
Grade2 | Grade3 | ORQ | RQ3 | NVR3/RQ3 | NVR3/RQ3 | RQ3S/NVR3S | RQ4/NVR4 | |||||||||
PL C=0.098 | BL C=0.0137 | PL C=0.0137 | BL C=0.0196 | PL C=0.014 | BL C=0.0211 | PL C=0.0148 | PL C=0.0156 | BL C=0.0223 | PL C=0.0180 | PL C=0.0174 | BL C=0.0249 | PL C=0.0216 | PL C=0.0192 | BL C=0.0274 | ||
mm | KN | KN | KN | KN | KN | KN | KN | KN | KN | KN | KN | KN | KN | KN | KN | |
16 | 107 | 150 | 150 | 216 | - | - | - | - | - | - | - | - | - | - | - | |
17.5 | 127 | 179 | 179 | 256 | - | - | - | - | - | - | - | - | - | - | - | |
19 | 150 | 211 | 211 | 301 | - | - | - | - | - | - | - | - | - | - | - | |
20.5 | 175 | 244 | 244 | 349 | - | - | - | - | - | - | - | - | - | - | - | |
22 | 200 | 280 | 280 | 401 | - | - | - | - | - | - | - | - | - | - | - | |
24 | 237 | 332 | 332 | 476 | - | - | - | - | - | - | - | - | - | - | - | |
26 | 278 | 389 | 389 | 556 | - | - | - | - | - | - | - | - | - | - | - | |
28 | 321 | 449 | 449 | 642 | - | - | - | - | - | - | - | - | - | - | - | |
30 | 368 | 514 | 514 | 735 | - | - | - | - | - | - | - | - | - | - | - | |
32 | 417 | 583 | 583 | 833 | - | - | - | - | - | - | - | - | - | - | - | |
34 | 468 | 655 | 655 | 937 | 668 | 1007 | 706 | 745 | 1064 | 859 | 831 | 1188 | 1031 | 916 | 1308 | |
36 | 523 | 732 | 732 | 1050 | 746 | 1124 | 789 | 832 | 1189 | 960 | 928 | 1327 | 1151 | 1022 | 1460 | |
38 | 581 | 812 | 812 | 1160 | 828 | 1248 | 876 | 923 | 1319 | 1065 | 1029 | 1473 | 1278 | 1135 | 1621 | |
40 | 640 | 896 | 896 | 1280 | 914 | 1376 | 967 | 1019 | 1456 | 1176 | 1136 | 1626 | 1411 | 1253 | 1789 | |
42 | 703 | 987 | 987 | 1400 | 999 | 1513 | 1056 | 1114 | 1592 | 1285 | 1242 | 1777 | 1542 | 1370 | 1956 | |
44 | 769 | 1080 | 1080 | 1540 | 1097 | 1654 | 1160 | 1223 | 1748 | 1411 | 1364 | 1951 | 1693 | 1503 | 2147 | |
46 | 837 | 1170 | 1170 | 1680 | 1194 | 1800 | 1263 | 1331 | 1902 | 1535 | 1484 | 2124 | 1843 | 1636 | 2337 | |
48 | 908 | 1270 | 1270 | 1810 | 1295 | 1952 | 1369 | 1443 | 2063 | 1665 | 1610 | 2304 | 2037 | 1775 | 2535 | |
50 | 981 | 1370 | 1370 | 1960 | 1400 | 2110 | 1480 | 1561 | 2230 | 1800 | 1743 | 2490 | 2160 | 1918 | 2740 | |
52 | 1060 | 1480 | 1480 | 2110 | 1508 | 2273 | 1594 | 1682 | 2402 | 1939 | 1877 | 2682 | 2327 | 2066 | 2952 | |
54 | 1140 | 1590 | 1590 | 2270 | 1620 | 2441 | 1712 | 1806 | 2580 | 2083 | 2017 | 2881 | 2499 | 2219 | 3170 | |
56 | 1220 | 1710 | 1710 | 2430 | 1735 | 2615 | 1834 | 1935 | 2764 | 2231 | 2160 | 3086 | 2677 | 2378 | 3396 | |
58 | 1290 | 1810 | 1810 | 2600 | 1851 | 2794 | 1960 | 2068 | 2953 | 2383 | 2308 | 3297 | 2860 | 2540 | 3628 | |
60 | 1380 | 1940 | 1940 | 2770 | 1976 | 2978 | 2089 | 2203 | 3147 | 2540 | 2460 | 3514 | 3048 | 2708 | 3867 | |
62 | 1470 | 2060 | 2060 | 2940 | 2101 | 3166 | 2221 | 2343 | 3347 | 2701 | 2616 | 3737 | 3242 | 2879 | 4112 | |
64 | 1560 | 2190 | 2190 | 3130 | 2230 | 3360 | 2357 | 2486 | 3551 | 2867 | 2776 | 3965 | 3440 | 3055 | 4364 | |
66 | 1660 | 2310 | 2310 | 3300 | 2361 | 3559 | 2496 | 2633 | 3761 | 3036 | 2940 | 4200 | 3643 | 3235 | 4621 | |
68 | 1750 | 2450 | 2450 | 3500 | 2496 | 3762 | 2639 | 2784 | 3976 | 3209 | 3108 | 4440 | 3851 | 3420 | 4885 | |
70 | 1840 | 2580 | 2580 | 3690 | 2631 | 3970 | 2785 | 2938 | 4196 | 3387 | 3289 | 4685 | 4064 | 3610 | 5156 | |
73 | 1990 | 2790 | 2790 | 3990 | 2847 | 4291 | 3010 | 3175 | 4535 | 3660 | 3545 | 5064 | 4392 | 3900 | 5572 | |
76 | 2150 | 3010 | 3010 | 4300 | 3066 | 4621 | 3242 | 3419 | 4884 | 3942 | 3818 | 5454 | 4731 | 4206 | 6001 | |
78 | 2260 | 3160 | 3160 | 4500 | 3216 | 4847 | 3400 | 3587 | 5123 | 4135 | 4004 | 5720 | 4962 | 4411 | 6295 | |
81 | 2410 | 3380 | 3380 | 4820 | 3446 | 5194 | 3643 | 3843 | 5490 | 4431 | 4291 | 6130 | 5317 | 4727 | 6745 | |
84 | 2580 | 3610 | 3610 | 5160 | 3683 | 5550 | 3893 | 4107 | 5866 | 4735 | 4585 | 6550 | 5682 | 5051 | 7208 | |
87 | 2750 | 3850 | 3850 | 5500 | 3925 | 5916 | 4149 | 4377 | 6252 | 5046 | 4887 | 6981 | 6056 | 5383 | 7682 | |
90 | 2920 | 4090 | 4090 | 5840 | 4173 | 6289 | 4412 | 4653 | 6647 | 5365 | 5196 | 7422 | 6439 | 5724 | 8167 | |
92 | 3040 | 4260 | 4260 | 6080 | 4242 | 6544 | 4590 | 4842 | 6916 | 5582 | 5405 | 7722 | 6699 | 5955 | 8497 | |
95 | 3230 | 4510 | 4510 | 6440 | 4599 | 6932 | 4862 | 5128 | 7326 | 5913 | 5726 | 8180 | 7096 | 6308 | 9001 | |
97 | 3340 | 4680 | 4680 | 6690 | 4774 | 7195 | 5047 | 5323 | 7604 | 6138 | 5943 | 8490 | 7365 | 6547 | 9343 | |
100 | 3530 | 4940 | 4940 | 7060 | 5040 | 7596 | 5328 | 5620 | 8028 | 6480 | 6275 | 8964 | 7776 | 6912 | 9864 | |
102 | 3660 | 5120 | 5120 | 7320 | 5220 | 7868 | 5519 | 5821 | 8315 | 6712 | 6500 | 9285 | 8054 | 7160 | 10217 | |
105 | 3850 | 5390 | 5390 | 7700 | 5495 | 8282 | 5809 | 6128 | 8753 | 7065 | 6842 | 9773 | 8478 | 7536 | 10754 | |
107 | 3980 | 5570 | 5570 | 7960 | 5681 | 8561 | 6005 | 6334 | 9048 | 7304 | 7072 | 10103 | 8764 | 7791 | 11118 | |
111 | 4250 | 5940 | 5940 | 8480 | 6058 | 9130 | 6401 | 6755 | 9650 | 7789 | 7543 | 10775 | 9347 | 8309 | 11856 | |
114 | 4440 | 6230 | 6230 | 8890 | 6346 | 9565 | 6709 | 7077 | 10109 | 8159 | 7901 | 11287 | 9791 | 8704 | 12420 | |
117 | 4650 | 6510 | 6510 | 9300 | 6639 | 10005 | 7018 | 7402 | 10574 | 8535 | 8265 | 11807 | 10242 | 9105 | 12993 | |
120 | 4850 | 6810 | 6810 | 9720 | 6953 | 10452 | 7331 | 7733 | 11047 | 8916 | 8634 | 12334 | 10700 | 9511 | 13573 | |
122 | 5000 | 7000 | 7000 | 9990 | 7135 | 10753 | 7542 | 7956 | 11365 | 9173 | 8883 | 12690 | 11008 | 9785 | 13964 | |
124 | 5140 | 7200 | 7200 | 10280 | 7336 | 11057 | 7755 | 8175 | 11688 | 9433 | 9134 | 13048 | 11319 | 10062 | 14358 | |
127 | 5350 | 7490 | 7490 | 10710 | 7641 | 11516 | 8078 | 8515 | 12172 | 9825 | 9514 | 13951 | 11790 | 10480 | 14955 | |
130 | 5570 | 7800 | 7800 | 11140 | 7950 | 11981 | 8404 | 8858 | 12663 | 10222 | 9898 | 14140 | 12266 | 10903 | 15559 | |
132 | 5720 | 8000 | 8000 | 11420 | 8157 | 12294 | 8623 | 9090 | 12994 | 10488 | 10157 | 14509 | 12586 | 11187 | 15965 | |
137 | 6080 | 8510 | 8510 | 12160 | 8682 | 13085 | 9178 | 9674 | 13829 | 11163 | 10809 | 15442 | 13395 | 11907 | 16992 | |
142 | 6450 | 9030 | 9030 | 12910 | 9214 | 13887 | 9740 | 10268 | 14677 | 11847 | 11472 | 16389 | 14217 | 12637 | 18034 | |
147 | 6840 | 9560 | 9560 | 13660 | 9753 | 14670 | 10310 | 10869 | 15536 | 12540 | 12144 | 17348 | 15049 | 13377 | 19089 | |
152 | 7220 | 10100 | 10100 | 14430 | 10299 | 15522 | 10887 | 11477 | 16405 | 13242 | 12823 | 18318 | 15890 | 14125 | 20157 | |
157 | 7600 | 10640 | 10640 | 15200 | 11126 | 16768 | 11762 | 12090 | 17282 | 13950 | 13508 | 19297 | 16740 | 14880 | 21234 | |
162 | 7990 | 11180 | 11180 | 15980 | 11405 | 17189 | 12057 | 12708 | 18166 | 14663 | 14199 | 20284 | 17596 | 15641 | 22320 | |
Note:Test Load=cXd2(44-0.08Xd) |
Data Sheets (diameter inch)
Grade 2, 3 Anchor Chains and Accessories, ø16mm - ø152mm (5/8 - 6 inch)
R3, R3S, R4 Grade Offshore Mooring Chains and Accessories, up to ø152mm (6 inch)
Testing load of anchor chain and accessories & Mooring chain | ||||||||||||||||
Diameter of chain | Anchor chain | Offshore mooring chain | ||||||||||||||
ABS,BV,CCS,CR,DNV,GL,KR,LR,NK,RINA,RMRS | API | ABS | DNV | ABS | ABS/DNV | ABS/DNV | ABS/DNV | |||||||||
C/EL/E | C/EL/E/SL | SL | C/EL/E/SL | C/EL/E | SL | C/EL/E/SL | C/EL/E | SL | C/EL/E/SL | |||||||
Grade2 | Grade3 | ORQ | RQ3 | NVR3/RQ3 | NVR3/RQ3 | RQ3S/NVR3S | RQ4/NVR4 | |||||||||
PL C=1422 | BL C=1991 | PL C=1991 | BL C=2844 | PL C=2030.5 | BL C=3060.3 | PL C=2147 | PL C=2265.2 | BL C=3236 | PL C=2610 | PL C=2527 | BL C=3610 | PL C=3125 | PL C=2783.9 | BL C=3977 | ||
in | lbf | lbf |
