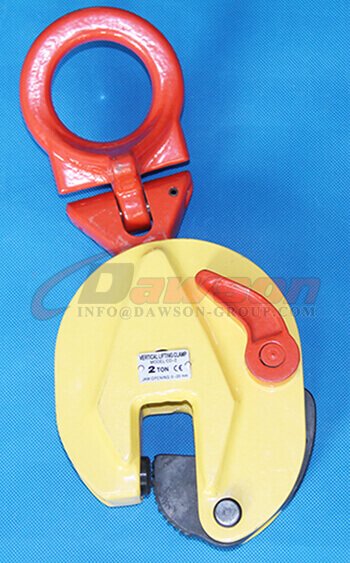

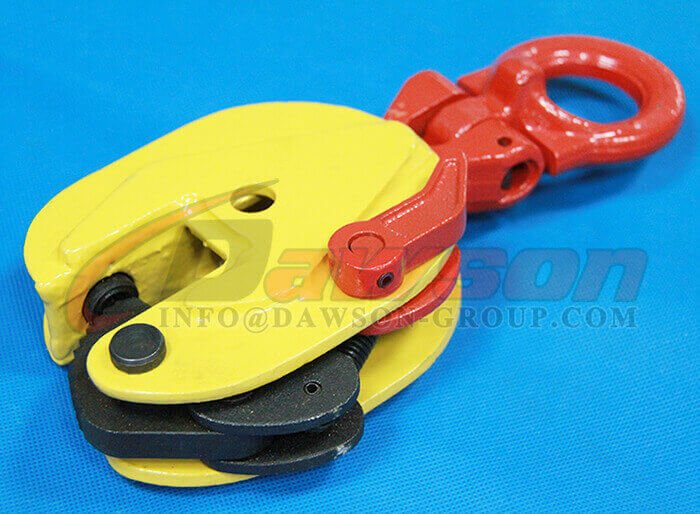

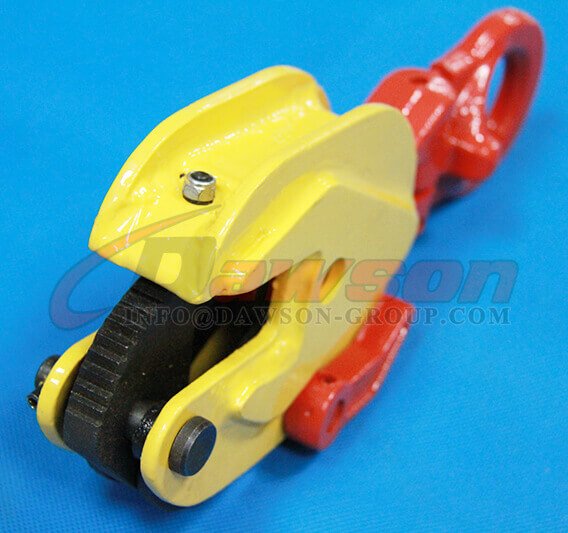

DS-CD Type Universal Plate Clamp for Lifting and Transporting Steel Plates

Working load limit(WLL)0.8-16T
Use:
● For lifting and transporting of steel plates and structures from all positions (horizontal, vertical and sidelong).
● Articulated lifting shackle(CD type).
● Clamps are equipped with a safety mechanism, ensuring the clamp does not slip when lifting force is applied and when load is being lowered.
●The clamp is locked in closed as well as in open position.
●Manufactured from high quality carbon steel
  • DAWSON/OEM

  • DS-CD

  • 0-150mm

Availability:
Quantity:

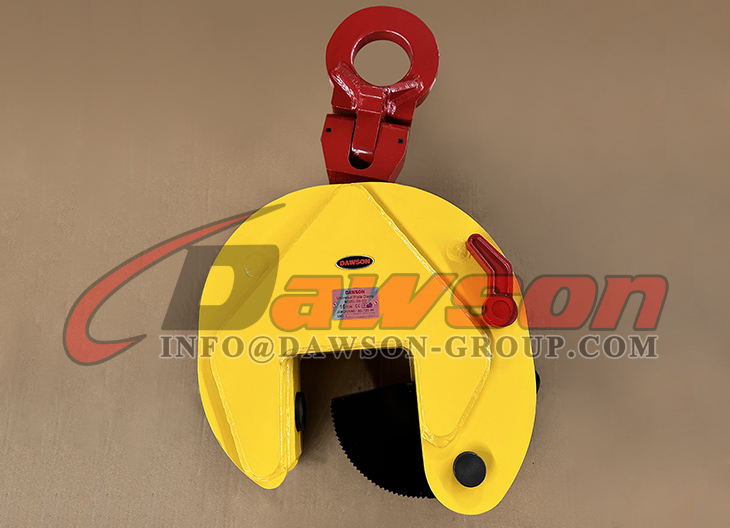

DS-CD Type Universal Plate Clamp for Lifting and Transporting Steel Plates

- Dawson Group Ltd. - China Manufacturer, Supplier, Factory

DS-CD Type Universal Plate Clamp for Lifting and Transporting Steel Plates - Dawson Group Ltd. - China Manufacturer, Factory
DS-CD Type Universal Plate Clamp for Lifting and Transporting Steel Plates - Dawson Group Ltd. - China Manufacturer, Supplier, Factory   DS-CD Type Universal Plate Clamp for Lifting and Transporting Steel Plates - Dawson Group Ltd. - China Manufacturer, Supplier

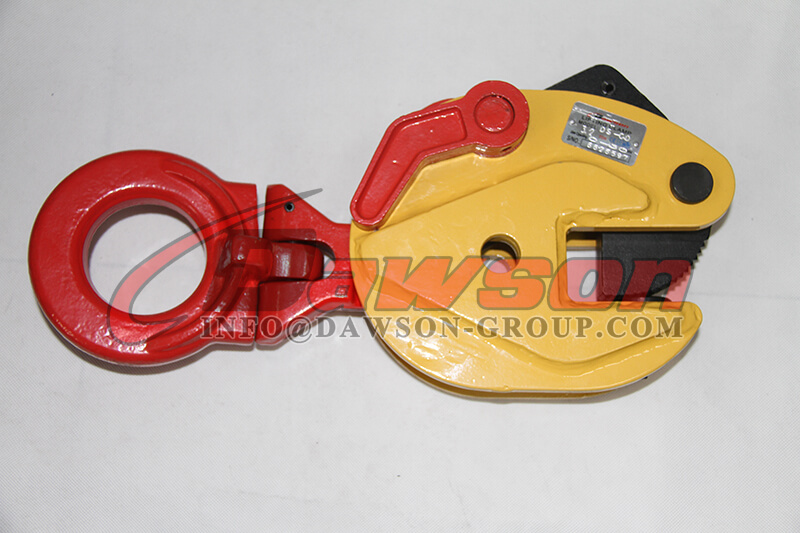

DS-CD Universal Plate Clamp - lifting clamps - china manufacturer supplier - Dawson Group   DS-CD Type Universal Plate Clamp for Lifting and Transporting Steel Plates - Dawson Group Ltd. - China Manufacturer, Supplier

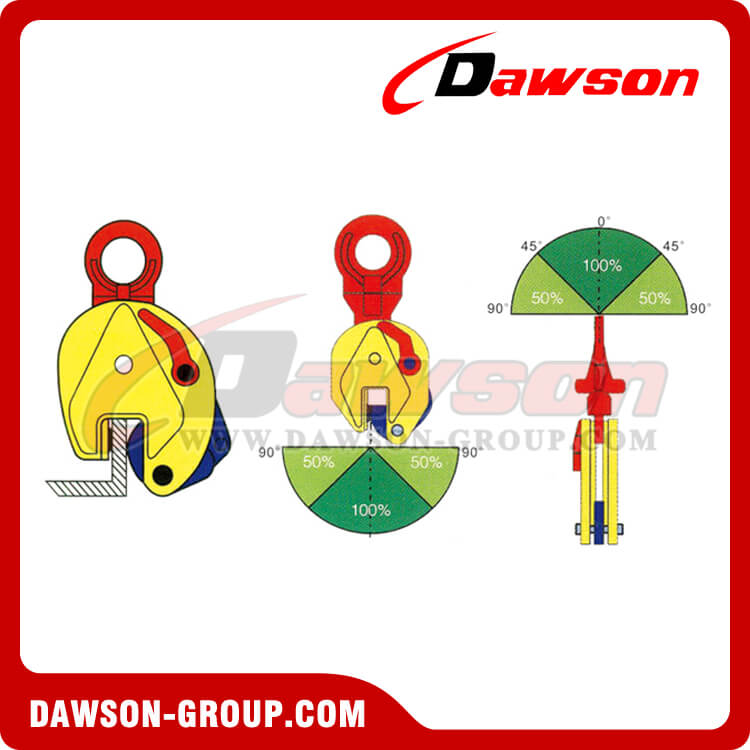

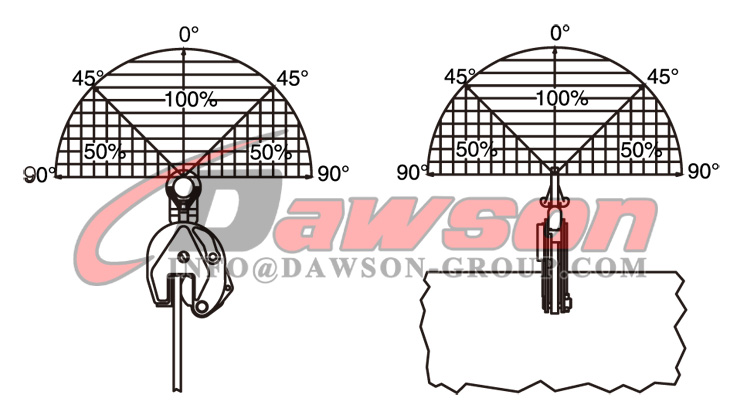

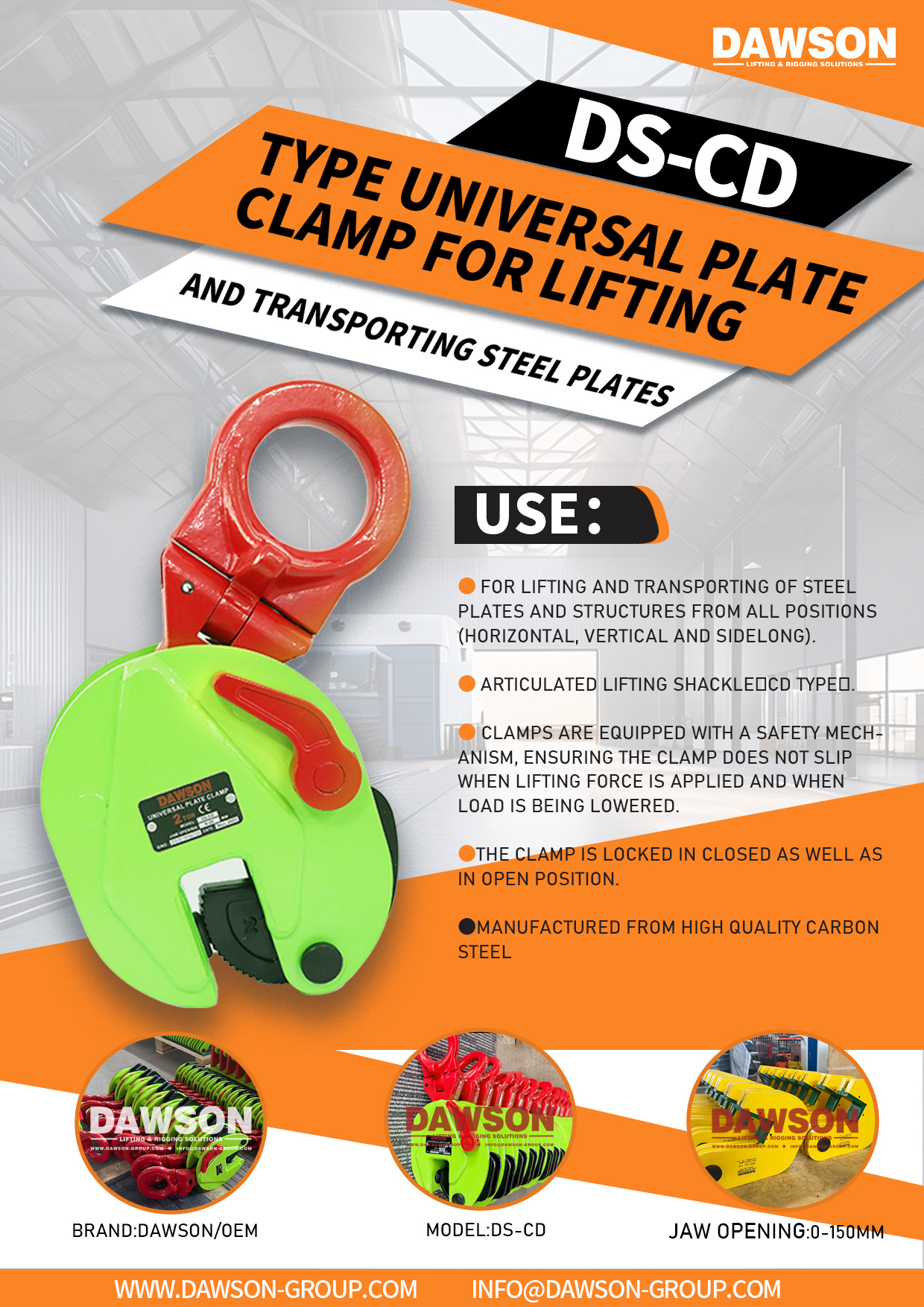

DS-CD Type Universal Plate Clamp for Lifting and Transporting Steel Plates - Dawson Group Ltd. - China Manufacturer, Supplier, Factory   Application of DS-CD Type Universal Plate Clamp 0.8-30T


Working load limit(WLL)0.8-16T

Use:
● For lifting and transporting of steel plates and structures from all positions (horizontal, vertical and sidelong).
● Articulated lifting shackle(CD type).
● Clamps are equipped with a safety mechanism, ensuring the clamp does not slip when lifting force is applied and when load is being lowered.
●The clamp is locked in closed as well as in open position.
●Manufactured  from high quality carbon steel

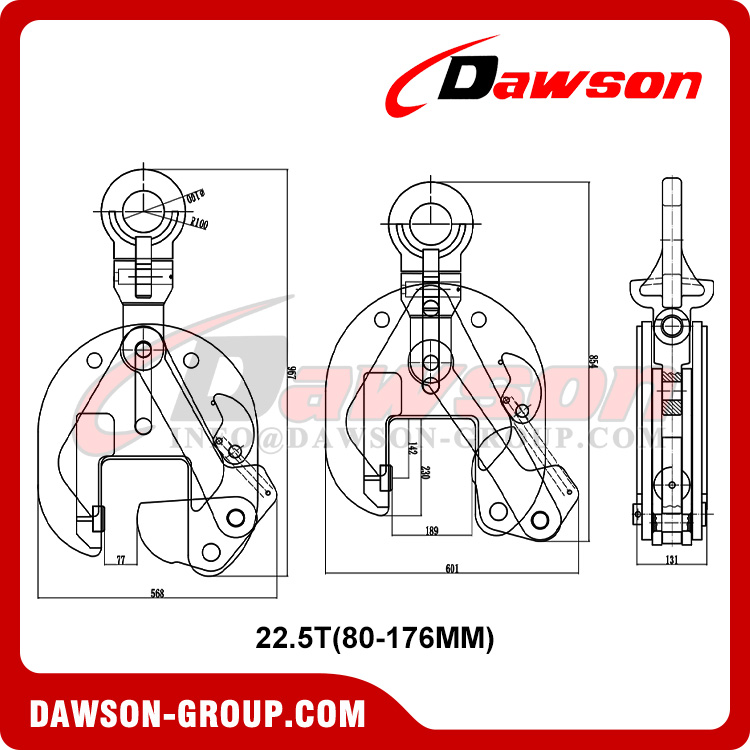

Part No. Model WLL Jaw-opening(R)(mm) S T U V W X Y Weight (kg)
DS-0001 DS-CD0.8 08T 0-15 40 30 219 104 32 38 10 1.9
DS-0002 DS-CD1 1T 0-20 60 48 293 137 46 50 13 4.4
DS-0003 DS-CD1.6 1.6T 0-20 74 48 322 153 51 50 13 6.7
DS-0004 DS-CD2 2T 0-25 74 65 369 162 54 61 17 7
DS-0005 DS-CD2(B) 2T 0-35 78 65 380 167 55 61 17 8
DS-0006 DS-CD3 3T 0-30 83 74 459 206 62 76 24 14.4
DS-0007 DS-CD3(B) 3T 0-40 75 74 465 210 60 76 24 15
DS-0008 DS-CD5 5T 0-50 97 78 478 216 63 86 24 20.5
DS-0009 DS-CD8 8T 40-80 138 78 555 288 77 109 24 36
DS-0009A DS-CD10 10T 0-70 - - - - - - - 38
DS-0010 DS-CD12 12T 50-100 145 90 694 390 113 118 25 56.9
DS-0011 DS-CD16 16T 50-150 155 90 700 425 121 122 25 63.5


Welcome to buy the newest and cheap DAWSON DS-CD Type universal plate clamp for lifting and transporting steel plates from our factory. We're one of the leading China manufacturers and suppliers, offering you the wholesale service and the OEM service at a discount. With CE certification, our products made in China in stock are high in quality and low in price. Please be free to get the free sample from us.

DS-CD Type Universal Plate Clamp for Lifting and Transporting Steel Plates - Dawson Group Ltd. - China Manufacturer, Supplier

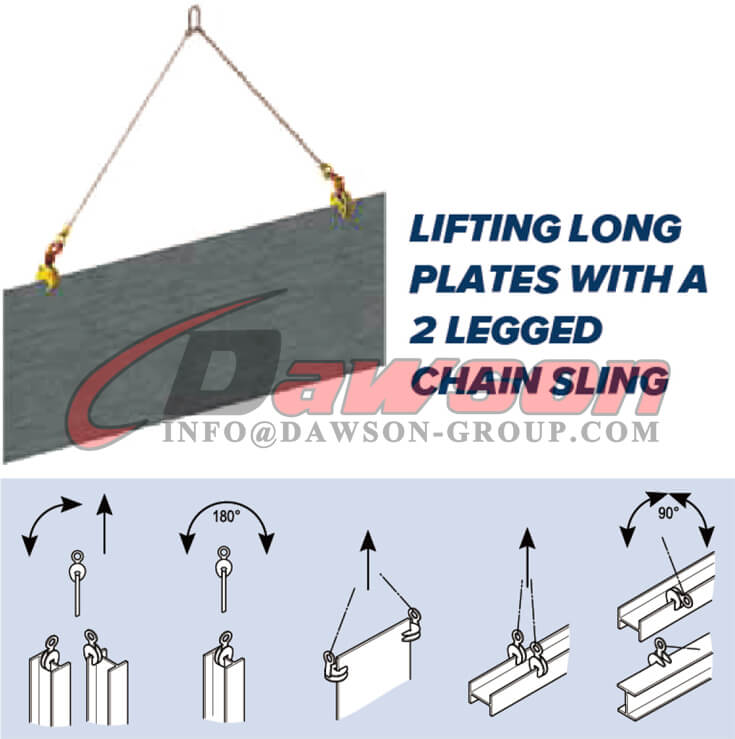

Application of DS-CD Type Universal Plate Clamp for Lifting and Transporting Steel Plate - Dawson Group - China Supplier

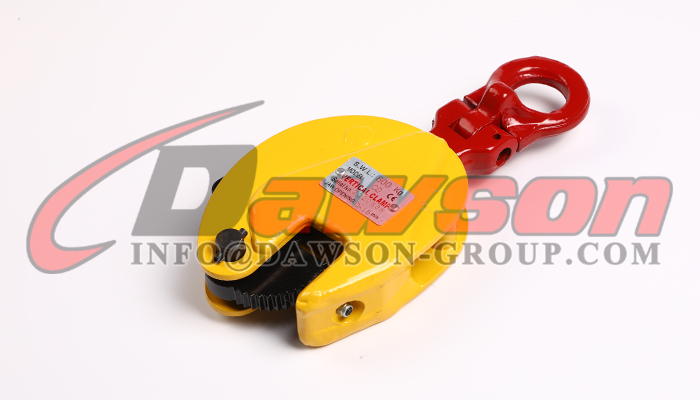

Product Show:

Universal Plate Clamp for Lifting and Transporting Steel Plates, Vertical Lifting Clamp, Horizontal Plate Clamp - Dawson Group Ltd. - China Manufacturer, Factory, Supplier
Universal Plate Clamp for Lifting and Transporting Steel Plates, Vertical Lifting Clamp, Horizontal Plate Clamp - Dawson Group Ltd. - China Manufacturer, Supplier, Factory
DS-CD Type Universal Plate Clamp for Lifting and Transporting Steel Plates - Dawson Group Ltd. - China Manufacturer, Supplier, Factory
Universal Plate Clamp for Lifting and Transporting Steel Plates - Dawson Group Ltd. - China Manufacturer, Factory, Supplier
DS-CD Type Universal Plate Clamp for Lifting and Transporting Steel Plates - Dawson Group Ltd. - China Supplier, Manufacturer, Factory
DS-CD Type Universal Plate Clamp for Lifting and Transporting Steel Plates - Dawson Group Ltd. - China Manufacturer, Factory, Supplier
DS-CD Universal Plate Clamp for Lifting and Transporting Steel Plates, Vertical Lifting Clamp - Dawson Group Ltd. - China Supplier, Manufacturer, Factory

DS-CD Type Universal Plate Clamp for Lifting and Transporting Steel Plates - Dawson Group Ltd. - China Manufacturer, Supplier, Factory
DS-CD Type Universal Plate Clamp for Lifting - Dawson Group Ltd. - China Manufacturer, Factory, Supplier
DS-CD Type Universal Plate Clamp for Transporting Steel Plates - Dawson Group Ltd. - China Manufacturer, Supplier, Factory
Universal Plate Clamp for Lifting and Transporting Steel Plates - Dawson Group Ltd. - China Manufacturer, Factory, Supplier

Other Related Products:

DS-L Type Horizontal Plate Clamp - Dawson Group Ltd. - China Manufacturer, Supplier, Factory
DS-PDB Type Industry Standard Horizontal Plate Clamp for Lifting and Transport - Dawson Group Ltd. - China Manufacturer, Supplier, Factory
DS-TPH Type Pipe Plate Clamp for Horizontal Lifting and Transporting - Dawson Group Ltd. - China Manufacturer, Supplier, Factory

DAWSON Plate Clamp for Lifting - Dawson Group Ltd. - China Manufacturer, Supplier
DAWSON Plate Clamp for Lifting and Transport - Dawson Group Ltd. - China Manufacturer, Supplier
DAWSON Plate Clamp for Lifting and Transport - Dawson Group Ltd. - China Manufacturer
DAWSON Lifting Clamps - Dawson Group Ltd. - China Manufacturer, Supplier, Factory
DAWSON Plate Clamp for Lifting - Dawson Group Ltd. - China Factory, Manufacturer, Supplier

DS-CD Universal Plate Clamp - China manufacturer supplier
Lifting Clamps, Steel Plate Clamp for Lifting - Dawson Group Ltd. - China Manufacturer, Supplier, Factory
Lifting Clamps, Vertical Plate Clamp - Dawson Group Ltd. - China Manufacturer, Supplier, Factory

DAWSON Lifting Clamps, Vertical Plate Clamp - Dawson Group Ltd. - China Suppleir

other related products

DS-CD Type Universal Plate Clamp for Lifting and Transporting Steel Plates - Dawson Group Ltd. - China Supplier, Manufacturer, Factory
DS-CDK Type Vertical Plate Clamp with Lock Device - Dawson Group Ltd. - China Manufacturer, Factory, Supplier
DS-PDL Type Horizontal Plate Clamp - Dawson Group Ltd. - China Supplier, Manufacturer, Factory
DS-PDL Type Horizontal Plate Clamp - Dawson Group Ltd. - China Manufacturer, Factory, Supplier

Application of Universal Plate Clamps:

Application of Lifting Clamp - Dawson Group Ltd. - China Supplier

Application of Lifting Clamps -Dawson group
Application for Universal Plate Clamp - Dawson Group Ltd. - China Supplier, Manufacturer


Safety lifting
● The lifting clamps are suitable for lifting and transporting of steel plates with a maximum hardness of 37  HrC (345HB,1166 N/mm⊃2;).
● The lifting clamps are suitable for usage in normal atmospheric conditions, between -40℃ and +100℃
● Never overload a clamp and prevent the jerking of loads.
● When loading always use the whole jaw depth.
● Never lift more than one plate at the same time.
● Always keep your distance during lifting and descending of a load.
● Prevent situations that anybody is under the load.
● Any welding to the clamp is forbidden, this can influence the hardness and toughness of the clamp.
Application of Safety Lifting
