DS-CDD Type Vertical Plate Clamp with Safety Lock

Working load limit(WLL):0.8-1.6T.
Use:
● Specially designed for the transfer of small profiles.
● Articulated lifting shackle.
● The clamp is fitted with a locking device for both open and closed positions which ensures complete safety.
● Manufactured from high quality carbon steel
● The CDD 0.8T can be used for lifting drums.
● The clamp is locked in closed as well as in open position.
  • DAWSON/OEM

  • DS-CDD

  • 0 - 20mm

Availability:
Quantity:

DS-CDD Type Vertical Plate Clamp with Safety Lock

- Dawson Group Ltd. - China Manufacturer, Supplier, Factory

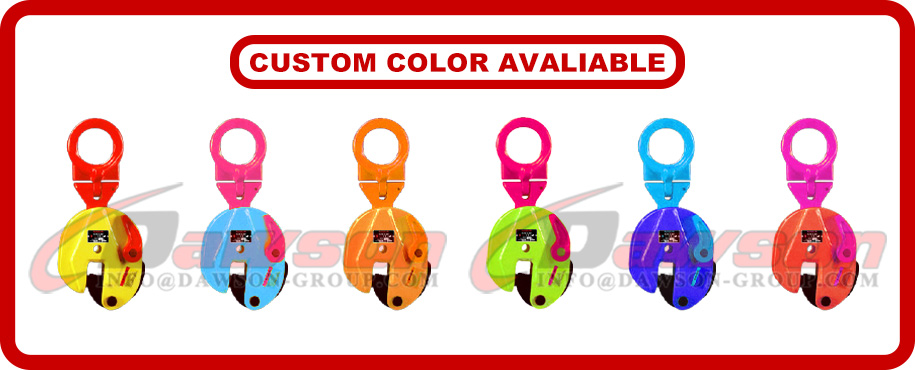

DS-CDD Vertical Plate Clamp - lifting clamps - china manufacturer supplier - Dawson Group,Supplier, factory

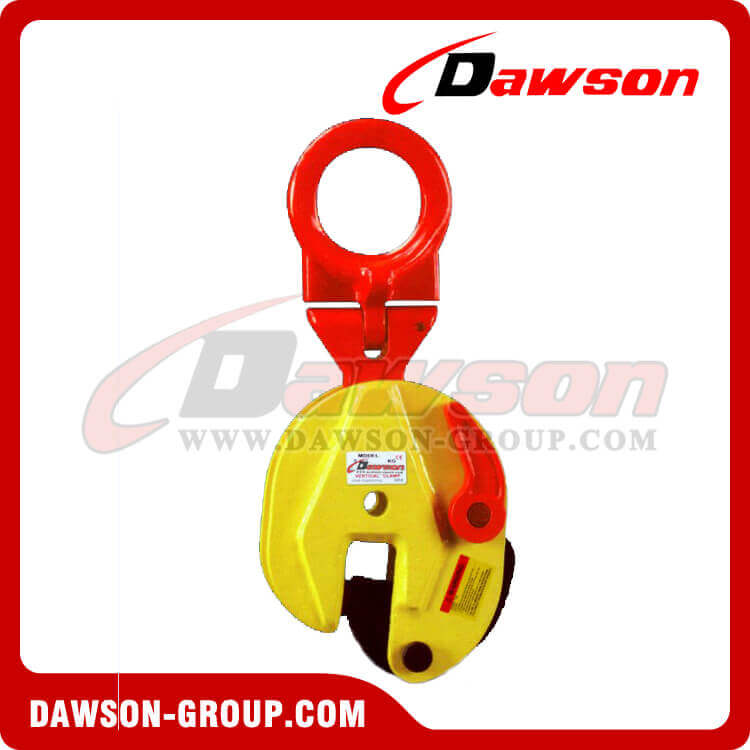

DS-CDD Vertical Plate Clamp - lifting clamps - china manufacturer supplier - Dawson Group   DS-CDD Vertical Plate Clamp - lifting clamps - china manufacturer supplier - Dawson Group,Supplier

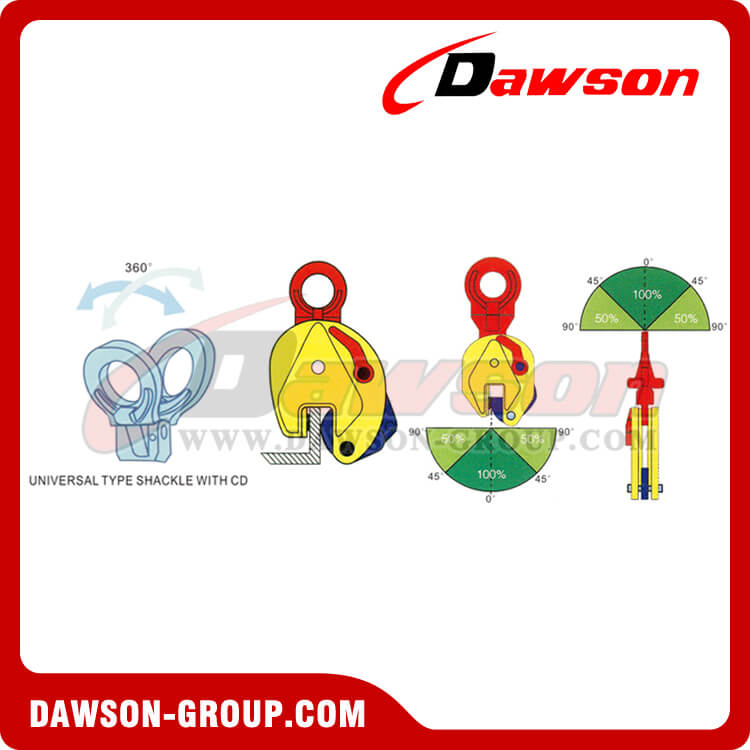

DS-CDD Vertical Plate Clamp - lifting clamps - china manufacturer supplier - Dawson Group   Application of DS-CDD Type Vertical Plate Clamp 0.8-1.6T


Working load limit(WLL):0.8-1.6T.
Use:
● Specially designed for the transfer of small profiles.
● Articulated lifting shackle.
● The clamp is fitted with a locking device for both open and closed positions which ensures complete safety.
● Manufactured from high quality carbon steel
● The CDD 0.8T can be used for lifting drums.
● The clamp is locked in closed as well as in open position.

Part No. Model WLL (tonnes) Jaw Opening(mm) Weight(kg)
DS-0014 DS-CDD0.8 0.8 0-15 2
DS-0015 DS-CDD1.6 1.6 0-20 7

Welcome to buy the newest and cheap DAWSON vertical plate clamp with safety lock from our factory. We're one of the leading China manufacturers and suppliers, offering you the wholesale service and the OEM service at a discount. With CE certification, our products made in China in stock are high in quality and low in price. Please be free to get the free sample from us.

Application of Vertical Lifting Clamp for Steel Plate - China Supplier

Products Show:

other related products
DS-CD Vertical Plate Clamp - China manufacturer supplier

Application of Vertical Lifting Clamps:

Application of Lifting Clamp - Dawson Group Ltd. - China Supplier

Application of Lifting Clamps - Dawson Group Ltd. - China Manufacturer, Supplier, Factory
Application for Universal Plate Clamp - Dawson Group Ltd. - China Supplier, Manufacturer

Safety lifting
● The lifting clamps are suitable for lifting and transporting of steel plates with a maximum hardness of 37  HrC (345HB,1166 N/mm⊃2;).
● The lifting clamps are suitable for usage in normal atmospheric conditions, between -40℃ and +100℃
● Never overload a clamp and prevent the jerking of loads.
● When loading always use the whole jaw depth.
● Never lift more than one plate at the same time.
● Always keep your distance during lifting and descending of a load.
● Prevent situations that anybody is under the load.
● Any welding to the clamp is forbidden, this can influence the hardness and toughness of the clamp.
Application of Safety Lifting
