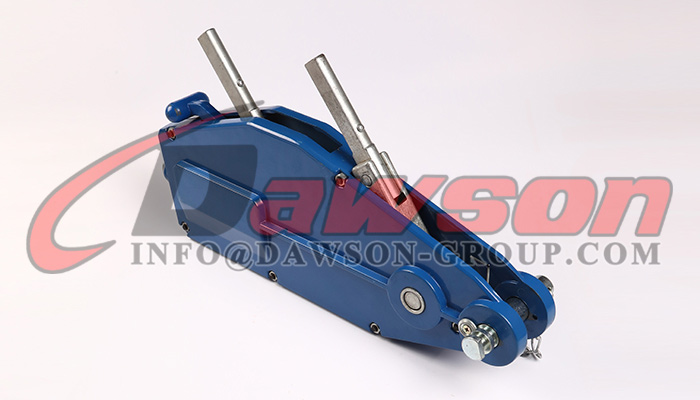

Wire Rope Pulling Hoist Aluminium Body, Wire Rope Cable Pulling Tirfor Hoist
- Dawson Group Ltd. - China Manufacturer, Supplier, Factory
| Specifications | Model |
| | DSH008 | DSH016 | DSH032 | DSH054 |
| Rated Capacity | kg | 800 | 1600 | 3200 | 5400 |
| Rope Advance per Full Stroke | mm | ≥52 | ≥55 | ≥28 | ≥25 |
| Lever Pull at WLL | N | 341 | 400 | 438 | 850 |
| Rope Diameter | mm | 8.3 | 11 | 16 | 20 |
| Standard Length of Wire Rope | m | 20 | 20 | 20 | 20 |
| Net Weight Without Cable | kg | 6.4 | 12 | 23 | 58 |
| Cable Weight | kg | 8.5 | 16.5 | 25 | 36 |
| Max. Overall Size(mm) | A | 430 | 548 | 660 | 930 |
| B | 238 | 284 | 335 | 390 |
| C | 64 | 97 | 116 | 150 |
| L1(cm) | | 70 | 70 | 70 |
| L2(cm) | 80 | 120 | 120 | 120 |
The
DAWSON wire rope pulling hoist is an extremely versatile and portable unit for pulling, lifting, lowering and securing loads, that is both easy and safe to operate. It comes in three sizes with capacities of 800kg, 1600kg and 3200kg. (5400kg, Aluminum body)
Tirfors, also commonly known as grip hoists, are winches that use self-gripping jaws instead of spools to move rope or wire through the winch. Powered by moving a handle back and forth, they allow one person to move objects several tons in weight.
All hoists are supplied complete with 20 meter wire rope and an extendable operating lever.
Wire rope is tapered one end and fitted with a hook and safety catch at the other end.
The hoist has low maintenance requirements and is easy to service.
Overload protection ensures high personal safety when in operation.
Specially built-in shear pins can be replaced without removing the load.
For increased safety and protection, a replaceable shear pin automatically breaks in the event of overload.
Welcome to buy the newest and competitive price DAWSON Wire Rope Pulling Hoist Aluminium Body from our factory. We're one of the leading China manufacturers and suppliers, offering you the wholesale service and the OEM service at a discount. With CE certification, our products made in China in stock are high in quality and low in price. Please be free to get the free sample from us.
For further information, please contact us. Email:info@dawson-group.com.

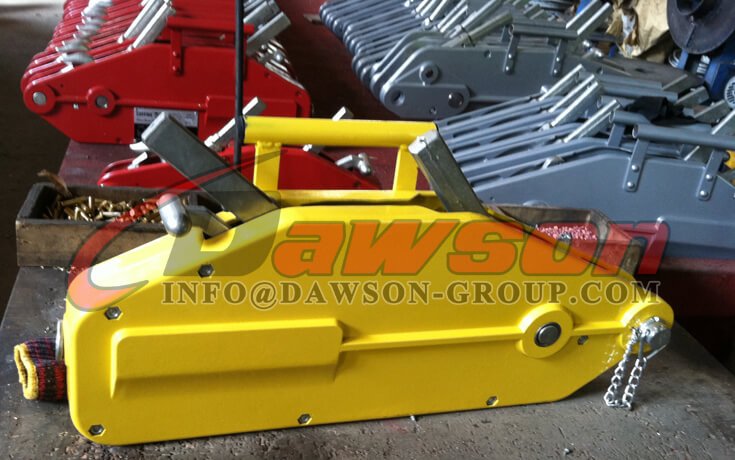

Products Show:
Hot Tags: Wire Rope Pulling Hoist, Hand Wire Rope Pulling Hoist, Manual Wire Rope Hoist, Cable Pulling Tirfor, Cable Puller, Cable Pulling Winch, China Manula Wire Rope Hoist Supplier, Manual Hand Wire Rope Hoist China Exporter, Tirfor Hand Winch Factory China, Low Price Manual Tirfor, Buy Discount Manual Tirfor Machine, Cheap Price Portable Mini Tirfor, Hot Sale Pulling Equipment, Tirfor Hand Winches In Stock, Wholesale Tirfor Wire Rope Winch, China Manufacturer Cable Puller, Dawson Brands Wire Rope Winch, Wire Rope Pulling Hoist Aluminum Body, Cable Pulling Hoist Free Sample
Other related products:
ALWAYS:
• Store and handle grip/pull machines correctly.
• Inspect the machine, rope and accessories before use and before placing into storage.
• Ensure mounting and suspension points are secure and suitable for the full loads that will be imposed.
• Ensure the machine is free to align correctly with the rope and the rope is free of any obstructions.
• Use only the correct rope supplied for the machine.
NEVER:
• Use kinked, damaged ropes or ropes with broken wires.
• Extend or force operating levers.
• Operate raising and lowering levers at the same time.
• Use grip/pull machines if the rope is twisted or trapped.
• Use grip/pull machines for man-riding applications unless they are specifically designed/adapted for that purpose.
Selecting the Correct Grip/pull Machine
Grip/pull machines are available in a range of capacities, with manual operation (hydraulic operation is available for certain applications) for both lifting and pulling duties. Various rope lengths are available. Select the machine to be used taking the following into account:
Type of machine - manual, hydraulic - lifting or pulling capacity length of rope and need for rope collecting/coiling. Rigging arrangement - diverters, pulley blocks - anchorage and suspension points - imposed loads. Consult the supplier if the machine is to be used for man-riding applications.
Storing and Handling Grip/pull Machines
Never return damaged grip/pull machines, ropes etc to storage. They should be dry, clean and protected from corrosion. Rope should be carefully coiled onto a suitable drum or frame for storage, taking care to avoid any twists. Store machines and ropes on a suitable rack, not on the floor where they may be damaged.
Using Grip/pull Machines Safely
Do not use defective grip/pull machines, ropes, pulleys etc.
Check the rigging arrangement, that anchorage and suspension points are secure and adequate for the imposed loads. Ensure the correct rope is fitted and that it is not twisted or kinked. The machine must be free to align with the rope. For lifting operations do not exceed the marked SWL. The line pull must not exceed that stated for pulling applications. Only use the operating lever provided with the machine and do not extend this with tubes etc. Undue force will damage the machine or cause safety pins to shear. Do not attempt to operate the raising and lowering levers at the same time. For man-riding applications only use a machine which has been designed or specially adapted for that purpose, following the suppliers specific instructions. Additional safety equipment will be necessary.
In-service Inspection and Maintenance
Follow the specific instructions for maintenance issued by the supplier. These should be incorporated into the site maintenance program observing any particular needs due to the site or working conditions. Lack of lubrication will result in a jerky movement or failure to operate. Keep the machine well lubricated. It is impossible to over lubricate grip/pull machines. Regularly inspect the grip/pull machine and rope and, in the event of the following defects, refer the machine to a Competent Person for thorough examination: casing damaged or distorted; shear pins distorted or broken; operating lever bent or distorted; incorrect diameter sheaves used in association with rope; incorrect rope fitted; rope is kinked, worn, corroded or has broken wires; wire rope termination is damaged, cracked or pulled; terminal fittings damaged, distorted, cracked or gouged; marking illegible; jerky operation; any other visual defects or operational faults.
Application of Wire Rope Pulling Hoist:

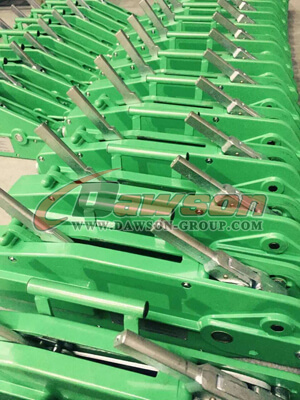

Factory & Package Show:
