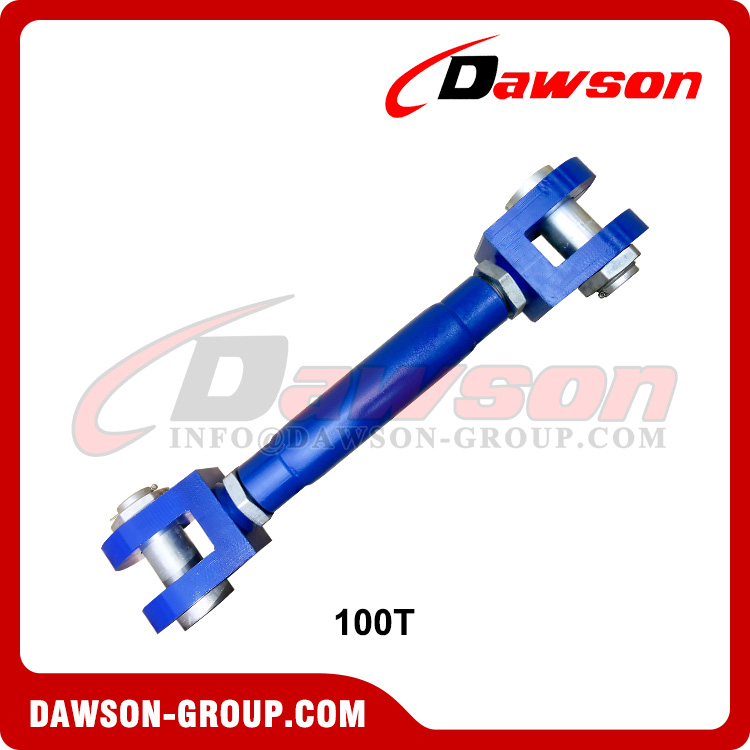

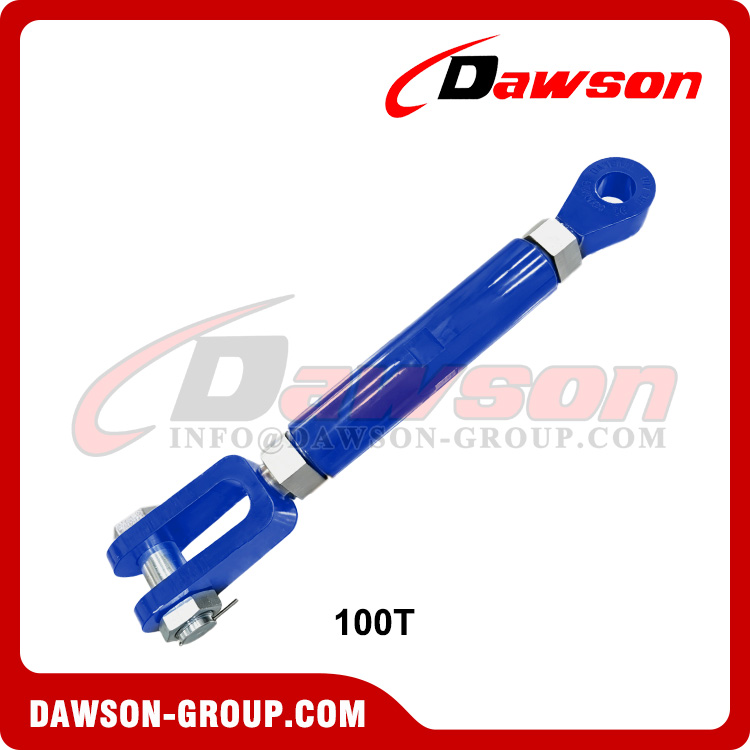

WLL 100T DAWSON® BLUESNAKE® HD Turnbuckle with Jaw Fork & Jaw Fork / Eye & Eye / Eye and Jaw Fork, Heavy Duty UU / EE / JE Type Lashing Screw Turnbuckle for Tightening
- Dawson Group Ltd. - China Manufacturer, Supplier, Factory
The turnbuckles from DAWSON can be used for tightening and lashing operations on land and at sea. Think of lashing shiploads or adjusting construction parts.Turnbuckles cannot be used for lifting purposes. You can choose between a bled or a jaw connection. The connections of the turnbuckles are geared to steel wire rope sockets and with the standard bow shackles and D-shackles. Safety factor of the turnbuckle is 5:1. For more information about this product, please contact us. We will be happy to inform you about the options.
Material: High tensile steel
Safety Factor: 5:1
Finish: Painted RAL 5015, RAL 1003 or RAL 3020
Temperature Range: -20℃ up to +200℃
Standard Certification:Certificate of Conformity
Proof Load Certificate on request.
Non-standard sizes or custom products available on request.
For lifting purposes an additional locking device is required.
This type of rigging screws meets the requirements as laid down inthe Dutch, British, American and other dock regulations.
On request deliverable with 2 securing nuts or plates.
Custom designed screws can be constructed in any size and capacity.
| Item No. | SWL | L IN | L OUT | B1 (mm) | B3 (mm) | T (mm) | ØD1 (mm) | R1 (mm) |
| tons | kN | mm | Double Lug |
| DS-HDT013.5JJ | 13.5 | 133 | 935 | 1260 | 55 | 20 | 120 | 51 | 60 |
| DS-HDT017JJ | 17 | 167 | 1010 | 1360 | 65 | 28 | 130 | 63 | 70 |
| DS-HDT025JJ | 25 | 245 | 1085 | 1415 | 76 | 30 | 145 | 70 | 70 |
| DS-HDT030JJ | 30 | 294 | 1160 | 1530 | 80 | 35 | 160 | 72 | 75 |
| DS-HDT035JJ | 35 | 343 | 1250 | 1650 | 90 | 40 | 175 | 80 | 85 |
| DS-HDT045JJ | 45 | 442 | 1300 | 1780 | 100 | 45 | 175 | 90 | 95 |
| DS-HDT055JJ | 55 | 540 | 1380 | 1890 | 110 | 50 | 175 | 100 | 105 |
| DS-HDT070JJ | 70 | 687 | 1480 | 2025 | 110 | 55 | 175 | 108 | 115 |
| DS-HDT085JJ | 85 | 834 | 1565 | 2200 | 130 | 75 | 175 | 127 | 135 |
| DS-HDT100JJ | 100 | 981 | 1630 | 2360 | 140 | 90 | 175 | 140 | 145 |
| DS-HDT120JJ | 120 | 1177 | 1745 | 2340 | 155 | 90 | 190 | 152 | 170 |
| DS-HDT160JJ | 160 | 1570 | 1870 | 2470 | 170 | 100 | 210 | 178 | 190 |
| DS-HDT200JJ | 200 | 1962 | 2020 | 2640 | 190 | 110 | 250 | 190 | 220 |
| DS-HDT250JJ | 250 | 2453 | 2170 | 2840 | 210 | 120 | 280 | 250 | 260
|
| Item No. | SWL | L IN | L OUT | B1 (mm) | B3 (mm) | T (mm) | D1 (mm) | R1 (mm) | B2 (mm) | R2 (mm) | D2 (mm) |
| tons | kN | mm | Jaw | Stud Eye |
| DS-HDT013.5EJ | 13.5 | 133 | 890 | 1215 | 55 | 20 | 120 | 51 | 60 | 50 | 60 | 53 |
| DS-HDT017EJ | 17 | 176 | 965 | 1315 | 65 | 28 | 130 | 63 | 70 | 55 | 70 | 65 |
| DS-HDT025EJ | 25 | 245 | 1030 | 1360 | 76 | 30 | 145 | 70 | 70 | 70 | 70 | 72 |
| DS-HDT030EJ | 30 | 294 | 1090 | 1460 | 80 | 35 | 160 | 72 | 75 | 70 | 75 | 74 |
| DS-HDT035EJ | 35 | 343 | 1175 | 1575 | 90 | 40 | 175 | 80 | 85 | 80 | 85 | 82 |
| DS-HDT045EJ | 45 | 442 | 1235 | 1715 | 100 | 45 | 175 | 90 | 95 | 90 | 95 | 93 |
| DS-HDT055EJ | 55 | 540 | 1325 | 1835 | 110 | 50 | 175 | 100 | 105 | 100 | 105 | 103 |
| DS-HDT070EJ | 70 | 687 | 1435 | 1985 | 110 | 55 | 175 | 108 | 115 | 100 | 115 | 111 |
| DS-HDT085EJ | 85 | 834 | 1540 | 2175 | 130 | 75 | 175 | 127 | 135 | 120 | 135 | 130 |
| DS-HDT100EJ | 100 | 981 | 1615 | 2345 | 140 | 90 | 175 | 140 | 145 | 130 | 145 | 143 |
| DS-HDT120EJ | 120 | 1177 | 1740 | 2335 | 155 | 90 | 190 | 152 | 170 | 140 | 170 | 155 |
| DS-HDT160EJ | 160 | 1570 | 1865 | 2465 | 170 | 100 | 210 | 178 | 190 | 160 | 190 | 181 |
| DS-HDT200EJ | 200 | 1962 | 2010 | 2630 | 190 | 110 | 250 | 190 | 220 | 170 | 200 | 193 |
| DS-HDT250EJ | 250 | 2453 | 2190 | 2860 | 210 | 120 | 280 | 250 | 260 | 190 | 260 | 253
|
| Item No. | SWL | L IN | L OUT | B2 (mm) | R2 (mm) | D2 (mm) |
| tons | kN | mm | Stud Eye |
| DS-HDT013.5EE | 13.5 | 133 | 840 | 1165 | 50 | 60 | 53 |
| DS-HDT017EE | 17 | 167 | 920 | 1270 | 55 | 70 | 65 |
| DS-HDT025EE | 25 | 245 | 975 | 1305 | 70 | 70 | 72 |
| DS-HDT030EE | 30 | 294 | 1020 | 1390 | 70 | 75 | 74 |
| DS-HDT035EE | 35 | 343 | 1100 | 1500 | 80 | 85 | 82 |
| DS-HDT045EE | 45 | 442 | 1170 | 1650 | 90 | 95 | 93 |
| DS-HDT055EE | 55 | 540 | 1270 | 1780 | 100 | 105 | 103 |
| DS-HDT070EE | 70 | 687 | 1390 | 1940 | 100 | 115 | 111 |
| DS-HDT085EE | 85 | 834 | 1515 | 2150 | 125 | 135 | 130 |
| DS-HDT100EE | 100 | 981 | 1600 | 2330 | 125 | 145 | 143 |
| DS-HDT120EE | 120 | 1177 | 1735 | 2330 | 140 | 170 | 155 |
| DS-HDT160EE | 160 | 1570 | 1860 | 2460 | 160 | 190 | 181 |
| DS-HDT200EE | 200 | 1962 | 2000 | 2620 | 170 | 200 | 193 |
| DS-HDT250EE | 250 | 2453 | 2210 | 2880 | 190 | 260 | 253
|
Welcome to buy the newest and competitive price DAWSON WLL 100T HD Turnbuckle with Jaw Fork & Jaw Fork / Eye & Eye / Eye and Jaw Fork, Heavy Duty UU / EE / JE Type Lashing Screw Turnbuckle for Tightening from our factory. We're one of the leading China manufacturers and suppliers, offering you the wholesale service and the OEM service at a discount. With CE certification, our products made in China in stock are high in quality and low in price. Please be free to get the free sample from us.
For further information, please contact us. Email:info@dawson-group.com
Products Show:
Hot Tags: HD turnbuckle in stock, buy discount heavy duty turnbuckle, DAWSON BRAND high strength turnbuckle, turnbuckle for tightening and lashing China supplier, jaw & jaw turnbuckles China factory, UU type turnbuckle, bulk heavy duty type jaw and jaw turnbuckle, rigging screw, high tensile steel turnbuckle for lashing, heavy duty lashing turnbuckle, lashing turnbuckle

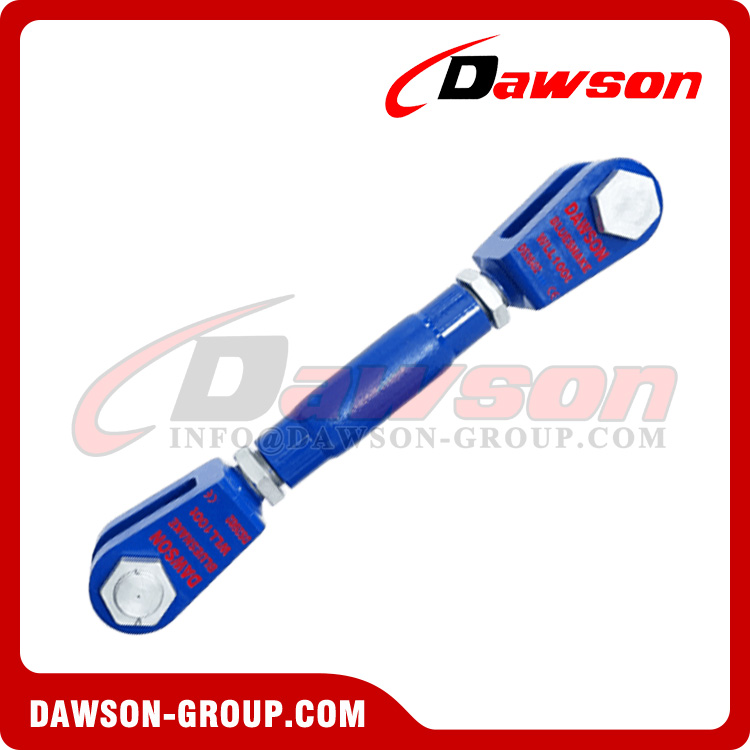

DAWSON® BLUESNAKE® Heavy-Duty Turnbuckle:
