Chain Shackles Screw Pin Forged Alloy High Tensile Strength to US Federal Specification D210
Shackles are supplied in hot dip galvanized finish or self colored.
Working Load Limit permanently shown on every shackle.
| ITEM NO | Nominal Size | Working Load Limit | Dimensions (mm) | Weight each |
| (in.) | (tons) | A | B | C | D | E | F | G | H | I | M | (kg) |
| DS-CS0832 | 1/4 | 1/2 | 11.9 | 7.85 | 6.35 | 6.35 | 24.6 | 15.5 | 22.4 | 40.4 | 4.85 | 35.1 | 0.05 |
| DS-CS1032 | 5/16 | 3/4 | 13.5 | 9.65 | 7.85 | 7.85 | 29.5 | 19.1 | 26.2 | 48.5 | 5.60 | 42.2 | 0.08 |
| DS-CS1232 | 3/8 | 1 | 16.8 | 11.2 | 9.65 | 9.65 | 35.8 | 23.1 | 31.8 | 58.5 | 6.35 | 51.5 | 0.13 |
| DS-CS1432 | 7/16 | 1-1/2 | 19.1 | 12.7 | 11.2 | 11.2 | 41.4 | 26.9 | 36.6 | 67.5 | 7.85 | 60.5 | 0.20 |
| DS-CS1632 | 1/2 | 2 | 20.6 | 16.0 | 12.7 | 12.7 | 46.0 | 30.2 | 41.4 | 77.0 | 9.65 | 68.5 | 0.27 |
| DS-CS2032 | 5/8 | 3-1/4 | 26.9 | 19.1 | 15.7 | 16.0 | 58.5 | 38.1 | 51.0 | 95.5 | 11.2 | 85.0 | 0.57 |
| DS-CS2432 | 3/4 | 4-3/4 | 31.8 | 22.4 | 20.6 | 19.1 | 70.0 | 46.0 | 60.5 | 115 | 12.7 | 101 | 1.20 |
| DS-CS2832 | 7/8 | 6-1/2 | 36.6 | 25.4 | 24.6 | 22.4 | 81.0 | 53.0 | 71.5 | 135 | 12.7 | 114 | 1.43 |
| DS-CS3232 | 1 | 8-1/2 | 42.9 | 28.7 | 25.4 | 25.4 | 93.5 | 60.5 | 81.0 | 151 | 14.2 | 129 | 2.15 |
| DS-CS3632 | 1-1/8 | 9-1/2 | 46.0 | 31.8 | 31.8 | 28.7 | 103 | 68.5 | 91.0 | 172 | 16.0 | 142 | 3.06 |
| DS-CS4032 | 1-1/4 | 12 | 51.5 | 35.1 | 35.1 | 31.8 | 115 | 76.0 | 100 | 191 | 17.5 | 156 | 4.11 |
| DS-CS4432 | 1-3/8 | 13-1/2 | 57.0 | 38.1 | 38.1 | 35.1 | 127 | 84.0 | 111 | 210 | 19.1 | 174 | 5.28 |
| DS-CS4832 | 1-1/2 | 17 | 60.5 | 41.4 | 41.1 | 38.1 | 137 | 92.0 | 122 | 230 | 20.6 | 187 | 7.23 |
| DS-CS5632 | 1-3/4 | 25 | 73.0 | 51.0 | 54.0 | 44.5 | 162 | 106 | 146 | 279 | 25.4 | 231 | 12.1 |
| DS-CS6432 | 2 | 35 | 82.5 | 57.0 | 51.0 | 51.0 | 184 | 122 | 172 | 312 | 31.0 | 263 | 19.2 |
| DS-CS8032 | 2-1/2 | 55 | 105 | 70.0 | 66.5 | 66.5 | 238 | 145 | 203 | 377 | 35.1 | 330 | 32.5 |
Welcome to buy the newest and competitive price

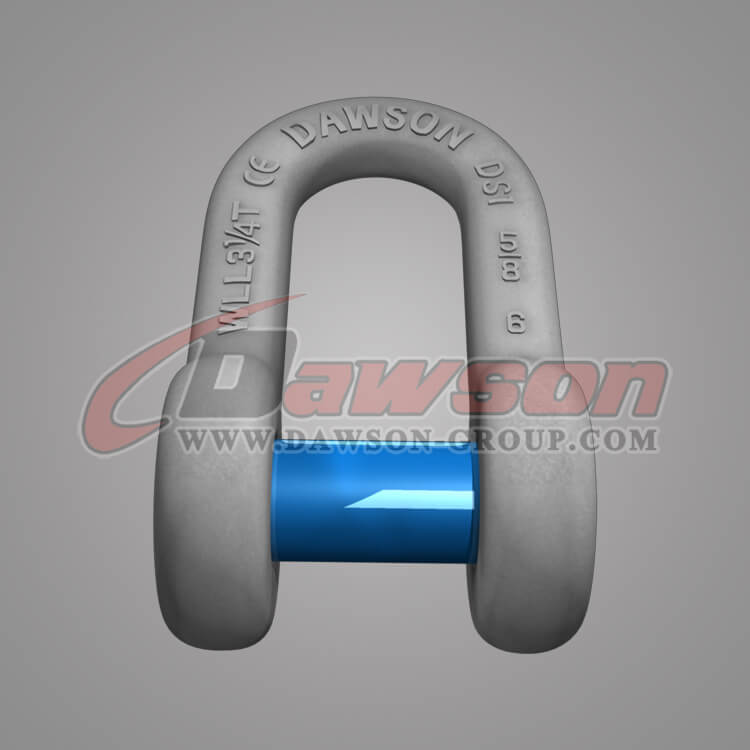

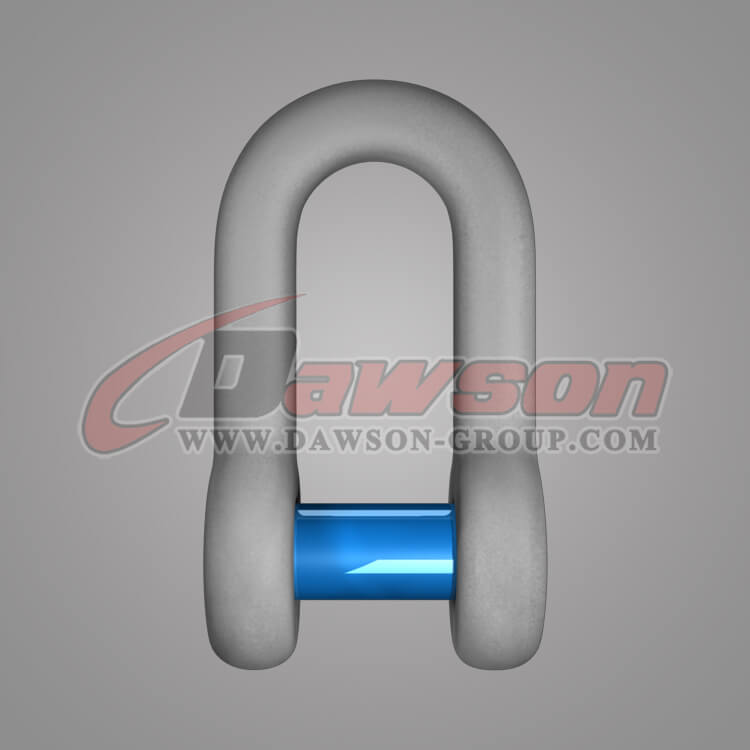

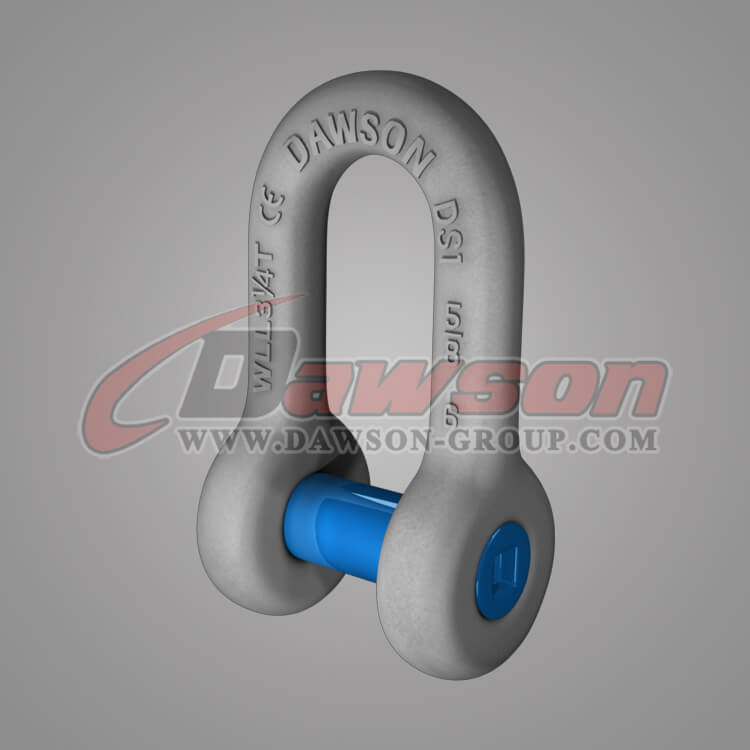

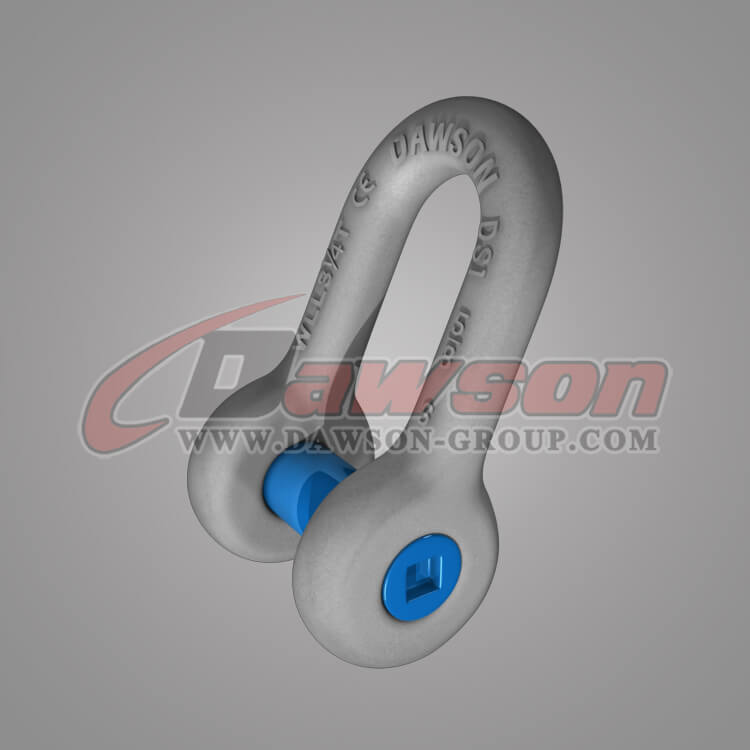

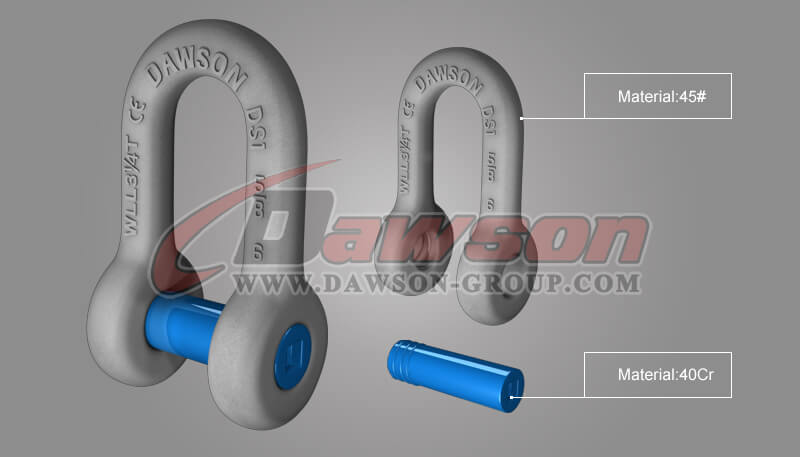

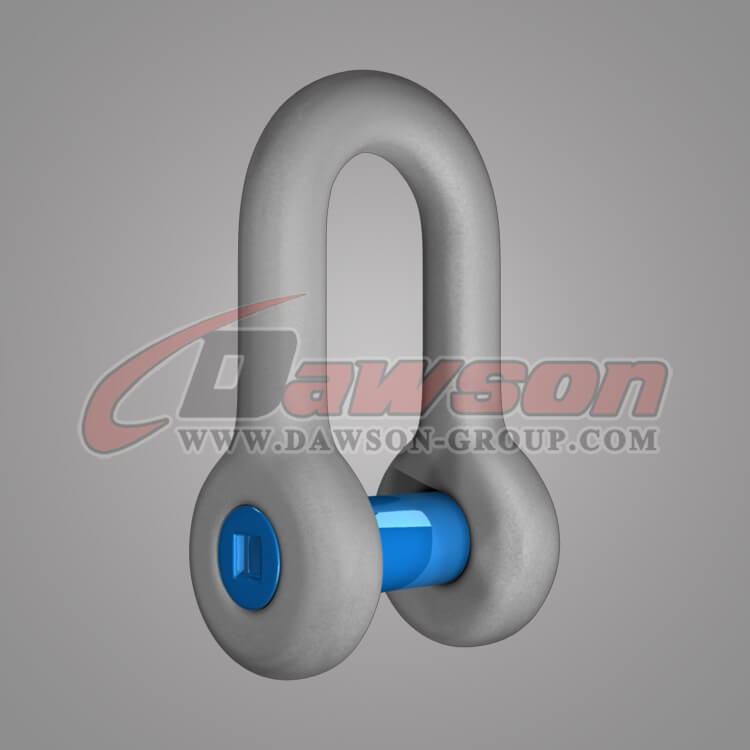

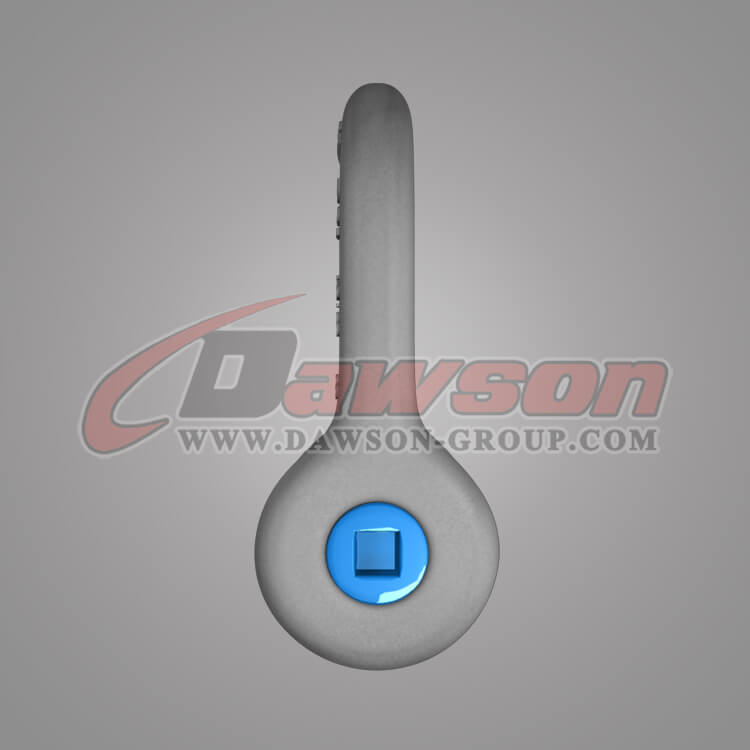

DAWSON US Type Forged Trawling Dee Shackle with Sunken Pin from our factory. We're one of the leading China manufacturers and suppliers, offering you the wholesale service and the OEM service at a discount. With CE certification, our products made in China in stock are high in quality and low in price. Please be free to get the free sample from us.
Screw Pin Chain Shackles meet the performance requirements of Federal Specification RR-C-271D Type IVA, Grade A, Class 2, except for those provisions required of the contractor.
* Maximum Proof Load is 2.0 times the Working Load Limit.
* Minimum Ultimate Strength is 6 times the Working Load Limit.
Chain Shackles Screw Pin Forged Alloy High Tensile Strength to US Federal Specification
Forged - Quenched and Tempered.
Capacities 1/3 thru 55 metric tons.
Forged high tensile mainly using for lifting point connecting or fishing connecting or lashing points as the shackle with hot dipped galv. others application is ok when commercial shackle using for light industry.
