SPM (Double Braided Nylon Rope)

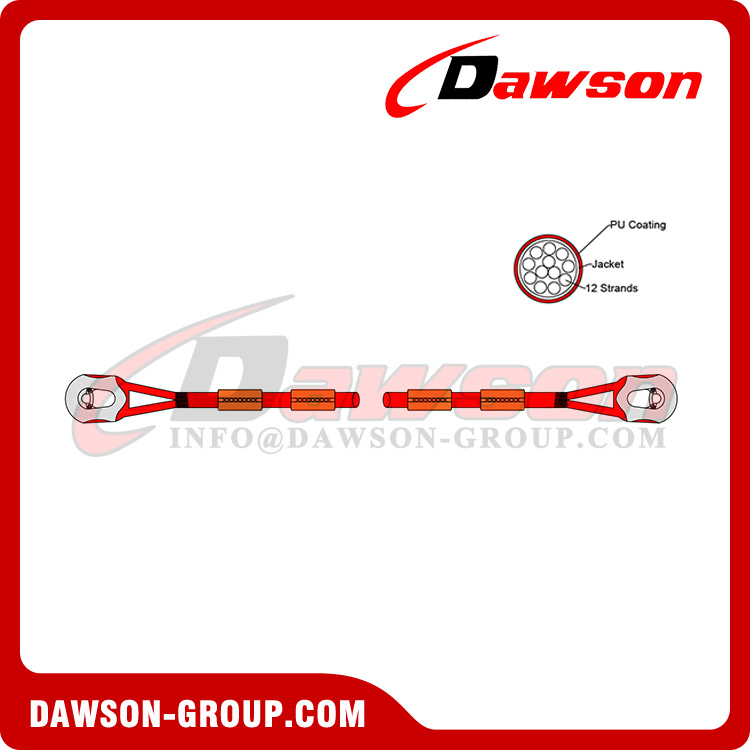

SPM ropes is in adopting a double circular structure, this is a kind of innovation design, compared with the traditional structure of the ropes, has higher strength and better abrasion resistance and longer service life.
Both eyes in the end are come with a metal thimble, polyester jacket should be covering the rope where it has the thimble (the thickness of jacket is not less than 6mm), then the rope outer coating a layer of polyurethane glue, to increase the wear resistance of the rope. The rope from the set of 25 feet began to add floating ring, the number of floating shall meet the prescribed requirements.
Mooring Hawsers are engineered and manufactured to meet the highest industry standards, manufactured strictly in accordance with OCIMF 2000 Guidelines for the Purchasing and Testing of SPM Hawsers.
• Manufacturer is ISO 9001:2015 and ISO 14001:2015 certified.
•Approved manufacturer to DNV-GL OS E303, with product approvals from DNV, ABS, Lloyd's Register, Bureau Veritas, CCS, KR, NK and RINA Class Certificates.
Designed for superior strength and durability, our hawsers ensure safe and reliable mooring operations in challenging maritime environments.Made from premium synthetic fibers, they offer excellent resistance to abrasion, UV degradation, and chemical exposure, providing long-lasting performance. Ideal for both offshore and terminal mooring applications.
Main performance
Material: Polyamide (nylon 66)
Construction: Load-bearing cores with a protective cover of polyamide
Application: Marine fishing, Single Point Mooring
Colour of Rope: White with green marker
Approx. Spec. Density 1.14 not floating
Melting Point: 215℃
Abrasion Resistance: Excellent
U.V. Resistance: Excellent
Temperature Resistance: 80℃ max continuous
Dry & wet conditions: Wet strength ±5% lower than dry strength
SPM Polyamide Hawsers are manufactured in accordance with OCIMF 2000 regulations
Weight: ±5% Tolerance
| DIA | CIR | WT | Single Leg Type MBL | Grommet Type MBL |
| MM | INCH | INCH | KGS/100M | TON | KN | TON | KN |
| 80 | 3-5/32 | 10 | 406 | 132 | 1290 | 237 | 2320 |
| 88 | 3-7/16 | 11 | 506 | 167 | 1630 | 300 | 2940 |
| 96 | 3-13/16 | 12 | 585 | 191 | 1870 | 344 | 3370 |
| 104 | 4-1/8 | 13 | 699 | 222 | 2180 | 410 | 4020 |
| 112 | 4-7/16 | 14 | 798 | 263 | 2580 | 473 | 4640 |
| 120 | 4-3/4 | 15 | 914 | 298 | 2920 | 537 | 5260 |
| 128 | 5-1/16 | 16 | 1031 | 335 | 3280 | 603 | 5910 |
| 136 | 5-3/8 | 17 | 1164 | 382 | 3750 | 688 | 6740 |
| 144 | 5-11/16 | 18 | 1316 | 429 | 4210 | 773 | 7580 |
| 152 | 6 | 19 | 1490 | 478 | 4680 | 860 | 8430 |
| 160 | 6-5/16 | 20 | 1624 | 526 | 5160 | 947 | 9280 |
| 168 | 6-5/8 | 21 | 1785 | 574 | 5620 | 1033 | 10120 |
| 176 | 6-15/16 | 22 | 1986 | 641 | 6280 | 1153 | 11300 |
| 184 | 7-1/4 | 23 | 2165 | 693 | 6790 | 1248 | 12230 |
| 192 | 7-9/16 | 24 | 2351 | 741 | 7260 | 1334 | 13070 |
| 200 | 7-7/8 | 25 | 2554 | 811 | 7940 | 1459 | 14300 |
| 208 | 8-3/16 | 26 | 2756 | 884 | 8670 | 1592 | 15600 |
| 216 | 8-1/2 | 27 | 2957 | 952 | 9330 | 1714 | 16800 |
| 224 | 8-13/16 | 28 | 3161 | 1026 | 10050 | 1846 | 18090 |
| 232 | 9-1/8 | 29 | 3390 | 1094 | 10720 | 1969 | 19300 |
| 240 | 9-7/16 | 30 | 3628 | 1173 | 11500 | 2112 | 20700 |
| 248 | 9-3/4 | 31 | 3874 | 1257 | 12320 | 2262 | 22170 |
| 256 | 10-1/16 | 32 | 4128 | 1340 | 13130 | 2411 | 23630 |
| Other sizes can be customized |

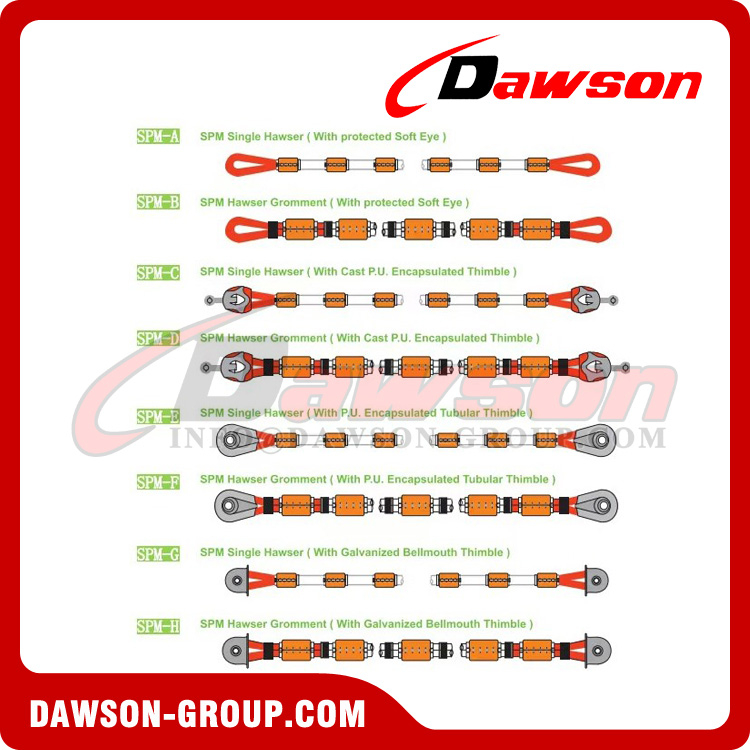

SPM-A SPM Single Hawser (With Protected Soft Eye)
SPM-B SPM Hawser Grommet (With Protected Soft Eye)
SPM-C SPM Single Hawser (With Cast P.U. Encapsulated Thimble)
SPM-D SPM Hawser Grommet (With Cast P.U. Encapsulated Thimble)
SPM-E SPM Single Hawser (With P.U. Encapsulated Tubular Thimble)
SPM-F SPM Hawser Grommet (With P.U. Encapsulated Tubular Thimble)
SPM-G SPM Single Hawser (With Galvanized Bellmouth Thimble)
SPM-H SPM Hawser Grommet (With Galvanized Bellmouth Thimble)
Material
Polyamide (Nylon) with Jacket is excellent in abrasion resistance and rope strength, which grants them the first choice for single point mooring applications.

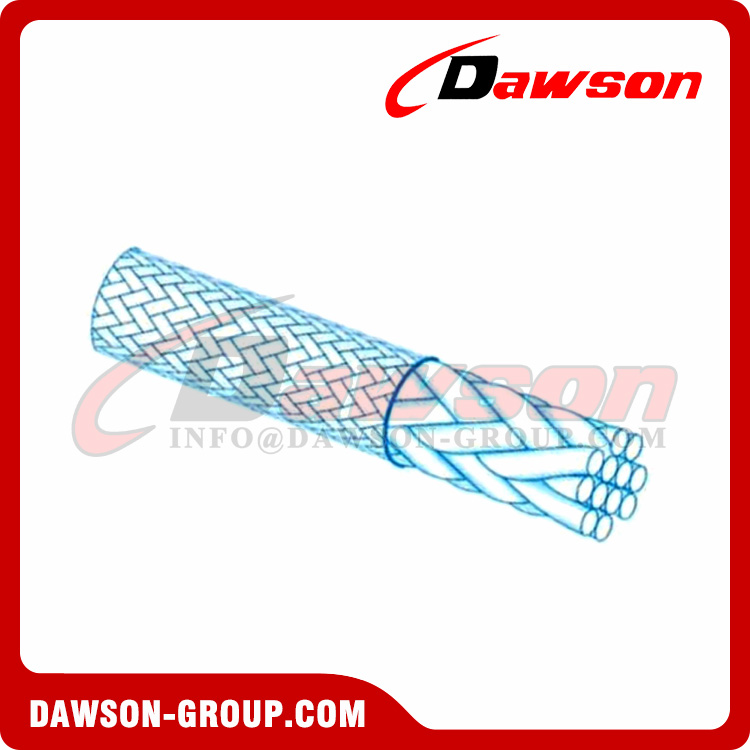

12-strand polyamide ropes
| Material | Polyamide(Nylon) |
| Density | 1.14g/cm³ |
| Melting Point | 218-258℃ |
| Abrasion Resistance | Excellent |
| UV Resistance | Excellent |
| Chemical Resistance | Excellent
|

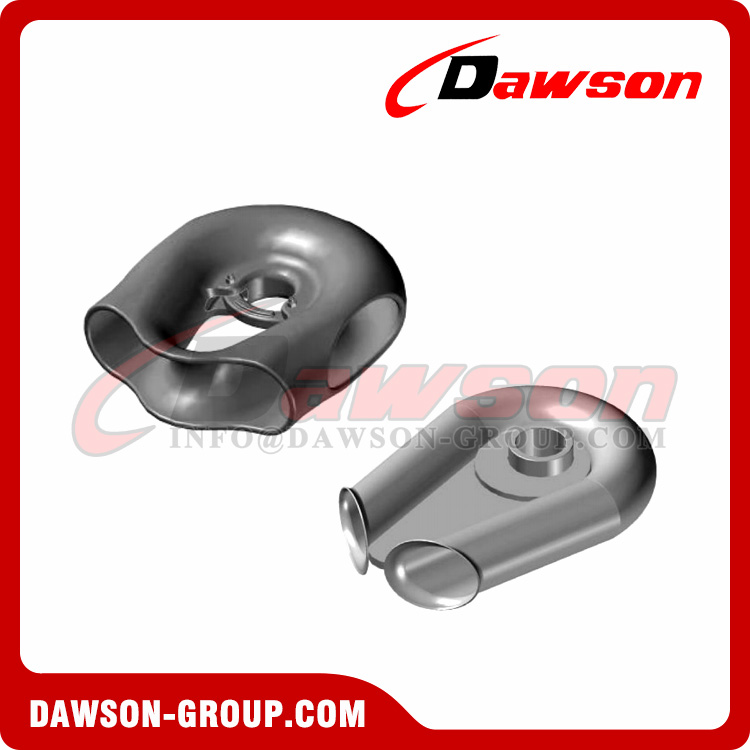

Cast Thimble
| Material | Cast steelStainless steel |
| Finish | Galvanized (mild steel)Self-colored (stainless steel) |
| Temperature | -20℃ up to +200℃ |
| Standard Certification | Certificate of Conformity |
Suitable for fibre rope
|

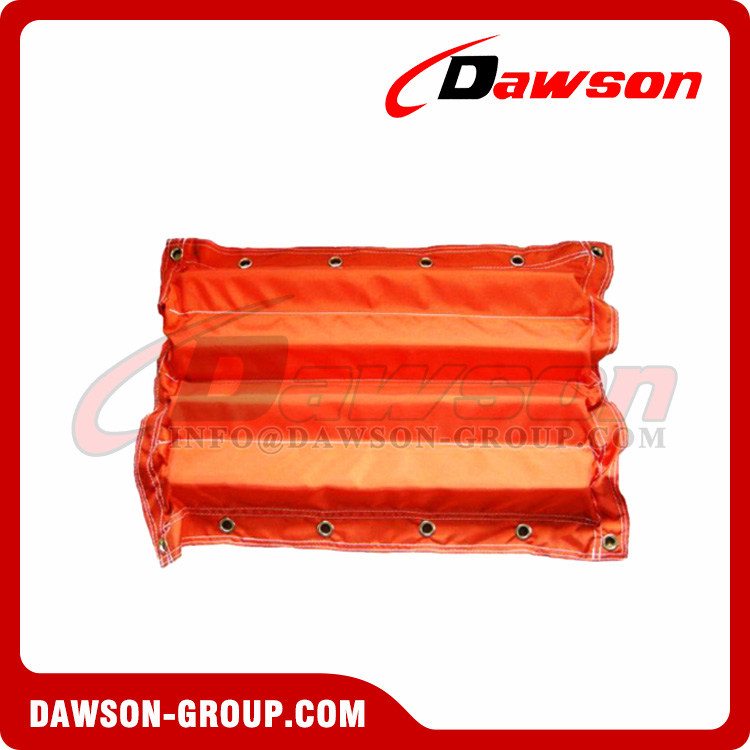

Lace-On Hawser Floats
| Material | 100% Closed-cell PE foam |
| Density | 48 kg/m³ |
| Cover | PVC fabric |
| Thickness | Double layers |
| Reinforcement | Nylon cloth |
| Eyelets | Stainless steel
|

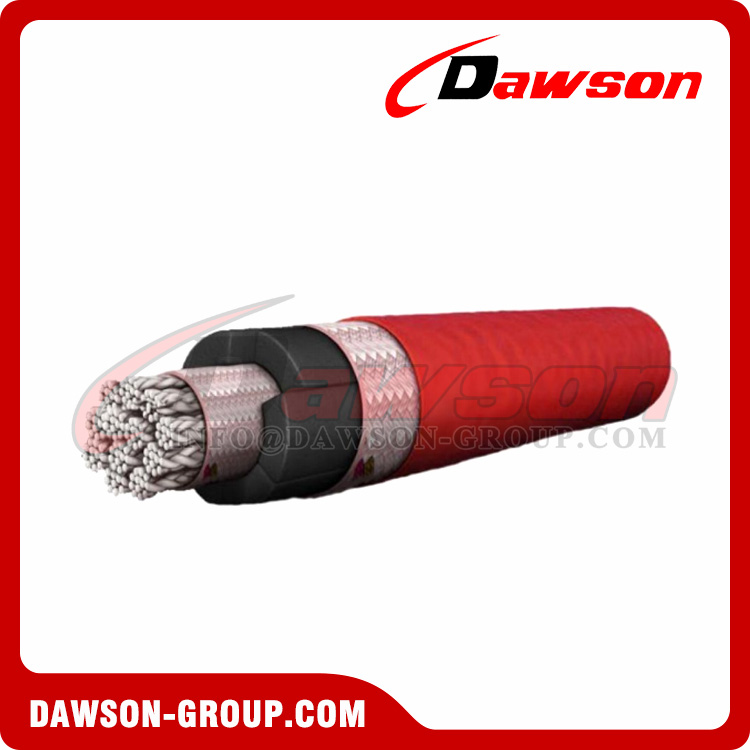

Integral Hawser Flotation
| Material | 100% Closed-cell PE foam |
| Cover | Braided jacket |
| Coated | Polyurethane elastomer |
| Density | 30 kg/m³ |
| Thickness | 20 mm |
| Hardness | 18±5 C
|
