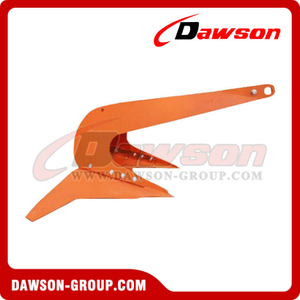

Marine Stingray Anchor
1、Type: High Holding Power Anchor;
2、Material: Steel;
3、Surface Treatment: Black Bitumen Paint Or Hot Dip Galvanized;
4、Nominal Weight:200-20000kg(Customized);
5、Color: Black, Yellow, Orange, Blue Etc.
Features:
1、Having The Same Holding Capacity As a Traditional Anchor Which Is 4-5 Times Heavier;
2、Fast Embedding Into The Sea, Making Minimal Ground Disturbance;
3、A Stingray Anchor Can Be Assembled In Seconds Without Any Special Tools Being Required.
Weight(KG) | A | B | C | D | E | F | Test Load(KN) | Breaking Load(KN) |
50 | 1013 | 1023 | 347 | 598 | 368 | 54 | 29.4 | 65 |
75 | 1060 | 1070 | 363 | 625 | 385 | 58 | 39 | 86 |
100 | 1171 | 1182 | 401 | 691 | 426 | 64 | 47.4 | 95 |
150 | 1258 | 1271 | 432 | 742 | 458 | 69 | 61 | 122 |
250 | 1515 | 1530 | 519 | 895 | 556 | 83 | 85.5 | 170 |
375 | 1748 | 1765 | 599 | 1031 | 635 | 96 | 116 | 232 |
500 | 2024 | 2045 | 694 | 1190 | 736 | 111 | 140.5 | 281 |
750 | 2222 | 2243 | 761 | 1311 | 808 | 122 | 198.6 | 397 |
1000 | 2491 | 2516 | 854 | 1470 | 905 | 136 | 251.8 | 500 |
1500 | 2868 | 2896 | 983 | 1691 | 1043 | 153 | 348.3 | 696 |
2000 | 3078 | 3109 | 1055 | 1817 | 1119 | 168 | 428 | 815 |
3000 | 3638 | 3719 | 1312 | 2160 | 1311 | 197 | 577 | 1100 |
5000 | 4248 | 4291 | 1456 | 2504 | 1544 | 232 | 776 | 1474 |
Application:
1、Storm And Cyclone Mooring;
2、Aquaculture;
3、Holding Back Mooring And Various Other Application.
Note: our company is a professional supplier in marine equipment. We supplier all type and specifications of marine anchors that are made of different materials such as cast steel anchor, welded anchor, stainless steel anchor, carbon steel anchors and so on. We also provide the third-party certification for our anchor such as CCS, BV, ABS, NK, LR, etc.
For more information, please feel free to contact us. We’re sincere to establish a long-term cooperation relationship with you.
Products Show:
