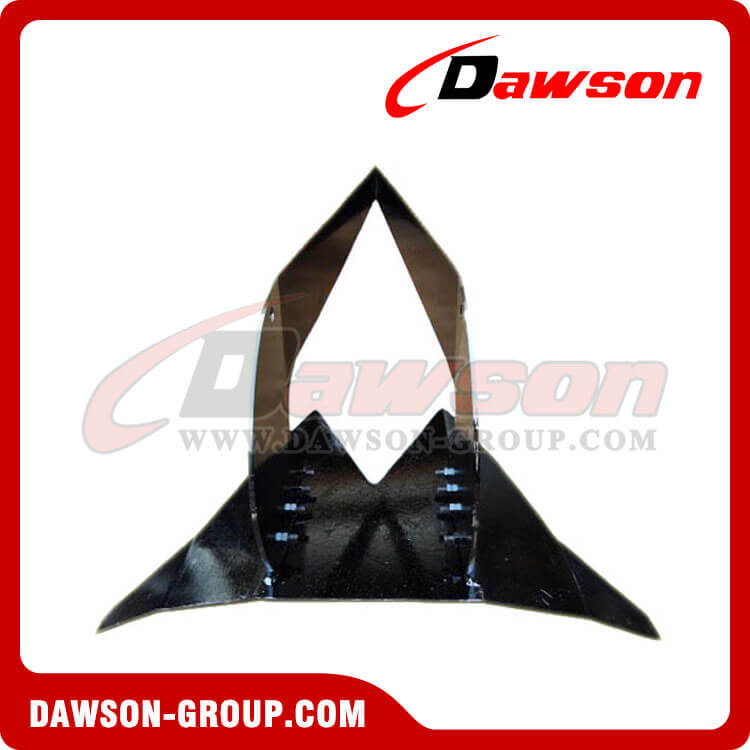

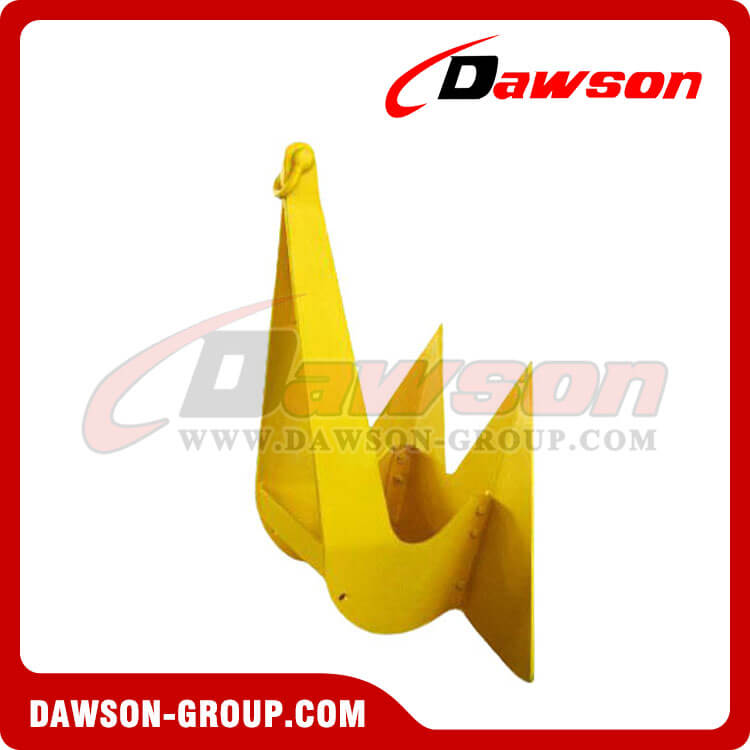

Marine Double Shank Anchor / Stingray High Holding Power Anchor Type B, Dual Shank Anchor Type B

Marine Stingray Anchor Type B / Dual Shank Anchor Type B

1、Type: High Holding Power Anchor；

2、Material: Steel；

3、Surface Treatment: Black Bitumen Paint Or Hot Dip Galvanized；

4、Nominal Weight:50-5000kg(Customized)；

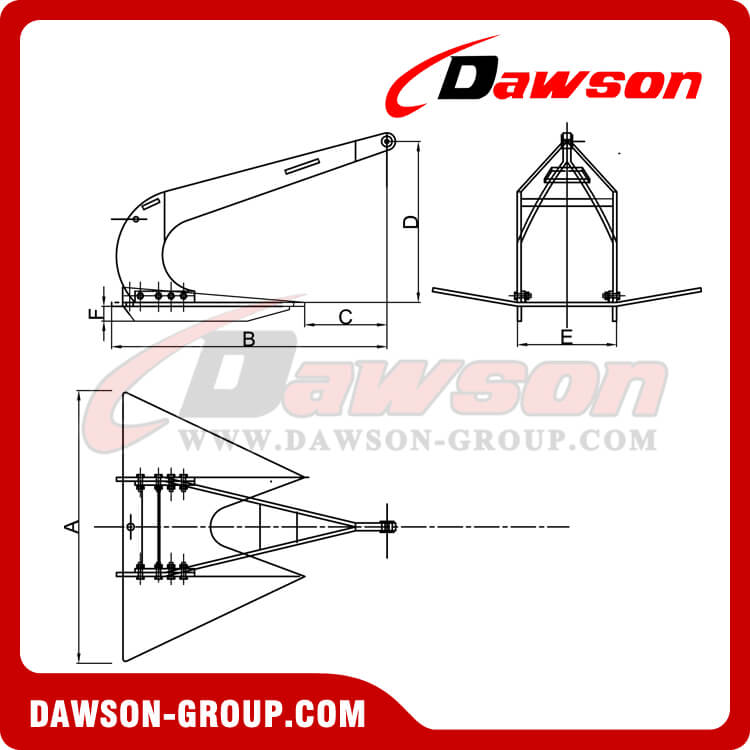

Weight(KG)	A	B	C	D	E	F	Test Load(KN)	Breaking Load(KN)
50	1013	1023	347	598	368	54	29.4	65
75	1060	1070	363	625	385	58	39	86
100	1171	1182	401	691	426	64	47.4	95
150	1258	1271	432	742	458	69	61	122
250	1515	1530	519	895	556	83	85.5	170
375	1748	1765	599	1031	635	96	116	232
500	2024	2045	694	1190	736	111	140.5	281
750	2222	2243	761	1311	808	122	198.6	397
1000	2491	2516	854	1470	905	136	251.8	500
1500	2868	2896	983	1691	1043	153	348.3	696
2000	3078	3109	1055	1817	1119	168	428	815
3000	3638	3719	1312	2160	1311	197	577	1100
5000	4248	4291	1456	2504	1544	232	776	1474

Features:

1、Having The Same Holding Capacity As a Traditional Anchor Which Is 4-5 Times Heavier；

2、Fast Embedding Into The Sea, Making Minimal Ground Disturbance；

3、A Stingray Anchor Can Be Assembled In Seconds Without Any Special Tools Being Required.

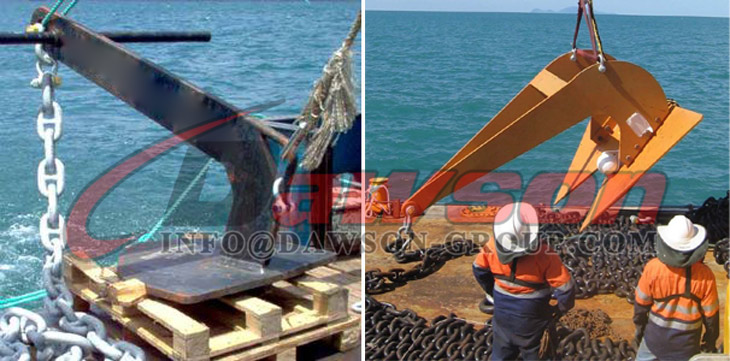

1、Storm And Cyclone Mooring;

2、Aquaculture;

3、Holding Back Mooring And Various Other Application.

Note: our company is a professional supplier in marine equipment. We supplier all type and specifications of marine anchors that are made of different materials such as cast steel anchor, welded anchor, stainless steel anchor, carbon steel anchors and so on. We also provide the third-party certification for our anchor such as CCS, BV, ABS, NK, LR, etc.

For more information, please feel free to contact us. We’re sincere to establish a long-term cooperation relationship with you.

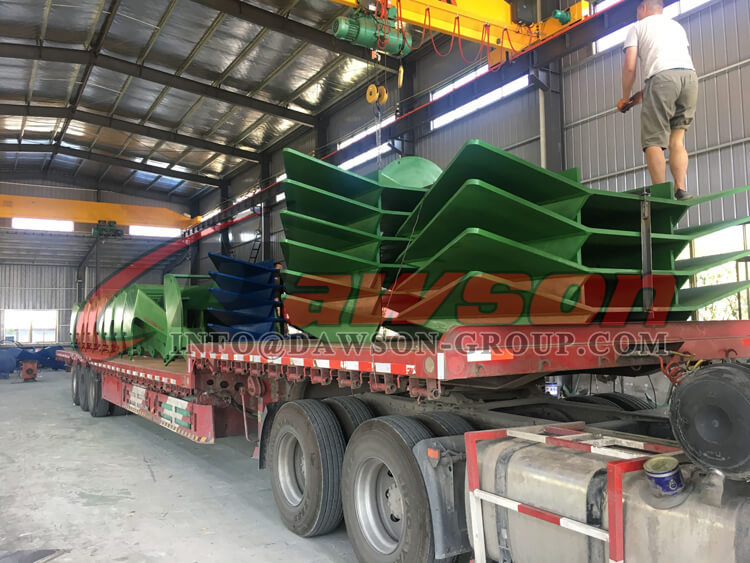

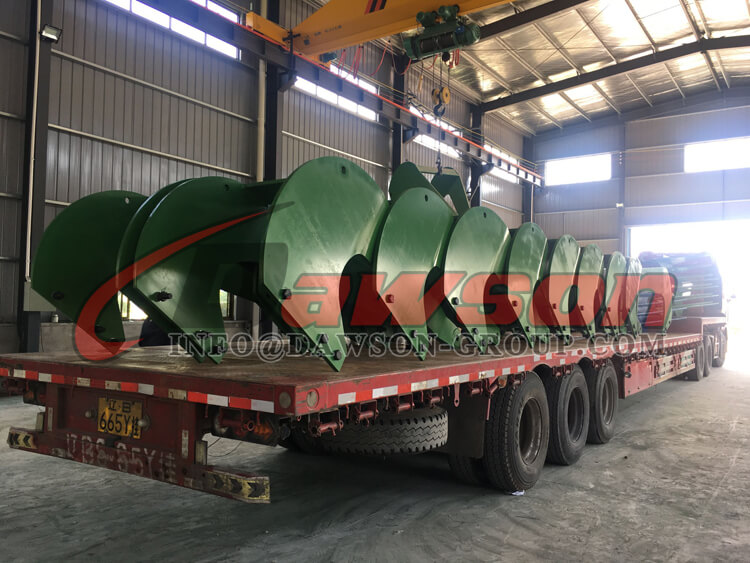

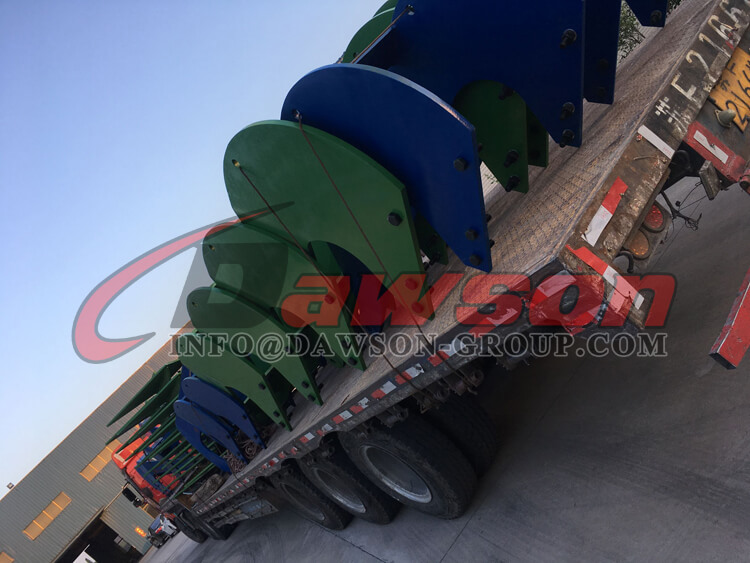

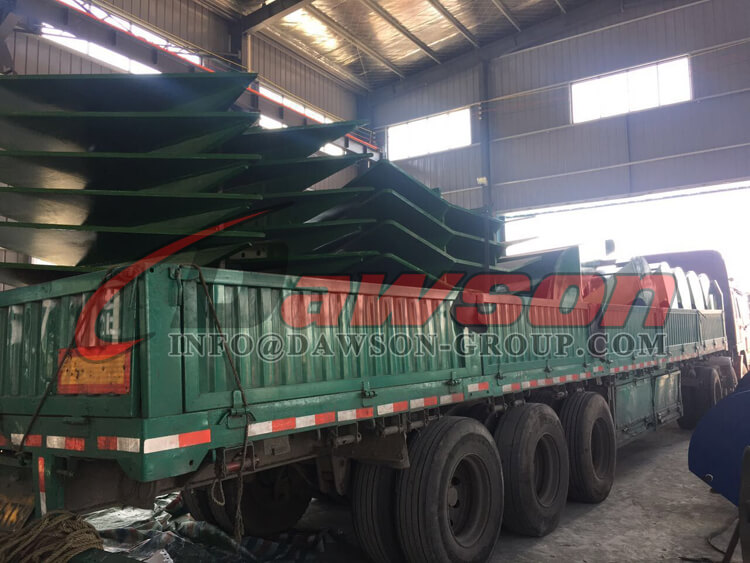

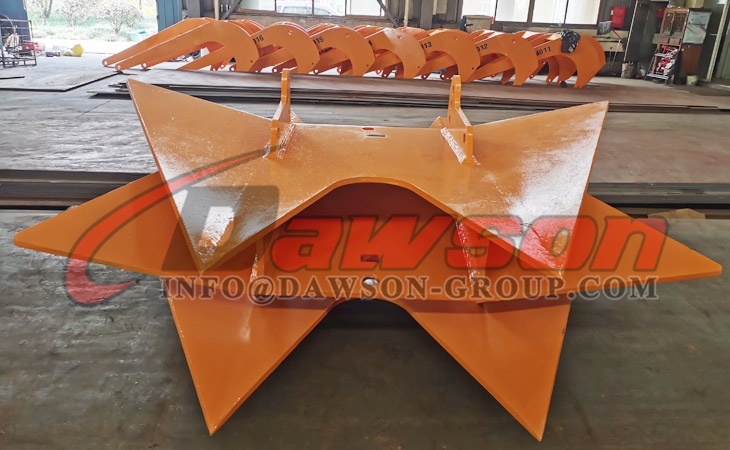

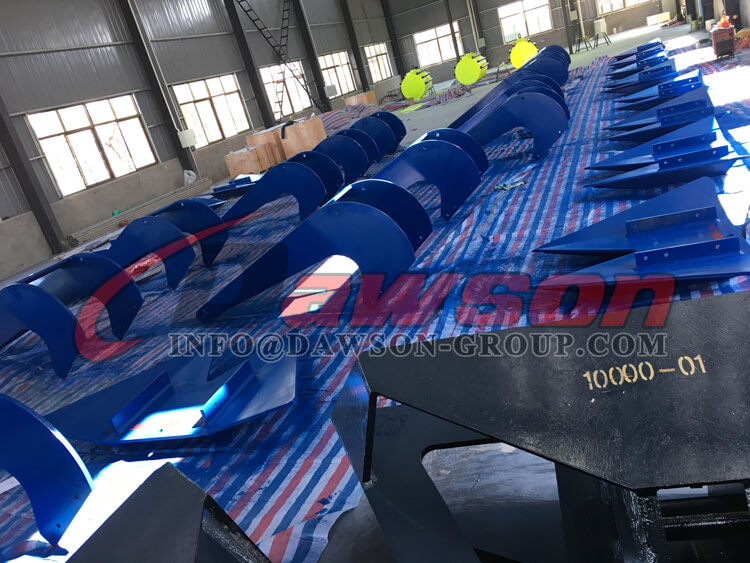

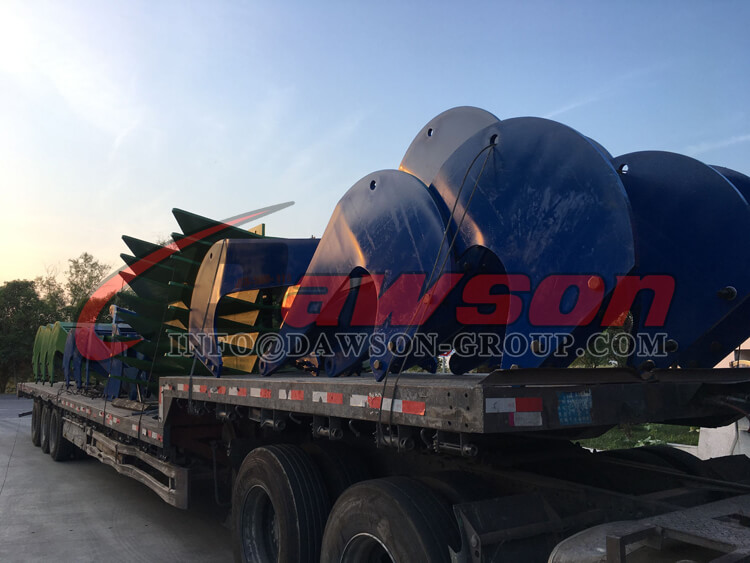

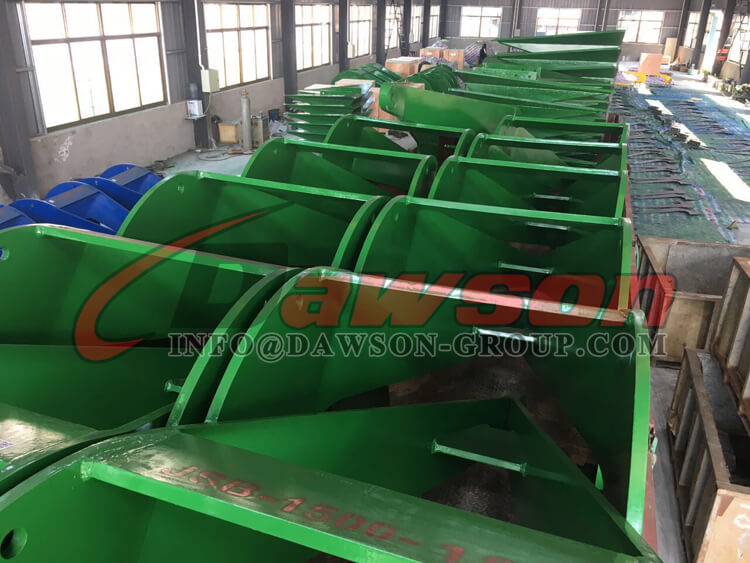

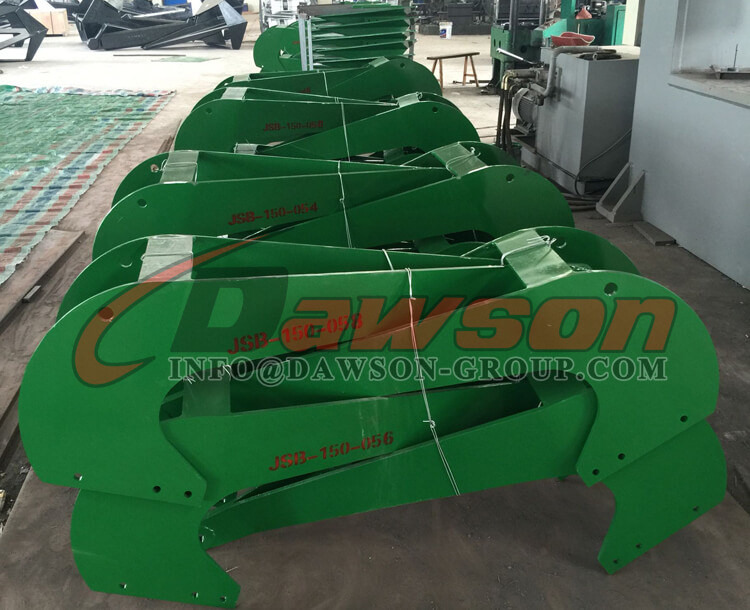

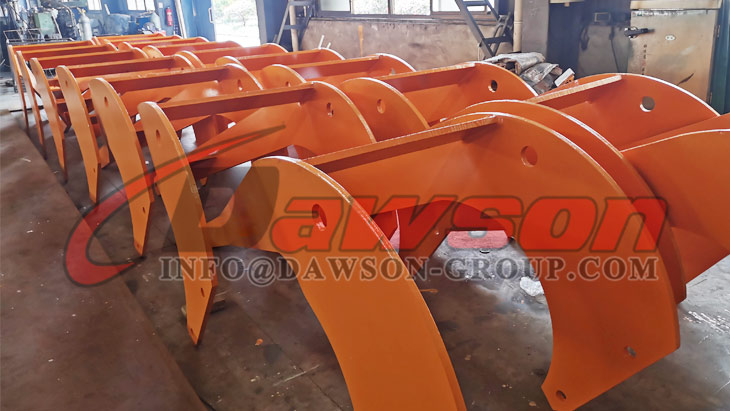

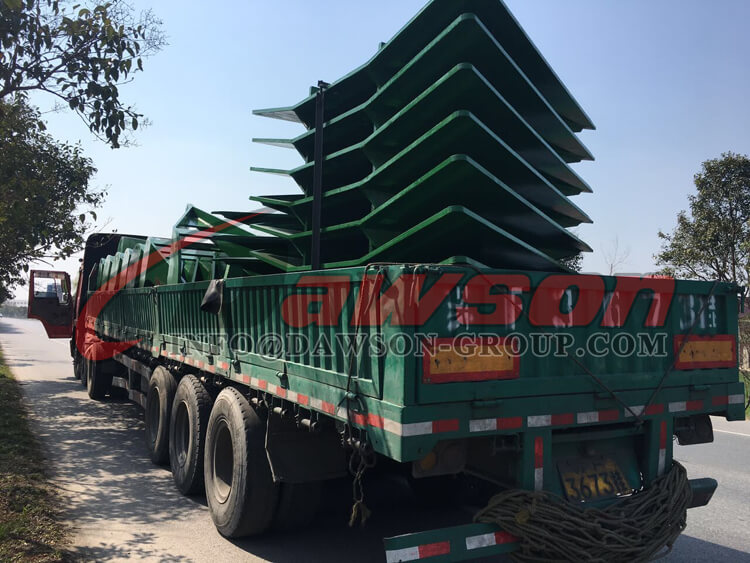

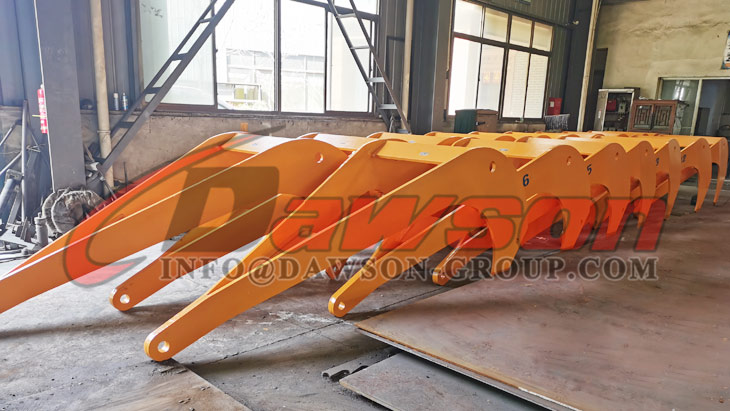

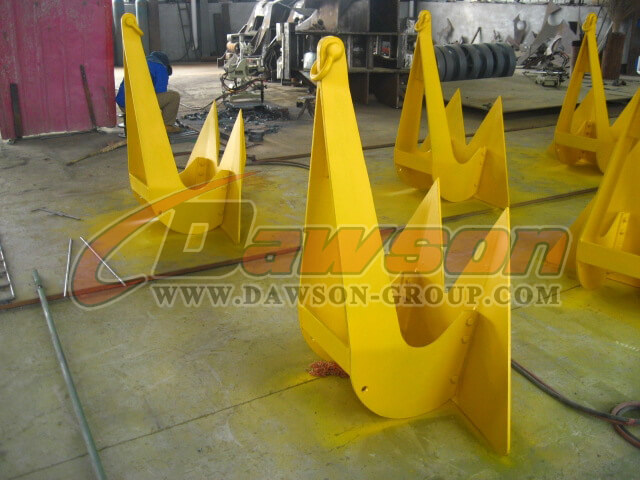

Products Show:
