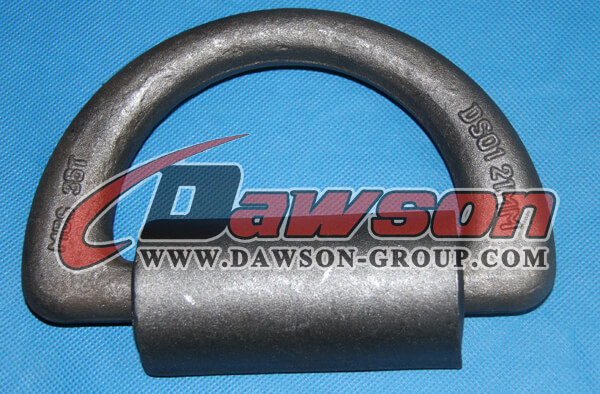

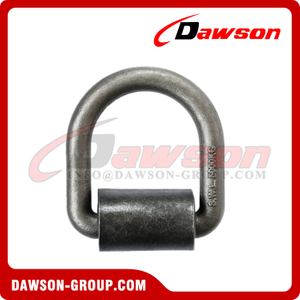

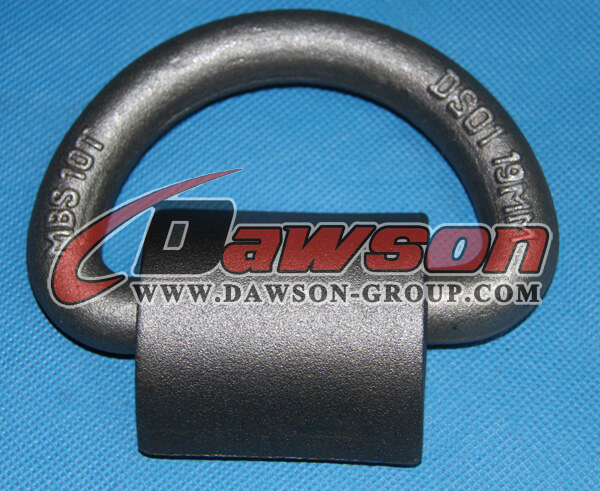

Heavy Duty Weld on D-Ring with Wrap Pad BL 60T / 50T / 41T / 36T / 30T / 25T / 20T / 10T

Heavy Duty Forged Lifting D Rings - Dawson Made

D Ring link with bracket(clamp) 60T / 50T / 41T / 36T / 30T / 25T / 20T / 10T breaking load.

High Tensile Steel Forged D-Ring Link, Ship Steel Bend Clamp (bracket).

Great for Truck Trailers, Utility Trailers, RV's, Auto Haulers, ATV Tiedowns, Farm, Marine, Ship applications and many more uses.

D-Ring and Strap, Weld on D-Ring with Strap BL 60T / 50T / 41T / 36T / 30T / 25T / 20T / 10T

The D-ring and strap with a breaking load of 50t is a weldable lashing point whereby the strap gets welded to the deck of the vessel. It can be used to secure all sort of cargoes with the help of chains or webbing straps.

Model	MBL	Size(mm)
		A	B	C	D	E	F	G	H	I
DS-HDDR-20T	20T	87	90	18	80	24	10	42	50	137
DS-HDDR-25T	25T	109	112	20	90	25	10	48	69	170
DS-HDDR-30T	30T	102	88	21	80	24	10	42	58	144
DS-HDDR-36T(A)	36T(MIN)	112	100	24	90	35	12	50	66.5	165
DS-HDDR-36T(B)	36T(MAX)	124	130	23	120	30	12	45	76	208
DS-HDDR-41T	41T	137	143	26	120	48	12	50	87	225
DS-HDDR-50T(A)	50T	140	137	27	120	48	12	50	86	227
DS-HDDR-50T(B)	50T	144	123	27	115	40	12	50	90	220
DS-HDDR-60T	60T	151	139	27	135	37	14	52	90	240

Material: 45# Carbon Steel

Technology: Drop Forged

Surface Finish: Self Color, Electro Galvanized, Hot Dip Galvanized

Application: Welded Fixed

Welcome to buy the newest and competitive price DAWSON Heavy Duty Weld on D-Ring with Wrap Pad BL 60T / 50T / 41T / 36T / 30T / 25T / 20T / 10T from our factory. We're one of the leading China manufacturers and suppliers, offering you the wholesale service and the OEM service at a discount. With CE certification, our products made in China in stock are high in quality and low in price. Please be free to get the free sample from us.

For further information, please contact us. Email:info@dawson-group.com
