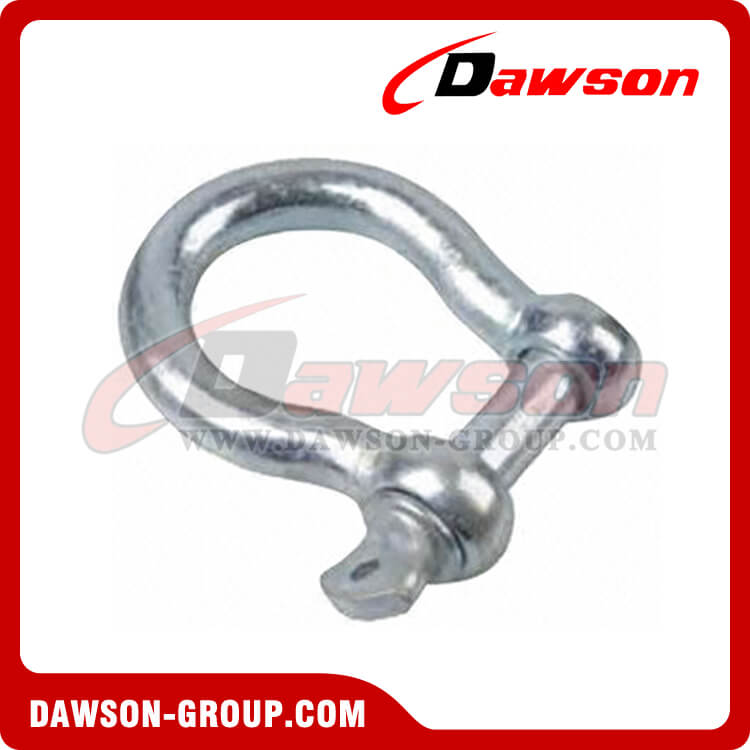

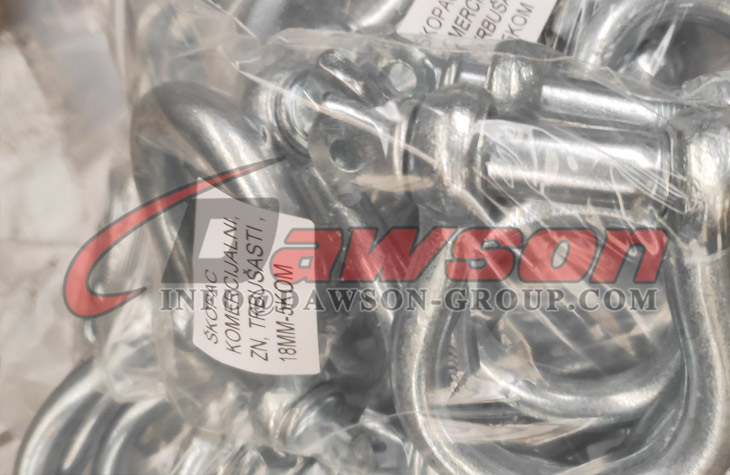

Galv. Bow Shackle, European Commercial Type
Finish: Self color, Electric Galv.
Material: Mild steel/Carbon steel C1045
Packing: In Cartons or In gunny bags.
Notice: Shackles not to be used for Lifting applications
Following Size are available:
Screw collar pin -- all size
Square head Pin-from 6 up to 38MM
Counter sunk pin-from 8 up to 25MM

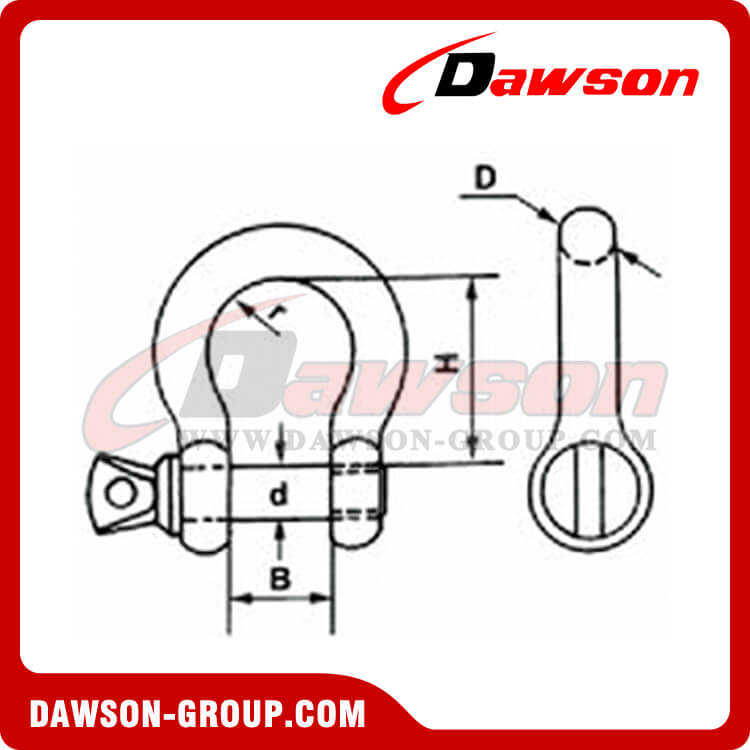

| ITEM NO | SIZE | D | d | B | H | r | SWL |
| mm | mm | mm | mm | mm | T |
| DS-CBS005 | 5 | 5 | 5 | 10 | 19.5 | 15 | 0.08 |
| DS-CBS006 | 6 | 6 | 6 | 12 | 24 | 18 | 0.1 |
| DS-CBS008 | 8 | 8 | 8 | 16 | 32 | 24 | 0.2 |
| DS-CBS010 | 10 | 10 | 10 | 20 | 40 | 30 | 0.32 |
| DS-CBS011 | 11 | 11 | 11 | 22 | 44.5 | 33 | 0.4 |
| DS-CBS012 | 12 | 12 | 12 | 25 | 49 | 36 | 0.52 |
| DS-CBS014 | 14 | 14 | 14 | 28 | 59 | 42 | 0.65 |
| DS-CBS016 | 16 | 16 | 16 | 32 | 64 | 48 | 0.8 |
| DS-CBS018 | 18 | 18 | 18 | 36 | 71 | 54 | 1 |
| DS-CBS020 | 20 | 19 | 20 | 38 | 80 | 60 | 1.1 |
| DS-CBS022 | 22 | 22 | 22 | 44 | 85 | 66 | 1.5 |
| DS-CBS025 | 25 | 25 | 24 | 50 | 100 | 75 | 2.1 |
| DS-CBS028 | 28 | 28 | 27 | 56 | 116 | 86 | 3 |
| DS-CBS032 | 32 | 32 | 33 | 64 | 129 | 96 | 3.5 |
| DS-CBS038 | 38 | 38 | 39 | 76 | 151 | 114 | 5 |
Welcome to buy the newest and competitive price DAWSON European Type Commercial Galv. Bow Shackle from our factory. We're one of the leading China manufacturers and suppliers, offering you the wholesale service and the OEM service at a discount. With CE certification, our products made in China in stock are high in quality and low in price. Please be free to get the free sample from us.
For further information, please contact us. Email:info@dawson-group.com
Hot Tags: bulk bow shackle, low price galv. bow shackle, high quality commercial bow shackle, wholesale European type bow shackle, buy discount galv. commercial bow shackle, hot sale commercial type anchor shackle, customized electric galv. anchor shackle, cheap price screw pin bow shackle, H.D.G. lifting shackle, high tensile screw pin shackle for lifting China supplier, hot galvanizing marine shackle China manufacturer, bow shackle for lifting China factory, bow shackle China exporter, bow shackle in stock, bow shackle free sample, bow shackle dawson brands, bow shackle OEM

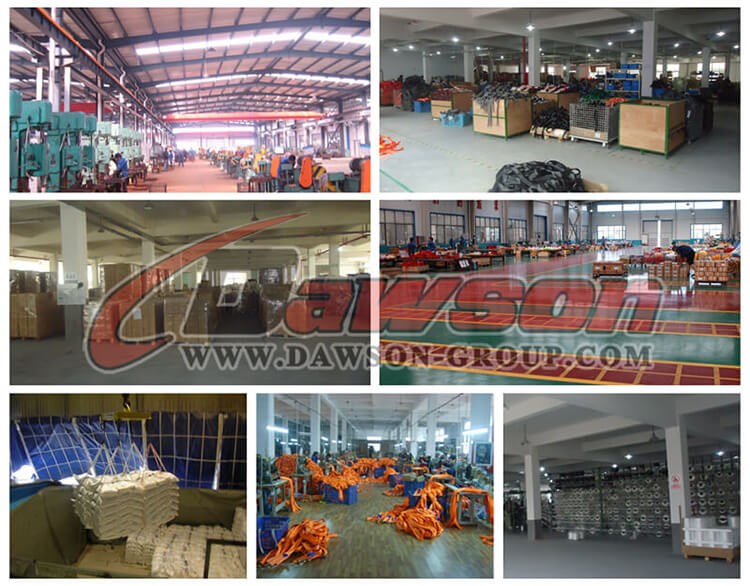

Production Equipment:
Application of Shackles:

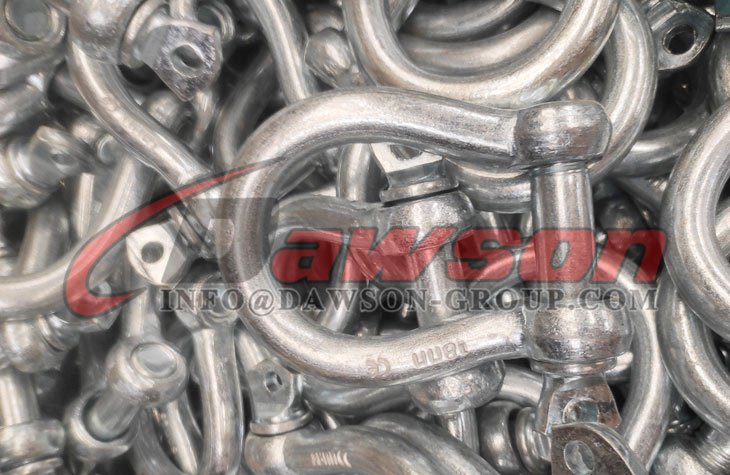

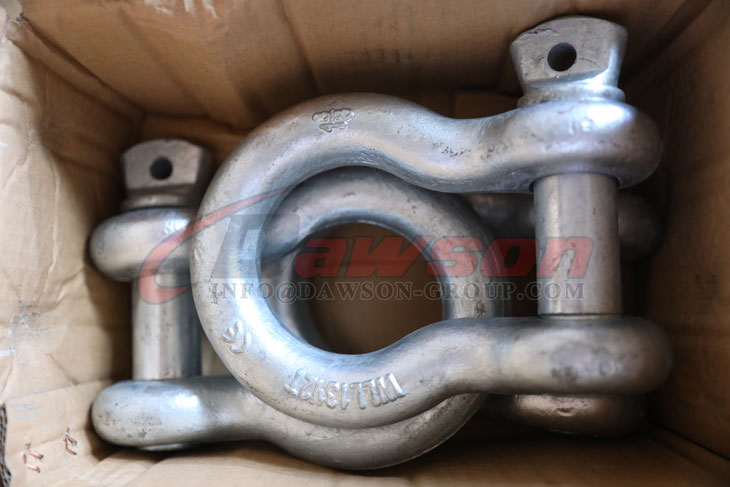

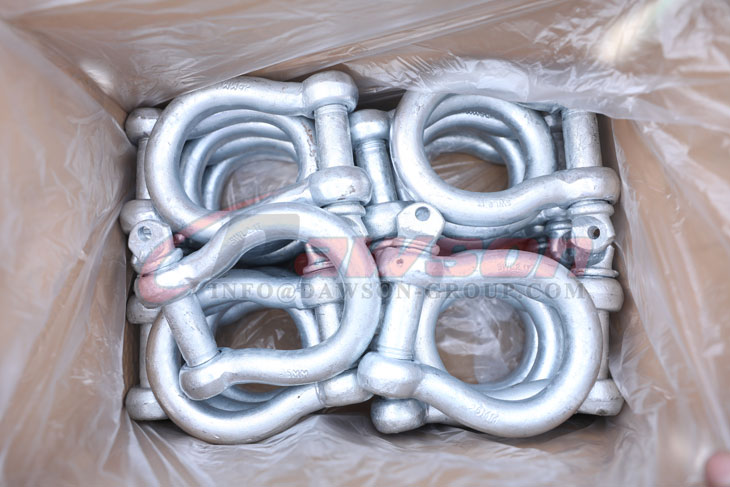

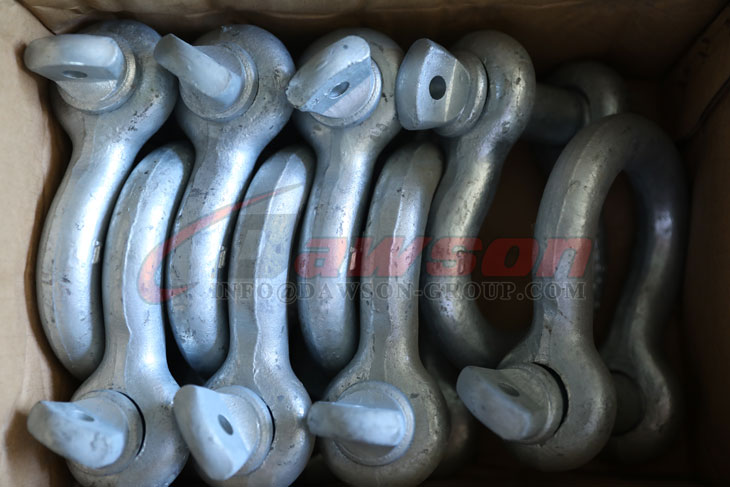

Factory and packing Show:
