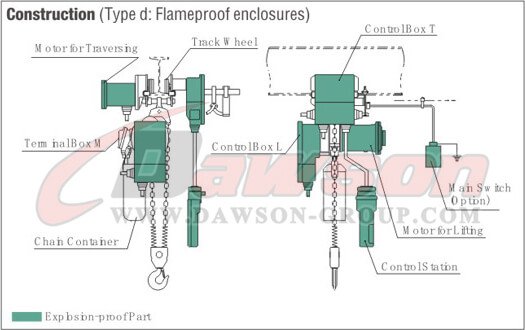

The section in the left figure shows the explosion-protected construction. Accordingly, electric parts have sufficient strength to with stand the internal pressure indicated in JB/T 10222-2011
Power source | 220V(50/60Hz), 220V(60Hz), 380V(50Hz), 400V(50Hz), 415V(50Hz), 440V(60Hz), 3 phase, other voltages are available upon request. |
Operation voltage | 24/36/48V |
Operation method | Pendant type push button cord(floor operation) (2-push-button-system for both hook suspension type and manual operated type trolley. 2-push-button-system for motorized trolley type.) |
Power supply method | Cable power supply system |
Push button cord and power supply cable | Rubber insulated flexible cable(3RNCT) |
Insulation of motor | F class |
Braking system for lifting and lowering | Pull-rotor motor brake |
Technical Parameters
Type | Capacity (Ton) | Lifting Speed (m/min) | Lifting Motor | Operating Motor | I-Beam (mm) | |||||||||
Power (kW) | Rotation Speed (r/min) | Phases | Voltage (V) | Frequency (Hz/s) | Power (kW) | Rotation Speed (r/min) | Operating Speed (m/min) | Phases | Voltage(V) | Frequency (Hz/s) | ||||
DS-HHBDB01-01 | 1 | 6.8 | 1.5 | 1440 | 3 | 220-440 | 50/60 | 0.4 | 1440 | 10/20 | 3 | 220-440 | 50/60 | 80-160 |
DS-HHBDB02-01 | 2 | 6.8 | 3 | 1440 | 3 | 220-440 | 50/60 | 0.4 | 1440 | 10/20 | 3 | 220-440 | 50/60 | 82-178 |
DS-HHBDB02-02 | 2 | 3.4 | 1.5 | 1440 | 3 | 220-440 | 50/60 | 0.4 | 1440 | 10/20 | 3 | 220-440 | 50/60 | 82-178 |
DS-HHBDB03-01 | 3 | 5.4 | 3 | 1440 | 3 | 220-440 | 50/60 | 0.4 | 1440 | 10/20 | 3 | 220-440 | 50/60 | 100-178 |
DS-HHBDB03-02 | 3 | 3.4 | 3 | 1440 | 3 | 220-440 | 50/60 | 0.4 | 1440 | 10/20 | 3 | 220-440 | 50/60 | 100-180 |
DS-HHBDB05-02 | 5 | 2.7 | 3 | 1440 | 3 | 220-440 | 50/60 | 0.75 | 1440 | 10/20 | 3 | 220-440 | 50/60 | 110-180 |
DS-HHBDB10-04 | 10 | 2.8 | 3.0*2 | 1440 | 3 | 220-440 | 50/60 | 0.75*2 | 1440 | 10/20 | 3 | 220-440 | 50/60 | 150-220 |
DS-HHBDB15-06 | 15 | 1.9 | 3.0*2 | 1440 | 3 | 220-440 | 50/60 | 0.75*2 | 1440 | 10/20 | 3 | 220-440 | 50/60 | 150-220 |
DS-HHBDB20-08 | 20 | 1.4 | 3.0*2 | 1440 | 3 | 220-440 | 50/60 | 0.75*2 | 1440 | 10/20 | 3 | 220-440 | 50/60 | 150-220 |
DS-HHBDB25-10 | 25 | 1.1 | 3.0*2 | 1440 | 3 | 220-440 | 50/60 | 0.75*2 | 1440 | 10/20 | 3 | 220-440 | 50/60 | 150-220 |
DS-HHBDB30-12 | 30 | 0.9 | 3.0*2 | 1440 | 3 | 220-440 | 50/60 | 0.75*2 | 1440 | 10/20 | 3 | 220-440 | 50/60 | 150-220 |
DS-HHBDB35-16 | 35 | 0.7 | 3.0*2 | 1440 | 3 | 220-440 | 50/60 | 0.75*2 | 1440 | 10/20 | 3 | 220-440 | 50/60 | 150-220 |
Size Specification
Type | Capacity (Ton) | Unit(mm) | ||||||||||||
H | A | B | D | E | K | L | N | J | R | T | Q | Chain | ||
DS-HHBDB01-01 | 1 | 650 | 600 | 330 | 300 | 176 | Φ40 | 31 | 24 | Φ31 | 224 | 298 | / | Φ7.1 |
DS-HHBDB02-01 | 2 | 770 | 725 | 350 | 430 | 265 | Φ49 | 35 | 30 | Φ36 | 224 | 298 | / | Φ7.1 |
DS-HHBDB02-02 | 2 | 740 | 600 | 330 | 300 | 230 | Φ49 | 35 | 30 | Φ36 | 224 | 298 | / | Φ7.1 |
DS-HHBDB03-01 | 3 | 840 | 725 | 350 | 470 | 265 | Φ59 | 42 | 35 | Φ43 | 224 | 298 | / | Φ11.2 |
DS-HHBDB03-02 | 3 | 920 | 725 | 350 | 430 | 320 | Φ59 | 42 | 35 | Φ43 | 224 | 298 | / | Φ10.0 |
DS-HHBDB03-03 | 3 | 920 | 600 | 330 | 350 | 280 | Φ59 | 42 | 35 | Φ43 | 224 | 298 | / | Φ11.2 |
DS-HHBDB05-02 | 5 | 1015 | 725 | 350 | 430 | 325 | Φ60 | 45 | 43 | Φ54 | 224 | 298 | / | Φ11.2 |
DS-HHBDB7.5-03 | 7.5 | 1200 | 725 | 350 | 500 | 380 | Φ90 | 70 | 50 | Φ70 | 224 | 298 | / | Φ11.2 |
DS-HHBDB10-04 | 10 | 1200 | 725 | 350 | 890 | 445 | Φ90 | 70 | 50 | Φ54 | 224 | 298 | 430 | Φ11.2 |
DS-HHBDB15-06 | 15 | 1360 | 725 | 350 | 1030 | / | Φ110 | 80 | 85 | Φ70 | 224 | 298 | 520 | Φ11.2 |
DS-HHBDB20-08 | 20 | 1300 | 725 | 350 | 1220 | / | Φ110 | 80 | 85 | Φ70 | 224 | 298 | 520 | Φ11.2 |
DS-HHBDB25-10 | 25 | 1500 | 725 | 350 | 1450 | / | Φ140 | 100 | 95 | Φ75 | 224 | 298 | 680 | Φ11.2 |
DS-HHBDB30-12 | 30 | 1640 | 915 | 458 | 1380 | / | Φ140 | 100 | 95 | Φ80 | / | / | 400 | Φ11.2 |
DS-HHBDB35-16 | 35 | 1790 | 915 | 458 | 1600 | / | Φ200 | 140 | 135 | Φ100 | / | / | 440 | Φ11.2 |
Related Products:
Other related Explosion-proof lifting equipments:
Other related products:

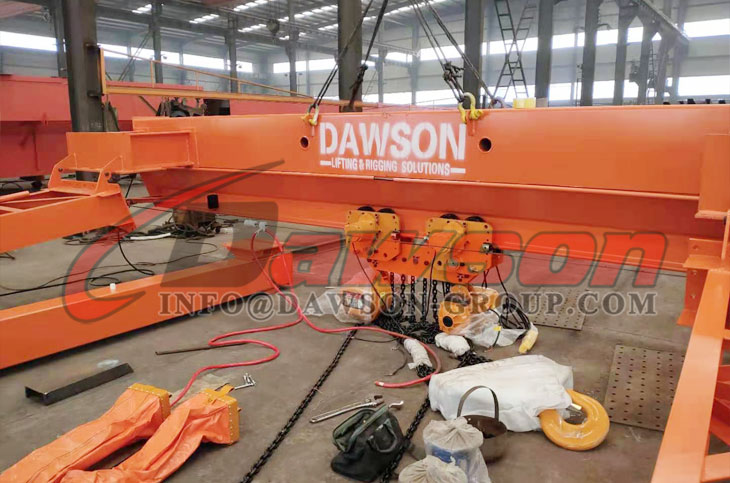

Package & Factory Show::
The section in the left figure shows the explosion-protected construction. Accordingly, electric parts have sufficient strength to with stand the internal pressure indicated in JB/T 10222-2011
Power source | 220V(50/60Hz), 220V(60Hz), 380V(50Hz), 400V(50Hz), 415V(50Hz), 440V(60Hz), 3 phase, other voltages are available upon request. |
Operation voltage | 24/36/48V |
Operation method | Pendant type push button cord(floor operation) (2-push-button-system for both hook suspension type and manual operated type trolley. 2-push-button-system for motorized trolley type.) |
Power supply method | Cable power supply system |
Push button cord and power supply cable | Rubber insulated flexible cable(3RNCT) |
Insulation of motor | F class |
Braking system for lifting and lowering | Pull-rotor motor brake |
Technical Parameters
Type | Capacity (Ton) | Lifting Speed (m/min) | Lifting Motor | Operating Motor | I-Beam (mm) | |||||||||
Power (kW) | Rotation Speed (r/min) | Phases | Voltage (V) | Frequency (Hz/s) | Power (kW) | Rotation Speed (r/min) | Operating Speed (m/min) | Phases | Voltage(V) | Frequency (Hz/s) | ||||
DS-HHBDB01-01 | 1 | 6.8 | 1.5 | 1440 | 3 | 220-440 | 50/60 | 0.4 | 1440 | 10/20 | 3 | 220-440 | 50/60 | 80-160 |
DS-HHBDB02-01 | 2 | 6.8 | 3 | 1440 | 3 | 220-440 | 50/60 | 0.4 | 1440 | 10/20 | 3 | 220-440 | 50/60 | 82-178 |
DS-HHBDB02-02 | 2 | 3.4 | 1.5 | 1440 | 3 | 220-440 | 50/60 | 0.4 | 1440 | 10/20 | 3 | 220-440 | 50/60 | 82-178 |
DS-HHBDB03-01 | 3 | 5.4 | 3 | 1440 | 3 | 220-440 | 50/60 | 0.4 | 1440 | 10/20 | 3 | 220-440 | 50/60 | 100-178 |
DS-HHBDB03-02 | 3 | 3.4 | 3 | 1440 | 3 | 220-440 | 50/60 | 0.4 | 1440 | 10/20 | 3 | 220-440 | 50/60 | 100-180 |
DS-HHBDB05-02 | 5 | 2.7 | 3 | 1440 | 3 | 220-440 | 50/60 | 0.75 | 1440 | 10/20 | 3 | 220-440 | 50/60 | 110-180 |
DS-HHBDB10-04 | 10 | 2.8 | 3.0*2 | 1440 | 3 | 220-440 | 50/60 | 0.75*2 | 1440 | 10/20 | 3 | 220-440 | 50/60 | 150-220 |
DS-HHBDB15-06 | 15 | 1.9 | 3.0*2 | 1440 | 3 | 220-440 | 50/60 | 0.75*2 | 1440 | 10/20 | 3 | 220-440 | 50/60 | 150-220 |
DS-HHBDB20-08 | 20 | 1.4 | 3.0*2 | 1440 | 3 | 220-440 | 50/60 | 0.75*2 | 1440 | 10/20 | 3 | 220-440 | 50/60 | 150-220 |
DS-HHBDB25-10 | 25 | 1.1 | 3.0*2 | 1440 | 3 | 220-440 | 50/60 | 0.75*2 | 1440 | 10/20 | 3 | 220-440 | 50/60 | 150-220 |
DS-HHBDB30-12 | 30 | 0.9 | 3.0*2 | 1440 | 3 | 220-440 | 50/60 | 0.75*2 | 1440 | 10/20 | 3 | 220-440 | 50/60 | 150-220 |
DS-HHBDB35-16 | 35 | 0.7 | 3.0*2 | 1440 | 3 | 220-440 | 50/60 | 0.75*2 | 1440 | 10/20 | 3 | 220-440 | 50/60 | 150-220 |

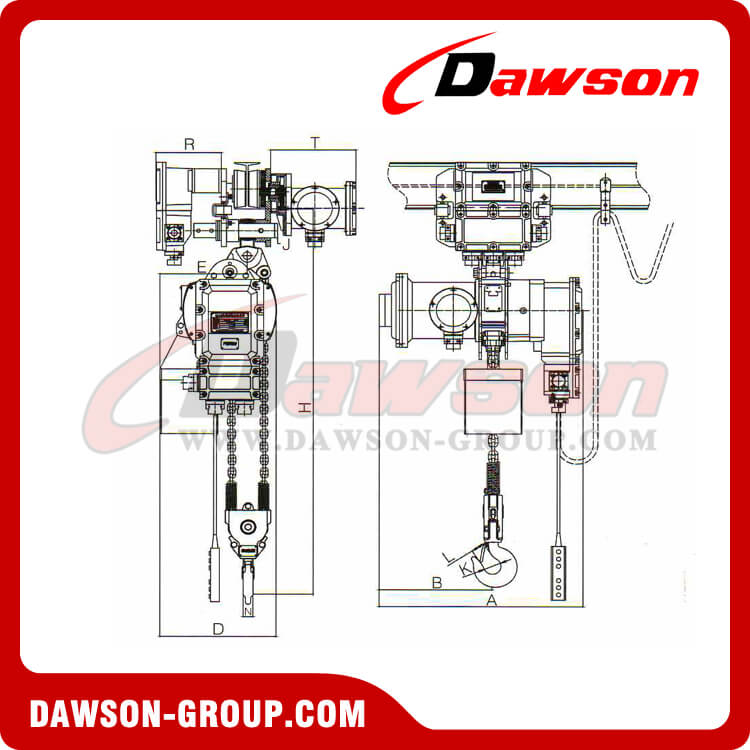

Size Specification
Type | Capacity (Ton) | Unit(mm) | ||||||||||||
H | A | B | D | E | K | L | N | J | R | T | Q | Chain | ||
DS-HHBDB01-01 | 1 | 650 | 600 | 330 | 300 | 176 | Φ40 | 31 | 24 | Φ31 | 224 | 298 | / | Φ7.1 |
DS-HHBDB02-01 | 2 | 770 | 725 | 350 | 430 | 265 | Φ49 | 35 | 30 | Φ36 | 224 | 298 | / | Φ7.1 |
DS-HHBDB02-02 | 2 | 740 | 600 | 330 | 300 | 230 | Φ49 | 35 | 30 | Φ36 | 224 | 298 | / | Φ7.1 |
DS-HHBDB03-01 | 3 | 840 | 725 | 350 | 470 | 265 | Φ59 | 42 | 35 | Φ43 | 224 | 298 | / | Φ11.2 |
DS-HHBDB03-02 | 3 | 920 | 725 | 350 | 430 | 320 | Φ59 | 42 | 35 | Φ43 | 224 | 298 | / | Φ10.0 |
DS-HHBDB03-03 | 3 | 920 | 600 | 330 | 350 | 280 | Φ59 | 42 | 35 | Φ43 | 224 | 298 | / | Φ11.2 |
DS-HHBDB05-02 | 5 | 1015 | 725 | 350 | 430 | 325 | Φ60 | 45 | 43 | Φ54 | 224 | 298 | / | Φ11.2 |
DS-HHBDB7.5-03 | 7.5 | 1200 | 725 | 350 | 500 | 380 | Φ90 | 70 | 50 | Φ70 | 224 | 298 | / | Φ11.2 |
DS-HHBDB10-04 | 10 | 1200 | 725 | 350 | 890 | 445 | Φ90 | 70 | 50 | Φ54 | 224 | 298 | 430 | Φ11.2 |
DS-HHBDB15-06 | 15 | 1360 | 725 | 350 | 1030 | / | Φ110 | 80 | 85 | Φ70 | 224 | 298 | 520 | Φ11.2 |
DS-HHBDB20-08 | 20 | 1300 | 725 | 350 | 1220 | / | Φ110 | 80 | 85 | Φ70 | 224 | 298 | 520 | Φ11.2 |
DS-HHBDB25-10 | 25 | 1500 | 725 | 350 | 1450 | / | Φ140 | 100 | 95 | Φ75 | 224 | 298 | 680 | Φ11.2 |
DS-HHBDB30-12 | 30 | 1640 | 915 | 458 | 1380 | / | Φ140 | 100 | 95 | Φ80 | / | / | 400 | Φ11.2 |
DS-HHBDB35-16 | 35 | 1790 | 915 | 458 | 1600 | / | Φ200 | 140 | 135 | Φ100 | / | / | 440 | Φ11.2 |
Related Products:
Other related Explosion-proof lifting equipments:
Other related products:
Package & Factory Show::
