DAWSON/OEM
DS-SSDHL20
Availability: | |
---|---|
Quantity: | |
It is typical of unique optimal structure in shortening the distance between the machine body and the beam tracks, applicable to operations inside fairy low buildings, especially suitable for use in temporarily erected plant buildings or on the sites where expansion of effective hoisting spaces inside the buildings is required.
Shell: Light aluminum alloy shell shall be adopted wich is light but hard and fit for the use in the terrible work environment with a high heat dissipation rate and all tightness design.
Model | Capacity | Lifting speed (m/min) | Motor power (kw) | Rotation speed (r/min) | Insulation grade | Power supply | Control voltage | No.of chain | Spec. of load chain | Net weight (kg) |
DS-SSDHL20-08S | 20t | 1.4 | 3.0X2 | 1440 | F grade | 3 phase, 200V-690V, 50/60Hz | 24V/36V/48V | 8 | Φ11.2 | 482 |
DS-SSDHL20-08D | 20t | 1.5/0/5 | 3.0X2/1.0X2 | 2880/960 | F grade | 3 phase, 200V-690V, 50/60Hz | 24V/36V/48V | 8 | Φ11.2 | 545 |
DS-SSDHL25-10S | 25t | 1.1 | 3.0X2 | 1440 | F grade | 3 phase, 200V-690V, 50/60Hz | 24V/36V/48V | 10 | Φ11.2 | 503 |
DS-SSDHL25-10D | 25t | 1.5/0.4 | 3.0X2/1.0X2 | 2880/960 | F grade | 3 phase, 200V-690V, 50/60Hz | 24V/36V/48V | 10 | Φ11.2 | 579 |
Model | H | A | B | D | E | W | U | R | T |
DS-SSDHL20-08S | 1470 | 630 | 315 | 1260 | 630 | 1106 | 740 | 142 | 231 |
DS-SSDHL20-08D | 1470 | 670 | 388 | 1260 | 630 | 1106 | 740 | 142 | 231 |
DS-SSDHL25-10S | 1580 | 630 | 315 | 1450 | 725 | 1260 | 930 | 142 | 231 |
DS-SSDHL25-10D | 1580 | 670 | 388 | 1450 | 725 | 1260 | 930 | 142 | 231 |

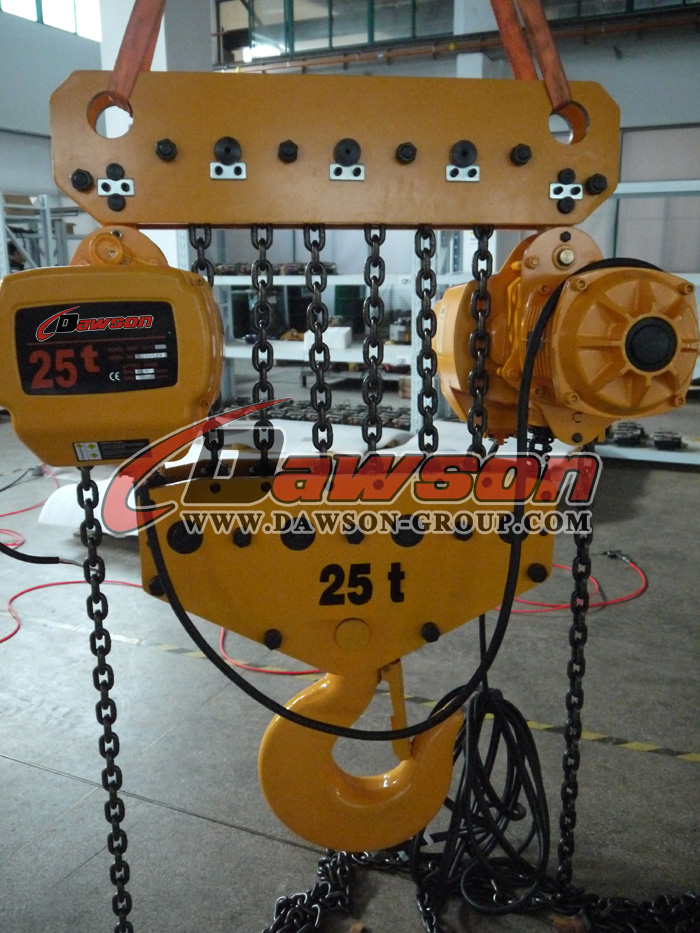

Products Show:
Other related products:
Factory & Package Show:
It is typical of unique optimal structure in shortening the distance between the machine body and the beam tracks, applicable to operations inside fairy low buildings, especially suitable for use in temporarily erected plant buildings or on the sites where expansion of effective hoisting spaces inside the buildings is required.
Shell: Light aluminum alloy shell shall be adopted wich is light but hard and fit for the use in the terrible work environment with a high heat dissipation rate and all tightness design.
Model | Capacity | Lifting speed (m/min) | Motor power (kw) | Rotation speed (r/min) | Insulation grade | Power supply | Control voltage | No.of chain | Spec. of load chain | Net weight (kg) |
DS-SSDHL20-08S | 20t | 1.4 | 3.0X2 | 1440 | F grade | 3 phase, 200V-690V, 50/60Hz | 24V/36V/48V | 8 | Φ11.2 | 482 |
DS-SSDHL20-08D | 20t | 1.5/0/5 | 3.0X2/1.0X2 | 2880/960 | F grade | 3 phase, 200V-690V, 50/60Hz | 24V/36V/48V | 8 | Φ11.2 | 545 |
DS-SSDHL25-10S | 25t | 1.1 | 3.0X2 | 1440 | F grade | 3 phase, 200V-690V, 50/60Hz | 24V/36V/48V | 10 | Φ11.2 | 503 |
DS-SSDHL25-10D | 25t | 1.5/0.4 | 3.0X2/1.0X2 | 2880/960 | F grade | 3 phase, 200V-690V, 50/60Hz | 24V/36V/48V | 10 | Φ11.2 | 579 |
Model | H | A | B | D | E | W | U | R | T |
DS-SSDHL20-08S | 1470 | 630 | 315 | 1260 | 630 | 1106 | 740 | 142 | 231 |
DS-SSDHL20-08D | 1470 | 670 | 388 | 1260 | 630 | 1106 | 740 | 142 | 231 |
DS-SSDHL25-10S | 1580 | 630 | 315 | 1450 | 725 | 1260 | 930 | 142 | 231 |
DS-SSDHL25-10D | 1580 | 670 | 388 | 1450 | 725 | 1260 | 930 | 142 | 231 |
