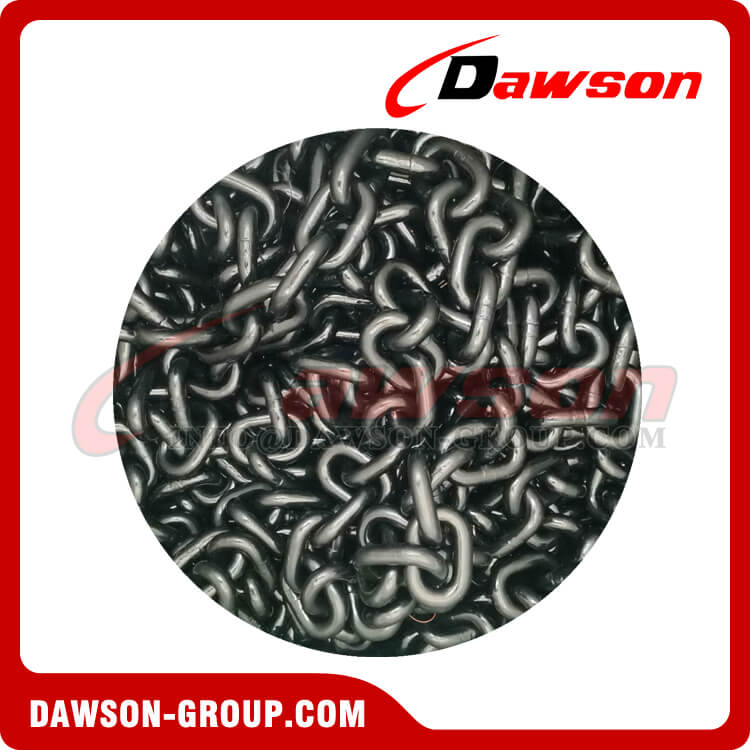

EN818-2 Grade 80 Alloy Lifting Chain, G80 Lifting Chain, Grade 80 Short Link Chain for Chain Slings

G80 Welded Link Chain, G80 Alloy Chain, Grade 80 Alloy Lifting Chain, Grade 80 Short Link Chain for Chain Slings

- Dawson Group Ltd. - China Manufacturer, Supplier, Factory



NOTE : G80 LIFTING CHAIN -- 3.2×9MM, 4×12MM, 5×15MM, 6.3×19MM, 7.1×21MM, 7.9×23MM, 8.7×32.8MM, 9×27MM, 9.6×28.6MM, 10×28MM, 11.2×34MM, 14×42MM IS ALSO AVAILABLE

Code No.	Size mm	Pitch	Width		WLL	Proof Force	Min. Breaking Load	Weight
		mm	Internal Min. mm	External Max. mm	T	kN	kN	Kg/m
DS-C0001	6	18	7.8	22.2	1.12	28.3	45.2	0.78
DS-C0002	7	21	9.1	25.9	1.5	38.5	61.6	1.06
DS-C0003	8	24	10.4	29.6	2	50.3	80.4	1.38
DS-C0004	10	30	13.0	37.0	3.15	78.5	126	2.2
DS-C0005	13	39	16.9	48.1	5.3	133	212	3.7
DS-C0006	16	48	20.8	59.2	8	201	322	5.6
DS-C0007	18	54	23.4	66.6	10	254	407	6.8
DS-C0007A	19	57	24.7	70.3	11.5	281	450	8.1
DS-C0008	20	60	26.0	74.0	12.5	314	503	8.6
DS-C0009	22	66	28.6	81.4	15	380	608	10.2
DS-C0009A	23	69	29.9	85.1	16.6	415	664	12.0
DS-C0009B	25	75	32.5	92.5	19.63	490.6	785	14.1
DS-C0010	26	78	33.8	96.2	21.2	531	849	14.87
DS-C0011	32	96	41.6	118.0	31.5	804	1290	22.29
DS-C0012	34	102	46.5	121.5	36.3	870	1450	25.5
DS-C0012A	36	108	49.5	128.5	40.7	978	1630	31
DS-C0012B	38	114	52	136	45.3	1086	1810	32
DS-C0012C	42	126	55.5	144.5	55.4	1332	2200	38.6

Welcome to buy the newest and cheap DAWSON g80 EN818-2 Alloy Lifting Chain forged super alloy steel from our factory. We're one of the leading China manufacturers and suppliers, offering you the wholesale service and the OEM service at a discount. With CE certification, our products made in China in stock are high in quality and low in price. Please be free to get the free sample from us.

Products Show:

Hot Tags: Alloy Lifting Chain, EN818-2 Alloy Lifting Chain, China G80 Alloy Chain, Grade 80 Alloy Lifting Chain Supplier, Wholesale Alloy Lifting Chain, Hot Sale G80 Alloy Lifting Chain, Low Price G80 Alloy Chain, Buy Discount Welded Link Chain, China EN818-2 Lifting Chain Manufacturer, Grade 80 Alloy Chain Factory, Alloy Lifting Chain In Stock, Alloy Lifting Chain OEM, Black Painted Alloy Lifting Chain Free Sample, Alloy Chain for Lifting Exporter China, Customized Alloy Lifting Chain
