DAWSON/OEM
DG-BCS0832
1/2-85ton
Availability: | |
---|---|
Quantity: | |
Chain Shackle Bolt Type Forge Alloy High Tensile US Federal Specification, EN 13889:2003+A1:2008. DG2150 S2150.

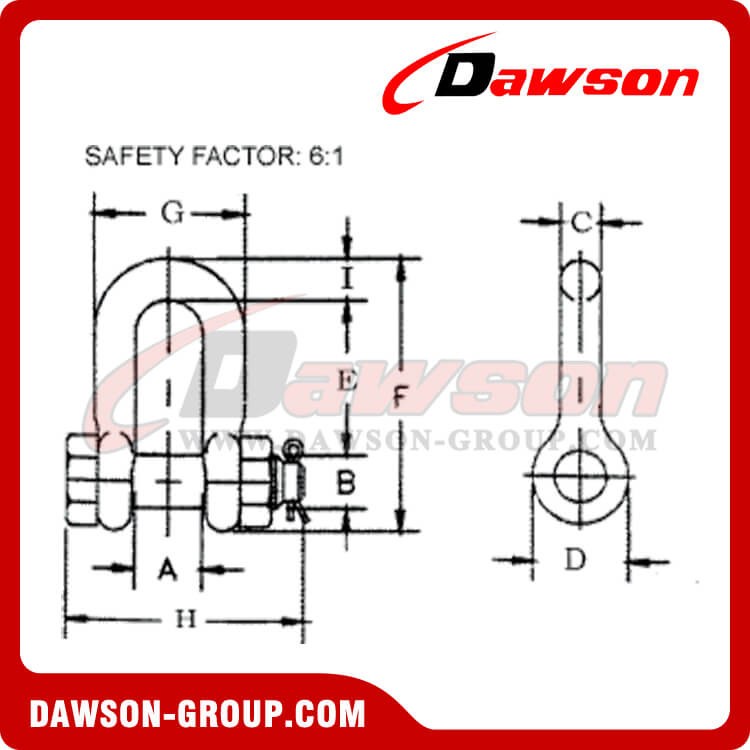

ITEM NO | Nominal Size | Working Load Limit | Dimensions(mm) | Weight Each | ||||||||
(in.) | (tons) | A | B | C | D | E | F | G | H | I | (kg) | |
DG-BCS0832 | 1/4 | 1/2 | 11.9 | 7.85 | 6.35 | 15.5 | 19.1 | 40.4 | 24.6 | 39.6 | 6.35 | 0.06 |
DG-BCS1032 | 5/16 | 3/4 | 13.5 | 9.65 | 7.85 | 19.1 | 25.4 | 48.5 | 29.5 | 46.2 | 7.85 | 0.10 |
DG-BCS1232 | 3/8 | 1 | 16.8 | 11.2 | 9.65 | 23.1 | 31.0 | 58.5 | 35.8 | 55.0 | 9.65 | 0.15 |
DG-BCS1432 | 7/16 | 1-1/2 | 19.1 | 12.7 | 11.2 | 26.9 | 36.1 | 67.5 | 41.1 | 63.5 | 11.2 | 0.22 |
DG-BCS1632 | 1/2 | 2 | 20.6 | 16.0 | 12.7 | 30.2 | 41.4 | 77.0 | 46.0 | 71.0 | 12.7 | 0.34 |
DG-BCS2032 | 5/8 | 3-1/4 | 26.9 | 19.1 | 16.0 | 38.1 | 51.0 | 95.5 | 58.5 | 89.5 | 16.0 | 0.67 |
DG-BCS2432 | 3/4 | 4-3/4 | 31.8 | 22.4 | 19.1 | 46.0 | 60.5 | 115 | 70.0 | 103 | 20.6 | 1.14 |
DG-BCS2832 | 7/8 | 6-1/2 | 36.6 | 25.4 | 22.4 | 53.0 | 71.5 | 135 | 81.0 | 120 | 24.6 | 1.74 |
DG-BCS3232 | 1 | 8-1/2 | 42.9 | 28.7 | 25.4 | 60.5 | 81.0 | 151 | 93.5 | 135 | 25.4 | 2.52 |
DG-BCS3632 | 1-1/8 | 9-1/2 | 46.0 | 31.8 | 28.7 | 68.5 | 91.0 | 172 | 103 | 150 | 31.8 | 3.45 |
DG-BCS4032 | 1-1/4 | 12 | 51.5 | 35.1 | 31.8 | 76.0 | 100 | 191 | 115 | 165 | 35.1 | 4.90 |
DG-BCS4432 | 1-3/8 | 13-1/2 | 57.0 | 38.1 | 35.1 | 84.0 | 111 | 210 | 127 | 183 | 38.1 | 6.24 |
DG-BCS4832 | 1-1/2 | 17 | 60.5 | 41.4 | 38.1 | 92.0 | 122 | 230 | 137 | 196 | 41.1 | 8.39 |
DG-BCS5632 | 1-3/4 | 25 | 73.0 | 51.0 | 44.5 | 106 | 146 | 279 | 162 | 230 | 54.0 | 14.2 |
DG-BCS6432 | 2 | 35 | 82.5 | 57.0 | 51.0 | 122 | 172 | 312 | 184 | 264 | 51.0 | 21.2 |
DG-BCS8032 | 2-1/2 | 55 | 105 | 70.0 | 66.5 | 145 | 203 | 377 | 238 | 344 | 66.5 | 38.6 |
DG-BCS9632 | 3 | 85 | 127 | 82.5 | 76.0 | 165 | 216 | 429 | 279 | 419 | 89.0 | 56 |

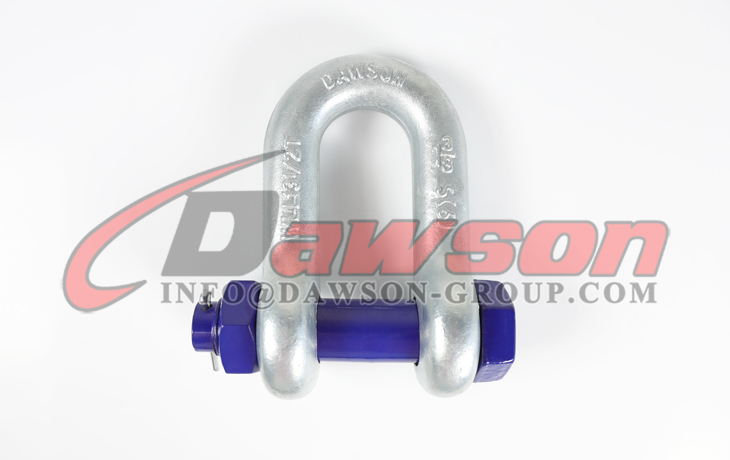

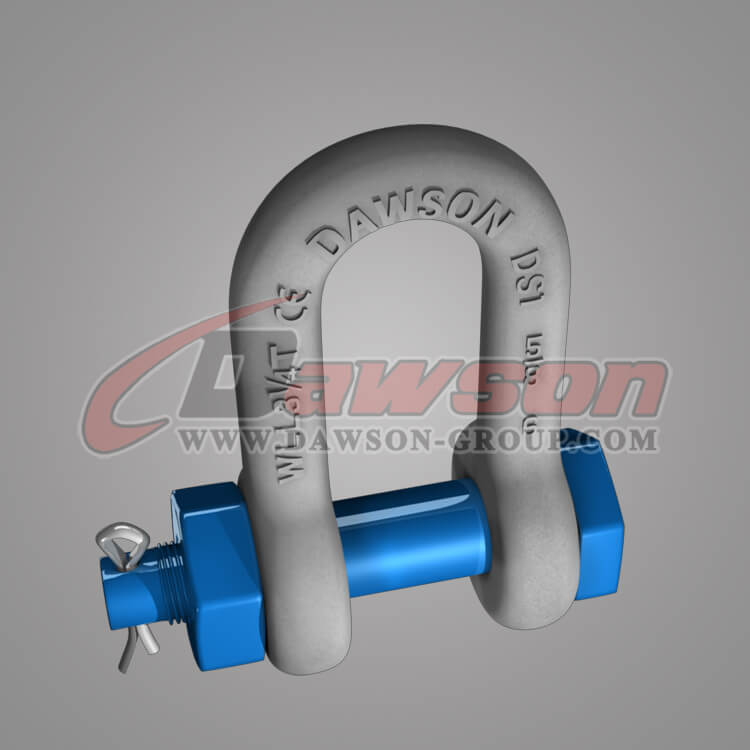

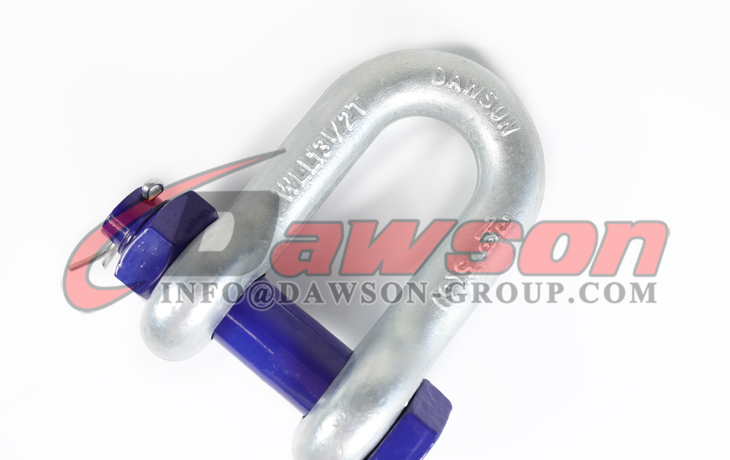

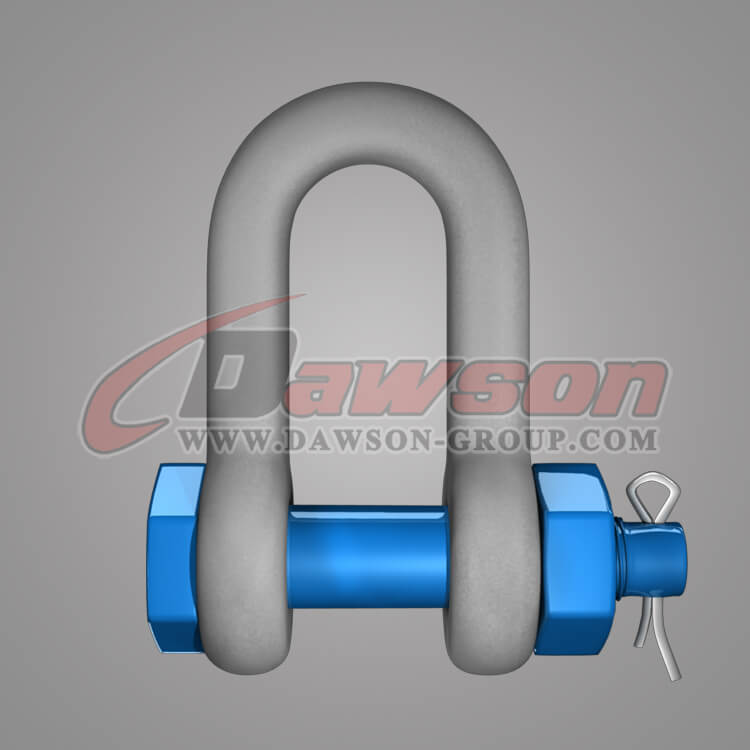

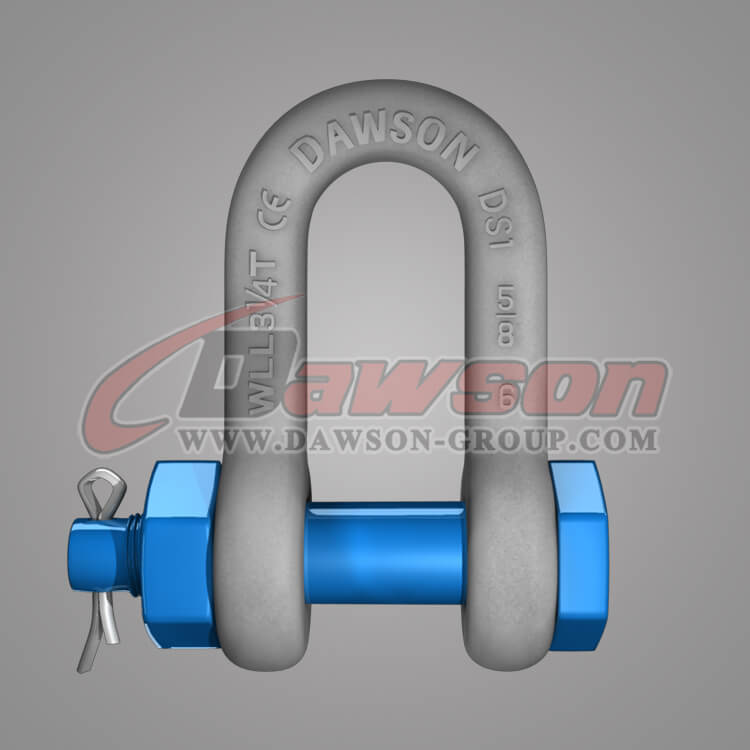

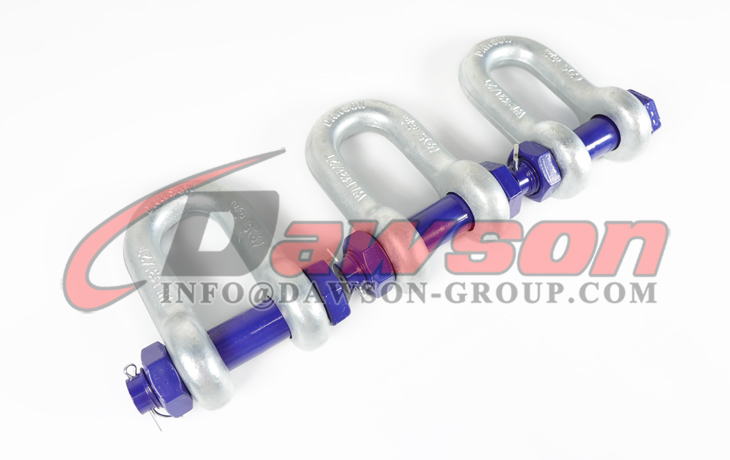

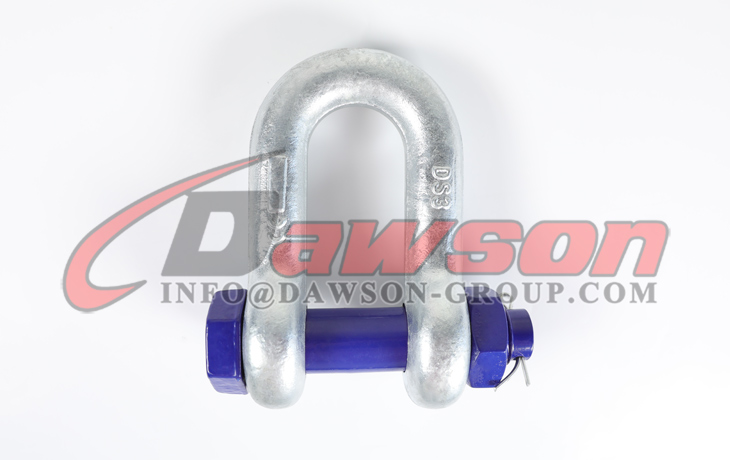

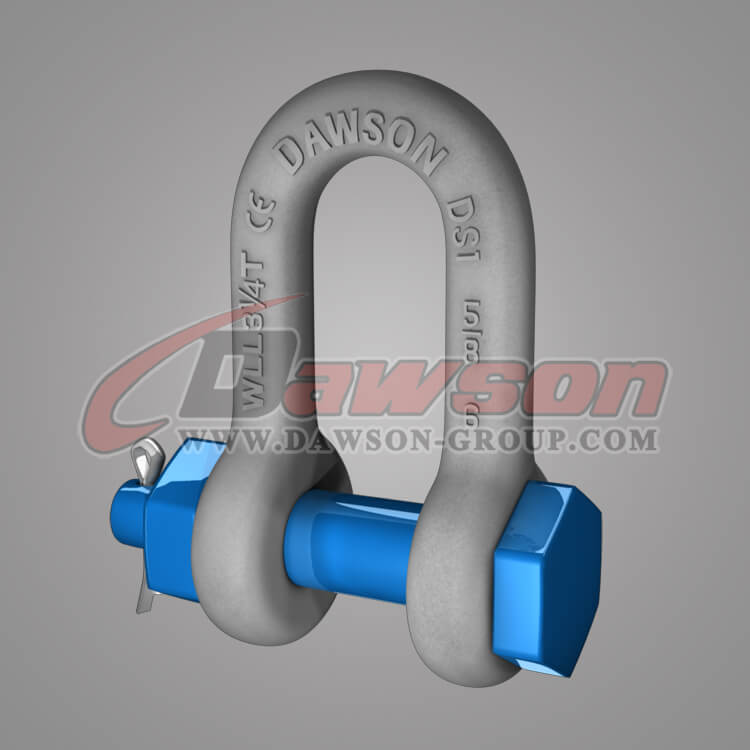

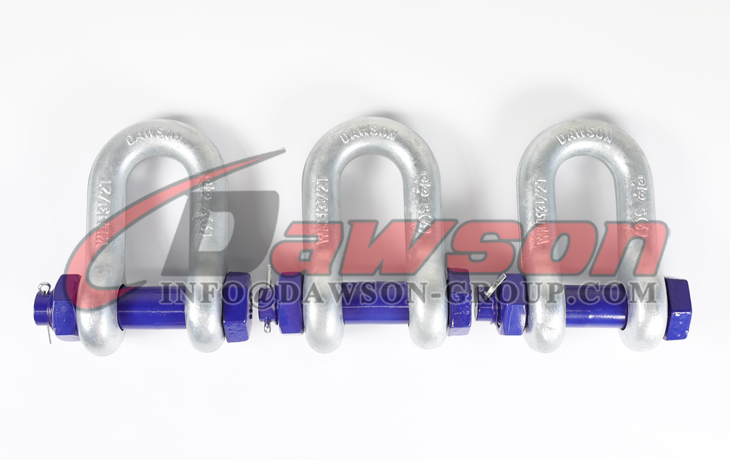

Welcome to buy the newest and competitive price DAWSON Dawson Brand Hot Dip Galvanized DG2150 US Type Chain Shackle with Safety Pin, S6 Bolt Type Dee Shackle from our factory. We're one of the leading China manufacturers and suppliers, offering you the wholesale service and the OEM service at a discount. With CE certification, our products made in China in stock are high in quality and low in price. Please be free to get the free sample from us.
For further information, please contact us. Email:info@dawson-group.com
Bolt Type Chain Shackles meet the performance requirements of Federal Specification RR-C-271G Type IVB, EN 13889:2003+A1:2008, Grade A, Class 3, except for those provisions required of the contractor.
Application: Forged high tensile Dee shackle mainly using for lifting purpose of lashing or fishing, the bolt type using for that place with a long time fixed.
Hot Tags: bulk chain shackle, low price bolt type chain shackle, high quality chain shackle with safety pin, wholesale S6 safety pin chain shackle, buy discount S6 dee shackle with safety pin, chain shackle China supplier, chain shackle China factory, chain shackle China manufacturer, S6 chain shackle OEM, high tensile shackle dawson brands, hot galvanizing S6 shackle in stock, customized S6 dee shackle, hot sale shackle with safety pin, cheap price S6 shackle with safety pin, shackle with safety pin China exporter, fixed nut shackle free sample
