DSHW-A TYPE 150kg-2000kg Hand Spur Gear Winch, DSHW-AB Hand Worm Gear Winch with CE Certificate

Capacity: 150-2000kg

  • DAWSON/OEM

  • DSHW-A / DSHW-AB

  • 150-2000kg

Availability:
Quantity:
Inquire Add to Basket

DSHW-A TYPE 150kg-2000kg Hand Spur Gear Winch, DSHW-AB 250KG-1000KG Hand Worm Gear Winch with CE Certificate

 - Dawson Group Ltd. - China manufacturer, Supplier, Factory

DSHW-A Hand Winch - Dawson Group Ltd.
Hand Spur gear Winch - Dawson Group Ltd. - China Manufacturer, Supplier    Hand Spur gear Winch - Dawson Group Ltd. - China M Supplier, Factory

DSHW-A TYPE Hand Spur Gear Winch

Featured
Position: flat or wall-mounted
Industry
Auditoriums, theatre scenery
Water treatment, water retentions
Transport: trailers, barges
Sports rooms
Hanging chandeliers….
Hand Spur gear Winch - Dawson Group Ltd. - China Supplier, Factory

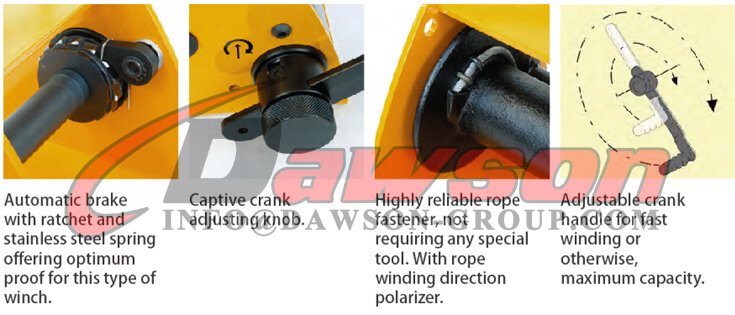

Technical Properties
Encased mechanical parts
Automatic brake
Stainless steel ratchet spring
Straight-cut gears
Highly rugged design, thanks to the exceptional
rigidity of the frame
Automatic brake made of composite materials.
Ergonomic and removable crank handle with rotating grip, This crank arm can be adjusted to minimise effort according to the loads,
Captive adjusting knob.

Model Capacity Wire Rope Length No. of Layers Net Weight
kg mm mm kg
DSHW-A150 150 4 22 6 8
DSHW-A300 300 5 40 6 16
DSHW-A500 500 6.8 25 4 17
DSHW-A1000 1000 9 25 4 38
DSHW-A2000 2000 13 30 3 60

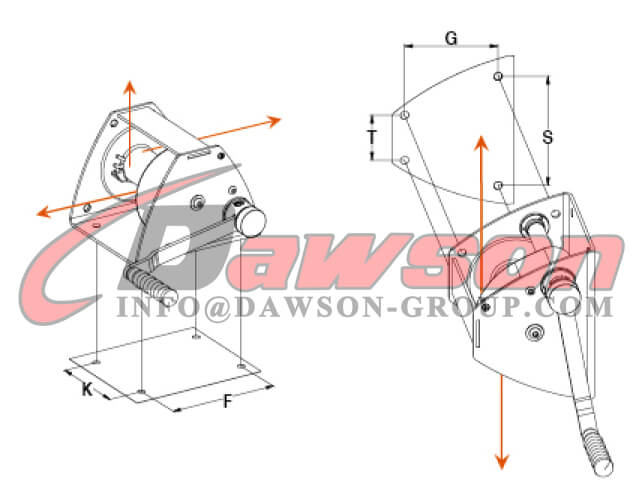

Capacity A B C D E ΦX Drive Ratio
kg mm m
150 180 325 150 150 350 4*22 2.842:1
300 240 385 200 200 250 5*40 6.67:1
500 240 385 200 200 250 6.8*20 7.75:1
1000 412 485 300 300 350 9*25 23.75:1
2000 500 585 405 405 350 13*30 43.7:1

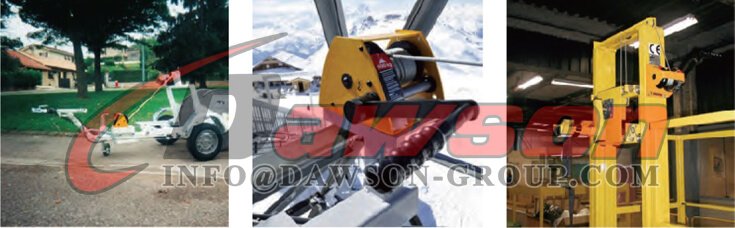

Application of Hand Spur gear Winch - Dawson Group Ltd. - China Supplier, Factory
Application of Hand Spur Gear Winch:

Application of Hand Spur gear Winch - Dawson Group Ltd. - China Supplier


DSHW-AB Hand Worm Gear Winch
Hand Worm gear Winch - Dawson Group Ltd. - China Factory, Exporter   Hand Worm gear Winch - Dawson Group Ltd. - China Manufacturer, Supplier

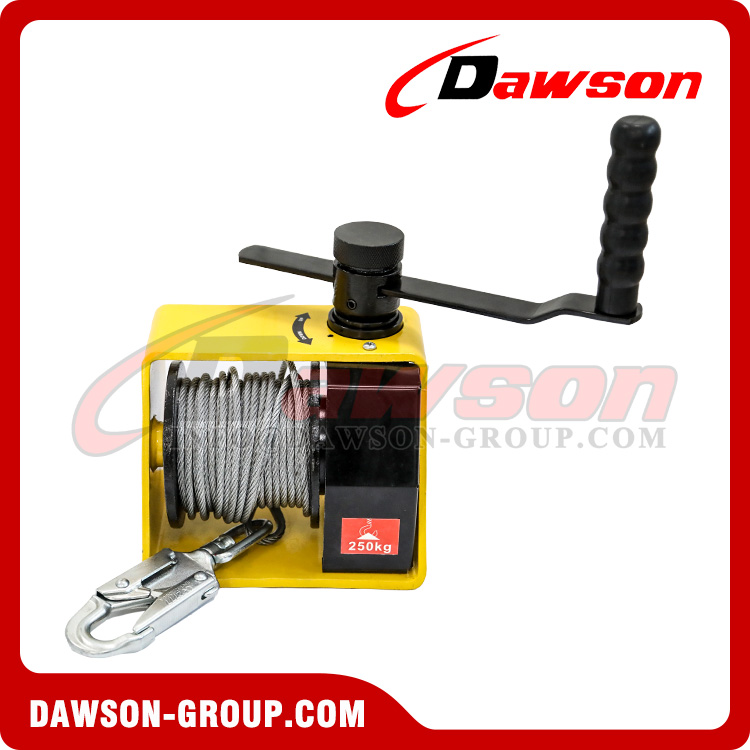

DSHW-AB Hand Worm Gear Winch with Wire Rope, Hand Winch - Dawson Group Ltd. - China Factory, Supplier   DSHW-AB TYPE SWL 250KG Worm Gear Hand Lifting Winch with Wire Rope and Hook for Tripod Davit - Dawson Group Ltd. - China Manufacturer, Supplier, Factory
DSHW-AB Hand Winch - Dawson Group Ltd.




Featured
Position: flat or wall-mounted
Industry
Shows, sceneries
Water treatment, water retentions
Sports rooms
Hanging chandeliers.

Technical Properties
Absolute safety by worm gear reduction +automatic brake.
Encased mechanical parts
Automatic brake
Stainless steel ratchet spring.
Straight-cut gears.
 Highly rugged design, thanks to the exceptional rigidity of the frame

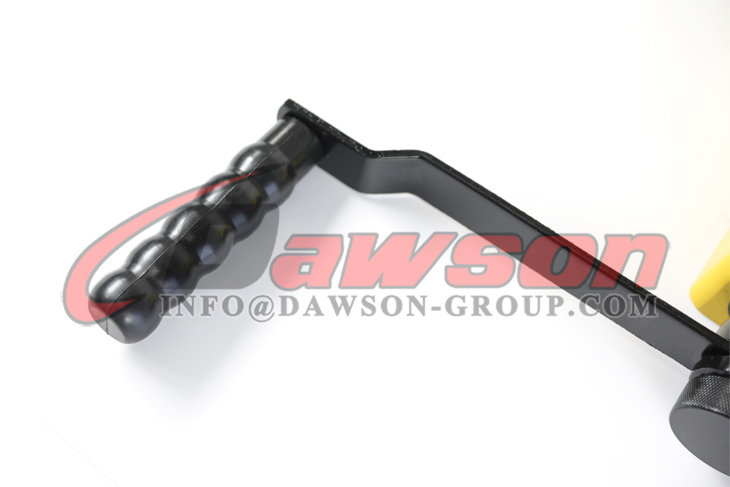

Ergonomic and removable crank handle with rotating grip, This crank arm can be adjusted to minimise effort according to the loads
Captive adjusting knob.

Item No S.W.L. Load Capacity For Wire Rope Length Number of Layers A(mm) B(mm) C(mm) D(mm) E(mm) ΦX(m) Drive ratio Weight(kg)
DSHW-AB-250 250kg 250kg 5mm 20m 4 150 330 150 200 240 5×20 15:1 10
DSHW-AB-500 500kg 500kg 6.8mm 25m 4 180 360 180 260 240 6.8×25 21:1 16
DSHW-AB-1000 1000kg 1000kg 9mm 35m 4 300 490 300 300 370 9×35 26:1 40

If you have any intrest, please contact us. E-mail: info@dawson-group.com.

Products Show:

DSHW-AB Hand Worm Gear Winch with Wire Rope, Hand Winch - Dawson Group Ltd. - China Factory
DSHW-AB Hand Worm Gear Winch with Wire Rope, Hand Winch - Dawson Group Ltd. - China Manufacturer, Factory
DSHW-AB Hand Worm Gear Winch with Wire Rope, Hand Winch - Dawson Group Ltd. - China Manufacturer, Supplier, Factory
DSHW-AB Hand Worm Gear Winch with Wire Rope, Hand Winch - Dawson Group Ltd. - China Manufacturer
DSHW-AB Hand Worm Gear Winch with Wire Rope, Hand Winch - Dawson Group Ltd. - China Supplier, Factory
DSHW-AB Hand Worm Gear Winch with Wire Rope, Hand Winch - Dawson Group Ltd. - China Manufacturer, Supplier
DSHW-AB TYPE SWL 250KG Worm Gear Hand Lifting Winch with Wire Rope and Hook for Tripod Davit - Dawson Group Ltd. - China Factory, Supplier
DSHW-AB TYPE SWL 250KG Worm Gear Hand Lifting Winch with Wire Rope and Hook for Tripod Davit - Dawson Group Ltd. - China Factory
DSHW-AB TYPE SWL 250KG Worm Gear Hand Lifting Winch with Wire Rope and Hook for Tripod Davit - Dawson Group Ltd. - China Manufacturer, Factory
DSHW-AB TYPE SWL 250KG Worm Gear Hand Lifting Winch with Wire Rope and Hook for Tripod Davit - Dawson Group Ltd. - China Manufacturer
DSHW-AB TYPE SWL 250KG Worm Gear Hand Lifting Winch with Wire Rope and Hook for Tripod Davit - Dawson Group Ltd. - China Manufacturer, Supplier
DSHW-AB TYPE SWL 250KG Worm Gear Hand Lifting Winch with Wire Rope and Hook for Tripod Davit - Dawson Group Ltd. - China Supplier
DSHW-AB TYPE SWL 250KG Worm Gear Hand Lifting Winch with Wire Rope and Hook for Tripod Davit - Dawson Group Ltd. - China Supplier, Factory

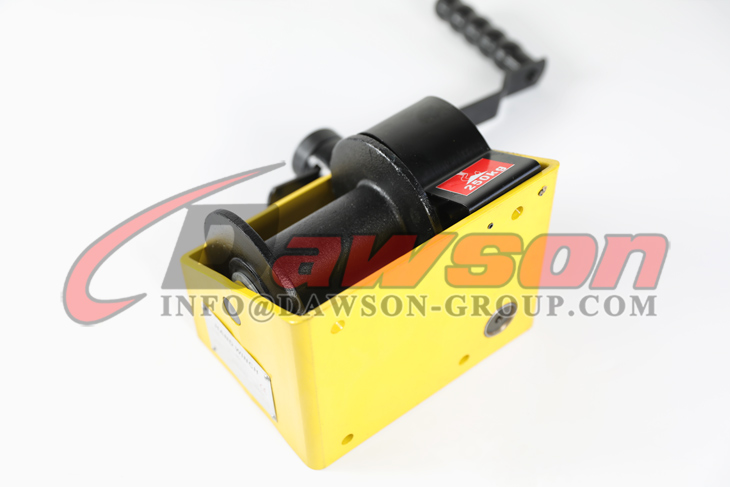

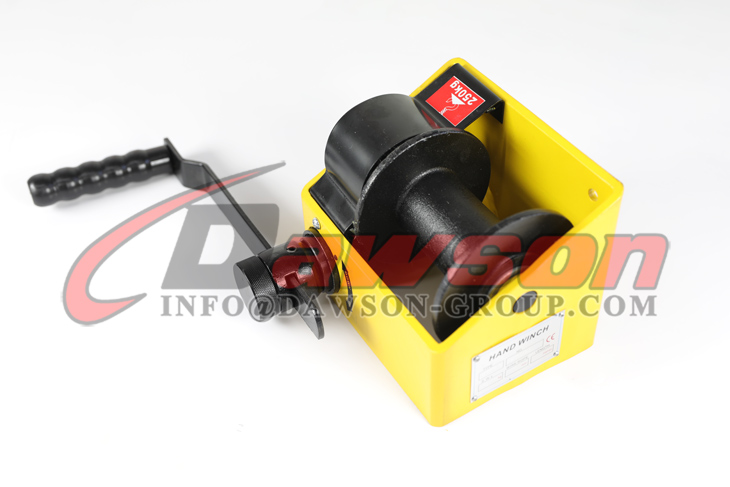

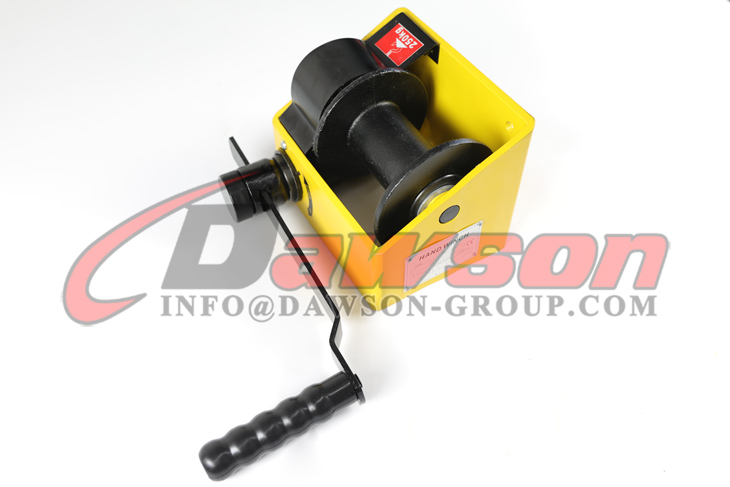

DSHW-AB TYPE 250kg Worm Gear Hand Lifting Winch - Dawson Group Ltd. - China manufacturer, Supplier, Factory
DSHW-AB TYPE 250kg Worm Gear Hand Lifting Winch - Dawson Group Ltd. - China manufacturer, Factory
DSHW-AB TYPE 250kg Worm Gear Hand Lifting Winch - Dawson Group Ltd. - China manufacturer, Supplier
DSHW-AB TYPE Worm Gear Hand Lifting Winch - Dawson Group Ltd. - China Manufacturer, Supplier

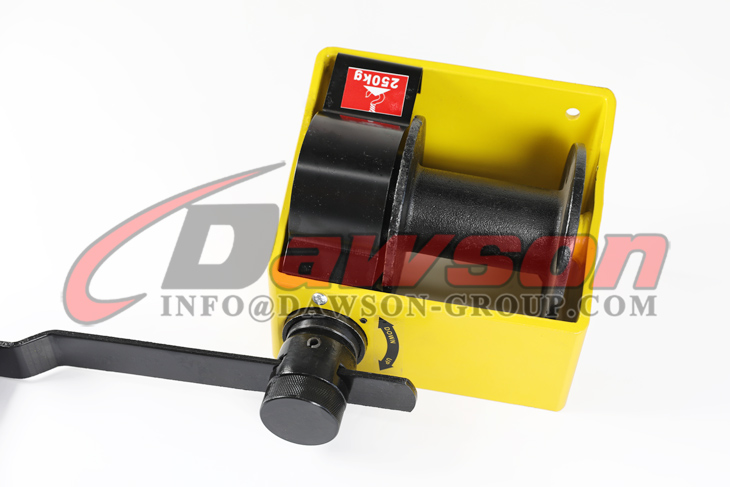

DSHW-AB TYPE 250kg Worm Gear Hand Lifting Winch - Dawson Group Ltd. - China Supplier, Factory
DSHW-AB TYPE Worm Gear Hand Lifting Winch 250kg - Dawson Group Ltd. - China Manufacturer, Factory
DSHW-AB TYPE Worm Gear Hand Lifting Winch 250kg - Dawson Group Ltd. - China Supplier, Factory
DSHW-AB TYPE Worm Gear Hand Lifting Winch 250kg - Dawson Group Ltd. - China Manufacturer, Supplier, Factory
DSHW-AB TYPE Worm Gear Hand Lifting Winch 250kg - Dawson Group Ltd. - China Manufacturer, Supplier
DSHW-A TYPE Worm Gear Hand Lifting Winch - Dawson Group Ltd. - China Manufacturer, Supplier, Factory

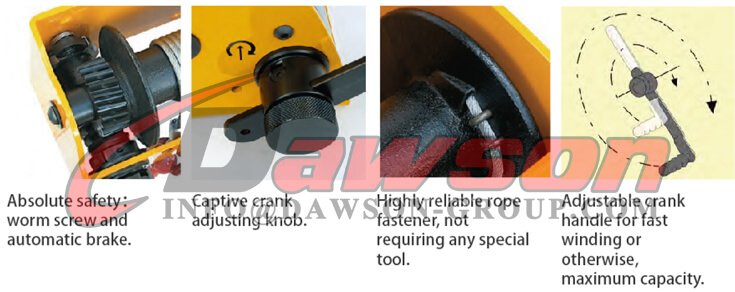

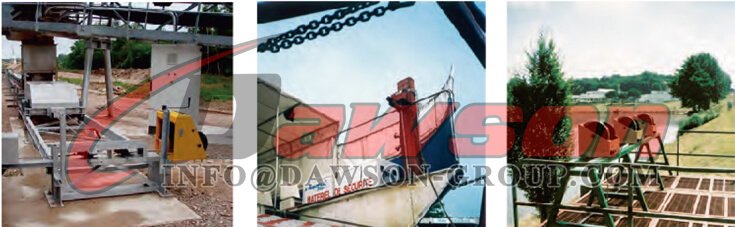

Application of Hand Worm gear Winch - Dawson Group Ltd. - China Supplier, Exporter

Hot Tags: Hand Winch, Hand Worm Gear Winch, Boat Trailer Hand Winch, Truck Hand Winch, Hand Spur Gear Winch, Small Hand Winch, Reversible Hand Winches China, Hot Sale Hand Winch, Buy Discount Reversible Hand Winches, Manual Hand Winch, China Reversible Hand Winches Manufacturer, China Factory Portable Hand Winch, Low Price Steel Reversible Hand Winches, China Steel Hand Winch Exporter, Customized Reversible Hand Winches, Steel Small Hand Winch In Stock, Steel Hand Winch OEM, Hand Winch for Pulling Free Sample, Wholesale Hand Spur Gear Winch, Cheap Price Worm Gear Winch

Application of Hand Worm Gear Winch:

Application of Hand Worm gear Winch - Dawson Group Ltd. - China Supplier
Application for DAWSON Hand Winch - Dawson Group Ltd. - China Manufacturer, Supplier, Factory
Application for DAWSON Hand Winch - Dawson Group Ltd. - China Manufacturer, Supplier
Application for DAWSON Hand Winch Application for DAWSON Hand Winch - Dawson Group Ltd. - China Supplier, Factory
Application about DAWSON Hand Winch - Dawson Group Ltd. - China Manufacturer, Supplier, Factory

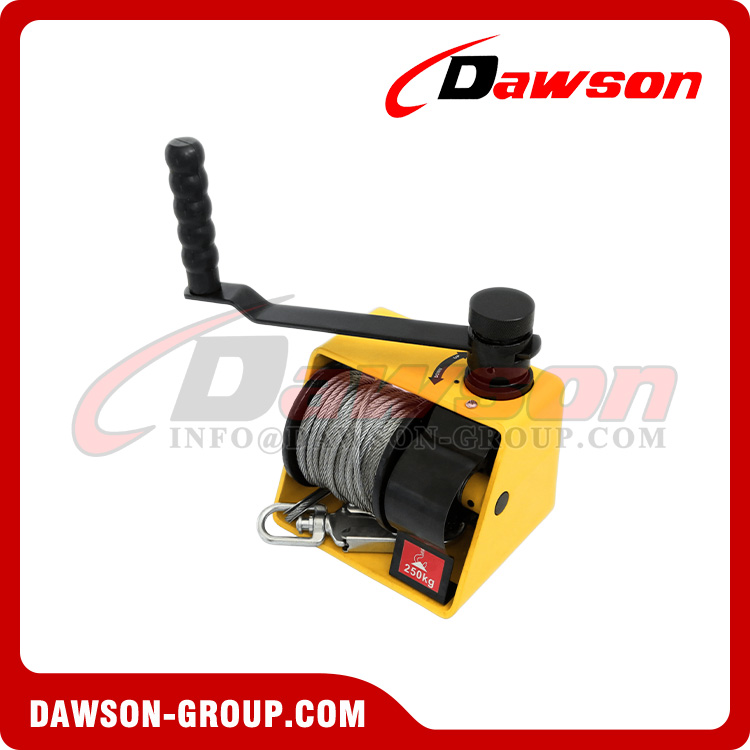

Welcome to buy the newest and competitive price DAWSON DSHW-A TYPE 250kg-1000kg Worm Gear Hand Lifting Winch from our factory. We're one of the leading China manufacturers and suppliers, offering you the wholesale service and the OEM service at a discount. With CE certification, our products made in China in stock are high in quality and low in price. Please be free to get the free sample from us.


Certificate:

CE Certificate of Hand Winch
