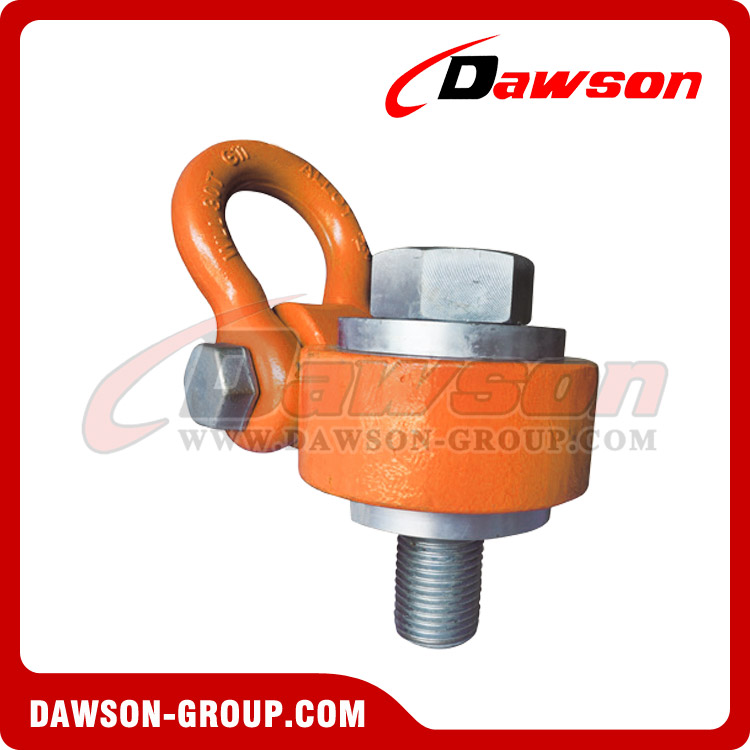

DS882 G80 M56-M125 Heavy Duty Swivel Hoist Ring

  • DAWSON/OEM

  • DS882

  • M56 - M125

Availability:
Quantity:

G80 M56-M125 Heavy Duty Swivel Hoist Ring, G80 Alloy Steel Swivel Hoist Ring for Lifting

- Dawson Group Ltd. - China Manufacturer Supplier, Factory

G80 Heavy Duty Swivel Hoist Ring - Dawson Group Ltd. - China Manufacturer, Supplier, Factory    G80 Heavy Duty Swivel Hoist Ring - Dawson Group Ltd. - China Manufacturer, Supplier

G80 Heavy Duty Swivel Hoist Ring - Dawson Group Ltd. - China Manufacturer, Factory, Supplier

Item no size W/t Technical parameter/mm Weight/kg
A B C D E F G SW
DS-882-056 M56x170L 22 85 57 117 50 250 50 175 85 41
DS-882-064 M64x185L 22 100 57 117 50 250 50 175 95 43
DS-882-072 M72x215L 30 110 57 117 50 250 50 175 105 46
DS-882-080 M80x255L 35 120 76 151 63 310 63 220 115 68
DS-882-090 M90x270L 40 135 76 151 63 310 63 220 130 71
DS-882-100 M100x285L 40 150 76 151 63 310 63 220 145 74
DS-882-110 M110x325L 50 165 85 180 78 390 78 275 155 87
DS-882-125 M125x345L 50 190 85 180 78 390 78 275 180 90
Note: Inch or non-standard lengthened bolts can be made according to customer's requirements.

Product specifications:

M56 G80 Swivel Hoist Ring, M64 G80 Swivel Hoist Ring, M72 G80 Swivel Hoist Ring, M80 G80 Swivel Hoist Ring, M90 G80 Swivel Hoist Ring, M100 G80 Swivel Hoist Ring, M110 G80 Swivel Hoist Ring, M125 G80 Swivel Hoist Ring

M56 Grade 80 Swivel Hoist Ring, M64 Grade 80 Swivel Hoist Ring, M72 Grade 80 Swivel Hoist Ring, M80 Grade 80 Swivel Hoist Ring, M90 Grade 80 Swivel Hoist Ring, M100 Grade 80 Swivel Hoist Ring, M110 Grade 80 Swivel Hoist Ring, M125 Grade 80 Swivel Hoist Ring

Brief Introduction:
Forged super alloy steel-Quenched Tempered.
Individually proof test at 2.5 times working load limit.
Fatigue tested at 1.5 times working load limit for 20000 cycles.
Breaking test magnaflux crack detection.
All load pins are 100% individually inspected and tested.
Grade 100 lifting point are 360°rotation with 90°pivot function.
Rated at 100% at 90°angle.
